USER MANUAL ORH75AC Orima

White kitchen mixer with a hand mixer inside a bowl (no text or symbols visible)

www.orima.pt

facebook.com/orima.pt

MMA

MÁRIO MIZANÇA DE ALMEIDA

BATEDEIRA

UK Thank you for purchasing this ORIMA product. Please read this manual carefully before using the appliance.

Line drawing of a portable electric stove with cooling fan and side arm (no text or symbols)

220-240V 50/60Hz 300W 5 Velocidades

RECOMENDAÇÕES DE SEGURANÇA IMPORTANTES

Technical diagram of a mechanical device with numbered components for identification

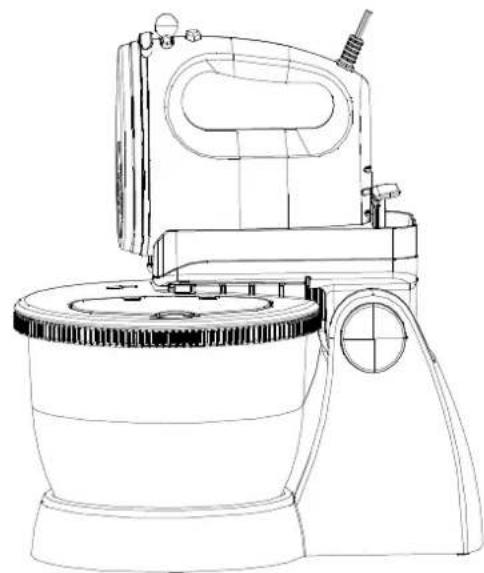

ESPECIFICAÇÕES:

Modelo: ORH 75 AC - Corrente: 230V\~ 50/60Hz - 300W

Top-down schematic of a boat hull with marked sections and circular features (no text or labels)

Technical diagram of a mechanical device with numbered parts labeled 14, 15, 16, and 17

Line drawing of a portable electric stove with cooling fan and side-mounted unit (no text or symbols)

Line drawing of a kitchen mixer with handle and control panel (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

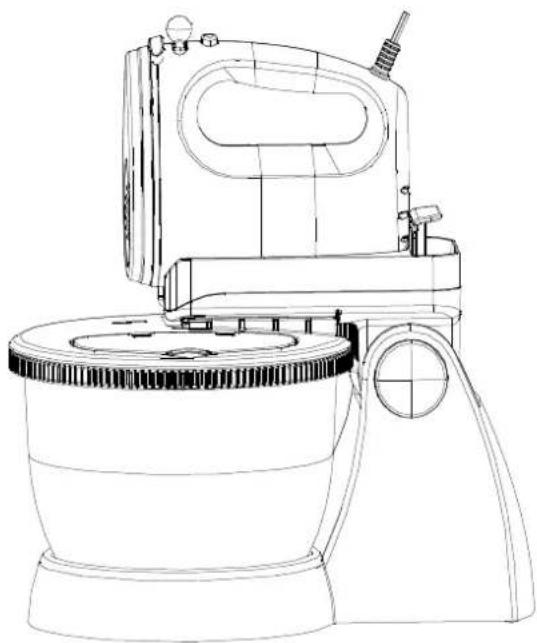

Instruction Manual for Mixer

Line drawing of a portable electric stove with cooling fan and side arm (no text or symbols)

Model: HM755CGR

220-240V

50/60Hz

300W

5speeds

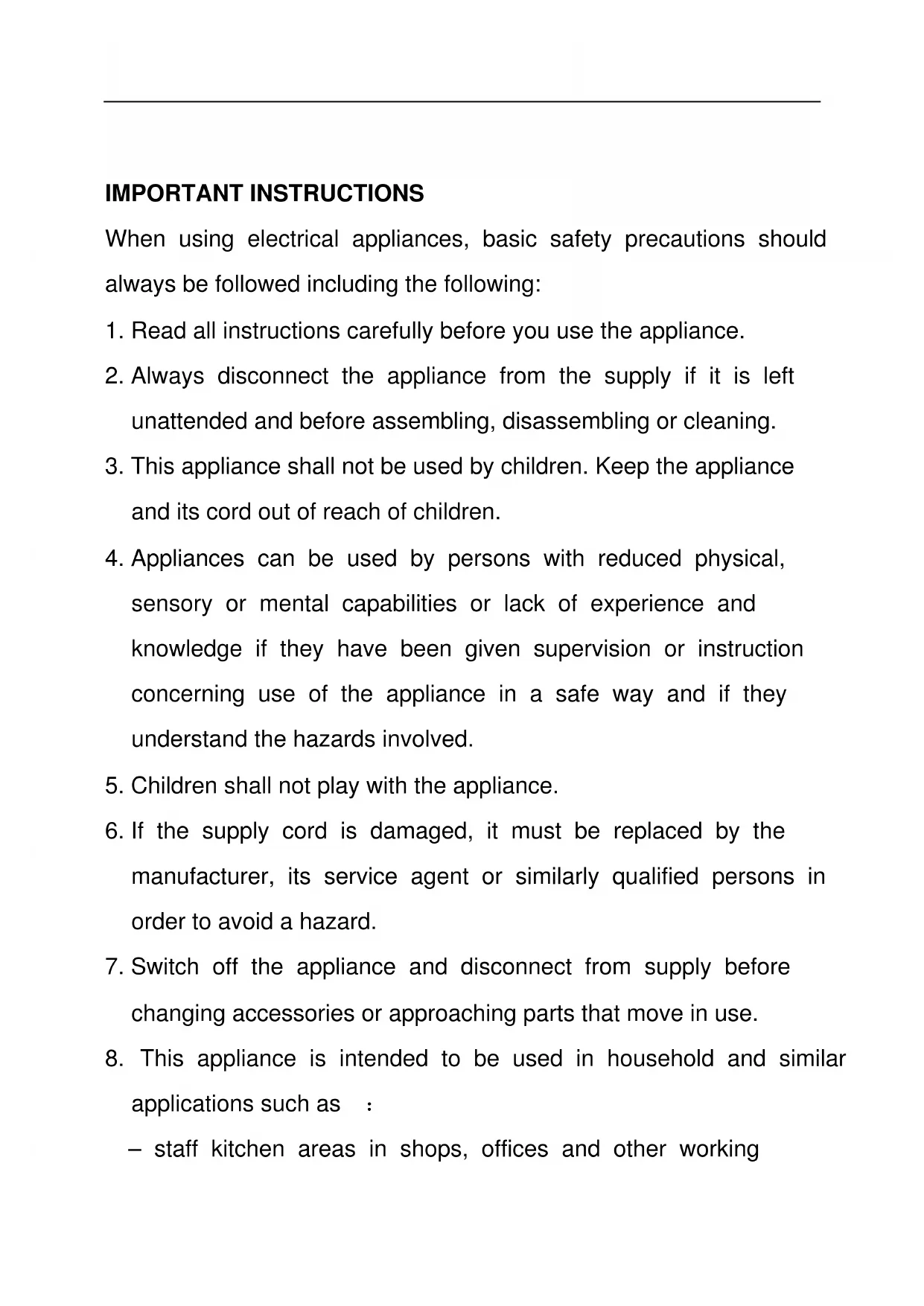

IMPORTANT INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions carefully before you use the appliance.
2. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

4. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

5. Children shall not play with the appliance.

6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

7. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

8. This appliance is intended to be used in household and similar applications such as :

- staff kitchen areas in shops, offices and other working

environments;

- farm houses;

– by clients in hotels, motels and other residential type environments;

– bed and breakfast type environments.

1. WARNING: Risks of injuries if you don't use this appliance correctly.

2. Regarding the instructions for cleaning surfaces in contact with food, thanks to refer to the section “Cleaning”.

3. Regarding the operating times and speed setting, thanks to refer to the section “Operation/Use of the appliance”.

4. Read all instructions carefully before you use the appliance.

5. To protect against risk of electrical shock do not put the mixer in water or other liquid.

6. Do not operate the mixer with wet hands.

7. Unplug from outlet when it is not in use, before putting on or taking off parts, before moving the appliance or adding the food, and before cleaning.

8. Keep hands, hair, clothing, as well as spatulas and other utensils away from the beaters during operation to reduce the risk of injury to persons, and/or damaged to the mixer.

9. Remove beaters from the mixer before washing them.

10. Do not continuously operate the mixer too long. The motor may overheat. The continuous operating time must be less than 10 minutes.

11. Do not use the appliance to mix too stiff or too sticky ingredients.

12. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
13. Do not let cord contact hot surface, including the stove.
14. Do not let cord hang over edge of the table or counter.
15. Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
16. Do not use outdoors.

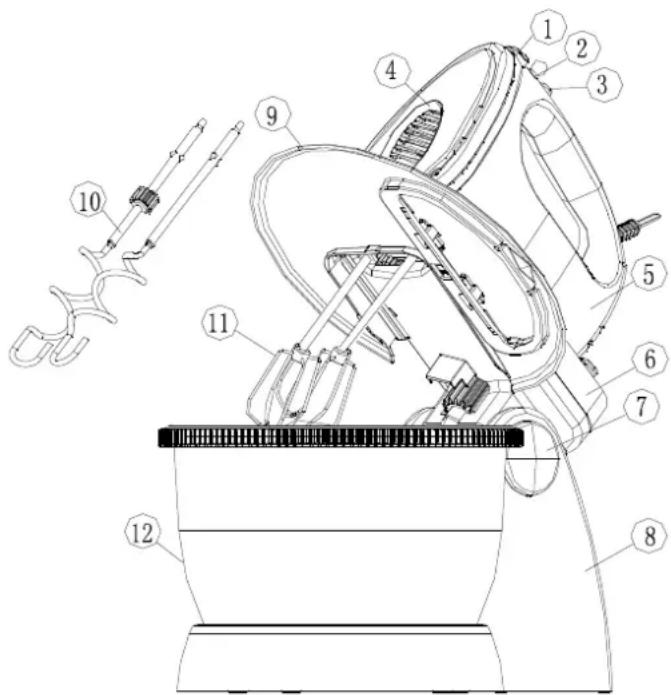

Description:

1. Ejector button
2. Speed selector
3. Turbo control
4. Decorative ring
5. Main body
6. Rocker support
7. Base button
8. Base
9. Bowl cover
10. Kneading hook
11. Whisk
12. Bowl

Technical diagram of a robotic device with numbered components and labeled parts

SPECIFICATION:

Model: HM755CGR

Rating: 220-240V, 50/60Hz, 300W

Working settings: 1-5 speed, Turbo speed

MIXING GUIDE:

SPEED DESCRIPTION
1WHIPPING	For cooked icings, whipping cream. etc
2-3CREAM	For creaming butter and sugar. Beating uncooked candy. desserts. etc.
4BLENDING	Best speed to start liquid ingredients for mixing salad dressings.
5FOLDING or MIXING	This is a good starting speed for bulk and dry foods such as flour. butter and potatoes, and for mixing cakes, cookies and quick breads , and for beating eggs .

Note:

Use Kneading hooks to mix thick sticky flour. Use Whisks to beat eggs.

The maximum quantity is 1050g flour plus 750g water. The other foods do not exceed 2.4L.

Operation/Use of the appliance

1. Fit the whisks (11) or

the kneading hooks (10) to the

beater holes(13).

Note: the kneading hook with the end washer

should be fitted into the large hole and the other one

is for the small one.

Technical diagram of a boat hull with numbered components and centerlines

1. Put the bowl where you mix the ingredients on the base.

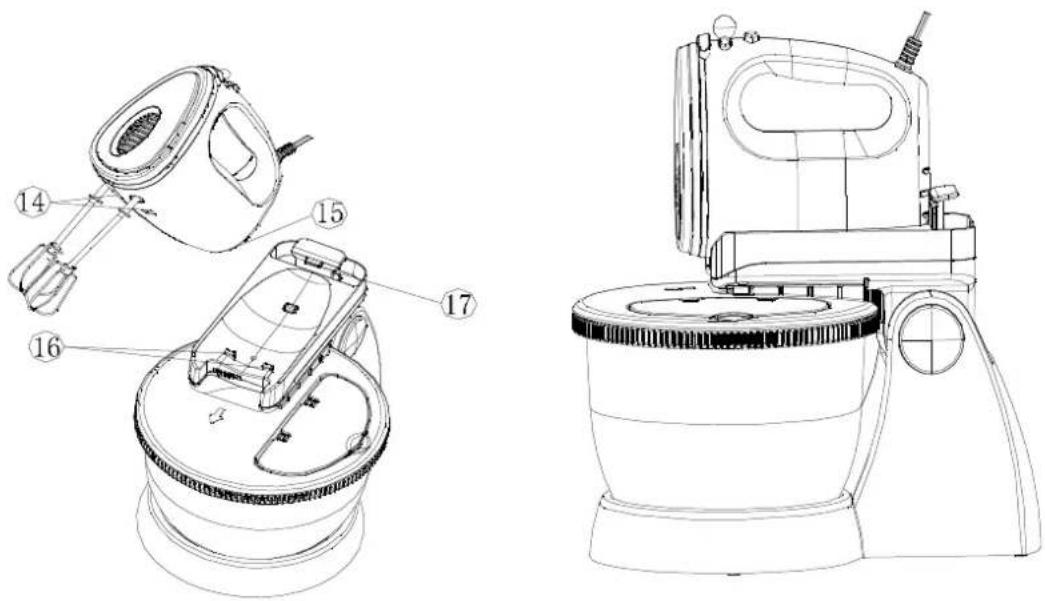

2. Align the hollow (14) with the snap-fit (16) on the rocker. Place the mixer onto the rocker and pull backwards until the linking rod (17) on the rocker slides into the hole (15).

Technical line drawings of a mechanical device with numbered components, including a top view and side view.

1. Plug in the appliance.

2. Switch on the speed selector (2) and select the speed desired. The mixer begins to mix the ingredients in the bowl.

3. To knead or mix the stiff, heavy or dry foods such as flour, pasta, potatoes, breads, cakes, etc, hold firmly to the mixer handle with one hand; meanwhile, rotate the bowl anticlockwise slowly by the other hand for the duration to help make mixtures evenly mixed.

Line drawing of a kitchen mixer with handle and control panel (no text or symbols)

1. When you have finished mixing, stop the mixer by pushing the speed selector to "0" immediately.

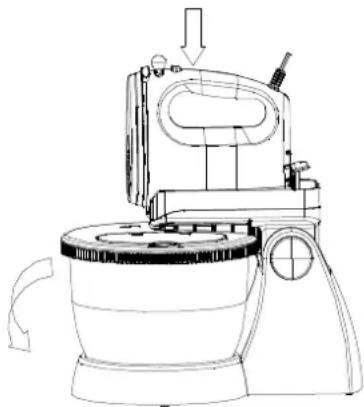

2. Wait until the whisks / the kneading hooks have stopped revolving, disconnect the appliance from the outlet. Press the base button (7) to rotate the rocker, then remove the mixer in the reverse of the fitting.

Technical line drawing of a robotic arm with attached components and a syringe (no text or symbols)

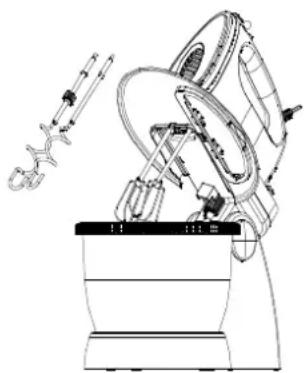

1. Press the ejector button (1) to remove whisks /the kneading hooks.

2. You can press "Turbo" button to accelerate the speed during mixing.

3. Unplug the appliance when you have finished mixing and always before you clean it.

CLEANING

1. Unplug the appliance from outlet before cleaning and maintenance.
2. Wash the bowl, whisks and kneading hooks with water after using.

Warning: Do not immerse the motor unit in water or other liquid. Only clean it by dry cloth.

Caution: Do not use chemical, steel, wooden or abrasive cleaners to clean the unit to prevent the gloss loss.

1. Dry thoroughly before storage.

WARNING:

Any other servicing should be performed by an authorized service representative.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Line drawing of a mechanical device with a circular base and handle, no text or symbols present

220-240V 50/60Hz 300W 5 vitesses

RECOMMANDATION IMPORTANTE DE SECURITE

Technical diagram of a mechanical device with numbered components and labeled parts

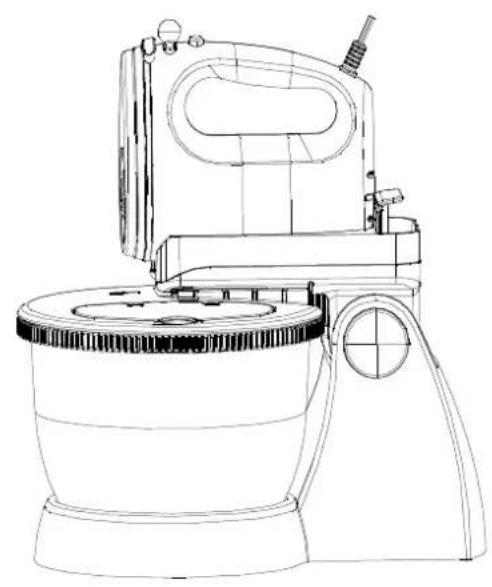

Spécifications:

Modèle: ORH 75 AC;

Courant: 230V\~, 50/60Hz, 300W;

Technical diagram of a mechanical device with numbered components for identification

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a kitchen mixer with handle and control panel (no text or symbols)

Line drawing of a laboratory apparatus with a pipette and tubing (no text or symbols)
