Brand	Orima
Model	ORP883
Product type	Juice extractor (citrus press)
Usage	Domestic
Extraction system	Automatic left/right rotation
Cone included	Two cones: large and small
Filters included	Double filtration (filter A and filter B)
Mixing glass	Included
Transparent lid	Included
Max continuous use	3 minutes
Stop after use	Unplug after use
Cleaning	Washable with water (except motor); dry with a cloth
Glass material	Glass
Power cord	Length not specified
Safety	Do not immerse motor; do not use outdoors
Accessories included	Large cone, small cone, filter A, filter B, mixing glass, transparent lid

Frequently Asked Questions - ORP883 Orima

How to assemble the Orima ORP883 juice extractor?

Place the mixing glass (6) on the motor unit (8) and turn it clockwise to lock it. Mount the filter A (4) onto the filter B (5) by turning left. Finally, place the cone (3) on the motor shaft.

How to use the juice extractor?

Cut the fruit in half, plug in the appliance, then gently press each half onto the cone. The appliance automatically starts rotating left and right. Use the large cone for large fruits.

How to clean the appliance?

Always unplug the appliance before cleaning. Remove the pulp, disassemble the cone and filters, wash them with water. Do not immerse the motor; clean it with a damp cloth. Dry all parts before storing.

Are the parts dishwasher safe?

The manual does not mention the dishwasher. As a precaution, wash the parts by hand with clean water to avoid any damage.

What to do if the power cord is damaged?

If the cord is damaged, it must be replaced by a qualified technician to avoid any danger. Do not use the appliance until the cord is repaired.

Can I extract juice from fruits other than oranges?

Yes, the appliance is suitable for all juicy fruits (lemons, grapefruits, etc.). Adapt the cone according to the fruit size.

How long can I use the appliance continuously?

Do not exceed 3 minutes of continuous use to avoid overheating. Let the appliance cool down before reusing.

Can children use the extractor?

This appliance can be used by children aged 8 years or older under adult supervision. Children should not play with the appliance.

Where to find spare parts?

Contact the Orima after-sales service or your retailer for spare parts. The manual does not specify a reference number.

What to do if the appliance does not work?

Check the power outlet and connection. Make sure the mixing glass and filters are correctly installed. If the problem persists, consult a qualified technician.

USER MANUAL ORP883 Orima

MANUAL DE INSTRUÇÕES

INSTRUCTION MANUAL LIVRE D'INSTRUCTIONS LIBRO DE INSTRUCCIONES

www.orima.pt

facebook.com/orima.pt

White Orima brand water heater with a glass lid and digital display (no visible text or symbols on the device body)

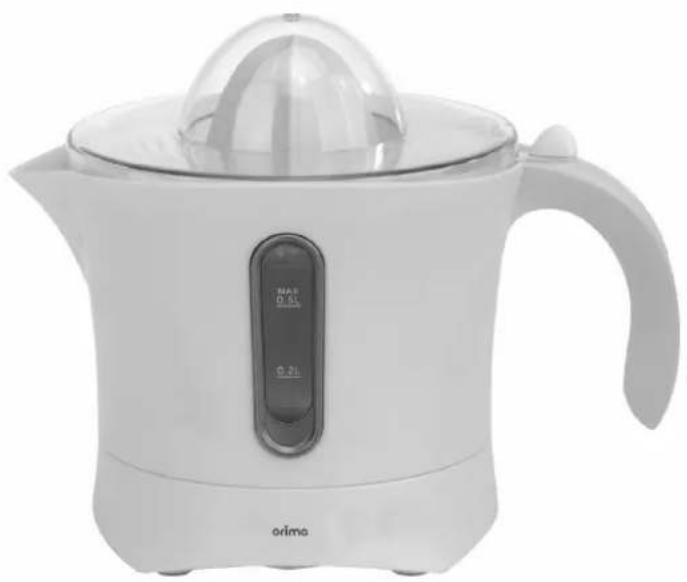

ESPREMEDOR DE CITRINOS

Citrus Juicer | Exprimidor de Cítrinos | Presse-Agrumes

ORP-883

SERVIÇO DE APOIO AO CLIENTE

Apoio ao Cliente:

Tel.: [phone] E: [e-mail]

Serviço Pós Venda:

Tel.: [phone] E: [e-mail]

UK Thank you for purchasing this ORIMA product. Please read this manual carefully before using the appliance.

Exploded diagram of a kitchen appliance with numbered parts for identification

Modo de Utilização

Simple diagram with two curved shapes and a double-headed arrow, no text or symbols present

Illustration of a hand washing a faucet over water with stones, no text or symbols present

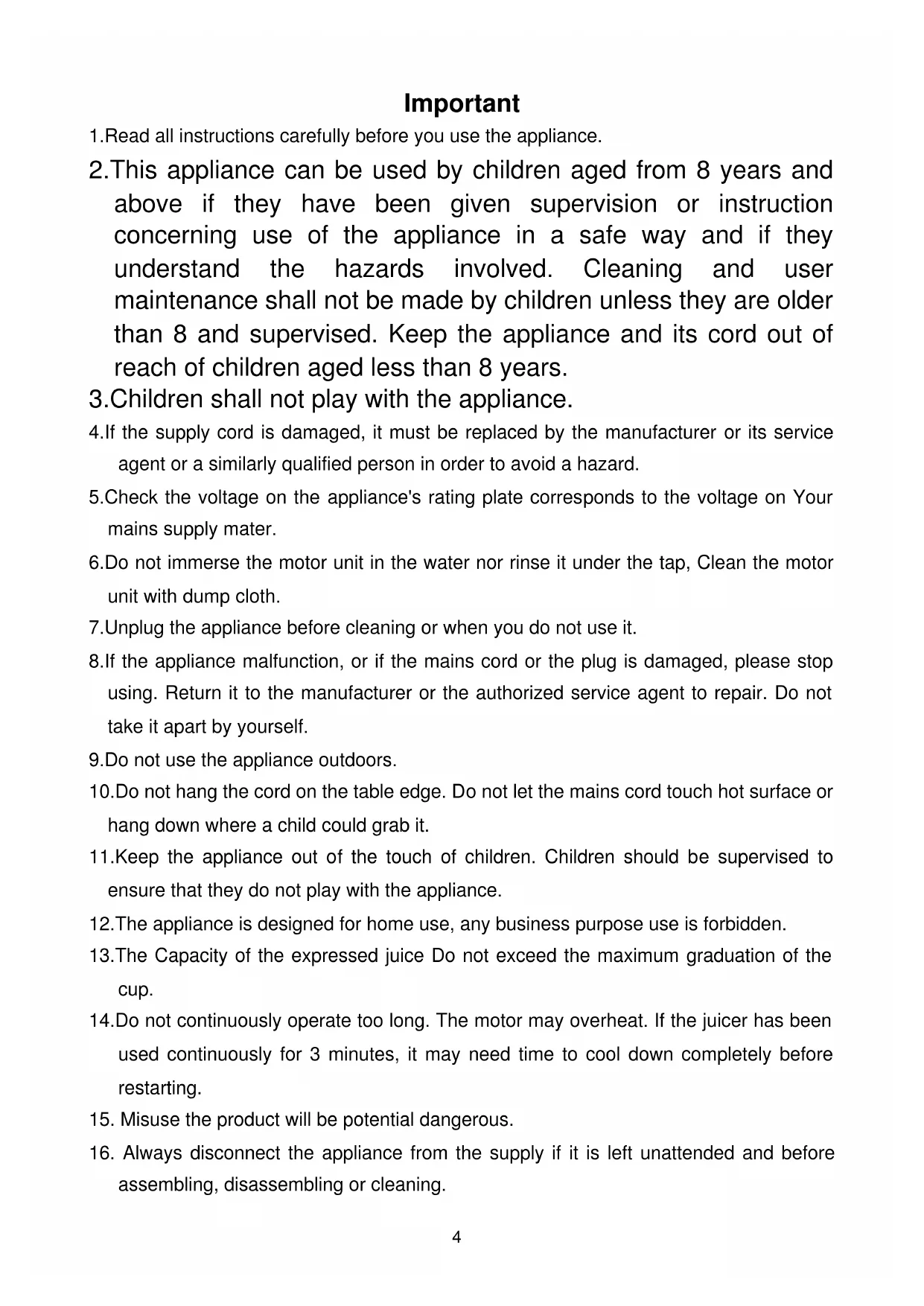

1. Read all instructions carefully before you use the appliance.

2. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

3. Children shall not play with the appliance.

4. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

5. Check the voltage on the appliance's rating plate corresponds to the voltage on Your mains supply mater.

6. Do not immerse the motor unit in the water nor rinse it under the tap, Clean the motor unit with dump cloth.

7. Unplug the appliance before cleaning or when you do not use it.

8. If the appliance malfunction, or if the mains cord or the plug is damaged, please stop using. Return it to the manufacturer or the authorized service agent to repair. Do not take it apart by yourself.

9. Do not use the appliance outdoors.

10. Do not hang the cord on the table edge. Do not let the mains cord touch hot surface or hang down where a child could grab it.

11. Keep the appliance out of the touch of children. Children should be supervised to ensure that they do not play with the appliance.

12. The appliance is designed for home use, any business purpose use is forbidden.

13. The Capacity of the expressed juice Do not exceed the maximum graduation of the cup.

14. Do not continuously operate too long. The motor may overheat. If the juicer has been used continuously for 3 minutes, it may need time to cool down completely before restarting.

15. Misuse the product will be potential dangerous.

16. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

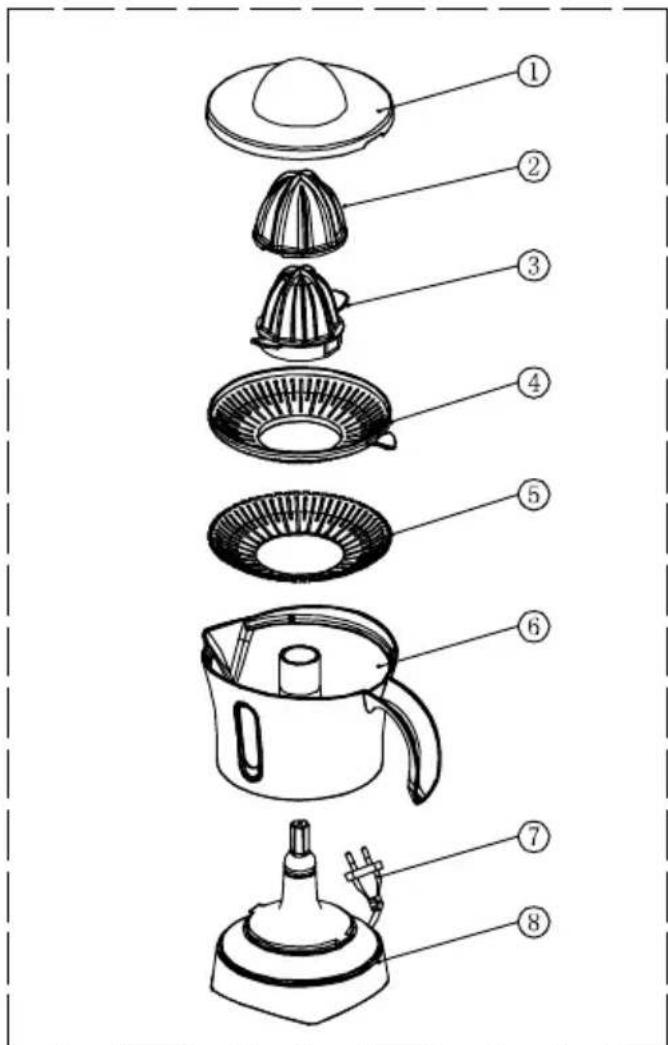

Description:

1. Transparent cover

2. Big cone

3. Small cone

4.Filter A

5.Filter B 6.Cup

7.Power cord, plug

8.Motor Unit

Exploded diagram of a kitchen appliance with numbered parts for identification

How to use your juicer

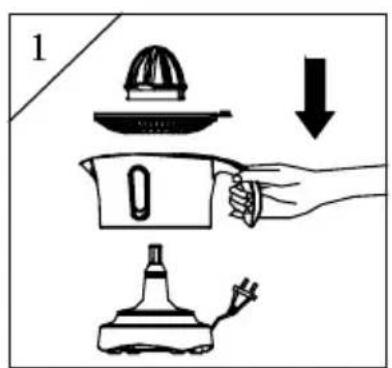

1. Put the cup (6) on the motor unit (8), (Fig1), turn it clockwise to lock in place.
2. Put the filter A (4) on the filter B (5), turn it left and right to make it in position. Put the small cone (3) on the shaft of the motor unit (Fig2).
3. Plug in the appliance.
4. Cut the orange into 2 pieces.

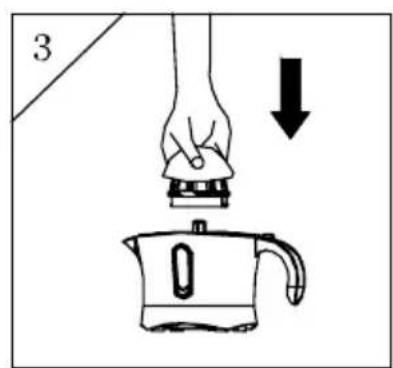

5. Press gently each half of the orange on the cone. The citrus press will start operating automatically by turning to the right and to the left (Fig3). If the orange is too big, please use the big cone. Put the big cone on the small one, the 2 gaps on the big cone must be locked on the 2 wings on the small cone.

6. Now you can enjoy the delicious juice.

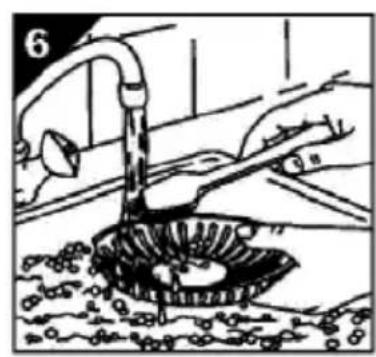

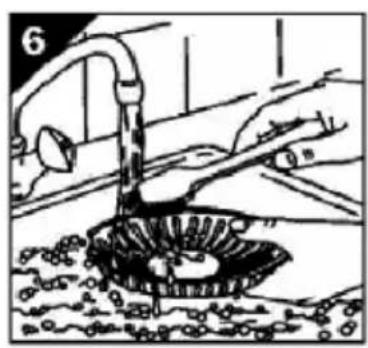

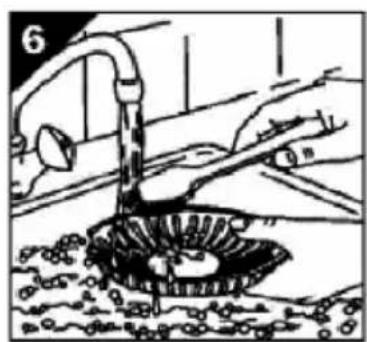

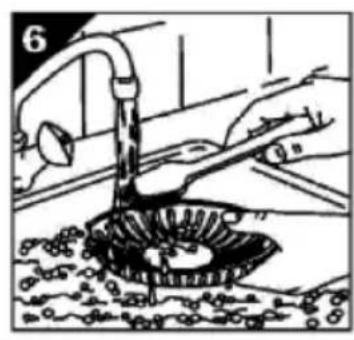

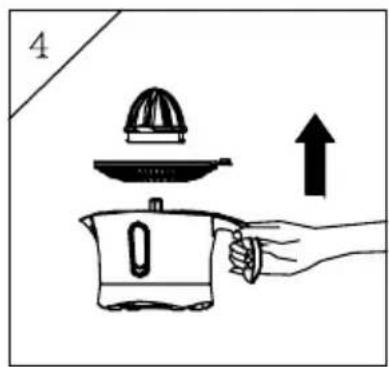

7. When finished using, unplug the juicer, remove the cone, filter A and filter B (Fig4).wash them thoroughly with water (Fig5-6), put the cover on , dry them with cloth, and store in the box.

1

2

3

4

Simple diagram with two curved shapes and a double-headed arrow, no text or symbols present

Illustration of a faucet cleaning a circular basin with debris, no text or symbols present

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Importante

Exploded diagram of a kitchen appliance with numbered parts for identification

Modo de Uso

Simple diagram showing two curved shapes with an upward and downward arrow, no text or symbols present.

Illustration of a hand using a tool to clean or wash a circular object, with no visible text or symbols.

Exploded diagram of a kitchen appliance with numbered parts for identification

Mode d'Usage

Line drawing of a kettle with a lid and an arrow indicating downward motion (no text or symbols)

Illustration of a hand pressing down on a kettle with a downward arrow indicating cooling (no text or symbols)

4
