USER MANUAL 70671 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online

Questions Please call us – our friendly associates are ready to help. USA: 1.800.851.8900

Exterior view of a Hamilton Beach blender oven with visible internal components and brand logo (no text extraction needed)

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read and save all instructions.
2. To protect against risk of electrical shock, do not immerse base, motor, cord, or plug in water or other liquid.
3. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
4. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
5. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
6. Turn the appliance OFF(O), then unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. Avoid contacting moving parts. Keep fingers out of feed chute.
8. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.
9. The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury.
10. Do not use your food processor if any part is broken.
11. Do not use appliance outdoors.

12. Do not let cord hang over edge of table or counter, or touch hot surfaces.

13. Keep hands and utensils away from moving blade and disc while processing food to reduce the risk of severe personal injury and/or damage to the food processor. A rubber scraper may be used but ONLY when the food processor is not running.

14. Blades are sharp. Handle cutting blades carefully when inserting or removing, emptying the bowl, and during cleaning. Store out of reach of children.
15. To reduce the risk of injury, never place cutting blade or disc on base without first putting bowl properly in place.
16. Be certain lid is securely locked in place before operating appliance.
17. Never feed food into food chute by hand. Always use the food pushers.
18. Do not attempt to defeat the lid interlock mechanism.
19. Make sure the blade or disc has come to a full stop before removing lid.
20. To reduce the risk of injury, be sure to insert or remove blade and disc using hubs provided for this purpose. Use caution when removing blade and disc from the bowl, when emptying the bowl, and when cleaning.
21. Check that the appliance is OFF (○) before plugging cord into wall outlet. To disconnect, turn the control to OFF (○) then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
22. Be sure to turn switch to OFF (position after each use. Always use the pushers to clear the food chute. When this method is not possible, unplug cord from outlet and disassemble unit to remove the remaining food.

23. The appliance is not intended for commercial, professional, or industrial use. It is designed and built exclusively for household use only.

24. Never use appliance for a longer period or with a larger amount of ingredients other than that recommended by appliance manufacturer.

25. The maximum rating of this unit is based on using the chopping/mixing blade. Using the slicing/shredding disc may draw significantly less power.
26. Do not place on or near a hot gas or electric burner or in a heated oven.
27. Do not use appliance for other than intended use.

28. Be careful if hot liquid is poured into the food processor bowl as it can be ejected out of the appliance due to a sudden steaming.

29. Do not fill the bowl above the marked maximum fill line (or rated capacity) to avoid risk of injury due to damage to the cover or bowl.

30. CAUTION! In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

▲ WARNING Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with your appliance.

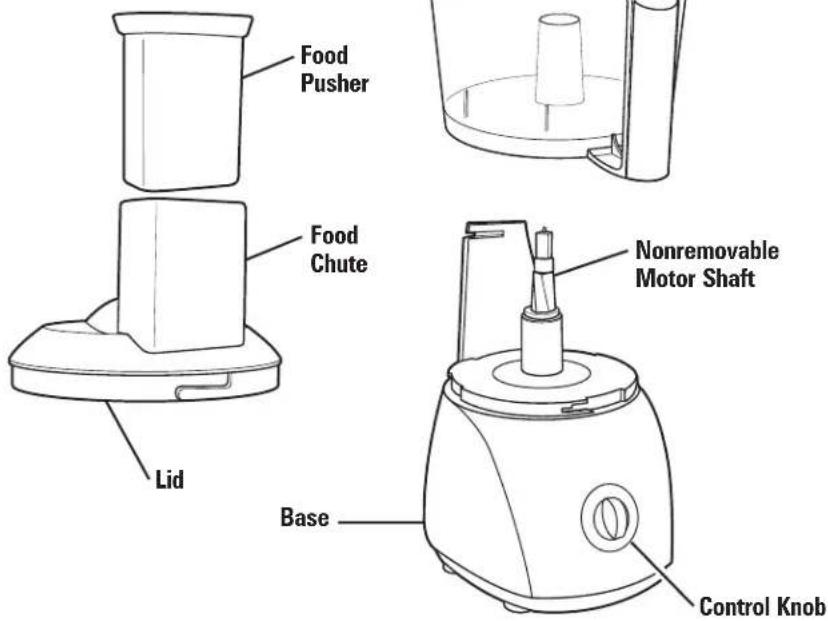

Parts and Features

To order parts:

US: 1.800.851.8900

www.hamiltonbeach.com

Canada: 1.800.267.2826

Food Pusher Food Chute Lid Nonremovable Motor Shaft Base Control Knob

BEFORE FIRST USE: Unpack processor. Handle blade and disc(s) carefully; they are very sharp. Wash all parts except base in hot, soapy water. Rinse; then dry.

Chopping/Mixing Blade

Use to coarsely chop, grate, mince, mix, or puree food.

Reversible Slicing/Shredding Disc

Use to shred or to slice a variety of foods (such as cheese, carrots, onions, tomatoes, peppers, and cucumbers).

Grating/Kugel Disc

(optional accessory)

Use to grate a variety of foods for dishes such as Kugel. Try grating potatoes, Parmesan cheese, carrots, ginger, hard-cooked eggs, toasted bread, garlic, fresh coconut, and tomatoes for sauces.

Reversible Fine Shred/Crinkle-Cut Disc (optional accessory)

Use to finely shred or crinkle-cut a variety of foods. Finely shred cheese, cabbage, zucchini, or onions. Crinkle-cut carrots, cucumbers, beets, radishes, or peppers.

How to Use Chopping/Mixing Blade

WARNING Laceration Hazard.

Handle blade carefully; it is very sharp. Make sure unit is turned OFF (Φand is unplugged.

NOTE: Operate using only one blade or disc at a time.

Line drawing of a mechanical device with a cylindrical component and a base, no text or symbols present

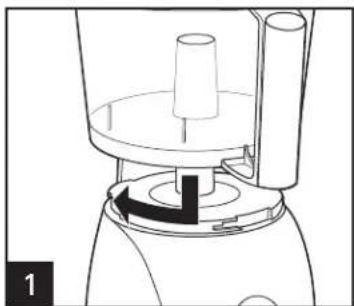

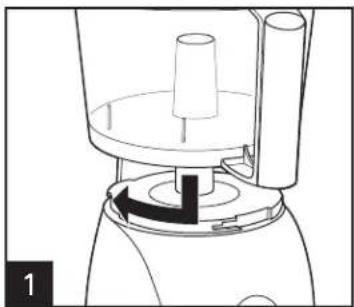

Align bowl and base. Turn bowl clockwise to lock into place. NOTE: Unit will not work unless bowl is locked.

Illustration of a hand pouring liquid into a container with a tool, no text or symbols present

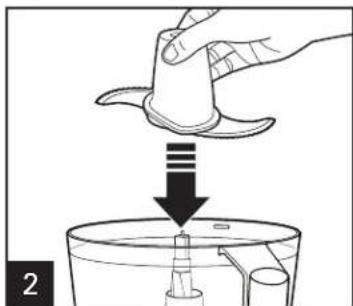

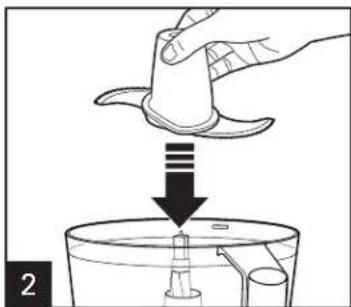

Carefully slide blade straight down onto the motor shaft until blade snaps in place.

Line drawing of a hand pouring liquid into a container with a tube and tubing (no text or symbols)

WARNING Laceration Hazard: Always use food pusher to feed food into the chute. NEVER PUSH FOOD THROUGH CHUTE WITH HANDS OR OTHER OBJECTS.

Diagram showing a mechanical device above a container with a downward arrow indicating process (no text or symbols)

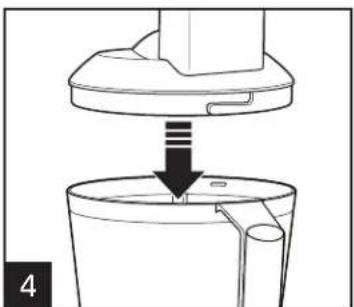

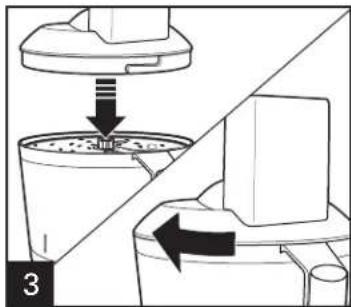

Align lid and bowl. Turn lid clockwise to lock into place. NOTE: Unit will not work unless lid is locked.

Diagram of a mechanical component with a black arrow indicating direction, no text or symbols present

e to lock into place. NOTE: Unit will not work unless lid is locked.

Illustration of a hand pressing down on a mechanical component (no text or symbols)

Place food pusher in food chute.

How to Use Chopping/Mixing Blade (cont.)

Diagram showing installation of a power outlet connected to a switch, with a rotary dial indicating clockwise rotation.

Select 1, 2, or P on control knob. 1 or 2: Processor will run continuously. P (PULSE): For instant on and off control.

210 P 8

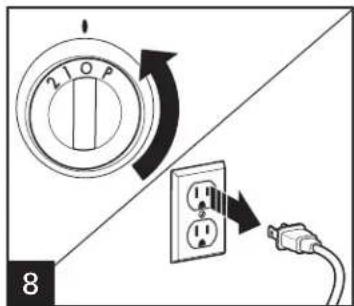

When finished, turn OFF (and unplug. ⚠ WARNING Laceration Hazard: Always unplug unit before removing lid.

Diagram showing a lid being inserted into a container with an arrow indicating direction (no text or symbols)

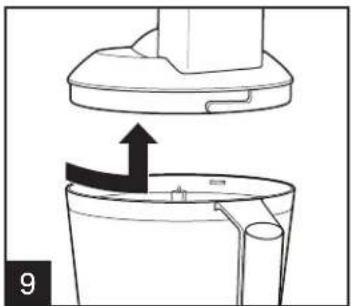

Always remove lid before removing bowl to avoid possible damage to the appliance.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

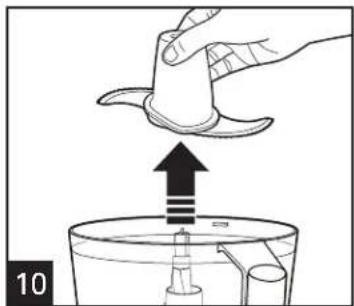

Carefully remove blade from motor shaft.

Line drawing of a mechanical device with an arrow indicating rotation or movement (no text or symbols)

Line drawing of a container pouring liquid into a bowl (no text or symbols)

How to Use Slicing, Shredding, Crinkle-Cutting, or Grating Discs

WARNING Laceration Hazard.

Handle disc carefully; it is very sharp. Make sure unit is turned OFF (⊕and is unplugged.

NOTE: Operate using only one blade or disc at a time.

Line drawing of a kitchen appliance with a cylindrical component and a side-mounted handle (no text or symbols)

Align bowl and base. Turn bowl clockwise to lock into place. NOTE: Unit will not work unless bowl is locked.

Diagram showing a mechanical setup with a rotating disc and a submerged component, labeled with number 2.

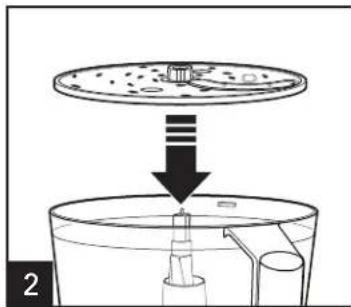

Carefully place disc onto motor shaft with desired side facing UP for slicing, shredding, crinkle-cutting, or grating.

Diagram showing a kitchen appliance with a lid and a side view of its interior (no text or symbols)

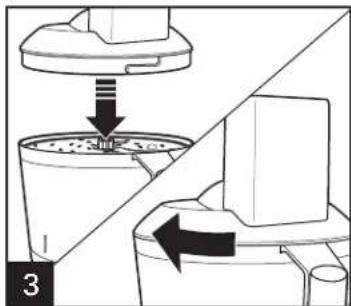

Align lid and bowl. Turn lid clockwise to lock into place. NOTE: Unit will not work unless lid is locked.

Line drawing of a hand pressing down on a block with a tool, no text or symbols present

Cut food to fit food chute. Fill chute with food. NOTE: Soft cheese like mozzarella should be placed in the freezer for 30 minutes prior to processing to ensure it is firm enough for shredding.

Line drawing of a hand pressing down on a layered object with a downward arrow, labeled '5' (no text or symbols on the object itself)

Place food pusher in food chute.

WARNING Laceration Hazard: Always use food pusher to feed food into the chute. NEVER PUSH FOOD THROUGH CHUTE WITH HANDS OR OTHER OBJECTS.

How to Use Slicing, Shredding, Crinkle-Cutting, or Grating Discs (cont.)

6

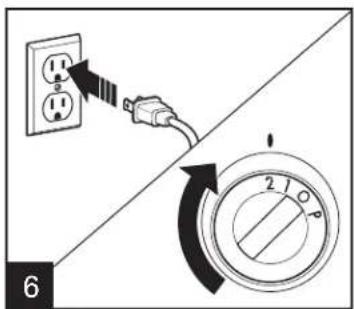

Select 1 or P on control knob. 1: For slicing, shredding, grating, and crinkle-cutting. P (PULSE): For instant on and off control.

RTOP 7

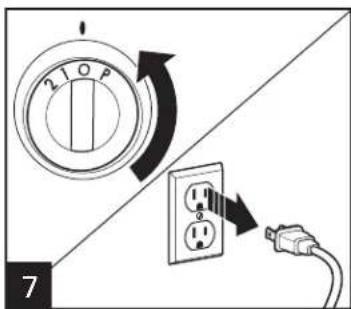

When finished, turn OFF (and unplug. ⚠ WARNING Laceration Hazard: Always unplug unit before removing lid.

Diagram showing a kitchen appliance with a lid and a side view of its interior (no text or symbols)

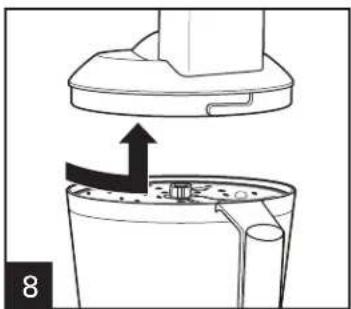

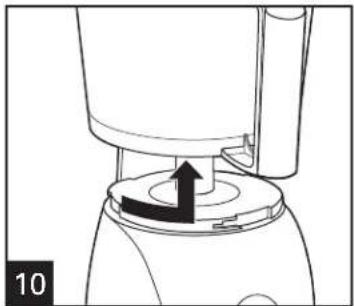

Always remove lid before removing bowl to avoid possible damage to the appliance.

9

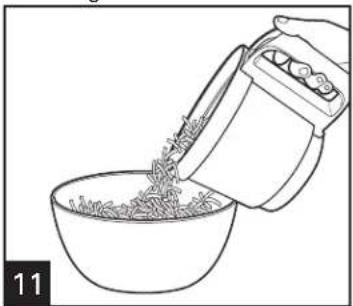

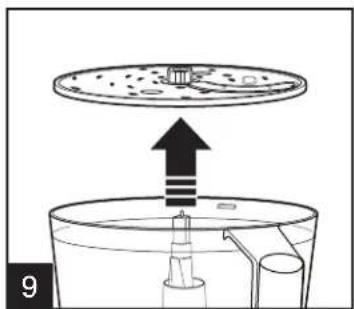

Carefully remove disc from motor shaft.

Diagram of a mechanical device with a rotating knob and directional arrow (no text or symbols)

8

Line drawing of a hand pouring granular material into a bowl (no text or symbols)

Tips and Techniques

• For a more uniform consistency, start with pieces of food that are similar in size. Cut food into 1-inch (2.5-cm) pieces before processing with chopping/mixing blade and leave room in bowl for the food to be tossed around.
• This food processor is excellent to chop, mix, slice, or shred most foods. However, to maintain peak performance, do not use your food processor for the following: grinding grain, coffee beans, or spices; slicing frozen meats; kneading dough; or crushing ice.
• When chopping foods, pulsing on and off will produce the best results.

• Operating time will depend on quantity of food being processed. Most foods can be sliced, chopped, or shredded in seconds. If unit is operated continuously for an extended period of time, let the processor rest about 4 minutes before continuing.

• Do not puree or mash starchy vegetables like potatoes as they are easily overprocessed and will become gummy.

• To slice or shred cheese, use only firm cheese like Cheddar or Swiss that has been chilled for at least 30 minutes. Cheese should be processed immediately after being removed from the refrigerator. Soft cheese like mozzarella should be placed in the freezer for 30 minutes prior to processing to ensure it is firm enough for shredding.
• The reversible slicing/shredding disc has a slicing blade on one side and shredding teeth on the other. The name stamped on the blade, facing up, is the function selected. Place on motor shaft with desired cutting edge facing up.
• To julienne vegetables, slice and then remove from bowl. Restack the vegetables. Pack into food chute with slices vertical. Slice again to make matchstick-cut vegetables.

Processing Charts

Disc attachments are reversible and labeled. The label should face up for the desired function. When using disc attachments, do not process past the MAX LEVEL on the bowl.

ATTACHMENT	FOODS
Chopping/Mixing Blade	Chop: nuts, meat, garlic, onions, peppers, celery, herbs, bread (for crumbs), crackersMince/Puree: vegetables, fruitMix: salad dressingsPuree: soups, saucesGrate: cheese, such as Parmesan (chilled)
Slicing Disc(slicing side facing UP)	Cucumbers, apples, mushrooms, carrots, potatoes, cabbage, tomatoes, pepperoni, peppers, radishes, firm cheeses (chilled)
Shredding Disc(shredding side facing UP)	Cabbage, potatoes, carrots, cheese (chilled)

For best results do not exceed the following amounts when chopping, mincing, or pureeing with the chopping/mixing blade. Leave some space in the bowl to allow ingredients to move for pulsing or blending.

FOOD	MAXIMUM AMOUNT
Dry ingredients such as crackers or nuts	8 to 10 cups
Vegetables or fruits, quartered	6 to 8 cups
Grated cheese such as Parmesan or Cheddar, cubed	5 to 10 ounces
Thick sauces or dips	6 to 8 cups
Liquids such as marinades or soups	4 to 6 cups

Care and Cleaning

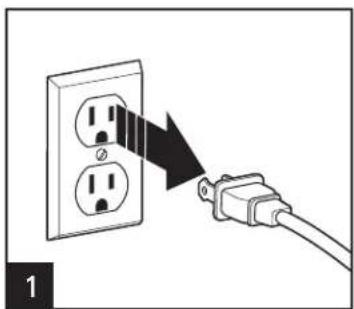

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the insertion direction (no text or symbols present)

Line drawing of a hand cleaning a small appliance with a tool (no text or symbols)

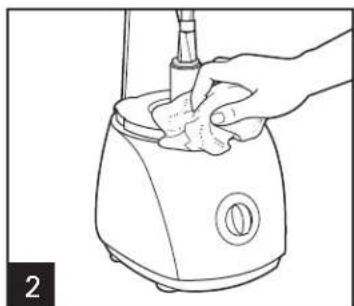

Wipe base, control panel, and cord with a damp cloth or sponge. If necessary, use a mild nonabrasive cleanser.

WARNING Electrical Shock Hazard. Disconnect power before cleaning. Do not immerse cord, plug, or base in any liquid.

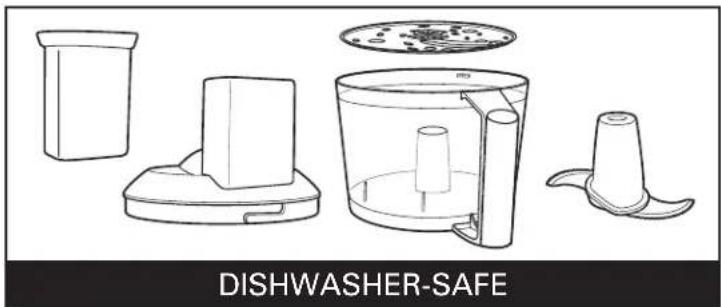

DISHWASHER-SAFE

DO NOT use the "SANI" setting when washing in the dishwasher. "SANI" cycle temperatures could damage your product. All removable parts may also be cleaned in the sink with hot, soapy water. Use caution when washing chopping/mixing blade and slicing/shredding disc.

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online!

Troubleshooting

PROBLEM	PROBABLE CAUSE/SOLUTION
Unit does not operate on any speed or Pulse.	Is the unit plugged in? Does the outlet work?Is the lid locked in place? See “How to Use” sections.
Food is not sliced or shredded uniformly.	Packing too much food in the food chute or pushing too hard on the food pusher may cause the processed food to be irregularly sliced or shredded. Refer to the Food Processing Charts for recommended sizes and quantities.
Unit stops and will not come back on.	Is the lid locked in place? See “How to Use” sections.Is the outlet still working? Check it by plugging in a working lamp or other appliance. You may have overloaded the circuit and blown a fuse or tripped the circuit breaker.Turn unit OFF, allow to stand for 3 to 4 minutes, and then turn back ON. If none of these suggestions correct the problem, DO NOT attempt to repair the unit. Call the Customer Service number to get the name of your nearest Authorized Service Center.
Unit has a burning smell.	There may be a residue left on the motor from the manufacturing process, causing a slight odor during initial use. This will go away. If a strong odor or any visible smoke appears, unplug unit IMMEDIATELY and call the Customer Service number.
Motor seems weak.	Are you using the recommended food size and quantity to be processed? Refer to the Food Processing Charts for recommended food sizes and speeds.
Cheese is not shredding well.	Cheese should be processed immediately after being removed from the refrigerator. Soft cheese like mozzarella should be placed in the freezer for 30 minutes prior to processing to ensure it is firm enough for shredding.
Vegetables are not shredding or slicing.	Store vegetables with high water content in the refrigerator prior to processing. Room-temperature vegetables are less firm and do not perform as well.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

Line drawing of a blender with a cylindrical component inserted into the top pan (no text or symbols)

Illustration of a hand pouring liquid into a container with a tool, no text or symbols present

Line drawing of a hand placing a small object into a container with a tube inside (no text or symbols)

Diagram showing a container being inserted into a lid, with arrows indicating the process (no text or symbols present)

Diagram of a mechanical component with a black arrow indicating direction, no text or symbols present

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Diagram showing a mechanical assembly with an upward arrow and a numbered label (9), no readable text or symbols present.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Diagram of a mechanical device with a rotating knob and directional arrow (no text or symbols)

Line drawing of a hand pouring liquid into a bowl (no text or symbols)

Line drawing of a hand pressing down on a block with a tool, no text or symbols present

Line drawing of a kitchen appliance with a cylindrical component and a side panel (no text or symbols)

Line drawing of a hand pressing down on a small container with a downward arrow indicating compression (no text or symbols)

Diagram showing a mechanical device with downward force and rotation arrow, no text or symbols present

Diagram of a kitchen appliance with a lid and side view showing internal components (no text or symbols)

Line drawing of a mechanical device with an arrow indicating upward motion (no text or symbols)

Line drawing of a hand pouring ingredients into a bowl (no text or symbols)

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the insertion direction (no text or symbols present)

Line drawing of a hand cleaning a small object from a kitchen appliance (no text or symbols)

Line drawing of a blender with a handle and spool, no text or symbols present

Illustration of a hand pouring liquid into a container with a tool, no text or symbols present

Line drawing of a hand pouring liquid into a container with pipes and a tube (no text or symbols)

Diagram showing a mechanical device pressing down on a container with a downward arrow indicating motion (no text or symbols present)

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Illustration of a hand pressing down on a mechanical device with a downward arrow indicating compression (no text or symbols)

Diagram showing a mechanical assembly with an upward arrow and a component, no text or symbols present.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Diagram of a mechanical device with a rotating knob and directional arrow (no text or symbols)

Line drawing of a hand pouring liquid into a bowl (no text or symbols)

Line drawing of a hand pressing down on a block on a base (no text or symbols)

Line drawing of a mechanical device with a cylindrical component inserted into a housing (no text or symbols)

Diagram showing a mechanical setup with a rotating disc and a submerged component, labeled with number 2.

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Diagram showing a mechanical device with a downward arrow and a rotating base, no text or symbols present

Diagram showing a kitchen appliance with a lid and a side view of a container with liquid and a tube (no text or symbols)

Line drawing of a mechanical device with an arrow indicating rotation or movement (no text or symbols)

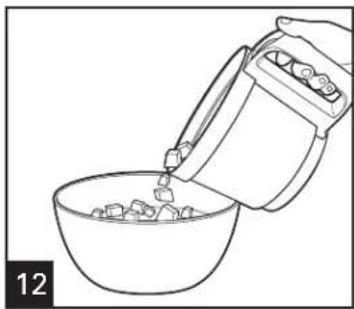

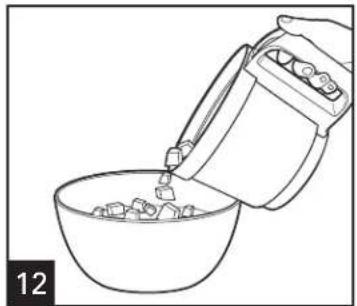

Line drawing of a bowl pouring ingredients from a container into a bowl (no text or symbols)

Consejos y Técnicas

Diagram showing a plug inserted into an electrical socket with a fuse, no text or symbols present

Line drawing of a hand cleaning a small object from a kitchen appliance (no text or symbols)

Line drawings of various kitchen appliances including a blender, blender, and blender blade (no text or labels)
