USER MANUAL Gold Bar Shine Blumfeldt

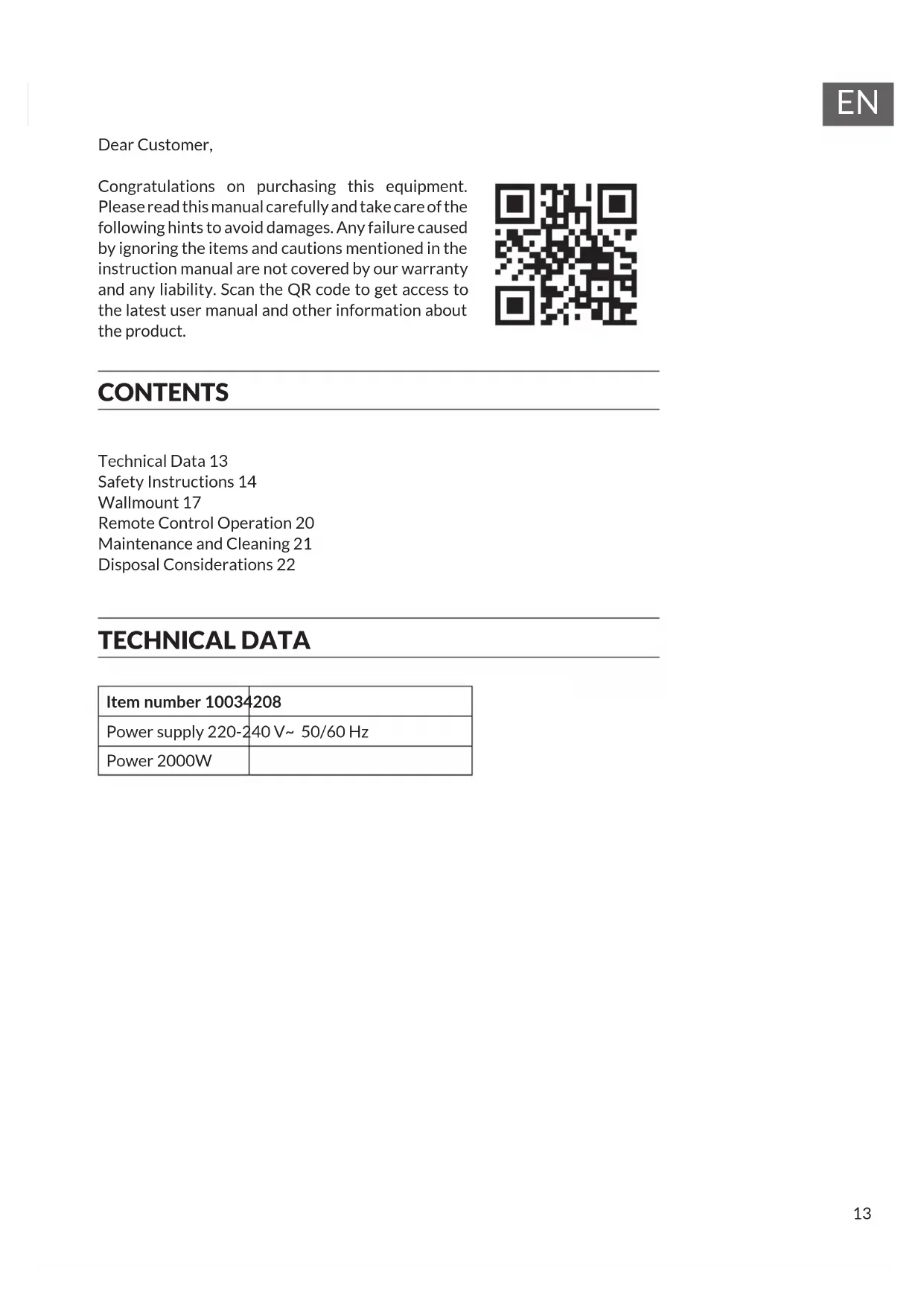

Dear Customer, Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product. CONTENTS Technical Data 13 Safety Instructions 14 Wallmount 17 Remote Control Operation 20 Maintenance and Cleaning 21 Disposal Considerations 22 TECHNICAL DATA Item number 10034208 Power supply 220-240 V~ 50/60 Hz Power 2000W14

SAFETY INSTRUCTIONS Please follow all the safety precautions listed below for safety and to reduce the risk of injury or electrical shock. Read this Instruction Manual carefully to maximize this appliance’s performance and keep for future reference.

• Always ensure that your power supply voltage matches this appliance’s rating label.

• Never leave the appliance unattended while in operation. Always unplug the appliance when not in use.

• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.

• Caution: Some parts of this product can become very hot and cause burns. Particular attention has to be given when children and vulnerable people are present.

• Always use the handle when moving the heater (if available) or hold on the sides if not available (make sure the unit is turned off). Keep combustible materials such as furniture, pillows, bedding, papers, clothes and curtains at least 1m from the heater.

• For safe use of the product, the product installation position should have a minimum height of 1.8 m from the ground, and a minimum distance of 0.5 m from ceiling, roof and both sides walls.

• The heater must not face with the heating element pointing upwards towards a ceiling. The heater element must be facing the area it is to heat.

• Warning: In order to avoid overheating do not cover the heater.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Do not use the product if there are any visible signs of damage to the appliance.

• Do not attempt to repair or adjust any electrical or mechanical functions on this unit. The unit does not contain any user serviceable parts. Only a qualied electrician should perform servicing or repairs. Attempting to repair the unit yourself will void your warranty.

• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualied persons in order to avoid a hazard.

• Do not handle the element with bare hands. If it is inadvertently touched, remove nger marks with a soft cloth and methylated spirits or alcohol, otherwise the marks will burn into the element causing premature heater failure.

• Do not replace or attempt to replace the element in this product.

• This product is suitable for outdoor use only. Do not operate the appliance15

in direct sunlight, near heat sources, humid environments or in places near water or other liquids such as bathrooms, shower or swimming pool.

• This product must not be left outdoors exposed to the elements for long periods of time.

• Do not operate with wet hands or spill water or other liquids on to the appliance the mains cable or plug.

• Do not run the power cable under carpeting. Do not cover the power cable with rugs, runner, or similar coverings. Arrange the power cable away from foot trafc and where it will not be tripped over.

• Do not wind the power cable around the unit.

• Do not insert or allow foreign objects to enter any ventilation or opening on the heater, as this may result in electric shock, re, or damage to the heater.

• To prevent a possible re, do not block the air vents.

• Do not use the appliance in areas where petrol, paints or other ammable substances are used or stored.

• Always position the appliance with the mains plug in an accessible position and avoid the use of an extension cables as they may overheat and create a potential re risk.

• Always ensure the heater is plugged into a suitable socket, one that is tested for outdoor use.

• To disconnect heater, turn controls to OFF, then remove plug from socket. Do not unplug by pulling on the power cable.

• Always unplug the unit and ensure the unit is completely cold before moving, cleaning or storing.

• This heater is intended for domestic use only and should not be used commercially for contract purposes. Any alternative use, not recommended by the manufacturer, may result in re, electric shock, or injury to persons.

• The use of attachments on the heater is not recommended.

• Warning: This heater does not equipped with a device to control the room temperature. Do not use this heater in small rooms when occupied by persons not capable of leaving a room on their own, unless constant supervision is provided.

• Check exterior walls for areas of damage before installing the heater.

• Check exterior walls for communication and electrical cables and pipelines. -Should any service lines be present in the immediate vicinity do not install your heater, nd an alternative location to install this product.

• Do not use this heater with a programmer, timer,separate remote-control system or any other device that switches the heater on automatically, since a re risk exists if the heater is covered or positioned incorrectly.

• The heater must not be located immediately below a socket-outlet.

• Children of less than 3 years should be kept away unless continuously supervised.

• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand16

the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• Regarding cleaning of the reector, please refer to the relevant paragraph given below.

• Means for disconnection from the supply mains having a contact separation in all poles must be incorporated in the xed wiring in accordance with the wiring rules.17

Step 3: Installation of one adjusting brackets,makesure lock brackets tight by uttery hand screw. Then use hexagon key wrench to adjust the Hexagon nut according to installation design angle. Hexagon nut Buttery nut M6 screw hexagon key wrench Installation diagram19

On/Off Light on/off21

MAINTENANCE AND CLEANING

Attention! Careful and regular maintenance and cleaning of infrared Heater is required to attain a long and efcient operation of your appliance.

1. Check the cleanliness of the reector and IR-lament at least once a

month. If necessary, apply cleaning and maintenance instructions.

2. The number of checks may be increased considering the amount of the

dust in the environment.

3. Check the deformation of the reector, wire and frame visually while

cleaning the appliance. In case of any deformation, consult a qualied technician.

4. Check the power cable and plug visually while cleaning the appliance. In

case of any deformation, consult a qualied technician.

5. It is recommended to change the reector every 2 years for more efcient

1. Unplug your power cable for your safety before cleaning your appliance.

2. Take out the front grid wire through the inlets on the frame using a slotted

3. Make sure that the power is off for your safety. Power cable plug must be

4. The reector and lament must be cleaned with a soft cloth, a smooth

brush or cool or dry air. The cloth may be damp but never too wet and the cleaner should not include any chemical.

5. Refrain from using cleaning material likely to damage the reector

DISPOSAL CONSIDERATIONS If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service. This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Chal-Tec UK limited Unit 6 Riverside Business Centre Brighton Road Shoreham-by-Sea BN43 6RE United Kingdom23
