Product Type	Digital Atomic Wall Clock
Brand	La Crosse Technology
Model	BBB84022V2
Dimensions	22.80 x 2.18 x 18.10 cm (L x W x H)
Power Source	3 AAA batteries (LR3, IEC) not included
Battery Life	About 2 years
Technology	WWVB Atomic Time Signal
Display	Time, date (selectable), indoor temperature, indoor humidity
Indoor Temperature	0 °C to 50 °C (32 °F to 122 °F)
Indoor Humidity	10% to 99% RH
Time Zones	AST, EST, CST, MST, PST, AKT, HAT
Alarm	With snooze function (10 minutes)
Settings	Language (English, Spanish, French), beep ON/OFF, DST ON/OFF, time zone, time, date, temperature (°F/°C)
Warranty	1-year limited (defects in materials and workmanship)
Maintenance	Clean contacts, replace worn batteries, do not mix old and new batteries or different types
Safety	Observe polarity, remove batteries during prolonged non-use
Certification	FCC Class B

Frequently Asked Questions - BBB84022V2 LA CROSSE TECHNOLOGY

How to set the time manually?

Press SET for 3 seconds to enter settings. Use + or - to adjust time and date, then press SET to confirm.

How to turn the alarm on or off?

From the normal display, press ALARM to activate or deactivate the alarm. The bell icon displays if it is active.

What to do if the clock does not pick up the atomic signal?

Check that the atomic option is enabled in settings (ON). The clock searches for the signal at 7:00, 8:00, 9:00, 10:00 and 11:00. You can also press + for manual search. Move the clock away from electronic interference.

How to change the interface language?

Press SET for 3 seconds. The first setting is language. Use + or - to choose between English, Spanish, or French.

How to use the snooze function?

When the alarm sounds, press SNOOZE to pause it for 10 minutes. To stop the alarm for 24 hours, press any other key.

What does the low battery icon mean?

The low battery icon (empty battery) indicates that the batteries need to be replaced with 3 new AAA batteries.

How to clean the clock?

Clean the exterior with a soft, dry cloth. Do not use chemicals. Make sure to remove batteries before thorough cleaning.

What types of batteries to use?

Use 3 AAA alkaline batteries (LR3). Do not mix old and new batteries, nor different types (alkaline, rechargeable, etc.).

How to set the time zone?

In settings (press SET 3 seconds), after DST ON/OFF, select the time zone with + or - (AST, EST, CST, MST, PST, AKT, HAT).

Can I disable atomic signal reception?

Yes. In settings, set the atomic option to OFF. The clock will then operate as a normal manually adjustable clock.

USER MANUAL BBB84022V2 LA CROSSE TECHNOLOGY

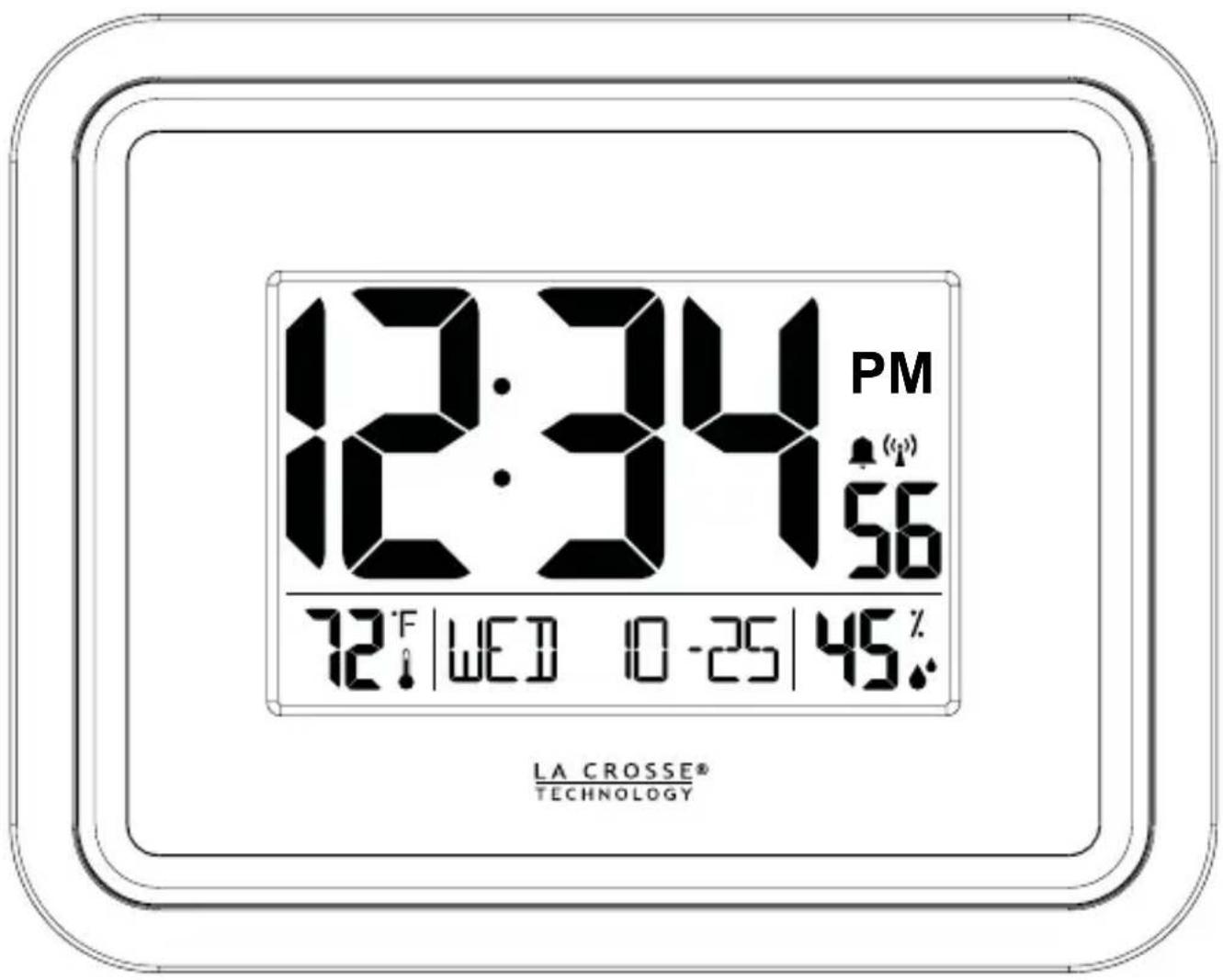

ATOMIC DIGITAL WALL CLOCK

WITH INDOOR TEMPERATURE & HUMIDITY

Model: BBB84022

Instruction Manual

DC: 121217

Table of Contents

1 Selectable Date Display
2 Let's Get Started
2 Basic Settings
4 Atomic Time Signal - WWVB
4 Time Alarm
5 Activate | Deactivate Alarm
5 Snooze
5 Low Battery
5 Let's Get Social
6 Care and Maintenance
6 Specifications
6 Warranty and Support
7 FCC Statement

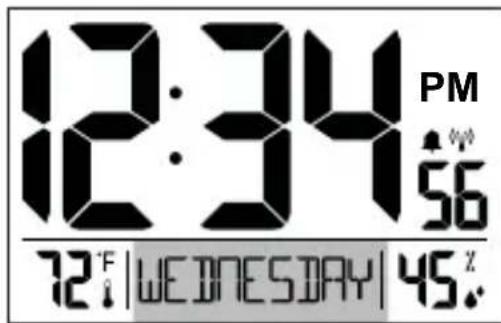

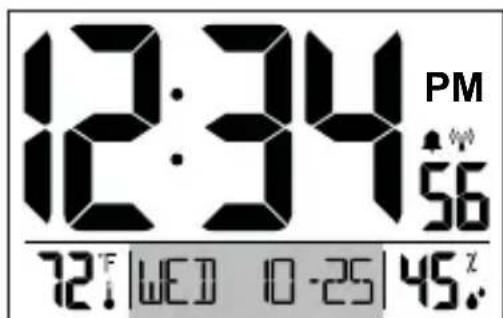

Selectable Date Display

• Press and release the SET button to toggle between a full weekday or a 3 letter weekday, month, and date.
• Your clock will stay on the selected display option.

Lets Get Started

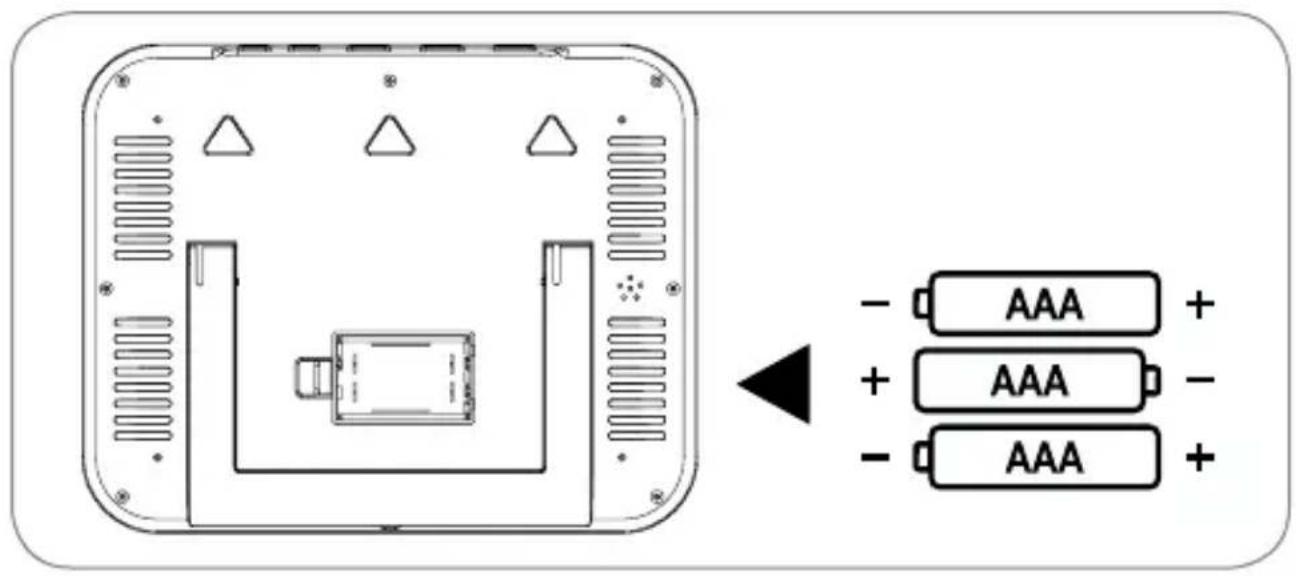

1. Insert 3 AAA batteries into your clock
2. Configure basic settings and enjoy!

Basic Settings

1. Hold the SET button 3 seconds to enter settings mode.
2. Press the + or - button to adjust the flashing values, hold to adjust quickly.
3. Press the SET button to confirm adjustments and move to the next item.
4. Press the SNOOZE button at any time to exit.

Settings menu order:

• Language (English, Español, Francais)
- Beep ON/OFF
- Atomic ON/OFF
- DST ON/OFF

Note: When Español or Francais are selected, the settings menu will continue in the language selected.

• Time Zone
  • Hour
• Minutes
• Year
• Month
• Date
  • Temperature Fahrenheit/Celsius

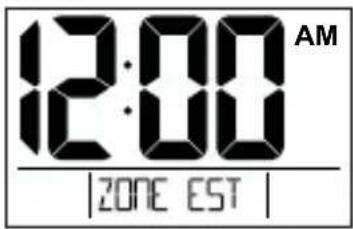

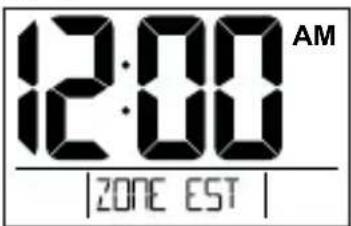

Time Zones

Zone AST - Atlantic

Zone EST - Eastern

Zone CST - Central

Zone MST - Mountain

Zone PST - Pacific

Zone AKT - Alaska

Zone HAT - Hawaii

Language Beep ON | OFF

Atomic ON | OFF

DST ON I OFF Time Zone

Set Hour

Set Minutes Set Year

Set Month

Set Date

• Your clock will search for the atomic signal at UTC 7:00, 8:00, 9:00, 10:00, and 11:00.
• If there is no WWVB signal reception, your clock will search for the time signal every 2 hours until the WWVB time has been received.
• The atomic time signal icon (tower) will flash while searching, and be solid when connected.
• Press and release the PLUS button to manually search for the WWVB time signal.
• For information about WWVB visit: http://bit.ly/AtomicTime

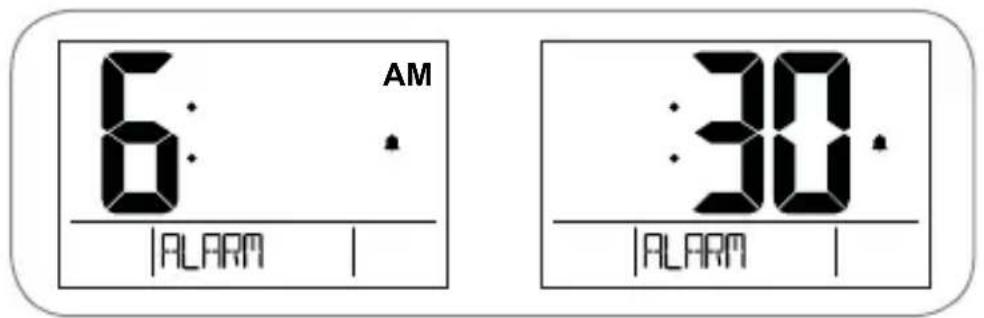

Time Alarm

1. Hold the ALARM button 3 seconds to enter alarm setting mode.
2. Press the + or - button to adjust the flashing values. Hold the + or - buttons to adjust quickly.
3. Press the ALARM button to confirm adjustments.
4. Press the SNOOZE button at any time to exit.

Activate | Deactivate Alarm

- The alarm is active when set. From normal time display, press and release the ALARM button to deactivate or activate the alarm. The alarm time will show for 2 seconds.

- Alarm icon (bell) will show then active.

Snooze

• When alarm sounds, press the SNOOZE button to silence alarm for 10 minutes. The alarm bell will flash.
• Press any button except SNOOZE to silence the alarm for the next 24 hours.

Low Battery

- When the low battery icon appears, replace the batteries in your clock.

Let's Get Social

JOIN THE CONVERSATION

Ask questions, watch detailed setup videos, and provide feedback on our social media channels!

Care and Maintenance

• Do not mix old and new batteries
• Do not mix Alkaline, Standard, Lithium or Rechargeable Batteries
  • Always purchase the correct size and grade of battery most suitable for intended use.
• Replace all batteries of a set at the same time.
• Clean the battery contacts and also those of the device prior to battery installation.
• Ensure the batteries are installed with correct polarity (+ and -).
• Remove batteries from equipment when it is not to be used for an extended period of time.
• Promptly remove expired batteries.

Specifications

Indoor Temp: 32°F to 122°F (0°C to 50°C)Indoor Humidity: 10% to 99% RH

Batteries: 3-AAA LR3, IEC (not Included)Battery Life: Over 2 years

Dimensions: 8.97' L x 0.85' W x 7.12 H(22.80 L x 2.18 W x 18.10 H cm)

Warranty and Support

La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship.

Before returning a product, please contact our friendly customer support or visit our online help:

Phone: [phone]

Online: www.lacrossetechnology.com/support

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device must not be co-located or operating in conjunction with any other antenna or transmitter.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Caution!

The manufacturer is not responsible for any radio or TV interference caused by unauthorized changes or modifications to this equipment. Such changes or modifications could void the user authority to operate the equipment.

All rights reserved. This manual may not be reproduced in any form, even in part, or duplicated or processed using electronic, mechanical or chemical process without the written permission of the publisher.

This booklet may contain errors or misprints. The information it contains is regularly checked and corrections are included in subsequent editions. We disclaim any responsibility for any technical error or printing error, or their consequences.

All trademarks and patents are recognized.

LA CROSSE®

TECHNOLOGY

HORLOGE MURALE NUMÉRIQUE ATOMIQUE

AVEC TEMPÉRATURE ET HUMIDITÉ INTÉRIEURES

Modèle: BBB84022

Paramètres de base

Atomic ON | OFF

DST ON I OFF fuseau horaire

Heure de réglage

Définir les minutes

Définir l'année

Définir le mois

Régler la date

Activer | Désactiver l'alarme

Ajustes básicos

Atomic ON | OFF

DST ON I OFF Time Zone

Set Hour

Set Minutes Set Year

Set Month

Set Date

Activar | Desactivar alarma

- When the low battery icon appears, replace the batteries in your clock.
