USER MANUAL IAN 285700 ULTIMATE SPEED

Assembly, operating and safety instructions

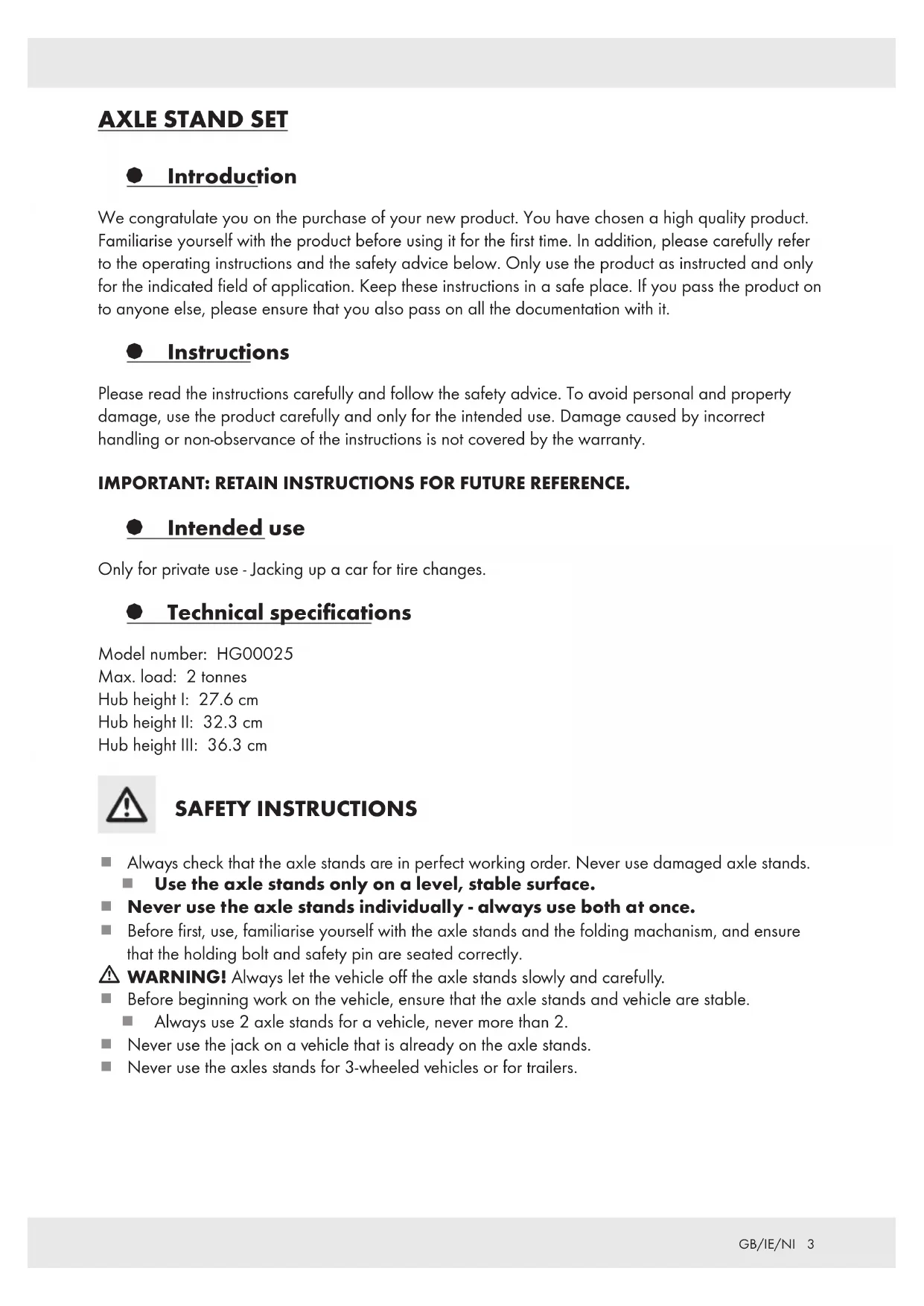

§ Introduction We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it. § Instructions Please read the instructions carefully and follow the safety advice. To avoid personal and property damage, use the product carefully and only for the intended use. Damage caused by incorrect handling or non-observance of the instructions is not covered by the warranty. IMPORTANT: RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. § Intended use Only for private use - Jacking up a car for tire changes. § Technical specifications Model number: HG00025 Max. load: 2 tonnes Hub height I: 27.6 cm Hub height II: 32.3 cm Hub height III: 36.3 cm SAFETY INSTRUCTIONS Always check that the axle stands are in perfect working order. Never use damaged axle stands. Use the axle stands only on a level, stable surface. Never use the axle stands individually - always use both at once. Before first, use, familiarise yourself with the axle stands and the folding machanism, and ensure that the holding bolt and safety pin are seated correctly. m WARNING! Always let the vehicle off the axle stands slowly and carefully. Before beginning work on the vehicle, ensure that the axle stands and vehicle are stable. Always use 2 axle stands for a vehicle, never more than 2. Never use the jack on a vehicle that is already on the axle stands. Never use the axles stands for 3-wheeled vehicles or for trailers.4 GB/IE/NI m CAUTION! Never exceed the maximum load for each pair of axle stands. Excess load may damage the axle stands or destroy them completely. Always position the load in the middle of the ramp! Always use the axle stands 2 at a time on a level surface which is able to take the weight. Using the axle stands on a surface which cannot take the weight may lead to uneven weight distribution and possible complete loss of load-bearing capacity. Do not use on gravel. Non- observance of these instructions may cause damage of the axle stands, loss of the load and therefore to property damage, severe personal injury or a fatal accident. Use this product only with the components described in the instructions and use it only for the intended use. Support the raised weight immediately with the axle stands. § Scope of delivery § Assembly Instructions

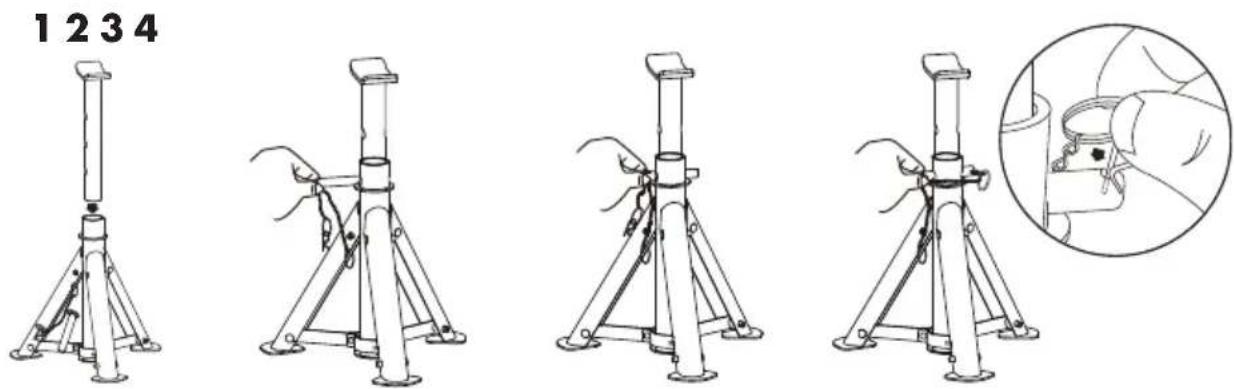

1. Familiarise yourself with the function and components such as the folding mechanism and

adjustable legs. Check that the axle stands are in perfect working order.

2. Install the middle pole through the middle hole at the required height and secure it with the holding

bolt. Note: During use, always push the pin through the support and insertion pipes.5 GB/IE/NI

3. Always secure the vehicle against rolling away as follows:

- Apply wedges for wheels - Put the vehicle in gear ("P" on an automatic gearbox) - Put the hand-brake on

4. The legs of the axle stands must be completely unfolded.

5. Check that the holding bolt is correctly seated (it must protrude from the other side of the middle

pole). Secure the holding bolt against slipping out with the safety pin.

6. Check that the support positions provided by the manufacturer are in prefect working order.

7. Position the axle stands under the vehicle at the points provided (see the vehicle manual).

8. Lower the vehicle slowly and carefully onto the axle stands. The axle stands must be secured and

9. After using the axle stands: When removing the holding bolt, hold onto the middle pole so that this

does not fall down through the middle hole. § Maintenance And Checking Before each use, check the axle stands and the welds. Never use damaged axle stands. The holding bolt and holding mechanism must be in perfect working order. m WARNING! Danger of injury! Never use the axle stands or its parts for any other use except that described by the manufacturer. The manufacturer accepts no responsibility for incorrect use of the axle stands! § Cleaning And Care For cleaning and care, use only a slightly damp, fluff-free cloth. § Disposal The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.6 GB/IE/NI § Warranty The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below. The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly. The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.7
