DTLS010B - Electric heater Vevor - Free user manual and instructions

Product Type	Electric Wax Melter
Brand	Vevor
Model	DTLS010B
Tank Capacity	10 L
Rated Voltage	220-240 V ~ 50/60 Hz
Rated Power	1 520 W
Temperature Control	Yes, adjustable thermostat
Heating Indicator	Yes, red indicator light
Dispensing Spigot	Yes, for pouring wax
Dry Boil Protection	Yes, auto-reset thermal limiter
Thermal Cutoff	Yes, dual safety (240 °C, disposable part)
Exterior Material	Stainless Steel
Lifting Handles	Yes, two handles
Cleaning	Do not immerse; use hot water and a soft cloth
Included Parts	Mixing spoon, stainless steel cup, ice scoop, centering device (2), wicks (100), labels (100)
FCC Compliance	Part 15, Class B

Frequently Asked Questions - DTLS010B Vevor

What types of wax can I use in the Vevor DTLS010B wax melter?

The melter is designed for melting candle wax or depilatory wax. Use waxes suitable for the adjustable temperature. Do not exceed the Max level.

How do I turn on and use the melter for the first time?

Remove all packaging. Place the melter on a flat surface. Open the lid, fill up to Max, close. Plug in, turn on the switch. The red light turns on. Set the desired temperature. Use the spigot to dispense.

What should I do if the heating indicator stays on but the wax does not heat?

Check if the dry boil protection limiter has tripped. Unplug the unit, wait for it to cool down, then plug in and turn on again. If the indicator does not light up, repeat or contact customer service.

How do I clean the melter after use?

Wait for the unit to cool completely. Never immerse it in water. Pour hot water inside, brush the walls to melt residues, then empty. Wipe the exterior with a soft cloth.

What is the maximum recommended wax capacity?

Do not fill beyond the Max mark (level indicator). For the 10L model, do not exceed 10 liters. Ensure at least 500 ml to avoid dry boiling.

Can I move the melter when it is full of hot wax?

No, it is dangerous. The melter is heavy. Never move it with more than 5 L of wax. Use a smaller container to transfer.

What should I do if the thermal cutoff trips?

It is a disposable protection. If the dry boil protection fails, the thermal cutoff cuts power at 240 °C. The unit must be repaired by a qualified professional to replace this part.

Is the melter FCC compliant?

Yes, it complies with Part 15 of FCC rules, Class B. It may cause radio interference; if so, move it away from the receiver or plug it into a different circuit.

What accessories are included with the Vevor DTLS010B melter?

The kit includes a mixing spoon, a stainless steel cup, an ice scoop, two centering devices, 100 wicks, and 100 labels.

How do I reset the dry boil protection?

Unplug the unit. Wait for it to cool completely. Plug in and turn on again. If the heating indicator lights up, the protection is reset. Otherwise, repeat or contact customer service.

USER MANUAL DTLS010B Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

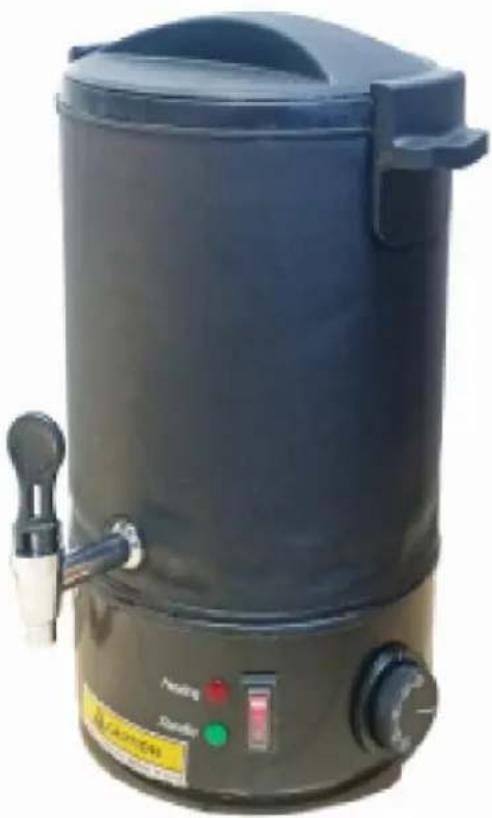

Electric Wax Melter

Exterior view of a dark blue industrial water heater with control knobs and a yellow label (no visible text or symbols on the device itself)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read in manual carefully.
	HOUSEHOLD USE ONLY
	This product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accesso marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

INTRODUCTION

Electric wax melter are manufactured in durable stainless steel dull polished to give a long lasting finish. With proper care management your new purchase will give you years of trouble service .

IMPORTANT SAFETY RULES

1. Read all instructions carefully. Responsibility for failure can be acceptable if any of these instructions are ignored.
2. Always unplug the melter plug Before Cleaning, After Use Before emptying.
3. Before using the Wax melter, check whether the voltage corresponds with the electric outlet (EU Plug 230V/US Plug
4. Make sure the unit is connected to an earthed socket.
5. Do not use the Wax melter if the cord or plug is dan be replaced before using.
6. Always switch off before removing plug from the outlet.
7. Always switch off before trying to move the wax melter.
8. Remove the plug by grasping the plug. Do NOT pull the
9. Do not let cord hang over edge of counter.
10. Place the wax melter securely in center of counter or wo

Never place on a tilted surface.

1. Do not place the wax melter on or near hot surfaces.

2. Do not switch on the Wax melter, if the wax tank is e

3. Do not place the wax melter near gas stove, electric bur heated oven.

4. Put the Wax melter on flat stable surface; keep it away edge of counter to avoid accident.

5. Close supervision is necessary when any appliance is used near children.

16.Do not allow cord to touch hot surface of the Wax mel

1. To protect against electric shock, do not immerse the Wa in water.

2. Unplug the unit from the socket, and pour out all the w cools.

19.Switch OFF after use and unplug the unit from the sock

20.Do not use the Wax melter outdoor.

1. Do not overfill the Wax melter with wax, doing so can spillage as the wax heats up and expands.

2. Improper use of the Wax melrer may result in severe sc

23.Beware of hot steam when removing the lid.

1. Always ensure the lid is securely fitted whenever the wax contains wax.

2. Do not turn on or attempt to operate the wax melter w/ level is at or below the Min level.

3. Do not turn on the wax melter when the wax level is level. When the wax boils it will cause spillage.

4. If the wax melter should boil dry there is an overheat c can automatically reset. However repeated overheating will eventually damage the heating element.

5. If the supply cord should become damaged, it must only replaced / repaired by a qualified electrician.

6. Do not attempt to disassemble the wax melter. This will warranty.

7. Remove all the wax before it sets to avoid clogging the faucet. reheating of wax can easily cause damage to the machine.

8. This machine is not suitable for jelly wax.

9. This machine should not be operated by persons (incluc children) with reduced physical, sensory or mental capa

or lack of experience or knowledge, unless they have been given supervision or instruction concerning the safe use of the appliance by a person responsible for their safety.

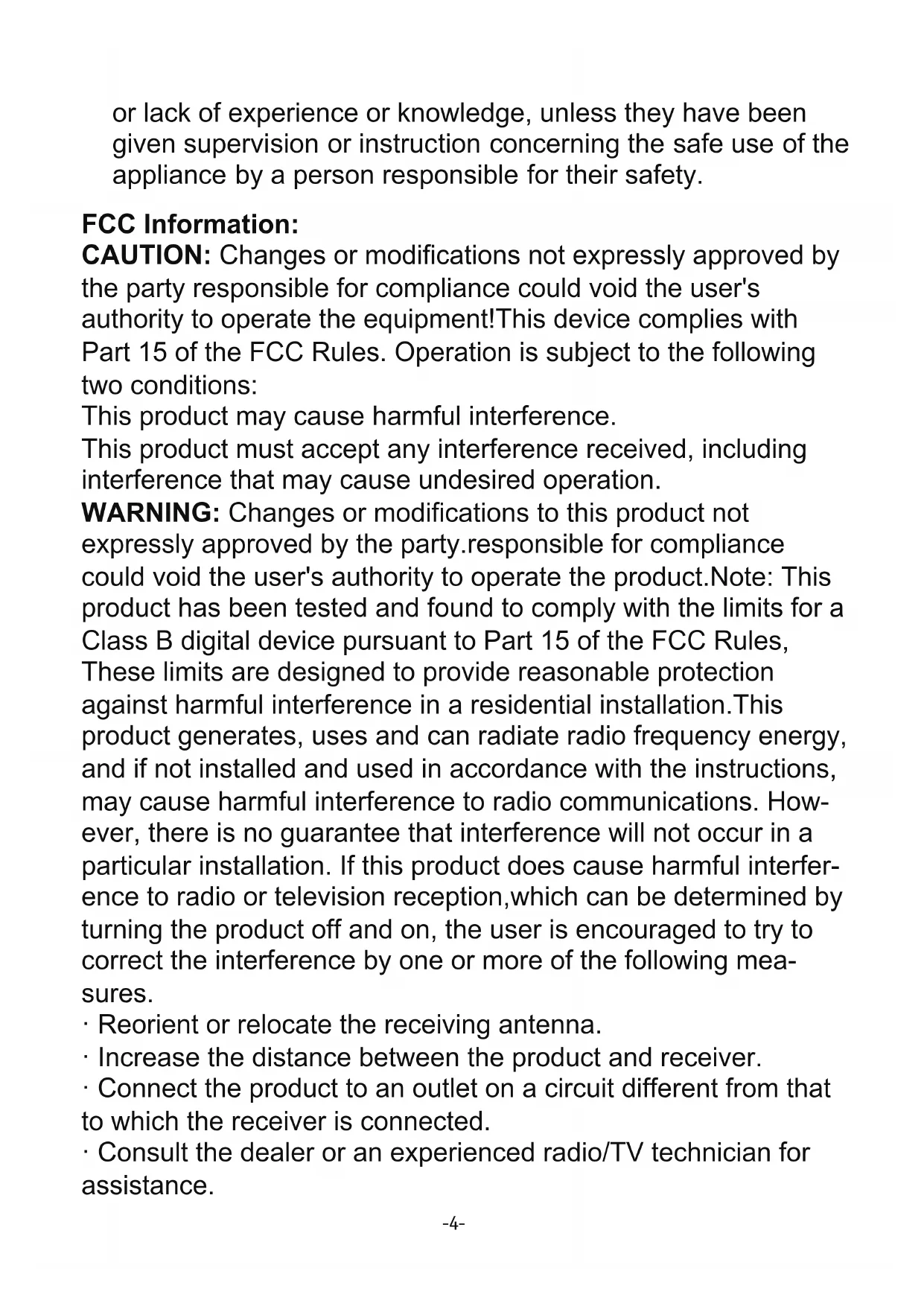

FCC Information:

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment! This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

This product may cause harmful interference.

This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation.This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception,which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

PRIOR TO FIRST USE:

Remove all packaging from the inside and outside of the wax melter

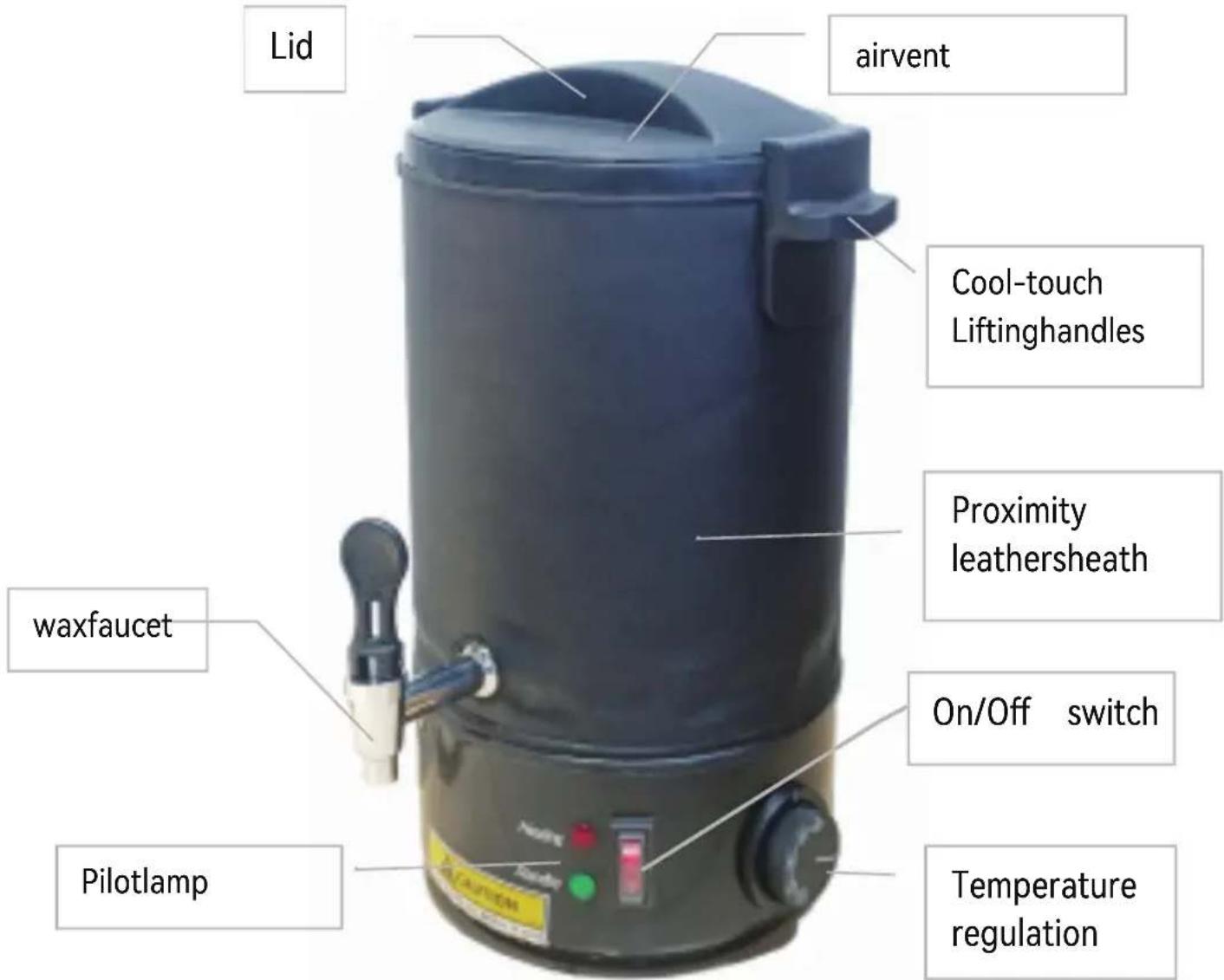

Lid airvent Cool-touch Liftinghandles Proximity leathersheath On/Off switch waxfaucet Pilotlamp Temperature regulation

HOW TO USE

1. Always use the wax melter on a flat level surface.
2. Turn the lid anti clockwise to open.

3. Fill the wax melter not above the Max level indicator.

4. Replace the lid and turn clockwise to lock into place.

5. Connect the plug to the socket.
6. Switch ON. The Red "Heating" pilot lamp will light up and the wax starts to heat up.
7. The wax will reach the set thermostat temperature.
8. Stand your cup on the hold close to the faucet to prevent splashing of wax.
9. Use the faucet to dispense wax.
10. When the wax is topped up the wax melter will automatically reboil.
11. When the wax is completely melted, turn the appliance off and unplug it from the electric outlet, pour out all the wax.
12. Make sure at least 500ml wax in the tank when heating to prevent a boil-dry accident.
13. The melter can be very heavy when filled with wax. Melter should not be carried or moved when full of wax as the weight and unsteady load can cause injury or strain. Melter should be placed in their position of use and filled through several trips with a smaller, manageable container (eg a jug). To ensure operator safety in lifting the machines, Melter should never be moved when filled with more than 5L (5L = 5Kg approximately).

BOIL DRY PROTECTION

The appliance is protected by a thermal limiter with automatically reset function to prevent accidental dry-boil. .If the wax in the tank is boiled dry , this is activated, the appliance will turn itself off, although the lamp with remain on. The appliance must be unplugged before it can be reset. To reset the appliance, wait until the appliance has cooled down, then power on the appliance again, check if the heating pilot light is on. If the pilot light is on, it indicates the unit has recovered to normal working condition; if the light is still off, unplug the cord and try to power on again. Repeat this operation several times until the appliance is under normal working condition.

This facility is for the protection of the user as well as the components. In case of such repeated incidents the bi-metal may malfunction causing damage of ther mal limiter as well as the heating element

beyond repair. Please note that the manufacturer will not guarantee for such negligent use of appliance.

If resetting this thermal cut-out does not switch the appliance back on, please call for service or professional maintenance agent to have further check.

This safety device may have been switched off during transport, if so reset the thermal cut-off following the above instructions.

THERMAL CUT-OUT

The appliance is fitted with a thermal cut-out to have double safety protection. When the wax is boiled dry and the boil dry protections fails to work, the thermal cut-out will work, then the appliance stops working.

The cut out temperature is 240°C

This thermal cut-out is a disposable part. When this part comes into effect, it will be broken and cannot be used again. The appliance should be brought to authorized agent to replace the thermal cut-out.

CLEANING AND MAINTENANCE

A. Only perform cleaning once the plug has been removed and the wax melter has completely cooled down.
B. Never immerse the wax melter into water.
C. Pore hot water into the melter, brush sides, Melt the wax completely then pour out the water.
D. Do not use any cleaning products which can cause a health hazard.
E. Use a soft cloth to wipe the urn body dry. Do not use abrasive materials to avoid scratches.

	items Description
1	Name Wax melting barrel
2	Model DTL-S007(A) DTL-S007(C) DTL-S007(B)
3	Rating (s)	220-240V~50Hz/1520W/6.5L	220-240V~50Hz/1520W/6.5L	120V~60Hz/1100W/6.5L

	items Description
1	Name Wax melting barrel
2	Model	DTL-S010(A)	DTL-S010(C)	DTL-S010(B)
3	Rating(s)	220-240V~50Hz/1520W/10L	220-240V~50Hz/1520W/10L	120V~60Hz/1100W/10L

Parts List:

1. Rusty steel mixing spoon 1pcs
   2.Stainless steel cup 1pcs
2. Ice scoop 1pcs
   4.Stainless steel centering device 2pcs
   5.Wick for candle 100pcs
   6.Tags 100pcs

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road. Staines-upon-Thames. Surrey. TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

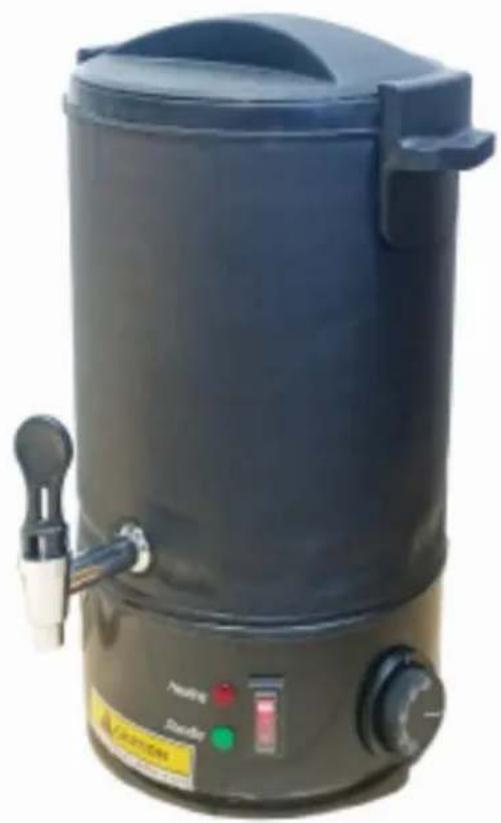

Electric Wax Melter
