Basic Operating Instructions

Blu-ray Disc™ Player

Illustration of a gray remote control with standard buttons and a circular dial (no text or symbols)

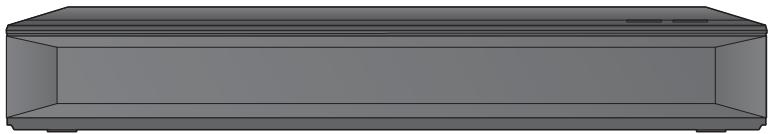

3D rendering of a rectangular electronic device with a flat top and side ports (no text or symbols)

(DMP-UB404)

Vorsichtsmaßnahmen

WARNUNG

Gerät

Ein Beispiel der Nachricht: "This player is not connected to a High Dynamic Range (HDR) compatible TV."

R6/LR6, AA

Symmetrical diagram with central circle and surrounding directional arrows (no text or symbols)

Master Audio | Essential

Java™

POWERED

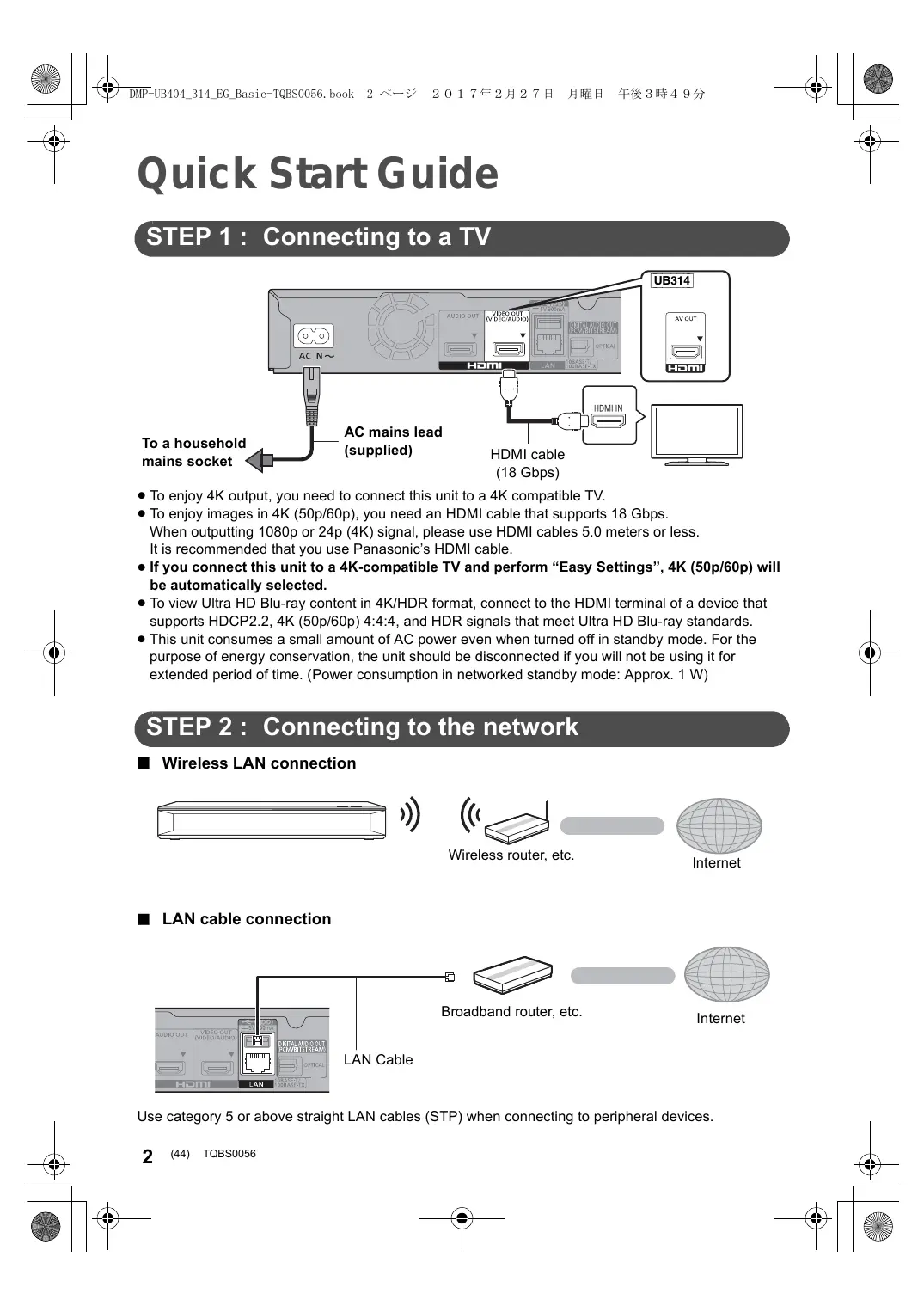

Quick Start Guide

STEP 1 : Connecting to a TV

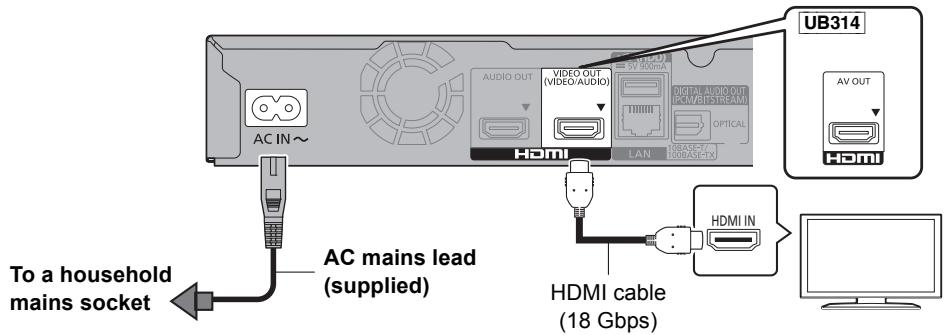

AC IN~ AC mains lead (supplied) To a household mains socket AUDIO OUT VIDEO OUT (VIDEO/AUDIO) HDMI LAN DIGITAL AUDIO OUT R/C/BIESTREAM OPTICAL UB314 AV OUT HDMI HDMI cable (18 Gbps)

• To enjoy 4K output, you need to connect this unit to a 4K compatible TV.
• To enjoy images in 4K (50p/60p), you need an HDMI cable that supports 18 Gbps.

When outputting 1080p or 24p (4K) signal, please use HDMI cables 5.0 meters or less. It is recommended that you use Panasonic's HDMI cable.

• If you connect this unit to a 4K-compatible TV and perform “Easy Settings”, 4K (50p/60p) will be automatically selected.
• To view Ultra HD Blu-ray content in 4K/HDR format, connect to the HDMI terminal of a device that supports HDCP2.2, 4K (50p/60p) 4:4:4, and HDR signals that meet Ultra HD Blu-ray standards.
• This unit consumes a small amount of AC power even when turned off in standby mode. For the purpose of energy conservation, the unit should be disconnected if you will not be using it for extended period of time. (Power consumption in networked standby mode: Approx. 1 W)

STEP 2 : Connecting to the network

■ Wireless LAN connection

Line drawing of a rectangular electronic device with a speaker icon and sound waves (no text or symbols)

Wireless router, etc. Internet

■ LAN cable connection

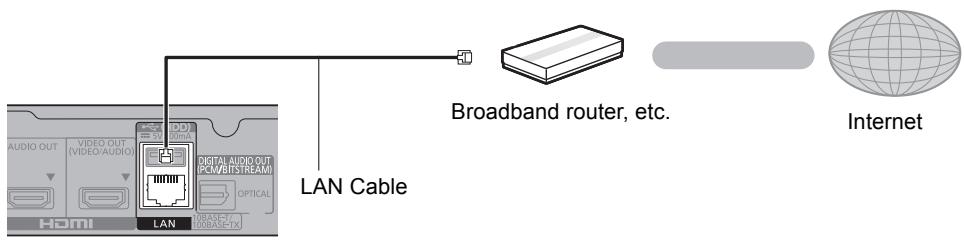

LAN Cable BROADBAND ROUTER, etc. Internet

Use category 5 or above straight LAN cables (STP) when connecting to peripheral devices.

STEP 3 : Settings

HDMI TV

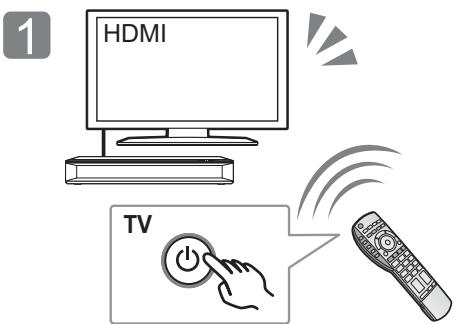

Turn on the TV and select the appropriate video input.

HDMI 2 +/I

Press [⏻/l]*.

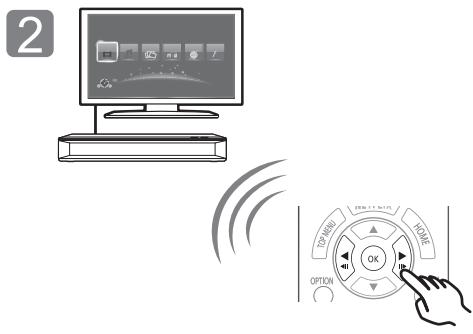

Follow the on-screen instructions to continue with the settings.

* Standby/on switch (⏻/l)

Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

STEP 4 : Playing a disc

1 TV INPUT AV + VOU - OPEN/CLOSE 1 2 abc 3 def

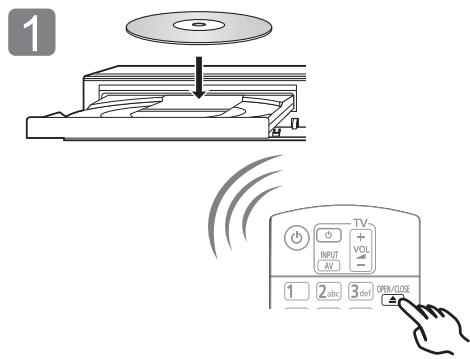

Insert the disc.

2 OK OPTION

Select the item to play and press [OK].

Abstract circular arrow symbol with two opposing arrows forming a loop (no text or symbols)

Firmware updates

Panasonic is constantly improving the unit's firmware to ensure that our customers are enjoying the latest technology.

Panasonic recommends updating your firmware as soon as you are notified.

For details, refer to the operating instructions (PDF format).

Thank you for purchasing this product. Please read these instructions carefully before using this product, and save this manual for future use.

A more detailed operating instruction is available in "Operating Instructions (PDF format)". To read it, download it from the website.

http://av.jpn.support.panasonic.com/support/global/cs/bd/oi/index.html

QR code image containing encoded data, no visible human-readable text

You will need Adobe Reader to browse or print the Operating Instructions (PDF format).

You can download and install a version of Adobe Reader that you can use with your OS from the following website. (As of March 2017)

http://www.adobe.com/products/acrobat/readstep2.html

Accessories

Check the supplied accessories before using this unit.

1 Remote control (N2QAYB001147)

2 Batteries for remote control

1 AC mains lead

• Product numbers are provided in these operating instructions correct as of March 2017. These may be subject to change.
• Do not use AC mains lead with other equipment.
• Using the remote control

Diagram showing a mechanical component with labeled parts and directional arrows, including a numbered callout.

LR6, AA (Alkaline or manganese batteries)

- Insert the batteries to the terminal so that it (+ and -) matches those in the remote control.

Point it at the remote control signal sensor on this unit.

playable media

Ultra HD Blu-ray: Video

BD-Video: Video

BD-RE: Video, JPEG, MPO

BD-R: Video, MKV, JPEG, MPO

DVD-Video: Video

DVD-R/DVD-R DL: Video, AVCHD, MKV, JPEG, MPO, AAC, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

DVD-RW/+R/+RW/+R DL: Video, AVCHD

Music CD: Music [CD-DA]

CD-R/CD-RW: MKV, JPEG, MPO, AAC, ALAC, FLAC, MP3, Music [CD-DA], WAV, WMA

USB devices (up to 2 TB): AVCHD, AVCHD 3D, MKV, MP4, MPEG2, JPEG, MPO, AAC, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

To dispose or transfer this unit

The unit may keep the user settings information in the unit. If you discard this unit either by disposal or transfer, then follow the procedure to return all the settings to the factory presets to delete the user settings. For details, refer to the operating instructions (PDF format).

- The operation history may be recorded in the memory of this unit.

Disposal of Old Equipment and Batteries Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

The symbols on this product (including the accessories) represent the following:

Class II equipment (The construction of the product is double-insulated.)

Precautions

WARNING

Unit

To reduce the risk of fire, electric shock or product damage,

• Do not expose this unit to rain, moisture, dripping or splashing.
• Do not place objects filled with liquids, such as vases, on this unit.
• Use only the recommended accessories.
• Do not remove covers.
• Do not repair this unit by yourself. Refer servicing to qualified service personnel.
• Do not let metal objects fall inside this unit.
• Do not place heavy items on this unit.

AC mains lead

To reduce the risk of fire, electric shock or product damage,

• Ensure that the power supply voltage corresponds to the voltage printed on this unit.
• Insert the mains plug fully into the socket outlet.
• Do not pull, bend, or place heavy items on the lead.
• Do not handle the plug with wet hands.
• Hold onto the mains plug body when disconnecting the plug.
• Do not use a damaged mains plug or socket outlet.

The mains plug is the disconnecting device.

Install this unit so that the mains plug can be unplugged from the socket outlet immediately.

CAUTION

Unit

• This unit utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
• Do not place sources of naked flames, such as lighted candles, on this unit.
• This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.
• This unit is intended for use in moderate climates.
• Some portions of this unit may become hot during use. When moving or cleaning this unit, disconnect the AC mains lead and wait for 3 minutes or longer.

Placement

Place this unit on an even surface.

To reduce the risk of fire, electric shock or product damage,

• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated.
• Do not obstruct this unit's ventilation openings with newspapers, tablecloths, curtains, and similar items.
• Do not place the unit on amplifiers/receivers or equipment that may become hot. The heat can damage the unit.
• Do not expose this unit to direct sunlight, high temperatures, high humidity, and excessive vibration.

Batteries

Mishandling of batteries can cause electrolyte leakage and may cause a fire.

• Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.
• When disposing of the batteries, please contact your local authorities or dealer and ask for the correct method of disposal.
• Do not mix old and new batteries or different types at the same time.
• Do not heat or expose to flame.
• Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed.
• Do not take apart or short circuit.
• Do not recharge alkaline or manganese batteries.
• Do not use batteries if the covering has been peeled off.

Remove batteries if you do not intend to use the remote control for a long period of time. Store in a cool, dark place.

Wireless LAN connection

The following limits are in place regarding the usage of this unit. You must be aware of these limits before using this unit. Panasonic will in no way be responsible for any incidental damage which may arise due to a failure to obey these limits, or to any condition of use or disuse of this unit.

• Data transmitted and received over radio waves may be intercepted and monitored.
  ● This unit contains delicate electronic components.
  Please use this unit in the manner in which it was intended and follow the following points:
• Do not expose this unit to high temperatures or direct sunlight.
• Do not bend, or subject this unit to strong impacts.
• Keep this unit away from moisture.
• Do not disassemble or alter this unit in any way.

Declaration of Conformity (DoC)

Hereby, "Panasonic Corporation" declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC

Customers can download a copy of the original DoC to our R&TTE products from our DoC server:

http://www.doc.panasonic.de

Contact to Authorised Representative:

Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Germany

This product is in compliance with the radio standards of the following countries.

Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Iceland, Liechtenstein, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, United Kingdom, Switzerland

The WLAN feature of this product shall exclusively be used inside buildings.

This product on purpose to connect to access point of 2.4 GHz or 5 GHz WLAN.

[After 13 June, 2017]

Declaration of Conformity (DoC)

Hereby, “Panasonic Corporation” declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

Customers can download a copy of the original DoC to our RE products from our DoC server: http://www.doc.panasonic.de

Contact to Authorised Representative:

Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Germany

5.15 - 5.35 GHz band is restricted to indoor operations only in the following countries.

AT	BE	BG	CZ	DK	EE	FR	DE	IS	IE	IT
EL	ES	CY	LV	LI	LT	LU	HU	MT	NL	NO
PL	PT	RO	SI	SK	TR	FI	SE	CH	UK	HR

Type of wireless	Frequency band	Maximum power (dBm e.i.r.p.)
WLAN	2412-2472 MHz	20 dBm
	5180-5320 MHz	23 dBm
	5500-5700 MHz	23 dBm

Simple line drawing of a rectangular device with a speaker icon and sound waves (no text or symbols)

1 TV INPUT AV + VOL - OPEN/CLOSE 1 2 abc 3 def

Insérez le disque.

2 10/16/07 ON/OFF ON/OFF ON/OFF OPTION

Abstract circular arrow symbol with two opposing arrows forming a loop (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Line drawing of a rectangular electronic device with a speaker icon and sound waves (no text or symbols)

Router Wireless, ecc. Internet

1 TV INPUT AV + VOL - OPEN/CLOSE 1 2 abc 3 def

Inserire il disco.

2 TOP/WEST NOISE OPTION OK

Abstract circular arrow symbol with two opposing arrows forming a loop (no text or symbols)

QR code image containing encoded data, no visible human-readable text

http://www.adobe.com/products/acrobat/readstep2.html

Accessori

Diagram showing a mechanical component with labeled parts and directional arrows, including numbered annotations ① and ②.

R6/LR6, AA

(Batterie alcaline o al manganese)

Line drawing of a rectangular electronic device with a speaker icon and sound waves (no text or symbols)

Draadloze router, etc. Internet

■ LAN-kabelverbinding

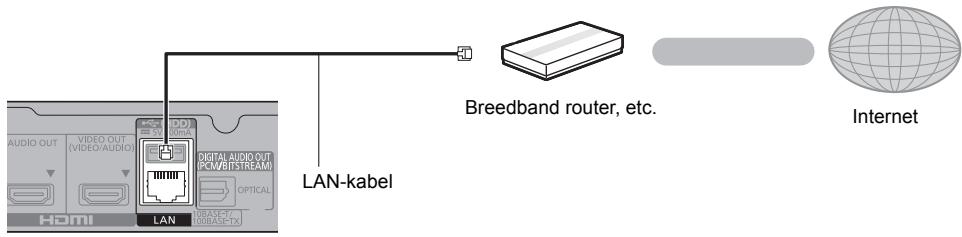

Breedband router, etc. Internet LAN-kabel AUDIO OUT VIDEO OUT (VIDEO/AUDIO) DHMI LAN OPTICAL DIANA/BI/TSTREAM PHC/BITSTREAM HDMI HDMI-FT WINDASE-CTX

1 TV INPUT AV + VOL - OPEN/CLOSE 1 2 abc 3 def

Plaats de schijf.

2 ON/OFFION MOVE OPTION

Circular arrow icon with two opposing arrows forming a cycle (no text or symbols)

QR code image containing encoded data, no visible human-readable text

http://www.adobe.com/products/acrobat/readstep2.html

Accessoires

Diagram showing a mechanical component with labeled parts and directional arrows, including numbered annotations ① and ②.

R6/LR6, AA

(Alkali- of mangaanbatterijen)

CLASS 1 LASER PRODUCT
