Product Type	Blu-ray Disc Player
Brand	PANASONIC
Model	DMP-BDT570
Dimensions (L × D × H)	430 × 199 × 39 mm
Weight	1.5 kg
Power Supply	AC 220-240 V, 50 Hz
Power Consumption	25 W (standby: 0.2 W)
Disc Formats	BD-ROM, BD-R/RE, DVD-ROM, DVD-R/RW, DVD+R/RW, CD, CD-R/RW
Video Output	HDMI (4K 50p/60p, 3D)
Audio Output	HDMI, Optical digital audio output
Network Connectivity	Ethernet 10BASE-T/100BASE-TX, Wi-Fi 802.11 a/b/g/n
Wireless Functions	Wi-Fi Direct, Miracast, DLNA
3D Playback	Yes (Blu-ray 3D)
Firmware Update	Via network or disc (automatic notification)
Included Accessories	Remote control (N2QAYB001060), batteries, power cord, CD-ROM
Maintenance and Cleaning	Clean with a soft, dry cloth. Do not use solvents.
Safety	Class 1 Laser, automatic shutdown after inactivity (30 min)
Spare Parts and Repairability	Contact an authorized Panasonic service center. No spare parts provided.
General Information	Operating temperature: 5°C to 35°C, humidity: 5% to 85%

Frequently Asked Questions - DMP-BDT570 PANASONIC

How do I connect the player to my TV?

Use an HDMI cable to connect the HDMI AV OUT MAIN jack on the player to an HDMI input on your TV. Turn on the TV and select the corresponding video input.

Can I watch videos in 4K?

Yes, if your TV is 4K compatible. Use a high-speed HDMI cable and set 4K Output (50p/60p) to Automatic in the Setup menu.

How do I update the firmware?

Connect the player to the internet via Ethernet or Wi-Fi. Go to HOME > Setup > Player Settings > System > Software Update. Follow the on-screen instructions.

How do I set up Wi-Fi?

Go to HOME > Setup > Network > Network Connection Settings. Select Wireless LAN, choose your network, and enter the password.

What to do if the remote control does not work?

Check the batteries: insert new batteries respecting the polarities (+/-). Point the remote control at the front sensor of the player. Remove obstacles.

Can I play 3D Blu-ray discs?

Yes, this model plays 3D Blu-ray discs. You need to use a 3D TV and active 3D glasses. Enable 3D output in the video settings if necessary.

How do I use the Miracast function?

Enable Miracast on your mobile device (Android or Windows) and on the player via HOME > Setup > Network > Miracast. Select the player from the device list.

The player does not read a disc, what should I do?

Clean the disc with a soft, dry cloth (from the center outward). Check that the disc is compatible (BD, DVD, CD). Try another disc. If the problem persists, contact support.

How do I clean the device?

Unplug the power cord. Use a soft, dry cloth to wipe the casing. Never use solvents, chemicals, or damp cloths.

Where can I find the detailed manual?

Insert the supplied CD-ROM into a computer. Open the INDEX.pdf file to access the full user manual in PDF format. Adobe Reader is required.

USER MANUAL DMP-BDT570 PANASONIC

Illustration of a rectangular electronic device with a black tab and metallic body (no text or symbols)

Bedienungsanleitung

Blu-ray Disc™ Player

Basic Operating Instructions

Blu-ray Disc™ Player

Circular arrow symbol with two opposing arrows forming a cycle (no text or symbols)

Firmware-Update

Simple line drawing of a rectangular device with a speaker icon and sound waves (no text or symbols)

Hinweise

Symmetrical diagram with a central circular component and surrounding directional arrows (no text or symbols)

– DTS/DTS-HD: "Bitstream"

DIGITAL AUDIO OUT (COAXIAL/OPTICAL)

	Buchse	“Digital Audio Ausgang”
		“Bitstream”	“PCM”
Ausgangskanal	HDMI AV OUT	Original-Ton verwendende Ausgänge*1	BD-Video: 7.1ch PCM*1*2 DVD-Video: 5.1ch PCM
	DIGITAL AUDIO OUT	Dolby Digital/ DTS Digital SurroundTM	Heruntergemischt 2ch PCM

AUDIO OUT

Ausgangskanal	7.1ch AUDIO OUT	BD-Video : 7.1ch ^1*2 DVD-Video : 5.1ch
	2ch AUDIO OUT	2ch

DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

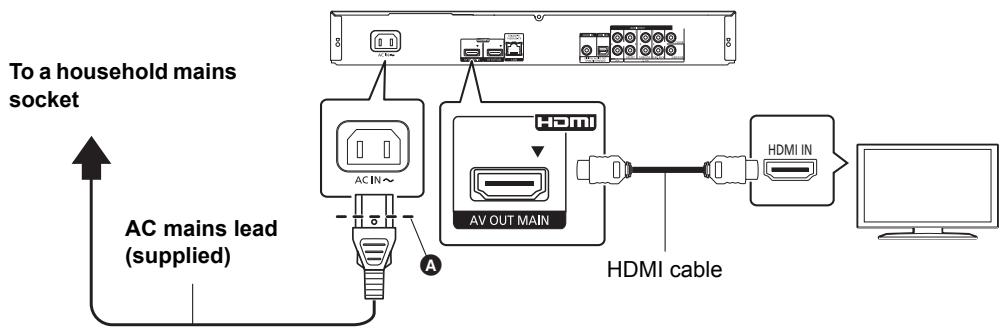

STEP 1 : Connecting to a TV

• Use HDMI AV OUT MAIN terminal.
• Insert the AC mains lead up to Ⓐ, a point just before the round hole.
• To enjoy 4K output, you need to connect this unit to a 4K compatible TV. To enjoy images in 4K (50p/60p), you need a High Speed HDMI Cable.
• To enjoy image in 4K (50p/60p), set "4K (50p/60p) Output" to "Automatic". ([HOME] "Setup" "Player Settings" "Picture" "HDMI Output")

STEP 2 : Connecting to the network

■ Wireless LAN connection

Simple line drawing of a rectangular device with a rectangular slot and sound waves on the side (no text or symbols)

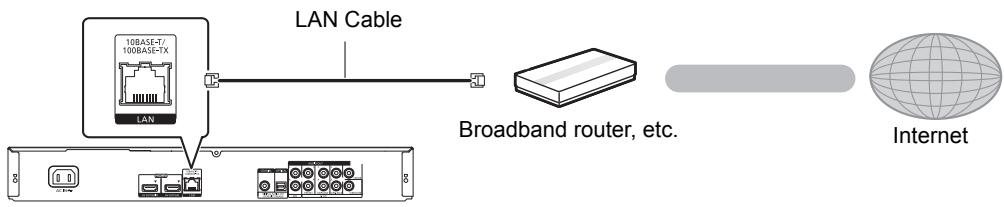

■ LAN cable connection
        D["10BASE-T/100BASE-TX LAN"]
        E["USB ports"]
    end

Use category 5 or above straight LAN cables (STP) when connecting to peripheral devices.

STEP 3 : Settings

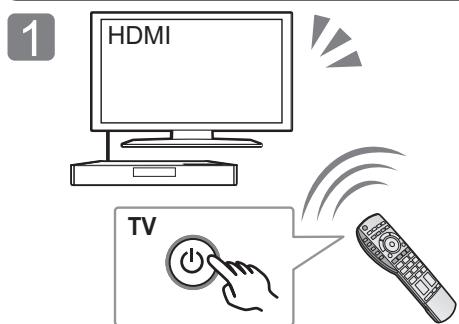

Turn on the TV and select the appropriate video input.

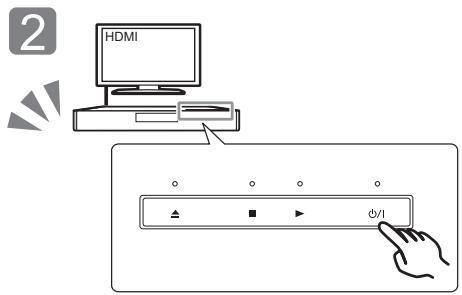

Touch [⏻/l]*.

Follow the on-screen instructions to continue with the settings.

\* Standby/on switch (⏻/l)

Touch to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

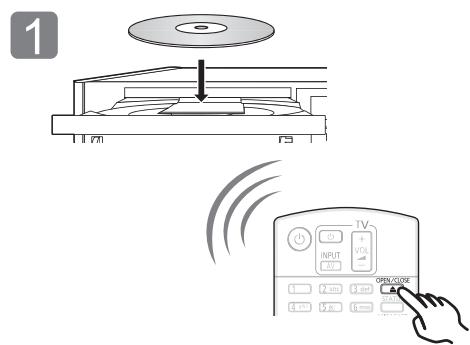

STEP 4 : Playing a disc

Insert the disc.

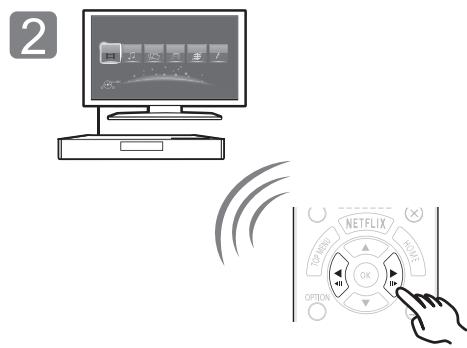

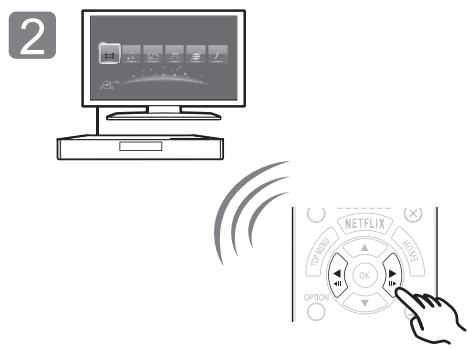

Select the item to play and press [OK].

Circular arrow symbol with two opposing arrows forming a cycle (no text or symbols)

Firmware updates

Panasonic is constantly improving the unit's firmware to ensure that our customers are enjoying the latest technology.

Panasonic recommends updating your firmware as soon as you are notified.

For details, refer to the operating instructions (PDF format).

Thank you for purchasing this product. Please read these instructions carefully before using this product, and save this manual for future use.

Reading the Operating Instructions

This document explains basic operations of the unit. For more detailed explanation, please refer to "Operating Instructions (PDF format)" which is recorded in the enclosed CD-ROM.

■ How to open the Operating Instructions (PDF format)

When you insert the CD-ROM and open the [INDEX.pdf] in the CD-ROM, the Operating Instructions list will be displayed. Click the document name of the Operating Instructions you would like to open.

- Adobe Reader is required to view the PDF file. Please download it from the homepage of Adobe Systems Incorporated.

Operating Instructions (PDF format) cannot be played back on the player itself.

Accessories

Check the supplied accessories before using this unit.

1 Remote control (N2QAYB001060)

2 Batteries for remote control

1 AC mains lead

1 CD-ROM

• Product numbers are provided in these operating instructions correct as of September 2015. These may be subject to change.
• Do not use AC mains lead with other equipment.
• Using the remote control

R6/LR6, AA

(Alkaline or manganese batteries)

- Insert the batteries to the terminal so that it (+ and -) matches those in the remote control.

Point it at the remote control signal sensor on this unit.

Precautions

WARNING

Unit

To reduce the risk of fire, electric shock or product damage,

• Do not expose this unit to rain, moisture, dripping or splashing.
• Do not place objects filled with liquids, such as vases, on this unit.
• Use only the recommended accessories.
• Do not remove covers.
• Do not repair this unit by yourself. Refer servicing to qualified service personnel.
• Do not let metal objects fall inside this unit.
• Do not place heavy items on this unit.

AC mains lead

To reduce the risk of fire, electric shock or product damage,

• Ensure that the power supply voltage corresponds to the voltage printed on this unit.
• Insert the mains plug fully into the socket outlet.
• Do not pull, bend, or place heavy items on the lead.
• Do not handle the plug with wet hands.
• Hold onto the mains plug body when disconnecting the plug.
• Do not use a damaged mains plug or socket outlet.

The mains plug is the disconnecting device.

Install this unit so that the mains plug can be unplugged from the socket outlet immediately.

Small object

Keep the Memory Card out of reach of children to prevent swallowing.

CAUTION

Unit

• This unit utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
• Do not place sources of naked flames, such as lighted candles, on this unit.
• This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.
• This unit is intended for use in moderate climates.
• Some portions of this unit may become hot during use. When moving or cleaning this unit, disconnect the AC mains lead and wait for 3 minutes or longer.

Placement

Place this unit on an even surface.

To reduce the risk of fire, electric shock or product damage,

• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated.
• Do not obstruct this unit's ventilation openings with newspapers, tablecloths, curtains, and similar items.
• Do not place the unit on amplifiers/receivers or equipment that may become hot. The heat can damage the unit.
• Do not expose this unit to direct sunlight, high temperatures, high humidity, and excessive vibration.

Batteries

Mishandling of batteries can cause electrolyte leakage and may cause a fire.

• Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.
• When disposing of the batteries, please contact your local authorities or dealer and ask for the correct method of disposal.
• Do not mix old and new batteries or different types at the same time.
• Do not heat or expose to flame.
• Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed.
• Do not take apart or short circuit.
• Do not recharge alkaline or manganese batteries.
• Do not use batteries if the covering has been peeled off.

Remove batteries if you do not intend to use the remote control for a long period of time. Store in a cool, dark place.

Wireless LAN connection

The following limits are in place regarding the usage of this unit. You must be aware of these limits before using this unit. Panasonic will in no way be responsible for any incidental damage which may arise due to a failure to obey these limits, or to any condition of use or disuse of this unit.

• Data transmitted and received over radio waves may be intercepted and monitored.
  ● This unit contains delicate electronic components.

Please use this unit in the manner in which it was intended and follow the following points:

• Do not expose this unit to high temperatures or direct sunlight.
• Do not bend, or subject this unit to strong impacts.
• Keep this unit away from moisture.
• Do not disassemble or alter this unit in any way.

CE 1731

Declaration of Conformity (DoC)

Hereby, “Panasonic Corporation” declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Customers can download a copy of the original DoC to our R&TTE products from our DoC server:

http://www.doc.panasonic.de

Contact to Authorised Representative:

Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Germany

This product is intended to be used in the following countries. Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Iceland, Liechtenstein, Luxembourg, Malta, Netherlands,

Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, United Kingdom, Switzerland

This product is intended for general consumer. (Category 3)

The WLAN feature of this product shall exclusively be used inside buildings.

This product on purpose to connect to access point of 2.4 GHz or 5 GHz WLAN.

To dispose or transfer this unit

The unit may keep the user settings information in the unit. If you discard this unit either by disposal or transfer, then follow the procedure to return all the settings to the factory presets to delete the user settings. For details, refer to the operating instructions (PDF format).

- The operation history may be recorded in the memory of this unit.

Disposal of Old Equipment and Batteries Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Copyrights and Trademarks

This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and their soundtracks. For details, refer to the operating instructions (PDF format).

"AVCHD", "AVCHD 3D", "AVCHD Progressive" and "AVCHD 3D/Progressive" are trademarks of Panasonic Corporation and Sony Corporation.

Java is a registered trademark of Oracle and/or its affiliates.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS-HD Master Audio | Essential is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

This product is licensed under the AVC Patent Portfolio License for the personal use of a consumer or other uses in which it does not receive remuneration to (i) encode video in compliance with the AVC Standard ("AVC Video") and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, L.L.C. See http://www.mpeqla.com

This product is licensed under the VC-1 Patent Portfolio License for the personal and non-commercial use of a consumer to (i) encode video in compliance with the VC-1 Standard ("VC-1 Video") and/or (ii) decode VC-1 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide VC-1 Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, L.L.C.

See http://www.mpeqla.com

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

SDXC Logo is a trademark of SD-3C, LLC.

“DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation.

The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance®.

The Wi-Fi Protected Setup ^™ Identifier mark is a certification mark of Wi-Fi Alliance ^® .

"Wi-Fi®" and "Wi-Fi Direct®" are registered trademarks of Wi-Fi Alliance®.

"Wi-Fi Protected Setup™", "Miracast™", "WPA™", and "WPA2™" are trademarks of Wi-Fi Alliance®.

DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

Windows is a trademark or a registered trademark of Microsoft Corporation in the United States and other countries.

Android is a trademark of Google Inc.

Copyright 2004-2014 Verance Corporation. Cinavia ^™ is a Verance Corporation trademark. Protected by U.S. Patent 7,369,677 and worldwide patents issued and pending under license from Verance Corporation. All rights reserved.

This product incorporates the following software:

(1) the software developed independently by or for Panasonic Corporation,
(2) the software owned by third party and licensed to Panasonic Corporation,
(3) the software licensed under the GNU General Public License, Version 2.0 (GPL V2.0),
(4) the software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL V2.1), and/or
(5) open source software other than the software licensed under the GPL V2.0 and/or LGPL V2.1.

The software categorized as (3) - (5) are distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. Please refer to the detailed terms and conditions thereof shown in the Player Settings menu.

At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under GPL V2.0, LGPL V2.1 or the other licenses with the obligation to do so, as well as the respective copyright notice thereof.

Contact Information: [e-mail]

The source code and the copyright notice are also available for free in our website below. http://panasonic.net/avc/oss/

(1) MS/WMA

This product is protected by certain intellectual property rights of Microsoft Corporation and third parties. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary and third parties.

(2) MS/PlayReady/Final Product Labeling

This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.

(3) MS/PlayReady/End User Notices

Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device's ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

(4) Vorbis, FLAC, WPA Supplicant

The software licenses are displayed when "Software Licence" in the Setup menu is selected.*

* [HOME] "Setup" "Player Settings" "System" "System Information"

Insérez le disque.

Circular arrow symbol with two opposing arrows forming a cycle (no text or symbols)

R6/LR6, AA

DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

(4) Vorbis, FLAC, WPA Supplicant

Simple line drawing of a rectangular electronic device with a speaker icon emitting sound waves (no text or symbols)

Router Wireless, ecc.

Internet

Circular arrow symbol with two opposing arrows forming a cycle (no text or symbols)

R6/LR6, AA

(Batterie alcaline o al manganese)

DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

(4) Vorbis, FLAC, WPA Supplicant

Simple line drawing of a rectangular electronic device with a speaker icon emitting sound waves (no text or symbols)

Router inalámbrico, etc.

Internet

Circular arrow symbol with two opposing arrows forming a cycle (no text or symbols)

DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

Circular arrow symbol with two opposing arrows forming a cycle (no text or symbols)

R6/LR6, AA
(Alkali- of mangaanbatterijen)

DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

Simple line drawing of a rectangular device with a label and sound waves (no text or symbols)

Internet

Sladdlös router osv.
■ LAN-kabelanslutning

Circular arrow symbol with two opposing arrows forming a cycle (no text or symbols)

(Alkaliska batterier eller manganbatterier)

DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

(4) Vorbis, FLAC, WPA Supplicant

Programvarulicenserna visas när "Programlicens" valts i installationsmenyn.*

Simple line drawing of a rectangular electronic device with a label and sound waves (no text or symbols)

Circular arrow symbol with two opposing arrows forming a cycle (no text or symbols)

Firmware-opdatering

R6/LR6, AA

(Alkaline- eller mangan-batterier)

DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

Simple line drawing of a rectangular device with a speaker icon emitting sound waves (no text or symbols)

Abstract circular arrow symbol with two opposing arrows forming a loop (no text or symbols)

R6/LR6, AA

DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

Simple line drawing of a rectangular device with a rectangular slot and sound waves (no text or symbols)

Wireless router stb.

Internet

Abstract circular arrow symbol with two opposing arrows forming a loop (no text or symbols)

R6/LR6, AA
(Alkáli-mangán elemek)

DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

(4) Vorbis, FLAC, WPA Supplicant

Circular arrow symbol with two opposing arrows forming a cycle (no text or symbols)

DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

Simple line drawing of a rectangular device with a label and sound waves (no text or symbols)

Langaton reititin, jne.

Internet

Circular arrow symbol with two opposing arrows forming a cycle (no text or symbols)

R6/LR6, AA

(Alkali- tai mangaaniparistot)

DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

(4) Vorbis, FLAC, WPA Supplicant

"Panasonic Corporation"

"Panasonic Corporation"

Either of these labels is affixed to this unit.

(Inside of product)

LUOKAN 1 LASERLAITE KLASS 1 LASER APPARAT

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

dts-HD®

Master Audio | Essential

DOLBY

TRUEHD

CERTIFIED

MARTPROTECTED SETUP

POWERED

Manufactured by:

Importer for Europe:

Panasonic Corporation

Kadoma, Osaka, Japan

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

EU
