USER MANUAL HGH75WC3X HOOVER
• HHG7
- HHW6
• HHW7
• HMK7
• HMK6
⑪ Questo apparecchio può essere installato e funzionare solo in locali ventilati secondo UNI 7129 e UNI 7131.
In caso di allacciamento con tubo flessibile usare esclusivamente:
- per apparecchi fissi e da incasso, tubo conforme a UNI14800 con attacchi filettati
- per installazioni mobili e ispezionabili tubi conformi a UNI 7140 o UNI14800
Questo apparecchio può essere utilizzato solo in ambienti con ventilazione maggiorata secondo il D.M. 21 Aprile 1993. Consultare le istruzioni d'uso e manutenzione prima dell'utilizzo dell'apparecchio.
BE FR Cet appareil doit être installé conformément aux réglementations en vigueur, et utilisé seulement dans un endroit bien aéré. Consulter la notice d'utilisation et d'entretien avant d'utiliser cet appareil.
GB IE This appliance must be installed in accordance with applicable regulations and should only be used in well-ventilated locations. Before using this appliance carefully study the instruction book.
PL Urządzenie musi być zainstalowane zgodnie z przepisami obowiązującymi w az użytkownika. Pomieszczenie, w którym urządzenie ma być instalowane musi mieć sprawną wentylacie. Przed użyciem należy dokładnie przeczytać instrukcje obsługi.
BEDE Dieses Gerät muss ordnunggemäss eingerichtet und nur im guten ausgelüfteten Ort eingestellt worden. Bevor Sie das Gerät, zum ersten Mal benutzen, achten Sie bitte darauf, die unterhaltung und Gebrauchsanleitung aufmerksam durch zu lesen.
(ES) Este aparato debe ser instalado confortemente a las reglementaciones en vigor y utilisado unicamente en un lugar bien ventilado. Consultar la nota de utilizacion antes de utilizar este aparato.
PT Este aparelho deve ser instalado conforme as regulamentações en vigor, e utilizado somente num local bem arejado. Consultar as instruções de utilização e de manutenção antes de utilizar este aparelho.
BE NL De installatie van dit apparaat dient te geschieden volgens de ter plekke geldende voorschriften en normen en mag alleen gebruikt worden in goed geventileerde ruimtes. Bestudeer de gebruiksaanwijzing aandachtig voordat u het apparaat in gebruik neemt.
SLTa aparat smete namestiti in/ali vgraditi v skladu z vsemi veljavnimi sploànimi in lokalnimi predpisi. Delovati sme samo v stalno prezraăevanih prostorih. Pred prikljuăitvijo in uporabo aparata preăitajte navodila za uporabo in vzdrlevanje.
Данное изделие должно быть установлено и подключено в соответствии с действующими нормами и правилами. Оно должно эксплуатироваться исключительно в помещениях с постоянной вентиляцией. Пепед использованием изделия необходимо внимательно изучить Инструкцию по эксплуатации.
DK Dette produkt skal ekstra beskyttes jævnfør stærkstrømsreglementet og skal installeres i et rum med rigelig ventilation. Læs brugsanvisningen inden produktet tages i brug.
GR Η συσκευή πρέπει να εγκατασταθεί σύμφωνα με τους κανονιμούς και να χρησιμοποιείται μόνο σε καλά αεριζόμενους χώρους. Πριν χρησιμοποιήσετε τη συσκευή, διαβάστε προσεκτικά τις οδηγίες χρήσης.
HU Ezt a részüléket a vonatkozó utasítások és rendeletek betartasávál kell üzembe helyezni. A készülék kizárólag jól szellozo helyiségben használható. Mielott használatba veszi a készüléket kérjük figyelmesen olvassa el a használati utasítást!
(F)Tämä laite tulee asentaa paikallisten määräysten mukaisesti ja sitä tulee käyttää ainoastaan hyvin ilmastoidussa tilassa. Lukekaa käyttöohje tarkkaan ennen käyt- töönottoa.
SE Denna produkt bör installeras enligt lokala regler och bör endast användas i väl ventilerade rum. Vänligen läs bruksanvisningen noggrant före användning.
(CZ) Tento spotřebič musí být instalován v souladu s platnými nařízeními a měl by být použiván pouze v dobre větraných prostorech. Před použitím spotřebiče pečlivě prostudujte návod.
NO Dette produkt må kun innstaleres ifølge godkjente regler, og må kun brukes i godt ventilerede rom. Før bruk av dette produkt, venligst les nøye bruksanvisningen.
TR Bu cihazı kurmadan veya kullanılmadan önce talimatlar okunmalıdır.
Bu cihaz yürürlükteki yönetmeliklere uygun olarak ve sadece iyi havalandırılmış yerlerde kurulmalıdır.

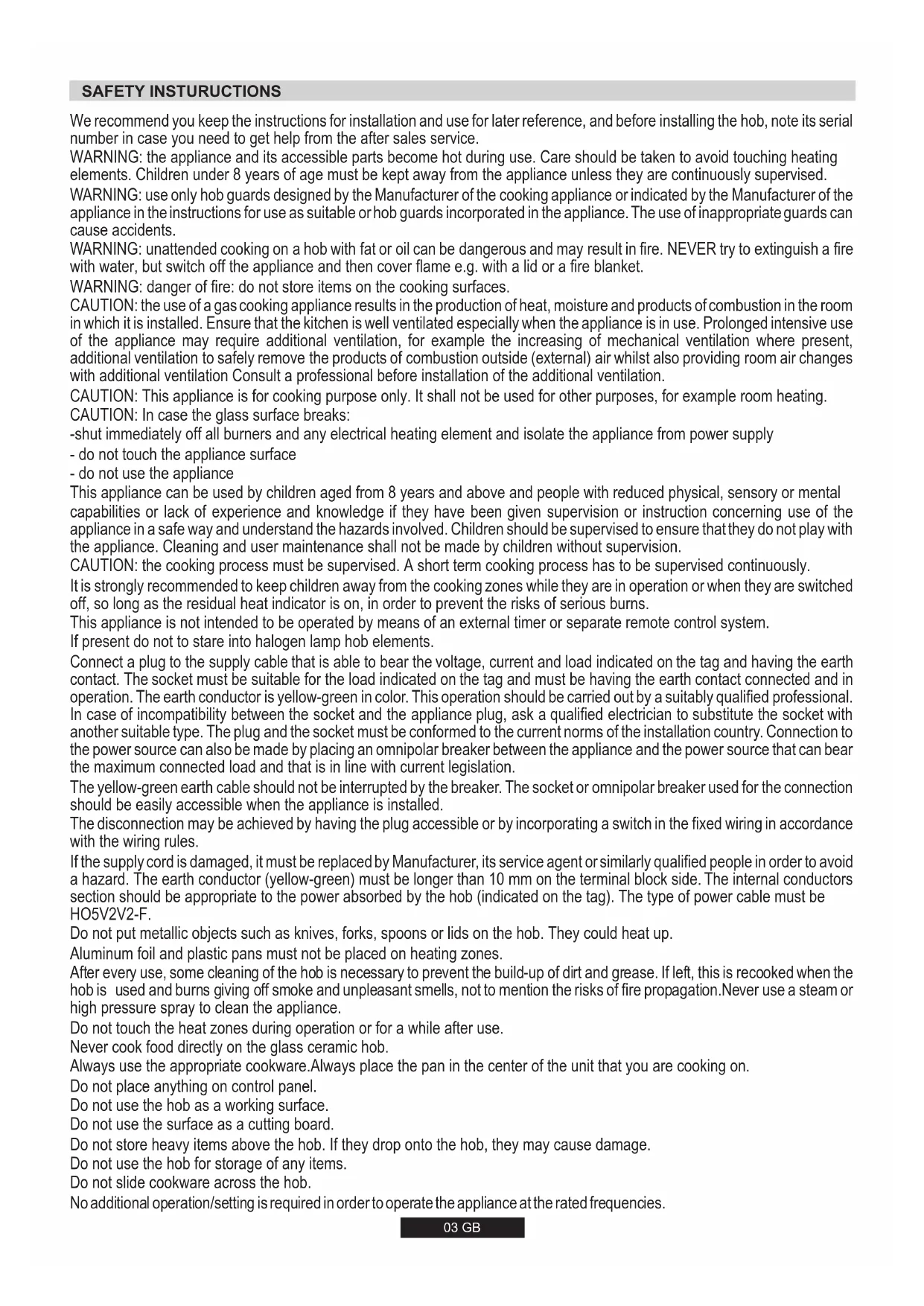

SAFETY INSTURUCTIONS
We recommend you keep the instructions for installation and use for later reference, and before installing the hob, note its serial number in case you need to get help from the after sales service.
WARNING: the appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children under 8 years of age must be kept away from the appliance unless they are continuously supervised.
WARNING: use only hob guards designed by the Manufacturer of the cooking appliance or indicated by the Manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.
WARNING: unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
WARNING: danger of fire: do not store items on the cooking surfaces.
CAUTION: the use of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed. Ensure that the kitchen is well ventilated especially when the appliance is in use. Prolonged intensive use of the appliance may require additional ventilation, for example the increasing of mechanical ventilation where present, additional ventilation to safely remove the products of combustion outside (external) air whilst also providing room air changes with additional ventilation Consult a professional before installation of the additional ventilation.
CAUTION: This appliance is for cooking purpose only. It shall not be used for other purposes, for example room heating.
CAUTION: In case the glass surface breaks:
-shut immediately off all burners and any electrical heating element and isolate the appliance from power supply
- do not touch the appliance surface
- do not use the appliance
This appliance can be used by children aged from 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
CAUTION: the cooking process must be supervised. A short term cooking process has to be supervised continuously.
It is strongly recommended to keep children away from the cooking zones while they are in operation or when they are switched off, so long as the residual heat indicator is on, in order to prevent the risks of serious burns.
This appliance is not intended to be operated by means of an external timer or separate remote control system.
If present do not to stare into halogen lamp hob elements.
Connect a plug to the supply cable that is able to bear the voltage, current and load indicated on the tag and having the earth contact. The socket must be suitable for the load indicated on the tag and must be having the earth contact connected and in operation. The earth conductor is yellow-green in color. This operation should be carried out by a suitably qualified professional. In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country. Connection to the power source can also be made by placing an omnipolar breaker between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation.
The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.
The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.
If the supply cord is damaged, it must be replaced by Manufacturer, its service agent or similarly qualified people in order to avoid a hazard. The earth conductor (yellow-green) must be longer than 10 mm on the terminal block side. The internal conductors section should be appropriate to the power absorbed by the hob (indicated on the tag). The type of power cable must be HO5V2V2-F.
Do not put metallic objects such as knives, forks, spoons or lids on the hob. They could heat up.
Aluminum foil and plastic pans must not be placed on heating zones.
After every use, some cleaning of the hob is necessary to prevent the build-up of dirt and grease. If left, this is recooked when the hob is used and burns giving off smoke and unpleasant smells, not to mention the risks of fire propagation. Never use a steam or high pressure spray to clean the appliance.
Do not touch the heat zones during operation or for a while after use.
Never cook food directly on the glass ceramic hob.
Always use the appropriate cookware. Always place the pan in the center of the unit that you are cooking on.
Do not place anything on control panel.
Do not use the hob as a working surface.
Do not use the surface as a cutting board.
Do not store heavy items above the hob. If they drop onto the hob, they may cause damage.
Do not use the hob for storage of any items.
Do not slide cookware across the hob.
No additional operation/setting is required in order to operate the appliance at the rated frequencies.
1. INSTRUCTIONS FOR THE INSTALLER
INSTALLING A DOMESTIC APPLIANCE CAN BE A COMPLICATED OPERATION WHICH IF NOT CARRIED OUT CORRECTLY, CAN SERIOUSLY AFFECT CONSUMER SAFETY. IT IS FOR THIS REASON THAT THE TASK SHOULD BE UNDERTAKEN BY A PROFESSIONALLY QUALIFIED PERSON WHO WILL CARRY IT OUT IN ACCORDANCE WITH THE TECHNICAL REGULATIONS IN FORCE. IN THE EVENT THAT THIS ADVICE IS IGNORED AND THE INSTALLATION IS CARRIED OUT BY AN UNQUALIFIED PERSON, THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR ANY TECHNICAL FAILURE OF THE PRODUCT WHETHER OR NOT IT RESULTS IN DAMAGE TO GOODS OR INJURY TO INDIVIDUALS.
1.1 BUILDING IN
The hob may be installed in any worktop which is heat resistant to a temperature of 100^ C, and has a thickness of 25-45 mm. The dimensions of the insert to be cut out of the worktop are in shown in Figure 2.
When there is an accessible space between the built-in hob and the cavity below, a dividing wall made of insulating material should be inserted (wood or a similar material) (Figure 3).
If the hob is fitted next to a cabinet on either side, the distance between the hob and the cabinet must be at least 15 cm; while the distance between the cut out and the rear wall must be at least 60 mm for 60 cm hobs (3&4 gases - L1/L2/L3/L4) and must be at least 70 mm for 75 cm hobs (5 gases - L5).
The distance between the hob and any other unit or appliance above it (e.g. An extractor hood) must be no less than 70 cm (Figure 4).
Metal objects in the drawer may reach high temperatures due to air recirculation. It is therefore recommended to use an intermediate wood panel.
Important - The diagram in figure 1 shows how the sealant should be applied.
The Hob unit is fitted by attaching the Fixing Clamps supplied, using the holes at the base of the unit.
The size of these openings must be at least 300 cm2 and placed as shown in Figure 5.
When a 60 cm hob or a 75 cm hob is fitted over a built in oven, the latter must be fan cooled.
1.2. SUITABLE LOCATION
This appliance must be installed in accordance with the regulations in force and only used in a well ventilated space. Read the instructions before installing or using this appliance.
WARNING: Prior to install, ensure that local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible.
WARNING: The adjustment conditions for this appliance are stated on the label (or data plate)
WARNING: This appliance is not connected to a combustion products evacuation device. It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation. For this reason you should ensure good ventilation either by keeping all natural air passages open or by installing an extractor hood with.
2. ELECTRICAL CONNECTION (FOR U.K. ONLY)
Warning - this appliance must be earthed
This appliance is designed for domestic use only. Connection to the main supply must be made by a competent electrician, ensuring that all current regulations concerning such installations are observed.
The appliance must only be connected to a suitably rated spur point, a 3 pin 13 amp plug/socket is not suitable. A double pole switch must be provided and the circuit must have appropriate fuse protection. Further details of the power requirement of the individual product will be found in the users' instruction and on the appliance rating plate. In the case of built-in product you are advised, should you wish to use a longer cable than the one supplied, that a suitably rated heat resistant type must be used.
The wiring must be connected to the mains supply as follows:
CONNECT TO SPUR TERMINAL
Green & Yellow Wire Earth Connection
Blue Wire Neutral Connection
Brown Wire Live Connection
Note: We do not advocate the use of earth leakage devices with electric cooking appliances installed to spur points because of the «nuisance tripping» which may occur. You are again reminded that the appliance must be correctly earthed, the manufacturer declines any responsibility for any event occurring as a result of incorrect electrical installation.
2.1. ELECTRICAL CONNECTION
Check the data on the rating plate, located on the outside of the unit, to ensure that the supply and input voltage are suitable.
Before connection, check the earthing system.
By Law, this appliance must be earthed. If this regulation is not complied with, the Manufacturer will not be responsible for any damage caused to persons or property. If a plug is not already attached, fit a plug appropriate to the load indicated on the rating plate. The earth wire is coloured yellow/green. The plug should always be accessible.
Where the Hob is connected direct to the electricity supply, a circuit breaker must be fitted.
If the power supply cord is damaged this is to be replaced by a qualified engineer so as to prevent any potential risk.
The earth wire (green and yellow coloured) must be at least 10 mm longer than the live and neutral wires.
The section of the cable used must be of the correct size in relation to the absorbed power of the hob.
Please check rating plate for the power details and ensure that the power supply cord is of the type 3x0.75 mm ^2 H05 V2V2-F.
| Mains Supply | LIVE | L | Brown Wire |
| EARTH | Green/Yellow Wire | ||
| NEUTRAL | N | Blue Wire |
If an appliance is not fitted with a supply cord and a plug, or with other means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, the instructions shall state that means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
2.2. GAS CONNECTION
These instructions are for qualified personnel, installation of equipment must be in line with the relevant national standard. (For U.K. only: by law the gas installation\commissioning must be carried out by a "Gas Safe" installer)
All work must be carried out with the electricity supply disconnected. The rating plate on the hob shows the type of gas with which it is designed to be used. Connection to the mains gas supply or gas cylinder should be carried out after having checked that it is regulated for the type of gas with which it will be supplied. If it is not correctly regulated see the instructions in the following paragraphs to change gas setting.
For liquid gas (cylinder gas) use pressure regulators which comply with the relevant national standards.
Use only pipes, washers and sealing washers which comply with the relevant national standards.
For some models a conic link is furnished to outfit for the installation in the countries where this type of link is obligatory; in picture 8 it is pointed out how to recognize the different types of links (CY = cylindrical, CO = conic). In every case the cylindrical part of the link has to be connected to the hob.
When connecting the hob to the gas supply via use offlexible hoses please ensure that the maximum distance covered by the hose does not exceed 2 metres.
The flexible tube shall be fitted in such a way that it cannot come into contact with a moveable part of the housing unit (e.g. a drawer) and does not pass through any space where it may become crushed/ kinked or damaged in any way.
To prevent any potential damage to the hob please carry out the installation following this sequence (picture 6):
1) As illustrated, assemble parts in sequence:
A: 1/2 Male Adaptor Cylindrical
B: 1/2 Seal
C: 1/2 Female Gas Adaptor Conical-Cylindrical or Cylindrical-Cylindrical
2) Tighten the joints with the spanner, remembering to twist the pipes into position.
3) Attach fitting C to mains gas supply using rigid copper pipe or flexible steel pipe.
IMPORTANT: carry out a final check for leaks on the pipe connections using a soapy solution. NEVER USE A FLAME. Also, make sure that the flexible pipe cannot come into contact with a moving part of the cabinet (eg.adrawer) and that it is not situated where it could be damaged.
Warning: If gas can be smelt in the vicinity of this appliance turn off the gas supply to the appliance and call the engineer directly. Do not search for a leak with a naked flame.
2.3. ADAPTING THE HOB TO DIFFERENT TYPES OF GAS
To adapt the Hob for use with different types of gas, carry out the following instructions:
- Remove the grids and burners
- Insert on hexagonal spanner (7 mm) into the burner support (Figure 7)
- Unscrew the injector and replace it with one suitable for the gas to be used (see gas type table)
2.4. REGULATING THE MINIMUM FLAME
After lighting the burners, turn the control knob to the minimum setting and then remove the knob (this can easily be removed by applying gentle pressure).

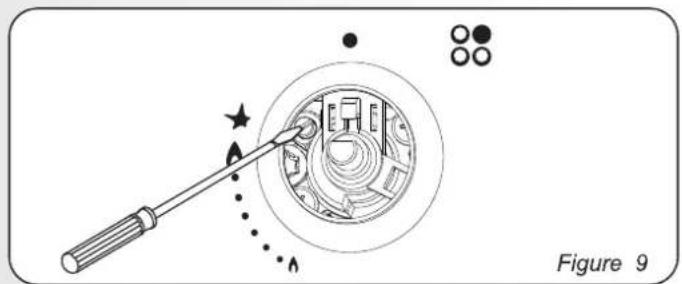

Using a small «Terminal» type screwdriver the regulating screw can be adjusted as in Figure 9. Turning the screw clockwise reduces the gas flow, whilst turning it anticlockwise increases the flow – Use this adjustment to obtain a flame of approximately 3 to 4 mm in length and then replace the control knob.
When the gas supply available is LPG - the screw to set the idle flame must be turned (clockwise) to the end stop.
When you have carried out the new gas regulation, replace the old gas rating plate on your appliance with one (supplied with hob) suitable for the type of gas for which it has been regulated.
3. USE OF HOB - USER INSTRUCTIONS
This appliance must only be used for the purpose for which it is intended, domestic cooking, and any other use will be considered improper and could therefore be dangerous. The Manufacturer will not be responsible for any damage or loss resulting from improper use.

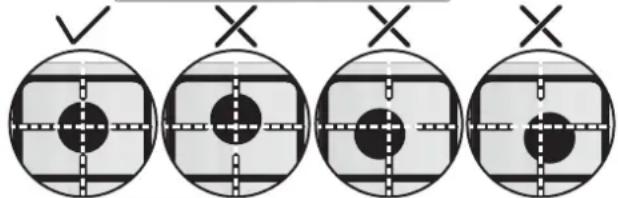

Before using burner, be sure, grid perimeters center the burner as below figure.
If you are using Cast Iron Grids; underneath the grid, position of it is stated. Be sure for the exact grid is used in correct position.
If the burners have not been used for a couple of days, wait for a few seconds before lighting the burner, this will allow any air present in the pipes to escape.
For appliances fitted with electronic ignition carry out the following:
- Push in and turn the knob anticlockwise to the ignition symbol.
- Ignite the burner by pressing the sparker button.
For hobs fitted with automatic ignition simply push in and turn the knob to the ignition symbol.
The ignition system will continue to generate sparks as long as the control knob is being pressed.
If the burner has not ignited within 5 seconds, turn the knob to the 0 position and repeat the operation.
For models fitted with a safety tap (which cuts-off the flow of gas if the flame is accidentally extinguished) the burners are ignited and described above, but care must be taken.
Prior to switching on the gas hob ensure that the burners and burner caps are correctly placed within their position.
Warning: If there is no electricity on appliance, to ignite the burner a lighter should be used;
- Push in and turn the knob anti-clockwise to the ignition symbol,
- While pushing in the button ignite the burner by using a lighter and keep button pushed in 5 seconds after ignition.
GENERAL ADVISE
For best results, use cooking vessels with a flat surface. The size of the surface should match the gas burner side as follows. Table A.
| Burner Type | ∅ pan/pot (cm) | Power (kW) | G20/20 mbar (methane) | G30/28-30 mbar (LPG) |
| AUX Auxiliary | 10 - 18 | 1,00 | 95 l/h | 73 g/h |
| SR Semi Rapid | 12 - 22 | 1,75 | 167 l/h | 127 g/h |
| R Rapid | 16 - 26 | 2,70 | 257 l/h | 196 g/h |
| DC 4 kW Mono | 16 - 26 | 4,00 | 381 l/h | 291 g/h |
| DC 4,2 kW Mono | 16 - 26 | 4,2 NG 4 LPG | 400 l/h | 291 g/h |
| DC 5 kW Mono | 16 - 26 | 5 NG 4,6 LPG | 476 l/h | 364 g/h |
Table A
For smaller containers the gas burner should be regulated so that the flame does not overlap the base of the pan. Vessels with a concave or convex base should not be used.
WARNING: If a flame is accidentally extinguished, turn the knob to the off position and do not attempt to re-ignite if for at least 1 minute.
If over the years the gas taps become stiff to turn it is necessary to lubricate them.
Such operation must be carried out only by qualified Service Engineers.
4. MAINTENANCE AND CLEANING
Before cleaning the hob, ensure the appliance has cooled down. Remove the plug from the socket or (if connected directly) switch off the electricity supply.
Cleaning and user maintenance shall not be made by children without supervision
Never use abrasives, corrosive detergents, bleaching agents or acids. Avoid any acid or alkaline substances (lemon, juice, vinegar etc.) on the enamelled, varnished or stainless steel sections.
When cleaning the enamelled, varnished or chrome sections, use warm soapy water or a non caustic detergent. For stainless steel use an appropriate cleaning solution.
The burners can be cleaned with soapy water. To restore their original shine, use a household stainless steel cleaner. After cleaning, dry the burners and replace.
It is important the Burners are replaced correctly.
Chromed grids and burners
Chromed grids and burners have a tendency to discolour with use. This does not jeopardize the functionality of the hob.
Our After Sales Service Centre can provide spare parts if required.
5. AFTERCARE
Before calling out a Service Engineer please check the following:
- that the plug is correctly inserted and fused;
• that the gas supply is not faulty.
If the fault cannot be detected:
Switch off the appliance and call the After Service Centre. DO NOT TAMPER WITH THE APPLIANCE.
6. PROTECTION OF THE ENVIRONMENT
This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.
Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:
- WEEE shall not be treated as household waste.
- WEEE shall be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.
- When you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.
The Manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relating to safety or function.
The appliance complies with European Directive 2009/142/EC (GAD) and starting from 21/04/2018 with Gas Appliances Regulation 2016/426 (GAR).
By placing the CE mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.
SAVING AND RESPECTING THE ENVIRONMENT
Where possible use lid to cover the pan, Regulae the flame to not overlap the diameter of the pan.
"Valid only for Cyprus"
| Burner Plate | 4 Gas | 4 Gas | 4 Gas | 4 Gas | 5 Gas |
| Burner | Aux/2SR/R | Aux/SR/R/DC 4 Mono | Aux/SR/R/DC 4,2 Mono | Aux/SR/R/DC 5 Mono | DC/2R/SR/AUX |
| Type | UH60MF | UH60MF | UH60MF | UH60MF | UH75MF |
| FFD | YES | YES | YES | YES | YES |
| Aux 1kW | 1 | 1 | 1 | 1 | 1 |
| Sr 1,75 kW | 2 | 1 | 1 | 1 | 1 |
| R 2,7 kW | 1 | 1 | 1 | 1 | 2 |
| Dc 4 kW Mono | - | 1 | - | - | - |
| Dc 4,2 kW Mono | - | - | 1 | - | - |
| Dc 5 kW Mono | - | - | - | 1 | 1 |
| Nominal Heat Input | 7,2 kW | 9,45 kW | 9,65 kW9,45 kW | 10,45 kW10,05 kW | 13,15 kW12,75 kW |
| G20/20 mbar | 686 l/h | 900 l/h | 920 l/h | 996 l/h | 1253 l/h |
| G30/28-30 mbar | 524 g/h | 688 g/h | 687 g/h | 731 g/h | 928 g/h |
| Installation Class | 3 | 3 | 3 | 3 | 3 |
| Voltage V/Frequency Hz | 220-240 V/ 50-60 Hz | 220-240 V/ 50-60 Hz | 220-240 V/ 50-60 Hz | 220-240 V/ 50-60 Hz | 220-240 V/ 50-60 Hz |
| Electrical Input Power | 1 | 1 | 1 | 1 | 1 |
| Electric Ignition | YES | YES | YES | YES | YES |
| Product Dimension | 595x510 | 595x510 | 595x510 | 595x510 | 745x510 |
Table 1
This appliance has been designed for non-professional, i.e. domestic, use.
CONSIGNES DE SÉCURITÉ
Diagram showing a four-gate kitchen with checkmark indicators below, indicating selection or status of the four-gate.3.1. POUŽITÍ PLYNOVÉHO HOŘÁKU
Diagram showing a kitchen appliance with four circular insets, each containing a black circle and a checkmark, below indicating a comparison or status.text_image
Diagram showing a kitchen stove with four circular windows and checkmark indicators below, likely illustrating a cooking or dining setup.3.1. UŻYWANIE PALNIKÓW GAZOWYCH
Simple line drawing of a four-gas stove with four panes and a checkmark (no text or symbols)
Gorilnik prižgete tako, da pridržite npr. vžigalico ob gorilniku, pritisnete na gumb za izbrani gorilnik in ga obrnete na levo.
Diagram showing a kitchen appliance with four circular holes and checkmark indicators below, likely illustrating a logic or selection process.3.1. COMO UTILIZAR O QUEIMADOR DE GÁS
2. CONEXIUNEA ELECTRICĂ (NUMAI PENTRU G.B.)
Two views of a device casing with labeled parts, shown from different angles (60° and 75°), no text or symbols present.
| Gas Type | G20 | G20 | G25.1 | G25.3 | G30 | G30 | G30 | ||
| Gas Pressure | 20 mbar | 25 mbar | 25 mbar | 25 mbar | 29 mbar | 37 mbar | 50 mbar | ||
| Burners | Max (kW) | Min (kW) | Injector NG | Injector NG | Injector NG | Injector NG | Injector LPG | Injector LPG | |
| Max - Min Max - Min Max - Min Max - Min | Max - Min Max - Min Max - Min | ||||||||
| Aux | 1 | 0,3 | 72X(1kW-0,3kW) | 70X(1kW-0,3kW) | 74F1(1kW-0,3kW) | 72F1(1kW-0,3kW) | 50(73 g/h-21 g/h) | 46(73 g/h-21 g/h) | |
| Sr | 1,75 | 0,5 | 97Z(1,75kW-0,5kW) | 91Z(1,75kW-0,5kW) | 98Y(1,75kW-0,5kW) | 102F3(1,75kW-0,5kW) | 65(127 g/h-35 g/h) | 61(127 g/h-35 g/h) | |
| R | 2,7 | 0,8 | 109Y(2,7kW-0,8kW) | 110F3(2,7kW-0,8kW) | 120F2(2,7kW-0,8kW) | 115F2(2,7kW-0,8kW) | 80(196 g/h-56 g/h) | 78(196 g/h-57 g/h) | |
| Dc 4 kW Mono(for L3) | NG 4LPG 4 | 1,8 | 151H3(4kW-1,8kW) | 145H3(4kW-1,8kW) | 154F3(4kW-1,8kW) | 148F3(4kW-1,8kW) | 100(286 g/h-160 g/h) | 94(286 g/h-167 g/h) | |
| Dc 4,2 kW Mono(for L2) | NG 4,2LPG 4 | 2,4 | 153H3(4,2kW-2,4kW) | 148H3(4,2kW-2,4kW) | 154F3(4,2kW-2,4kW) | 148F3(4,2kW-2,4kW) | 100(286 g/h-160 g/h) | 94(286 g/h-167 g/h) | |
| Dc 5 kW Mono(for L1,L5) | NG 5LPG 4,6 | 2,4 | 166S4(5kW-2,4kW) | 160H3(5kW-2,4kW) | 168F3(5kW-2,4kW) | 162F3(5kW-2,4kW) | 107(334 g/h-160 g/h) | 100(334 g/h-167 g/h) | |
| Gas Categories | II2E+3+ | II2H3+ | II2H3B/P |
| G20 20 mbar | G20 20 mbar | G20 20 mbar | |
| G30/31 28-30/37 mbar | G30 28-30mbar | G30/31 30/30 mbar | |
| G31 37 mbar | |||
| Countries | BE,FR | CY,CZ,GB,GR,IE,IT,PT,SI, ES,TR,CH | BG, HR,DK,EE,FI,LV,LT,NO,RO,SK,SE,CZ,SI,TR |
| Gas Categories | II2H3B/P | II2EK3B/P | II2HS3B/P | II2E3B/P | II2E3B/P |
| G20 20 mbar | G20 20 mbar | G20 25mbar | G20 20 mbar | G20 20 mbar | |
| G30/31 50/50 mbar | G25.3 25 mbar | G25.1 25 mbar | G30/31 37/37 mbar | G30/31 50 mbar | |
| G30/G31 30/30 mbar | G30/G31 30/30 mbar | ||||
| Countries | AT,CH,DE | NL | HU | PL | DE |
Efficiency Declaration (UE) N. 66/2014
| UH60MF 5kW DIAMOND (L1) | UH60MF - BIG REAR (L3, L4) | ||||||
| SINGLE BURNER EFFICENCY | SINGLE BURNER EFFICENCY | ||||||
| AUX SR | R DC | AUX SR | R DC | ||||
| - | 55 % 57,6 % 57,6 % | - | 60 % 55,9 % 54,3 % | ||||
| MEDIUM %56,7 | MEDIUM %56,7 | ||||||
| UH60MF - BIG FRONT (L2) | UH75MF 5kW - CENTRAL (L5) | ||||||
| SINGLE BURNER EFFICENCY | SINGLE BURNER EFFICENCY | ||||||
| AUX SR | R DC | AUX SR | R DC | R | |||
| - | 60 % 55,9 % 54,3 % | - | 57,6 % 54,3 % 59,454,5 % | ||||
| MEDIUM %56,7 | MEDIUM %56,5 | ||||||
GB - IE
The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relating to safety or function.
