INSTALLATION DU PRODUIT

Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.02

SPECIFICATIONS Product model MDRE288FGE01 Fresh Food Storage Compartment Volume 205 L Frozen Food Storage Volume

Freezing Capacity / Rated Voltage 220-240 V~ Overall Dimension (H x W x D) 1233x540x550 mm03

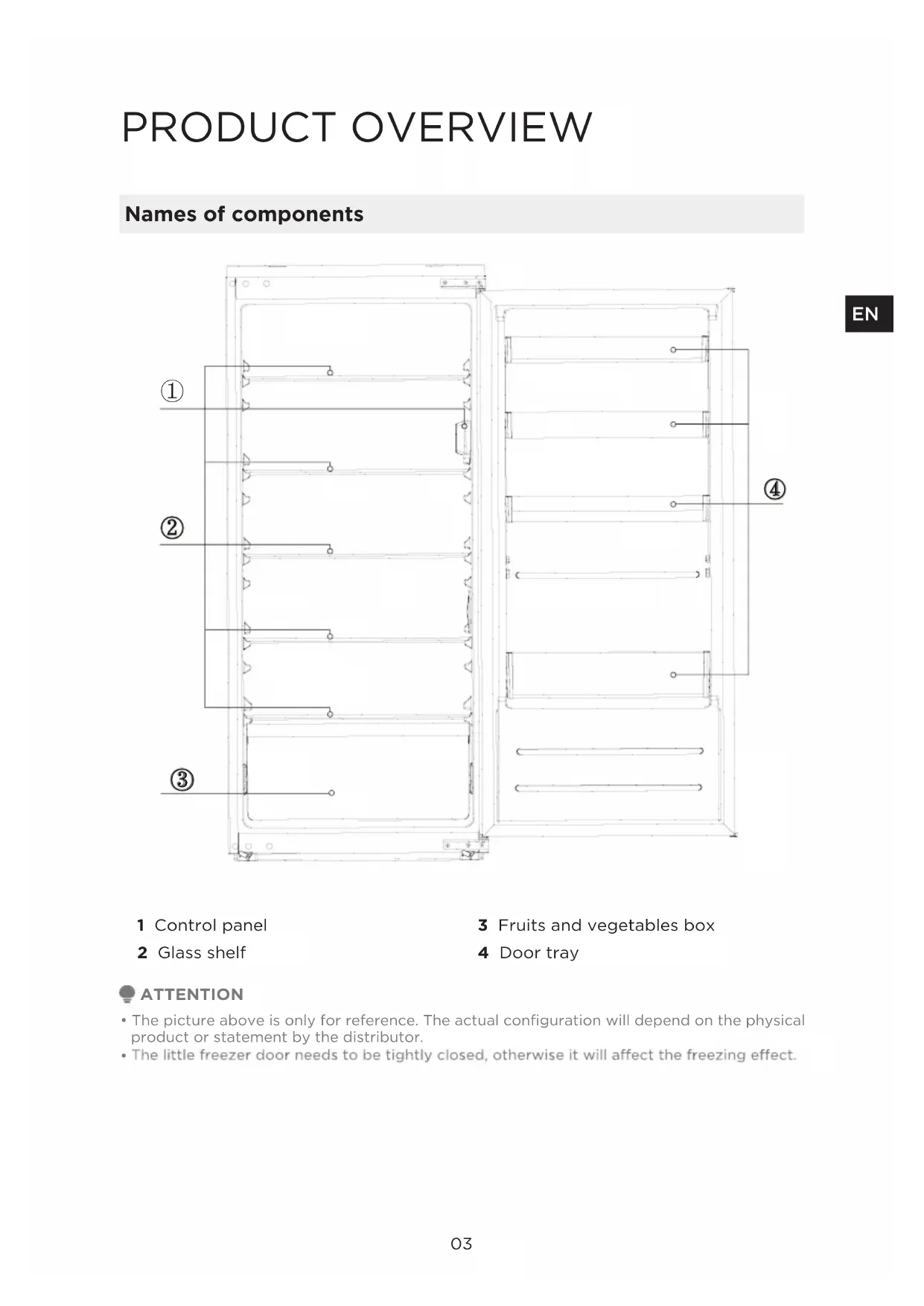

PRODUCT OVERVIEW Names of components 1 Control panel2 Glass shelf3 Fruits and vegetables box4 Door tray ATTENTION• The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

PRODUCT INSTALLATION Install Instruction For refrigerating appliances with climate class

• Depending on the climate class, This refrigerating appliance is intended to be used at ambient temperatures range as specified following table.

• The climate class can be found on the rating plate. The product may not operate properly at temperatures outside of the specific range.

• You can find the climate class on the product label. Effective temperature range

• The product is designed to operate normally in the temperature range specified by its class rating. Class Symbol Ambient temperature range °C

IEC 62552 (ISO 15502) ISO 8561

Extended temperate SN + 10 to + 32 + 10 to + 32Temperate N + 16 to + 32 + 16 to + 32Subtropical ST + 16 to + 38 + 18 to + 38Tropical T + 16 to + 43 + 18 to + 43 WARNING When positioning the appliance, ensure the supply cord is not trapped or damaged.05

Space requirement diagram (when the door is open and when the door is closed)WidthOverall HeightDepth to match the cabinetOverall DepthHeight to match the cabinetA B C D E540 1233 510 550 1218Notice: All dimensions in mm

Installation in cabinet Steps:

A - Thinckness of cabinet plank Cabinet vent

2. Push the refrigerator into the cabinet and adjust it to make sure the edge fold

of top bae completely touch the top edge of the cabinet, and the limit hook of supporting leg completely touch the bottom edge of the cabinet. Edge fold of top bae limit hook ≥07

3. Fix the supporting leg with screws, then install the screw caps.

4. Fix the top baffle to the top of the cabinet inner with screws, then install the

screw caps. Screw Screw

5. Open the door of cabinet the maximum angle, and open the door of the

refrigerator to the corresponding position. Sliding the block to make sure inner edge align with the door edge of refrigerator, then fix the blocks to the door of cabinet with screw and install screw caps.

6. Take out the sealing strip from accessory bag, and press it in the gap between

the cabinet and the refrigerator. Installation is completed. sealing strip08

Door reversal Parts already mounted on the refrigerator (as shipped): Bottom hinge Hole cap Upper hinge Fixed block Steps:

1. Power o the refrigerator, and remove all objects from the door trays.

2. Remove the upper hinge and hole caps of refrigerator door.

3. Remove the refrigerator door, the bottom hinge and the hole caps.

4. Exchange the bottom hinge and upper hinge, then install them according to

5. Remove the two fixed blocks of refrigerator door and rotate them for 180°, and

install them on other side of refrigerator door.

6. The picture after completion is shown as below.

Moving the appliance

1. Remove all food from the appliance.

2. Take the power plug off, insert and fix it into the power plug hook at the rear

or on top of the appliance.

3. Fix parts with tape to prevent sheves and the door handle from falling off while

moving the appliance.

4. Move the appliance carefully with more than two person. If move the appliance

over a long distance, keep the appliance upright.

5. After installing the appliance, put the power plug on a socket again.

ATTENTION Precautions before operation: Before making changes the refrigerator must be disconnected from power. precautions should be taken to prevent any personal injury. Changing the light

• Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

• This product contains a light source of energy efficiency class (F). ATTENTION After connecting the power supply cord (or plug) to the outlet, wait 2 or 3 hours before you put food into the appliance. If you add food before the appliance has cooled completely, your food may spoil.12

Temperature setting of refrigerator compartment

• Once initially powered on, all LED lights turn on for 3 seconds, and then the refrigerator runs at the default setting (LED3 light is on).

• In case of a failure, the corresponding LED blinks.

• Each time the temperature setting button A is pressed once, the temperature setting changes one time. After the temperature setting has been completed, the refrigerator will run according to the set value after 15s. The shift regulation is:

• Long press temperature setting button for 3s, it will enter Super cool mode after 15s, and LED1 and LED2 turn on at the same time.

• After running for 6 hours at Super cool mode or the setting button is pressed or the temperature reach at 2°C, it will quit the Super cool mode, then go back to the previous setting. Standby mode

• Enter: Long press the temperature setting button for 10s to enter standby mode, all loads are turned off, and the display goes out.

• Exit: Long press the temperature setting button for 10s again to exit the standby mode.14

Tips on storing food Cooling compartment

• To reduce moisture and subsequent ice build-up, never put liquid into the refrigerator in unsealed containers. Frost tends to concentrate in the coolest parts of the evaporator. Storing uncovered liquids results in a more frequent need for defrosting.

• Never put warm foods in the refrigerator. These should fi rst cool down at room temperature and then be placed so as to ensure adequate air circulation in the refrigerator.

• Foods or food containers should not touch the back wall of the refrigerator because they could freeze to the wall. Do not keep regularly opening the door of the refrigerator.

• Meat and clean fi sh (packed in a package or plastic foil) can be placed in the refrigerator, which can be used in 1–2 days.

• Fruit and vegetables without packaging can be placed in the part designated for fresh fruit and vegetables. ATTENTION The optimal temperature setting of each compartment depends on the ambient temperature. Above optimal temperature is based on the ambient temperature of 25 °C.15

Order Compartments TYPE Target storage temp. [°C] Appropriate food 1 Fridge +2

Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods not suitable for freezing.

Four-star rating frozen

With freezing capacity, fast freezing speed,, can quickly freeze and store food. Suitable for frozen fresh food such as seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products. Recommended for 3 ~ 6 months, the longer the storage time, the worse the taste and nutrition.

Three-star rating frozen

With freezing capacity. Suitable for frozen fresh food such as seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products. Recommended no more than 3 months.

Two-star rating frozen

Only suitable for medium-term storage of already frozen food, e.g. ice cream. Recommended no more than 1 month.

Only suitable for refrigeration, and short-term storage of small quantities of already frozen food. Recommended no more than 1 week. 6 0-star -6

Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably no more than 3 days). Partially encapsulated processed foods (non- freezable foods). 7 Chill -2

Fresh/ frozen pork, beef, chicken, freshwater aquatic products, etc. (7 days below 0°C and above 0°C is recommended for consumption within that day, preferably no more than 2 days). Seafood less than 0 for 15 days, it is not recommended to store above 0°C. 8 Fresh food 0

Fresh pork, beef, fish, chicken, cooked food, etc. (Recommended to eat within the same day, preferably no more than 3 days) 9 Wine +5

+20 Red wine, white wine, sparkling wine, etc. ATTENTION please store different foods according to the compartments or target storage temperature of your purchased.16

CLEANING AND MAINTENANCE

• Disconnect the plug from the wall socket or set the standby mode, open the door and remove all the food to a cool place. It is recommended to remove the frost by a plastic scraper, or let the temperature rise naturally until the frost melts. Then wipe away the remaining ice and water, and plug in socket for switching on the refrigerator. Cleaning of the door tray

• According to the direction arrow in the figure below, use both hands to squeeze the tray, and push it upward, then you can take it out.

• After washing the tray having been taken out, you can adjust its installing height in accordance with your requirement. Cleaning of the glass shelf

• As the innermost part of the refrigerator liner where contacting the shelves has a backstop, you shall raise the shelves upward, then you can be able to take it out.

• Adjust or clean the shelves according to your requirement. Cleaning of the Fruits and vegetables box

• Remove the contents of the box. Hold the handle of the box and pull it out completely until it stops.

• Lift the box up and remove it by pulling it out. ATTENTION Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning. The freezer shall be finally cleaned with clean water and dry cloth. Open the door for natural drying before the power is turned on. Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior.17

Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance. Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor. Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and seal them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45°. CAUTION The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be nterrupted; otherwise the service life may be impaired. Foods can be preserved for a couple of hours even in summer in case of power failure; it is recommended to reduce the frequency of opening door.18

TROUBLESHOOTING The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not solved. Problem Possible reason Failed operation

• Check whether the appliance is connected to power or whether the plug is in well contact

• Check whether the voltage is too low

• Check whether there is a power failure or partial circuits have tripped Odor

• Odorous foods shall be tightly wrapped

• Check whether there is any rotten food

• Clean the inside of the refrigerator Long-time operation of the compressor

• Long operation of the refrigerator is normal in summer

• when the ambient temperature is high It is not suggestible having too much food in the appliance at the same time

• Food shall get cool before being put into the appliance

• The doors are opened too frequently Light fails to get lit

• Check whether the refrigerator is connected to power supply and whether the illuminating light is damaged

• Have the light replaced by a specialist Door can not be properly closed

• The door is stuck by food packages Too much food is placed

• The refrigerator is tiltedr. Loud noises

• Check whether the floor is level and whether the refrigerator is placed stably

• Check whether accessories are placed at proper locations19

Problem Possible reason Door seal fails to be tight

• Remove foreign matters on the door seal.

• Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating). Water pan overflows

• There is too much food in the chamber or food stored contains too much water,resulting in heavy defrosting.

• The doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting. Hot housing

• Heat dissipation of the built-in condenser via the housing, which is normal. When housing becomes hot due to high ambient temperature, storage of too much food or shutdown of the compressor is shut down, provide sound ventilation to facilitate heat dissipation Surface condensation

• Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel. Abnormal noise

• Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal.

• Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.20

APPENDIX Special for new European standard The ordered parts in the following table can be acquired from Service provider channel Ordered part Provided by Minimum time required for Provision Thermostats Professional maintenance personnel At least 7 years after the last model is launched on the market Temperature sensors Professional maintenance personnel At least 7 years after the last model is launched on the market Printed circuit boards Professional maintenance personnel At least 7 years after the last model is launched on the market Light sources Professional maintenance personnel At least 7 years after the last model is launched on the market Door handles Professional repairers and final users At least 7 years after the last model is launched on the market Door hinges Professional repairers and final users At least 7 years after the last model is launched on the market Trays Professional repairers and final users At least 7 years after the last model is launched on the market Baskets Professional repairers and final users At least 7 years after the last model is launched on the market Door gaskets Professional repairers and final users At least 10 years after the last model is launched on the market Dear customer

1. If you want to return or replace the product, please contact the store where you

buy. (Remember to bring the purchase invoice)

2. If your product breaks down which needs to repair, please contact after-sales

service provider. ATTENTION The model information inthe product database, as well as the model identifier, can be obtained througha weblink scanned by a QR code, if any, on the energy efficiency label of the product. For more information about the energy efficiency of the appliance, visit https://ec.europa.eu and search using the model name. The model name can be found on the rating label of the appliance.21

• The OK-temperature indicator can be used to determine temperatures below +4°C. Gradually reduce the temperature if the sign does not indicate "OK".

• To ensure the temperature in this area, do not change the positioning of the shelf. Inforced air refrigerators (equipped with a fan or No Frost models), the symbol of the coldest zone is not represented because the temperature inside is homogeneous. Temperature indicator setting

• To help you set your refrigerator well, it is equipped with a temperature indicator that will monitor the average temperature in the coldest zone.

• WARNING: This indicator is intended to work only with your refrigerator, do not use it in another refrigerator (in fact, the coldest zone is not the same), or for any other use. Checking the temperature in the coldest zone

• With the temperature indicator, you can check regularly that the temperature of the coldest zone is correct. Indeed, the internal temperature of the refrigerator depends on several factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening. Take these factors into consideration when setting the device.

• When the indicator shows " OK ", this means that your thermostat is well adjusted and the internal temperature correct.

• If the indicator of temperature turns WHITE, this means that the temperature is too high; in this case, increase the refrigerator temperature control setting and wait for 12 hours before performing a new visual inspection of the indicator. When fresh food has been introduced or the door has been left open, it is possible for the indicator of temperature to turn WHITE after a while.
