Product type	Heating cabinet
Brand	Royal Catering
Model	RCWC60180
Rated voltage	230 V ~
Frequency	50 Hz
Rated power	1500 W
Dimensions (W x D x H)	60 x 180 x 85 cm
Net weight	53.5 kg
Material	Stainless steel
Control panel	On/off switch, rotary thermostat, power and heating indicator lights
Temperature adjustment	Rotary thermostat (adjustable)
Intended use	Keeping dishes, plates, and utensils warm
Adjustable feet	Yes, for leveling
Required safety distance	At least 10 cm on each side
Ambient conditions	Temperature ≤ 40°C, humidity ≤ 85%
Installation location	Indoors only, flat and fireproof surface
Electrical protection	Mandatory grounding; use of RCD recommended
Cleaning	Soft damp cloth and mild non-corrosive detergent
Maintenance	Clean regularly; do not immerse in water
Safety	Hot surface (burn risk); do not cover ventilation openings
Repairability	Repair by qualified professional only; original spare parts
Recycling	Do not dispose with household waste; take to a WEEE collection point

Frequently Asked Questions - RCWC60180 Royal Catering

How to adjust the temperature of the heating cabinet?

Turn the thermostat knob clockwise to increase the temperature, and counterclockwise to decrease it. The heating indicator lights up during heating. To stop heating, turn the knob to the 0 position.

What to do if the appliance does not heat?

Check that the appliance is plugged in and the main switch is on. Make sure the thermostat is not set to 0. If the problem persists, contact the manufacturer's support service.

How to clean the heating cabinet?

First unplug the appliance. Use a soft slightly damp cloth with a mild non-corrosive detergent. Do not spray water directly on the appliance and do not immerse it. Dry completely before reuse.

What distance should I leave around the appliance?

Leave a space of at least 10 cm between each side of the appliance and walls or other objects to ensure proper ventilation.

Can I use the appliance outdoors?

No, the appliance is designed for indoor use only. It must not be exposed to moisture, rain, or extreme temperatures.

How to assemble the feet of the cabinet?

Screw the adjustable feet onto the appliance as indicated in the manual. Adjust the height and level of the appliance by turning the feet.

Can the heating cabinet heat cold food?

This appliance is designed for keeping warm already hot dishes, not for heating cold food. Do not use it to reheat or cook food.

How to turn off the appliance completely?

Turn the thermostat knob to 0, turn off the main switch, then unplug the plug from the electrical outlet.

Can I leave food in the appliance when it is off?

No, do not leave food in the appliance when it is off. Residual moisture can damage the appliance and promote bacteria.

What to do in case of malfunction or breakdown?

Turn off the appliance immediately and unplug it. Contact the manufacturer's support service. Do not attempt to repair yourself, only qualified persons are allowed to intervene.

USER MANUAL RCWC60180 Royal Catering

Abstract white line drawing of a mythical creature on a blue background (no text or symbols)

DE	Produktname	Wärmeschrank
EN	Product name	Warming cabinet
PL	Nazwa produktu	Szafka grzewcza
CZ	Název výrobku	Ohřívací skřiň
FR	Nom du produit	Armoire chauffante
IT	Nome del prodotto	Armadio riscaldante
ES	Nombre del producto	Armario calentador
HU	Termék neve	Melegítőszekrény
DA	Produktnavn	Varmeskab
FI	Tuotteen nimi	Lämpökaappi
NL	Productnaam	Warmtekast
NO	Produktnavn	Varmeskap
SE	Produktnamn	Värmeskåp
PT	Nome do produto	Armário de aquecimento
SK	Názov produktu	Ohrievacia skriňa
BG	Име на продукта	Шкаф за подгряване
EL	Όνομα προϊόντος	Θερμαινόμενο ντουλάπι
HR	Naziv proizvoda	Grijaći ormar
LT	Produkto pavadinimas	Šildymo spinta
RO	Numele produsului	Dulap de încălzire
SL	Ime izdelka	Grelna omara
DE Modell | EN Product model | PL Model produktu | CZ Model výrobku | FR Modèle | IT Modello | ES Modelo | HU Modell | DA Model | FI Tuotteen malli | NL Productmodel | NO Produktmodell | SE Produktmodell | PT Modelo do produto | SK Model | BG Модел на продукт | EL Movtělo προϊόντος | HR Model proizvoda | LT: Gaminio modelis | RO: Model de produs | SL: Model izdelka		RCWC-60100RCWC-60120RCWC-60140RCWC-60160RCWC-60180RCWC-70100RCWC-70120RCWC-70140RCWC-70160RCWC-70180
DE Hersteller | EN Manufacturer | PL Producent | CZ Výrobce | FR Fabricant | IT Produttore | ES Fabricante | HU Termelő | DA Producent | FI Valmistaja | NL Producent | NO Produsent | SE Tillverkare | PT Fabricante | SK Výrobca | BG Производител | EL Κατασκευαστής | HR Proizvođač | LT Gamintojas | RO Producător | SL Proizvajalec		expondo Polska sp. z o.o. sp. k.
DE Anschrift des Herstellers | EN Manufacturer Address | PL Adres producenta | CZ Adresa výrobce | FR Adresse du fabricant | IT Indirizzo del produttore | ES Dirección del fabricante | HU A gyártó címe | DA Producentens adresse | FI Valmistajan osoite | NL Adres producent | NO Produsentens adresse | SE Tillverkarens adress | PT Endereço do fabricante | SK Adresa výrobcu | BG Адрес на производителя | EL: Διεύθυνση κατασκευαστή | HR Adresa proizvođača | LT Gamintojo adresas | RO Adresa producătorului | SL Naslov proizvajalca		ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU

Exterior view of a stainless steel industrial cabinet with control panel and safety warning labels (no readable text or symbols)

1 - Türen / Schrank
2 - Bedienfeld

1 2 3 4

Line drawing of a two-story kitchen appliance with control panel and side-mounted unit (no text or symbols)

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via [e-mail].

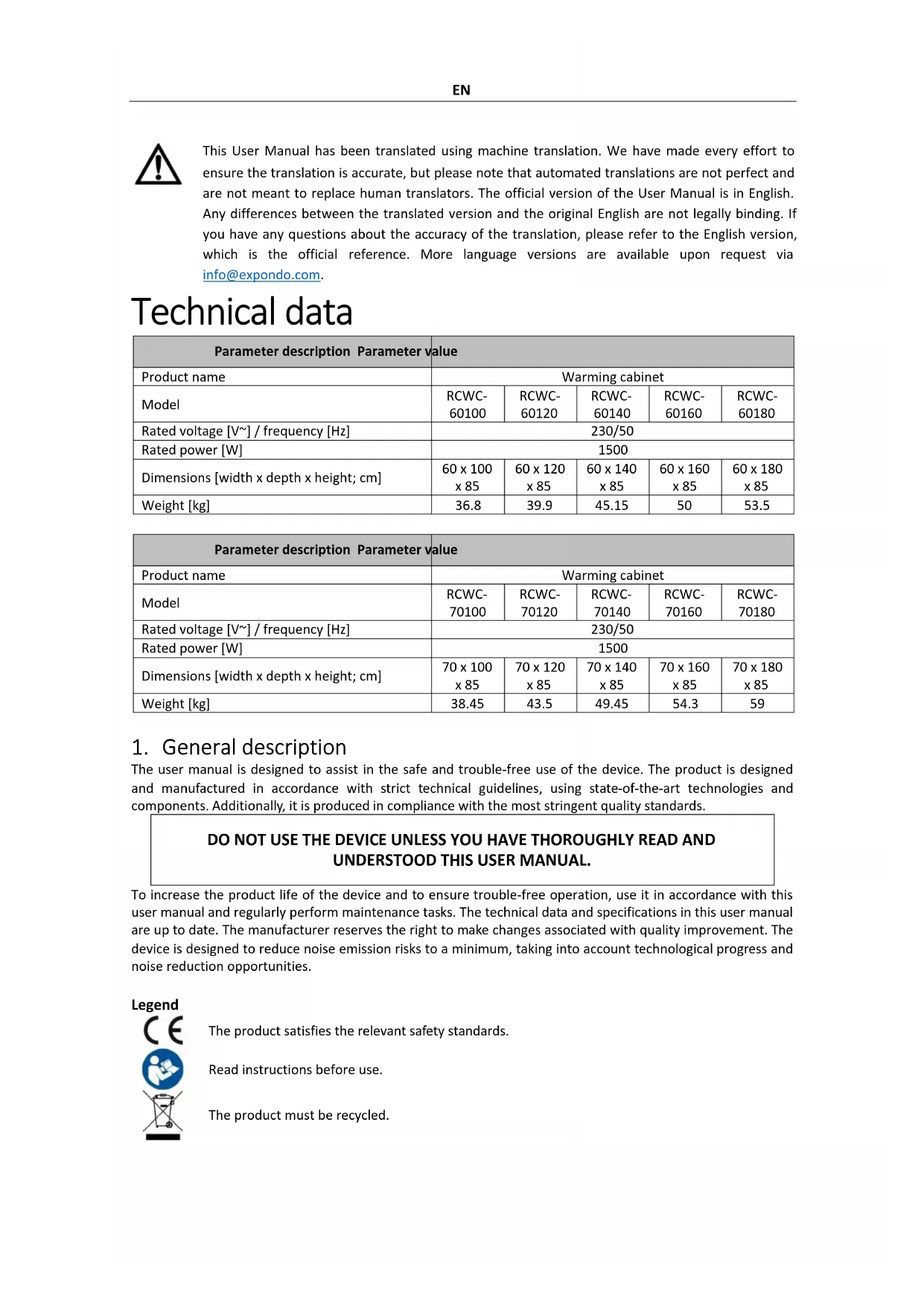

Technical data

Parameter description Parameter value
Product name	Warming cabinet
Model	RCWC-60100	RCWC-60120	RCWC-60140	RCWC-60160	RCWC-60180
Rated voltage [V~] / frequency [Hz]	230/50
Rated power [W]	1500
Dimensions [width x depth x height; cm]	60 x 100x 85	60 x 120x 85	60 x 140x 85	60 x 160x 85	60 x 180x 85
Weight [kg]	36.8	39.9	45.15	50	53.5

Parameter description Parameter value
Product name	Warming cabinet
Model	RCWC-70100	RCWC-70120	RCWC-70140	RCWC-70160	RCWC-70180
Rated voltage [V~] / frequency [Hz]	230/50
Rated power [W]	1500
Dimensions [width x depth x height; cm]	70 x 100x 85	70 x 120x 85	70 x 140x 85	70 x 160x 85	70 x 180x 85
Weight [kg]	38.45	43.5	49.45	54.3	59

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.

(general warning sign)

ATTENTION! Electric shock warning!

ATTENTION! Hot surface, risk of burns!

Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Warming cabinet

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
c) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
d) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
e) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
f) Do not use in very humid environments or in the direct vicinity of water tanks.
g) Prevent the device from getting wet. Risk of electric shock!
h) Before the first use, please check whether the main voltage type and current comply with the indicated data on the type plate.

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust. The device generates sparks which may ignite dust or fumes.
c) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.
d) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.
e) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
f) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
g) Use the device in a well-ventilated space.
h) Regularly inspect the condition of the safety labels. If the labels are illegible, they must be replaced.
i) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
j) Keep packaging elements and small assembly parts in a place not available to children.

k) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
d) To prevent accidental start-up, make sure the thermostat is in the "0" position before connecting to the power source.
e) Do not overestimate your abilities. When using the device, keep your balance and remain stable at all times. This will ensure better control over the device in unexpected situations.
f) The device is not a toy. Children must be supervised to ensure that they do not play with the device.
g) Do not lean or place objects on the unit.

2.4. Safe device use

a) Do not use the appliance if the thermostat does not operate smoothly (does not switch on or off). Appliances that cannot be controlled by the switch are unsafe, cannot operate and must be repaired.
b) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.
c) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
d) Keep the device in perfect technical condition. Before each use check for general damage, especially check moving components for cracked parts or elements, and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
e) Keep the device out of the reach of children.
f) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
g) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
h) Do not move, adjust or rotate the device in the course of work.
i) Clean the device regularly to prevent stubborn grime from accumulating.
j) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
k) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
I) Keep the device away from sources of fire and heat.
m) Do not overload the device.
n) Do not cover the ventilation openings!
o) ATTENTION! During operation, some parts of the appliance become hot - there is a risk of burns! Do not touch these parts with bare hands!
p) Do not heat food in closed containers. The increase in pressure inside them due to the rise in temperature can cause explosions and lead to burns and injuries.
q) The appliance is a free-standing unit and is not suitable for permanent furniture installation.
r) Place heated food in a suitable dish. When heating plastic dishes containing glue, flammable materials, etc., fumes and vapours harmful to health may be emitted.
s) Do not use this appliance to dry, heat or dehumidify items.
t) Do not leave food in a switched-off appliance. Escaping moisture will cause damage to the product.

u) Do not place objects on the unit's heaters.
v) Use food-safe and non-scratching utensils. The use of sharp and metal objects is prohibited.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The appliance is designed to keep dishes, plates or other utensils warm.

The user is liable for any damage resulting from unintended use of the device.

3.1. Device description

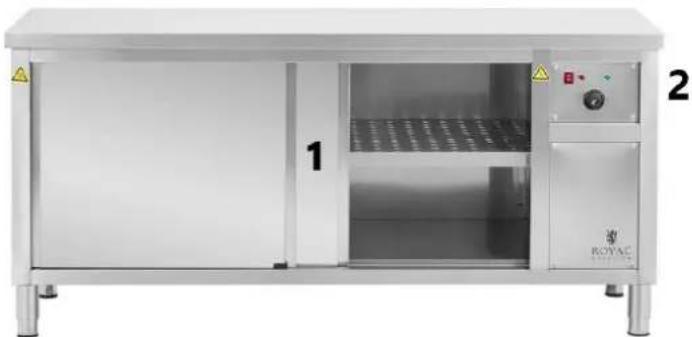

The photo shows the RCWC-70180 model, the other models have the same design and the same control panel, they differ in dimensions.

Exterior view of a stainless steel industrial oven or control cabinet with labeled components (no readable text or symbols)

1 - Doors / cabinet

2 - Control panel

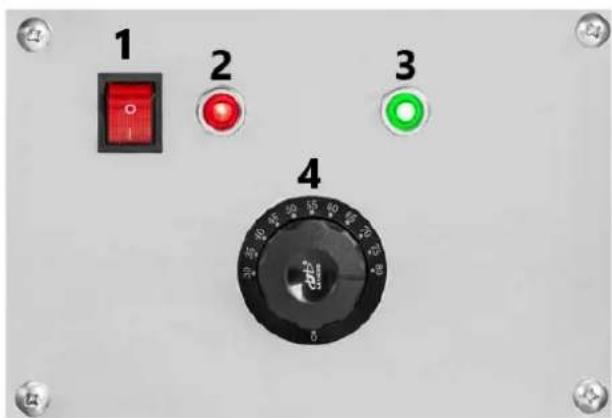

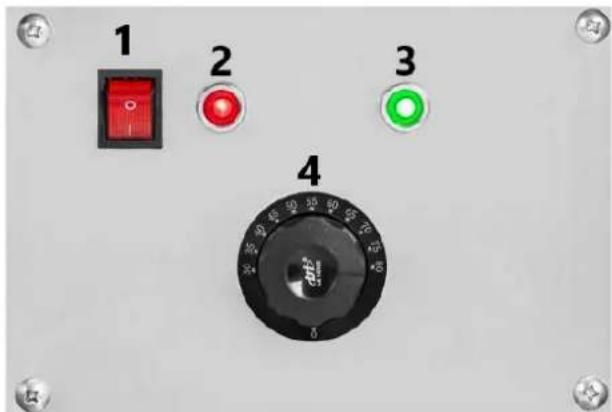

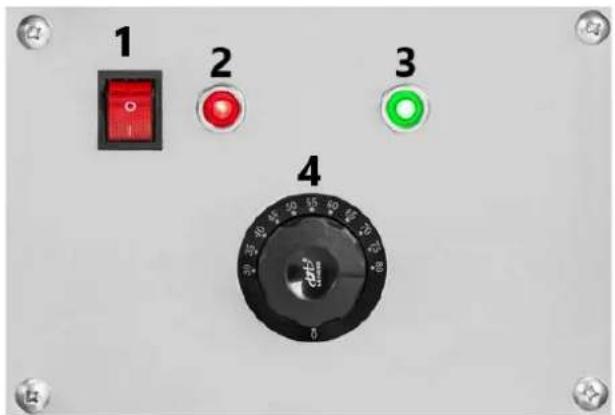

1 2 3 4

1 - ON/OFF Main switch
2 - Power indicator light
3 - Heating indicator light
4 - Thermostat knob for temperature control

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

Disassemble the device and all its components and clean them before the first use.

3.3. Assembling the device

Remove the packaging and then the protective film taking care not to scratch the surface.

Arrange the appliance and adjust its height and level by means of the adjustable feet – screw the feet to the appliance as shown in the picture below:

Line drawing of a kitchen appliance with a control panel and two bottles below (no text or symbols)

The appliance must be earthed.

3.4. Device use

Connect the appliance to the electricity supply.

Press the main switch on the control panel of the appliance.

The power indicator light will come on.

Turn the thermostat knob to reach the desired temperature. Turn the knob clockwise to increase the temperature. During heating, the heating control light will be lit.

To decrease the temperature, turn the thermostat knob towards the '0' position.

To turn the heating off, turn the thermostat knob towards the '0' position - the heating is disconnected but the unit is powered.

Avoid accumulating objects around the air circulation openings inside the unit.

To switch off the unit completely, turn the thermostat knob to the '0' position, switch off the unit with the main switch and disconnect from the power supply.

3.5. Cleaning and maintenance

a) Always unplug the device before cleaning or putting it away.
b) Use only non-corrosive cleaners to clean the surface.
c) Use only mild, food-safe detergents to wash the device.
d) After cleaning the device, all parts should be dried completely before using it again.
e) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
f) Do not spray the device with a water jet or submerge it in water.
g) Do not allow water to get inside the device through vents in the housing of the device.
h) Clean the vents with a brush and compressed air.
i) The device must be regularly inspected to check its technical efficiency and spot any damage.
j) Use a soft, damp cloth for cleaning.
k) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
I) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

Exterior view of a stainless steel industrial control cabinet with open door and control panel (no visible text or symbols)

Line drawing of a kitchen appliance with a control panel and two bottles on the side (no text or symbols)

Exterior view of a stainless steel laboratory cabinet with control panel and safety warning labels (no readable text or symbols beyond labels)

Line drawing of a two-story kitchen appliance with control panel and side-mounted unit (no text or symbols)

Exterior view of a stainless steel industrial cabinet with control panel and safety warning labels (no readable text or symbols beyond labels)

Line drawing of a kitchen appliance with a control panel and two bottles on the base (no text or symbols)

Exterior view of a stainless steel industrial oven or control cabinet with labeled components and warning indicators (no readable text beyond labels)

Line drawing of a kitchen appliance with a control panel and three bottles on the side (no text or symbols)

Exterior view of a stainless steel industrial control cabinet with labeled components and warning indicators (no readable text or symbols)

1 - Puertas/armarios
2 - Panel de control

1 2 3 4

1 - Interruptor principal ON/OFF

Line drawing of a kitchen appliance with a control panel and three bottles below (no text or symbols)

Exterior view of a stainless steel industrial cabinet with control panel and safety warning labels (no readable text or symbols)

Line drawing of a kitchen appliance with a control panel and three bottles below (no text or symbols)

Exterior view of a stainless steel industrial oven or control cabinet with labeled components (no readable text or symbols)

1 - Døre/skabe

2 - Kontrolpanel

1 2 3 4

APPARATETS PLACERING

Line drawing of a kitchen appliance with a control panel and two bottles below (no text or symbols)

Exterior view of a stainless steel laboratory cabinet with control panel and safety warning labels (no readable text or symbols)

Line drawing of a two-story kitchen appliance with control panel and side-mounted unit (no text or symbols)

Exterior view of a stainless steel industrial cabinet with control panel and safety warning labels (no readable text or symbols beyond labels)

PLAATS VAN HET APPARAAT

Line drawing of a kitchen appliance with a control panel and two bottles on the side (no text or symbols)

OBS! Varm overflate, fare for forbrenning!

Exterior view of a stainless steel industrial oven or control cabinet with labeled components (no readable text or symbols)

1 - Dører / skap
2 - Kontrollpanel

1 2 3 4

1 - PÅ/AV Hovedbryter
2 - Strømindikatorlampe
3 – Indikatorlampe for varme
4 - Termostatknapp for temperaturkontroll

Line drawing of a kitchen appliance with a double door and side legs, showing internal components and outlet lines (no text or symbols)

Exterior view of a stainless steel laboratory cabinet with control panel and safety warning labels (no readable text or symbols)

APPARATENS PLACERING

Line drawing of a kitchen appliance with a double door and side legs, showing internal components and outlet lines (no text or symbols)

Exterior view of a stainless steel industrial kitchen appliance with control panel and safety warning labels (no readable text or symbols)

Line drawing of a two-story kitchen appliance with control panel and side-mounted unit (no text or symbols)

Exterior view of a stainless steel industrial oven or control cabinet with labeled components and safety indicators (no readable text or symbols)

1 - Dvere / skrinka

2 – Ovládací panel

1 2 3 4

Line drawing of a kitchen appliance with a control panel and three bottles on the side (no text or symbols)

Exterior view of a stainless steel industrial cabinet with control panel and safety warning labels (no readable text or symbols)

1 – Врати/шкаф
2 – Контролен панел

1 2 3 4

Line drawing of a two-story kitchen appliance with control panel and side-mounted unit (no text or symbols)

Exterior view of a stainless steel industrial cabinet with control panel and door, labeled '1' and '2' (no readable text or symbols beyond labels)

Line drawing of a two-story kitchen appliance with control panel and side-mounted unit (no text or symbols)

Exterior view of a stainless steel industrial oven or control cabinet with labeled components and safety warning indicators (no readable text beyond labels)

Line drawing of a laboratory or kitchen appliance with a control panel and two bottles on the side (no text or symbols)

Uređaj mora biti uzemljen.

Exterior view of a stainless steel industrial oven or control cabinet with labeled components and warning indicators (no readable text beyond labels)

1 - Durys/spinta
2 – Valdymo skydelis

1 2 3 4

1 - ON/OFF Pagrindinis jungiklis

Line drawing of a two-story kitchen appliance with control panel and side-mounted unit (no text or symbols)

Exterior view of a stainless steel laboratory cabinet with control panel and safety warning labels (no readable text or symbols)

1 - Uşi / dulap

2 – Panou de control

1 2 3 4

Line drawing of a modern kitchen appliance with a control panel and two bottles below (no text or symbols)

Exterior view of a stainless steel industrial control cabinet with labeled components (no readable text or symbols)

1 - Vrata / omara
2 – Nadzorna plošča

1 2 3 4

1 - VKLOP/IZKLOP Glavno stikalo
2 – Indikatorska lučka za napajanje
3 – Indikatorska lučka za ogrevanje
4 - Gumb termostata za nadzor temperature

Line drawing of a two-story kitchen appliance with control panel and side-mounted unit (no text or symbols)

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
