Ranger Xtreme 10x42 - Binoculars Steiner - Free user manual and instructions

Product type	Binoculars
Brand	Steiner
Model	Ranger Xtreme 10x42
Magnification	10x
Objective lens diameter	42 mm
Approximate weight	700 g
Dimensions (L x W x H) approx.	140 x 130 x 60 mm
Power supply	1 button cell (for compass illumination)
Focusing	Sports-Auto-Focus / Fast-Close-Focus depending on model
Diopter adjustment	Adjustable eyepieces
Interpupillary distance	Adjustable via hinge
Eyecups	ErgoFlex, cylindrical or rotating, adjustable for glasses wearers
Strap system	ClicLoc or sliding loop
Protection	Neoprene cover, rain cap, ClicLoc objective lens covers
Integrated compass	With battery-powered illumination
Measuring reticle	Scale for distance and size estimation
Waterproofness	Submersible depending on model (can be rinsed with soapy water)
Lens care	Brush then soft cloth, possibly damp
Rubber care	Dashboard cleaner or plastic product
Safety	Never look at the sun with the binoculars
Serial number	On the hinge, under the hinge or in the objective lens
Wear parts	Rubber, strap, eyecups, caps - not covered by warranty
Customer service	STEINER-OPTIK GmbH, tel. [phone], email [e-mail]

Frequently Asked Questions - Ranger Xtreme 10x42 Steiner

How to attach the carrying strap to the Steiner Ranger Xtreme binoculars?

If your binoculars are equipped with the ClicLoc system, press the pin on the rubber sleeve to unlock, then insert the clip closure turning the tab outward until it clicks. Without ClicLoc, remove the strap from the loop, pass it through the binocular eyelet from above, then slide it into the loop and tighten.

How to adjust the interpupillary distance?

Articulate the central hinge until you see a single round image. This adapts the eyepiece spacing to your eye distance.

How to adjust focus with Sports-Auto-Focus?

Set both diopter adjustments to '0'. Cover the left objective, look with the right eye and turn the right diopter adjustment until sharp. Repeat for the left eye. Vision remains sharp from 20 m to infinity.

How to use the integrated compass and its illumination?

To illuminate the compass in darkness, press and hold the button located on the side of the compass body. The lighting is powered by a battery.

How to change the compass battery?

Open the battery compartment located on the compass. Replace the used battery with a new one respecting polarity, then carefully close the lid to ensure watertightness.

How to clean the binocular lenses?

First remove dust with a soft brush. Then wipe the lenses with a soft, slightly damp cloth if necessary. For salt water, use a damp cloth then a dry cloth.

Is it possible to look at the sun with the binoculars?

No, never look directly at the sun with the binoculars. This could seriously damage your eyesight or cause total blindness.

Where to find the serial number of my binoculars?

Depending on the model, the serial number is located on the front end of the hinge between the objectives, below the hinge, or in the objective lens. It allows identification in case of loss or theft.

What are the wear parts not covered by warranty?

The warranty does not cover rubber armoring, straps, eyecups, and protective caps. These parts are considered subject to wear.

How to attach the neoprene protective cover or rain cap?

For the neoprene cover, place the semi-circular section of the cap over the focus wheel. For the rain cap, the strap support is threaded through the eyelet on the side.

USER MANUAL Ranger Xtreme 10x42 Steiner

Person in blue jacket and boots climbing a rocky cliff with binoculars (no text or symbols visible)

STEINER

Nothing Escapes You

Unvergessliche Momente erleben

Bedienungsanleitung

Experience unforgettable moments

Instruction Manual

Congratulations on purchasing STEINER binoculars! Do not miss your life's defining moments! The accessories included with your purchase may be used according to your requirements. Proper handling is a date for enjoying this precision device over several decades. Therefore, please read the following pages before the STEINERs for the first time.

Pure diagram of symmetrical mechanical or electrical components with blue directional arrows, no text or symbols present

B

Dachkant-Modelle Roof models Prismes en toit Modelli con prisma retto Modelos de Techo Модели с призмой Roof

Silhouette of binoculars with red arrows indicating upward motion (no text or symbols)

1 2 3 0 4

1 2 3 4

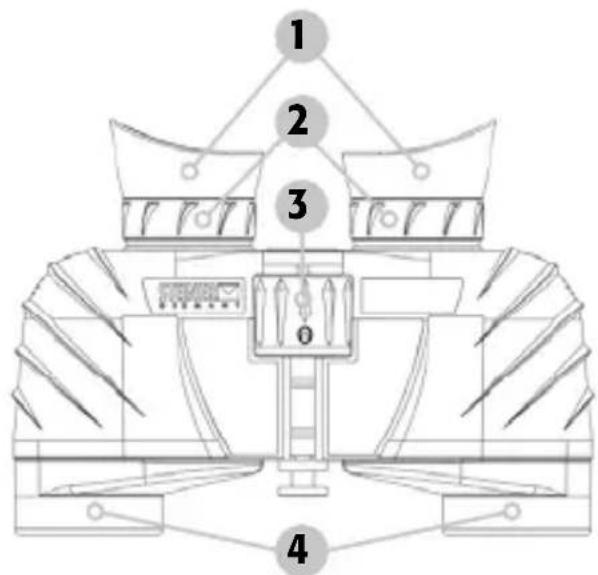

Erläuterung Porro-Modelle / Explanation for the Porro models / Explication des Prismes de porro / Spiegazione dei modelli con prisma di Porro / Descripción de los modelos de Porro / Пояснения к моделям с призмой Порро

1 Okular mit Augenmuschel, Ocular with eyecup, Oculaire à œillère, Oculare con conchiglia oculare, Ocular con tapón ocular, Окуляр с наглазником
2 Dioptrienausgleich, Dioptre setting, Correction dioptrique, Regolazione diottrica, Compensador de dioptrías, Корректор диоптрий
3 Fokussierrad, Focussing wheel, Molette de mise au point, Ghiera di messa a fuoco, Rueda de enfoque, Фокусировочный маховичок
4 Objektiv, Objective, Objectif, Obiettivo, Objetivo, Объектив

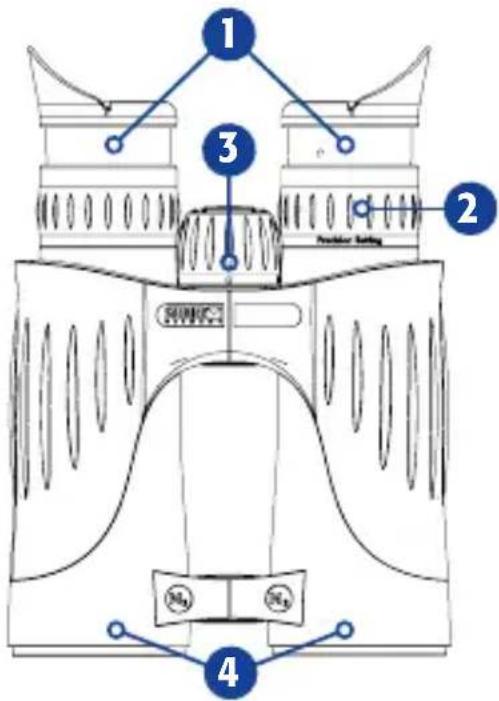

Erläuterung Dachkant-Modelle / Explanation for the roof models / Explication des modèles Prismes en toit / Spiegazione dei modelli con prisma retto / Descripción de los modelos de Techo / Пояснения к моделям с призмой Roof

1 Okular mit Augenmuschel, Ocular with eyecup, Oculaire à œillère, Oculare con conchiglia oculare, Ocular con tapón ocular, Окуляр с наглазником
2 Dioptrienausgleich, Dioptre setting, Correction dioptrique, Regolazione diottrica, Compensador de dioptrías, Корректор диоптрий
3 Fokussierrad, Focussing wheel, Molette de mise au point, Ghiera di messa a fuoco, Rueda de enfoque, Фокусировочный маховичок
4 Objektiv, Objective, Objectif, Obiettivo, Objetivo, Объектив

Customer-Service International:

www.steiner-binoculars.com

STOEGER CANADA (1990) LTD

1801 Wentworth St. Unit #1

Whitby, Ontario L1N 8R6

Canada

Tel.: [phone]

E-Mail: [e-mail]

www.stoegercanada.ca

STEINER

Nothing Escapes You

Black-and-white photo of a climber in protective gear climbing a steep rocky cliff face (no text or symbols visible)

STEINER

Nothing Escapes You

Experience unforgettable moments

Instruction Manual

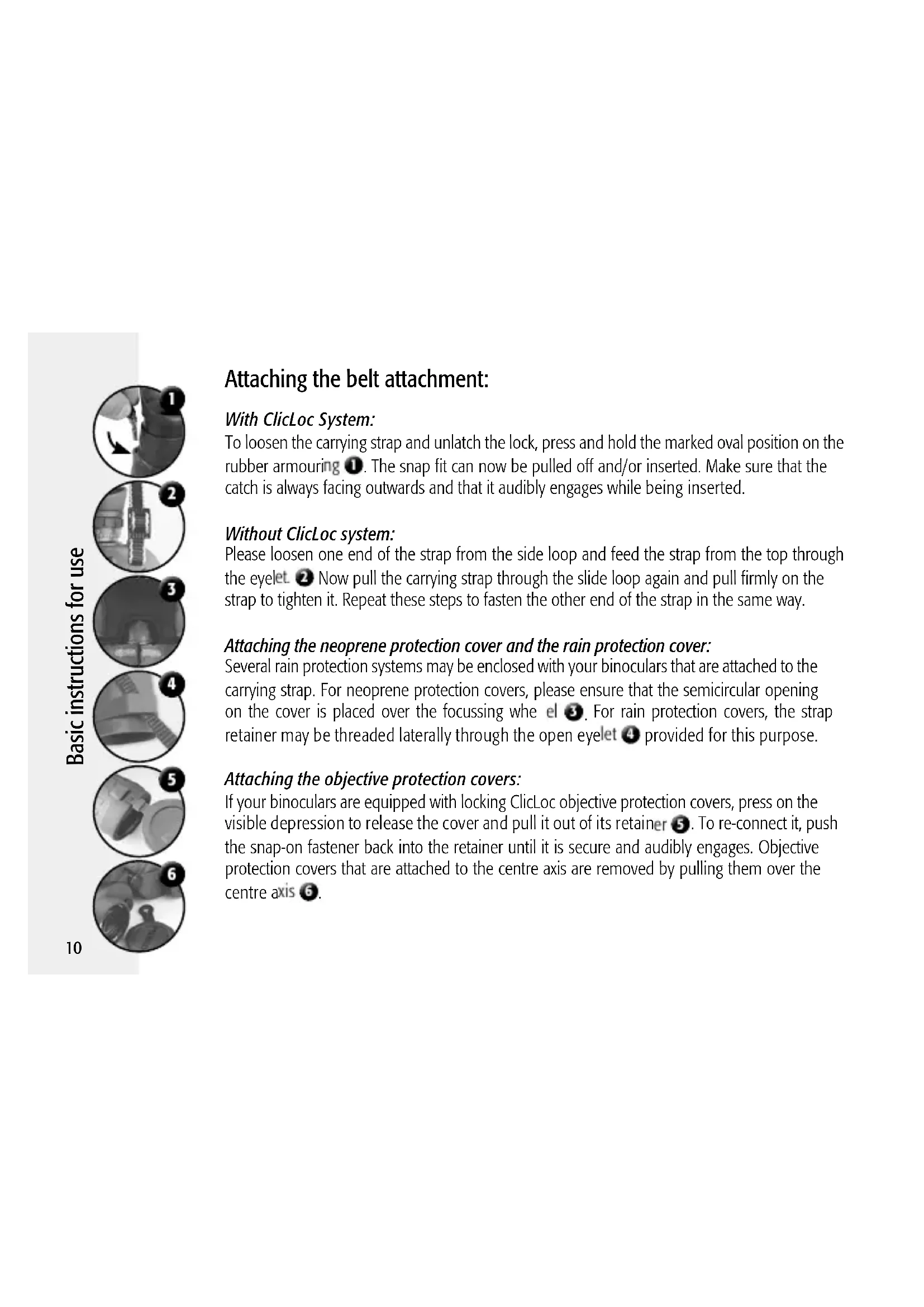

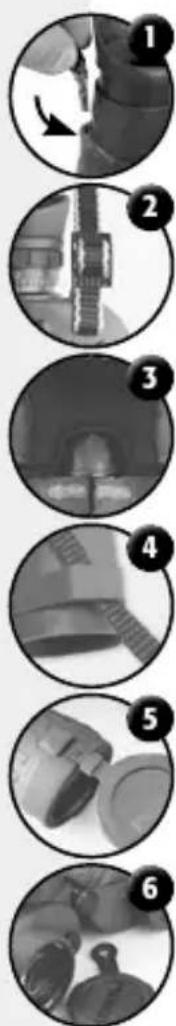

Attaching the belt attachment:

With ClicLoc System:

To loosen the carrying strap and unlatch the lock, press and hold the marked oval position on the rubber armouring ①. The snap fit can now be pulled off and/or inserted. Make sure that the catch is always facing outwards and that it audibly engages while being inserted.

Without ClicLoc system:

Please loosen one end of the strap from the side loop and feed the strap from the top through the eyelet. ② Now pull the carrying strap through the slide loop again and pull firmly on the strap to tighten it. Repeat these steps to fasten the other end of the strap in the same way.

Attaching the neoprene protection cover and the rain protection cover:

Several rain protection systems may be enclosed with your binoculars that are attached to the carrying strap. For neoprene protection covers, please ensure that the semicircular opening on the cover is placed over the focussing whe el ③. For rain protection covers, the strap retainer may be threaded laterally through the open eyelet ④ provided for this purpose.

Attaching the objective protection covers:

If your binoculars are equipped with locking ClicLoc objective protection covers, press on the visible depression to release the cover and pull it out of its retainer 5. To re-connect it, push the snap-on fastener back into the retainer until it is secure and audibly engages. Objective protection covers that are attached to the centre axis are removed by pulling them over the centre axis 6.

Adjusting the interocular distance and the eyecups:

Adjusting the interocular distance:

To adjust an individual interocular distance turn the two halves of the binoculars via the centre axis until you can see a round image.

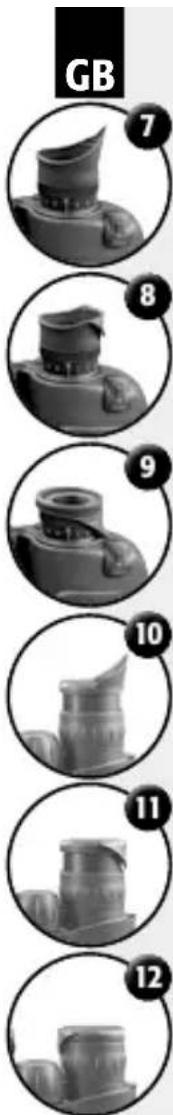

To ensure optimum visibility through your STEINERS, the eyecups may be set to different positions:

Adjusting the eyecups (models with ErgoFlex and ergonomic eyecups): ergonomic 7, cylindric al 8 or for persons wearing glass es 9.

Adjusting the eyecups (models with cylindrical eyecups): cylindrical 8 or for persons wearing glass es 9.

Adjusting the eyecups (models with twist-up eyecups): ergonomic ⑦, cylindrical ⑧ or for persons wearing glass es ⑨.

Focussing:

Porro binoculars with Sports-Auto-Focus (see also key):

Adjust both dioptre settings to "0" and everything from approx. 20m and beyond is always sharp and clear. If this is not the case, one or both eyes may be ametropic. This has to be adjusted.

1. Choose a very detailed and remote object (approx. 200m distant).
2. Cover the left objective with your hand or the objective protection cover and look through the binoculars.
3. Now turn the dioptre setting on the right ocular until you can see an entirely sharp and clear image with your right eye.
4. Please repeat the same steps for the left eye. Now everything from 20m and beyond is always sharp and clear.

GB 7 8 9 10 11 12

Porro binoculars with Sports-Auto-Focus PLUS:

Once set to the individual acuity (see Sports-Auto-Focus), Sports-Auto-Focus PLUS also offers you the possibility to focus objects close by (from a distance of 2m) by means of a short turn on the focussing whe el 13.

Roof binoculars with Fast-Close-Focus (see key also):

1. Choose a very detailed and remote object (approx. 200m distant).
2. Cover the left objective with your hand, or the objective protection cover if enclosed, and look through the binoculars.
3. Now turn the focussing wheel until you can see an entirely sharp and clear image with your right eye.
4. To adjust the left eye of the binoculars, cover the right objective and look through your binoculars. Then turn the dioptre setting on the left ocular until you see a sharp and clear image of the same object.
5. By turning the focusing wheel, it is now possible to focus the binoculars down to different distances giving outstandingly detailed and brilliant images.
   Note: in the Discovery series you will find the dioptre setting on both oculars.

Compass settings:

Compass light:

For STEINER marine binoculars equipped with an integrated compass, you will find a button on the side of the compass housing to illuminate the compass display inside the ocular in the dark. To do so, simply press and hold the corresponding button. In order to use the compass at night the compass light is equipped with a battery.

Changing batteries:

To be able to also use the compass at night, the compass light is equipped with a battery. Proceed as follows to change the battery:

Open the battery case 15. Now replace used battery/batteries and be careful to correctly assign the positive and/or negative pole terminals. When closing the battery cover, make sure that you close it tightly to prevent water from penetrating into the battery compartment.

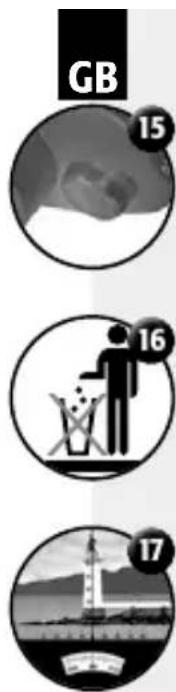

Environmental protection: Batteries must not be disposed of with household waste 16. Obtain information about the applicable regulations for the collection of WEEE (Waste of Electrical and Electronic Equipment) in your country.

Products with integrated precision reticle:

It is highly visible le 17 and gives measurements in metres or feet (0.33m).

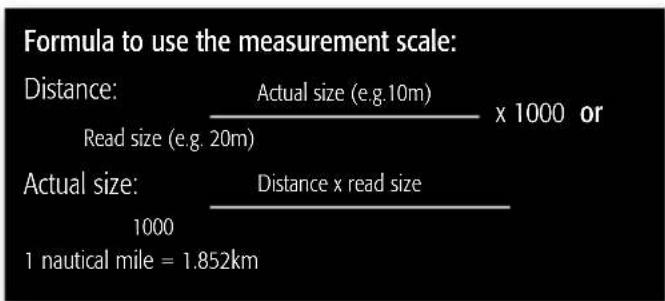

Formula to use the measurement scale: Distance: Actual size (e.g. 10m) x 1000 or Read size (e.g. 20m) Actual size: Distance x read size 1000 1 nautical mile = 1.852km

Measurement example:

your course. You read the value 20 from

GB 15 16 17

Cleaning/Maintenance and Important Product Information:

Cleaning your binoculars:

Remove dust and loose dirt on the lenses with a brush. Then use only a soft, possibly damp cloth to wipe the lenses. Failure to use a soft cloth can scratch the lenses. Wipe off salt water with a damp cloth then use a dry cloth to wipe the lenses.

Care for the rubber armouring:

Binoculars resistant to water pressure may be rinsed under running water using liquid soap. To close smaller hairline cracks that may be caused by UV radiation the rubber armouring should be treated with Cockpit Spray or Nigrin Plastic Care.

Product Serial Number:

All STEINERs have their own serial number. This allows you to ascertain when your binoculars were produced and it also provides a way (following the registration on the STEINER website) to identify them in case of loss or theft. You can find the serial number of your binoculars (depending on the model) at the front end of the binoculars' axis, between the objectives 18, on the underside of the binoculars' axis 19 or in the objective le ns 20.

Important Safety Note:

Never look directly into the sun with your binocula rs 21! This may cause serious damage to your eyes and possibly lead to blindness!

Please understand that we cannot accept warranty claims for wear parts such as rubber armouring, carrying straps, eyecups or protective caps. Should you encounter any problems while using your binoculars please contact your specialised dealer or our

national customer service at: [phone].

STEINER-OPTIK GmbH

Customer service Germany:

Phone: [phone]

Email: [e-mail]

Customer-Service International:

Phone: [phone]

E-Mail: [e-mail]

Should you require further information about the company, please visit: www.steiner.de

STEINER North America:

Distribution Partner

Burris Company Inc.

331 East 8 ^th Street

Greeley, CO 80631

USA

Phone: [phone]

E-Mail: [e-mail]

www.steiner-binoculars.com

STOEGER CANADA (1990) LTD

1801 Wentworth St. Unit #1

Whitby, Ontario L1N 8R6

Canada

Phone: [phone]

E-Mail: [e-mail]

www.stoegercanada.ca
