USER MANUAL MM900HDS OMEGA

EXTRACTOR DE JUGOS POR MASTICACIÓN A BAJA VELOCIDADAt Omega, we strive to develop technologically advanced machines that help deliver nutrition and avor of the highest kind and closest to nature’s purest form. We are driven by you, our brand supporters. Your enthusiasm helps us continue to reinvent and renew our line of juicers, high speed blenders and beverage equipment. Our team at Omega thanks you for supporting us for over 50 years! PRODUCT REGISTRATION, VISIT: www.omegajuicers.com/omega-warranty-registration RECIPES, VISIT: www.omegajuicers.com/recipes CUSTOMER SERVICE: www.omegajuicers.com/contact-omega-juicers After using your Omega, we kindly ask you to rate the machine on www.OmegaJuicers.com

Wheatgrass and Greens

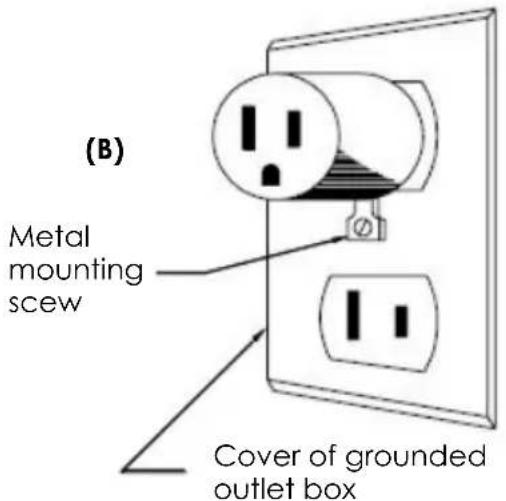

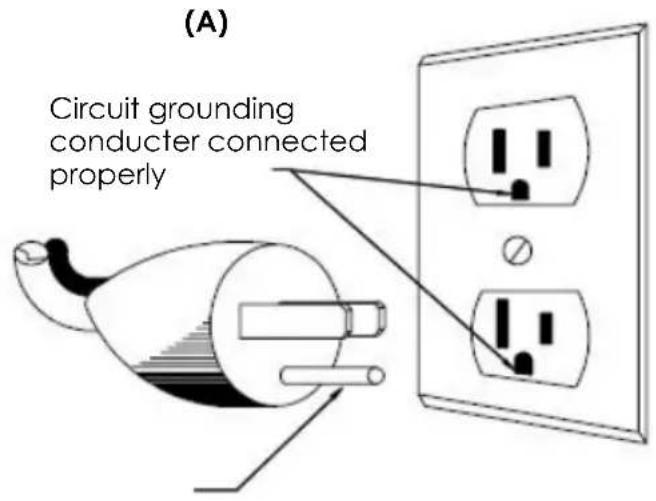

This appliance must be grounded while in use to protect the operator from electrical shock. The appliance is equipped with a 3-conductor cord and a 3-prong grounding-type plug to tthepropergrounding-typereceptacle.Theappliancehasaplugthatlookslikesketch A in Figure 73.1. An adaptor, sketch B, should be used for connecting sketch A plugs to two- prong receptacles. The grounding tab which extends from the adaptor must be connected to a permanent ground such as a properly grounded outlet box as shown in sketch C using a metal screw. FIGURE 73.1 Grounding Methods (C) ADAPTER (A) Circuit grounding conducter connected properly (B) Metal mounting scew Cover of grounded outlet box Grounding means AA220 2When using electrical appliances, basic safety precautions should always be followed including the following.

1. READ ALL INSTRUCTIONS BEFORE USING.

2. To protect against electrical shock, do not immerse cord, plug, or main body (motor) in

water or other liquid.

3. Close supervision is necessary when any appliance is used by or near children.

4. Unplug from outlet when not in use, before putting on or taking off parts, and before

5. Avoid contact with moving parts. Unplug from outlet when not in use, before

putting on or taking off parts, and before cleaning.

6. Do not operate any appliance with a damaged cord or plug or after the appliance

malfunctions or has been damaged in any manner. Return appliance to the manufacturer (see warranty) for examination, repair, or electrical or mechanical adjustment.

7. Theuseofattachmentsnotrecommendedorsoldbymanufacturermaycausere,

electric shock or injury.

8. Do not let cord hang over edge of table or counter or touch heated surfaces.

9. Always make sure juicer cover is clamped securely in place before motor is turned on.

Do not unfasten clamps while juicer is in operation.

10. Be sure to turn switch to OFF position after each use of your juicer. Make sure the motor

stops completely before disassembling.

11. Donotputyourngersorotherobjectsintothejuicerwhileitisinoperation.Iffood

becomes lodged in opening, use food pusher or another piece of fruit or vegetable to push down the lodged food. When this method is not possible, turn off the machine, remove the plug from wall outlet and disassemble juicer to remove the remaining food.

12. Do not use outdoors.

13. Do not place on or near a hot gas or electric burner or in a heated oven.

14. Do not use appliance for anything other than its intended use.

15. Keep hands and utensils away from moving blades or discs while processing

food to reduce the risk of severe injury to persons or damage to the food processor. A scraper may be used but must be used only when the food processor is not running.

16. Blades are sharp. Handle carefully.

Keep the appliance clean. Refer to the Care & Cleaning instructions in this manual.

18. DO NOT plug in until familiar with all the instructions and operating procedures.

19. DO NOT unplug from electrical outlet by pulling on the cord. To unplug, grasp the

plug, not the cord, and pull.

20. Turn off all controls before unplugging from or plugging into an electrical outlet.

21. This appliance can not grind meat.

22. Check hopper for presence of foreign objects before using.

SAVE THESE INSTRUCTIONS

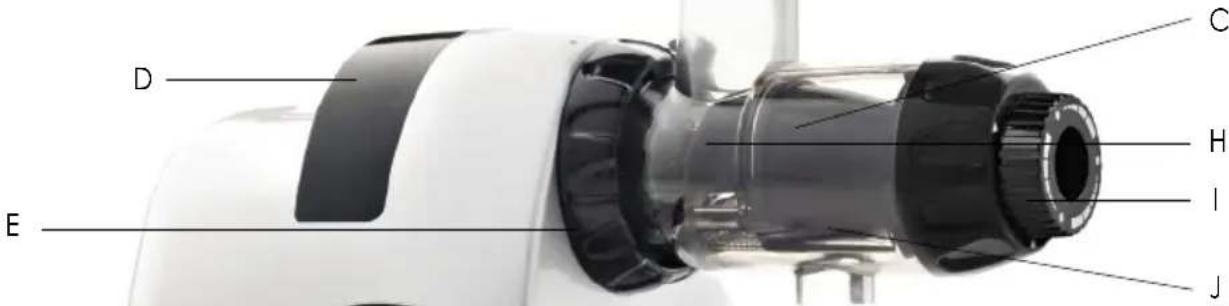

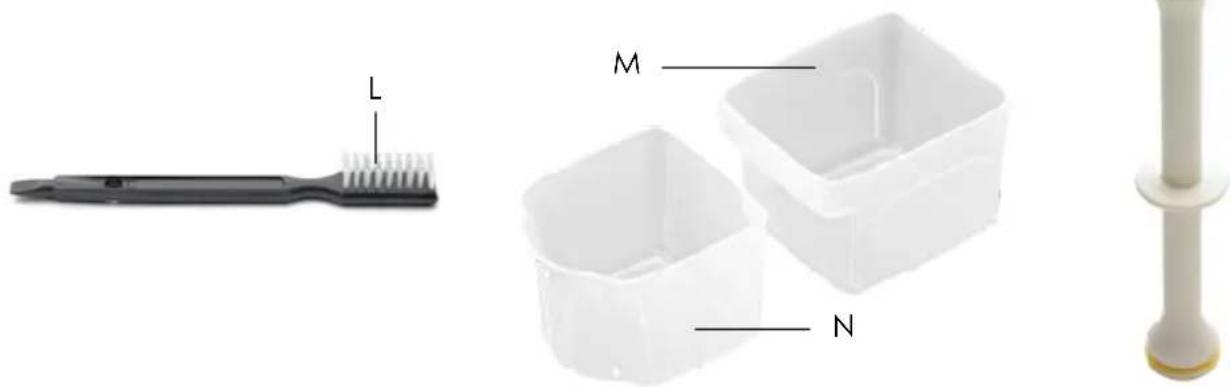

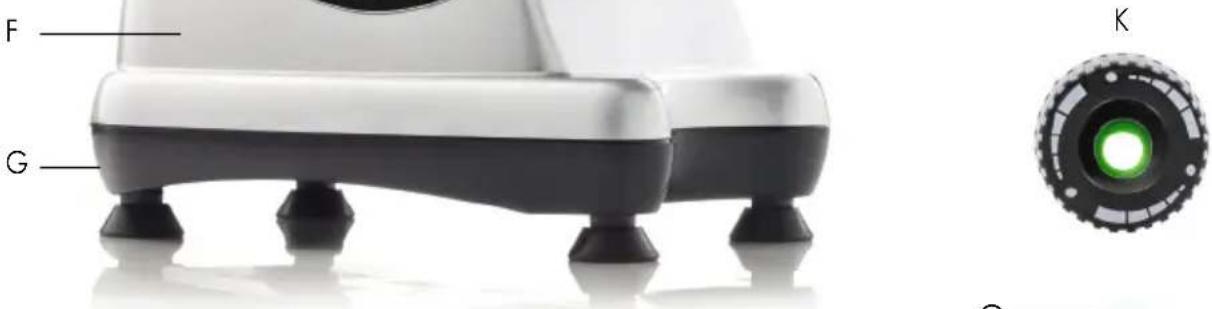

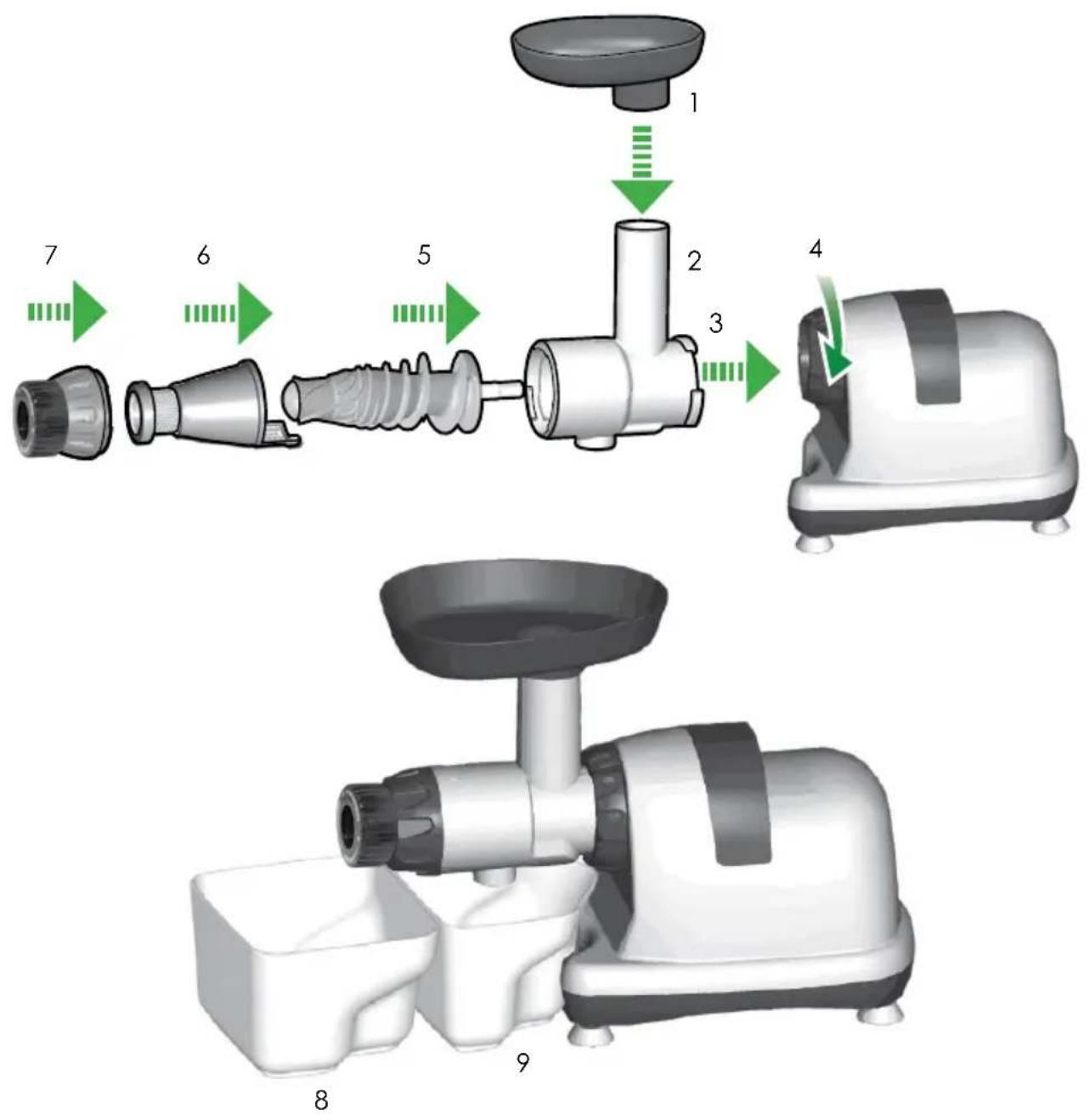

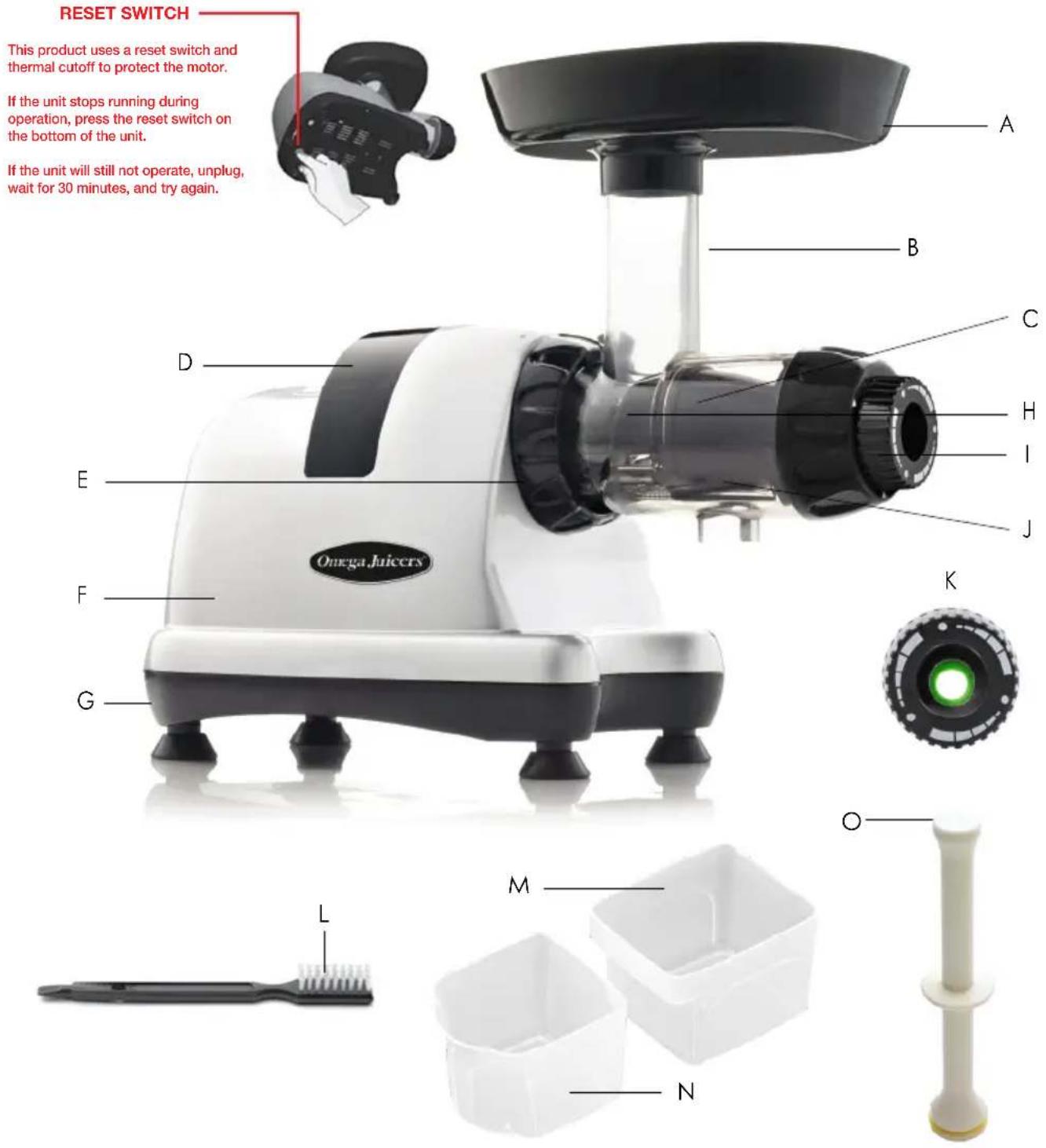

A Hopper B Chute C Drum D Handle E Locking Clip F Housing G On/Off Button (In rear) H Auger (Inside Drum) I Adjustable End Cap J Juicing Screen (Inside Drum) K Celery Juice End Cap L Cleaning Brush M Pulp Container N Juice Container O Pusher

RESET SWITCH This product uses a reset switch and thermal cutoff to protect the motor. If the unit stops running during operation, press the reset switch on the bottom of the unit. If the unit will still not operate, unplug, wait for 30 minutes, and try again.QUICK START ASSEMBLY

OPERATING INSTRUCTIONS WARNING When using [ON] or [Rev] button, make sure that the auger stops completely. After the extraction or processing is complete, place the switch in the stop position to stop. Turn the adjustable end cap counter clockwise to tighten the squeeze, increasing the pressure. Turn the adjustable end cap clockwise to loosen the pressure. To yield more juice from Celery, Herbs, and Leafy Greens, use the adjustable end cap with the green inner ring. Turn the end cap counter clockwise to tighten the squeeze, increasing the pressure. Turn the end cap clockwise to loosen the pressure. Gradually put the ingredients into the hopper chute and press down with the pusher. Press [ON] button on the back of the Omega

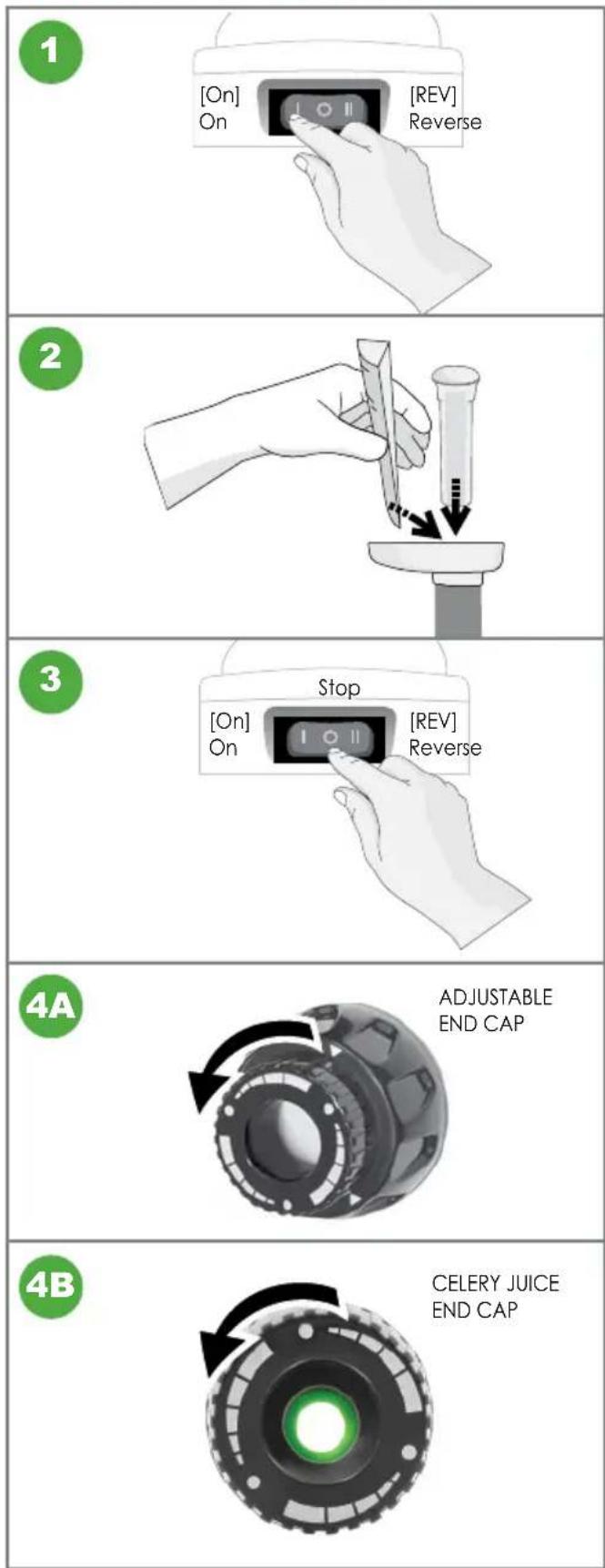

Nutrition System to start. JUICING FUNCTION DO NOT place any metal objects into the hopper. If the drum set is clogged or the machine stops operating, press the reverse button 2 to 3 times and press the ON button again to resume normal operation.

OPERATING NOTES This heavy-duty nutrition system features a patented, stone mill-like auger, made of hygienic U.S. FDA-approved melamine. The low speed of 80 RPMs ensures full taste and the highest nutritional value.

• FRUITJUICE.Efcientlyjuiceshardandsoftfruits:evencitrusfruits.

• VEGETABLE JUICE. Juices all kinds of vegetables including carrots, beets, celery, peppers,andradisheswithoutdestroyingthenaturalavorandnutritionalbenets. Fresh taste and full nutrition are guaranteed with this unique extraction process.

• WHEATGRASS AND LEAFY GREENS. Kale, cabbage, spinach and pine tree needles are just some of the natural products that can be juiced. Enjoy the best that nature offersinrawfoodsandjuicethemforfullnutritionalbenets.

• HERBS. Celery is the most common of herbs that can be juiced. Extract liquid from raw celery stalks. While you can juice fruits, vegetables, leafy greens and herbs to make one tasty drink, you may occasionally (or always) only juice one type to concentrate a fruit, vegetable orherb’shealthenhancingbenets.

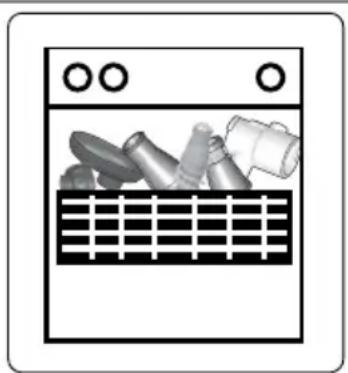

DISHWASHER SAFE OPTIONS

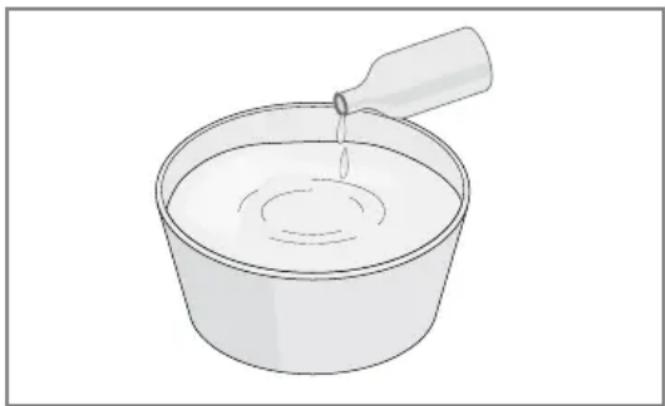

You can thoroughly wash parts by immersing in warm water diluted with one or two drops of baking soda or dishwashing soap for about 30 minutes. WhennishedusingtheOmega

Nutrition System, simply put parts into dishwasher, on top rack.8

PRECAUTIONS FOR SAFE USE

CAUTION Hazards or unsafe practices could result in minor personal injury or appliance damage. This sign indicates contents that may cause risk of a re or an electrical shock. Specicwarningsarewritteninthesign. This sign indicates prohibited acts. Specicprohibitionsarewrittenaroundorinthesign. This sign indicates contents of regulating or directing actions. Specicprohibitionsarewrittenaroundorinthesign. DO NOT PLUG IN OR UNPLUG WITH WET HANDS. It may cause an electric shock or an injury. DO NOT USE WITH OTHER THAN RATED VOLTAGE. Itmaycauseanelectricshock,areorabnormalperformance. If the voltage is different, it may shorten the life of the motor or cause a failure. PLUG THE POWER CORD CORRECTLY AND PUSH IT TIGHT IN A WALL SOCKET. Itmaycauseelectricshockorare. IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZARD. Ifthepowercordisdamaged,itmaycauseelectricshockorare. NEVER ALTER THE APPLIANCE. ALSO, DO NOT DISASSEMBLE OR REPAIR BY YOURSELF. DO NOT INSERT FINGERS, FOREIGN SUBSTANCES OR OBJECTS SUCH AS PINS INTO GAPS OR HOLES IN THE BASE.Itmaycauseare,anelectric shock or a failure. For any technical support, contact the authorized local Customer Care Center. All users of this appliance must read and understand these safety precautions before operating. SIGN SAMPLES PRECAUTIONS9

PRECAUTIONS FOR SAFE USE

DO NOT OPERATE WITHOUT LOCKING THE HOPPER PROPERLY. It may cause an injury or a failure. IF SCREW ROTATION IS STOPPED IN NORMAL OPERATION, PRESS [REVERSE/ REV] BUTTON AND HOLD FOR 2-3 SECONDS AND THEN AFTER REVERSE OPERATION IS COMPLETELY STOPPED, PRESS [ON] BUTTON AGAIN. If such a stop event continues during the operation, the parts may be damaged and performance may be deteriorated due to overheating in a motor. When the problem continues, immediately stop the appliance and contact the local Customer Care Center. WHEN THE POWER CORD, WIRE IS BROKEN OR DAMAGED OR THE PLUG-IN PART BECOMES LOOSE, DO NOT OPERATE IT. Itmaycauseanelectricshock,areoraninjury. FOR SAFETY, MUST DO GROUND CONNECTION DO NOT DO THE GROUNDING ON GAS PIPE, PLASTIC WATER PIPE, TELEPHONE WIRE, ETC. Itcouldcauseanelectricshock,are,oramalfunctionandanexplosion. Be sure to use the socket with ground connection. NEVER DISASSEMBLE BOWL SET DURING OPERATION OR INSERT FINGERS, FOREIGN OBJECTS SUCH AS FORKS, SPOONS ETC. INTO FEEDING TUBE OR JUICE OUTLET. It may cause an injury, an accident or a failure. THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY. Children should be supervised to ensure that they do not play with the appliance. IF A GAS LEAK IS DETECTED, DO NOT PLUG IN THE APPLIANCE’S POWER CORD INTO A POWER OUTLET. IMMEDIATELY VENTILATE THE ROOM BY OPENING A WINDOW, AND ALLOW TO FULLY VENTILATE BEFORE PLUGGING IN THE APPLIANCE. It may cause an injury or a failure. DO NOT MOISTEN THE BASE OR SPLASH WATER ON THE BASE. Be careful not to let any liquids or other substances get into the switch on the appliance. DO NOT OPERATE THE SWITCH WITH WET HANDS. Itmaycauseelectricshockorare.10

PRECAUTIONS FOR SAFE USE

NEVER PUT A FINGER, A FORK OR A SPOON ETC. INTO JUICE OUTLET. It may cause an injury or a failure. DURING THE OPERATION, DO NOT ATTEMPT TO MOVE THE BASE, DISASSEMBLE THE BOWL SET OR PARTS AND TRY TO LOCK THEM. Itmaycauseaninjuryorafailure.Anyactofeventneeded,switchoffrst and unplug the power cord. WHEN USING THE APPLIANCE, BE CAREFUL FOR A NECKTIE, LONG NECKLACE, SCARF ETC. NOT TO BE ENTANGLED INTO FEEDING TUBE. It may cause an injury, a failure or a breakage. PLACE THE APPLIANCE ON A FLAT AND STABLE SURFACE. It may cause an injury or a failure. DO NOT OPERATE THE APPLIANCE FOR MORE THAN 30 MINUTES AT A TIME. Itmaycauseamotorfailureduetooverheating.Coolitdownsufcientlyfor 5 minutes and operate it again. WHEN PLACING INGREDIENTS INTO THE FEEDING TUBE, ONLY USE THE PUSHER PROVIDED. It may cause an injury or a failure. DO NOT ALLOW A SEVERE SHOCK TO THE APPLIANCE OR DROP IT. Itmaycauseanelectricshock,areordamage IF THE APPLIANCE GIVES OFF AN UNPLEASANT SMELL OR EXCESSIVE HEATING, SMOKE, STOP USING IMMEDIATELY AND CONTACT THE LOCAL CUSTOMER CARE CENTER. When using a new appliance, it gives off a smell and the smell disappears naturally over time. ALWAYS UNPLUG THE APPLIANCE AFTER USE. WHEN UNPLUGGING THE POWER CORD, MAKE SURE TO HOLD THE POWER CORD. Ifholdingthewiretounplug,itmaycauseanelectricshockorare. THE APPLIANCE WEIGHS ABOUT 20 LB (9 KG). WHEN MOVING THE APPLIANCE, ENSURE TO MOVE IT HOLDING GRIPS TIGHTLY AT THE BASE BOTTOM WITH BOTH HANDS. If attempting to hold bowl or the edge of the base, the base may fall causing an injury or a failure. 30minuteIF THE AUGER STOPS WORKING

Press [ON] button to start. When using [ON] auger should rotate. Wait 2 to 3 seconds. Then press [REV] button. Repeat this 2 to 3 times. Make sure the auger stops completely after releasing the button. Note: Even after following the directions above, if the juicer still doesn’t work, please unplug the power cord, disassemble the chamber set and clean it. Then try again. Any other servicing should be performed by an authorized service representative. Press [Rev] button for 3 to 5 seconds, then release. When the [Rev] button is released, the auger will stop rotating. Repeat this 2 to 3 times. The [Rev] button pushes the ingredients upward releasing the food clog.

Thoroughly wash fresh ingredients to remove accumulated chemicals. The Omega

Nutrition System can extract juice from un-peeled fruits and vegetables but your taste may prefer peeled produce.

Turn [ON] machine and let it run without interruption until all juice has been extracted.

If the pulp starts to clog the drum, turn [OFF] machine and empty the drum set. Reassemble and resume normal operation.

After placing the last piece of fruit or vegetable into the hopper, keep the machine running for a few seconds to ensure juice is extracted.

After every use, clean all parts that come into contact with food or juice.

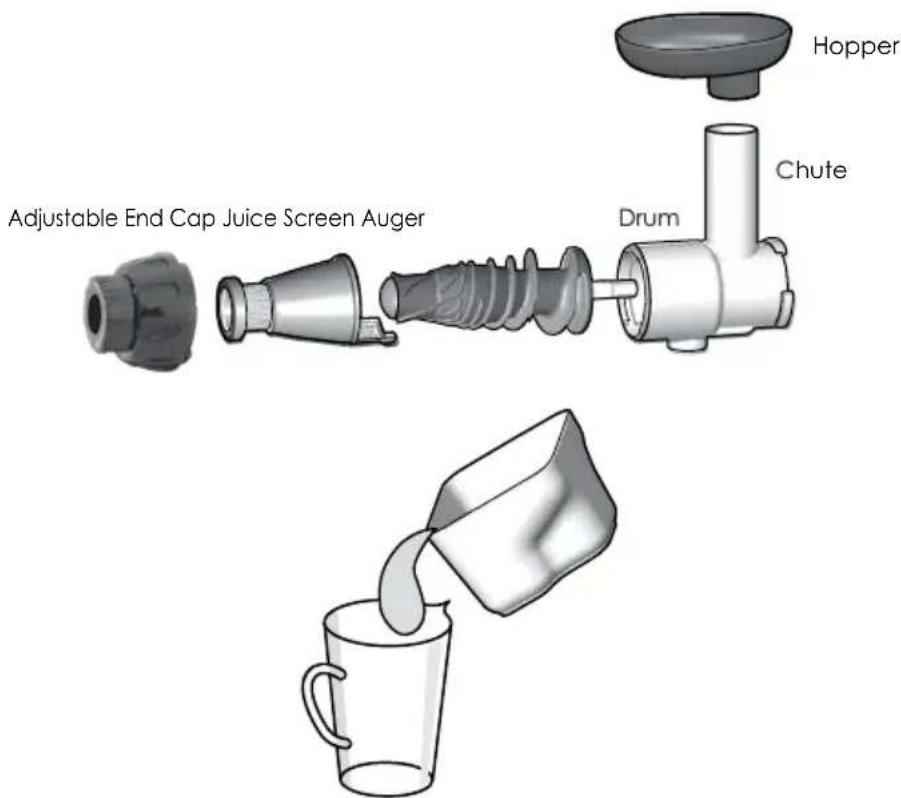

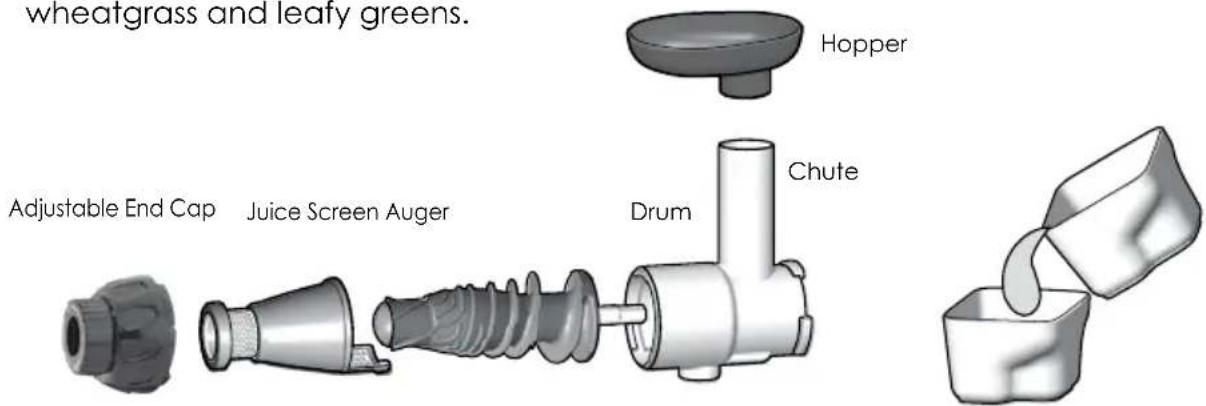

You may juice items that are not usually used in meals, for example, carrot or beet stems. Chute HopperHERBS (such as celery) Juicing Screen | Adjustable End Cap

Thoroughly wash fresh ingredients to remove accumulated chemicals.

Donotoverllthefeedchute.Feedthejuicerwithsmallquantities. Allow most of the juice to exit before pushing in the next item.

Some juice may exit into the pulp bowl and not the juice bowl. Thisisnormal.Thismaycontinuetooccuruntiltheejectionareaislledwithpulp.

Whenjuicinganitemforaddedtaste,insertthatitemduringthersthalfofthejuicing process. If inserted at the end of the process, the full taste may not come through.

Certain green drinks may be too strong for some people. Lemon, apple, ginger, carrots &/or beets may be added as a natural sweetener to dilute the taste of wheatgrass and leafy greens. Adjustable End Cap Juice Screen Auger

Thoroughly wash fresh ingredients to remove accumulated chemicals.

Donotoverllthefeedchute.Feedthejuicerwithsmallquantities. Allow most of the juice to exit before pushing in the next item.

Some juice may exit into the pulp bowl and not the juice bowl. Thisisnormal.Thismaycontinuetooccuruntiltheejectionareaislledwithpulp.

Whenjuicinganitemforaddedtaste,insertthatitemduringthersthalfofthejuicing process. If inserted at the end of the process, the full taste may not come through.

Certain green drinks may be too strong for some people. Lemon, apple, ginger, carrots &/or beets may be added as a natural sweetener to dilute the taste of wheatgrass and leafy greens. Drum Chute Hopper Drum Chute Hopper Adjustable End Cap Juice Screen Auger14 TROUBLESHOOTING Please troubleshoot using the details below before contacting Omega Customer Service for repair or service. When contacting Omega for after-sales service, please have the manufacturer’s serial number or bar code available. The Appliance Does Not Work

• Make sure the power cord is plugged in correctly.

• Make sure the drum is assembled correctly. If the drum is not locked into place, the appliance will not operate.

• Make sure the appliance is assembled according to the instructions in this manual. Refer to the instructions.

• If the appliance still does not work, please contact Omega Customer Service for additional support. The Drum Does Not Open

• If there is a lot of pulp inside the drum, press [On] to release the excess pulp.

• Check the appliance for any foreign substance or solid objects including seeds.

• Press [Rev] button to push up stuck ingredients.

• Do not attempt to open by force. If the drum still does not open, please contact Omega Customer Service for additional support. The Appliance Stops During Normal Operation

• Check for large pieces of food stuck in the appliance.

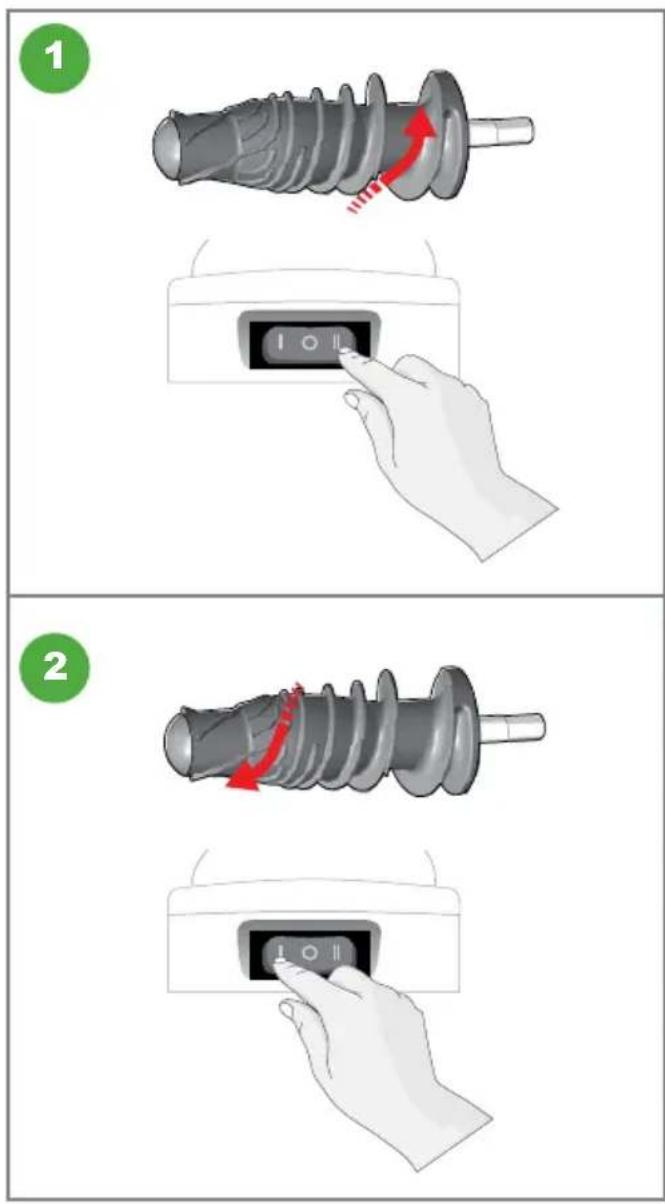

• Refer to the section “If the Auger Stops Working” and follow the guideline for the [Rev] button.

• If the appliance still does not work, please contact Omega Customer Service for additional support. Fine Lines or Scratch Marks around the Auger

• This is normal. Do not be concerned. These are molding marks resulting from the normal manufacturing process. Juice Leaks Over the Base

• Check for an excessive amount of ingredients in the hopper and/or chute.

• If you try to juice a large amount of food compared to the pulp chute, the packing will be slightly pushed away. Juice may leak out of the gap.

• Do not force too much food into the juicer. Push food gradually for extraction.

• Checktomakesurethejuiceapisclosed. Juicer Shakes when In-Use

• This is normal as the auger rotates. It is not a malfunction. Hard ingredients such as carrots, potato, radish, beets, etc. may cause shaking more so than soft ingredients.

• Dependingonthermnessoftheingredient,theremaybeamorepronounced shaking of the motor.

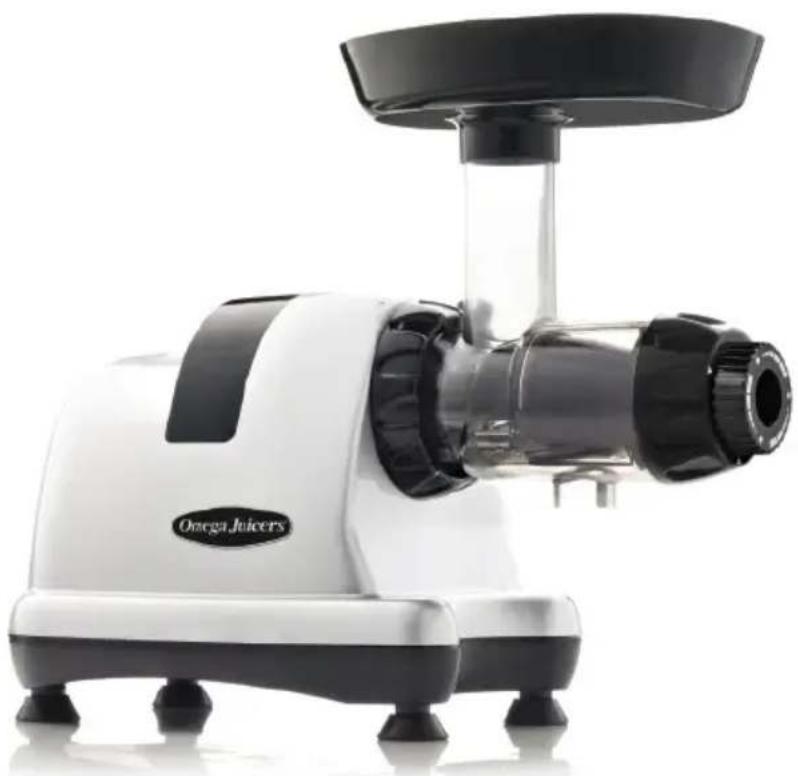

• Slight shaking may be caused by the motor. CONTACT US: www.OmegaJuicers.com/contact-omega-juicers15 PRODUCT SPECIFICATIONS Product Name Omega

Low Speed Masticating Juice Extractor Model Name MM900HDS Rated Voltage 220-240 V Rated Frequency 50/60 Hz Rated Power Consumption 200 W

2 beets (Australian beetroot) 2 organic carrots 1 cup organic strawberries 2 cups kale leaves (6-8 leaves) (Australia tuscan cabbage) What You’ll Need: How To Prepare: Wash all produce well. Cutasneededtotintojuicer. Juice in an Omega

Pour over ice and enjoy. Australian Dream

Pour over ice. Enjoy! PREP 3 minutesJUICE 6 minutes Clean Boost RECIPES17 2 grapefruits (peeled) 1 red bell pepper 2 pears 6 carrots PREP 5 minutes JUICE 5 minutes What You’ll Need: How To Prepare: Morning Glory Citrus Wash all produce well. Juice all produce in an Omega

and enjoy! Serving Size: 16 - 18 oz. Bursting with Vitamin C and beta-carotene, as well as Vitamins A & K and even copper.

2 apples 3 kiwis PREP 5 minutes JUICE 5 minutes What You’ll Need: How To Prepare: Wash the apples, then remove the core and cut into quarters. Peel the kiwis and chop into small pieces. Juice ingredients in your Omega

Stir before drinking. Apple & Kiwi Juice RECIPES3

1 medium apple, cored and cubed 2 medium soft pears, cored and cubed ½ cup fresh cherries (pits removed or frozen and thawed) PREP 5 minutesJUICE 5 minutes What You’ll Need: How To Prepare: In your Omega

, juice apple, pears, and cherries. Before serving, garnish with fresh cherries, if desired. Total Health Booster

1 cucumber 2 collard green leaves 1 handful of cauliower orets ½ lemon (yellow rind removed) PREP 5 minutesJUICE 5 minutes What You’ll Need: How To Prepare: Wash all produce. Add all ingredients into your Omega

and juice. Pour into your glass and enjoy! Cukelear Power

RECIPES19 1 peach (remove pit) 1 mango (peeled and seed removed) 1 orange (skin removed) ½ cup coconut water 1 teaspoon agave nectar PREP 5 minutesJUICE 5 minutes What You’ll Need: How To Prepare: Tropical Morning In your Omega

Nutrition System, juice peach, mango and orange Add remaining ingredients and stir. Serve chilled and garnish with a peach slice.
