Brand	TCL
Model	Breeva A2W
Product type	Air purifier with humidification
Recommended area	14 to 24 m² (approx. 182 square feet)
Power supply	24 V= adapter, power 26 W, plug 100-240 V 50/60 Hz
Clean air delivery rate (CADR)	117 cfm (200 m³/h)
Filter	Composite (anti-particulate, VOCs, formaldehyde, odors)
Filter replacement	Every 6 months (indicator light), manual replacement, vacuum
Ventilation modes	Auto, sleep, 3 manual speeds
Timer	1H, 2H, 4H, 8H
Anion function	Yes, activation/deactivation
Air quality indicator	3-color LED: white (excellent), yellow (average), red (poor)
Connectivity	Wi-Fi 2.4 GHz, TCL HOME app, compatibility with Alexa and Google Assistant (Wi-Fi model)
Child safety	Touch lock (3 seconds)
Water tank	Built-in for humidification function (remove, fill, replace)
Maintenance	Vacuum filter every 2 weeks; wipe cabinet with a soft cloth
Safety	Automatic shut-off if outlet grille is open; low voltage protection
Dimensions (approx.)	Not specified in manual, estimated ~25x25x40 cm
Weight (approx.)	Not specified in manual, estimated ~4 kg
Variants	A2W, A2WK, A2WW, A2WWK, A2B, A2BK, A2BW, A2BWK

Frequently Asked Questions - Breeva A2W TCL

How to install the TCL Breeva A2W air purifier filter?

Place the purifier upside down, remove the filter cover by turning counterclockwise, insert the composite filter (tightening cord side out), then close the cover by turning clockwise.

How often should the Breeva A2W filter be replaced?

The filter indicator flashes every 6 months approximately. Replace it as soon as the indicator turns red. The filter is a consumable not covered by warranty.

How to use the humidification function of the Breeva A2W?

Press the air outlet grille, remove the sink cover, pour water without overfilling, replace the cover and close the grille. Turn on the device to enjoy refreshing air. Change the water regularly.

What to do if the purifier does not respond to buttons?

First check if the child lock is activated. Hold the lock button for 3 seconds to deactivate. If the problem persists, unplug the device and plug it back in.

How to connect the purifier to the TCL HOME app?

In standby mode, hold the power button for 3 seconds until the Wi-Fi indicator flashes quickly. Open the TCL HOME app, search for the device and follow the instructions. Ensure your phone is connected to a 2.4 GHz Wi-Fi network.

What do the air quality indicator colors mean?

White: excellent quality. Yellow: average quality. Red: poor quality. The device automatically adjusts speed based on detected quality.

How to clean the Breeva A2W filter?

Use a vacuum cleaner with a brush or crevice tool to clean the composite filter every two weeks. The filter is not washable. Do not clean too vigorously to avoid damage.

The purifier emits a strange odor, what to do?

If the device is used in a very odorous environment (cigarette, barbecue), the filter may absorb odors and release them. Replace the filter and air out the room. If the odor persists, contact customer service.

Can I use the purifier without a filter?

No, never operate the device without a filter. This could damage the sensor and reduce purification efficiency. The filter must always be in place.

What model numbers are compatible with this manual?

The following models are covered: Breeva A2W, A2WK, A2WW, A2WWK, A2B, A2BK, A2BW, A2BWK. Check the label on the back of your device.

USER MANUAL Breeva A2W TCL

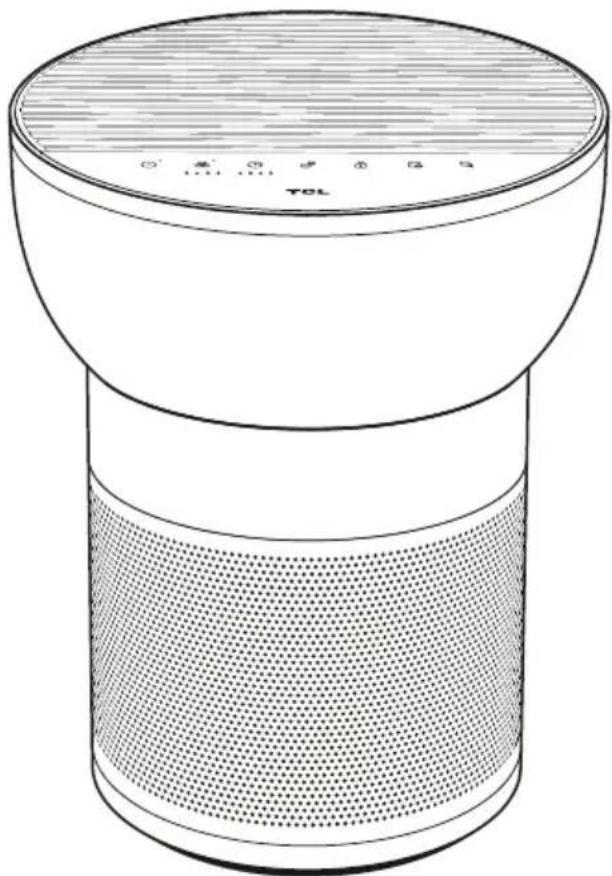

Air Purifier User Manual

Model : Breeva A2W Breeva A2WW Breeva A2B Breeva A2BW Breeva A2WK Breeva A2WWK Breeva A2BK Breeva A2BWK

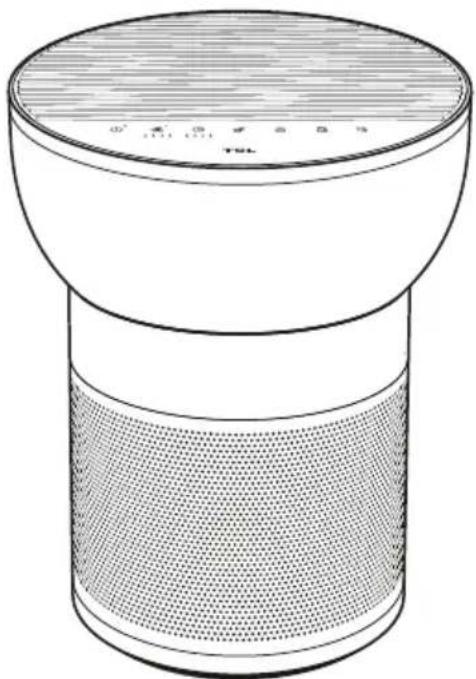

Line drawing of a cylindrical smart speaker with a textured base and top panel, labeled 'TOL' (no text or symbols on the device itself)

READ AND SAVE THESE INSTRUCTIONS (you can also read the instruction at www.TCL.com)

User Manual

Line drawing of a cylindrical smart speaker with a mesh grille and top panel (no text or symbols)

English 1-15

Deutsch 16-31

Français 32-46

Español 47-62

Português 63-77

Italiano 78-92

Contents

Product Description 3

Packing list 3

Name of each part 4

Safety 5-6

Getting started 7-8

Control Panel 9

Instructions 10-11

APP connection instructions 12

Maintenance 13

Troubleshooting 14

Specifications 14

Customer support 15

Product description

The TCL Breeva air purifier can efficiently remove dust, smoke, pollen, bacteria, and more, helping to protect your family's health by converting these pollutants into clean air.

This air purifier is equipped with a composite filter that can efficiently remove particulate matter in the air, including PM2.5 particles, formaldehyde, and odor (smoke).

Line drawing of a modern cylindrical speaker with a perforated grille and top panel (no text or symbols)

- Composite Filter

It can absorb smoke, pollen, and dust, filter bacteria in the air, effectively remove formaldehyde, TVOC, odors (fumes) in the air, and effectively remove PM2.5.

Packing list

Packing position	Main machine packaging
Name of items	Main	Filter	Adaptor	User Manual
Quantity	1	1	1	1

Diagram of a speaker with labeled parts, showing front and back views with numbered annotations.

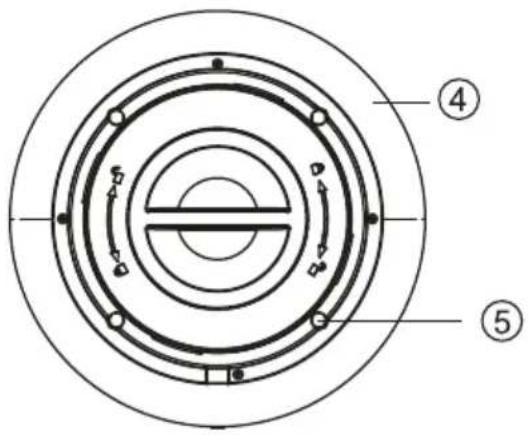

Circular diagram with horizontal striped pattern and numbered point (3), no text or symbols present

④ ⑤

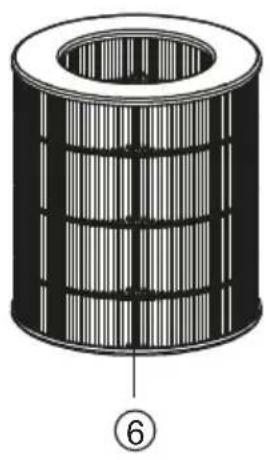

Diagram of a cylindrical mechanical component with internal grid structure, labeled with number 6 (no text or symbols on the diagram itself)

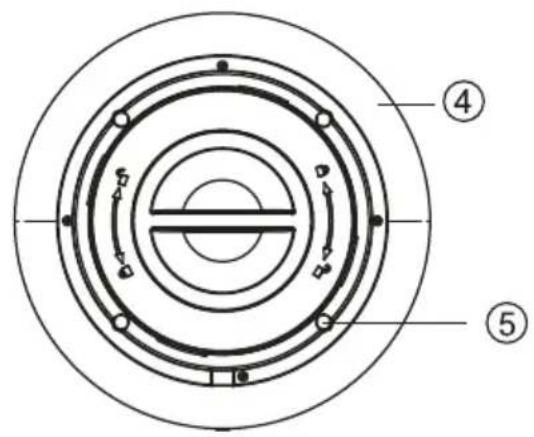

1、Shell 4、Bottom cover
2、Air inlet 5、Anti-slip mat
3、Air outlet 6、Composite filter

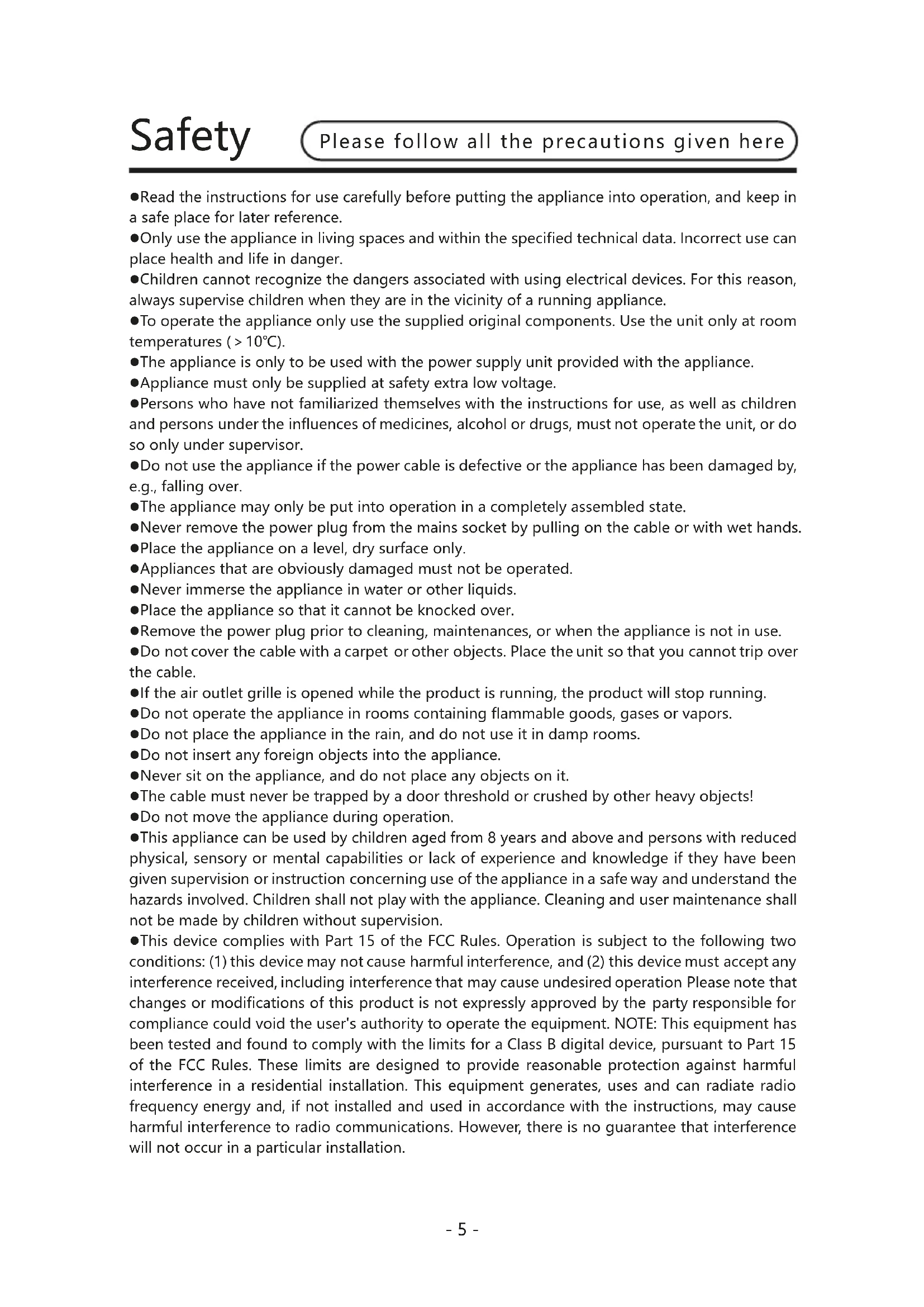

Safety

Please follow all the precautions given here

- Read the instructions for use carefully before putting the appliance into operation, and keep in a safe place for later reference.

- Only use the appliance in living spaces and within the specified technical data. Incorrect use can place health and life in danger.

●Children cannot recognize the dangers associated with using electrical devices. For this reason, always supervise children when they are in the vicinity of a running appliance.

- To operate the appliance only use the supplied original components. Use the unit only at room temperatures ( >10^ ).

●The appliance is only to be used with the power supply unit provided with the appliance.

●Appliance must only be supplied at safety extra low voltage.

●Persons who have not familiarized themselves with the instructions for use, as well as children and persons under the influences of medicines, alcohol or drugs, must not operate the unit, or do so only under supervisor.

- Do not use the appliance if the power cable is defective or the appliance has been damaged by, e.g., falling over.

●The appliance may only be put into operation in a completely assembled state.

●Never remove the power plug from the mains socket by pulling on the cable or with wet hands.

●Place the appliance on a level, dry surface only.

●Appliances that are obviously damaged must not be operated.

●Never immerse the appliance in water or other liquids.

●Place the appliance so that it cannot be knocked over.

- Remove the power plug prior to cleaning, maintenances, or when the appliance is not in use.

- Do not cover the cable with a carpet or other objects. Place the unit so that you cannot trip over the cable

- If the air outlet grille is opened while the product is running, the product will stop running.

●Do not operate the appliance in rooms containing flammable goods, gases or vapors.

- Do not place the appliance in the rain, and do not use it in damp rooms.

- Do not insert any foreign objects into the appliance.

●Never sit on the appliance, and do not place any objects on it.

●The cable must never be trapped by a door threshold or crushed by other heavy objects!

- Do not move the appliance during operation.

●This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Please note that changes or modifications of this product is not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

- If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

(1) Reorient or relocate the receiving antenna.
(2) Increase the separation between the equipment and receiver.
(3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
(4) Consult the dealer or an experienced radio/TV technician for help.

- This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

- This equipment complies with FCC's and IC's RF radiation exposure limits set forth for an uncontrolled environment. The antenna(s) used for this transmitter must be installed and operated to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. Installers must ensure that 20cm separation distance will be maintained between the device (excluding its handset) and users.

This marking indicates that this product should not be disposed with other house- hold wastes throughout the EU. To prevent possible harm to the environment or human death from uncontrolled waster disposal, recycle it responsibly to promote to the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environment safe recycling.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack or experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Ensure that the device is switched off from the supply mains before removing the guard.

This product complies with the maximum allowable concentration of ozone of 0.050 parts per million by volume (ppmv) in a 24-h period.

WARNING: RISK OF ELECTRIC SHOCK – These servicing instructions are for use by qualified personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

WARNING: DISCONNECT POWER SUPPLY BEFORE SERVICING.

Start preparation

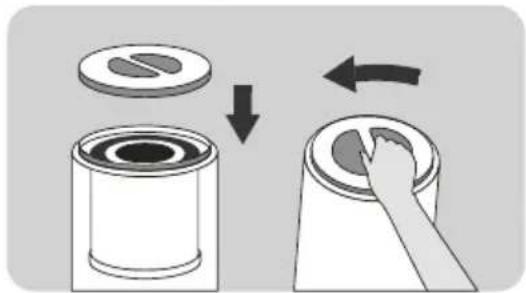

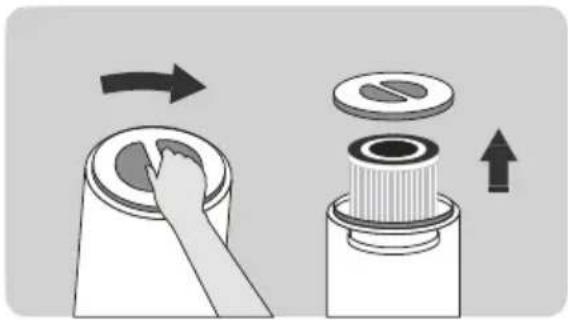

Remove filter Install filter

1. Flip the air purifier over and twist the filter cover counterclockwise to remove it.

Diagram showing a hand pressing down on a cylindrical component with an arrow indicating rotation (no text or symbols present)

1. Remove the filter from inside the unit.

Diagram showing a cylindrical object with an upward arrow emerging from it, no text or symbols present

1. Remove the filter from its plastic packaging.

Illustration of a hand holding a cylindrical object on paper, transforming into a separate cylindrical object (no text or symbols present)

- Please press the air outlet grille in place after adding water before starting the product.

1. Place the filter back into the air purifier. The side with drawstring should be placed outward.

Diagram showing a cylindrical object being dropped into a container with a downward arrow (no text or symbols)

1. Replace the cover and twist it clockwise to tighten.

Diagram showing a hand pressing down on a cylindrical container with a lid, illustrating the process (no text or symbols present)

Using the Humidification Feature

1. Press the air outlet grill and remove the sink cover.
2. Pour in water but do not overfill.
3. Place the sink cover on top and close the air outlet grill.
4. Turn it on and enjoy clean, refreshing air. (The water in the sink needs to be released and then replaced)

Illustration of a coffee maker's open lid and side view, showing mechanical components (no text or symbols)

Start preparation

• The filter is a consumable item, thus is excluded from our warranty policy. Please confirm that the filter is in good condition before removing the protective wrap.
• Please do not use the air purifier without the filter.
• The unit must be disconnected from the power supply before replacing the filter.
• Remove any remaining water in the sink and wipe the sink dry.

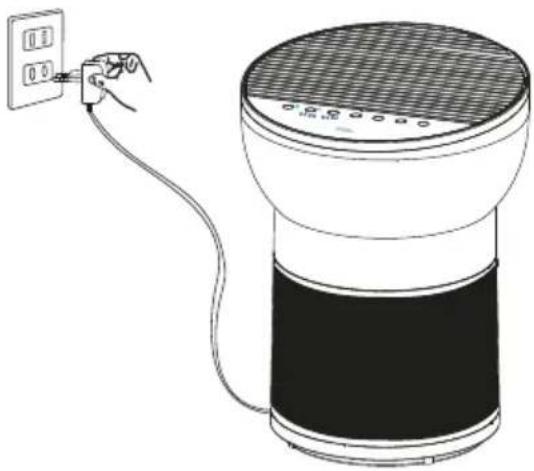

Power on

- Place the air purifier on a flat surface, and then insert the plug into the power socket;

• This product can only be used on a 100-240V 50/60Hz socket.
• Before inserting the plug into the socket, please make sure that your hands and the plug are dry. If there is water on your hands or the plug, please dry the plug and your hands before inserting it into the power socket.
  • After the power is turned on, the light on the operation panel will flash once. After 1 second, except for the half-bright switch light, all the other lights are off.

Line drawing of a portable electronic device with a power cord and control panel (no text or symbols)

• Please close doors and windows when using;
• If the air quality does not improve after the air purifier has been running for a period of time, please open the doors and windows to maintain air circulation. (In extreme environments)

Control panel

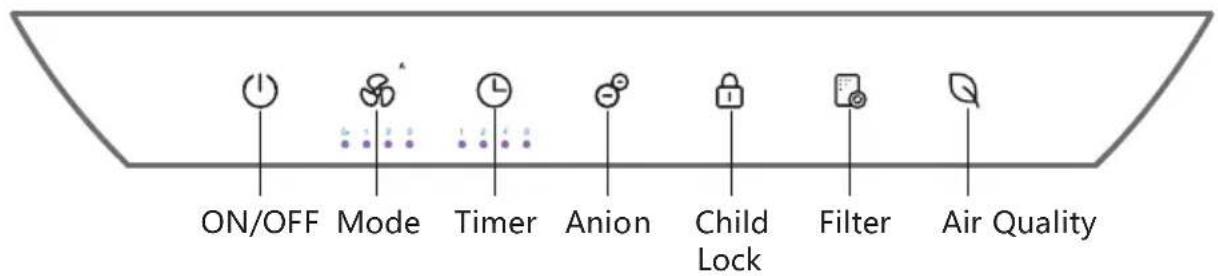

breeva A2 operation panel

ON/OFF Mode Timer Anion Child Lock Filter Air Quality

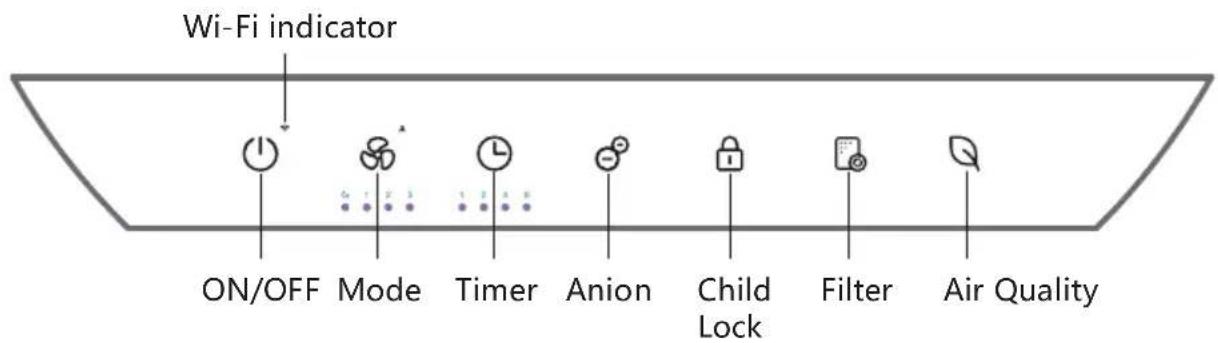

breeva A2 Wi-Fi operation panel

Wi-Fi indicator ON/OFF Mode Timer Anion Child Lock Filter Air Quality

On/off

Light on

Insert the power plug into the socket and press the "on/off" button to turn on the machine.

• Insert the power plug into the socket and press the "on/off" button to turn on the machine.
• When the air purifier is on, press the power button to re-enter the standby state. The power button light will be half lit. * Standby refers to the state when the device is connected to power but is not turned on.

Mode

Light on

• While powered on, press the wind speed button to adjust the wind speed in the following order: Sleep-1st gear-2nd gear-3rd gear-Automatic.
• In automatic mode, when the air quality is excellent, it operates in the first gear, when the air quality is medium, it operates in the second gear, and when the air quality is poor, it operates in the third gear.
• In sleep mode, all lights are at 50% brightness. Press and hold the wind speed button for 3 seconds to turn on/off the lights on the control panel. When the control panel lights are off, if touched, the rest of the button panel will light up by 50%. The lights will turn off again if there is no operation within 10 seconds.

Timer

Light on

- Press the timer button while the unit is on to turn on the timer function.

The time can be set to 1H-2H-4H-8H-cancel time intervals, and the corresponding indicator will turn white. After setting the timer to turn off, press the power button to cancel the timer setting and immediately enter the standby mode.

Anion

Light on

• While the device is on, press the anion button to turn on/off the anion function.

Child Lock

Light on

- Press and hold for 3 seconds to turn on the panel lock. Once the panel is locked, users will be unable to change any settings. You can unlock the device by pressing the lock icon for 3 seconds.

Filter

Light on

- The internal timer calculates the cumulative running time. When the filter indicator flashes red (each time it powers on), and the buzzer sounds three times, it indicates that the filter will need to be replaced soon. When the filter indicator flashes red (each time it powers on) and the buzzer sounds five times, you will need to replace the filter as soon as possible (The time of the timer is calculated by laboratory simulation test, which may not be completely consistent with actual use. In heavy usage scenarios, you may need to replace the filter before the time expires).

- After replacing the filter, press and hold the filter reset button for 3 seconds, the buzzer will sound once, and the indicator light will turn white.

Air quality (no button function)

- The icon will change based on your quality of air measured by the dust and VOC sensor. When the light is white, the air quality is excellent; When the light is yellow, the air quality is medium; When the light is red, the air quality is poor.

Wi-Fi connection (only for breeva A2 Wi-Fi)

• In standby mode, press and hold the power button for 3 seconds. The buzzer will then make a sound indicating the unit is ready to pair.
• As the unit begin to pair, the WiFi icon will begin to flash quickly.
• Once the unit has finished pairing and is connected to WiFi, the icon will appear solid as long as it remains connected.
• WiFi pairing will automatically turn off if there is action after 8 minutes.

1、Download the APP

You can scan the QR code below to download and install TCL HOME or search for "TCL HOME" in the Apple App Store and Google Play Store.

QR code image containing encoded data, no visible human-readable text

2. Configure the device

In the standby mode, press the power button for 3 seconds and the buzzer will make a sound, the WiFi indicator will flash quickly, and the device will enter the configuration mode. When the WiFi indicator is always on, the TCL HOME APP can be used to operate the equipment after the configuration is completed.

[Turn off Wi-Fi]: Long press the power button for 3 seconds to enter the network configuration state (the Wi-Fi light flashes), press the power button again to turn off Wi-Fi.

Reminder

If your connection fails, please check the following list:

A. Make sure your Bluetooth is turned on.
B. When you are adding a device, make sure you are connected to Wi-Fi.
C. Put your smartphone as close to the device as possible.
D. Your phone is not in power-saving mode.

3. Voice operation

After the configuration is complete, enter the APP screen, click the upper right corner to enter the voice operation settings:

A. Click the function to start connecting to the voice assistant.
B. TCL HOME is compatible with both Alexa and Google voice assistants.
C. It will display the voice operation guide.

Tips

A. Because we are constantly improving the TCL Home app to provide you a better experience, the actual instruction may very slightly from above. This is no problem though, our app has the latest information to keep you up to date.
B. Devices are only compatible with the 2.4GHz band and not the 5GHz band. (No need to worry, all WiFi networks have a 2.4GHz band that comes standard).

NOTE: While connected to a WiFi network, the WiFi icon will remain on even when the unit is powered off. However, the WiFi icon will dim to 50% brightness when the unit turns off. If your unit become disconnected from the WiFi, you can repair it at any time.

Precautions for maintenance:

- Before maintenance, you must unplug the unit to disconnect the power supply.

Composite Filter

• Use a vacuum cleaner to maintain the filter.
  • The filter is not washable.
  ※ Please clean the filter once every two weeks.

Clean the filter with a vacuum cleaner

- The filter material is easy to damage, so be gentle while cleaning to avoid damage.

※ The filter is a consumable product, which is not covered by the product warranty. Please maintain and use it properly to avoid damage.

Brush nozzle or gap nozzle

• Wipe the body and operation panel with a soft cloth.
• Please do not wipe with a hard cloth, otherwise it will cause surface damage.
• Please use a dry cloth to clean the power cord to avoid potential injury (electrical shock).
• Please use neutral detergent when cleaning. Never use decontamination powder, alkaline detergent, thinner, bleach, alcohol or gasoline to clean the body.

Illustration of a cylindrical object with a lid and black base, no visible text or symbols

Reminder

• Do not operate when the filter is removed. (It loses the function of dust removal and deodorization, and the inhaled dust may cause the sensor in the machine to malfunction.)
• During maintenance, do not arbitrarily place the removed accessories. (It is possible to trip over or damage the accessories, and children could get injured by playing with them.)
• There is a sink in the product. If the product is dumped or knocked over, the water in the sink will overflow. Please stand the unit up for 2 hours before restarting.

Reference time for filter replacement
	Replacement cycle
Composite Filter	When the panel indicator is flashing (it needs to be replaced every 6 months after use)
Conditions: The product use time is 12 hours/day, and the use environment is normal.
If the environmental pollution is high, please shorten the replacement time as appropriate.

※ Depending on the actual use environment and method of use, the replacement cycle of the filter may change. If you believe your air purifier is not performing good because of a heavy usage environment, please replace the filter.

• After replacing the filter, press and hold the light button for 3 seconds, the buzzer will sound once, the panel indicator will turn from red to white, and the reset is complete.
- Please dispose of the used filter as non-combustible garbage.

The following lists the problems you may encounter during use. If you cannot solve the problem based on the information below, please contact your local dealer.

Problems Possible solutions
The red indicator on the panel flashes for a long time.	You ignored the reminder to replace the filter. When the red indicator on the panel starts to flash, you did not replace the filter in time; You must replace the filter and press and hold the light button for 3 seconds. After the reset is complete, the indicator goes out.
No air is discharged from the air outlet.	The product is not connected to the power source. Please insert the plug into the power socket and turn on the product.
The product has been running for a long time, and the air quality has not improved significantly.	A certain filter may not be placed as it should inside the product. Please make sure to install the filter in the correct order, starting with the innermost filter: composite filter-base.
	The indoor humidity is too high, so condensate is formed. Do not place the product in a place with high humidity such as bathroom, toilet
	There are obstacles around the product that affect the purification effect. (Refer to the instructions for use.)
	The room where the product is in is too large. The recommended room area for this product is about 182 square feet.
Difficult to remove dirt in the air.	Is the filter dirty? If there is no improvement after maintenance, please replace the filter.
The wind blowing from the air outlet has a peculiar smell.	Is it used in places with strong smells? If you use it under strong odors such as cigarettes and barbecues, the filter will produce an unpleasant odor within weeks or months. Please replace the filter and keep it well ventilated.
No response after touching buttons.	Please confirm whether the child lock button is locked first, you need to press and hold the child lock button for 3 seconds to unlock the child lock button, and then touch other buttons to operate.
The water tank cannot be turned on after adding water.	Please check if the air outlet switch has been pressed in place.

Specifications

Product model	Breeva A2W	Breeva A2WW	Breeva A2B	Breeva A2BW
	Breeva A2WK	Breeva A2WWK	Breeva A2BK	Breeva A2BWK
Rated voltage	24V=
Rated power	26W
Clean air delivery rate (CADR)	117 cfm200 m3/h
Applicable area	14~24m2

Customer support

We are devoted to your 100% satisfaction and would like to get your feedback on our product and service. If there is anything that did not meet you expectation you have any questions regarding your new product. Please contact us via www.tcl.com without hesitation.

TCL OVERSEAS MARKETING LIMITED

7/F BUILDING 22E,

22 SCIENCE PARK EAST AVENUE,

HONG KONG SCIENCE PARK,

SHATIN NT

www.tcl.com

*Please have your order invoice and order ID ready before contacting Customer Support.

Luftreiniger

Benutzerhandbuch

Model : Breeva A2W

Breeva A2WK

Breeva A2WW

Breeva A2WWK

Breeva A2B

Breeva A2BK

Breeva A2BW

Breeva A2BWK

Line drawing of a TCL-branded smart speaker with a perforated grille and top panel (no text or symbols on the device itself)

Line drawing of a cylindrical smart speaker with mesh grille and top panel (no text or symbols)

- Verbundfilter

Circular diagram with horizontal striped pattern and numbered point (3), no text or symbols present

④ ⑤

Diagram of a cylindrical mechanical component with internal grid structure, labeled with number 6 (no text or symbols on the diagram itself)

Diagram showing a hand pressing down on a cylindrical component with an arrow indicating direction (no text or symbols present)

Diagram showing a cylindrical object with an upward arrow emerging from it, next to a rectangular base (no text or symbols)

Illustration of a hand holding a paper with a cylindrical object, transforming into a separate cylindrical object (no text or symbols present)

Diagram showing a cylindrical object being dropped into a container with a downward arrow (no text or symbols)

Diagram showing a cylindrical container being cut with a circular lid, then being placed on top of a cylindrical base (no text or symbols present)

Illustration of a coffee maker's open lid and side view showing its lid, lid, and cup (no text or symbols)

Startvorbereitung

Line drawing of a portable smart speaker with a power cord and control panel (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Illustration of a cylindrical device with a lid and top panel, no text or symbols present

! Erinnerung

Line drawing of a TCL-branded smart speaker with a perforated grille and top panel (no text or symbols on the device itself)

LISEZ ET ENREGISTREZ CES INSTRUCTIONS

Line drawing of a cylindrical smart speaker with mesh grille and top panel (no text or symbols)

- Filtre composite

Circular diagram with horizontal striped pattern and numbered point (3) at bottom, no text or symbols present

④ ⑤

Diagram of a cylindrical mechanical component with internal grid structure, labeled with number 6 (no text or symbols on the diagram itself)

Diagram showing a hand pressing down on a circular component with an arrow indicating rotation (no text or symbols present)

Diagram showing a cylindrical object with an upward arrow emerging from it, no text or symbols present

Illustration of a person holding a paper with a cylindrical object, transforming into a separate cylindrical object (no text or symbols present)

Diagram showing a cylindrical object being dropped into a cylindrical container with a downward arrow indicating compression (no text or symbols)

Illustration of a mechanical device with a lid and arrow indicating rotation (no text or symbols)

Illustration of a coffee maker's open lid and side view, showing mechanical components (no text or symbols)

Line drawing of a portable electronic device with a power outlet and cable, no text or symbols present

QR code image containing encoded data, no visible human-readable text

2. Configurer l'appareil

Illustration of a cylindrical device with a lid and top, showing layered structure (no text or symbols)

! Rappel

Line drawing of a TCL-branded smart speaker with a perforated grille and top panel (no text or symbols on the device itself)

LEA Y GUARDE ESTAS INSTRUCCIONES

Line drawing of a modern cylindrical speaker with a perforated grille and top panel (no text or symbols)

- Filtro compuesto

Circular diagram with horizontal striped pattern and numbered point (3), no text or symbols present

Diagram of a cylindrical mechanical component with internal grid structure, labeled with number 6 (no text or symbols on the diagram itself)

④ ⑤

Diagram showing a hand pressing down on a cylindrical component with an arrow indicating rotation (no text or symbols present)

Diagram showing a cylindrical object with a downward arrow pointing upward, no text or symbols present

Illustration of a hand holding a paper with a cylindrical object, transforming into a separate cylindrical object (no text or symbols present)

Diagram showing a cylindrical object being dropped into a container with a downward arrow (no text or symbols)

Illustration of a hand placing a circular object onto a cylindrical container, showing a step-by-step transformation (no text or symbols)

Illustration of a coffee maker's open lid and side view, showing mechanical components (no text or symbols)

Iniciar preparación

Line drawing of a portable electronic device with a power outlet and cable, no text or symbols present

QR code image containing encoded data, no visible human-readable text

Illustration of a cylindrical object with a textured top and black base, resembling a lamp or speaker (no text or symbols visible)

Recordatorio

Line drawing of a TOL-branded smart speaker with a perforated grille and top panel (no text or symbols on the device itself)

LEIA E GUARDE ESTAS INSTRUÇÕES

Line drawing of a TOL-branded smart speaker with a perforated grille and top panel (no text or symbols)

- Filtro Composto

Circular diagram with horizontal striped pattern and numbered point (3), no text or symbols present

④ ⑤

Diagram of a cylindrical mechanical component with internal grid structure, labeled with number 6 (no text or symbols on the diagram itself)

1. Cobertura 4. Tampa inferior
2. Entrada de ar 5. Tapete antiderrapante
3. Saída de ar 6. Filtro Composto

Diagram showing a hand pressing down on a circular component with an arrow indicating rotation (no text or symbols present)

Diagram showing a cylindrical object with an upward arrow emerging from it, next to a circular base (no text or symbols)

Illustration of a hand holding a paper with a cylindrical object, transforming into a separate cylindrical object (no text or symbols present)

Diagram showing a cylindrical object being dropped into a container with a downward arrow (no text or symbols)

Illustration of a hand placing a circular object onto a cylindrical container, showing a step-by-step transformation (no text or symbols)

Illustration of a coffee maker's side view showing the lid and base with a spoon (no text or symbols)

Line drawing of a portable electronic device with a power outlet and cable, no text or symbols present

QR code image containing encoded data, no visible human-readable text

2. Configure o dispositivo

Illustration of a cylindrical device with a lid and black base, no visible text or symbols

Lembrete

7 ANDAR, EDIFÍCIO 22E,

22 SCIENCE PARK EAST AVENUE,

HONG KONG SCIENCE PARK, SHATIN NT

www.tcl.com

Line drawing of a cylindrical smart speaker with a perforated grille and top panel (no text or symbols)

Line drawing of a cylindrical smart speaker with a mesh grille and top panel (no text or symbols)

- Filtro composito

Circular diagram with horizontal striped pattern and numbered point (3), no text or symbols present

Diagram of a cylindrical mechanical component with internal grid structure, labeled with number 6 (no text or symbols on the diagram itself)

④ ⑤

Diagram showing a hand pressing down on a circular component with an arrow indicating rotation (no text or symbols present)

Diagram showing a cylindrical object with an upward arrow emerging from it, no text or symbols present

Illustration of a hand holding a paper with a cylindrical object, transforming into a separate cylindrical object (no text or symbols present)

Diagram showing a cylindrical object being dropped into a container with a downward arrow (no text or symbols)

Illustration of a hand placing a circular object onto a cylindrical container, showing a step-by-step transformation (no text or symbols)

Illustration of a coffee maker's side view showing the lid and lid being inserted into a container with a spoon (no text or symbols present)

Per iniziare

QR code image containing encoded data, no visible human-readable text

Illustration of a cylindrical device with a lid and black base, no visible text or symbols

! Promemoria

©2021 TCL Overseas Marketing Limited. All Rights Reserved.
