| Product type | Built-in gas hob |
| Brand | Bertazzoni |
| Model | P604PROX |
| Number of burners | 4 |
| Burner types | Auxiliary (1.0 kW), Semi-rapid x2 (1.75 kW each), Rapid (3.0 kW) |
| Gas supply | Natural gas G20/G25, butane G30, propane G31 |
| Appliance dimensions (W x D x H) | 56 x 48 x 4.4 cm |
| Cut-out dimensions | 56 x 48 cm (width x depth) |
| Electrical supply voltage | 230 V ~ 50 Hz |
| Total gas power | Approximately 7.5 kW |
| Ignition | Automatic spark ignition |
| Safety | Safety thermocouple on each burner (gas shut-off in case of flame extinction) |
| Hob surface material | Glass |
| Grid material | Enamelled steel |
| Included accessories | Wok adapter (for crown burner), Coffee maker reducer (for auxiliary burner) |
| Gas conversion | Possible with nozzle kit (included) and minimum regulation |
| Maintenance | Regular cleaning with soapy water, do not use abrasive products |
| Warranty | See website www.bertazzoni.com |
Frequently Asked Questions - P604PROX BERTAZZONI

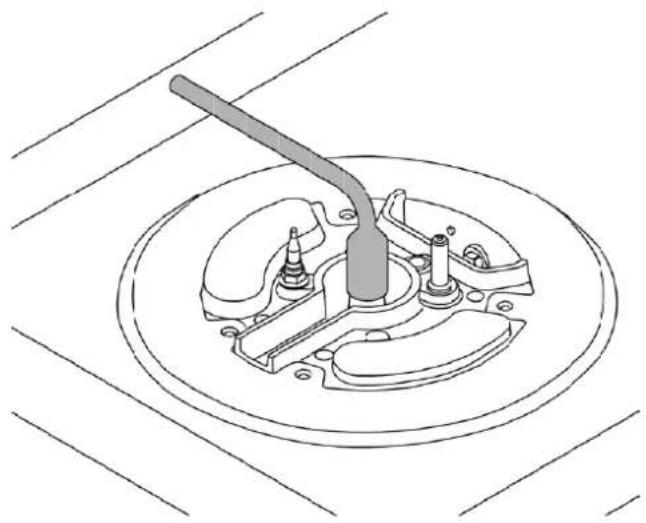

How to convert the hob to use another gas type?

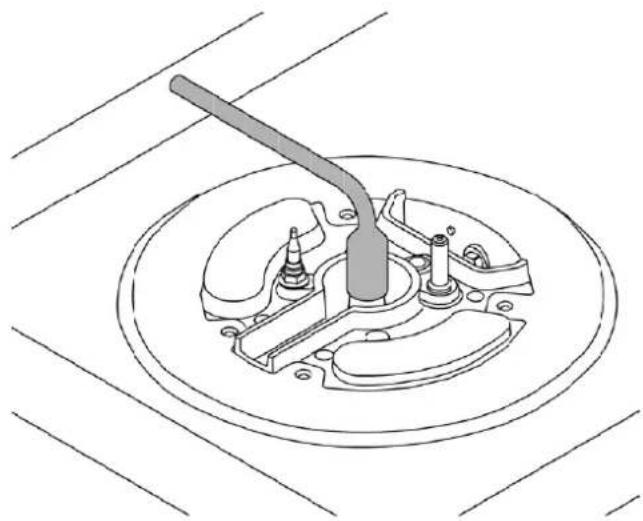

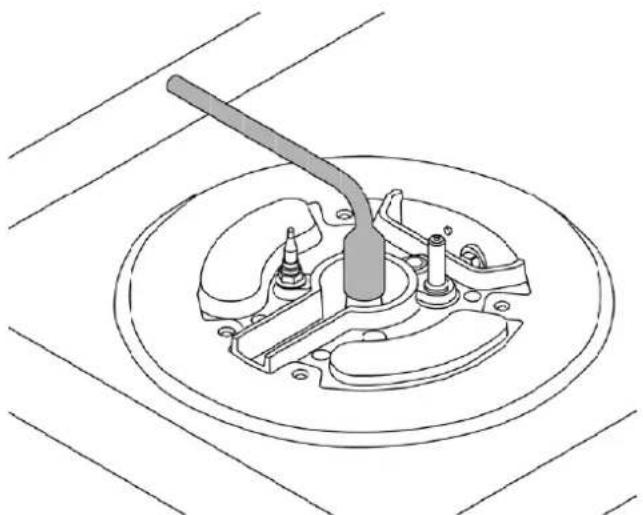

Conversion requires replacing the nozzles and adjusting the minimum flame. To do this, turn off gas and electricity. Replace the nozzles with those provided for the new gas (see table in the manual). Then adjust the minimum screw on each tap: turn the screw until a stable flame in minimum position. For butane/propane gas, screw the screw fully clockwise. After conversion, apply the provided label.

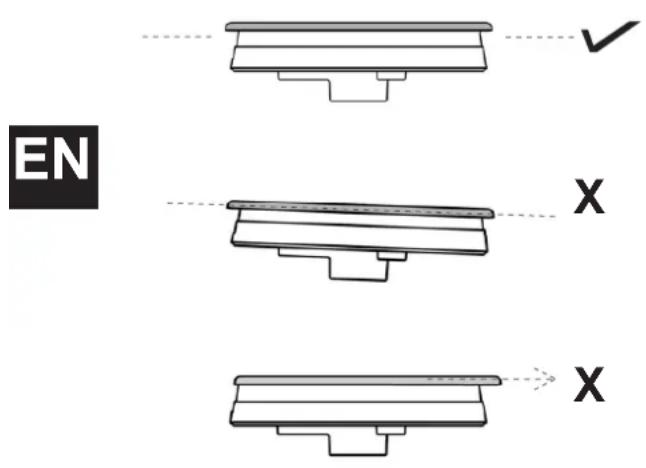

What to do if a burner does not ignite?
First check that there are no food residues between the spark plug and the burner. Ensure gas and electricity supply is active. If the burner is wet, dry it. Also check that the burner is correctly positioned (crown and cap). If the igniter remains activated, water may have infiltrated: turn off the electricity for a few hours to dry.
What are the recommended pan diameters for each burner?
For the auxiliary burner: 12-14 cm. Semi-rapid: 14-26 cm. Rapid: 18-26 cm. Crown: 22-26 cm. Always use pans with a flat base and a lid for optimal cooking.

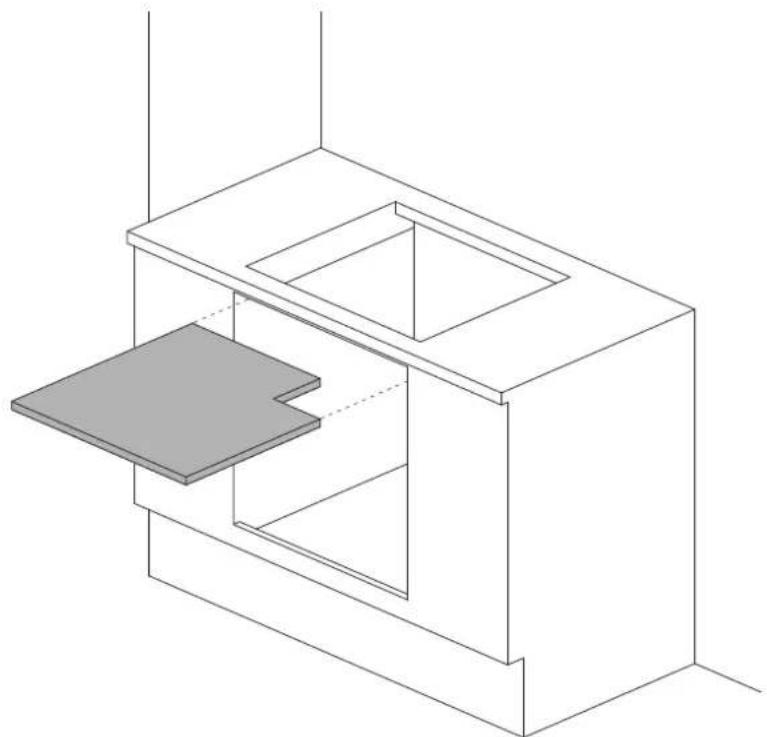

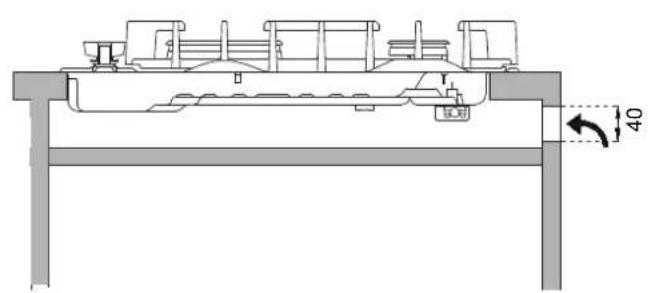

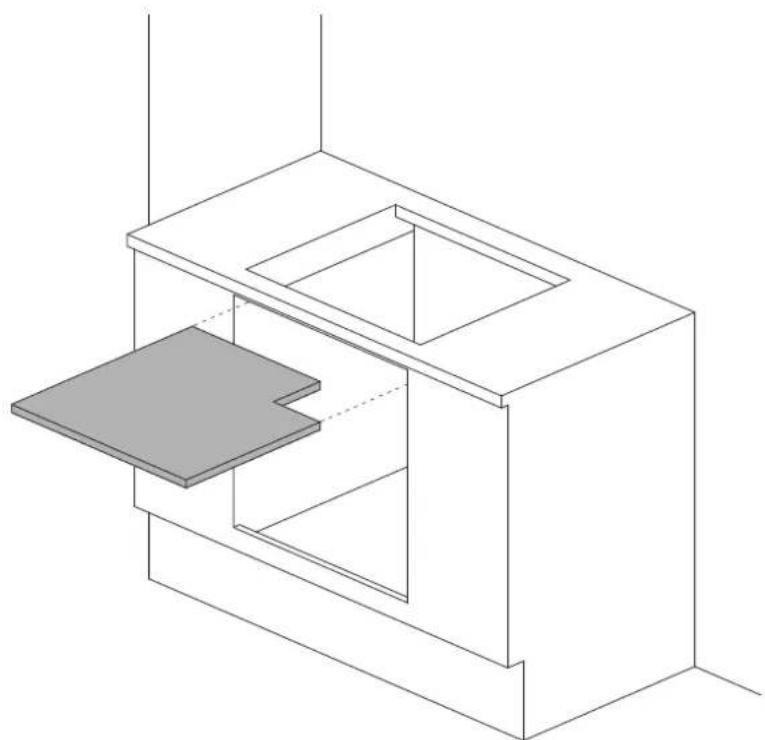

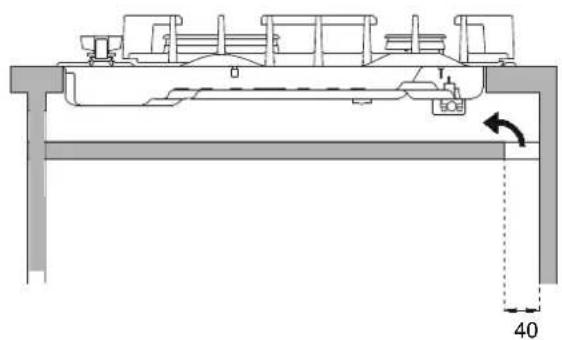

How to install the hob above a built-in oven?

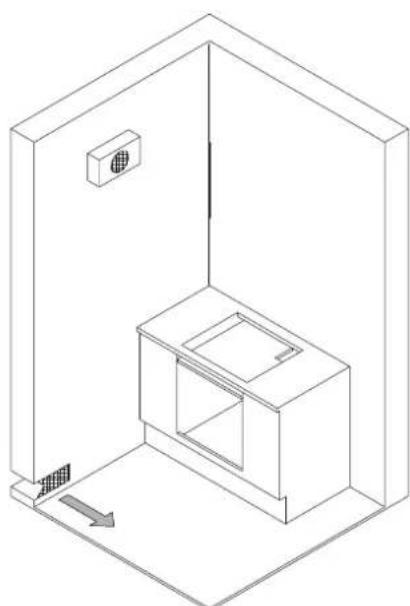

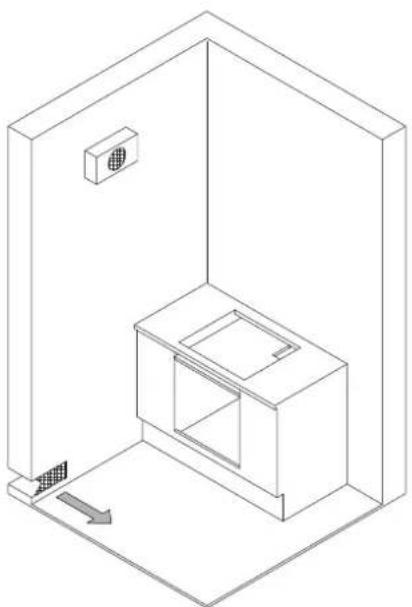

Keep a gap between the underside of the hob and the oven to ensure sufficient ventilation. The oven must be equipped with a cooling system. Refer to the cut-out dimensions in the manual (width 56 cm, depth 48 cm). Use the provided sealing gasket under the worktop to prevent liquid infiltration.
Does the hob work in case of power outage?
Yes, the burners can be lit manually. Turn the knob to maximum position (large flame) and bring a lighter or flame near the burner. Keep the knob pressed for about 10 seconds after ignition. The safety system (thermocouple) remains active even without electricity.
How to clean the glass surface without damaging it?
Use dish soap and vinegar to degrease, then rinse. For stubborn deposits, let soapy water sit for a few minutes. Never use abrasive products (powders, scouring pads) or descalers. Wipe with a soft cloth. Clean enamel parts with soapy water and avoid acids (vinegar, lemon) on hot enamel.

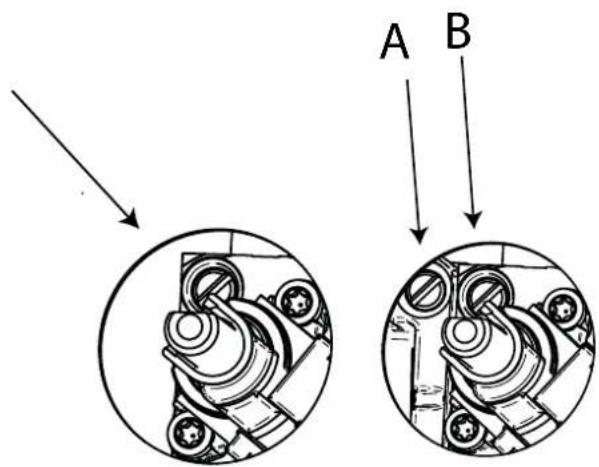

How to adjust the minimum flame of a burner?
Light the burner in minimum position. Remove the knob from the tap. Use a small screwdriver to turn the golden screw near the tap stem: turn right or left until you get a stable flame that does not go out. Quickly switch from maximum to minimum to check. For the Dual burner, two screws are present (internal and external). Caution: for butane/propane gas, the screw must be fully tightened clockwise.
What accessories are included and how to use them?
The included accessories are: a Wok adapter (for crown burner) that allows using concave-bottomed containers; a coffee maker reducer (for auxiliary burner) for small pans less than 12 cm in diameter. They are placed on the grid of the corresponding burner.
How to replace the power supply cable?
Replacement must be carried out by a qualified technician. Use a H05VV-F 3x0.75 mm² cable. The earth conductor (yellow-green) must be about 2 cm longer than the phase (brown) and neutral (blue) conductors. Follow the wiring diagram in the manual and ensure the cable does not reach 90 °C.
Where is the serial number and identification plate located?
The identification plate is located on the bottom casing of the appliance. It contains technical data, serial number, and CE marking. Do not remove it. A copy is also in the manual. Keep this information for any after-sales service request.
