KIN52P1XV - Basket BERTAZZONI - Free user manual and instructions

Product type	Range hood
Brand	Bertazzoni
Model	KIN52P1XV
Dimensions (W x D x H)	52 x 44 x 14 cm (estimation)
Net weight	12 kg (estimation)
Power supply	220-240 V ~ 50/60 Hz
Motor power	200 W (estimation)
Number of speeds	4 speeds including a timed one (boost 6 min)
Lighting	LED lamps risk class 1 at 20 cm
Grease filter	Dishwasher safe, clean every 2 months
Charcoal filter	Not washable, replace every 4 months
Minimum safety distance (cooking surface)	650 mm
Exhaust duct diameter	120 mm minimum
Insulation class	Class I (grounding required)
Use	Domestic, kitchen odor removal
Exterior cleaning	Damp cloth and neutral detergent
Repairability	Contact authorized after-sales service
Standards	Compliant with current electrical standards

Frequently Asked Questions - KIN52P1XV BERTAZZONI

What is the minimum distance between the hood and the cooktop?

The minimum safety distance is 650 mm. If the cooktop instructions indicate a greater distance, follow those.

How to clean the grease filters?

Grease filters should be cleaned every 2 months (more often if heavy use). They can be washed in the dishwasher.

When to replace the charcoal filter?

The charcoal filter should be replaced about every 4 months, or more often with heavy use. It cannot be washed or regenerated.

How to replace the hood lighting?

The lighting is integrated. For replacement, contact an authorized Bertazzoni after-sales service.

Can I use the hood without external exhaust?

Yes, the hood can operate in recirculation mode with a charcoal filter. Ensure the filter is in place and replaced regularly.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by the manufacturer or an authorized technician.

How to use the boost function (4th speed)?

Press the T3 button for 2 seconds to activate the 4th speed. It stops automatically after 6 minutes and returns to the previous speed.

Is the hood suitable for gas cooking?

Yes, but ensure adequate room ventilation and respect the minimum safety distance of 650 mm.

How to turn off the motor completely?

Press the T1 button (speed 1) once the motor is running. Passing through speed 1 is mandatory to turn off the motor.

What to do in case of malfunction?

Consult the complete manual or contact Bertazzoni after-sales service. Do not try to repair yourself if you are not competent.

USER MANUAL KIN52P1XV BERTAZZONI

Technical line drawing of a mechanical component with no visible text or symbols

BERTAZZO ITALIA

IT 3
DE 7
EN 11
FR 14
NL 18
ES 22
DA 26
FI 30
NO 33
SV 36
PL 39

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols)

T1 T2 T3 L

Illustration of a hand pressing a button on a screen, with an arrow indicating the motion (no text or symbols)

T1 T2 T3 L

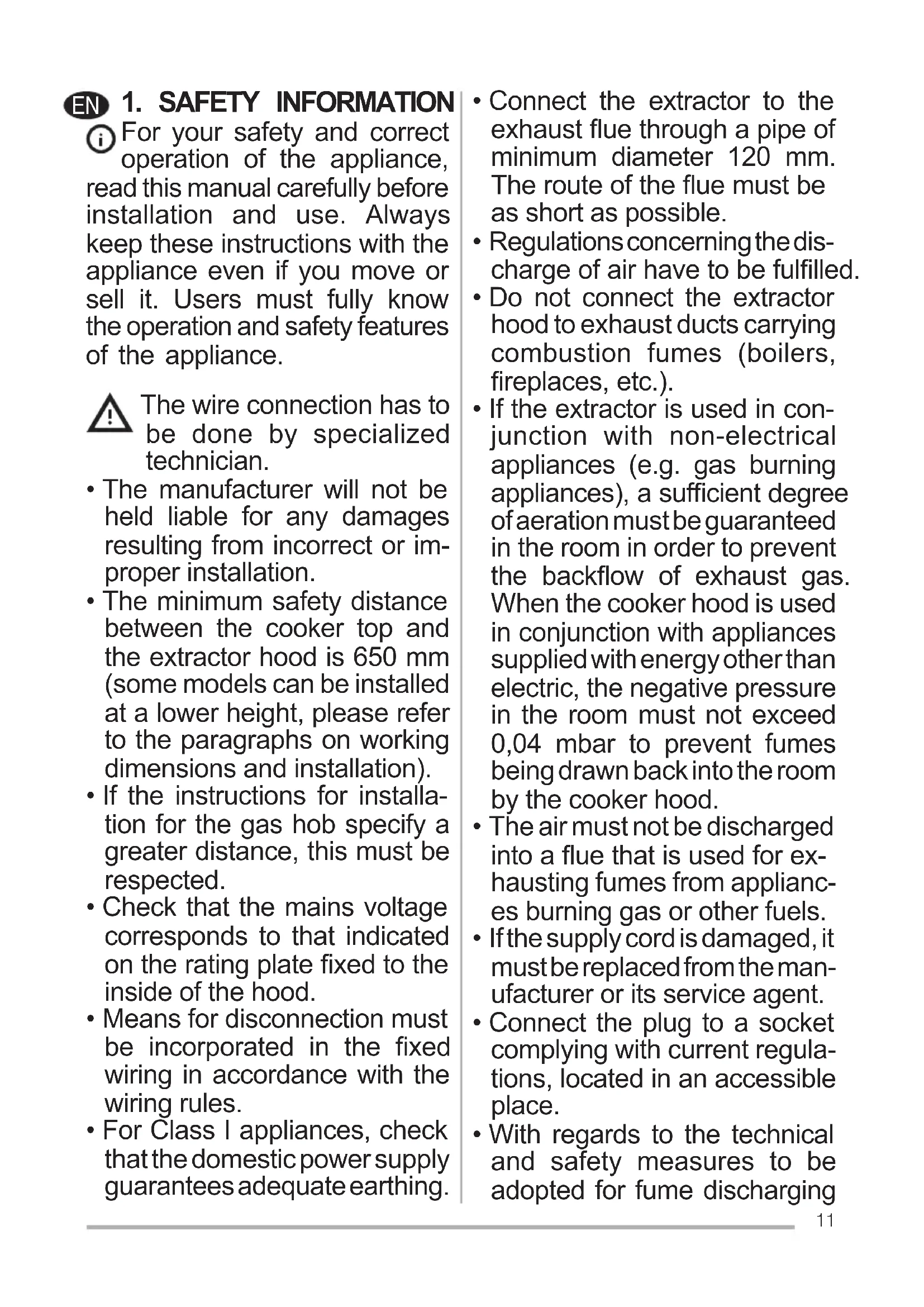

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
  • Regulations concerning the discharge of air have to be fulfilled.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging

it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambè under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not to be used by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste

disposal service or the shop where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

W N N

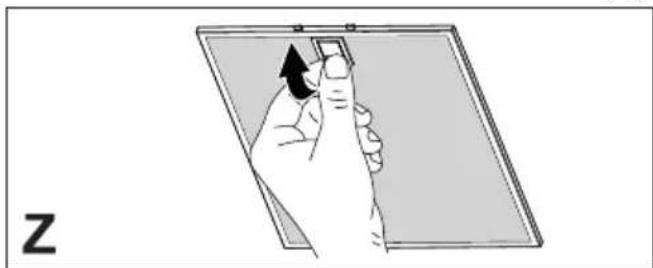

- The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

Illustration of a hand inserting a component into a device panel, with no visible text or symbols

- Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

T1 T2 T3 L

BUTTON LED FUNCTIONS
T1 Speed	On Turns	the Motor on at Speed one.
		Turns the Motor off.
T2 Speed	On Turns	the Motor on at Speed two.
T3 Speed	Fixed When pressed briefly, turns the Motor on at Speed three.
	Flashing Pressed for 2 Seconds. Activates Speed four with a timer set to 6 minutes, after which it returns to the speed that was set previously. Suitable to deal with maximum levels of cooking fumes.
L Light Turns the Lighting System on and off.

Warning: Button T1 turns the motor off, after first passing to speed one.

5. LIGHTING

• Lamps in risk group 1 under IEC/EN62471 at a distance of 20cm and in exempt from risk group under IEC/EN62471 at a distance of 30cm.
• For replacement contact technical support ("To purchase contact technical support").
