Brand	Rosieres
Model	RHC6381PNE
Category	Hood
Type	Extracting (external evacuation) or recirculating (internal recycling)
Power supply	220-240 V ~ 50 Hz
Main functions	Suction speed control, cooktop lighting
Grease filter	Metal or paper (depending on model) - Monthly cleaning (metal in dishwasher or by hand)
Activated charcoal filter	For recirculation version - Change every 4 months at most
Lighting	LED 3W max., socket E14
Minimum installation distance	50 cm (electric hob) / 65 cm (gas or mixed)
Use	Domestic and similar (offices, farms, hotels, bed & breakfasts)
Maintenance	Clean with a damp cloth and mild detergent; do not use alcohol or abrasive products
Safety	Disconnect before maintenance; do not use without filter; do not flambé under the hood; do not leave children unattended
Compliance	European directives (WEEE, safety, performance, EMC)
Available spare parts	Grease filters, charcoal filter, LED bulb

Frequently Asked Questions - RHC6381PNE ROSIERES

What is the minimum installation distance between the hood and the hob?

The minimum distance is 50 cm for an electric hob and 65 cm for a gas or mixed hob. If the hob instructions specify a larger distance, follow that.

How to clean the hood RHC6381PNE?

Use exclusively a damp cloth with a neutral liquid detergent. Do not use abrasive tools, alcohol or aggressive products. Always disconnect the appliance before cleaning.

How often should the charcoal filter be changed?

The activated charcoal filter must be changed every 4 months at most. It cannot be cleaned or regenerated. The frequency depends on usage and regular cleaning of the grease filter.

How to replace the hood bulb?

Disconnect the appliance and ensure the bulb is cool. Replace it with a LED 3W-E14 bulb (maximum). Check the correct positioning in the housing before contacting after-sales service.

Can the hood be used without the filters?

No, never use the hood without the filters properly mounted. This can cause fire and electric shock hazards. Ensure the grille is in place.

What to do if the hood does not work?

First check that the plug is properly inserted into the socket. If the malfunction persists, cut the power and contact the technical support service with the serial number (16 characters starting with 3) ready.

Can the hood be used in recirculation mode?

Yes, the hood is designed to operate in extracting (external evacuation) or recirculating (internal recycling) mode. In recirculation mode, an activated charcoal filter is required.

What type of detergent to use for cleaning?

Use a neutral liquid detergent. Avoid alcohol, abrasive products and harsh cleaning tools that could damage the surface.

Can children use the appliance?

Children aged at least 8 years can use the hood under supervision. Cleaning and maintenance should not be performed by children without supervision. Do not let children play with the appliance.

How to dispose of the hood at end of life?

Do not dispose of the appliance with household waste. According to the WEEE directive (2012/19/EC), hand it over to a collection center for recycling of electrical and electronic equipment. Contact your municipality or your retailer.

USER MANUAL RHC6381PNE ROSIERES

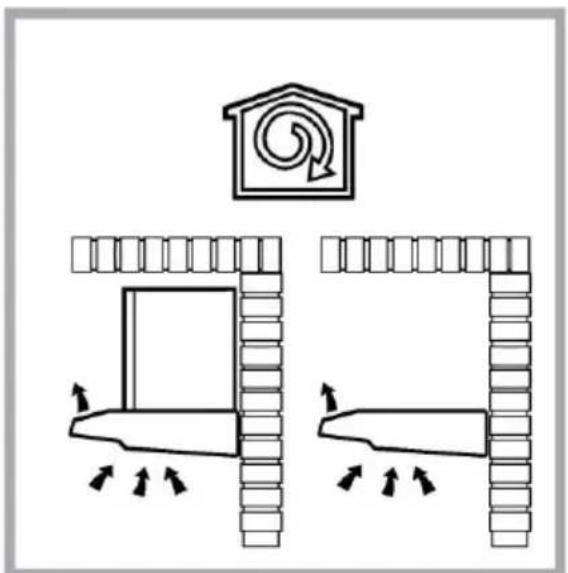

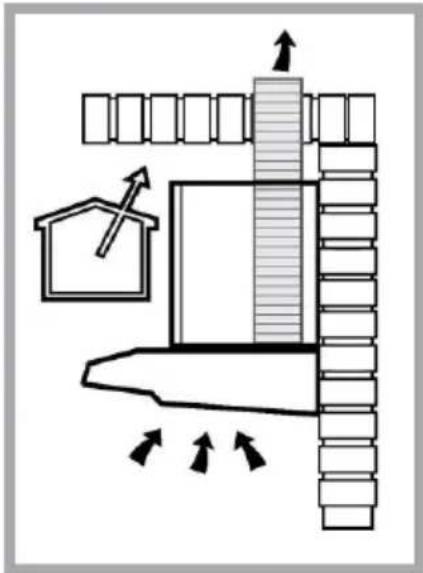

Diagram of a mechanical or architectural structure with directional arrows and a house icon, no readable text or symbols present.

Diagram showing two mechanical components with directional arrows indicating motion, no text or symbols present

Four-panel diagram showing mechanical components with arrows indicating movement or force, no text or symbols present.

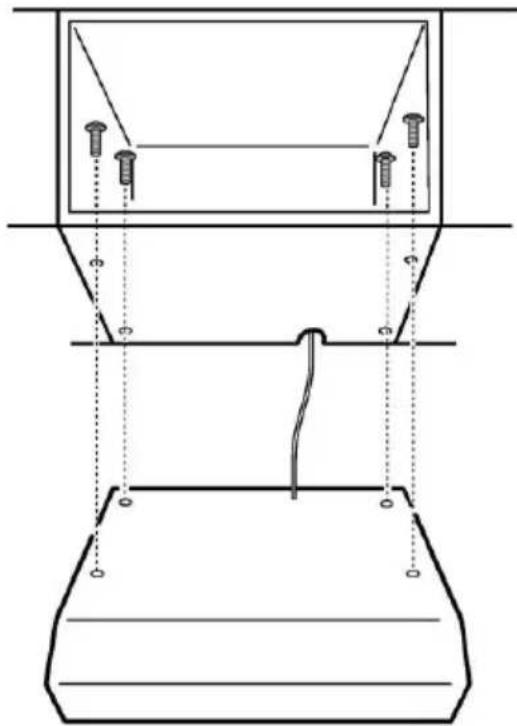

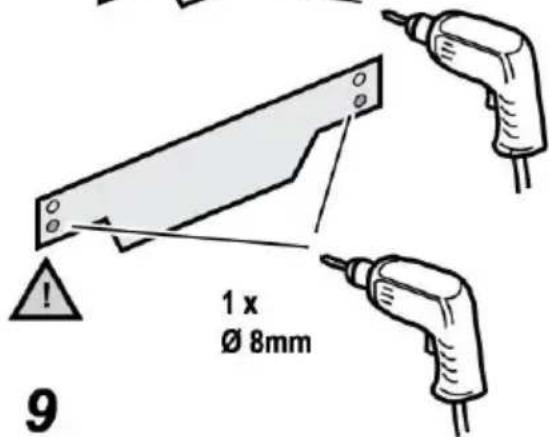

Technical line drawing of a mechanical assembly with bolts and a central component (no text or symbols)

8

Simple line drawing of a chimney with an arrow pointing to a chimney (no text or symbols)

10

Technical line drawing of a multi-compartment container with internal compartments and mounting brackets (no text or symbols)

a^*

Diagram of an open computer with internal components and cable routing arrows (no text or symbols)

b*

Simple 3D illustration of a circular mechanical part with four cross-sectional lines (no text or symbols)

c^*

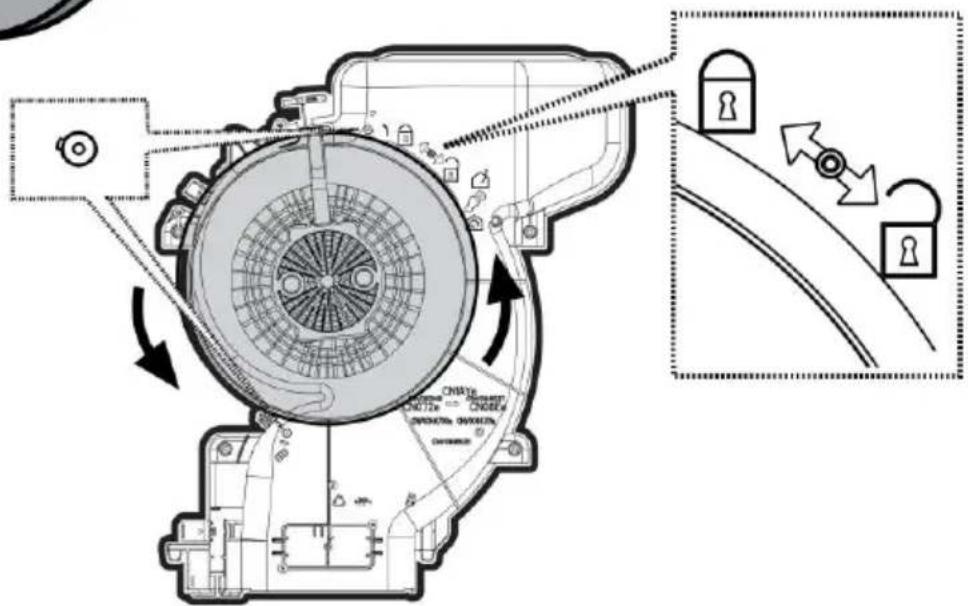

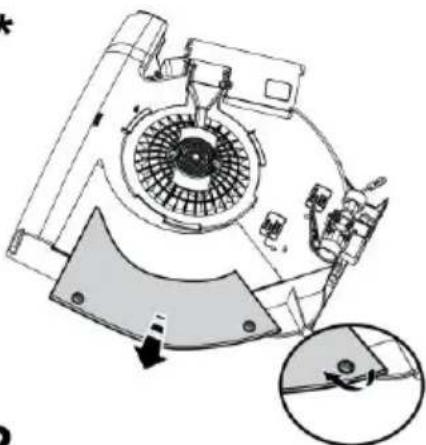

Technical line drawing of a mechanical device with a circular component and a magnified inset showing a small component (no text or symbols)

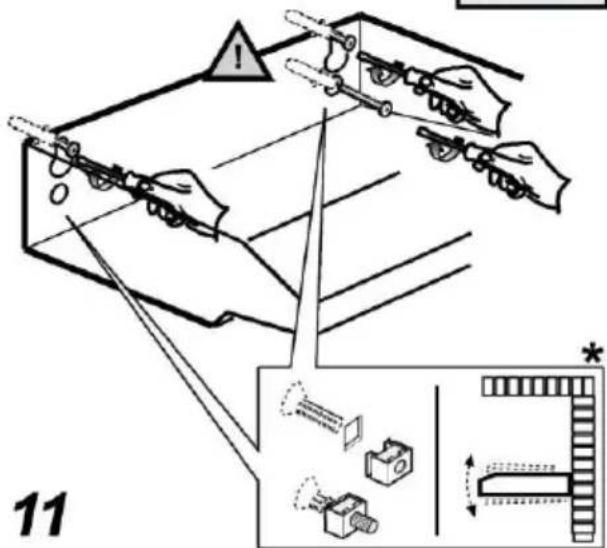

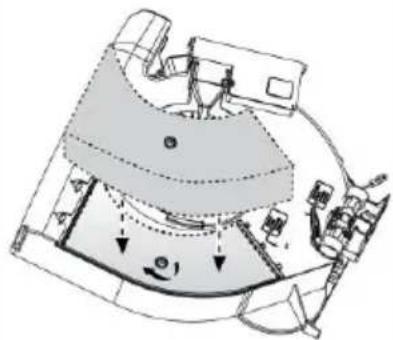

Diagram of a mechanical device with curved surfaces and directional arrows indicating motion or force (no text or symbols)

Technical diagram of a mechanical device with internal components and a magnified inset showing a circular component (no text or symbols)

12

SERVICE ASSISTANCE CLIENTS

EN - Instruction on mounting and use

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

Note: The parts marked with the symbol “(*)” are optional accessories supplied only with some models or otherwise not supplied, but available for purchase.

Caution

• Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.
  • Always wear work gloves for all installation and maintenance operations.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not be allowed to tamper with the controls or play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

- The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

- This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions

provided regarding the cleaning of the hood and filters will lead to the risk of fires.

• Do not flambé under the range hood.
• Do not remove filters during cooking.
• For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

• Do not connect the appliance to the mains until the installation is fully complete.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
• The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.

⚠ WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

- Never use the hood without effectively mounted grids.

• The hood must NEVER be used as a support surface unless specifically

indicated.

• Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.
• Use the correct length for the screws which are identified in the Installation Guide.
• In case of doubt, consult an authorized service assistance center or similar qualified person.

WARNING! Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

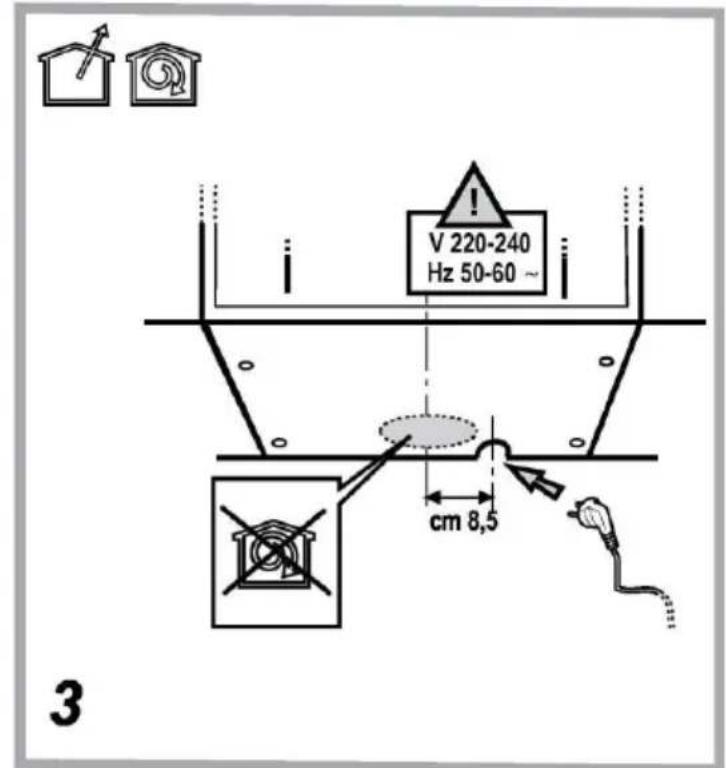

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

⚠ WARNING! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

⚠ WARNING! If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.

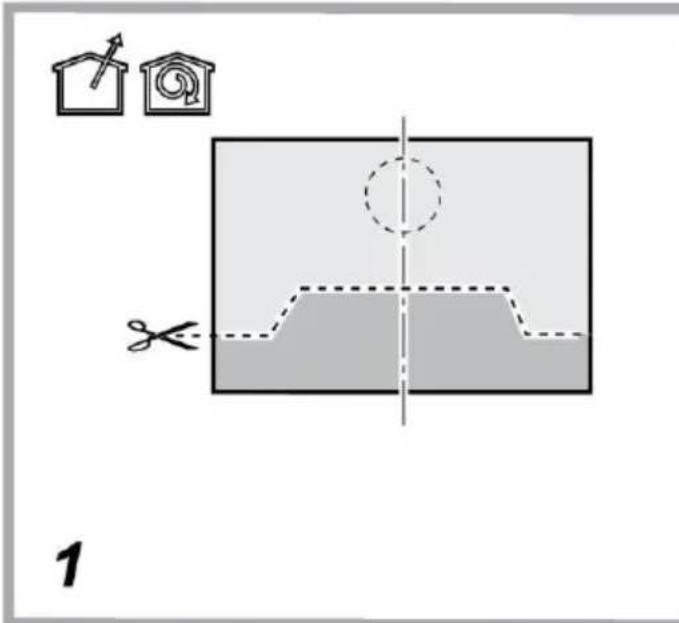

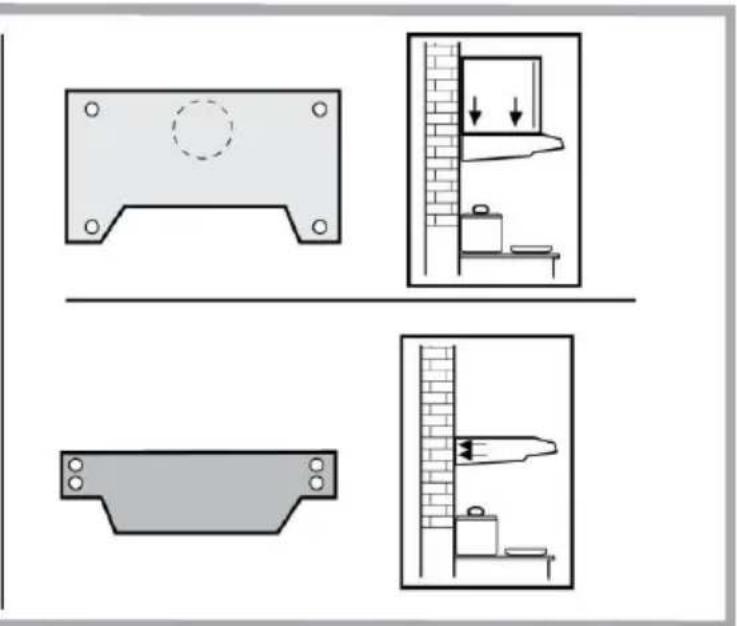

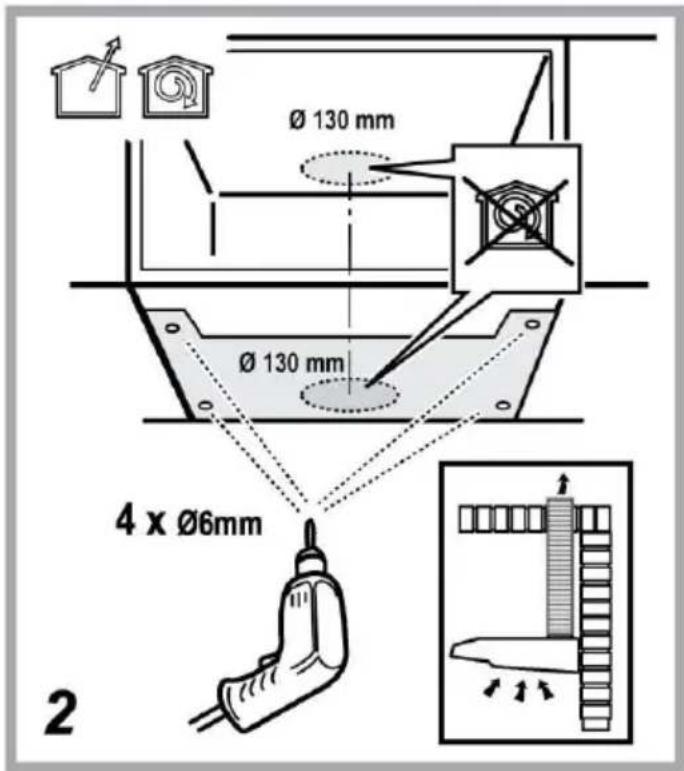

⚠️ Installation

- The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

- This appliance is marked according to the European directive 2012/19/EC - UK SI 2013 No.3113 on Waste Electrical and Electronic Equipment (WEEE). - By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

- The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

- For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
  • Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

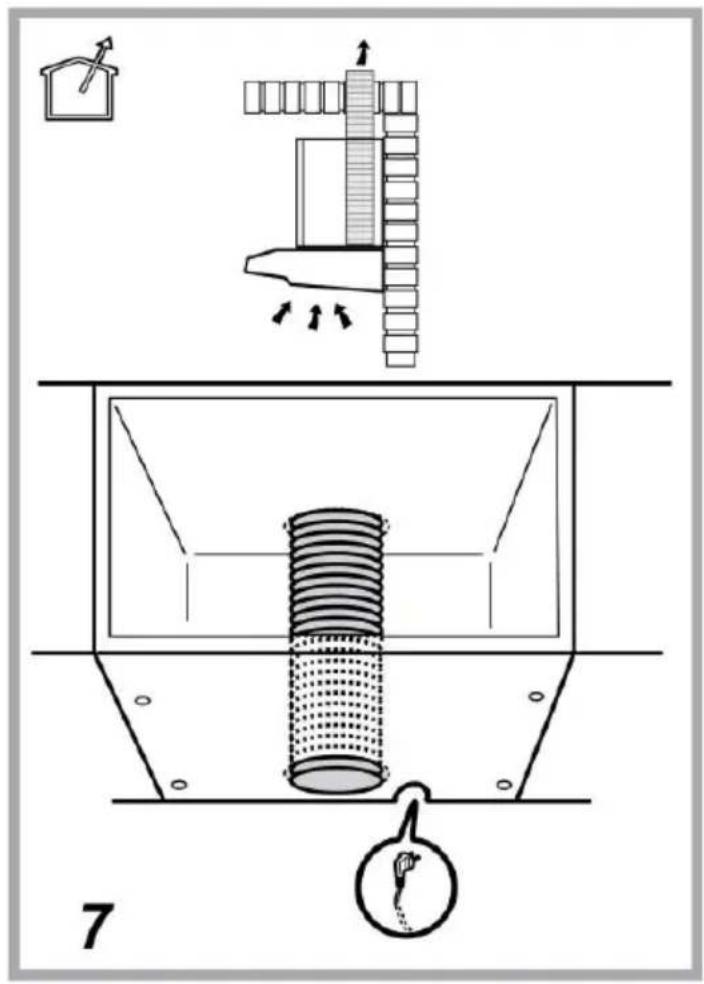

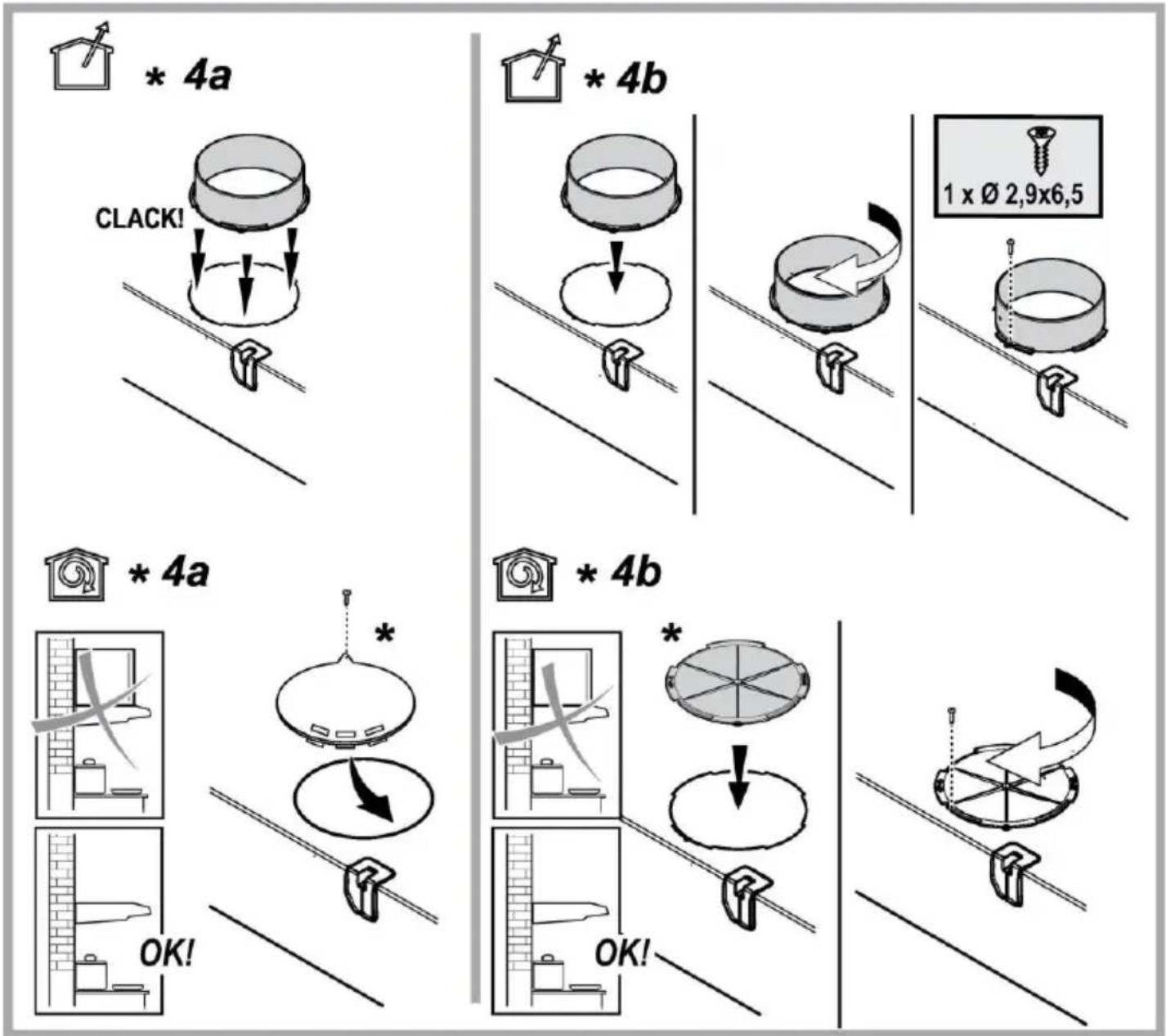

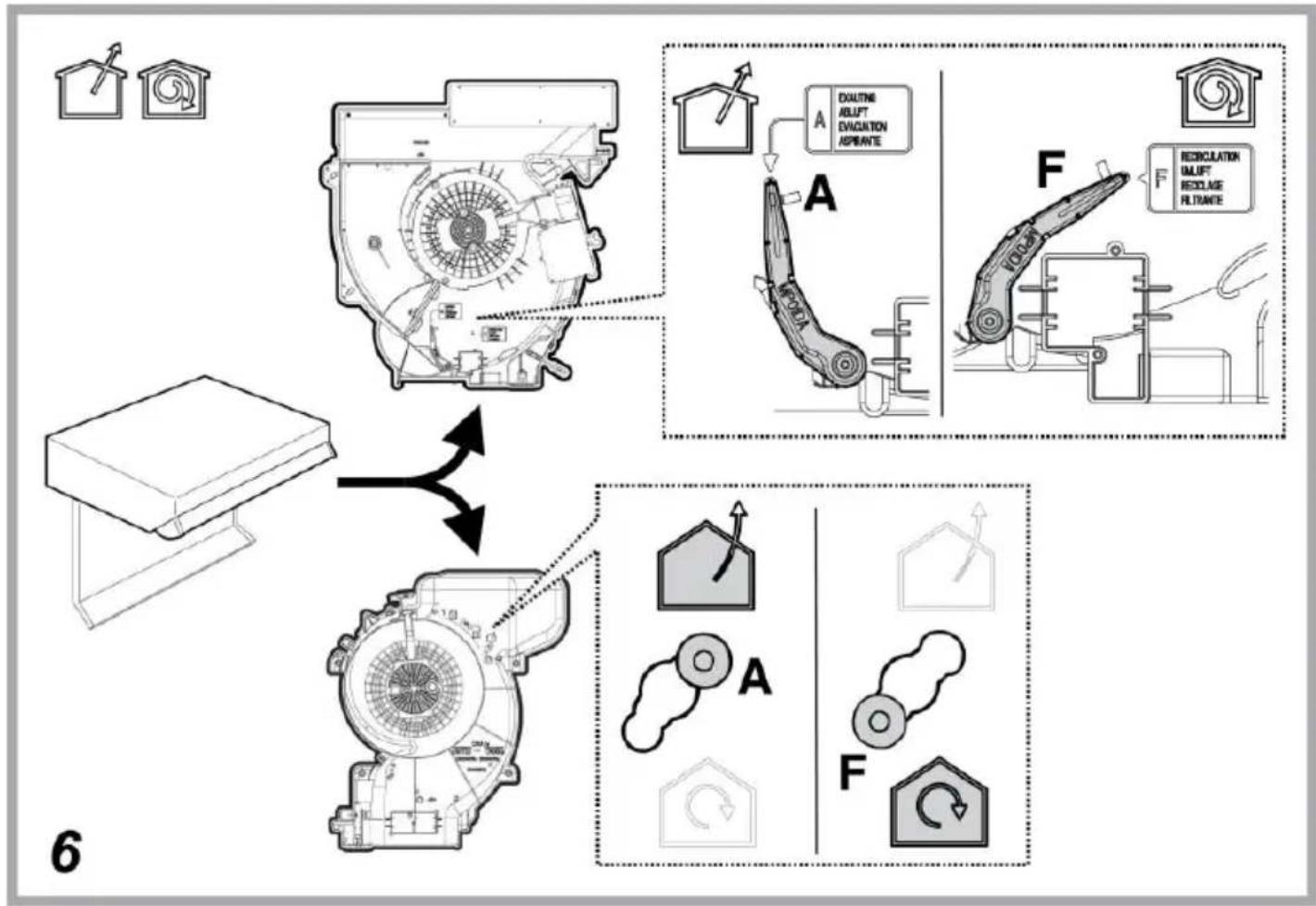

Use

The hood is designed to be used either for exhausting

or filter version

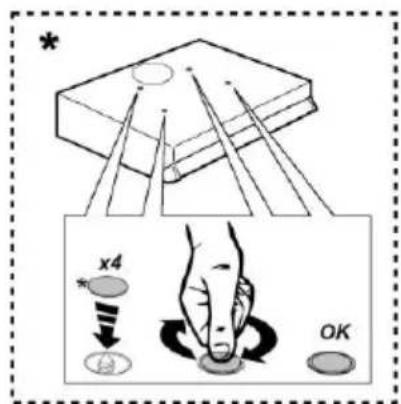

Operation

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

Maintenance

Clean using ONLY a cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR

INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

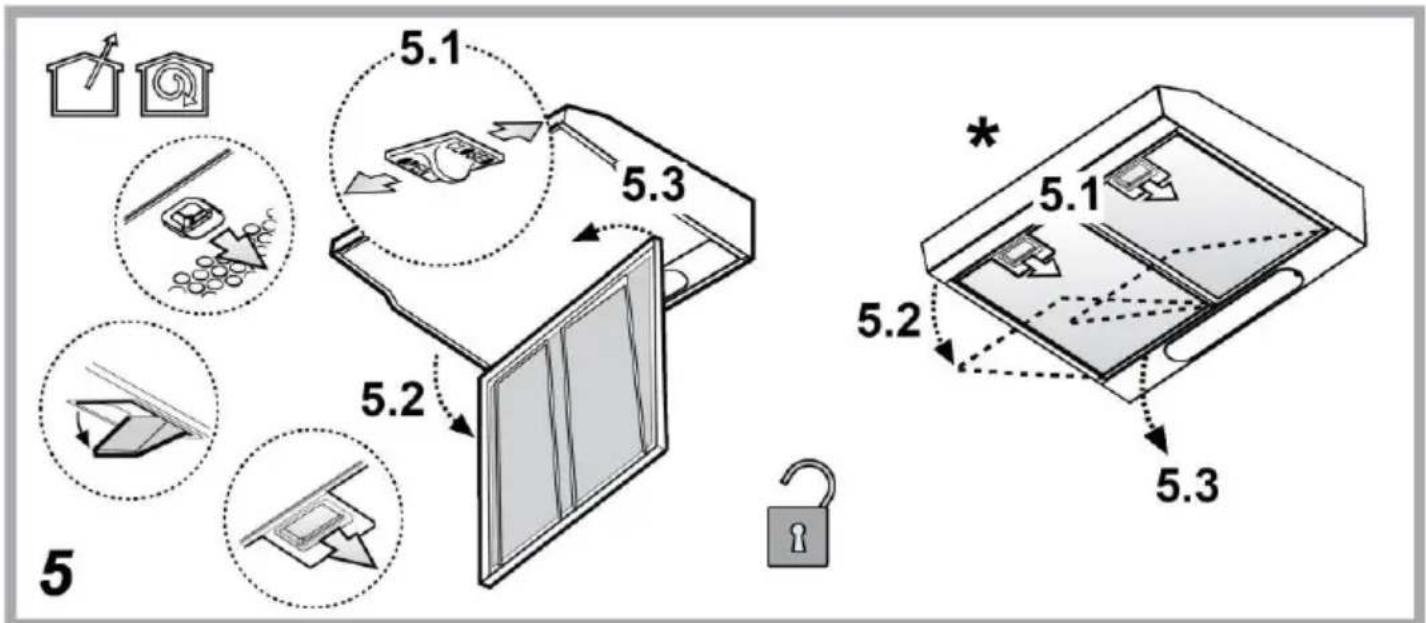

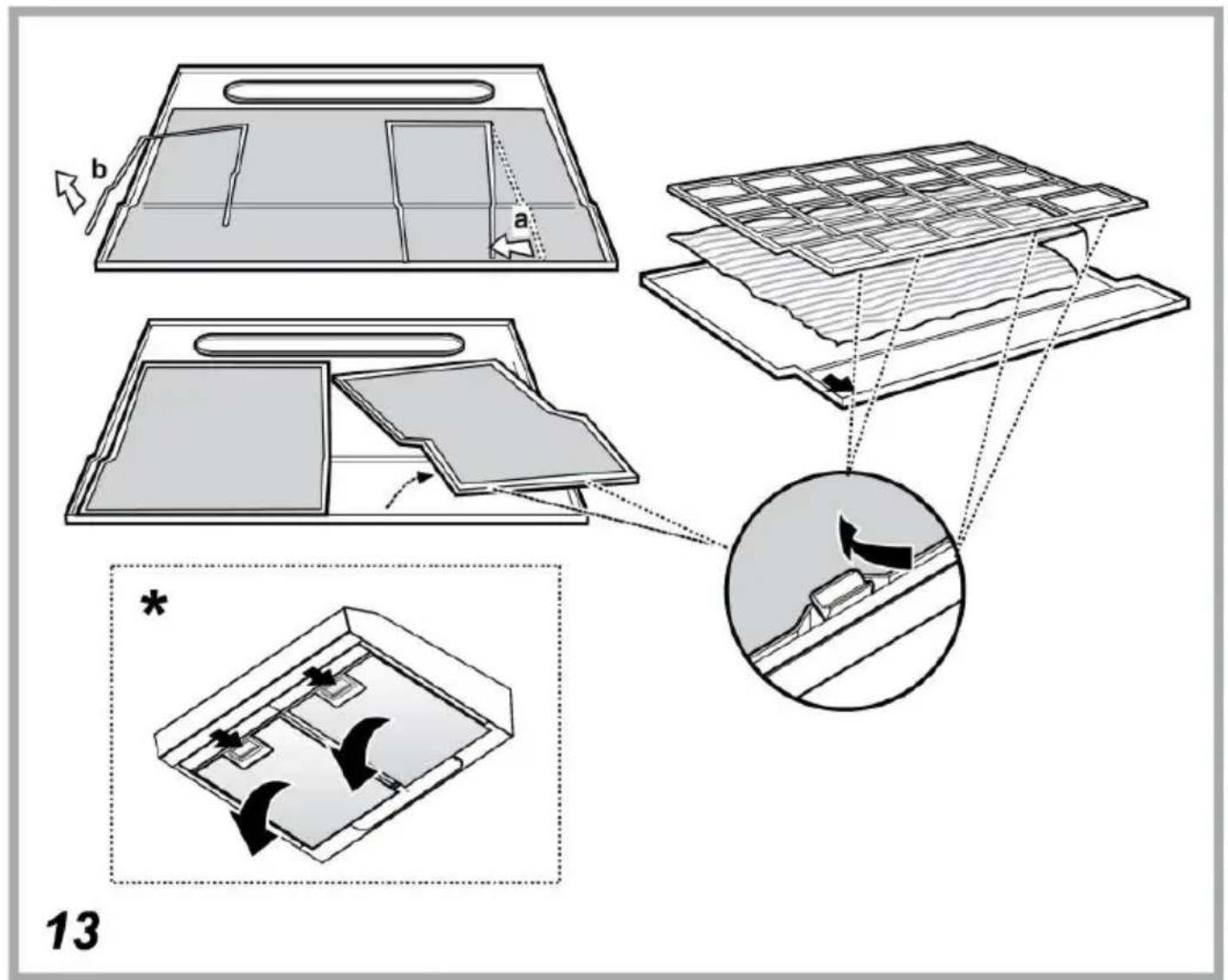

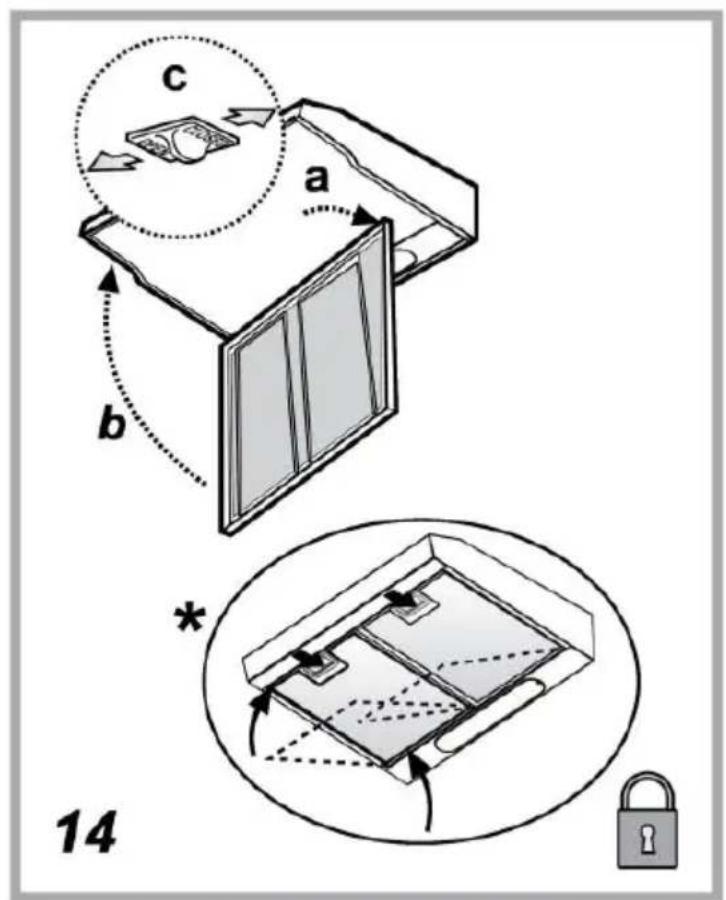

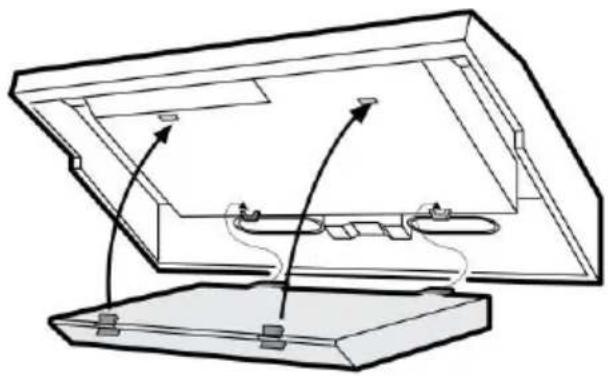

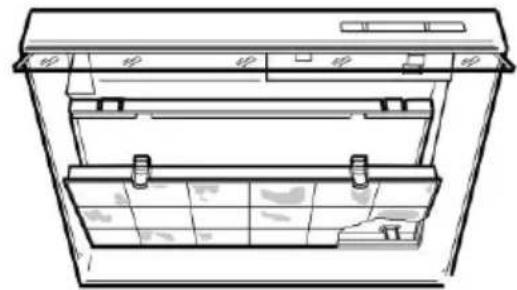

Grease filter Fig. 5-13-14

Traps cooking grease particles.

If situated inside the support grill, it may be one of the following types:

Paper filter must be replaced once a month or if colouring appears on upper side, in such cases the colouring is evident through the grill openings.

Metallic filter must be cleaned once a month, with non abrasive detergents, by hand or in dishwasher on low temperature and short cycle.

When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

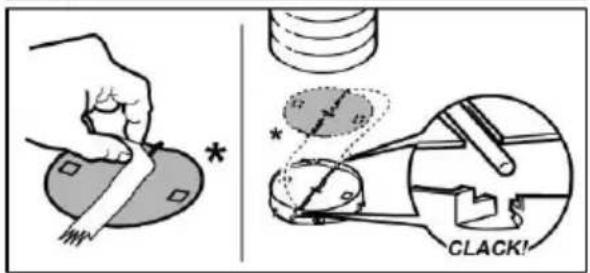

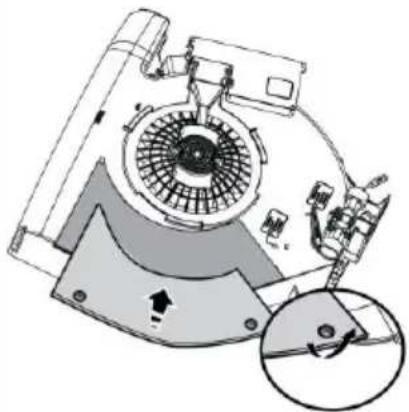

Charcoal filter (filter version only) Fig. 13

It absorbs unpleasant odors caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

Replacing lamps Fig.12a

Disconnect the appliance from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Replace the damaged lamp.

Use E14 3W max LED lamps only. For more details, check enclosed leaflet "ILCOS D" (alfanumeric position "1d").

If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.

On some models ONLY:

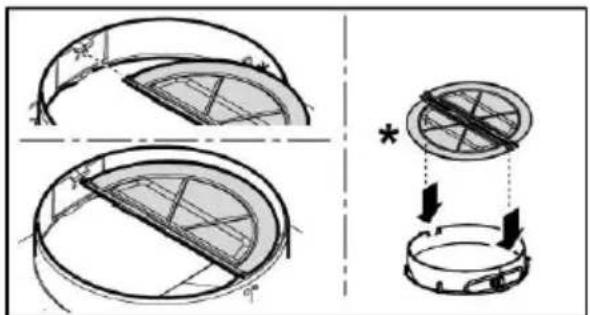

A Non Return Backdraft Damper is included in the supply, as optional accessory to be installed under certain installation conditions (i.e. if there is no protection against accidental backdraft of air from the outside). The damper must be installed inside the dedicated housing, inside of the Air Outlet Fitting, before installing the flue.

CUSTOMER ASSISTANCE SERVICE

Before calling the Technical Service Department In case of failed operation of the product, we suggest you to check the correct insertion of the plug into the socket. If the cause of the malfunction cannot be identified, turn off the power, do not tamper with it and call the Technical Service Department.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.
