USER MANUAL TX-55C320B PANASONIC

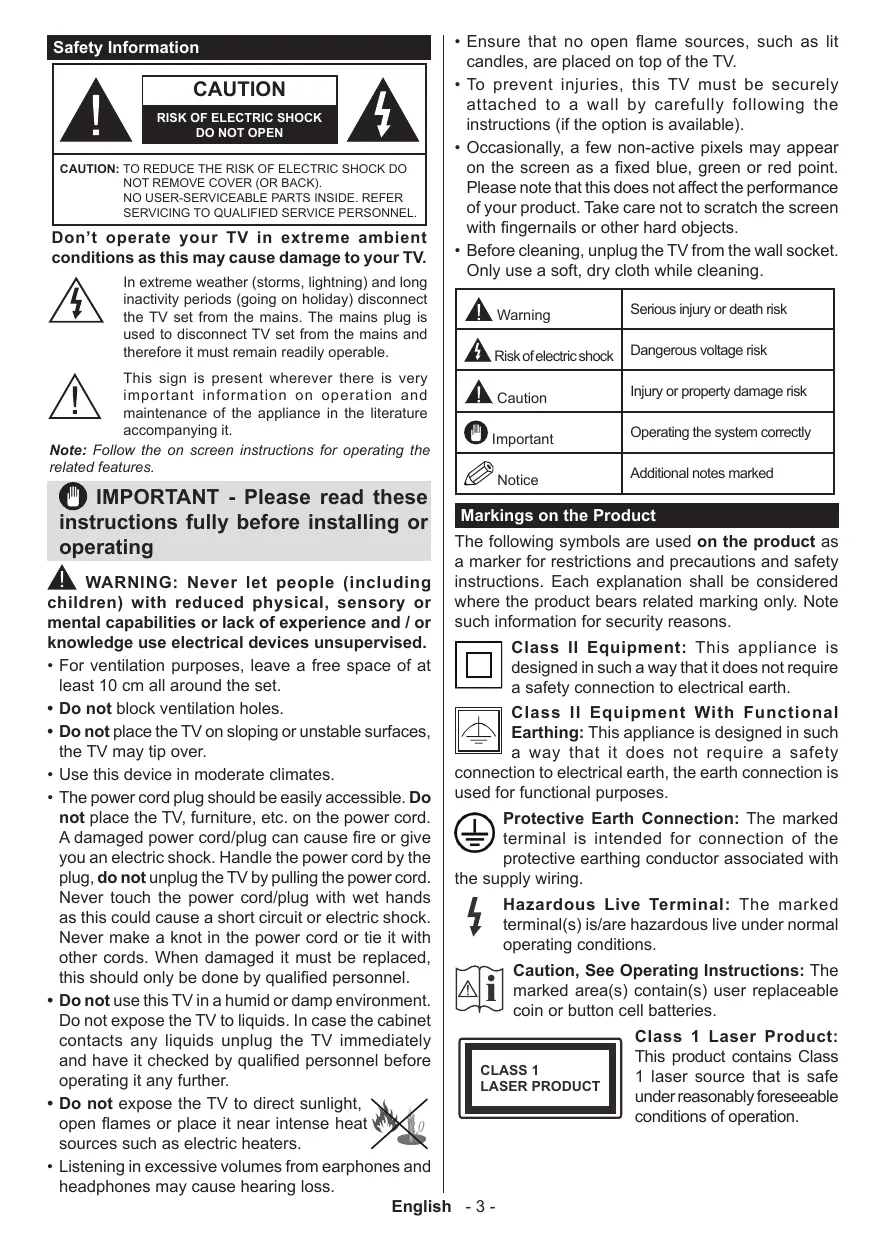

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Don’t operate your TV in extreme ambient conditions as this may cause damage to your TV. In extreme weather (storms, lightning) and long inactivity periods (going on holiday) disconnect the TV set from the mains. The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable. This sign is present wherever there is very important information on operation and maintenance of the appliance in the literature accompanying it. Note: Follow the on screen instructions for operating the related features.

IMPORTANT - Please read these instructions fully before installing or operating

• Ensure that no open flame sources, such as lit candles, are placed on top of the TV. • To prevent injuries, this TV must be securely attached to a wall by carefully following the instructions (if the option is available). • Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product. Take care not to scratch the screen with fingernails or other hard objects. • Before cleaning, unplug the TV from the wall socket. Only use a soft, dry cloth while cleaning. Warning

Serious injury or death risk

Risk of electric shock

Dangerous voltage risk

Injury or property damage risk

Operating the system correctly

Additional notes marked

Markings on the Product The following symbols are used on the product as a marker for restrictions and precautions and safety instructions. Each explanation shall be considered where the product bears related marking only. Note such information for security reasons.

WARNING: Never let people (including children) with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge use electrical devices unsupervised. Class II Equipment: This appliance is • For ventilation purposes, leave a free space of at designed in such a way that it does not require least 10 cm all around the set. a safety connection to electrical earth. • Do not block ventilation holes. Class II Equipment With Functional • Do not place the TV on sloping or unstable surfaces, Earthing: This appliance is designed in such the TV may tip over. a way that it does not require a safety connection to electrical earth, the earth connection is • Use this device in moderate climates. • The power cord plug should be easily accessible. Do used for functional purposes. not place the TV, furniture, etc. on the power cord. Protective Earth Connection: The marked A damaged power cord/plug can cause fire or give terminal is intended for connection of the you an electric shock. Handle the power cord by the protective earthing conductor associated with plug, do not unplug the TV by pulling the power cord. the supply wiring. Never touch the power cord/plug with wet hands Hazardous Live Terminal: The marked as this could cause a short circuit or electric shock. terminal(s) is/are hazardous live under normal Never make a knot in the power cord or tie it with operating conditions. other cords. When damaged it must be replaced, Caution, See Operating Instructions: The this should only be done by qualified personnel. marked area(s) contain(s) user replaceable • Do not use this TV in a humid or damp environment. coin or button cell batteries. Do not expose the TV to liquids. In case the cabinet Class 1 Laser Product: contacts any liquids unplug the TV immediately This product contains Class and have it checked by qualified personnel before CLASS 1 1 laser source that is safe operating it any further. LASER PRODUCT under reasonably foreseeable • Do not expose the TV to direct sunlight, conditions of operation. open flames or place it near intense heat sources such as electric heaters. • Listening in excessive volumes from earphones and headphones may cause hearing loss. English - 3 -

WARNING Do not ingest the battery, Chemical Burn Hazard (The accessories supplied with or) This product may contain a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

Maintenance First, remove the mains plug from the mains socket. Display panel, Cabinet, Pedestal Regular care: Gently wipe the surface of the display panel, cabinet, or pedestal by using a soft cloth to remove dirt or fingerprints. For stubborn dirt: 1. First clean the dust from the surface. 2. Dampen a soft cloth with clean water or diluted neutral detergent (1 part detergent to 100 parts water). 3. Wring out the cloth firmly. (Please note, do not let liquid enter the TV inside as it may lead to product failure.) 4. Carefully wipe moisten and wipe away the stubborn dirt. 5. Finally, wipe away all the moisture. Caution

WARNING Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as; • Using cabinets or stands recommended by the manufacturer of the television set. • Only using furniture that can safely support the television set. • Ensuring the television set is not overhanging the edge of the supporting furniture. • Not placing the television set on all furniture (for example, cupboards or bookcases) without acnhoring both the furniture and the television set to a suitable support. • Educating children about the dangers of climbing on furniture to reach the television set or its controls.

Do not use a hard cloth or rub the surface too hard, otherwise this may cause scratches on the surface. • Take care not to subject the surfaces to insect repellent, solvent, thinner or other volatile substances. This may degrade surface quality or cause peeling of the paint. • The surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch the surface with your fingernail or other hard objects. • Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time. This may degrade surface quality. Mains plug Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may cause fire or electrical shock.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

Assembling / Removing the pedestal

When using the wall-hanging bracket

Preparations Take out the pedestal(s) and the TV from the packing case and put the TV onto a work table with the screen panel down on the clean and soft cloth (blanket, etc.) • Use a flat and firm table bigger than the TV.

Please contact your local Panasonic dealer to purchase the recommended wall-hanging bracket. Holes for wall-hanging bracket installation; Rear of the TV

• Do not hold the screen panel part.

• Make sure not to scratch or break the TV. Assembling the pedestal

1. Place the stand(s) on the stand mounting pattern(s) on the rear side of the TV.

a 2. Insert the screws (M4 x 12) provided and tighten them gently until the stand is properly fitted.

Note: The screws for fixing the TV onto the wall-hanging bracket are not supplied with the TV.

Environmental Information Removing the pedestal from the TV Be sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the TV. • Put the TV onto a work table with the screen panel down on the clean and soft cloth. Leave the stand(s) protruding over the edge of the surface. • Unsrew the screws that fixing the stand(s). • Remove the stand(s).

This television is designed to be environment friendly. To reduce energy consumption, you can follow these steps: If you set the Energy Saving to Minimum, Medium, Maximum or Auto the TV will reduce the energy consumption accordingly. If you like to set the Backlight to a fixed value set as Custom and adjust the Backlight (located under the Energy Saving setting) manually using Left or Right buttons on the remote. Set as Off to turn this setting off. Note: Available Energy Saving options may differ depending on the selected Mode in the Picture menu.

The Energy Saving settings can be found in the Picture menu. Note that some picture settings will be unavailable to be changed. English - 5 -

If pressed Right button while Auto option is selected or Left button while Custom option is selected, “Screen will be off in 15 seconds.” message will be displayed on the screen. Select Proceed and press OK to turn the screen off immediately. If you don’t press any button, the screen will be off in 15 seconds. Press any button on the remote or on the TV to turn the screen on again. Note: Screen Off option is not available if the Mode is set to Game.

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

Standby Notifications If the TV does not receive any input signal (e.g. from an aerial or HDMI source) for 5 minutes, it will go into standby. When you next switch-on, the following message will be displayed: “TV switched to stand-by mode automatically because there was no signal for a long time.” Press OK to continue. If the TV is on and it isn’t being operated for a while it will go into standby. When you next switch-on, the following message will be displayed. “TV switched to stand-by mode automatically because no operation was made for a long time.” Press OK to continue. TV Control Buttons & Operation

Features • Remote controlled colour TV • Fully integrated digital terrestrial/cable TV (DVB-T2/C)

• OSD menu system • Scart socket for external devices (such as DVD Players, PVR, video games, etc.) • Stereo sound system

• Headphone connection

4. Volume +/- buttons

• Automatic programming system • Manual tuning • Automatic power down after up to eight hours. • Sleep timer • Automatic sound mute when no transmission. • NTSC playback • AVL (Automatic Volume Limiting) • PLL (Frequency Search) • PC input • Game Mode (Optional) • Picture off function • Ethernet (LAN) for Internet connectivity and service • Audio Video Sharing Accessories Included • Remote Control

• Batteries: 2 x AAA Press the Volume +/- buttons simultaneously to view main menu and use Programme +/- buttons to navigate and Volume +/- buttons to change value. Note: The position of the control buttons may differ depending on the model.

• 802.11n built in WIFI Support

1. Standby/On button

Operation with the Remote Control Press the Menu button on your remote control to display main menu screen. Use the directional buttons to select a menu tab and press OK to enter. Use the directional buttons again to select or set an item. Press Return/Back or Menu button to quit a menu screen. Input Selection Once you have connected external systems to your TV, you can switch to different input sources. Press the Source button on your remote control consecutively to select the different sources. Changing Channels and Volume You can change the channel and adjust the volume by using the Volume +/- and Programme +/- buttons on the remote.

• Instruction Book • Detachable stand • Stand mounting screws (M4 x 12)

Disposal of Old Equipment and Batteries

Inserting the Batteries into the Remote

Only for European Union and countries with recycling systems

Remove the back cover to reveal the battery compartment. Insert two size AAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. Place the cover back on.

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste. For proper treatment, recovery and recycling of old products and batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resouces and prevent any potential negative effects on human health and the environment.

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

For more information about collection and recycling, please contact your local municipality.

Antenna Connection Connect the aerial or cable TV plug to the AERIAL INPUT (ANT-TV) socket located on the rear bottom side of the TV.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Rear bottom side of the TV Note for the battery symbol (bottom symbol): This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Notification TRADEMARK ACKNOWLEDGMENT The terms HDMI and High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Authorized Representative: Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, Germany

YouTube and the YouTube logo are trademarks of Google Inc.

Web Site: http://www.panasonic.com

Sales and Support Information

Specification PAL BG/DK/II’

Customer Communication Centre • For customers within the UK: 0344 844 3899

(BAND U) - HYPERBAND Digital Reception

Fully integrated digital terrestrial-cable TV (DVB-T-C) (DVB-T2 compliant)

Number of Preset Channels

3.5 mm mini stereo jack

Audio Output Power (WRMS.) (10% THD)

2 x 10 W Power Consumption (W)

TV Dimensions DxLxH (with foot) (mm)

TV Dimensions DxLxH (without foot) (mm)

Operation temperature and operation humidity

0ºC up to 40ºC, 85% humidity max

• Monday - Friday 9:00am - 5:00pm, (Excluding public holidays). • For further support on your product, please visit our website: www.panasonic.co.uk Direct Sales at Panasonic UK • Order accessory and consumable items for your product with ease and confidence by phoning our Customer Comminications Centre Monday - Friday 9:00am - 5:00pm, (Excluding public holidays). • Or go on line through our Internet Accessory ordering application at www.pas-europe.com. • Most major credit and debit cards accepted. • All enquiries transactions and distribution facilities are provided directly by Panasonic UK. • It couldn’t be simpler! • Also available through our Internet is direct shopping for a wide range of finished products. Take a browse on our website for further details.

SECAM BG/DK Wireless LAN Specifications Frequency Range USA: 2.400 ~ 2.483GHz, 5.15 ~ 5.35GHz, 5.47 ~ 5.725GHz, 5.725 ~ 5.85GHz Europe: 2.400 ~ 2.483GHz, 5.15 ~ 5.35GHz, 5.47 ~ 5.725GHz Japan: 2.400 ~ 2.497GHz, 5.15 ~ 5.35GHz, 5.47 ~ 5.725GHz China: 2.400 ~ 2.483GHz, 5.725 ~5.85GHz Standard IEEE 802.11.a/b/g/n Host Interface USB 2.0 Security

WEP 64/128, WPA, WPA2, TKIP, AES, WAPI English - 8 -

Numeric buttons: Switches the channel, enters a number or a letter in the text box on the screen.

TV: Displays channel list / Switches to TV Source

Mute: Completely turns off the volume of the TV

OK: Confirms user selections, holds the page (in TXT mode), views channel list (DTV mode)

Back/Return: Returns to previous screen, opens index page (in TXT mode)

10. Media player: Opens the media player screen 11. Internet: Opens the portal page, where you can reach many web based applications 12. My button (*) 13. Coloured Buttons: Follow the on-screen instructions for coloured button functions 14. Language: Switches between sound modes (analogue TV), displays and changes audio/subtitle language (digital TV, where available) 15. Subtitles: Turns subtitles on and off (where available) 16. Rapid reverse: Moves frames backwards in media such as movies 17. No function 18. Play: Starts to play selected media 19. Stop: Stops the media being played 20. Rapid advance: Moves frames forward in media such as movies 21. Pause: Pauses the media being played 22. Screen: Changes the aspect ratio of the screen 23. Text: Displays teletext (where available), press again to superimpose the teletext over a normal broadcast picture (mix) 24. Source: Shows all available broadcast and content sources 25. EPG (Electronic programme guide): Displays the electronic programme guide 26. Exit: Closes and exits from displayed menus or returns to previous screen 27. Quick Menu: Displays a list of menus for quick access

(*) MY BUTTON: This button may have a default function depending on the model. However you can set a special function to this button by pressing on it for five seconds when on a desired source or channel. A confirmation message will be displayed on the screen. Now MY BUTTON is associated with the selected function. Note that if you perform First Time Installation, MY BUTTON will return to its default function.

28. Info: Displays information about on-screen content, shows hidden information (reveal - in TXT mode) 29. Programme +/30. Swap: Quickly cycles between previous and current channels or sources 31. Netflix: Launches the Netflix application, if this feature

is supported by your TV English - 9 -

Connections Connector

Scart Connection (back) YPBPR YPbPr Video Connection (back) / Video

YPbPr Connection Cable

HDMI Connection (bottom&side) VGA Connection (bottom)

Headphone Connection (side) USB Connection (back&side) CI Connection (side)

LAN Ethernet Connection (bottom)

NOTE: When connecting a device via the YPbPr or Back AV inputs, you must use the connection cables to enable connection. See the illustrations on the left side. | To enable PC/YPbPr audio, you will need to use the Back Audio inputs with a YPbPr/PC audio cable for audio connection. | If an external device is connected via the SCART socket, the TV will automatically switch to AV mode.| When receiving DTV channels (Mpeg4 H.264) or while in Media Player mode, output will not be available via the scart socket. | When using the wall mounting kit (available from third party in the market, if not supplied), we recommend that you plug all your cables into the back of the TV before mounting on the wall. | Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. | The/Each USB input of your TV supports devices up to 500mA. Connecting devices that have current value above 500mA may damage your TV. | By connecting an HDMI cable to your TV, you have to use only a shielded HDMI cable to guarantee a sufficient immunity against parasitic frequency radiation. If you want to connect a device to the TV, make sure that both the TV and the device are turned off before making any connection. After the connection is done, you can turn on the units and use them.

channels of it will be listed on the top of the Channel List. When finished, press OK to continue.

To Switch the TV On Connect the power cord to a power source such as a wall socket (220-240V AC, 50 Hz). To switch on the TV from standby mode either: • Press the Standby button, Programme +/- or a numeric button on the remote control. • Press the Standby button or Programme +/- on the TV. The TV will then switch on.

To Switch the TV Off Press the Standby button on the remote control or press the Standby button on the TV, then the TV switches into standby mode. To power down the TV completely, unplug the power cord from the mains socket. Note: When the TV is switched into standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

First Time Installation When turned on for the first time, the language selection screen is displayed. Select the desired language and press OK. On the next screen, set your preferences using the directional buttons. Note: Depending on the Country selection you may be asked to set and confirm a PIN at this point. The selected PIN cannot be 0000. You have to enter it if you are asked to enter a PIN for any menu operation later.

About Selecting Broadcast Type Aerial: If Aerial broadcast search option is turned on, the TV will search for digital terrestrial broadcasts after other initial settings are completed. Cable: If Cable broadcast search option is turned on, the TV will search for digital cable broadcasts after other initial settings are completed. According to your other preferences a confirmation message may be displayed before starting to search. Select YES and press OK to proceed. To cancel operation, select NO and press OK. You can select Network or set values such as Frequency, Network ID and Search Step. When finished, press OK button. Note: Searching duration will change depending on the selected Search Step.

Analogue: If Analogue broadcast search option is turned on, the TV will search for analogue broadcasts after other initial settings are completed. Additionally you can set a broadcast type as your favourite one. Priority will be given to the selected broadcast type during the search process and the

You can activate Store Mode option at this point. This option will configure your TV’s settings for store environment. This option is intended only for store use. It is recommended to select Home Mode for home use. This option will be available in Setup>More menu and can be turned off/on later. Press OK button on the remote control to continue and the Network Settings menu will be displayed. Please refer to Connectivity section to configure a wired or a wireless connection. After the settings are completed press OK button to continue. To skip to the next step without doing anything press the Rapid advance button on the remote. After the initial settings are completed TV will start to search for available broadcasts of the selected broadcast types. After all the available stations are stored, scan results will be displayed. Press OK to continue. The Edit Channel List menu will be displayed next. You can edit the channel list according to your preferences or press the Menu button to quit and watch TV. While the search continues a message may appear, asking whether you want to sort channels according to the LCN(*). Select Yes and press OK to confirm. (*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel number sequence (if available). Note: Do not turn off the TV while initializing first time installation. Note that, some options may not be available depending on the country selection.

Media Playback via USB Input You can connect 2.5” and 3.5” inch (hdd with external power supply) external hard disk drives or USB memory stick to your TV by using the USB inputs of the TV.

IMPORTANT! Back up the files on your storage devices before connecting them to the TV. Manufacturer will not be responsible for any file damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting. While formatting USB hard drives which have more than 1TB (Tera Byte) storage space you may experience some problems in the formatting process. Wait a little while before each plugging and unplugging as the player may still be reading files. Failure to do so may cause physical damage to the USB player and the USB device itself. Do not pull out your drive while playing a file. You can use USB hubs with your TV’s USB inputs. External power supplied USB hubs are recommended in such a case.

It is recommended to use the TV’s USB input(s) directly, if you are going to connect a USB hard disk. Note: When viewing image files the Media Player menu can only display 1000 image files stored on the connected USB device.

Media Browser Menu You can play photo, music and movie files stored on a USB disk by connecting it to your TV. Connect a USB disk to one of the USB inputs located on the side of the TV. Pressing the Menu button while in the Media Player mode will access the Picture, Sound and Setup menu options. Pressing the Menu button again will exit from this screen. You can set your Media Player preferences by using the Setup menu. Loop/Shuffle Mode Operation button and activate

All files in the list will be continuously played in original order

Start playback with the OK button and activate

The same file will be played continuously (repeat)

Start playback with the Play button and activate

All files in the list will be played once in random order

Start playback with the Play button and activate ,

All files in the list will be continuously played in the same random order.

Start playback with the Play

CEC and CEC RC Passthrough This function allows to control the CEC-enabled devices, that are connected through HDMI ports by using the remote control of the TV. The CEC option in the Setup>More menu should be set as Enabled at first. Press the Source button and select the HDMI input of the connected CEC device from the Sources List menu. When new CEC source device is connected, it will be listed in source menu with its own name instead of the connected HDMI ports name(such as DVD Player, Recorder 1 etc.). The TV remote is automatically able to perform the main functions after the connected HDMI source has been selected. To terminate this operation and control the TV via the remote again, press Quick Menu button on the remote, highlight the CEC RC Passthrough and set as Off by pressing Left or Right button. This feature can also be enabled or disabled under the Setup>More menu. The TV supports also ARC(Audio Return Channel) feature. This feature is an audio link meant to replace other cables between the TV and the audio system (A/V receiver or speaker system). When ARC is active, TV does not mute its other audio outputs automatically. So you need to decrease TV volume to zero manually, if you want to hear audio from connected audio device only (same as other optical or co-axial digital audio outputs). If you want to change connected device’s volume level, you should select that device from the source list. In that case volume control keys are directed to connected audio device. Note: ARC is supported only via the HDMI3 input.

System Audio Control Allows an Audio Amplifier/Receiver to be used with the TV. The volume can be controlled using the remote control of the TV. To activate this feature set the Speakers option in the Setup>More menu as Amplifier. The TV speakers will be muted and the sound of the watched source will be provided from the connected sound system. Note: The audio device should support System Audio Control feature and CEC option should be set as Enabled.

TV Menu Contents Picture Menu Contents Mode

You can change the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: Cinema, Game, Sports, Dynamic and Natural.

Adjusts the light and dark values on the screen.

Adjusts the brightness values on the screen.

Sets the sharpness value for the objects displayed on the screen.

Sets the colour value, adjusting the colours.

For setting the Energy Saving to Custom, Minimum, Medium, Maximum, Auto, Picture Off or Off. Note: Available options may differ depending on the selected Mode.

This setting controls the backlight level. The backlight function will be inactive if the Energy Saving is set to an option other then Custom.

Advanced Settings Dynamic Contrast

You can change the dynamic contrast ratio to desired value.

If the signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise.

Sets the desired colour temperature value. Cool, Normal, Warm and Custom options are available.

If the Colour Temp option is set as Custom, this setting will be available. Increase the ‘warmth’ or ‘coolness’ of the picture by pressing Left or Right buttons.

Sets the desired image size format.

Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.

Skin tone can be changed between -5 and 5.

Adjust the desired colour tone.

While watching from a HDMI source, this feature will be visible. You can use this feature to enhance blackness in the picture.

Appears only when the input source is set to VGA/PC.

Automatically optimizes the display. Press OK to optimize.

This item shifts the image horizontally to the right hand side or left hand side of the screen.

This item shifts the image vertically towards the top or bottom of the screen.

Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.

Depending on the input source(computer etc.) you may see a hazy or noisy picture on the screen. You can use phase to get a clearer picture by trial and error.

Resets the picture settings to factory default settings (except Game mode).

While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.

Sound Menu Contents Volume

Adjusts the volume level.

Selects the equalizer mode. Custom settings can be made only when in User mode.

Adjusts whether the sound comes from the left or right speaker.

Sets headphone volume. Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing.

You can select a sound mode (If the viewed channel supports).

AVL (Automatic Volume Limiting)

Sets the sound to obtain fixed output level between programmes.

When you connect an external amplifier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone. Please ensure before using headphones that this menu item is set to Headphone. If it is set to Lineout, the output from the headphone socket will be set to maximum which could damage your hearing.

You may set a different language depending on the broadcaster and the country.

Enter correct password to change parental settings. You can easily adjust Menu Lock, Maturity Lock(may not be available depending on the country selection in the First Time Installation) and Child Lock in this menu. You can also set a new PIN or change the Default CICAM PIN using the related options. Note: Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.

Sets sleep timer to turn off the TV after a certain time. Sets timers for selected programmes.

Displays network settings.

Displays accessibility options of the TV.

Enables any special feature sent from the broadcaster.

A narration track will be played for the blind or visually impaired audience. Press OK to see all available Audio Description menu options. This feature is available only if the broadcaster supports it.

If this feature is supported by your TV, you can view your ESN(*) number and deactivate Netflix. (*) ESN number is an unique ID number for Netflix, created especially to identify your TV.

Displays other setting options of the TV.

Changes timeout duration for menu screens.

Ensures that your TV has the latest firmware. Press OK to see the menu options.

Displays current software version.

This option is used to select which subtitle mode will be on the screen (DVB subtitle / Teletext subtitle) if both is available. Default value is DVB subtitle. This feature is available only for the country option of Norway.

Auto TV OFF Sets the desired time for the TV to automatically go into standby mode when not being operated.

Select this mode for store display purposes. Whilst Store Mode is enabled, some items in the TV menu may not be available.

Audio Video Sharing feature allows you to share files stored on your smartphone or tablet pc. If you have a compatible smartphone or tablet pc and the appropriate software is installed, you can share/play photos on your TV. See instructions of your sharing software for more information. Audio Video Sharing mode will not be available with internet portal feature.

This setting configures the power up mode preference. Last State and Standby options are available.

Enable or disable the virtual remote feature.

CEC With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature.

This function allows the connected HDMI-CEC compatible device to turn on the TV and switch to its input source automatically. Press Left or Right button to enable or disable the feature.

To hear the TV audio from the connected compatible audio device set as Amplifier. You can use the remote control of the TV to control the volume of the audio device.

Install and Retune Menu Contents Automatic channel scan (Retune)

Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations. Digital Cable: Searches and stores cable DVB stations. Analogue: Searches and stores analogue stations.

This feature can be used for direct broadcast entry.

Network channel scan

Searches for the linked channels in the broadcast system. Digital Aerial: Searches for aerial network channels. Digital Cable: Searches for cable network channels.

You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.

Installation Settings

Displays installation settings menu. Standby Search (Optional): Your TV will search for new or missing channels while in standby. Any new found broadcasts will be shown.

Use this setting to clear channels stored. This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.

Select Active Network

This setting allows you to select only the broadcasts within the selected network to be listed in the channel list. This feature is available only for the country option of Norway.

First time installation

Deletes all stored channels and settings, resets TV to factory settings.

TV. You can change the default PIN of the CI CAM using this option.

General TV Operation Using the Channel List The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options. Press the OK/TV button to open the Channel List. You can filter the listed channels by pressing the Blue button or open the Edit Channel List menu by pressing the Green button in order to make advanced changes in the current list.

Managing the Favourite Lists You can create four different lists of your favourite channels. Enter the Channel List in the main menu or press the Green button while the Channel List is displayed on the screen in order to open the Edit Channel List menu. Select the desired channel on the list. You can make multiple choices by pressing the Yellow button. Then press the OK button to open the Channel Edit Options menu and select Add/ Remove Favourites option. Press the OK button again. Set the desired list option to On. The selected channel/s will be added to the list. In order to remove a channel or channels from a favourite list follow the same steps and set the desired list option to Off. You can use the Filter function in the Edit Channel List menu to filter the channels in the Channel list permanently according to your preferences. Using this Filter option, you can set one of your four favourite lists to be displayed everytime the Channel list is opened. The filtering function in the Channel list menu will only filter the currently displayed Channel list in order to find a channel and tune in to it. This changes will not remain the next time the Channel list is opened. Configuring Parental Settings The Parental Settings menu options can be used to prohibit users from viewing of certain programmes, channels and using of menus. These settings are located in the Setup>Parental menu. To display parental lock menu options, a PIN number should be entered. After coding the correct PIN number, Parental Settings menu will be displayed. Menu Lock: This setting enables or disables access to all menus or installation menus of the TV. Guidance: This setting enables or disables access some of the MHEG applications. Disabled applications can be released by entering the right PIN. Internet Lock: If this option is set to OFF, the open browser application in the portal will be disabled. Set to ON to release the application again. Set PIN: Defines a new PIN number. Default CICAM PIN: This option will appear as greyed out if no CI module is inserted into the CI slot of the

Note: Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined. Some options may not be available depending on the country selection in the First Time Installation.

Electronic Programme Guide (EPG) Some channels send information about their broadcast schedules. Press the Epg button to view the Programme Guide menu. There are 3 different types of schedule layouts available, Timeline Schedule, List Schedule and Now/Next Schedule. To switch between them follow the instructions on the bottom of the screen.

Zoom (Yellow button): Press the Yellow button to see events in a wider time interval. Filter (Blue button): Views filtering options. Select Genre (Subtitles button): Displays Select Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be highlighted. Options (OK button): Displays event options. Event Details (Info button): Displays detailed information about selected events. Next/Prev Day (Programme +/- buttons): Displays the events of previous or next day. Search (Text button): Displays Guide Search menu. Now (Swap button): Displays current event of the highlighted channel.

List Schedule(*) (*) In this layout option, only the events of the highlighted channel will be listed.

Prev. Time Slice (Red button): Displays the events of previous time slice. Next/Prev Day (Programme +/- buttons): Displays the events of previous or next day. Event Details (Info button): Displays detailed information about selected events. Filter (Text button): Views filtering options. Next Time Slice (Green button): Displays the events of next time slice. Options (OK button): Displays event options.

Navigate (Directional buttons): Press the Directional buttons to navigate through the channels and events. Options (OK button): Displays event options. Event Details (Info button): Displays detailed information about selected events. Filter (Blue button): Views filtering options.

Use the directional buttons to highlight an event and press OK button to display Event Options menu. The following options are available. Select Channel: Using this option, you can switch to the selected channel. Set Timer on Event / Delete Timer on Event: After you have selected an event in the EPG menu, press the OK button. Select Set Timer on Event option and press the OK button. You can set a timer for future events. To cancel an already set timer, highlight that event and press the OK button. Then select Delete Timer on Event option. The timer will be cancelled. Notes: You cannot switch to any other channel or source while there is an active timer on the current channel.

It is not possible to set timer for two or more individual events at the same time interval.

Teletext Services Press the Text button to enter. Press again to activate mix mode, which allows you to see the teletext page and the TV broadcast at the same time. Press once more to exit. If available, sections in the teletext pages will become colour-coded and can be selected by pressing the coloured buttons. Follow the instructions displayed on the screen. Digital Teletext

Software Upgrade Your TV is capable of finding and updating the firmware automatically via the broadcast signal or via Internet.

Software upgrade search via user interface On the main menu select Setup and press the OK button. Setup Menu will be displayed. Then select More and press the OK button. Navigate to Software upgrade and press the OK button. In Upgrade options menu select Scan for upgrade and press OK button to check for a new software upgrade. If a new upgrade is found, it starts to download the upgrade. After the download is completed confirm the question asking about rebooting the TV by pressing the OK to continue with the reboot operation.

3 AM search and upgrade mode Your TV will search for new upgrades at 3:00 o’clock if Automatic scanning option in the Upgrade options menu is set to Enabled and if the TV is connected to an aerial signal or to Internet. If a new software is found and downloaded successfully, it will be installed at the next power on. Note: Do not unplug the power cord while led is blinking during the reboot process. If the TV fails to come on after the upgrade, unplug, wait for two minutes then plug it back in.

Press the Text button to view digital teletext information. Operate it with the coloured buttons, cursor buttons and the OK button. The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on the digital teletext screen. When the Text button is pressed again, the TV returns to television broadcast. BBC Connected Red Button (CRB) While watching BBC channels, press the Red button to access digital TV services provided by the BBC. Under the tab ‘Featured’ highlight Connected Red Button and press OK to start the service. On the opening page you can access to BBC’s main services such as BBC iPlayer, BBC News, BBC Sport and many others. There are also links to the home pages of the related applications available. Use the navigation buttons on the TV’s remote control to move through the application. Press Exit button to close and exit.

Troubleshooting & Tips

PC Input Typical Display Modes

Tv will not turn on Make sure the power cord is plugged in securely to wall outlet. Check if batteries are exhausted. Press the Power button on the TV.

The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions.

Poor picture • Check if you have selected the correct TV system. • Low signal level can cause picture distortion. Please check antenna access. • Check if you have entered the correct channel frequency if you have done manual tuning. • The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.

No picture • This means your TV is not receiving any transmission. Make sure the correct source has been selected. • Is the antenna connected properly? • Is the antenna cable damaged? • Are suitable plugs used to connect the antenna? • If you are in doubt, consult your dealer.

No sound • Check if the TV is muted. Press the Mute button or increase the volume to check. • Sound may be coming from only one speaker. Check the balance settings from Sound menu.

Remote control - no operation • The batteries may be exhausted. Replace the batteries.

Input sources - can not be selected • If you cannot select an input source, it is possible that no device is connected. If not; • Check the AV cables and connections if you are trying to switch to the input source dedicated to the connected device.

AV and HDMI Signal Compatibility Source

In some cases a signal on the TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc. ). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

Supported Video File Formats for USB Mode Extension

SPEC (Resolution) & Bit Rate

Supported Picture File Formats for USB Mode Image

Resolution (width x height)

The limitation of max resolution depends on DRAM size

Supported Subtitle File Formats for USB Mode Internal Subtitles Extension

Supported DVI Resolutions When connecting devices to your TV’s connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information. 56Hz

Configuring Wired Device Settings

To Connect to a Wired Network • You must have a modem/router connected to an active broadband connection. • Ensure that Nero Media Home software is installed to your PC (for Audio Video Sharing function). See “Nero Media Home Installation” section. • Connect your PC to your modem/router. This can be a wired or wireless connection. • Connect your TV to your modem/router via an ethernet cable. There is a LAN port at the rear (back) of your TV. Broadband ISP connection

LAN (ethernet) cable

The Network Type can be selected as Wired Device, Wireless Device or Disabled, in accordance with the active connection to the TV set. Select this as Wired Device if you are connecting via an ethernet.

Internet Speed Test Highlight Internet Speed Test and press the OK button. TV will check the internet connection bandwidth and display the result when complete.

Advanced Settings Highlight Advanced Settings and press the OK button. On the next screen you can change the IP and DNS settings of the TV. Highlight the desired one and press Left or Right button to change the setting from Automatic to Manual. Now you can enter the Manual IP and / or Manual DNS values. Select the related item in the drop down menu and enter the new values using the numeric buttons of the remote. Press the OK button to save settings when complete. Wireless Connectivity

To Connect to a Wireless Network

LAN input on the rear side of the TV • To access and play shared files, you must select the Media Player. Press the Menu button and select Media Player. Press OK to continue. Select the desired file type and press OK. You must always use the Media Player screen to access and play shared network files. • PC/HDD/Media Player or any other devices that are compatible should be used with a wired connection for higher playback quality.

The TV cannot connect to the networks with a hidden SSID. To make your modem’s SSID visible, you should change your SSID settings via the modem’s software. To Connect to a wireless LAN, you should perform the following steps: 1. Ensure that Nero Media Home software is installed to your PC (for Audio Video Sharing function). 2. To configure your wireless settings please refer to the Network Settings section in the Setup Menu. Broadband ISP connection

To configure wired settings please refer to the Network Settings section in the Setup Menu. • You might be able to connect your TV to your LAN depending on your network’s configuration. In such a case, use an ethernet cable to connect your TV directly to the network wall outlet. network wall socket

LAN input on the rear

side of the TV A Wireless-N router (IEEE 802.11a/b/g/n) with simultaneous 2.4 and 5 GHz bands is designed to increase bandwidth. These are optimized for smoother and faster HD video streaming, file transfers and wireless gaming. English - 25 -

• Use a LAN connection for quicker file sharing between other devices like computers. • The frequency and channel differ depending on the area. • The transmission speed differs depending on the distance and number of obstructions between the transmission products, the configuration of these products, the radio wave conditions, the line traffic and the products that you use. The transmission may also be cut off or may get disconnected depending on the radio wave conditions, DECT phones or any other WiFi 11b appliances. The standard values of the transmission speed are the theoretical maximum values for the wireless standards. They are not the actual speeds of data transmission. • The location where the transmission is most effective differs depending on the usage environment. • The Wireless feature of the TV supports 802.11 a,b,g & n type modems. It is highly recommended that you should use the IEEE 802.11n communication protocol in order to avoid any possible problems while watching videos. • You must change your modem’s SSID when there are any other modems around with the same SSID. You can encounter connection problems otherwise. Use a wired connection if you experience problems with a wireless connection.

Configuring Wireless Device Settings Open the Network Settings menu and select Network Type as Wireless Device to start connection process. The TV will scan the wireless networks automatically. A list of available networks will be displayed. Please select your desired network from the list. Note: If the modem supports N mode, you should set N mode settings.

If the selected network is protected with a password, please enter the correct key by using the virtual keyboard. You can use this keyboard via the directional buttons and the OK button on the remote control. Wait until the IP address is shown on the screen. This means that the connection is now established. To disconnect from a wireless network, highlight Network Type and press Left or Right buttons to set as Disabled. Highlight Internet Speed Test and press the OK button to check your internet connection speed. Highlight Advanced Settings and press the OK button to open the advanced setting menu. Use directional and numeric buttons to set. Press the OK button to save settings when complete.

Connecting to your mobile device via WiFi • If your mobile device has WiFi feature, you can connect it to your TV via a router, in order to access the content in your device. For this, your mobile device must have an appropriate sharing software. • Connect to your router following the steps stated above in the Wireless Connectivity section. • Afterwards, engage your mobile device with the router and then activate the sharing software on your mobile device. Then, select files that you want to share with your TV. • If the connection is established correctly, you will be able to access the shared files from your mobile device via the Media Player of your TV. • Enter the Media Player menu and the playback device selection OSD will be displayed. Select your mobile device and press the OK button to continue. • If available, you can download a virtual remote controller application from the server of your mobile device application provider. Note: This feature may not be supported on all mobile devices.

Connectivity Troubleshooting

Wireless Network Not Available • Ensure that any firewalls of your network allow the TV wireless connection. • Try searching for wireless networks again, using the Network Settings menu screen. If the wireless network does not function properly, try using the wired network in your home. Refer to the Wired Connectivity section for more information on the process. If the TV does not function using the wired connection, check the modem (router). If the router does not have a problem, check the internet connection of your modem.

Connection is Slow See the instruction book of your wireless modem to get information on the internal service area, connection speed, signal quality and other settings. You need to have a high speed connection for your modem.

Distruption during playback or slow reactions

You could try the following in such a case: Keep at least three meters distance from microwave ovens, mobile telephones, bluetooth devices or any other Wi-Fi compatible devices. Try changing the active channel on the WLAN router.

The status of the connection will be displayed as Connected or Not Connected and the current IP address, if a connection is established. English - 26 -

Internet Connection Not Available / Audio Video Sharing Not Working If the MAC address (a unique identifier number) of your PC or modem has been permanently registered, it is possible that your TV might not connect to the internet. In such a case, the MAC address is authenticated each time when you connect to the internet. This is a precaution against unauthorized access. Since your TV has its own MAC address, your internet service provider cannot validate the MAC address of your TV. For this reason, your TV cannot connect to the internet. Contact your internet service provider and request information on how to connect a different device, such as your TV, to the internet. It is also possible that the connection may not be available due to a firewall problem. If you think this causes your problem, contact your internet service provider. A firewall might be the reason of a connectivity and discovery problem while using the TV in Audio Video Sharing mode or while browsing via Audio Video Sharing feature.

Invalid Domain Ensure that you have already logged on to your PC with an authorized username/password and also ensure that your domain is active, prior to sharing any files in your media server program on your PC. If the domain is invalid, this might cause problems while browsing files in Audio Video Sharing mode. Using Audio Video Sharing Network Service Audio Video Sharing feature uses a standard that eases the viewing process of digital electronics and makes them more convenient to use on a home network. This standard allows you to view and play photos, music and videos stored in the media server connected to your home network.

1. Nero Media Home Installation

The Audio Video Sharing feature cannot be used if the server programme is not installed onto your PC. Please prepare your PC with the Nero Media Home programme. For more information about the installation, please refer to the “Nero Media Home Installation” section.

2. Connect to a Wired or Wireless Network

See the Wired/Wireless Connectivity chapters for detailed configuration information.

3. Play Shared Files via Media Player

Select Media Player by using the Left or Right buttons from the main menu and press OK. The media browser will then be displayed.

Audio Video Sharing Audio Video Sharing support is only available in the Media Player Folder mode. To enable folder mode, go to the Setup tab in the main media browser screen and press OK. Highlight View Style and set to Folder using the Left or Right buttons. Select the desired media type and press OK. If sharing configurations are set properly, Device Selection screen will be displayed after selecting the desired media type. If available networks are found, they will be listed on this screen. Select media server or network that you want to connect to using the Up or Down buttons and press OK. If you want to refresh the device list, press the Green button. You can press Menu to exit. If you select the media type as Videos and choose a device from the selection menu. Then select the folder with video files in it on the next screen and all the available video files will be listed. To play other media types from this screen, you must go back to main Media Player screen and select the media type as desired and then perform the network selection again. Refer to the Media Player menu section for further information on file playback. Subtitle files do not work if you watch videos from your network through Audio Video Sharing feature. You can connect only one television to the same network. If a problem occurs with the network, please switch your television off at the wall socket and back on again. Trick mode and jump are not supported with the Audio Video Sharing feature. Note: There may be some PC’s which may not be able to utilize the Audio Video Sharing feature due to administrator and security settings (such as business PC’s). For best home network streaming with this TV, the Nero software should be installed.

Nero MediaHome Installation To install Nero MediaHome, please proceed as follows: Note: To use Audio Video Sharing feature, this software should be installed to your PC.

1. Enter the link below completely in the adressbar of your web browser. http://www.nero.com/mediahome-tv

2. Click the Download button on the opening page. The installation file will be downloaded onto your PC. 3. After the download is completed, double click on the installation file to start the installation. The installation wizard will guide you through the installation process. 4. The prerequisites screen will be displayed first. The installation wizard checks the availability of required third-party software on your PC.

If applications are missing they are listed and must be installed before continuing installation. 5. Click the Install button. The integrated serial will be displayed. Please do not change the displayed serial. 6. Click the Next button. The License Conditions (EULA) screen will be displayed. Please read the license agreement carefully and select the appropriate check box if you agree to the terms of the agreement. Installation is not possible without this agreement.

Possible application dependent problems may be caused by the content service provider. Portal service content and the interface may be changed at any time without prior notice. Third party internet services may change, be discontinued or restricted at any time.

iPlayer Application You can access BBC iPlayer using your TV. Select BBC iPlayer application among the portal options. Press the OK button on your remote control to start the BBC iPlayer application.

7. Click the Next button. On the next screen you can set your installation preferences.

Note: Broadband internet connection (minumum 2mbps) is required for high quality viewing.

8. Click the Install button. The installation begins and finishes automatically. A progress bar will indicate the state of the installation process.

Playing a Programme via iPlayer Select a programme and press OK button. The programme playback will begin.

9. Click the Finish button. The installation is completed. You will be directed to the web site of the nero software.

You can press the Pause button to pause playback. Press the Play button to resume the playback.

10. A shortcut is now placed on your desktop.

Press the Exit button to exit iPlayer. Press the Return /Back button for going back to the previous screen.

Congratulations! You successfully installed Nero MediaHome on your PC. Run Nero MediaHome by double clicking on the shortcut icon. Internet Portal Portal feature adds your TV a feature that allows you to connect a server on the Internet and view the content provided by this server over your Internet connection. Portal feature allows you to view the music, video, clip or web content with defined short-cuts. Whether you can view this content without interruption depends on the connection speed provided by your internet service provider.

Use the Stop button to stop the playback.

Note: “Episode is unavailable” message may be displayed on the screen if a problem occurs during the playback.

Searching a Programme Highlight the Search tab using the navigation buttons and press the OK button. Use the virtual keyboard to type the letters. Select letters and press the OK button. When finished, highlight Search option and press the OK button.

Press the Internet button on your remote control to open internet portal page. You will see icons of the available applications and services on the portal screen. Use the directional buttons on your remote to select the desired one. You may view the desired content by pressing OK after selecting. Press Back/ Return button to return back to the previous screen. Moreover, you can access some features using the short-cut feature defined for the coloured or numeric buttons of your remote. Press the Exit button to quit the Internet portal mode. PIP Window Current source content will be displayed in the PIP window, if you switch to portal mode while on any active source. If you switch to portal mode while watching TV channels, current programme will be displayed in the PIP window. Notes:

Internet Browser To use the internet browser, please select the internet browser logo from the portal section.

(*)The appearance of the browser logo may change

Previous Next Settings App

Remote control shortcuts (Zoom in-out/Back/Home)

• To navigate the web browser, use the arrow buttons on the remote control. Press OK to continue. • Predefined web sites and logos will be displayed on the browser’s access page (see image above). To add a desired website to the quick access links, whilst you are on the site you wish to add, hover the cursor over the Add icon and click (or press the OK button). Then click on the Quick Access icon. Add

• If you want to add bookmarks, hover the cursor over the Bookmarks icon and click whilst the desired website is Bookmarks Quick on the screen. Access • There are various ways to search or visit websites using the web browser.

Enter the address of a website(URL) into the address bar and click on the button to visit. Enter keyword/s into the address bar and click on the button to search for the related websites. Click on the links to visit the related websites.

• When you hover the cursor down to the middle of the screen, the shortcuts assigned to the coloured buttons of the remote control will appear.You can zoom in/out, go back to previous page or go to home page using these shurtcuts by clicking on them or pressing the related coloured button on the remote. • You can clear cookies or clear all browser data from the settings menu. • Your TV is compatible with USB mice. Plug your mouse or wireless mouse adaptor into the USB input of your TV. • To view your browsing history, click on the history icon. You can also clear your browsing history from here.

• The browser does not support multiple tabs. • Some web pages include flash content. These are not supported by the browser. • Your TV does not support any download processes from the internet via the browser.

Important Instruction For your own safety read following instruction carefully before attempting to connect this unit to the mains supply.

MAINS (AC) OPERATION The wires in the mains lead are coloured in accordance with the following code : GREEN &

FUSE YELLOW (Earth) (if there is earth cable)

IMPORTANT As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured green and yellow must be connected to the terminal which is marked with the letter E, or by the earth symbol, or coloured green or green and yellow. The wire which is coloured blue or black must be connected to the terminal which is marked with the letter N or coloured Black. The wire which is coloured brown or red must be connected to the terminal which is marked with the letter L or coloured Red. For continued protection against risk of fire, replace only with same type and rating of fuse (ASTA approved 5A 250VAC fuse).

CAUTION TO PREVENT ELECTRIC SHOCK DISCONNECT FROM THE MAINS BEFORE REMOVING COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

SAFETY PRECAUTION THIS EQUIPMENT MUST BE DISCONNECTED FROM THE MAINS WHEN NOT IN USE. DO NOT ALLOW THIS UNIT TO BE EXPOSED TO RAIN OR MOISTURE.

Energy efficiency class

Visible screen size (diagonal) On mode average power consumption

86 W Annual energy consumption *1

Standby power consumption *2

0,50 W Off mode power consumption

1920 x 1080 Screen resolution *1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used. *2: when the TV is turned off with the remote control and no function is active. For the information of rated power consumption, refer to the label on the TV back cover.

Srpski Srpski Srpski Srpski Srpski Srpski Srpski Srpski Srpski Srpski Srpski

Srpski Srpski Srpski Srpski Srpski Srpski

Srpski Srpski Srpski

Srpski SrpskiSrpski Srpski Srpski Srpski Srpski Srpski Srpski Srpski Srpski
