Live Streamer Pop Filter BA310 - Video recorder AVERMEDIA - Free user manual and instructions

Product Type	Video Recorder (capture box)
Brand	AVerMedia
Model	Live Streamer Pop Filter BA310 (Game Capture HD II)
Video Inputs	HDMI, Component (YPbPr)
Video Output	HDMI (pass-through)

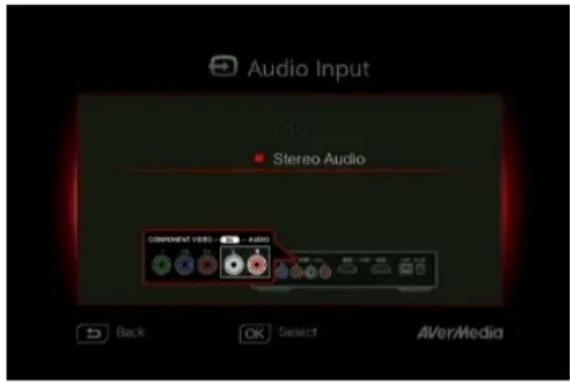

Audio Inputs	RCA L/R, Microphone 3.5 mm
Audio Output	Headphone 3.5 mm
Storage	Internal hard drive or external USB (NTFS)
Recorded Video Formats	MP4 (H.264 + AAC)
Image Formats	JPEG
Maximum Resolution	1080p (estimated)
Power Supply	DC-IN power adapter (not included)

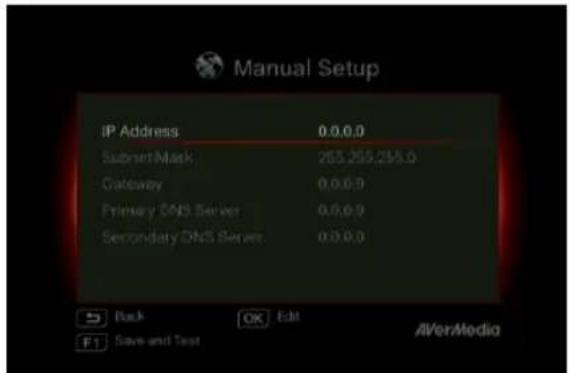

Network Connectivity	Ethernet (LAN)
Remote Control	Infrared (included)
Main Functions	One-click recording, screenshot, voice commentary, video editing, YouTube sharing
Dimensions (L x D x H)	Approximately 15 x 10 x 3 cm (estimated)
Weight	Approximately 300 g (estimated)
Maintenance and Cleaning	Use a dry, soft cloth. Do not use abrasive products.
Safety	Unplug before cleaning. Do not expose to moisture.
Spare Parts and Repairability	External power supply, remote control, HDMI cables. Repair by authorized center.
General Information	Game recorder with OSD screen, installation assistant, GameMate mobile app.

Frequently Asked Questions - Live Streamer Pop Filter BA310 AVERMEDIA

How to start instant recording?

Press the Record button on the front panel or the REC key on the remote control to start or stop recording.

Can I add voice commentary to my videos?

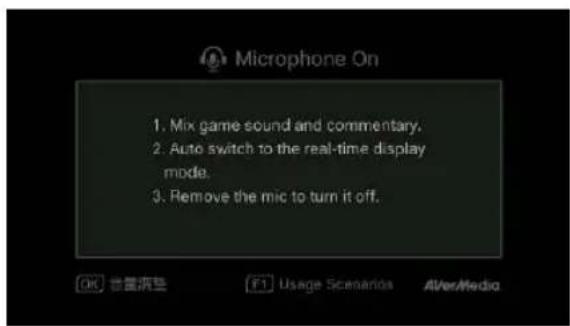

Yes, plug a 3.5 mm microphone into the MIC input. An OSD menu appears. Press REC to record with commentary. The microphone sound is mixed with the game sound.

How to capture a screenshot during gameplay?

Press the Capture button (camera icon) on the remote control. For continuous capture, hold down the button.

What storage format is recommended?

Use a hard drive formatted in NTFS. The unit accepts internal hard drives and external USB devices.

How to edit a recorded video?

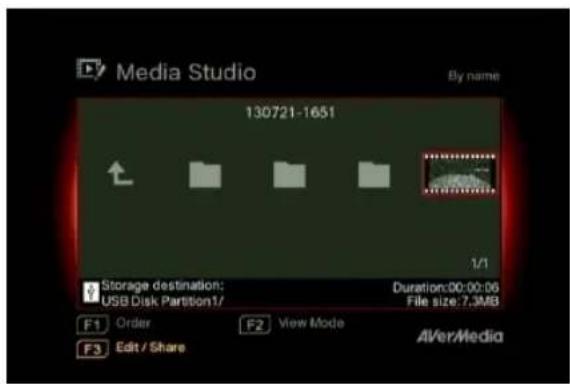

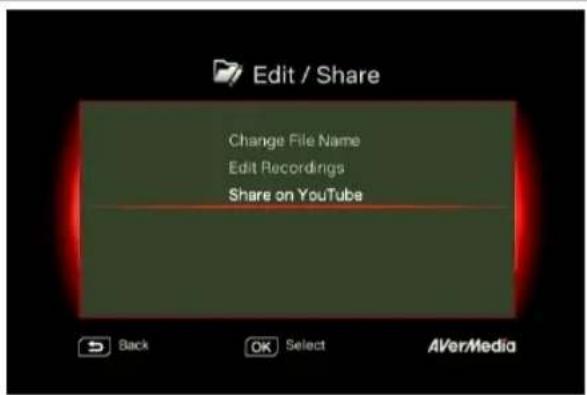

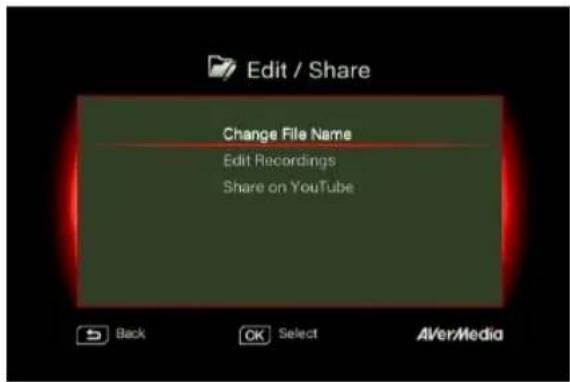

In the Media Studio menu, select the video, press F3, then choose 'Edit'. You can cut and recombine segments by marking the passages to keep.

Can I share directly on YouTube?

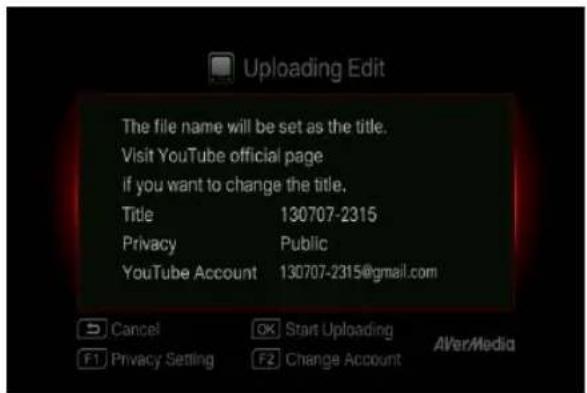

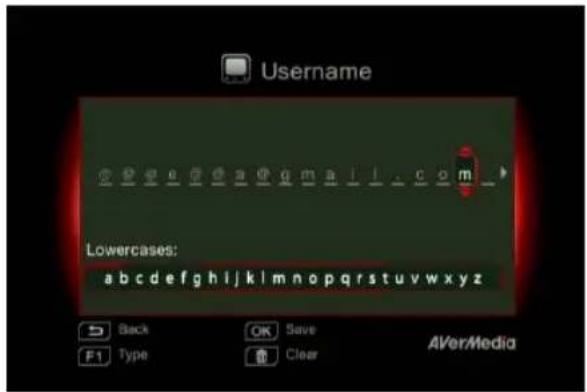

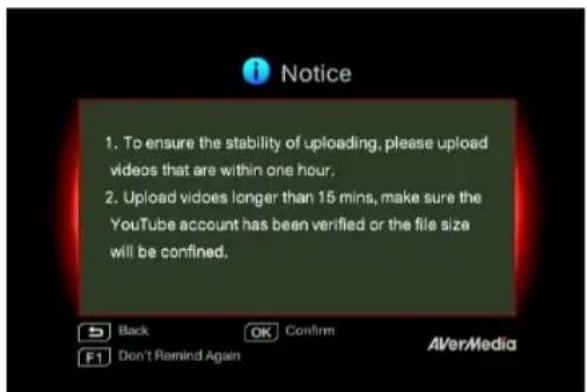

Yes, from the edit menu, select 'Share on YouTube'. Connect your YouTube account via the OSD and upload your videos.

How to pair the unit with the GameMate app?

Download GameMate on your smartphone. Make sure the unit and phone are on the same network. Open the app, it will detect the unit. Enter the 4-digit code displayed on the screen.

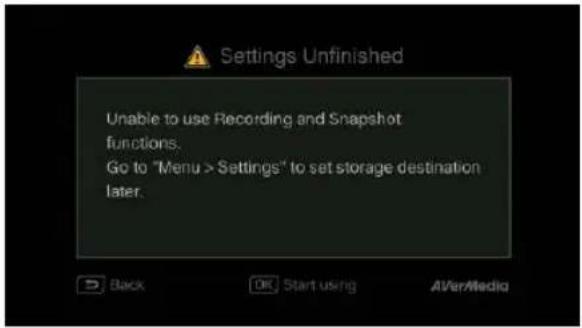

What to do if the device does not detect a hard drive?

Check that the hard drive is properly connected and formatted in NTFS. If the problem persists, try another USB port or restart the device.

How to update the firmware?

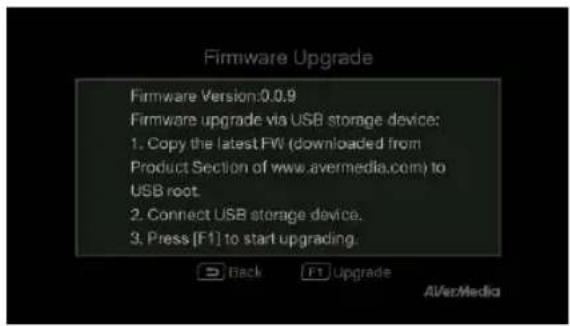

Connect a USB drive containing the update file to the front USB port. The unit automatically detects the update in the Settings menu.

Is the device compatible with game consoles?

Yes, it accepts HDMI and Component sources. Connect your console (PS4, Xbox, etc.) via HDMI and audio via RCA or HDMI. Ideal for streaming and game recording.

USER MANUAL Live Streamer Pop Filter BA310 AVERMEDIA

European Community Compliance Statement

Class B

This product is herewith conrmed to comply with the requirements set out in the Council Directes on the approximation of the laws of the Member States relang to Electromagnec Compatibility Directive (EMC) 2004/108/EC, Low Voltage Directive (LVD) 2006/95/EC and Energy-related Products Directive (ErP) 2009/125/EC.

Responsible manufacturer:

AVerMedia Technologies, Inc.

No. 135, Jian 1st Rd., Zhonghe Dist., New Taipei City 23585, Taiwan

TEL: [phone]

European Community contact:

AVerMedia Technologies Europe B.V.

Kwartsweg 50, 2665 NN, Bleiswijk, The Netherlands

Technical Support: hp://www.avermedia.com/avertv/Support/

FCC Compliance Statement (United States)

FCC NOTICE

This device complies with Part 15 of the FCC Rules. Operaon is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operaon.

Federal Communicaons Commission Statement

NOTE- This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference in a residential installaon. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instrucons, may cause harmful interference to radio communicaons. However, there is no guarantee that interference will not occur in a parcular installaon. If this equipment does cause harmful interference to radio or television recepon, which can be determined by tuning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separaon between the equipment and receiver.

Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

Consult the dealer or an experienced radio/television technician for help.

CAUTION ON MODIFICATIONS

To comply with the limits for the Class B digital device, pursuant to Part 15 of the FCC Rules, this device must be installed in computer equipment cered to comply with the Class B limits. All cables used to connect the computer and peripherals must be shielded and grounded. Operaon with non-certied computers or non-shielded cables may result in interference to radio or television reception.

Changes and modicaons not expressly approved by the manufacturer or registrant of the equipment can void your authority to operate the equipment under Federal Communicaons Commission rules.

Responsible manufacturer:

AVerMedia Technologies, Inc.

No. 135, Jian 1st Rd., Zhonghe Dist., New Taipei City 23585, Taiwan

TEL: [phone]

USA Oce contact:

AVerMedia Technologies U.S.A.

47358 Fremont Blvd., Fremont, CA 94538

Technical Support: hp://www.avermedia.com/avertv/Support/

WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)

The mark of Crossed-out wheeled bin indicates that this product must not be disposed of with your other household waste. Instead, you need to dispose of the waste equipment by handing it over to a designated collecon point for the recycling of waste electrical and electronic equipment. For more informaon about where to drop o your waste equipment for recycling, please contact your household waste disposal service or the shop where you purchased the product.

Baery Safety Informaon

● Use of carbon-zinc baery for remote control is strongly recommended.
- Use of other types of baeries, such as alkaline or rechargeable (nickel-cadmium), may cause baery current overload or baery leakage and corrosion which can damage the remote control.
● Store the baeries in a cool dry place.
- Do not dispose of used baeries in domesc waste. Dispose of baeries at special collecon points or return to point of sale if applies.
- Remove the baeries during long periods of non-use. Always remove exhausted baeries from the remote control. Baery leakage and corrosion can damage this remote control, dispose of baeries safely.
● Do not mix old and new baeries.
- Do not mix dierent types of baeries: alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium).
● Do not dispose of baeries in a re. The baeries may explode or leak.
● Never short circuit the baery terminals.

ICES-003 (Canada)

CES-003 Issue 5 Class B: C285

GOST-R Cercaon (Russia)

© 2013 by AVerMedia Technologies, Inc. All rights reserved. No part of this document may be reproduced or transmied in any form, or by any means (Electronic, mechanical, photocopy, recording, or otherwise) without prior written permission of AVerMedia Technologies, Inc. Informaon in this document is subject to change without noce. AVerMedia Technologies, Inc. reserves the right to modify, change, improve or enhance its products and to make changes in the content without obligaon to nofy any person or organizaon of such changes. Please visit avermedia.com to get the updates of the operaon and use of AVerMedia products.

"AVerMedia" is trademark and logo of AVerMedia Technologies, Inc. Apple, the Apple logo, iPod, iPhone, iPad and Apple TV are trademarks and/or registered trademark of Apple Inc., registered in the U.S. and other countries. Other trademarks used herein for descripon purpose only belong to each of their companies.

Picture shown may vary from actual product.

This product uses Arphic Font.

This soware uses libraries from the Libav project under the LGPLv2.1.

Internaonal Headquarter Oce

Address No.135, Jian 1st Rd., Zhonghe Dist., New Taipei City 23585, Taiwan (R.O.C.)

Website www.avermedia.com/

Tel [phone]

Specicaons

Product Name Capture Box

Model No. C285

Input Rang 12V 1.5A

Power Consumpon < 7W (power consumpon of hard drive not included)

Standby Power Consumpon < 0.5W (Without Pass Through)

Adapter Rang Input: 100-240V\~, 50-60Hz 0.5A Max. Output: 12V 1.5A

Size 190 mm(W) x33.5 mm (H)x 152.5 mm (D)

Weight 421 g

Operang Temperature 0\~40°C

System Requirements

● TV/monitor with component video (YPrPb) input
● TV/monitor with 720p or 1080p resolution (recommended)
● Game console/video device with component video (YPrPb) output
- NTFS-formaed hard drive with capacity greater than 500 GB is recommended (The supported maximum storage capacity of the hard drive is 2TB.)
● Hard drive is highly preferred over ash drive to minimize the risk of recording failure

Table of Content

Chapter 1 Package Contents....2

1.1 Other Items You Need 4

Chapter 2 The Unit Parts....5

2.1 Front Panel 5
2.2 Infrared Sensor 5
2.3 LED Indicator 6
2.4 Connection Ports 7
2.4.1 Front View ____ 7
2.4.2 Rear View ____ ____ ____ ____ ____ 8

Chapter 3 The Remote Control....9

Chapter 4 Installation & First Time Setup 12

4.1 Supported Resolutions 12
4.2 Hardware Installation....14
4.3 Storage Device Installation 20
4.3.1 USB Storage Device Insertion 20
4.3.2 HDD Installation and Removal 20

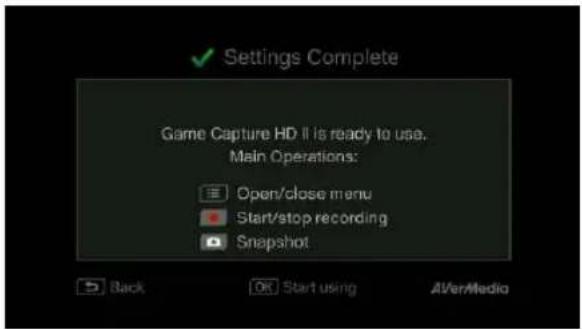

4.4 Setup Wizard 25

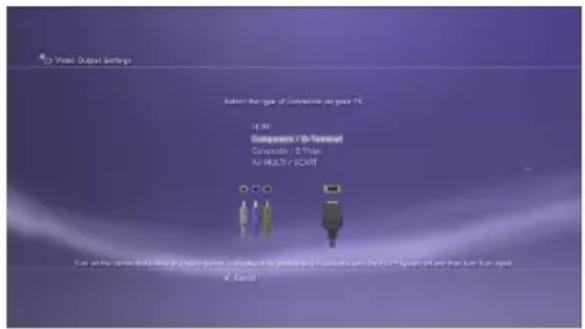

4.5 Video Output Settings for Game Consoles 28
4.5.1 Video Output Settings for PlayStation 3 ____ 28

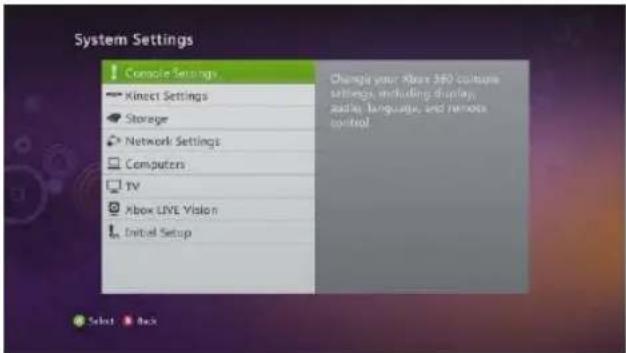

4.5.2 Video Output Settings for Xbox 360. ____ 29

Chapter 5 Basic Operation....31

Thank you for purchasing the Capture Box. Please read this user manual carefully to ensure proper use of this product. We recommend you to keep it for future reference.

Introduction

The Capture Box, a stand-alone video capture box specially designed for TV gamers, allows you to capture HD content up to 1080p from various video game consoles, such as PlayStation ^® 3, Xbox 360 and Wii U.

The Capture Box records HD gameplays directly to your hard disk drive (HDD) for later viewing and further editing, eschewing the hassle of setting up a PC nearby your TV set.

Most attractively, the one-press capture button allows you to instantly grab high score screen and record your exciting gameplay footage with nearly no effort. The Capture Box can record from either HDMI (without HDCP protection) or Component Video at up to 1080p.

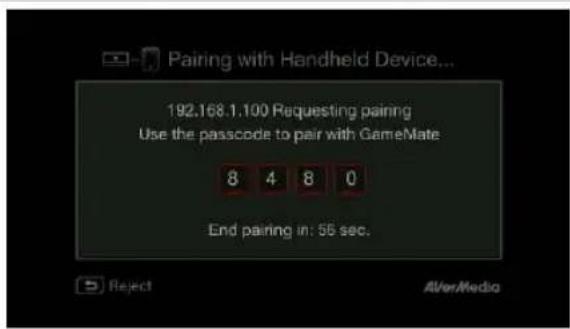

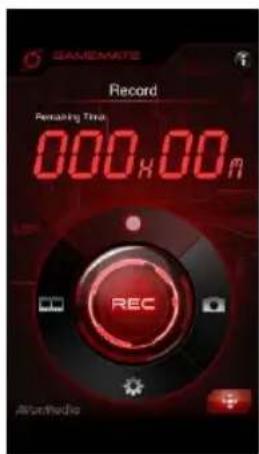

Other than that, the Capture Box can pair up with the dedicated app GameMate, which turns your smartphone into a second screen remote controller. You can view capture and uploading status on the screen of your smartphone.

Chapter 1 Package Contents

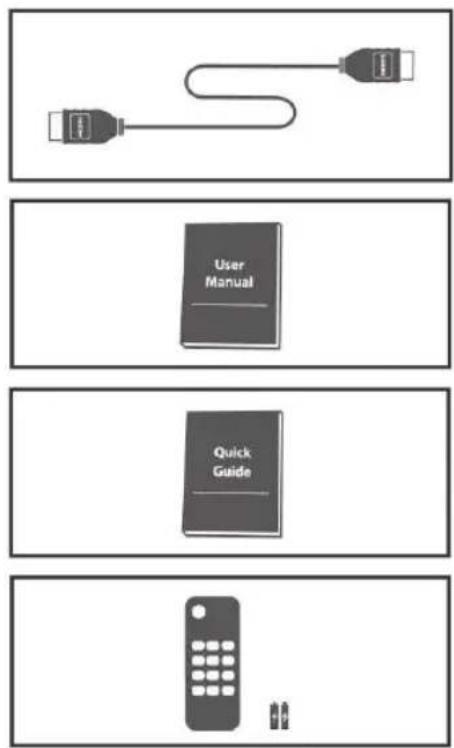

Please confirm that the package contains the following items. If any of the package contents are missing or damaged, please contact the distributor immediately.

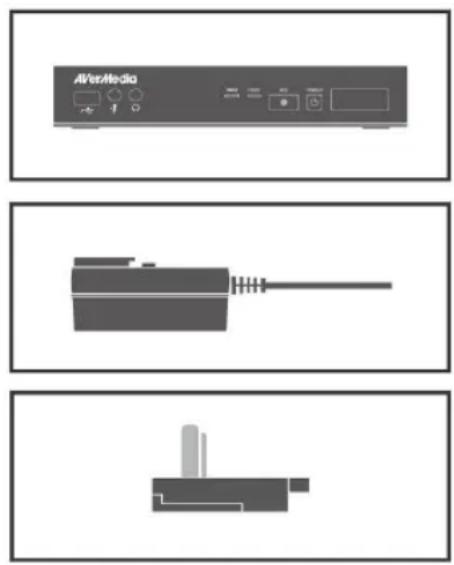

Game Capture HD II

Power Adapter

Power Adapter Outlet Module

HDMI Cable

User Manual

Quick Guide

Remote Control (Batteries Included)

● The accessories that come with the package may slightly vary depending on different sales regions.
- The Capture Box is made for record and capture media materials that are legally owned or licensed by the user only. Any violation of copyrights or other intellectual property rights is not allowed.
- AVerMedia regularly releases the latest version of firmware for the Capture Box. Having the latest firmware enhances the functionality of the Capture Box. To download the latest firmware file, please go to /www.avermedia.com and then enter the model name in Product Search field. Firmware file is available on the product information page (See Chapter 6 for details).
- If problems are encountered, refer to FAQ section at www.avermedia.com for further troubleshooting.

1.1 Other Items You Need

In order to fully enjoy the recording, the capturing functions of the Capture Box and the dedicated iPhone application, you will need to have the following items prepared:

Item		You need the item to...
	Storage Device	Save recordings and snapshots.

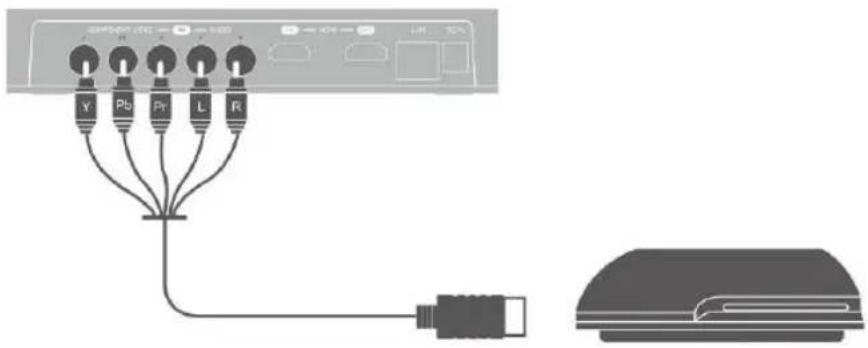

	Play Station 3 AV Component Cable	Connect with PS3 console.
	Router (DHCP IP Network Recommended)	Pair up with GameMate.
	iPhone 4/5, 4s	Use GameMate.
	Headset / Microphone	Record live commentary.
	RJ45 Cable	To upload captured content

● Other than iPhone, 4, iPhone 4s, iPhone 5, GameMate also supports iPad and iPod touch.
- For further smartphone support, refer to www.avermedia.com for latest update.

Chapter 2 The Unit Parts

2.1 Front Panel

The button panel found on the front of the unit provides quick access to commonly used functions.

AVerMedia 1 2

# Buttons

1

2

Descriptions

Record

Press to start / stop recording.

Hold down the button for 4 seconds to force shut down the Capture Box

Power

Press to turn the unit on

2.2 Infrared Sensor

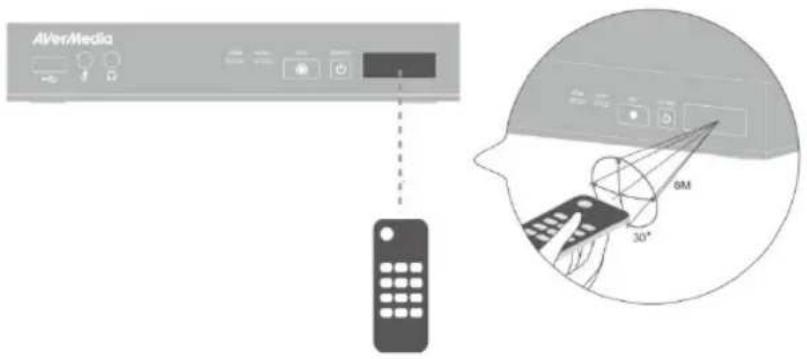

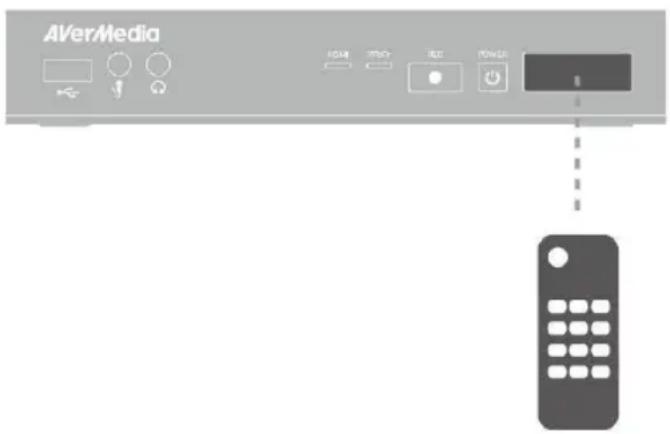

When using the remote control, aim it at the infrared (IR) sensor located at the front panel of the unit. The remote control must be held at an angle within 30 degrees perpendicular to the IR sensor to function correctly. The distance between the remote control and the sensor should not exceed 6 meters (20 feet).

AlVer/Media 80M 30°

English-5

The LED indicators on the front of the unit show the device's status.

1 HDMI source LED indicator

2 YPbPr source LED indicator

3 Record status LED indicator

4 Power status LED indicator

Press [F1] to obtain LED light indicator status.

Condition	Source	Record	Power
Powered on			Glows solid green
Ready to record/snapshot	Solid green		Solid green
Recording	Solid green	Breathing	Solid green
Take a snapshot	Flashes red once	Flashes red once	Flashes red once
Unable to record/snapshot	Solid green		Flashes green continuously
No source			Flashes green continuously
Source is available	Glows solid green
Power off in progress	Solid green		Flashes green continuously
Pass through ON When powering off	Solid orange
Pause recording	Solid red	Solid red	Solid red
Record finish in progress	Solid green	Flashes red continuously	Solid green
Storage space is low	Solid green	Glows at a slowly pace	Solid green
Device is not ready			Flashes green continuously
Problems like no storage/ no signal/protected content			Flashes green continuously
Accepting a remote control command			Flashes green once

2.4 Connection Ports

2.4.1 Front View

AVerMedia 1 2 3

1 USB slot

3 Headphone output

2 MIC input

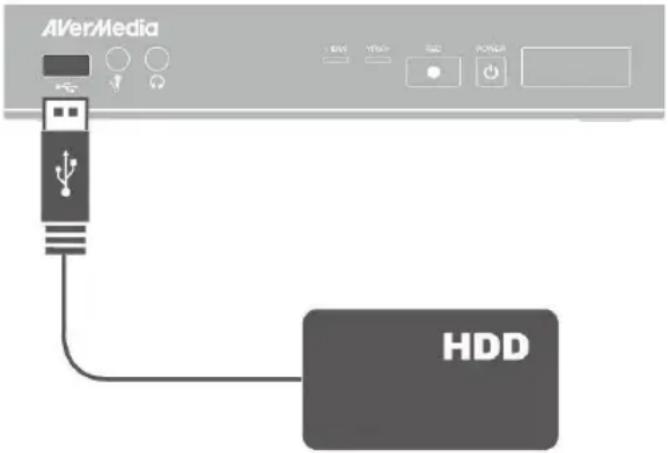

• USB slot is for external HDD storage device connection as well as for firmware upgrade via storage device.
• USB hub is not supported.
• There will be no function or reply when connecting the Capture Box to the computer via USB.

2.4.2 Rear View

1 Component video input
2 Audio L/R input
3 HDMI input

4 HDMI output
5 LAN port
6 D C -IN

The descriptions below show the deployment of the keys on the remote control.

#	Buttons	Descriptions
1	[B333]	Press to turn the unit on / into stand-by mode.

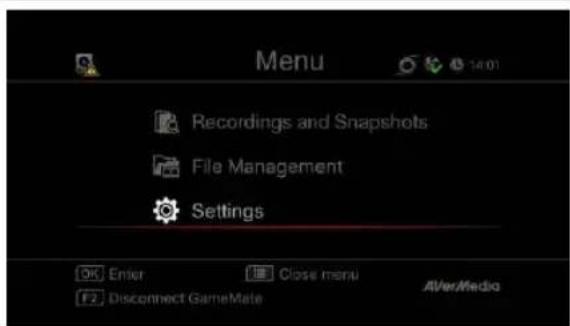

2		Press to access the main menu. Press again to exit.
3		Press the navigation keys to move among options.Press OK to confirm a selection.Press OK to mark/ unmark segment in post- editing.
4		Press to play the latest recorded file or view the last captured image.
5		Press to start / stop recording.
6		Press to start playing the selected file.Press to play the file at normal (1x) speed when slow motion, rewind, or fast-forward is active.
7		Press to stop the playback.Press to stop the recording.
8		Press to rewind (2x, 4x, 8x, 16x, 32x).
9		Press to return to the previous page.

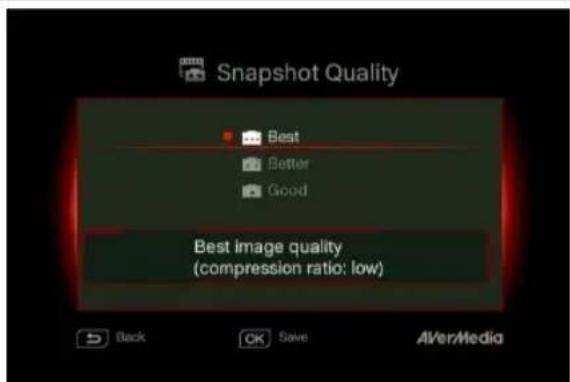

10		Press to display the video/snapshot quality adjustment screen. Press again to exit.
11		Press to safely remove external hard disk in Menu(Follow the on-screen instruction)
12		(Follow the on-screen instruction)
13		(Follow the on-screen instruction)
14		Press to switch between Component and HDMI sources.

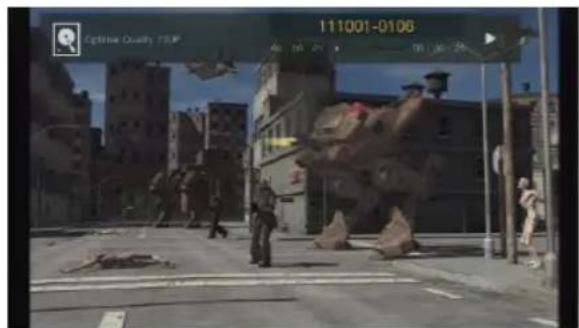

15		Press to display the on-screen information, including mode, source and audio sources.
16		Press to exit the current page and return to the previous page.
17		Press to take a snapshot during gameplay or video playback.
18		Press to pause the playback. Press OK or ▶ to resume playback. Press to pause the recording.
19		Press to play the video in slow motion (1/2x). Press again to enter frame- by- frame mode (See Chapter 5 for details).
20		Press to fast-forward (2x, 4x, 8x, 16x, 32x).
21		Press to go to the next page.
22		Press to delete the selected files.

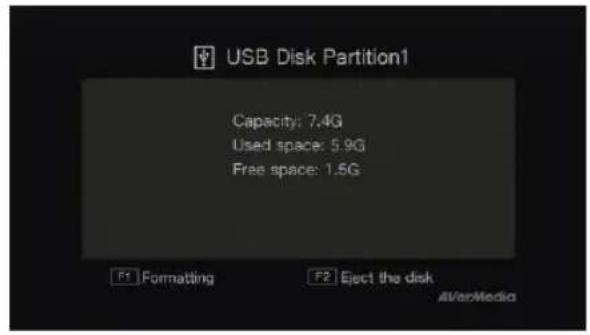

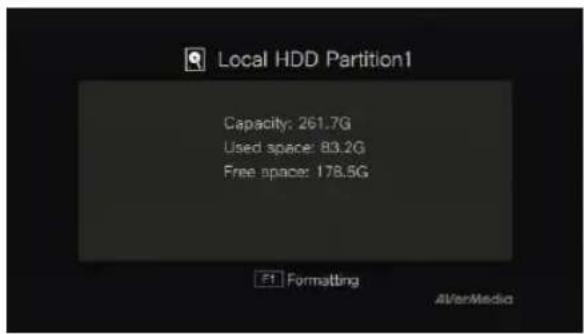

23		Press to display the disk information. Press again to hide it.

The Game Capture HD II supports Component (YPbPr) and HDMI input resolution as follows:

HDMI / Component (YPbPr)

480i/576i

480p/576p

720p (50 & 60Hz)

1080i (50 & 60Hz)

1080p (50 & 60Hz)

The Game Capture HD II records the exact display resolution under most circumstances. Exceptions can only be found when the input resolution is set as 1080p:

Source Resolution	Display Resolution	Recorded Resolution
1080p (60fps)	1080i (60fps)	1080p (30fps)
1080p (50fps)	1080i (50fps)	1080p (25fps)

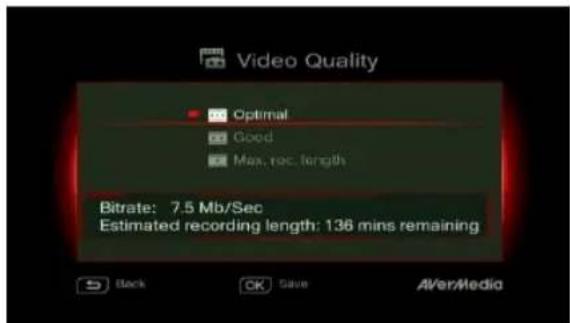

Estimated recording duration for different video quality settings :

HD 1080p

Storage Capacity\Video Quality	Optimal(20 Mbps)	Good(18 Mbps)	Maximum RecordingLength (15 Mbps)
1TB	100 hrs	110 hrs	125 hrs
2TB	200 hrs	220hrs	250hrs

HD 720P

Storage Capacity\Video Quality	Optimal(20 Mbps)	Good(15 Mbps)	Maximum RecordingLength (10 Mbps)
1TB	100 hrs	125hrs	200 hrs
2TB	200 hrs	250 hrs	400hrs

HD 1080i

Storage Capacity\Video Quality	Optimal(15 Mbps)	Good(12 Mbps)	Maximum RecordingLength (10 Mbps)
1TB	125 hrs	150 hrs	200 hrs
2TB	250 hrs	300 hrs	400 hrs

SD 480i(576i)/480P(576P)

Storage Capacity\Video Quality	Optimal(7.5 Mbps)	Good(5 Mbps)	Maximum RecordingLength (3 Mbps)
1TB	250 hrs	400 hrs	650 hrs
2TB	500 hrs	800 hrs	1300 hrs

*Recording with higher video quality takes up more disk space.

4.2 Hardware Installation

Please follow the steps below to properly connect the Capture Box and your TV/video game consoles.

• If you would like to install internal hard drive, install it before turning on the Capture Box.
• Make sure that the cables are firmly connected and that neither of the cables is loose. If any of the cables are loose or disconnected, there may be a loss of signal or screen color problems.

Step 1

Check the Connection of Your Game Consoles and TV

Make sure all cables connecting the Capture Box to your game consoles and TV are well-connected. Doing so will save you a lot of time from locating problems later. First, please check the connection of your game consoles. Second, make sure that the connection to TV is good.

Step 2

Connect the Device to Your Wii U / Xbox 360 Using HDMI Cable

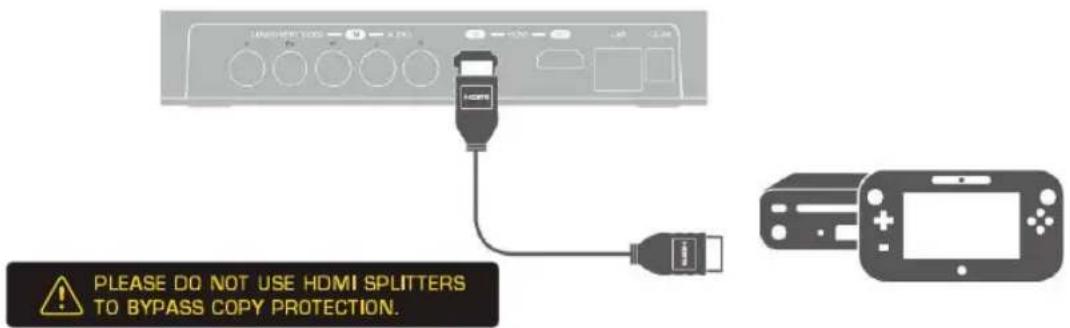

Connect one end of the HDMI cable to the HDMI IN port on the rear of the device and the other end to the HDMI OUT port on your Xbox 360/ Wii U.

PLEASE DO NOT USE HDMI SPLITTERS TO BYPASS COPY PROTECTION.

Connect the Device to Your PlayStation 3 / Wii Using Component AV Cable

Plug the green, blue, red connectors into the COMPONENT VIDEO IN port and white and red connectors into the AUDIO IN port on the rear of the device. Then, plug the other end to your game console.

Y Pb Pr L R + - + - + + - + - + + - + - + + - + - + + - + - + + - + - + + - + - + + - + - + + - + - + + - + - + + - + - + + - + - + + - + - + + - + - + + - + - + + - + - + + - + - + + - + - + + - + - + + - + - + + - + - +

- "PlayStation 3 Component AV Cable" and Wii Component Cable is NOT Included. Please purchase separately if needed.

Step 3

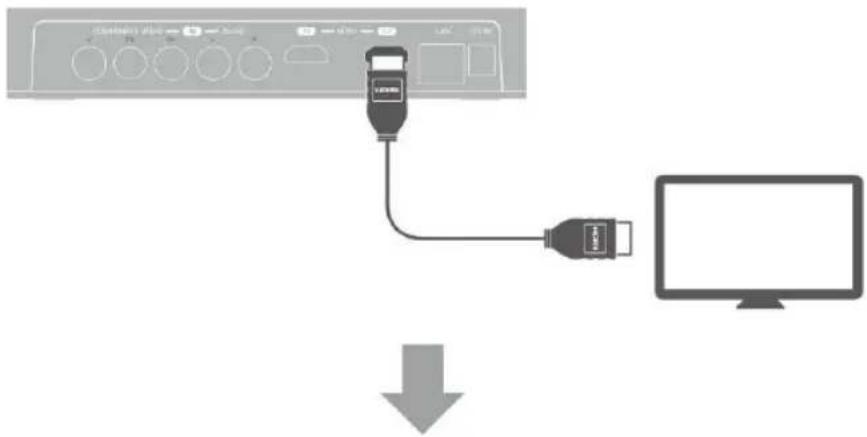

Connecting the Device to Your TV Using HDMI Cable

Connect one end of the HDMI cable to the HDMI OUT port on the rear of the device and the other end to the HDMI IN port on your TV.

Diagram showing connection between a device panel and a monitor, with a download arrow indicating data flow.

Step 4

Power on Your Game Console

Turn on your game console.

Step 5 Install and Connecting the Power Adapter

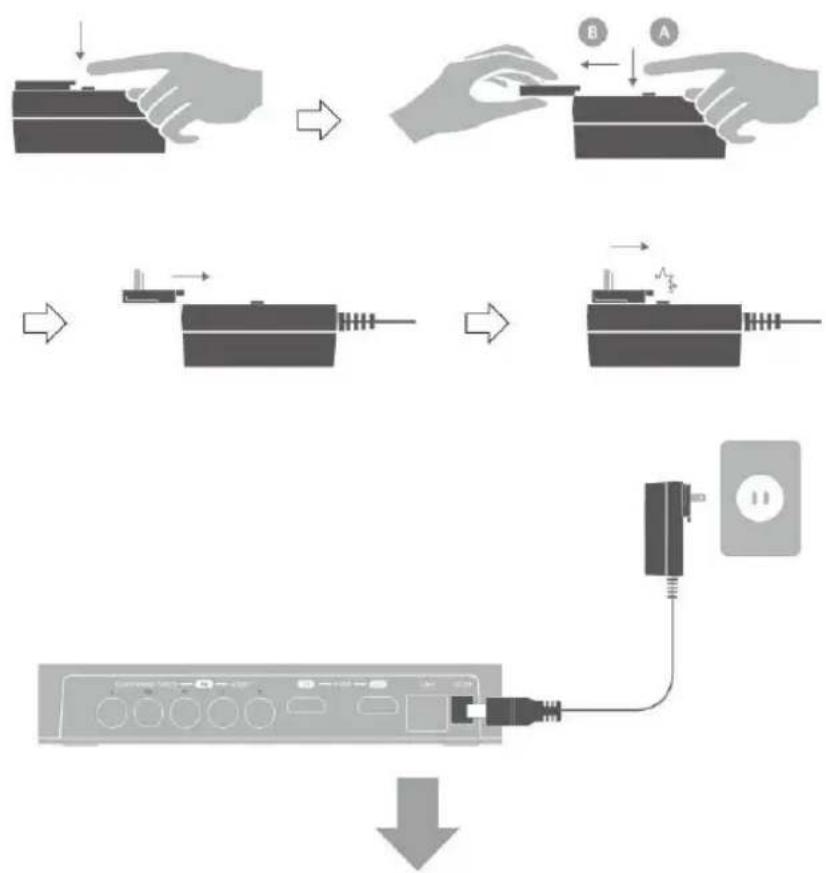

Slide the Power Adapter Outlet Module into the groove on the Power Adapter. Connect the Power Adapter connector to the DC-IN port on the rear of the device. Then plug the power adapter to a wall outlet.

Step 6

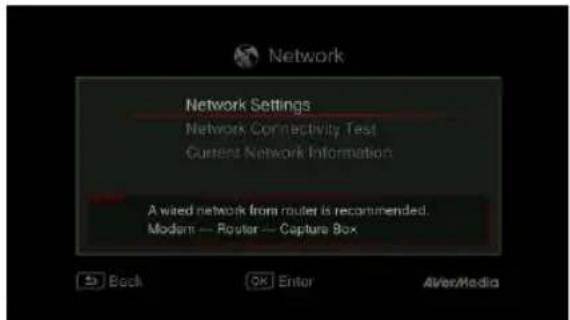

Connecting to the Network

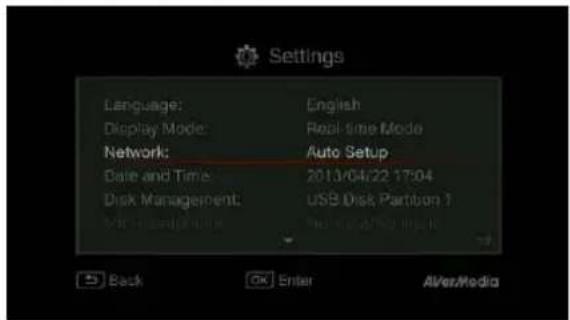

To automatically obtain time and other information, you need to connect the Capture Box to an Ethernet LAN. Make sure the LAN wire is well-connected before you continue to the next step. Meanwhile, a router which supports DHCP IP network is recommended for you to pair up the Game Capture HD II with your iPhone.

• It is recommended that you connect the Capture Box before running first time setup.

Step 7

Plug in USB Hard Drive/ HDD

Connect your portable USB hard drive or hard disk drive (HDD) to the USB port on the front of the Capture Box. Please make sure you use an NTFS format USB hard drive or hard disk drive (HDD). Under the condition that no hard drive is connected to the device, the power light will continue to flash. Therefore, it is advised that you plug in USB hard drive or hard disk drive (HDD). Please see Chapter 4.3.2 for further details about installing an internal hard drive.

AVerMedia HDD

English-17

Step 8

Power on the Capture Box

Press the power button on the front panel of the device.

Or

Use the power button on the remote control.

The POWER LED indicator lights up green, when that the device is power-on.

AVerMedia HOME AUTO RED POWER 1

- It is important that you power on/off the Capture Box following suggested procedure. Fail to do so may lead to damage of the Capture Box or data loss

Step 9

Check Video on TV screen

Make sure that there is game console video content displayed on TV screen.

If your TV is not displaying video properly, please check the followings:

• Supported resolutions vary depending on the TV in use. For details, please refer to the documentation that comes with your TV.
  ● Power off Capture Box and then make sure that the device is connected properly and with the proper cables.
• If there is still no video signal on TV, refer to FAQ section at www.avermedia.com for further troubleshooting.

Connecting the Device to Your Microphone and Headset

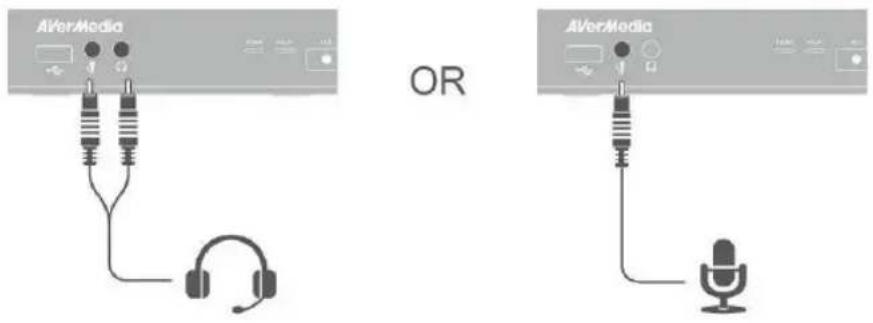

Plug in the microphone connector into the MIC Input port on the front panel of the device. Same as microphone, plug in the headset connectors into the headphone and microphone ports on the front panel of the device. This procedure is only needed when you intend to add commentary to your gameplay video. Please refer to Chapter 6 for details.

AVerMedia OR AVerMedia

• When headphone is connected to the Capture Box, the gameplay will be muted as sound will come out from the headphone.
• Hereafter a headset refers to the device you use to record while headphone refers to the headphone port on the front panel of the Capture Box.

4.3 Storage Device Installation

The Capture Box supports 2.5 inch internal hard drive and external USB storage device. You can save the recorded files and snapshots either to the internal HDD or external one.

4.3.1 USB Storage Device Insertion

Connect your portable USB hard drive to the USB port on the front of the Capture Box

AVerMedia HDD

• It is highly recommended to use a NTFS format hard drive instead of a flash drive to minimize the risk of recording failure.

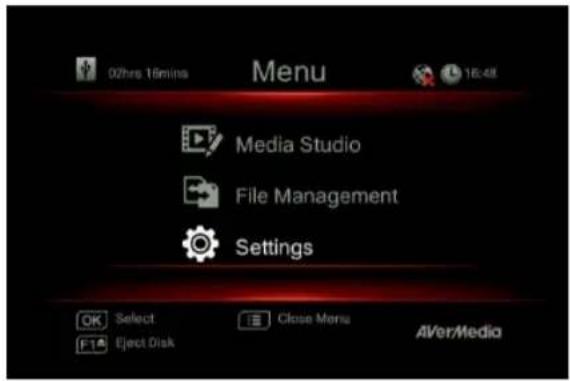

• To avoid any possible data loss, go to main menu and press [F1] of your remote control to safely remove the external storage disk before unplugging it from the Capture Box.

4.3.2 HDD Installation and Removal

• It is highly recommended to use a new unformatted hard drive or a hard drive formatted as NTFS file system. The maximum supported storage capacity of the hard drive is 2TB.
• Before installing or removing the internal HDD, please disconnect the power supply from the Capture Box to avoid data loss.
• Removing internal HDD immediately after powering-off may cause personal injury due to heat. Please wait until the HDD cools down completely (it takes approximately 10 minutes) before any attempt to remove it.

To install the internal HDD:

Step 1

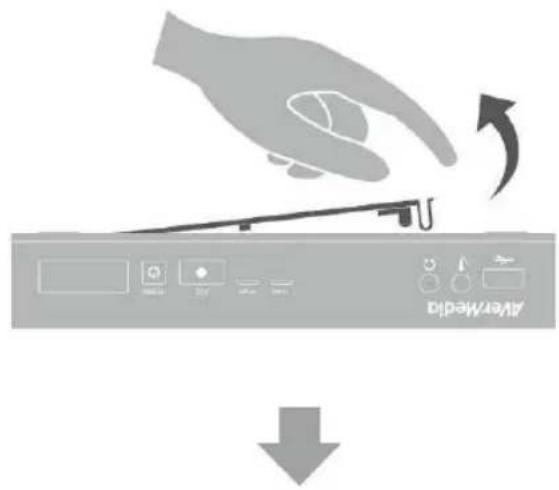

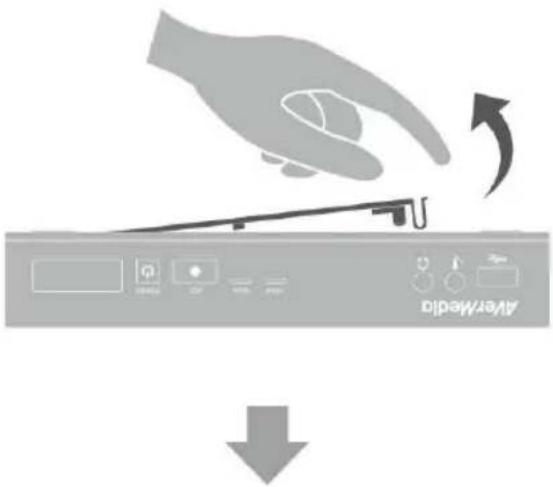

Remove the HDD Lid

Open the HDD lid on the bottom of the Capture Box.

AlverMedia

Step 2

Before Installing Internal HDD

Use the measuring card to measure the height of your HDD (7mm or 9.5mm).

- Please refer to the Appendix C for the measuring card.

Two hands holding a card and a small object, no text or symbols visible

English-21

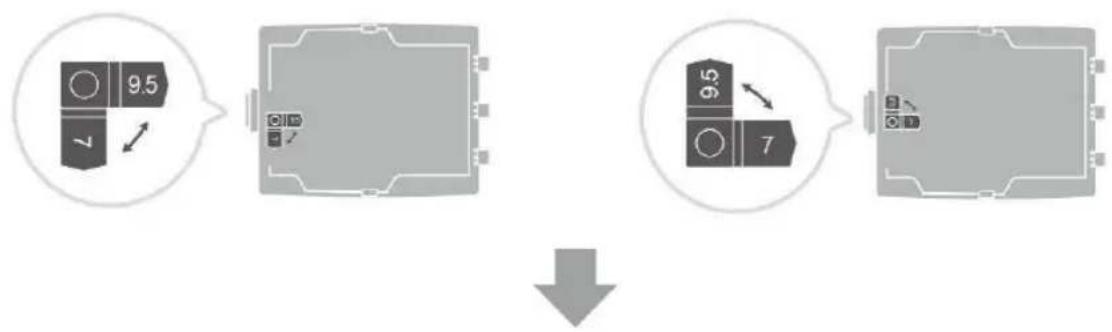

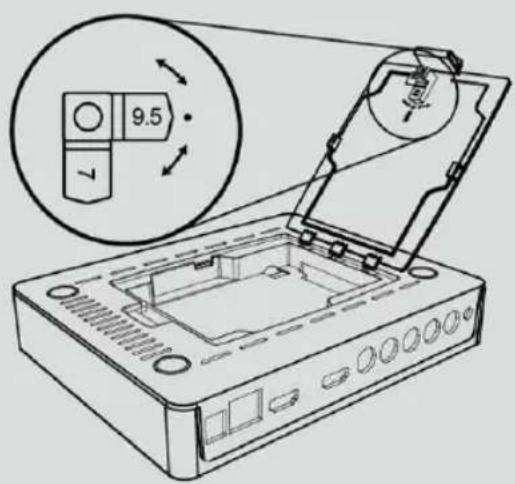

Adjust the rotary knob attached to the inner side of the lid to fit the height of your HDD.

The default position of the rotary knob fits HDD with 9.5mm height. If you use HDD with 7mm/9.5mm height, rotate the rotary knob to the other direction.

Using a 9.5mm HDD:

Using a 7mm HDD:

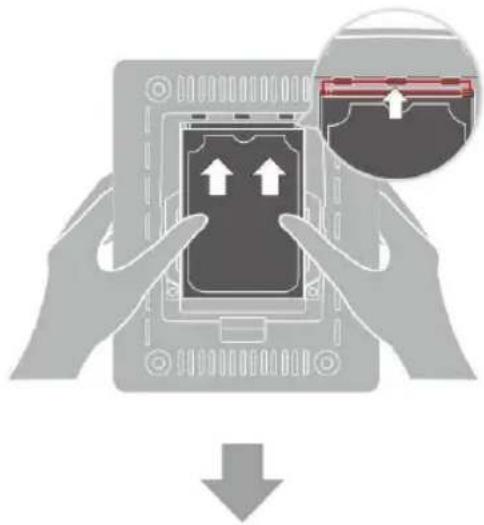

Step 3 Inserting the HDD

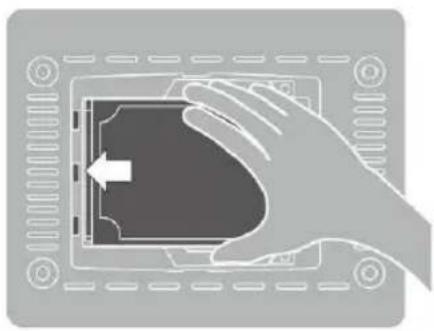

Place the HDD on the slot with the sticker-side facing up and the HDD connector end facing to the left.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Align and insert the HDD connectors all the way into the SATA connector. Push in firmly to secure them.

Illustration of hands holding a computer monitor with an inset showing a close-up of the screen (no text or symbols)

Step 4

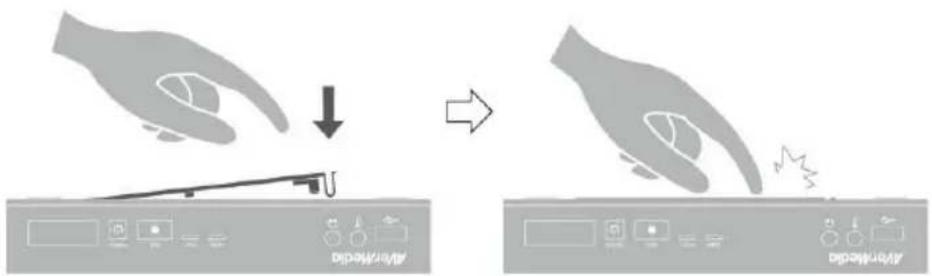

Replace the HDD Lid

Place the HDD lid back and snap it into place.

Diagram illustrating hand positioning and dislocation process with labeled icons for 'Dislocation' and 'Turn'.

To remove the internal HDD:

Step 1

Remove the HDD Lid

Please wait until the HDD cools down completely (it takes approximately 10 minutes) before any attempt to remove it.

Use your fingertip to flip open the HDD lid, located on the bottom of the Capture Box.

Lift off the lid and set it aside.

AverMedia

Step 2 Removing the HDD

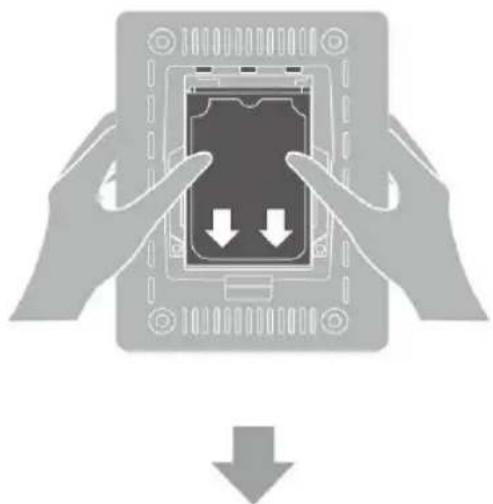

Pull the HDD out in the direction of the arrow. Then lift the HDD out of the slot.

Illustration of two hands holding a device with downward arrows indicating a process or operation (no text or symbols present)

Step 3 Replacing the HDD Lid

Place the HDD lid back and snap it into place.

Diagram illustrating the process of removing a device from left to right, showing hand positioning and explosion effects.

- It is typical that after a hard drive is formatted, the actual disk space of the drive would be slightly less than its unformatted capacity.

4.4 Setup Wizard

When the first time you power on the Capture Box unit, the setup wizard appears. The following steps guide you through the initial configuration process.

• Make sure to install a hard drive (internal or external) and to connect to the internet beforehand.
• For the first-time initialization, a short duration of black screen (approximately 20 seconds) is followed by AVerMedia logo. The blinking green status light indicates that the Game Capture HD II is starting up. Please wait until the welcome screen appears.

Step 1 Setting up Language

When the welcome page appears, use ▲/▼ to select your preferred language. Press OK to confirm.

Welcome to Use Game Capture HD II Please select language. English 英语中文 Český Deutsch Español OK Next AIVerMedia

English-25

Step 2

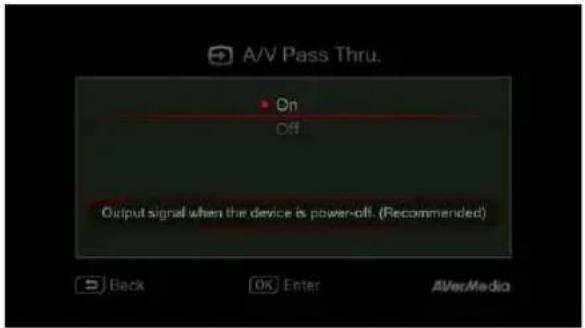

A/V Pass Thru.

It is suggested that A/V Pass Through to be turned ON.

Step 3 (1)

Reminder

Make sure a NTFS-formatted hard drive is connected or installed to the device. (For details, see Chapter 4.2)

Check the connection of network.

Press OK to start setup.

A router which supports DHCP IP network is recommended. Also, refer to Ch. 6.2 for Manual connection setup.

A/V Pass Thru. • On Off Output signal when the device is power-off. (Recommended) Back OK Enter AverMedia

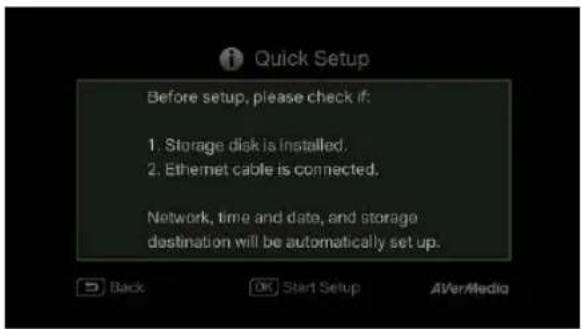

Quick Setup Before setup, please check if: 1. Storage disk is installed. 2. Ethernet cable is connected. Network, time and date, and storage destination will be automatically set up.

Step 3 (2)

Network Connection Failure

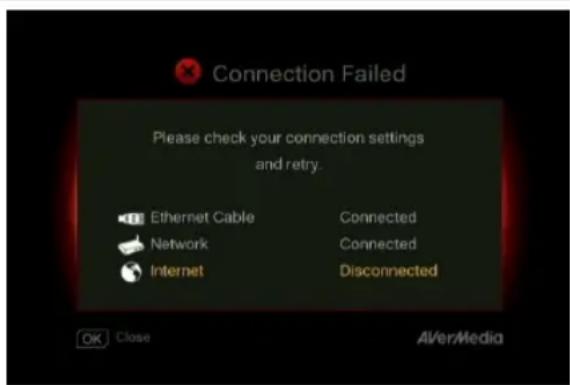

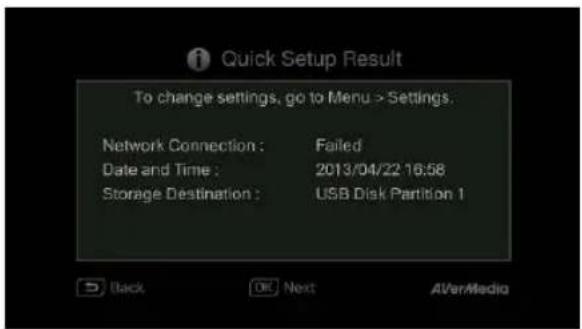

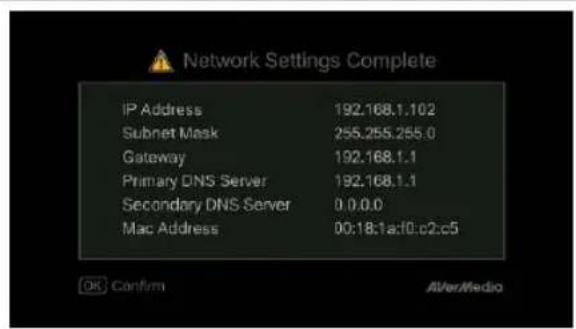

If you have not connected to a valid network, a short result of failed network connection will be shown.

Press OK to continue.

BACK

Press to go back to the previous page.

Quick Setup Result To change settings, go to Menu > Settings. Network Connection : Failed Date and Time : 2013/04/22 16:58 Storage Destination : USB Disk Partition 1 Back OK Next After/Media

Step 4 (1)

No Hard Drive Detected

If you have not yet installed any storage device, install it before continuing the setup process.

BACK

Then press to go to the previous screen and press OK to run disk checking process.

Settings Unfinished Unable to use Recording and Snapshot functions. Go to "Menu > Settings" to set storage destination later.

Step 4 (2)

Finishing Setup Wizard

Once a NTFS-formatted hard drive is connected, a Settings Complete notice will be shown.

You can start to record and take snapshot right away. Press OK to exit the wizard and start using Capture Box. The game screen then appears.

Settings Complete Game Capture HD if is ready to use. Main Operations: Open/close menu Start/stop recording Snapshot Back OK Start using AfterMedia

• Unplug the Capture Box from the power supply before installing an internal HDD.
• Sometimes the connection test in Wizard will appear to be failed even though you have connected the RJ45 cable to the Capture Box. Go to Menu> Network> Network Settings> Manually Setup to set the network manually.

4.5 Video Output Settings for Game Consoles

The Capture Box supports YPbPr / HDMI input resolution up to 1080p.

4.5.1 Video Output Settings for PlayStation 3

Step 1

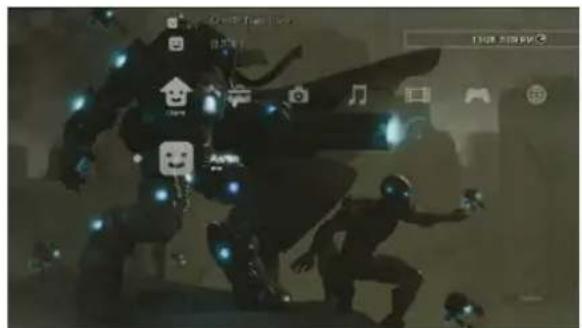

Power on your PlayStation 3 console.

On your console, go to Settings > Display Settings > Video Output Settings.

10/23 5:59 PM Video Output Settings Select by: SmartBox (RGB) Cancel/Boost Response - RGB SmartBox USB Fiber Resolution Filter USB Full Range (HDMI) V ProTidy PhO Suprem White (HDMI) Drop Color Origin (HDMI)

Step 2

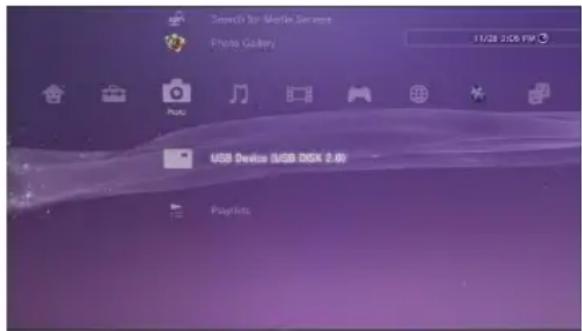

Select Component/D-terminal and confirm the selection. Then your TV screen goes blank immediately.

Now use your TV remote to switch the TV input source to Component (YPbPr). The screen then comes back on again.

Video Export Settings Enter the type of conversion on your PC. COM/0 Component / Do-Termostat Compatible / 25 V/Hz AV MULTI / CHART True image content should be a type of conversion on your PC. For all types of conversion are not only available.

Step 3

Check ALL the resolutions.

Confirm the setting.

Video Output Settings Audio and audio/other that are compressed by your file □ Format (RGB) □ 10Hz □ 120Hz □ 150Hz □ 180kHz The audio format is named, the audio of the video, other to be used and designed per image or image format. □ Soft Beauty X Cancel Delete

Step 4

Select Set Audio Output Settings.

Select Audio Input Connector/SCART/

AV MULTI as audio output.

Confirm the setting.

TODS RCD PR re on Playsetsettest Audio Output Settings Select the audio to set music, then set music. Get the audio format when matching audio to play the music. • 5.00000000000000000000000000000000000000000000000000000000000000000000000000000000000000 • Any Data

4.5.2 Video Output Settings for Xbox 360

• Before resetting video output for XBox 360, make sure to properly connect the Capture Box with your Xbox 360.
  ● Make sure to power off both the Capture Box and your Xbox beforehand.
• Supported resolutions vary depending on the TV in use. For details, please refer to the documentation that comes with your TV.

Power on your Xbox console.

On your console, go to My Xbox on the dashboard and scroll all the way to the right to System Settings.

Then select Console Settings > Display > HDTV Settings.

System Settings ! Console Settings Kinect Settings Storage Network Settings Computers TV Abox LIVE Vision Initial Setup Change your Xbox 360 contains settings, including display, auding language, and remote control.

• Please set the audio output of all game consoles as auto.
• Although the Capture Box do not support DOLBY 5.1 and 24p resolution video/ audio format, you can still pass through these format while the Capture Box is off.

Chapter 5 Basic Operation

This chapter guides you to record gameplay, capture images, add voice commentary to videos, and instantly play files.

- All the recorded files or snapshots will be saved to the default hard drive destination automatically. Please see Chapter 6 for details.

5.1 Record and Capture

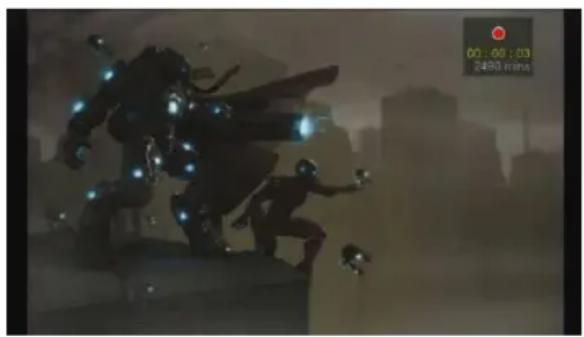

The Capture Box lets you record, capture and adds voice commentary to the videos. Instructions are given as follows.

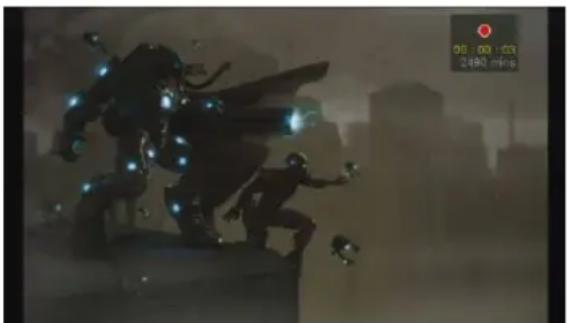

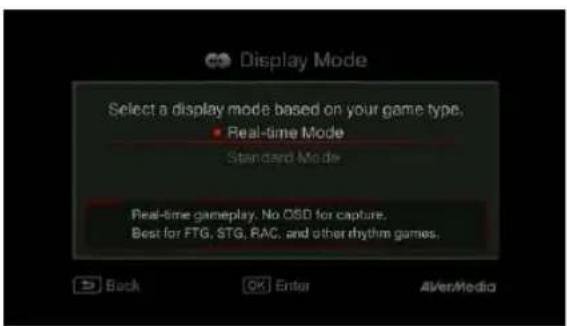

The Capture Box displays gameplay in real-time and standard mode. You can change the default real-time mode to standard mode. Go to Menu> Settings> Display Mode. (Refer to Chapter 6.2 for details.)

OSD Menu

Silhouette of a futuristic robot-like figure in a cityscape with a digital clock showing 00:00:03 and 2490 mins (no readable text or symbols on the robot or background)

Descriptions

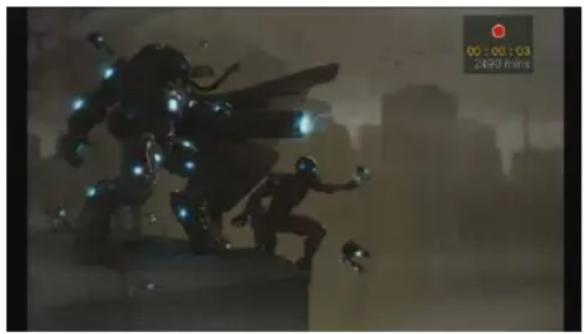

Instant Recording During Gameplay

Press

to activate instant recording.

Press

again or □ to stop recording.

Silhouette of a futuristic robot-like figure in a dimly lit urban setting with city skyline in background (no visible text or symbols)

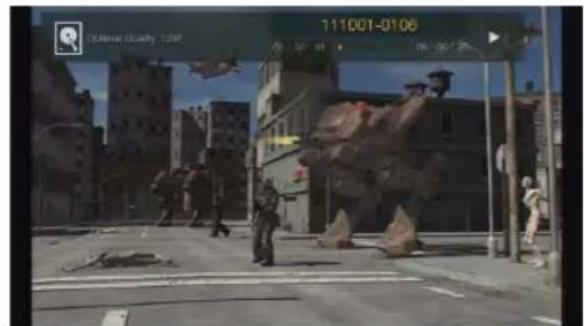

Pause and resume recording

You can skip unwanted footages and resume recording. Only the footages you recorded will be saved and those skipped clips will be deleted automatically.

Press

to pause recording.

Press

or to continue recording.

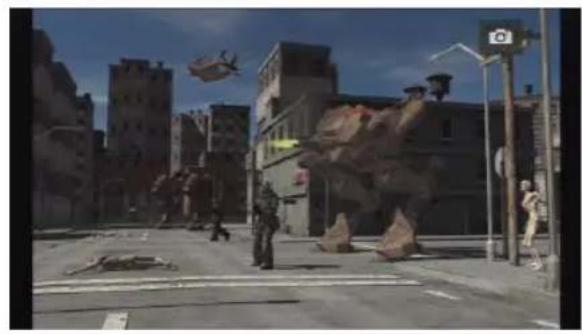

Street scene with debris, a helicopter flying, and urban buildings in the background (no visible text or symbols)

111001-0106 C:\Serial\Cloudy 1.00P 32:45 08:00 08:00

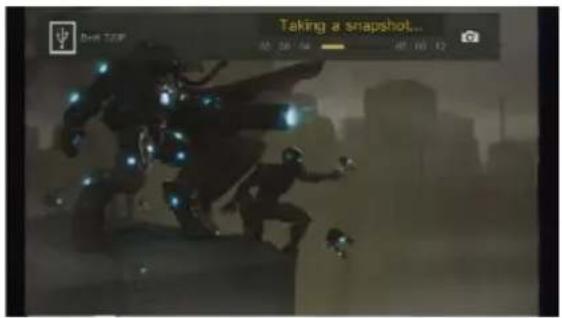

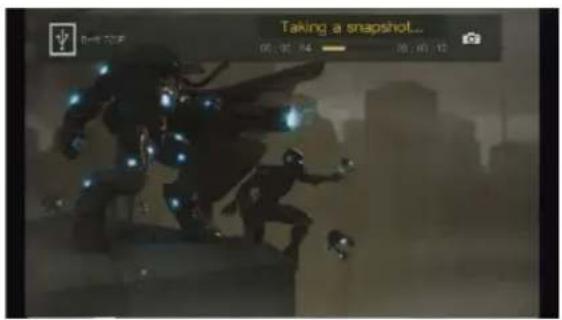

Taking a snapshot...

Quick Snapshot During Gameplay

Press to capture current image.

Long Press to activate continuous capture mode. The Capture Box will take 5 snapshots at one time.

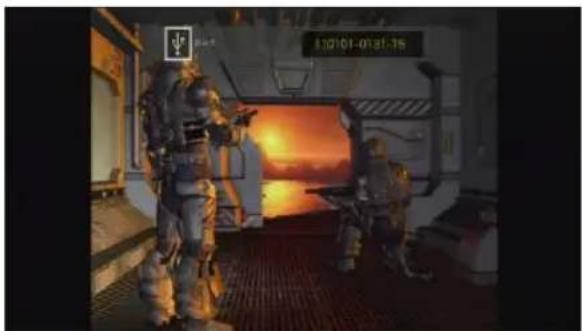

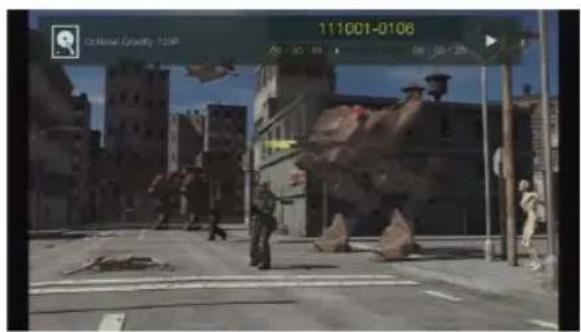

Instant Playback

RECALL

Press to play the latest recorded file or

view the last captured image.

Press ☐ to stop the playback.

Press ▶ to skip forward 30 seconds.

Press ◀ to skip backward 10 seconds.

Image Capture During Video Playback

Way 1:

Press to capture current image.

Way 2:

Step 1:

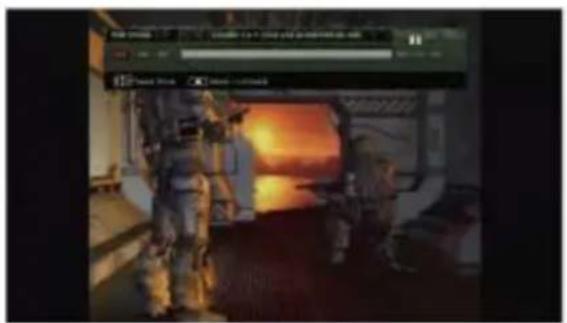

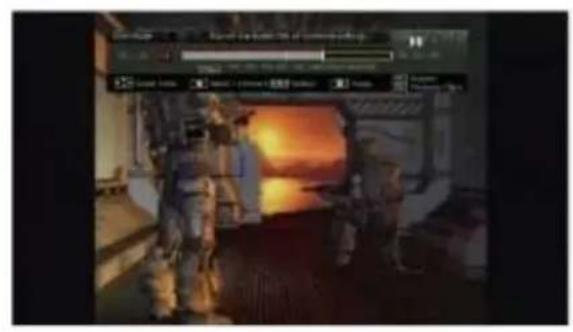

Press play the video in slow motion (1/2x). Press gain to view the video frame by frame.

or

Press 📄 to pause the playback. Press to go to previous frame; press 📄 go to next frame.

Step 2:

Press to capture your desired image.

Local HDD Partition1 Capacity: 261.7G Used space: 83.2G Free space: 178.5G F1 Formatting AlVerMedia

Disk Information

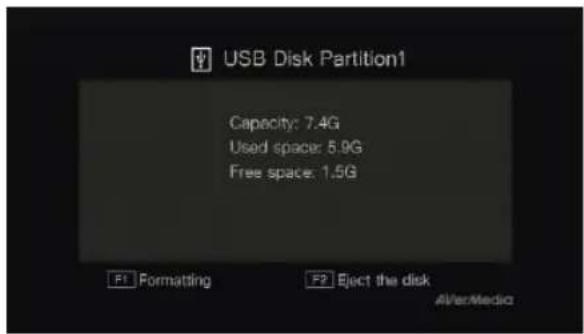

Press 📄 en press OK to display the disk information. Press again to hide it.

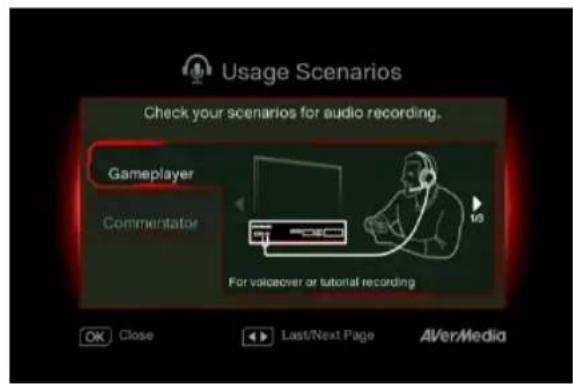

5.2 Adding Commentary

This section shows you how voice commentary is added to your video recording.

Requirements for headset/microphone:

Headset

Connector: 3.5mm jack

Microphone

Frequency Response : 20-16kHz

Impedance: 2.0 KΩ

Working Voltage: 3V

Connector: 3.5mm jack

OSD Menu

Microphone On 1. Mix game sound and commentary. 2. Auto switch to the real-time display mode. 3. Remove the mic to turn it off. OK 长量调整 F1 Usage Scenarios AIVer/Media

Descriptions

Microphone On

An OSD will be shown if you connected microphone/ to the Capture Box. Your commentary will only be recorded when you press .

Press to record your gameplay with

commentary.

Press or to stop recording.

• If headset or microphone is plugged in during the Wizard Setup, the sound can only be heard from your headphone and instructions on voice commentary will not be displayed. Therefore, plug in headset or microphone after you complete Wizard setup so as to follow the headphone/ microphone instructions.
• All commentary added will be mixed with the gameplay sound. Also, as long as the headphone is connected to the device, all your commentary and background sound will be recorded. Therefore, remember to stop recording and remove the headphone when no commentary is needed.
• If the microphone is disconnected/ connected to the Capture Box during recording, the sound will also be recorded. To make sure the Please avoid plugging off the microphone during recording process.
• The volume you hear in the commentary test may be slightly different from the actual recording. It is recommended that you run an mock test beforehand to be familiar with the recorded volume.
• It is normal to hear your own voice when recording with HDMI input source.
• No OSD will be shown when you connect only the headphone to the Capture Box.

Chapter 6 OSD Menu

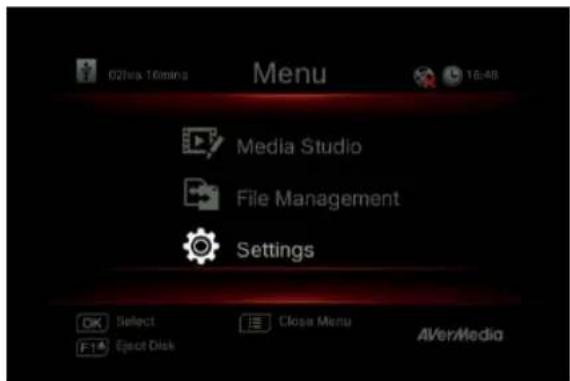

Under the menu, you can check and manage both your recorded files and snapshots, and customize your preferences.

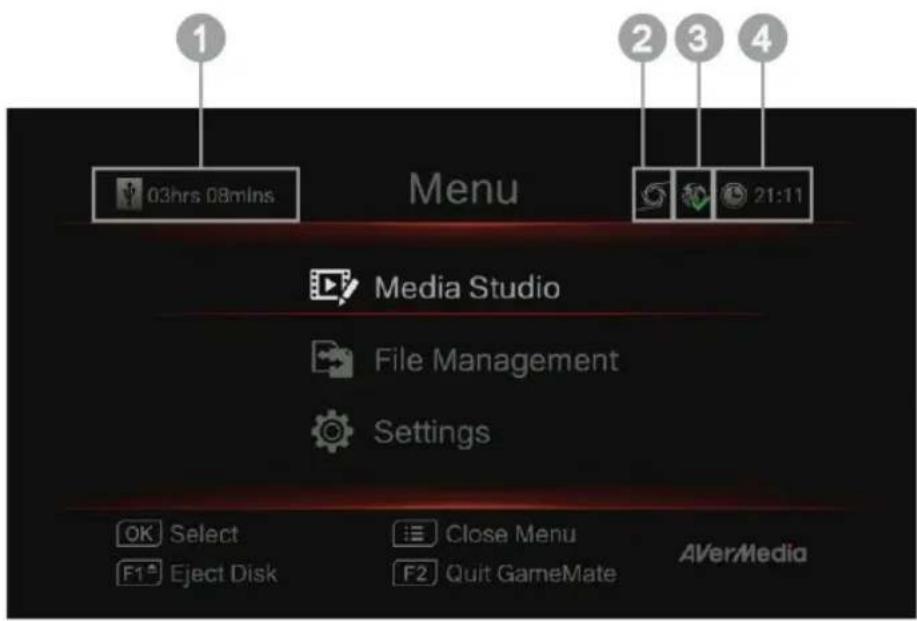

1 03hrs 08mins Menu 2 3 4 Media Studio File Management Settings OK Select F1 Eject Disk Close Menu F2 Quit GameMate AVerMedia

1 Remaining Time for Recording
2 Connecting to GameMate

OSD Menu

02 hrs 16 mins Menu Media Studio File Management Settings OK Select Close Menu AVer/Media F:14 Exact Disk

3 Network Connection
4 Current Time

Descriptions

Basic Operation

Press MENU to bring up the menu. Press MENU BACK to return to the game

screen.

Use ▲/▼ to make selection on the menu and OK to enter a submenu.

In the submenu, use ▲/▼ to make selection and OK to confirm. Press BACK to return to the previous page.

Press F1 to safely remove the storage device..

*The upper left corner shows your current default storage device and available remaining recording

6.1 Media Studio

You can check both recordings and snapshots captured by the Capture Box in "Media Studio".

Capture Format:

Video

MP4 (Codec: H.264 format with AAC audio)


JPEG

- It is recommended that you view only videos and snapshots that are recorded by the Capture Box. Attempt to open files taken by other equipment (such as a camera) on the Capture Box is very likely to fail.

OSD Menu

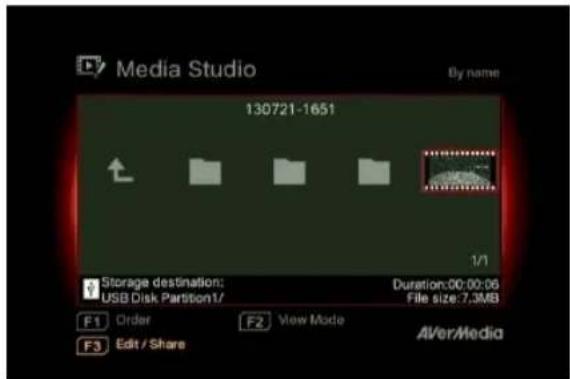

Media Studio By name 130721-1651 Storage destination: USB Disk Partition1/ F1 Order F2 View Mode AVer/Media File size: 7.3MB

Descriptions

Navigating

Use the navigation keys ◀/▶/▲/▼ to select among items.

Press F1 to sort the files by file name, file size, or file format.

Press F2 to switch between list mode and thumbnail mode.

Press F3 to rename, edit, share the highlighted file.

Press go to the next page.

Press return to the previous page.

Press MENU to directly access the main menu.

111001-0106 Optive Quality TRIP

Video Playback

Press ▶ or OK to start playing the selected video.

Press ■ or OK to pause the playback. Press

or OK to resume playback.

Press play the video in slow motion

(1/2x).

Press to rewind at 2x, 4x, 8x, 16x, 32x speed. Press to fast forward at 2x, 4x, 8x, 16x, 32x speed.

Press play the file at normal (1x) speed when slow motion, rewind, or fast-forward is active.

Press to stop the playback.

Press to display the playback

information, including storage disk, recording resolution, duration, elapsed and remaining time, and file name.

* Only video files captured by the Capture Box are supported.

Interior of a futuristic spacecraft or space station with two astronauts in spaces, one standing and one in foreground, under a bright sky (no visible text or symbols)

Snapshots Viewing

Press ▶ or OK to view the selected image. Press STOP BACK to return.

* Only image files captured by the Capture Box are supported.

6.1.1 Post- Edit Capture Box Recorded Videos

This section shows you how to cut, recombine and share videos on YouTube recorded by the Capture Box.

OSD Menu

Media Studio By name 130721-1651 Storage destination: USB Disk Partition1/ F1 Order F2 View Mode F3 Edit / Share Duration:00:00:06 File size:7.3MB A/Ver/Media

Descriptions

Select a Video

Select the file you would like to edit by using the navigation keys ◀/▶/▲/▼.

Edit / Share Change File Name Edit Recordings Share on YouTube

Edit/ Share

Press F3 to edit or share the selected video.

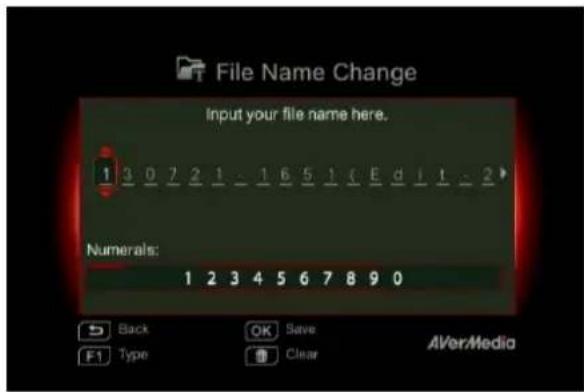

File Name Change Input your file name here. 1 3 0 7 2 1 - 1 6 5 1 ( E d i 1 - 2 ) Numerals: 1 2 3 4 5 6 7 8 9 0 Back OK Save F1 Type Clear AVer/Media

Change File Name

Input your file name by using the navigation keys ▲/▼ to select characters, numerals or symbols. Use the navigations keys ◀/► to go to the next/ last character.

Press F1 to switch between characters, numerals and symbols.

Press BACK to go back to cancel the change you made.

Press OK to save the edited file name. Press 10.5 year all.

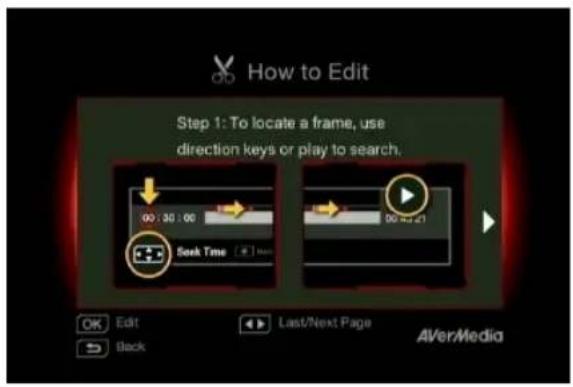

How to Edit Step 1: To locate a frame, use direction keys or play to search. Seek Time [ ] OK Edit Last/Next Page AVer/Media Back

How to Edit

An instruction on how to edit a video will be displayed, press OK to start editing.

Edit Mode

You can cut and recombine your selected video in Edit Mode.

To cut the video, you will need to create one or more segments within the video.

Step 1:

To locate a scene, use direction keys or search the scene.

You can also use navigation keys ▲/▼ to search scene by specific hour, minute, and second on the left hand side of the screen.

Interior view of a spacecraft with crew members observing a glowing orange-lit environment (no visible text or symbols)

Press OK to mark or unmark the scene.

Step 2:

Repeat Step 1 so as to create a segment.

Press OK to keep or delete the segment.

Press F1 to switch between Search Scene and Segment search.

Press F2 to clear all marks you made on the video.

Press F3 to export the video.

Interior view of a spacecraft with crew observing a glowing orange glow in the sky (no visible text or symbols)

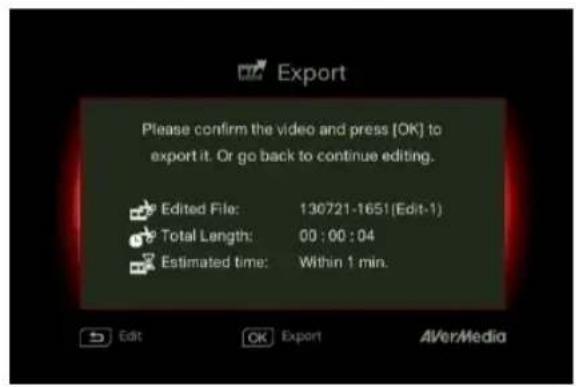

Export Please confirm the video and press [OK] to export it. Or go back to continue editing. Edited File: 130721-1651(Edit-1) Total Length: 00 : 00 : 04 Estimated time: Within 1 min.

OSD Menu

Exporting... Processed time : 01mins 130721-1651(Edit-1) 0% Cancel F1 Hide Status AVerMedia

Preview

The Capture Box automatically recombines the segments you choose to keep during editing.

Export

The estimated time varies by different storage disks. Refer export time to the actual use of your storage disk.

Press OK to export the video.

BACK

Press to continue editing.

Descriptions

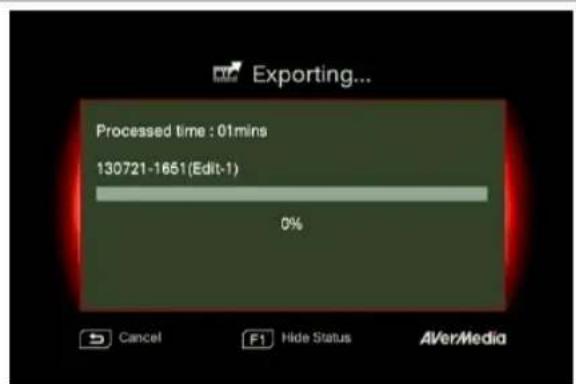

Exporting...

The bar in the middle shows the progress of video exporting and estimated time.

Click on to cancel exporting.

Click on to hide the exporting information.

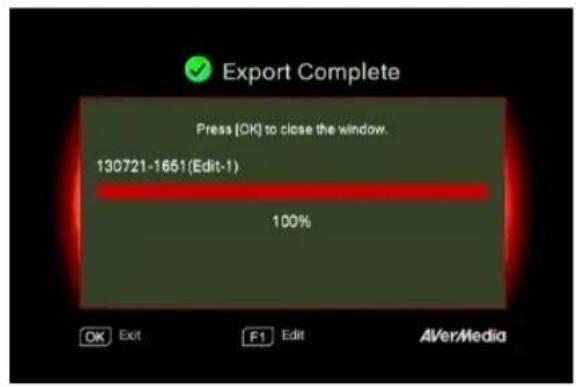

Export Complete Press (OK) to close the window. 130721-1651(Edit-1) 100% OK Exit F1 Edit AVer/Media

Exit

Press OK to exit from the editing mode.

BACK

Press to exit

Press F1 to continue editing.

OSD Menu

Edit / Share Change File Name Edit Recordings Share on YouTube Back OK Select AVerMedia

Descriptions

Share Videos on YouTube

Use ▲/▼ to select the task you would like to undergo. Select 'Share on YouTube' to share your videos.

Notice 1. To ensure the stability of uploading, please upload videos that are within one hour. 2. Upload videos longer than 15 mins, make sure the YouTube account has been verified or the file size will be confined. Back OK Confirm F1 Don't Remind Again AlVerMedia

Share On YouTube

Before you share your recorded videos on YouTube, make sure you:

1. Built a YouTube account and also a personal channel.
2. Have your PC/ NB next to you if you activate two-step verification of your YouTube account.

To ensure the stability of uploading, upload videos that are within one hour.

Make sure the YouTube account is verified to upload videos that are longer than 15 minutes.

BACK

Press to continue editing.

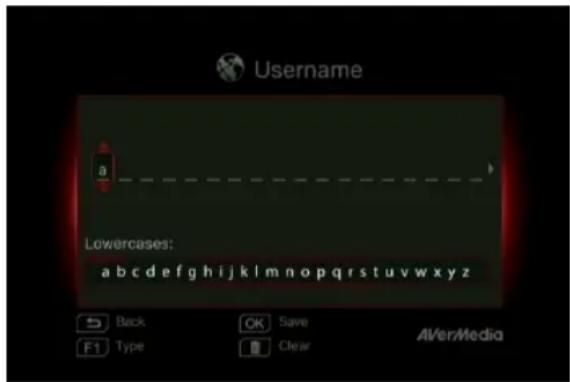

Username Lowercases: abcdefghijklmnopqrstuvwxyz Back OK Save F1 Type Clear AVerMedia

Press OK to continue uploading.

Press F1 to skip this reminder afterwards.

Account Setup

Use ▲/▼ to select the task you would like to undergo.

Press BACK to go back to last level.

Press OK to edit your email or password.

Press F1 to save the change you made.

Uploading Edit The file name will be set as the title. Visit YouTube official page if you want to change the title. Title 130707-2315 Privacy Public YouTube Account [e-mail] Cancel OK Start Uploading AVer/Media F1 Privacy Setting F2 Change Account

Edit Before Uploading

Press o return to the last page.

Press OK to start uploading.

Press F1 to set the privacy.

Press F2 to change account.

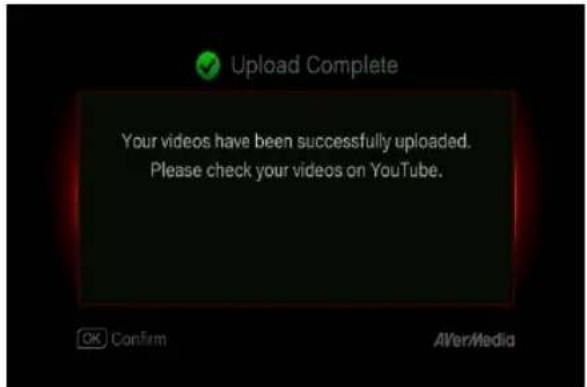

Upload Complete Your videos have been successfully uploaded. Please check your videos on YouTube.

Uploading Complete

You have successfully upload the video.

You can edit your video title on YouTube.

Press OK to confirm.

● The recommended length of each video should be less than 1 hour.
- The Capture Box is made for record and capture media materials that are legally owned or licensed by the user only. Uploading videos that are protected by copyright and other laws is not allowed. YouTube may shut down the account for copyright protection reason.
- YouTube account verification is required when you upload video that are longer than 15 minutes. Refer to YouTube website for further details.
- Occasionally, it takes two to three days for your videos to be shown on YouTube. Please wait for a few days if you did not see the uploaded videos online.

6.2 File Management

"File Management" lets you manage videos and snapshots captured by the Capture Box. You can copy files between internal hard drive and external USB storage device, and delete unwanted files. Before entering this submenu, insert your storage device first (USB 2.0/3.0 storage device / 2.5" HDD in NTFS format).

OSD Menu

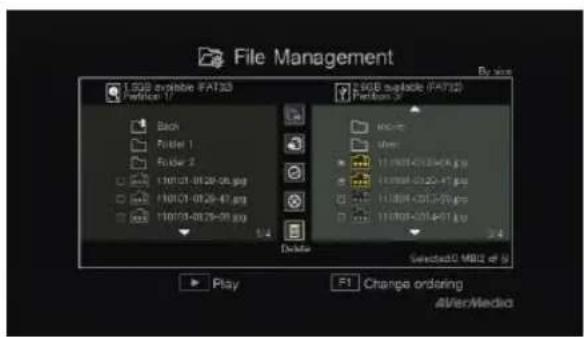

File Management 1250 available (FAT3D) Partition 1 1250-0135-41.jpg 1250-0135-29.jpg 1250-0135-26.jpg 1250-0135-44.jpg 1250-0135-14.jpg 1250-0135-13.jpg File Size: 48.7KB Select: 0.0 KB / 0.1 KB Play Change ordering AVerMedia

Descriptions

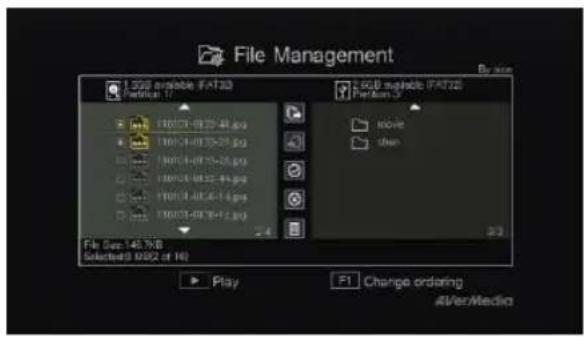

Select Partition

Use the navigation keys ◀/▶/▲/▼ to select the partition.

Press ▶ playback the video.

Press F1 to change the file sorting rule.

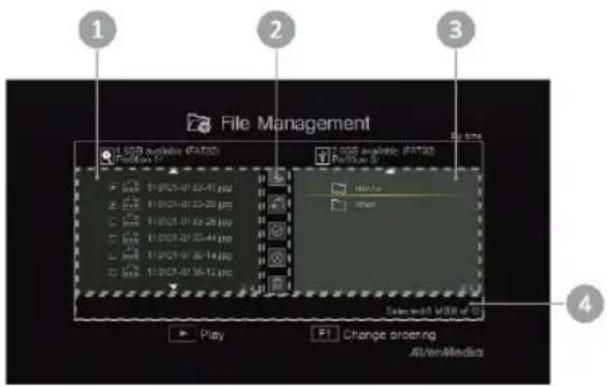

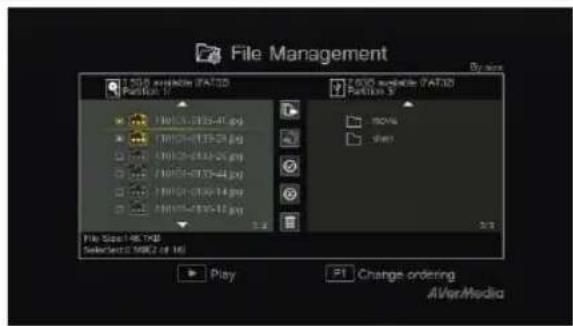

File Management User Interface:

File Management 1 SGB available: MPB Position 1 2 SGB available: MPB Position 2 3 SGB available: MPB Position 3 4 Play F1 Change ordering All/Ver/Media

1 A list displaying files located on the internal hard disk
2 A set of editing tools
3 A list displaying files located on the USB disk
4 Information display area

Descriptions on Editing Tools:

# Buttons		Descriptions
1		Copy files to USB disk
2		Copy files to internal hard disk
3		Select all
4		Deselect all
5		Delete

OSD Menu

Descriptions

File Management 1.000 available (FAT32) Partical 17 19803-0825-41.jpg 19803-0825-25.jpg 19803-0825-26.jpg 19803-0825-44.jpg 19803-0825-14.jpg 19803-0825-12.jpg 24 File Edit: 146,7KB Selected: 0.002 of 16 2.6GB upplable (FAT32) Partion 3 move down 3/3 Play F1 Change ordering AVer/Media

File Copied Press [OK] to close the window. OK Close 4VerMedia

File Management 1.5GB available (FAT33) Perfion 1 Back Folder 1 Folder 2 110121-0129-06.jpg 110121-0129-07.jpg 110121-0129-08.jpg 110121-0129-09.jpg 1.4 Delete 2.4 By size 2.6GB available (FAT33) Perfion 3 Backlog User 11:00:01:00:04.jpg 11:00:01:20:47.jpg 11:00:01:30:59.jpg 11:00:01:47:9.jpg Selected: U MB2 of N Play F1 Change ordering AllVer/Media

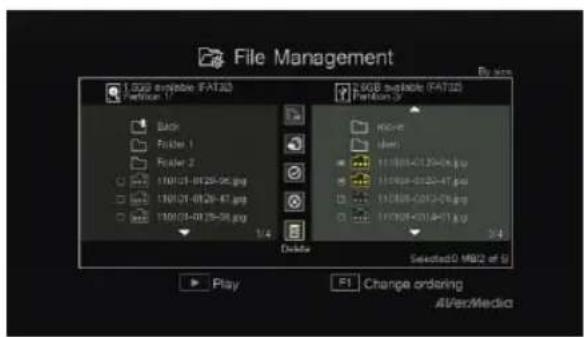

Copying Files from Internal HDD to USB Disk

Step 1:

On the left-side list, use ▲/▼ to highlight the file that you want to copy to USB disk. Press OK to select / unselect an item.

Select and press OK to select all files. Select and press OK to deselect all files.

Step 2:

Select 📄 and press OK to copy selected file(s) to USB disk.

Press BACK to cancel copying the files in a progress.

Step 3:

Press OK.

Copying Files from USB Disk to Internal HDD works in the opposite way as above mentioned.

*If the file is comparably large, press F1 to hide the copying or deleting status.

Deleting Files

Step 1:

Use ▲/▼ to highlight the file(s) that you want to delete. Press OK to select/unselect an item.

Select and press OK to select all files. Select and press OK to deselect all files.

Step 2:

Select and press OK to remove the file from the list.

File Deleted Press [OK] to close the window. OK Close AlVerMedia

USB Disk Partition1 Capacity: 7.4G Used space: 5.9G Free space: 1.5G F1 Formatting F2 Eject the disk AllverMedia

or

Press 📄 the remote and then press OK to remove the file from the list.

Press BACK to cancel deleting the files in a progress.

Step 3:

Press OK.

USB Storage Device Removal

In order to avoid data loss, it is highly recommended to safely remove your external storage device. Please follow the steps below:

Step 1:

Press DISKINFO in the remote control.

Step 2:

Press F2 to remove it.

6.3 Settings

You can customize your preferences in "Settings".

OSD Menu

02hrs 16mins Menu Media Studio File Management Settings OK Select F14 Eject Disk Close Menu AVerMedia

Descriptions

Basic Operation

Use ▲/▼ to select a preferred category. Press OK to make a selection.

BACK

Press ↩ to return to the previous page.

MENU

Press directly access the main menu.

Press F1 to safely remove the storage device.

OSD Menu

Language English 英語中文 Cocky Deutsch Español EMynokni Back Save setting AlVerMedia

Descriptions

Language

Use ▲/▼ to select your preferred language. Press OK to confirm.

OSD Menu

Display Mode Select a display mode based on your game type. Real-time Mode Standard Mode Real-time gameplay, No OSD for capture, Best for FTG, STG, RAC, and other rhythm games.

Descriptions

Display Mode

The default mode is set as real-time mode.

Use ▲/▼ to switch between real-time and standard mode.

Silhouette of a futuristic figure with dynamic pose, surrounded by glowing elements against a cityscape background (no text or symbols visible)

Real-Time Mode

Real-time mode lets you play games with zero delay. And it is best for FTG, STG, RAC, and other rhythm games. No recording or snapshot status will be shown on screen. All capture work will run in the background.

However, if any problem occurs during the capturing process, OSD will automatically jumps out.

MENU

Press to check OSD and track capture status.

Silhouette of a futuristic armored figure with glowing elements, set against a cityscape background (no visible text or symbols)

Standard Mode

In standard mode, on-going recordings will be shown in the upper right corner of the screen. As there will be slight delay in game, standard mode is recommended for ACT, RPG, and SLG games.

- Black screen may occur when calling for Menu in real-time mode. And the pause varies by TV type.

OSD Menu

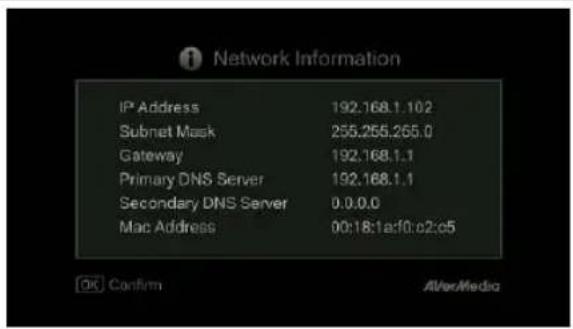

Network Network Settings Network Connectivity Test Current Network Information A wired network from router is recommended. Modem — Router — Capture Box Back OK Enter AfterMedia

Descriptions

Network Settings

Use ▲/▼ to move among options. Press OK to confirm. Before setup, please make sure the Ethernet cable is well connected.

Settings Language: English Display Mode: Real-time Mode Network: Auto Setup Date and Time: 2013/04/22 17:04 Disk Management: USB Disk Partition 1 Microsoft Phone: No more than 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Back OK Enter All/Ver/Media

Auto Setup (Recommended):

It is recommended to use Auto Setup to automatically obtain IP and DNS addresses.

Manual Setup IP Address 0.0.0.0 Subnet Mask 253.255.255.0 Gateway 0.0.0.0 Primary DNS Server 0.0.0.0 Secondary DNS Server 0.0.0.0 Back OK Edit AVerMedia F1 Save and Test

Manual Setup :

Use Manual Setup to manually configure IP and DNS addresses.

STEP 1:

Use ▲/▼ to select an item for configuration. Press OK to confirm.

STEP 2:

Use ◀/▶ to move among options and ▲/▼ to select a number. Press OK to confirm.

Press OK to save the setting.

Press BACK to cancel and return to the previous page.

STEP 3:

Press F1 to save the settings and test the network connectivity.

Subnet Mask 2 5 5 . 2 5 5 . 2 5 5 . 0 0 0 Cancel OK Save AIverMedia

PPPoE Username No Data Password No Data Back OK Edit AVerMedia F1 Save and Test

Username Lowercases: abcdefghijklmnopqrstuvwxyz Back OK Save F1 Type Clear AVerMedia

Connection Failed Please check your connection settings and retry. Ethernet Cable Connected Network Connected Internet Disconnected OK Close A/Ver/Media

PPPoE:

Use username and password provided by ISP for connection.

STEP 1:

Use ▲/▼ to select an item for configuration.

Press OK to confirm.

STEP 2:

Use ◀/▶ to move among options and ▲/▼ to select a character.

Press F1 to switch among capital letters, lower cases, numbers, or signs.

Press OK to save the setting.

BACK

Press to cancel and return to the previous page.

Press delete selected characters and the character to the right.

STEP 3:

Press F1 to save the settings and test the network connectivity.

Network Connectivity Test

Select to test your network connectivity.

Please check the result and fix the problem indicated.

Press OK to confirm.

Network Settings Complete IP Address 192.168.1.102 Subnet Mask 255.255.255.0 Gateway 192.168.1.1 Primary DNS Server 192.168.1.1 Secondary DNS Server 0.0.0.0 Mac Address 00:18:1a:10:c2:c5 OK Confirm After/ Media

Network Connectivity Test

Once network setting is completed, a list of connection details will be displayed.

Press OK to confirm.

Network Information IP Address 192.168.1.102 Subnet Mask 255.255.265.0 Gateway 192.168.1.1 Primary DNS Server 192.168.1.1 Secondary DNS Server 0.0.0.0 Mac Address 00:18:1a:10:b:2:c:5 OK Confirm AfterMedia

Current Network Information

This page displays the current status of your network connection.

- If network is temporarily inaccessible, manually set up the time zone settings so that the videos and snapshots is named correctly.

OSD Menu

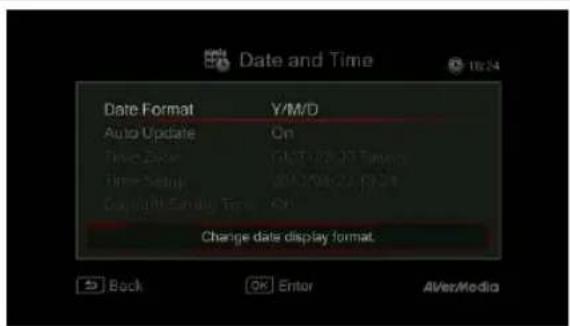

Date and Time Date Format Y/M/D Auto Update On Time Setup 14:07:02 17 Features Time Setup 30:00:02 17 Features Copyright Entry Type On Change date display format. Back OK Enter AVerMedia

Descriptions

Date and Time

Use ▲/▼ to select an item for configuration. Press OK to confirm.

Date Format Y/M/D M/D/Y D/M/Y Back Enter AI/VerMedia

Auto Update On Off Set Time As: Current Time + 01:00 Back OK Save AlVer/Media

Time Zone Select Area Africa America Arctic Asia Atlantic Back OK Enter AVer/Media

Time Setup Please confirm current Date and Time Settings. 2013 / 07 / 24 21 : 49 Back OK Save AVer/Media

Date Format:

Use ▲/▼ to select a preferred date format. Press OK to confirm.

Auto Update:

Use ▲/▼ to enable/disable automatic date and time update. Press OK to confirm.

*To use this function, a network connection is required.

Time Zone :

STEP 1:

Use ▲/▼ to move among options and select your area. Press OK to confirm.

STEP 2:

Use ▲/▼ to move among options and select your time zone. Press OK to confirm.

Time Setup :

Use ◀/▶ to move among options and ▲/▼ to adjust date and time. Press OK to confirm.

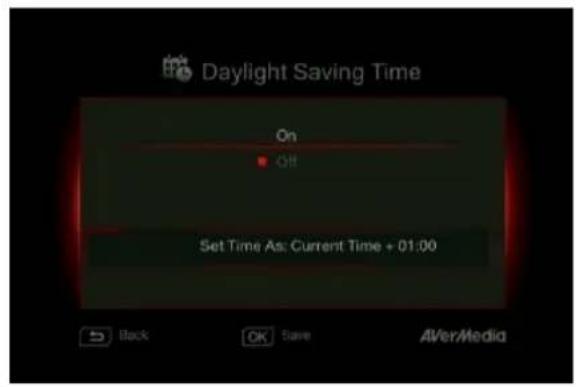

Daylight Saving Time On Off Set Time As: Current Time + 01:00 Back OK Save AVer/Media

OSD Menu

Disk Management Storage Destination: USB Disk Partition 1/ Disk Information: Back OK Enter AVer/Media

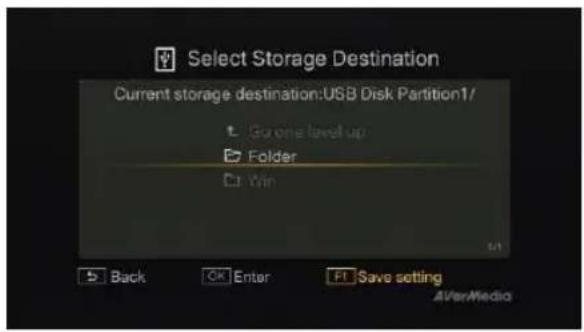

Select Storage Destination Current storage destination:USB Disk Partition1/ Go one level up Folder Win Back OK Enter F1 Save setting AVerMedia

OSD Menu

Daylight Saving Time :

Use ▲/▼ to enable/disable Daylight Saving Time. Press OK to confirm.

*To use this function, a network connection is required.

Descriptions

Disk Management

Storage Destination

Step 1:

Select and press OK to change your current desired default storage device for both recorded files and snapshots.

indicates normal write speed of selected partition;

indicates low write speed of selected partition. To

make sure recording functions properly, be sure to select partition with normal write speed.

Step 2:

Use ▲/▼ to select the preferred default storage device.

Step 3:

Use ▲/▼ to select a folder and press OK to confirm.

Step 4:

Press F1 to save the setting.

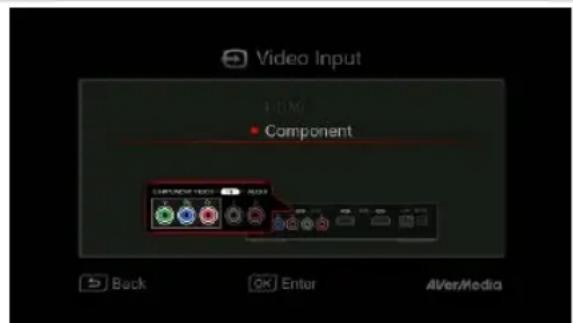

Video Input HDMI • Component DC/DC/DC/DC 100% Back OK Enter AVer/Media

Audio Input Stereo Audio COMPONENT VIDEO: AUDIO Back OK Select AVerMedia

Use ▲/▼ to move among options. Press OK to confirm.

Press 📧 to switch from component and HDMI input sources.

Video Input:

Use ▲/▼ to toggle between various video input source options (Component / HDMI).

Press OK to confirm.

Audio Input:

Use ▲/▼ to toggle between various audio input source options (Stereo Audio/ HDMI).

Press OK to confirm.

OSD Menu

A/V Pass Thru. On Off Output signal when the device is power-off. (Recommended) Back OK Enter AVer/Medio

Descriptions

A/V Pass Through:

Use ▲/▼ to enable/disable A/V Pass Through. Press OK to confirm.

*The default setting is set Off to yield to the power-saving regulation. If this function is enabled, Capture Box still output signal when the Capture Box is off. If this function is disabled, Capture Box does not output signal when the Capture Box is off.

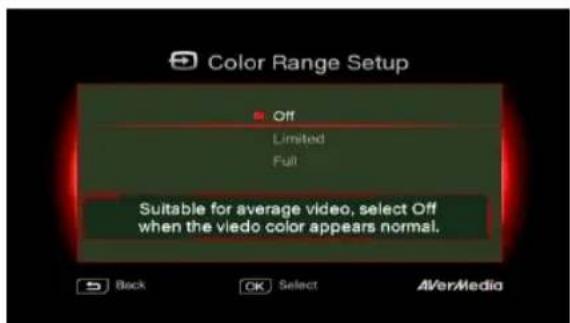

Color Range Setup Off Limited Full Suitable for average video, select Off when the viedo color appears normal. Back OK Select AVerMedia

Color Range Setup

Use ▲/▼ to toggle between off, limited, and full. Press OK to confirm.

OSD Menu

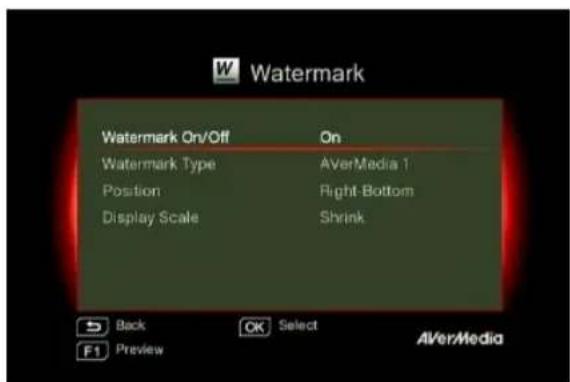

Watermark Watermark On/Off On Watermark Type AVerMedia 1 Position Right-Bottom Display Scale Shrink Back OK Select AVerMedia F1 Preview

Descriptions

Watermark

Add your selected watermark to your videos. You can customize the display of the watermark by setting up the type, position and also scale.

BACK

Press to go back to last level.

Press OK to enter the next level.

Press F1 to preview the display.

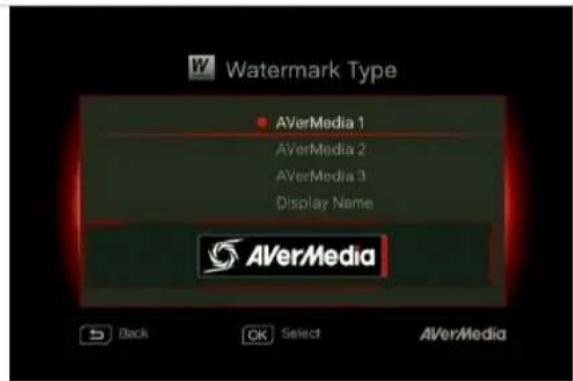

Watermark Type AVerMedia 1 AVerMedia 2 AVerMedia 3 Display Name AVerMedia Back OK Select AVerMedia

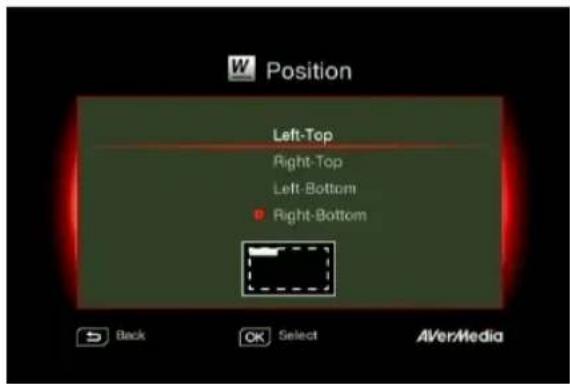

W Position Left-Top Right-Top Left-Bottom Right-Bottom Back OK Select A/Ver/Media

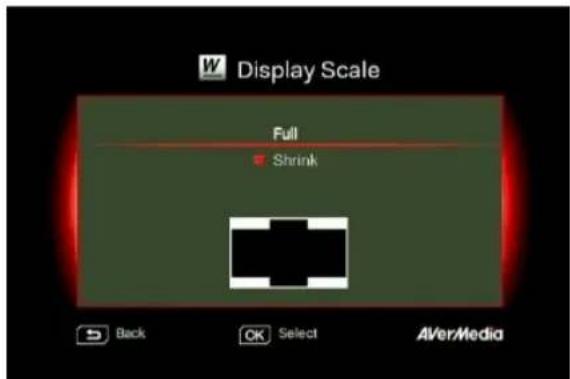

W Display Scale Full ■ Shrink 5 Back OK Select AVer/Media

Watermark Type:

Use to ▲/▼ select from the listed watermark types.

Press OK to save the change.

BACK

Press to go back to last level.

Position:

Use ▲/▼ to select from the listed watermark positions.

Press OK to save the change.

BACK

Press to go back to last level.

Display Scale

Use ▲/▼ to select the display scale.

Press OK to save the change.

BACK

Press to go back to last level.

OSD Menu

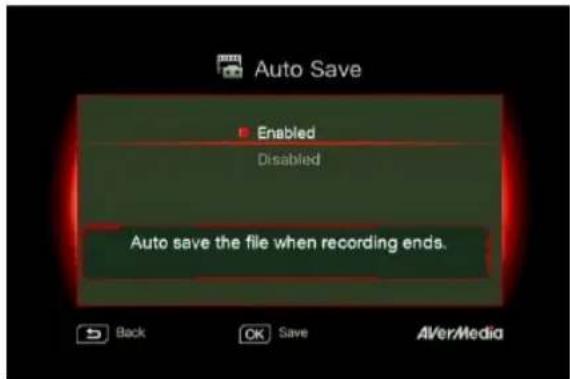

Auto Save Enabled Disabled Auto save the file when recording ends. Back OK Save AVer/Media

Descriptions

Auto Save

Use ▲/▼ to switch from enable or disable the Auto Save function.

Video Quality Optimal Good Max. rec. length Bitrate: 7.5 Mb/Sec Estimated recording length: 136 mins remaining Back OK Save Aver/Media

Recording/ Snapshot

Video Quality:

Use ▲/▼ to toggle among various video quality options (Optimal/ Good/ Maximum recording length). Press OK to confirm.

Snapshot Quality Best Better Good Best image quality (compression ratio: low) Back OK Save AVerMedia

Snapshot Quality:

Use ▲/▼ to toggle among various snapshot quality options (Best/Better/Good). Press OK to confirm.

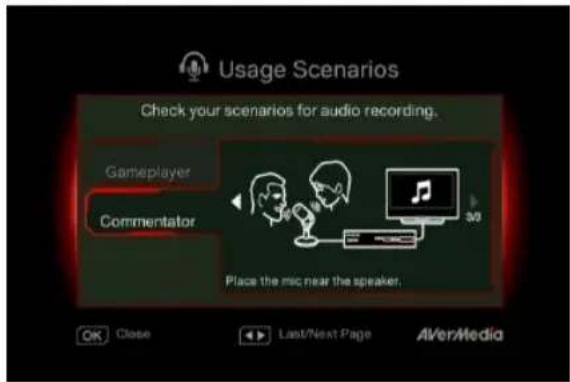

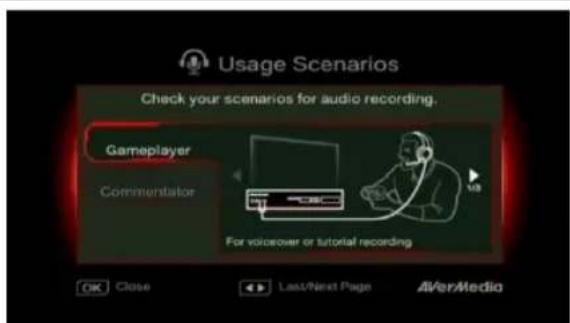

Usage Scenarios Check your scenarios for audio recording. Gameplayer Commentator For voiceover or tutorial recording OK Close Last/Next Page AVer/Media

Volume Mic Vol. 5 Headphone Vol. 5 Back OK Save AlterMedia Restore to default

Usage Scenarios Check your scenarios for audio recording. Gameplayer Commentator For voiceover or tutorial recording OK Close Last/Next Page AI/VerMedia

Usage Scenarios Check your scenarios for audio recording. Gameplayer Commentator Place the micro near the speaker. OK Close Last/Next Page AVer/Media

Live Commentary

A short demonstration will be played in this section.

Press OK to continue.

Volume:

Use ▲/▼ to move among options and ◀/► to adjust the volume.

Press OK to save the setting.

Press F1 to restore to the default setting.

Sound Mode:

Use ▲/▼ to select a preferred mode for mic recording. Press OK to confirm.

Gameplayer Mode will automatically switch game sound output to your headphone.

To ensure the optimal quality, please use both microphone and headphone for voice commentary recording.

Commentator Mode will record both game sound and voice commentary or voice chat from microphone during gameplay.

It is recommended to use an omni-directional or high-sensitive microphone.

OSD Menu

Firmware Upgrade Firmware Version:0.0.9 Firmware upgrade via USB storage device: 1. Copy the latest FW (downloaded from Product Section of www.avermedia.com) to USB root. 2. Connect USB storage device. 3. Press [F1] to start upgrading.

Descriptions

Firmware Upgrade

Follow the steps below to upgrade the firmware via USB storage device:

Step 1:

To download the latest firmware binary package, please go to www.avermedia.com, and then enter the model name in Product Search field. Firmware file is available on the product information page.

Step 2:

Extract the files by unzipping the package.

Copy the firmware files to the root directory of your USB storage device, and then connect it to the Capture Box.

Step 3:

Press F1 to start the firmware upgrade BACK

process. Press to abort the operation and return to the previous page.

Step 4:

The Capture Box automatically detects whether a different version of firmware is available for upgrade or rollback. Once the firmware upgrade process has completed, press OK to restart the Capture Box.

● The firmware upgrade process takes up approximately 10-14 minutes.
● Firmware upgrade requires at least 256MB free space of the storage device (USB/HDD).
- If problems encountered during firmware upgrade, please clear all the data stored on your USB storage device and repeat the process above.
- NEVER power off the device or unplug the power supply or remove the USB storage device during the firmware upgrade process. If the firmware upgrade is interrupted for any reason, the device may crash.

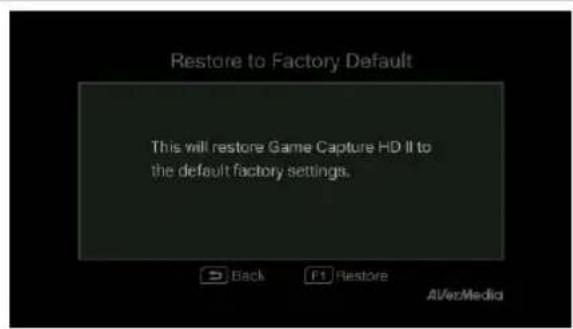

Restore to Factory Default This will restore Game Capture HD II to the default factory settings. Back F1 Restore AlVerMedia

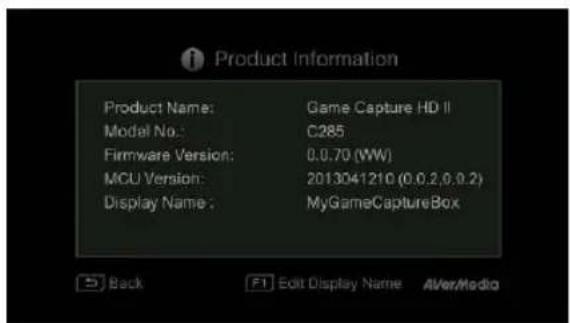

Product Information Product Name: Game Capture HD II Model No.: C285 Firmware Version: 1.0.8 (WW) MCU Version: 2013070215 (0.0.2,0.0.2) Display Name : MyGameCaptureBox Back F1 Edit Display Name AVer/Media

OSD

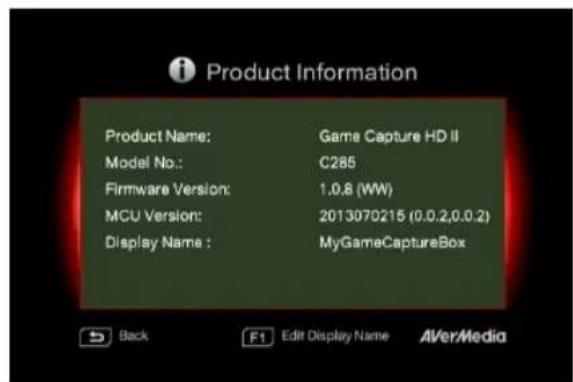

Product Information Product Name: Game Capture HD II Model No.: C285 Firmware Version: 0.0.70 (WW) MCU Version: 2013041210 (0.0.2,0.0.2) Display Name: MyGameCaptureBox Back F1 Edit Display Name AVerMedia

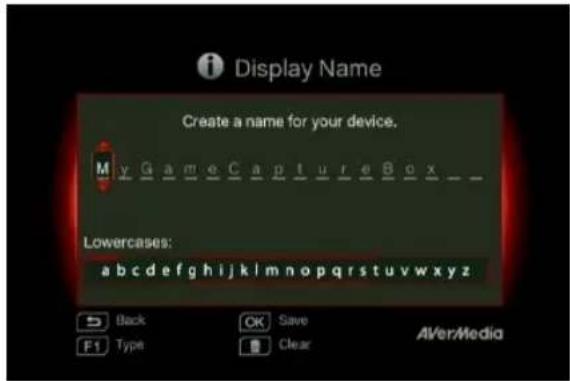

i Display Name Create a name for your device. M y G a m e C a p t u r e B o x _ _ Lowercases: a b c d e f g h i j k l m n o p q r s t u v w x y z Back OK Save F1 Type Clear AVer/Media

Restore to Factory Settings

Press F1 to restore to original factory settings. Press to abort the operation and return to the previous page.

Product Information

This page provides information about this product, including product name, model no., and firmware version.

Press F1 to edit the display name.

Descriptions

Name your own Capture Box.

Press navigation keys select characters.

Up and Down to

Press navigation keys shift to the former or la

Left and Right to

Press

vitch to the next input menu.

DELETE

Press

to delete the character.

Press OK to save the name.

To change product name, go to Menu >Product Name.

* The display name will not only show up when you enable watermark function but also on the pair up list with GameMate by AVerMedia.

Chapter 7 Pairing Capture Box and GameMate by AVerMedia

GameMate by AVerMedia is the dedicated app for smart phones. It allows you to use your smart phone as remote control. You are only a few steps from pairing up the Capture Box with GameMate.

Please download GameMate by AVerMedia from app store first.

To pair up successfully, make sure the Capture Box and GameMate share the same network. To do so, you will also need a wireless access point for GameMate. Make sure the LAN is well -connected and you are ready to pair up!

OSD

GAMEMATE GAAMRANGE CAPTSLAB WORK 100.160.1.102 Altrasthedia

Descriptions

It is recommended that the Capture Box and GameMate share a wireless AP. After downloading the GameMate; tap on GameMate on your smartphone. You will see that GameMate is searching available device.

Pairing with Handheld Device... 192.168.1.100 Requesting pairing Use the passcode to pair with GameMate 8 4 8 0 End pairing in: 55 sec. Reject AfterMedia

A set of pairing number will be shown on TV screen.

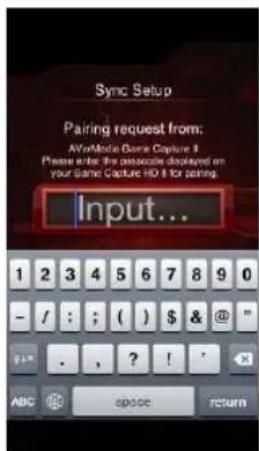

Sync Setup Pairing request from: AVoMovie Game Capture 1 Please enter the producer displayed on your Game Capture HD is for coming. Input... 1 2 3 4 5 6 7 8 9 0 - / : ; ( ) $ & @ " + - , ? ! - ABC space return

Tap to input the provided four-digit pairing number correctly.

GAMEMATE Record Perishing Time 000H:00A REC Abondadio

You will see GameMate as shown left hand side when it successfully pairs up with Capture Box.

Menu Recordings and Snapshots File Management Settings OK Enter Close menu Alt/VerMedia F2 Disconnect GameMate

You can also check the connection of GameMate from the Menu. You will see sign on the upper level of the Menu.

- If the connection is lost, please restart the wireless AP or the Capture Box and try again.

Appendix A How to Set Your Gameplay Snapshot as PS3 Wallpaper

Start to give your PS3 menu screen a fresh and personalized look to show how cool you are! Please follow the steps below to set the image captured by the Capture Box as your PS3 background wallpaper.

Step 1

Remove your USB storage device from the Capture Box, and then plug it into your PS3 console via USB port.

Power on your PS3 console.

Step 2

On your console, go to Photo > USB Device.

Press the triangle button on your PS3 controller and select "Display All".

Search for Netflix Servers Photo Gallery 11/28 3:05 PM Puts USB Device (USB DISK 2.0) Playlists

Step 3

Select the image that you wish to use.

Press the Triangle button on your PS3 controller to bring up control panel.

Then scroll to the right and select "Set as Wallpaper".

Silhouette of a futuristic robot-like figure in motion against a city skyline, no visible text or symbols

Step 4

Use the right joystick to zoom in/out and left joystick to frame the image. When it is the proper size, press ○ (Enter).

Confirm with ○(Enter) if you are prompted to overwrite your current wallpaper.

Street photo with visible store signboards and a large robot figure in motion

Step 5

Done! The snapshot that you have chosen is now set as your PS3 wallpaper.

Street photo with visible store signboards and digital icons in a virtual environment

On your PS3 console, you can go to Settings > Theme Settings > Background to turn wallpaper on or off.

Appendix B Troubleshooting

To download the latest firmware for the Capture Box:

1

Go to www.avermedia.com.

2

Enter the model no. (C285) in Product Search field.

3

The latest firmware file is available on the “AP & Driver” section on the product information page.

Hard Drive Problem

Hard drive not detected

Unknown files are found on my hard disk after connecting to the Capture Box

Video Display Problems

"No input signal" message appears on screen

Actions

Make sure that the storage destination is properly set up.

Go to Menu → Settings → Disk Management → Storage Destination to set storage destination.

Make sure the hard drive is connected / installed and restart the Capture Box.

Make sure the Capture Box has stable power supply while recording or the recording mail fail. Failure of recording may stop the Capture Box from detecting hard disk.

Format current drive to NTFS file system. It is likely that the hard drive is not set to NTFS format. You can check the hard drive and reformat it by downloading HP USB Disk Storage Format Tool.

The Capture Box will automatically generate files that help boost the operation. Files that have file name extension like

'.avm_chk_tmp',

'.avm_speed_test', '.hd_keepalive' aim at preserving hard disk speed as well as other crucial record. Please don't remove them.

Actions

Make sure that all the cables are firmly connected.

Power off the Capture Box and then make

	sure that the device is connected with the proper cables (See 3.1 Hardware Installation in user manual for details).
Screen color appears abnormal using component input	Green screen color with buzzing noise:Make sure that the red and blue connectors do not come loose.Mono screen color:Make sure that the red and blue connectors do not come loose.
Unsuccessful recording of HDMI-input-videos	The Capture Box supports all HDMI input except those in HDCP (protected video) form.
Blacken screen using HDMI input	If screen is blacken when using HDMI input, please try:1. Reconnect the HDMI cable from the input source device and also the Capture Box. Also, connect to HDMI port 1 of your TV at all times.2. Change HDMI cable and try again.
The recording is fast-forwarded or stopped when recording complicated gameplay frames in HD resolution (720p or above)?	When recording gameplay in HD resolution (720p or above), fast-forward may be found due to the complicated video content.Follow the tips below to ensure good recording quality:1. Install a format tool. It is recommended that you format hard disk into NTFS format using HP USB Disk Storage Format Tool. Please find the link:http://download.cnet.com/HP-USB-Storage-Tool/3000-2094_4-1Be sure to backup your data before start formatting. All data will be erased once the formatting process begins.2. Lower gameplay output resolution. Details can be found in C285 user manual. Please refer to PS3/ Xbox 360 video output setting.3. Lower C285 video quality at Menu>Settings> Edit/ Share4. Use another high- performance storage disk (For example, another NTFS hard disk).
Playback Problems	Actions
Poor quality of captured video	Check video output settings of your game console.For PS3, set 1080p, 1080i and 720p as video output resolutions. If you only select 1080i, the screen resolution automatically goes to 480i when you play a game that supports 720p.(See 3.5 Video Output Settings for Game Consoles in user manual for details).
Jittery/Jerky video playback on PC	Enable the “De-interlace” function of your media player before playback.Some media players cannot process the interlaced video (1080i / 576i /480i) well.This problem does not persist after video uploaded to YouTube.
Stuttering local video playback	Try recording video again using another NTFS-formatted hard drive.When this problem occurs, it is recommended to play the videos on PC. Alternatively, you can record at a lower bit rate to solve this problem.This problem does not persist after video uploaded to YouTube.
Microphone volume not loud enough	Turn on Microphone volume via Menu.Turn down game console input volume.Adjust volume via in-game setting.Gain Microphone amplifier.
No A/V Pass Through when game console and TV ON	Make sure that your TV supports 1080p.Turn on A/V Pass through via Setting.
File Management Problems	Actions
Difficulty in locating files	All files are named after the date and time they are recorded. In the file management, you can sort files out by its name, the time recorded, and the file size. Make sure the time zone is set correctly or manually setup to obtain correct file name.For example, a video which recorded at 9:30 a.m., 15 of April, 2013 will be named as:

130415-0930

A recorded videos with commentary will be called:

130415-0930 (Mic)

An edited recorded video will be named as :

130415-0930 (Edit-1)

A videos that has been edited for the second time will be named as :

130415-0930 (Edit-2)

An edited video with commentary will be named as :

130415-0930 (Mic-Edit-1)

Difficulty in locating the folder on your PC/laptop

The Game Capture HD II detects all kinds of folder that built in your hard drive; as a result, it is likely that the destination is set to a non-standard folder, for example, a hidden folder.

If you cannot locate the folder that saves the recordings and snapshots, please check if:

1. You have set the destination of recordings and snapshots to a standard folder, making sure that it is not hidden, locked, etc..

2. You load the folder with a Microsoft Windows system. A Linux system does not read non-standard folder like a hidden folder.

Other Problems

Firmware upgrade turns out unsuccessful

Actions

Solutions are as follows:

A. Power off the Capture Box if an internal storage disk is installed. Remove internal storage disk and power on the Capture Box. Connect the USB to your Capture Box to undergo FW upgrade. (*If you are using a SATA storage disk or the temperature of the hard disk appears high; please wait for 10 minutes for the hard disk to cool down.)
B. Save the unzipped firmware file to the file root of your USB.
C. To enable firmware upgrade, make sure a minimum space of 256MB on your USB.
D. The detection of firmware file may be disrupted by other files on your USB. It is recommended that you wipe the USB or reformat it to NTFS format.

Reformat your USB by using HP USB Storage Format Tool:

1. Disconnect your USB from the Capture Box. Connect it to a computer.
2. Download HP USB Storage Format Tool at the following link:

http://download.cnet.com/HP-USB-Disk-Storage-Format-Tool/3000-2094_4-10974082.html

1. Undergo HP USB Storage Format Tool. Select your USB and format it to NTFS format.

Save the firmware file into the NTFS USB and reconnect it to the Capture Box to upgrade firmware.

If the problem still persists, refer to FAQ at www.avermedia.com for further troubleshooting.

Appendix C Measuring Your HDD Height Before Installation

Make sure to adjust rotary knob before HDD installation. (For details, please refer to the User Manual.)

1

Measure HDD height.

Line drawing of a hand holding a small object, possibly a device or component (no text or symbols present)

Measuring Openings

7

9.5

2

Adjust the rotary knob to the corresponding position.

9.5 7

Open Source Code Notice

The following GPL executables and LGPL, MPL libraries used in this product are subject to the BSD/FreeBSD/ GPL/GPLv2/GPLv2+/GPLv3 with GCC/ RLE/jpeg/LGPLv2/LGPLv2.1/LGPLv2.1/ GPLv2/LGPLv2.1+/LGPLv2+/libpng/MIT/NewBSD/OPENSSL/PD/zlib License Agreements:

BSD

cppstub/db/libpcre0/JSONKit

FreeBSD

thttpd

GPL

madedevs

GPLv2

busybox/dbus/dbus-x11/devmem2/dosfstools/fbset/i2c-tools/iproute2/libblkid1/libdbus-1-3/libfreetype6/libpam/libuuid1/linux-kernel/module-init-tools/module-init-tools-depmod/mtd-utils/netbase/u-boot/update-modules/usbutils/util-linux-ng

GPLv2+

iptables/sysvinit/tinylogin/udev/update-rc.d

GPLv3 with GCC RLE

libgcc1/libstdc++6

jpeg

libjpeg8/libjpeg-tools

LGPLv2

Libjson/libts-1.0-0/tslib

LGPLv2.1

libav/libmicrohttpd/libusb-1.0-0

LGPLv2.1/GPLv2

alsa

LGPLv2.1+

Idd/libc6/libthread-db1

LGPLv2+

libglib-2.0-0

libpng

libpng12-0

MIT

cocos2d-x/curl/e2fsprogs/fbset-modes/graphmagic/libcom-err2/libcurl4/libe2p2/libexpat1/libext2fs2/libformw/

libmenuw/libpanelw5/libss2/libtic5/libtinfo5/libxml2/ncurses/pointercal

New BSD

iperf

OPENSSL

openssl

PD

AVerMedia Technologies Inc. offers to provide source code to you for a charge covering the cost of performing such distribution, such as the cost of media, shipping and handling upon e-mail request to AVerMedia Technologies Inc. at

http://www.avermedia.com

For more information, please visit our website:

http://www.avermedia.com

Table des matières

Alimentation (Power)

Quick Setup Result To change settings, go to Menu > Settings. Network Connection : Failed Date and Time : 2013/04/22 16:58 Storage Destination : USB Disk Partition 1 Back OK Next AfterMedia

Etape 4

Silhouette of a futuristic robot in a cityscape with city skyline in background (no visible text or symbols)

Descriptions

Silhouette of a futuristic armored figure in a cityscape with city skyline in background (no visible text or symbols)

Street scene with debris, a helicopter flying, and urban buildings under a clear sky (no visible text or symbols)

Taking a snapshot...

Microphone On 1. Mix game sound and commentary. 2. Auto switch to the real-time display mode. 3. Remove the mic to turn it off.

Descriptions

Microphone ouvert (Microphone On)

1 03hrs 08mins Menu 2 3 4 Media Studio File Management Settings OK Select F1 Eject Disk Close Menu F2 Quit GameMate AVer/Media

02hrs 16mins Menu Media Studio File Management Settings OK Select F1A Elect Disk Close Menu AVerMedia

Format d'acquisition:

Interior of a futuristic spacecraft or space station with two astronauts in spaces, illuminated by a bright sky (no visible text or symbols)

Edit / Share Change File Name Edit Recordings Share on YouTube

Éditer/Partager (Edit/ Share)

How to Edit Step 1: To locate a frame, use direction keys or play to search. 00:30:00 00:45:21 Seek Time OK Edit Last/Next Page AVer/Media Back

Comment modifier (How to Edit)

Photo of astronauts in space suits near a glowing industrial furnace, with a web interface displaying 'Smart TV' and 'Smart Command' buttons.

Screenshot of a spacecraft simulation interface showing a glowing orange tunnel with human figures in the foreground.

Aperçu

Export Please confirm the video and press [OK] to export it. Or go back to continue editing. Edited File: 130721-1651 (Edit-1) Total Length: 00 : 00 : 04 Estimated time: Within 1 min.

Export

Exporting... Processed time : 01mins 130721-1651(Edit-1) 0% Cancel F1 Hide Status AVerMedia

Descriptions

Exportation... (Exporting...)

Export Complete Press (OK) to close the window. 130721-1651(Edit-1) 100% OK Exit F1 Edit AVer/Media

Quitter (Exit)

Edit / Share Change File Name Edit Recordings Share on YouTube Back OK Select A/Ver/Media

Descriptions

Notice 1. To ensure the stability of uploading, please upload videos that are within one hour. 2. Upload videos longer than 15 mins, make sure the YouTube account has been verified or the file size will be confined.

Uploading Edit The file name will be set as the title. Visit YouTube official page if you want to change the title. Title 130707-2315 Privacy Public YouTube Account [e-mail] Cancel OK Start Uploading AVer/Media F1 Privacy Setting F2 Change Account

Upload Complete Your videos have been successfully uploaded. Please check your videos on YouTube.

Envoi complet

File Management 1 SGB installed. RAT20 Position 1 2 SGB installed. STATUS Position 2 3 4 Play F1 Change ordering AI/Ver/Media

File Copied Press [OK] to close the window. OK Close AllEverMedia

File Management 1.5GB available FAT3D Partition 1 Sack Folder 1 Folder 2 110/01-0120-05.jpg 110/01-0120-07.jpg 110/01-0120-08.jpg 110/01-0120-09.jpg 1/4 Delete 2.4 2.4 File available (FAT3D) Partition 3 Mount Subm 11.1/01-0120-06.jpg 11.1/01-0120-07.jpg 11.1/01-0120-08.jpg 11.1/01-0120-09.jpg 11.1/01-0120-10.jpg Selected:33 MB2 of 5 Play F1 Change ordering AVer/Media

Description

File Deleted Press [OK] to close the window. OK Close AllVerMedia

USB Disk Partition1 Capacity: 7.4G Used space: 5.9G Free space: 1.5G F1 Formatting F2 Eject the disk A/VerMedia

Pairing with Handheld Device... 192.168.1.100 Requesting pairing Use the passcode to pair with GameMate 8 4 8 0 End pairing in: 56 sec. Reject AfterMedia

Sync Setup Pairing request from: AVoMio Game Capture It Please enter the package displayed on your Game Capture HD is for pairing. Input... 1 2 3 4 5 6 7 8 9 0 - / : ; ( ) $ & @ " + - , ? ! * ABC space return

Menu Recordings and Snapshots File Management Settings OK Enter Close menu F2 Disconnect GameMate AfterMedia

Silhouette of a futuristic robot-like figure in a cityscape with buildings and a digital timer (no readable text or symbols)

Beschreibungen

Silhouette of a futuristic armored figure with glowing elements, set against a city skyline and digital clock (no readable text or symbols)

Street scene with debris, a helicopter flying, and urban buildings under a clear sky (no visible text or symbols)

Taking a snapshot...

Microphone On 1. Mix game sound and commentary. 2. Auto switch to the real-time display mode. 3. Remove the mic to turn it off.

Beschreibungen

Mikrofon aktivieren (Microphone On)

02hrs 16mins Menu Media Studio File Management Settings OK Select F1 Eject Disk Close Menu AVerMedia

Two astronauts in spacesuits standing near a glowing industrial platform with a sunset sky (no visible text or symbols)

Media Studio By name 130721-1651 Storage destination: USB Disk Partition1/ F1 Order F2 View Mode F3 Edit / Share Duration: 00:00:06 File size: 7.3MB AverMedia

Beschreibungen

Ein Video wählen

Edit / Share Change File Name Edit Recordings Share on YouTube Back OK Select AVer/Media

How to Edit Step 1: To locate a frame, use direction keys or play to search. Seek Time OK Edit Last/Next Page AVerMedia Back

Interior view of a spacecraft with two crew members observing a glowing orange sky (no visible text or symbols)

Street photo with visible store signboards and interior scene showing personnel in protective gear near a glowing industrial furnace

Vorschau

Export Please confirm the video and press [OK] to export it. Or go back to continue editing. Edited File: 130721-1651 (Edit-1) Total Length: 00 : 00 : 04 Estimated time: Within 1 min.

Exportieren (Export)

Exporting... Processed time : 01mins 130721-1651(Edit-1) 0% Cancel F1 Hide Status AVerMedia

Beschreibungen

Exportiere...(Exporting...)

Export Complete Press (OK) to close the window. 130721-1651(Edit-1) 100% OK Exit F1 Edit AVer/Media

Verlassen (Exit)

Notice 1. To ensure the stability of uploading, please upload videos that are within one hour. 2. Upload videos longer than 15 mins, make sure the YouTube account has been verified or the file size will be confined.

Auf YouTube teilen (Share on YouTube)

Uploading Edit The file name will be set as the title. Visit YouTube official page if you want to change the title. Title 130707-2315 Privacy Public YouTube Account [e-mail] Cancel OK Start Uploading F1 Privacy Setting F2 Change Account AVer/Media

Upload Complete Your videos have been successfully uploaded. Please check your videos on YouTube.

File Management 1 SGB installed (FAT3) Position 17 2 SGB installed (FAT3) Position 18 3 4 Play F1 Change ordering All/erMedia

File Copied Press [OK] to close the window. OK Close AI/VerMedia

Beschreibungen

File Deleted Press [OK] to close the window. Close AIVerMedia

USB Disk Partition1 Capacity: 7.4G Used space: 5.9G Free space: 1.5G F1 Formatting F2 Eject the disk AfterMedia

Dateien löschen

Schritt 1:

Pairing with Handheld Device... 192.168.1.100 Requesting pairing Use the passcode to pair with GameMate 8 4 8 0 End pairing in: 56 sec. Reject AVerMedia

Menu Recordings and Snapshots File Management Settings OK Enter 18 Close menu F2 Disconnect GameMate AfterMedia

Silhouette of a futuristic armored figure in motion against a city skyline, with a digital timer showing 00:00:03 and 2490 mins (no readable text or symbols on the figure itself)

Silhouette of a futuristic robot-like figure in motion against a city skyline, with a digital timer showing 00:00:03 and 2490 mins (no readable text or symbols on the robot or background)

Descrizioni

Street scene with debris, a helicopter flying, and urban buildings under a clear sky (no visible text or symbols)

Taking a snapshot... 00:00:34 00:00:12

Microphone On 1. Mix game sound and commentary. 2. Auto switch to the real-time display mode. 3. Remove the mic to turn it off. OK 含量调整 F1 Usage Scenarios AlVerMedia

Descrizioni

G2hrs 16mins Menu Media Studio File Management Settings OK Select Close Menu AVer/Media F1A Eject Disk

Interior view of a spacecraft or space station with two astronauts in spaces, a glowing orange sky at the center (no visible text or symbols)

Edit / Share Change File Name Edit Recordings Share on YouTube Back OK Select A/Ver/Media

Modifica/ Condividi (Edit/ Share)

How to Edit Step 1: To locate a frame, use direction keys or play to search. 00:30:00 Seek Time 00:32:21 OK Edit Last/Next Page AVer/Media Back

Come modificare (How to Edit)

Interior view of a spacecraft with crew members observing a glowing orange-lit rocket (no visible text or symbols)

Screenshot of a game interface showing a character in a doorway with Chinese UI elements and status bar

Anteprima

Export Please confirm the video and press [OK] to export it. Or go back to continue editing. Edited File: 130721-1651 (Edit-1) Total Length: 00 : 00 : 04 Estimated time: Within 1 min.

Esporta (Export)

Exporting... Processed time : 01mins 130721-1651(Edit-1) 0% Cancel F1 Hide Status AVer/Media

Descrizioni

Export Complete Press [OK] to close the window. 130721-1651(Edit-1) 100% OK Exit F1 Edit AVer/Media

Esci (Exit)

Edit / Share Change File Name Edit Recordings Share on YouTube Back OK Select A/Ver/Media

Descrizioni

Notice 1. To ensure the stability of uploading, please upload videos that are within one hour. 2. Upload videos longer than 15 mins, make sure the YouTube account has been verified or the file size will be confined. Back OK Confirm F1 Don't Remind Again AlVerMedia

Condividi su YouTube (Share on Youtube)

Uploading Edit The file name will be set as the title. Visit YouTube official page if you want to change the title. Title 130707-2315 Privacy Public YouTube Account [e-mail] Cancel OK Start Uploading AVerMedia F1 Privacy Setting F2 Change Account

Upload Complete Your videos have been successfully uploaded. Please check your videos on YouTube.

5.2 Gestione file (File Management)

File Management 1 SGB installed. FAT3D Position 1 2 SGB installed. FAT3D Position 2 3 SGB installed. FAT3D Position 3 4 Play FI Change Screening All/en/Media

File Deleted Press [OK] to close the window. OK Close AIVerMedia

Pairing with Handheld Device... 192.168.1.100 Requesting pairing Use the passcode to pair with GameMate 8 4 8 0 End pairing in: 56 sec.

Sync Setup Pairing request from: AVMeGame Capture 8 Please order the pneumatic display on your Game Capture HD is for pairing. Input... 1 2 3 4 5 6 7 8 9 0 - / : ; ( ) $ & @ " + - . , ? ! * ABC space return

Menu Recordings and Snapshots File Management Settings OK Enter 18 Close menu F2 Disconnect GameMate AfterMedia

Markets 1 2

N° Botones

Descripciones

Grabar

Silhouette of a futuristic armored figure in a cityscape with a digital clock showing 00:00:03 and 24h00 min (no readable text or symbols on the figure itself)

Silhouetted robot figures in a dimly lit urban environment with city skyline in background (no visible text or symbols)

Descripciones

Street scene with a large dinosaur in urban debris, soldiers, and a helicopter flying overhead (no visible text or symbols)

Taking a snapshot...

Microphone On 1. Mix game sound and commentary. 2. Auto switch to the real-time display mode. 3. Remove the mic to turn it off.

Descripciones

G2hrs 16mins Menu Media Studio File Management Settings OK Select Close Menu AVerMedia F1A Elect Disk

Two astronauts in a futuristic spacecraft or space environment with a glowing orange sky and smoke, no visible text or symbols.

Edit / Share Change File Name Edit Recordings Share on YouTube

Editar/Compartir (Edit/Share)

How to Edit Step 1: To locate a frame, use direction keys or play to search. 00:30:00 Seek Time 00:32:21 OK Edit Last/Next Page AVer/Media Back

Cómo editar (How to Edit)

Interior view of a spacecraft with crew members in flight, showing a bright sky and smoke (no visible text or symbols)

Screenshot of a spacecraft simulation interface showing astronaut observing a glowing solar eclipse with control panels and status bar.

Vista previa

Export Please confirm the video and press [OK] to export it. Or go back to continue editing. Edited File: 130721-1651 (Edit-1) Total Length: 00 : 00 : 04 Estimated time: Within 1 min.

Exportar (Export)

Exporting... Processed time : 01mins 130721-1651(Edit-1) 0% Cancel F1 Hide Status AVer/Media

Descripciones

Exportando...(Exporting...)

Export Complete Press [OK] to close the window. 130721-1651(Edit-1) 100% OK Exit F1 Edit AVer/Media

Salir (Exit)

Edit / Share Change File Name Edit Recordings Share on YouTube Back OK Select A/Ver/Media

Descripciones

Notice 1. To ensure the stability of uploading, please upload videos that are within one hour. 2. Upload videos longer than 15 mins, make sure the YouTube account has been verified or the file size will be confined.

Compartir en YouTube (Share on YouTube)

Uploading Edit The file name will be set as the title. Visit YouTube official page if you want to change the title. Title 130707-2315 Privacy Public YouTube Account [e-mail] Cancel OK Start Uploading F1 Privacy Setting F2 Change Account AVerMedia

Upload Complete Your videos have been successfully uploaded. Please check your videos on YouTube.

Carga completada

File Copied Press [OK] to close the window. OK Close AVerMedia

File Management 1.500 template (FAT3) Partition 1 Bench Printer 1 Folder 2 1101/3-01/20-91.jpg 1101/01-01/20-67.jpg 1101/31-01/20-00.jpg Delete 1.500 template (FAT3) Partition 2 index size 111888-0120-44.jpg 112888-0125-27.jpg 113888-0135-59.jpg 114888-0145-61.jpg Selected: MBL2 of 5 Play F1 Change ordering AIVer/Media

Descripciones

File Deleted Press [OK] to close the window. OK Close AIverMedia

Paso 2:

Pairing with Handheld Device... 192.168.1.100 Requesting pairing Use the passcode to pair with GameMate 8 4 8 0 End pairing in: 56 sec. Reject AfterMedia

Sync Setup Pairing request from: AVMeGame Capture 8 Please order the pneumatic display on your Game Capture HD is for pairing. Input... 1 2 3 4 5 6 7 8 9 0 - / : ; ( ) $ & @ " + + . , ? ! * ABC space return

Menu Recordings and Snapshots File Management Settings OK Enter 18 Close menu F2 Disconnect GameMate AfterMedia

Silhouette of a futuristic robot-like figure with glowing elements against a cityscape background (no readable text or symbols)

Descrições

Silhouette of a futuristic armored figure in a cityscape with city skyline in background (no visible text or symbols)

Street scene with debris, a helicopter, and urban buildings under a clear sky (no visible text or symbols)

111001-0106 Criminal Gravity: 2007 75 30 14 0 08 09 12 08:09:29

Taking a snapshot...

Microphone On 1. Mix game sound and commentary. 2. Auto switch to the real-time display mode. 3. Remove the mic to turn it off. OK 含量病毒 F1 Usage Scenarios Alter/Media

Descrições

Microfone ligado (Mircophone On)

02hrs 16mins Menu Media Studio File Management Settings OK Select Close Menu AVerMedia F:1 Elect Disk

111001-0106 Optive Quality 723P 00:00:01 00:00:05

Two astronauts in a spacecraft or industrial facility with a bright sunset sky and smokestacks, no visible text or symbols.

Edit / Share Change File Name Edit Recordings Share on YouTube

Editar/Compartilhar (Edit/ Share)

How to Edit Step 1: To locate a frame, use direction keys or play to search. 00:30:00 00:42:21 Seek Time OK Edit Last/Next Page AVer/Media Back

Como Editar (How to Edit)

Interior view of a spacecraft with crew in spaces, showing a glowing orange glow (no visible text or symbols)

Modo de Edição

Interior view of a glowing industrial furnace with workers in protective gear (no visible text or symbols)

Visualização

Export Please confirm the video and press [OK] to export it. Or go back to continue editing. Edited File: 130721-1651 (Edit-1) Total Length: 00 : 00 : 04 Estimated time: Within 1 min.

Exportar (Export)

Exporting... Processed time : 01mins 130721-1651(Edit-1) 0% Cancel F1 Hide Status AVerMedia

Descrições

Exportando... (Exporting...)

Export Complete Press (OK) to close the window. 130721-1651(Edit-1) 100% OK Exit F1 Edit AVer/Media

Sair (Exit)

Edit / Share Change File Name Edit Recordings Share on YouTube Back OK Select A/Ver/Media

Descrições

Compartilhar ví deos no YouTube

Notice 1. To ensure the stability of uploading, please upload videos that are within one hour. 2. Upload videos longer than 15 mins, make sure the YouTube account has been verified or the file size will be confined. Back OK Confirm F1 Don't Remind Again AlVerMedia

Compartilhar no YouTube (Share on Youtube)

Uploading Edit The file name will be set as the title. Visit YouTube official page if you want to change the title. Title 130707-2315 Privacy Public YouTube Account [e-mail] Cancel OK Start Uploading F1 Privacy Setting F2 Change Account AVerMedia

Upload Complete Your videos have been successfully uploaded. Please check your videos on YouTube.

File Management 1 SGB installed (FAT30) Position 1 2 SGB installed (FAT35) Position 2 3 4 Play F1 Change Screening AI/en/Media

File Copied Press [OK] to close the window. OK Close AIverMedia

File Management 1.5GB optional (FAT3D) Partition 1 Back Folder 1 Folder 2 1101/23-0120-06.jpg 1101/23-0520-07.jpg 1101/23-0520-08.jpg 1101/23-0520-09.jpg 1/4 Delete 2.5GB optional (FAT3D) Partition 3 Knee Select 111000-0130-06.jpg 11000-0120-07.jpg 11000-0120-08.jpg 11000-0120-09.jpg 3:4 Selected:0 MB2 of 0 Play F1 Change ordering All/er/Media

Descrições

File Deleted Press [OK] to close the window. OK Close AllverMedia

Etapa 2:

Pairing with Handheld Device... 192.168.1.100 Requesting pairing Use the passcode to pair with GameMate 8 4 8 0 End pairing in: 56 sec. Reject AVerMedia

Sync Setup Pairing request from: AVMeGame Capture 8 Please order the pneumatic displayed on your Game Capture HD is for pairing. Input... 1 2 3 4 5 6 7 8 9 0 - / : ; ( ) $ & @ " + - . , ? ! * ABC space return

Menu Recordings and Snapshots File Management Settings Enter Close menu F2 Disconnect GameMate AfterMedia
