Product Type	Built-in gas hob
Brand	CATA
Model	CCI 5003 BK
Color	Black
Gas supply	Natural gas (G20/G25) or LPG (butane/propane) - adaptable via injectors
Power supply	1.5V LR20 or R20S battery for automatic ignition
Number of burners	4 (standard estimate)
Ignition	Automatic by battery (model with possible simultaneous ignition)
Safety	Thermocouple safety device (gas shut-off if flame goes out)
Cooking surface	Ceramic glass (top part)
Materials	Stainless steel, glass, enamel
Dimensions (W x D x H)	Approximately 60 x 50 x 5 cm (standard built-in estimate)
Weight	Approximately 15 kg
Installation	Built-in into worktop, requires sealing gasket provided
Burner maintenance	Disassembly and washing in boiling water with detergent, then careful drying
Ceramic glass surface maintenance	Clean with metal pad then special product (Sidol, Stahfix), rinse and wipe dry
Spare parts available	Injectors (included for gas adaptation), battery, seals
Repairability	Manufacturer after-sales service for valve, cable anomalies, etc.
Use	Domestic only

Frequently Asked Questions - CCI 5003 BK CATA

How to light a burner?

To light, push and turn the corresponding knob counterclockwise to the maximum position. Bring a flame or use automatic ignition (if available) by pressing the special button. For models with thermocouple safety, keep the knob pressed for 3 to 5 seconds after lighting.

What to do if automatic ignition does not work?

First check the battery (LR20 or R20S, 1.5V) located behind the plate at the bottom left. Replace it if depleted. If the problem persists, contact customer service.

How to adapt the hob to a different gas type?

Replace the injectors with those corresponding to the new gas (see 'Injector characteristics' table in the manual) and adjust the minimum flow with a screwdriver on the valve screw. For LPG, tighten fully.

Which battery to use for ignition?

Use a D-type battery, LR20 or R20S, 1.5V. It is located in a compartment behind the plate, at the bottom left.

How to clean the ceramic glass surface?

First remove residues with a metal pad. Clean while hot with a special product (Sidol, Stahfix) and paper towel, rinse with water and wipe with a clean cloth. Never use abrasive sponges or steam cleaner.

What to do in case of gas smell?

Immediately close the main valve and/or gas cylinder. Ventilate the room. Do not light any flame. Check connections with soapy water. If a leak persists, contact a professional.

Can I use earthenware pots?

No, the use of earthenware pots and diffusers is prohibited as they may damage the cooking surface.

How to maintain the burners?

Disassemble the caps and nozzles, wash them in boiling water with detergent, remove deposits, then dry thoroughly ensuring all holes are unclogged.

Does the appliance require electrical installation?

Yes, for automatic ignition it requires a battery. Otherwise, no electrical connection is required for gas. However, if an electric plate is integrated, check the voltage (230V) and grounding.

Where to find the serial number or rating plate?

The rating plate is affixed to the bottom of the hob. It indicates voltage, power and gas type.

USER MANUAL CCI 5003 BK CATA

Four identical circular symbols with cross marks arranged in a 2x2 grid within a rectangular frame (no text or labels)

EN Installation, use and maintenance instructions

Abstract geometric line drawing with intersecting lines and shapes (no text or symbols)

rápido Φ 18 x 24

semi-rápido Φ 14 x 18

auxiliar Φ 12 x 14

Simple line drawing of a laptop with a stand (no text or symbols)

pesciera* 18 x 30

Fig. 1

MODELOS QUE INCLUYEN PILAS

Garantía

Top-down schematic of a device casing with internal circuit layout and mounting points (no text or symbols)

Simple line drawing of a hand holding a tool near a curved surface, with no text or symbols present.

Line drawing of two hands holding a long rod or rod with a pen, no text or symbols present

Fig. 3

Pure electrical circuit lines without any symbols

G 1/2

ISO 7/1

ISO 228/1 (FR)

Fig. 4

Conexión eléctrica

Line drawing of a hand using a tool to press or press a small object on a circular base, labeled 'Fig. 6' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with a screwdriver inserted into a workpiece (no text or symbols)

Fig. 7

(cm)
R L1 L2	L3 L4
1 6 4 10	70

Fig. 8

II2H3+

CARACTERISTICAS INYECTORES
QUEMADORES DE GAS	TIPO	PRESIÓN	INYECTORES	CONSUMO		CAPACIDAD TÉRMICA NOMINAL
		mbar	1/100mm	g/h	l/h	Kw	Kcal/h
Auxiliar	G 20	20	74	-	95	1,00	860
	G30/G31	28	51	73	-	1,00	774
Semirápido	G 20	20	98	-	167	1,75	1617
	G30/G31	28	69	127	-	1,75	1617
Rápido	G 20	20	114/124	-	238/286	2,50/3,00	1720/2064
	G30/G31	28	81/88	182/218	0	2,50/3,00	2064/2471
Fast	G 20	20	124/127	-	286/333	3,00/3,50	2451/2860
	G30/G31	28	88/94	218/255	0	3,00/3,50	2924/3411

Symbolic illustration of a trash bin crossed with no visible text or symbols

Abstract geometric line drawing with intersecting lines and shapes (no text or symbols)

Simple line drawing of a laptop with stand (no text or symbols)

Top-down schematic of a device layout with no visible text, numbers, or symbols

Line drawing of a hand holding a tool with debris, labeled 'Abb. 2' (no other text or symbols)

Line drawing of two hands holding a long rod with a pen, against a plain background (no text or symbols)

Hand using a compass to interact with a small object on a circular base (no text or symbols visible)

Abb. 6

Technical line drawing of a mechanical assembly with a screwdriver inserted into a workpiece (no text or symbols)

Abb. 7

(cm)
R L1 L2	L3 L4
1 6 4 10	70

Abb. 8

Symbolic illustration of a trash bin crossed with diagonal lines, no text or labels present

Chère cliente, Cher client,

Abstract geometric line drawing with intersecting lines and shapes (no text or symbols)

rapide 18 x 24

semirapide Φ 14 x 18

auxiliaire Φ 12 x 14

Simple line drawing of a laptop on a stand (no text or symbols)

poisson* 18 x 30

Fig. 1

MODÈLES COMPRENANT DES PILES

Garantie

Technical line drawing of a mechanical or electronic component with no visible text, numbers, or symbols.

Simple line drawing of a hand holding a tool near a curved object (no text or symbols)

Fig. 2

MODALITÉS D'INSTALLATION

Installation

Line drawing of two hands holding a tool over a metal rod (no text or symbols)

Fig. 3

Hand operating a mechanical device with rotating components (no text or symbols visible)

Fig. 6

Technical line drawing of a mechanical assembly with a screwdriver inserted into a workpiece (no text or symbols)

Fig. 7

(cm)
R L1 L2	L3 L4
1 6 4 10	70

Fig. 8

CARACTÉRISTIQUES INJECTEURS

BRULEUR A GAZ	TIPO	PRESION	INJECTEURS	CONSUMO		DEBIT THERMIQUE NOMINAL
		mbar	1/100mm	g/h	l/h	Kw	Kcal/h
Auxiliaire	G 20	20	74	-	95	1,00	860
	G30/G31	28	51	73	-	1,00	774
Sémirapide	G 20	20	98	-	167	1,75	1617
	G30/G31	28	69	127	-	1,75	1617
Rapide	G 20	20	114/124	-	238/286	2,50/3,00	1720/2064
	G30/G31	28	81/88	182/218	0	2,50/3,00	2064/2471
Fast	G 20	20	124/127	-	286/333	3,00/3,50	2451/2860
	G30/G31	28	88/94	218/255	0	3,00/3,50	2924/3411

Symbolic illustration of a trash bin crossed with diagonal lines, no text or labels present

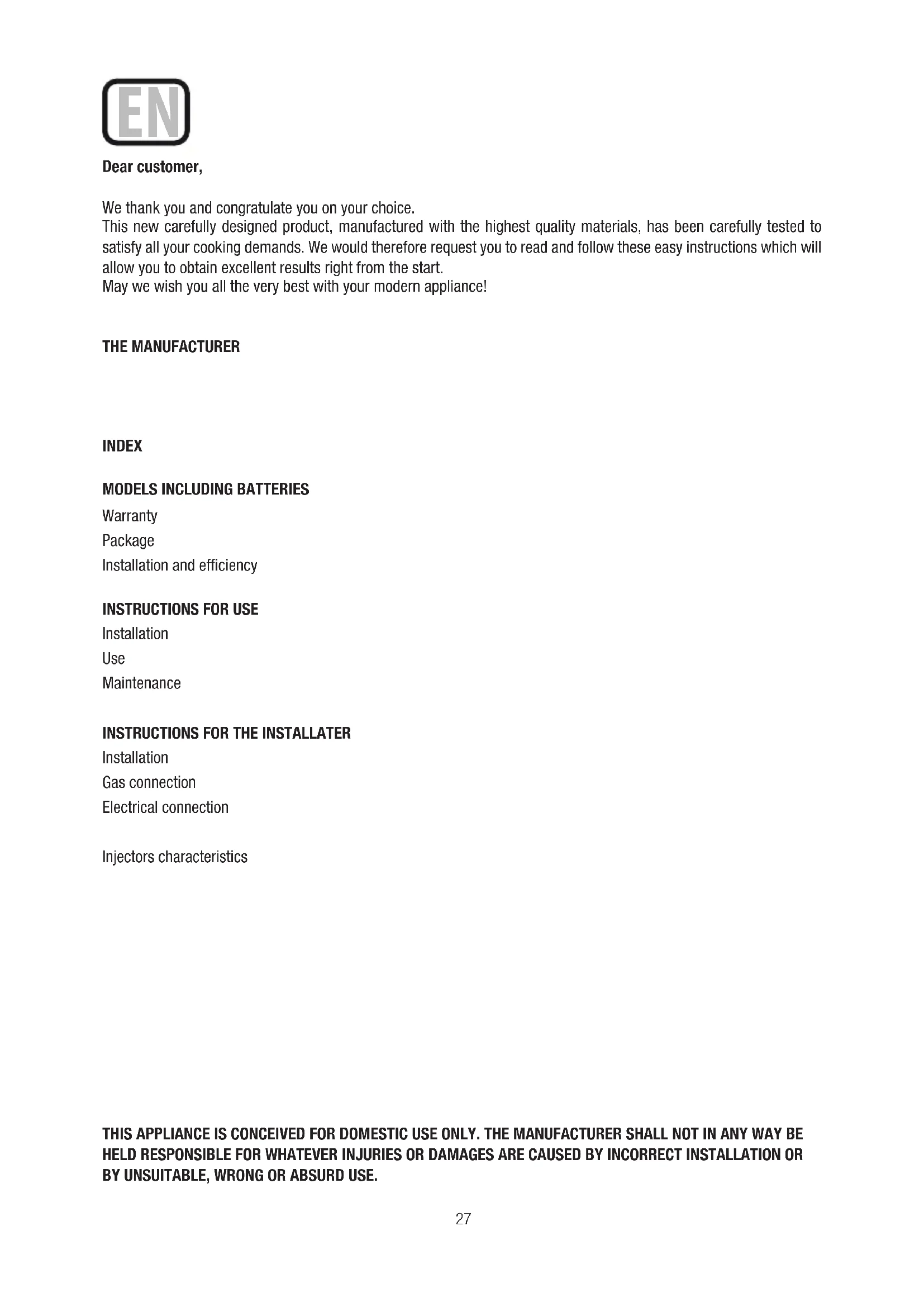

Dear customer,

We thank you and congratulate you on your choice.

This new carefully designed product, manufactured with the highest quality materials, has been carefully tested to satisfy all your cooking demands. We would therefore request you to read and follow these easy instructions which will allow you to obtain excellent results right from the start.

May we wish you all the very best with your modern appliance!

THE MANUFACTURER

INDEX

MODELS INCLUDING BATTERIES

Warranty

Package

Installation and efficiency

INSTRUCTIONS FOR USE

Installation

Use

Maintenance

INSTRUCTIONS FOR THE INSTALLATER

Installation

Gas connection

Electrical connection

Injectors characteristics

THIS APPLIANCE IS CONCEIVED FOR DOMESTIC USE ONLY. THE MANUFACTURER SHALL NOT IN ANY WAY BE HELD RESPONSIBLE FOR WHATEVER INJURIES OR DAMAGES ARE CAUSED BY INCORRECT INSTALLATION OR BY UNSUITABLE, WRONG OR ABSURD USE.

INSTRUCTIONS FOR USE

Installation

All the operations concerned with the installation (electrical connection) must be carried out by qualified technicians, in terms with the standards in force, for specific instructions, kindly read the part reserved for the installation technician.

Use

Gas burners (fig. 1).

The ignition of the gas burner is carried out by putting a small flame to the upper part holes of the burner, pressing and rotating the corresponding knob in an anti-clockwise manner, until the maximum position has coincided with the marker. When the gas burner has been turned on, adjust the flame according to need. The minimum position is found at the end of the anti-clockwise rotation direction.

In models with automatic ignition, operate the knob as described above, pressing simultaneously, the corresponding push-button. For models with automatic/simultaneous (with one hand) ignition, it is sufficient to proceed as described above using the corresponding knob. The electric, spark, between the ignition plug and the burner provides the ignition of the burner itself After ignition, immediately release the push-button and adjust the flame according to need.

For models with a thermoelectric safety system, the burner is ignited as in the various cases described above, keeping the knob fully pressed on the maximum position for approximately 3/5 seconds. After releasing the knob, make sure the burner is actually lit.

N.B.: - we recommend the use of pots and pans with a diameter matching that of the burner, thus preventing the flame from escaping from the bottom part and surrounding the pot

- do not leave any empty pots or pans on the fire

- do not use any tools for grill-cooking on Crystal hobs.

When cooking is finished, it is also a good norm to close the main gas pipe tap and/or cylinder.

GAS

* with reduction grid

Abstract geometric line drawing with intersecting lines and shapes (no text or symbols)

fast Φ 18 x 24

semifast Φ 14 x 18

auxiliary 12 x 14

fish* 18 x 30

Simple line drawing of a laptop on a stand (no text or symbols)

Fig. 1

MODELS INCLUDING BATTERIES

Warranty

Warranty (warranty service) does not include the battery.

The gas hob manufacturer is exempt of any responsibility for the malfunction of batteries.

Package

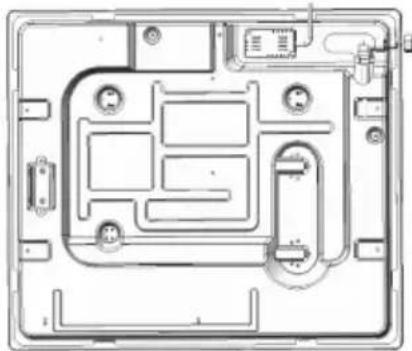

Some models include batteries (D or LR20 or R20S type; 1,5 V) for the autoignition function. Capacity (device) to install the battery located at the bottom back left side of the hob as shown in the picture.

If the battery is not included and should be purchased separately.

Top-down schematic of a computer case with internal components and connectors (no text or labels)

Installation and efficiency

Before installing your hob on a tabletop, first insert a battery (checking "+" and "-" into a special device located at the bottom back left side of the hob as shown in the picture.

Before final fixation of the hob in a tabletop with special sealer (liner) with adhesive basing (included) make sure autoignition works correctly. In order to do it, push any knob turning it counterclockwise so that its index points at the flame symbol waiting until there are sparks followed by characteristic cracks (clicks).

In case that autoignition doesn't work properly, check if batteries are unloaded and proceed to change it.

If problems aren't solved, call the Customer Service or maintenance.

Maintenance

Gas/Electrical

Prior to any operation, disconnect the appliance from the electrical system.

For long-life to the equipment, a general cleaning operation must take place periodically, bearing in mind the following:

• the glass, steel and/or enamelled parts must be cleaned with suitable non-abrasive or corrosive products (found on the market). A void chlorine-base products (bleach, etc.);
• avoid leaving acid or alkaline substances on the working area (vinegar, salt, lemon juice, etc.).
• the wall baffle and the small covers (mobile parts of the burner) must be washed frequently with boiling water and detergent, taking care to remove every possible encrustation. Dry carefully and check that none of the burner holes is fully or partially clogged;
• the electrical parts are cleaned with a damp cloth and are lightly greased with lubricating oil when still warm.
• the stainless steel grids of the working area, after having been heated, take on a bluish tint which does not deteriorate the quality. To bring colour back to its original state, use a slightly abrasive product.

N.B.: - Cleaning of the taps must be carried out by qualified personnel, who must be consulted in case of any functioning anomaly.

Check periodically the state of conservation of the flexible gas feed pipe. In case of leakage, call immediately the qualified technicians for its replacement.

Maintenance vitroceramic surface

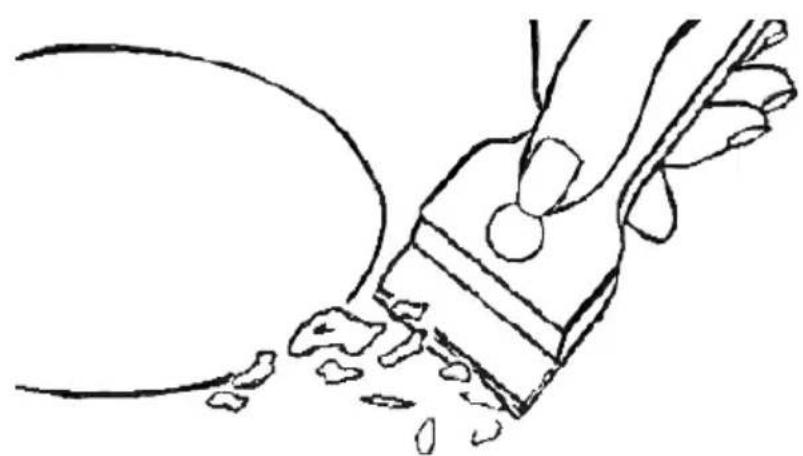

(Fig.-2) First of all remove stray food bits and grease drops from the cooking surface with the special scraper (fig. 2). Then clean the hot area as best as possible with SIDOL, STAHLFIX or other similar products with a papertowel, then rinse again with water and dry with a clean cloth.

Pieces of aluminum foil and plastic material which have inadvertently melted or sugar remains or highly sacchariferous food have to be removed immediately from the hot cooking area with the special scraper (fig. 2). This is to avoid any possible damage to the surface of the top.

Under no circumstances should abrasive sponges or irritating chemical detergents be used such as oven sprays or spot removers.

Do not use steam cleaning appliances to clean the cooking surface.

Line drawing of a hand holding a tool with a curved handle and scattered debris (no text or symbols)

Fig. 2

INSTRUCTIONS FOR THE INSTALLER

Installation

This appliance is not provided with a combustion product discharge. It is recommended that it be installed in sufficiently aerated places, in terms of the laws in force. The quantity of air which is necessary for combustion must not be below 2.0 m^3/h for each kW of installed power.

See table of burner power.

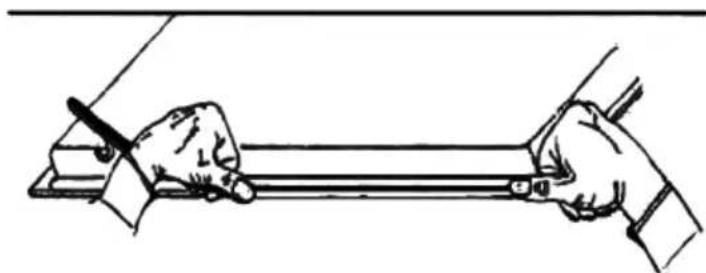

Positioning

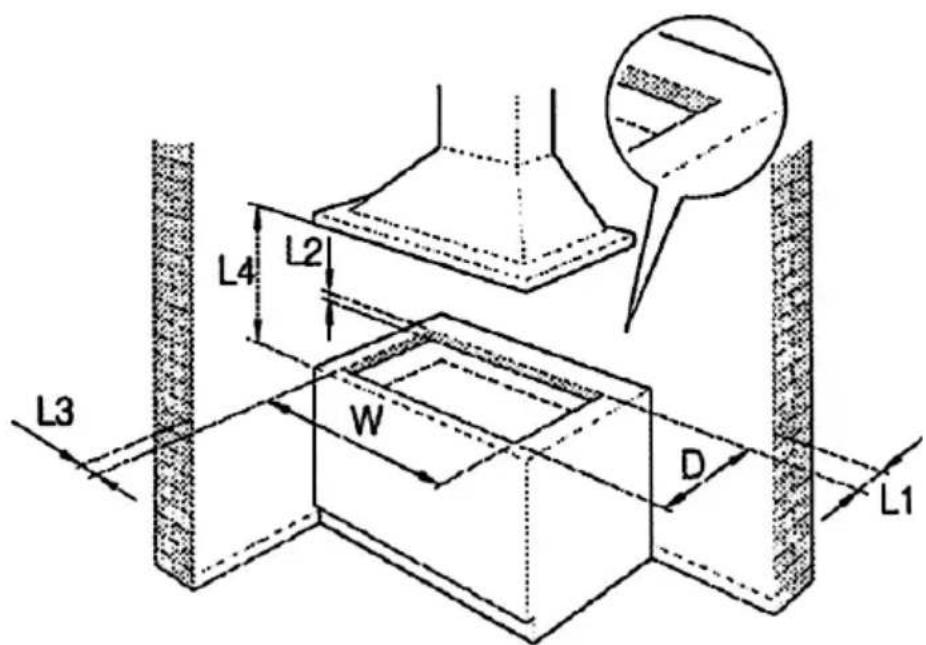

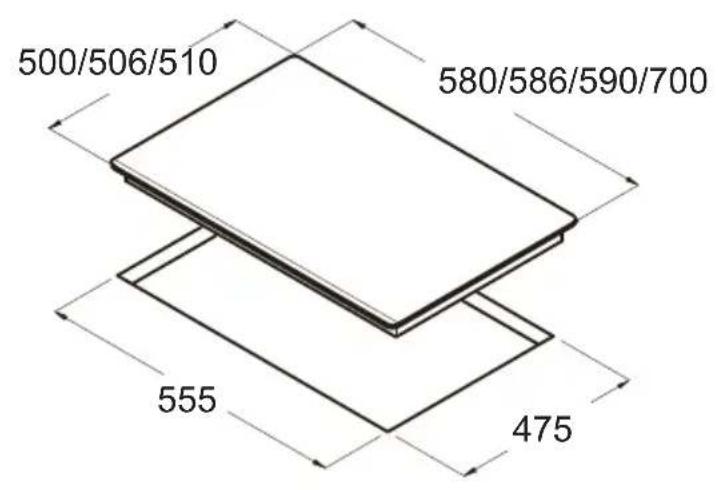

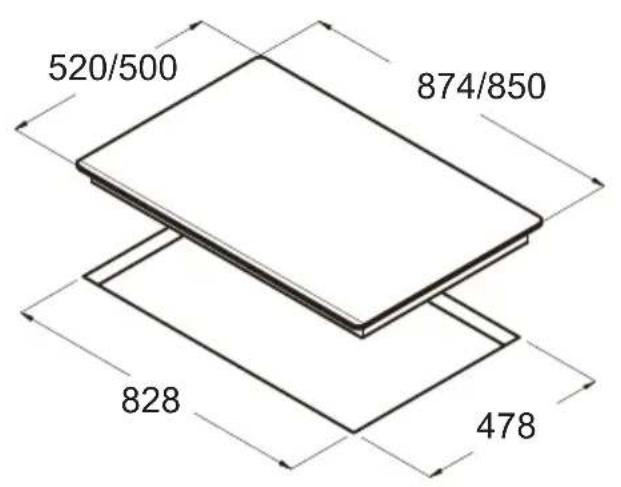

The appliance can be fitted into a working area as illustrated on the corresponding figure. Before positioning the hob, fit the seal around the entire peripnery of the hole cut in the worktop.

Line drawing of two hands holding a long rod or rod with a pen, no text or symbols present

Fig. 3

• that the plant is fitted with an efficient earth connection, following the standards and law provisions in force.
  The earth connection is compulsory in terms of the law. Should there be no cable and/or plug on the equipment, use suitable absorption material for the working temperature as well, as indicated on the matrix plate. Under no circumstance must the cable reach a temperature above 50 °C of the ambient temperature.
  Should a direct connection to the network be required, it will be necessary to interpose an omnipolar switch with minimum aperture between the 3 mm. contacts, dimensioned to bear the plate load and it must follow the standards in force (the yellow/green earth cable must not be interrupted by the switch). The plug or omnipolar switch must be easily reached on the installed equipment.
  The manufacturers decline any responsibility in the event of non-compliance with what is described above and the accident prevention norms not being respected and followed.

If the mains cable becomes damaged, replace it immediately with a cable or special cable set obtained from the manufacturer or from after sales service.

The use of silicone for the sealing is prohibited. It is only permitted to use the seal provided.

The use of clay pots and heat diffusers is prohibited.

GAS CONNECTION

(Fig. 4) Connect the appliance to the gas cylinder or to the installation according to the prescribed standards in force, and ensure beforehand, that the appliance matches the type of gas available. Otherwise, see “Adaptation to various types of gas”. Furthermore, check that the feed pressure falls within the values described on the table: “Injectors characteristics”.

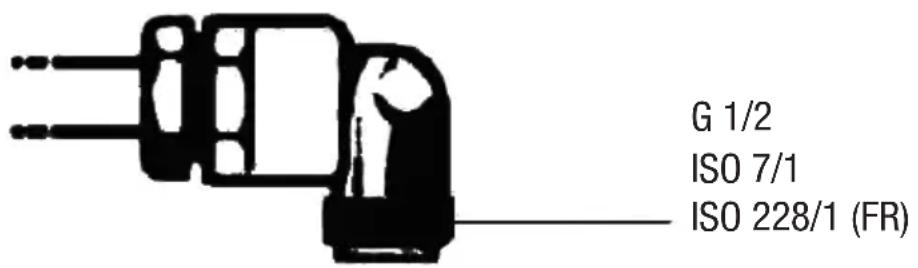

Rigid/semirigid metal connection

Carry out the connection with fittings and metal pipes (even flexible pipes) so as to obtain counter stress the inner parts of the appliance.

N.B.: - token the installation has been carried out, check the perfect sealing of the entire connection system, by using a soapy solution.

Fig. 4

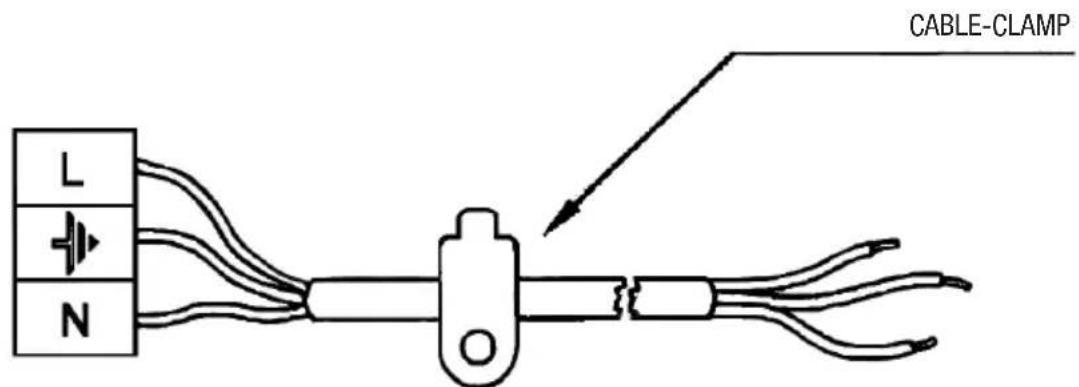

Electrical connection

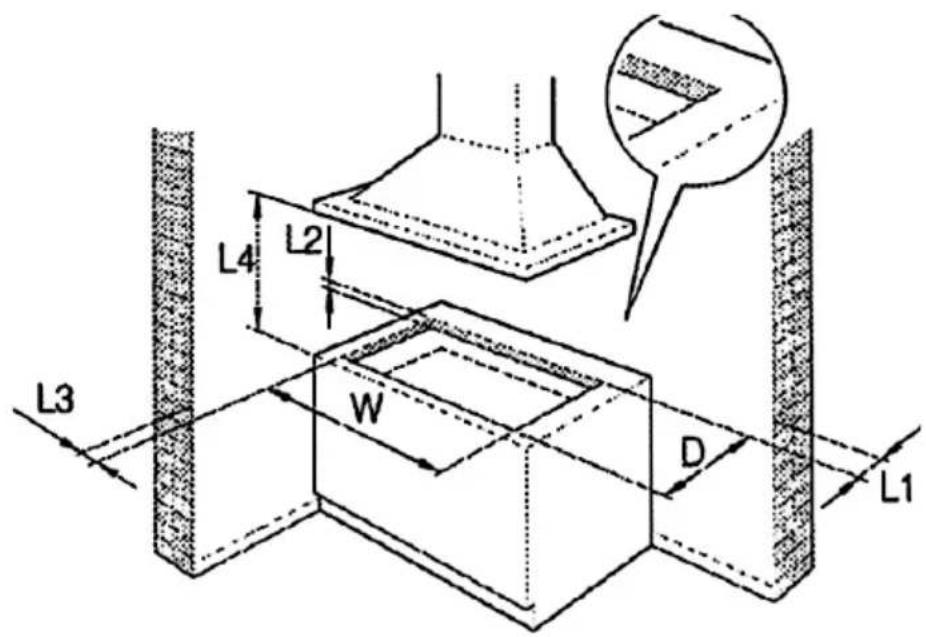

(Fig. 5) Prior to carrying out the electricat connection, please ensure that:

- the plant characteristics are such as to follow what is indicated on the matrix plate placed at the bottom of the working area;

Fig. 5

- that the plant is fitted with an efficient earth connection, following the standards and law provisions in force. The earth connection is compulsory in terms of the law. Should there be no cable and/or plug on the equipment, use suitable absorption material for the working temperature as well, as indicated on the matrix plate. Under no circumstance must the cable reach a temperature above 50 °C of the ambient temperature.

Should a direct connection to the network be required, it will be necessary to interpose an omnipolar switch with minimum aperture between the 3 mm. contacts, dimensioned to bear the plate load and it must follow the standards in force (the yellow/green earth cable must not be interrupted by the switch). The plug or omnipolar switch must be easily reached on the installed equipment.

The manufacturers decline any responsibility in the event of non-compliance with what is described above and the accident prevention norms not being respected and followed.

If the mains cable becomes damaged, replace it immediately with a cable or special cable set obtained from the manufacturer or from after sales service.

Adaptation to various types of gas

(Fig. 6) Should the appliance be pre-set for a different type of gas than that available, proceed as follows:

- replace the injectors (Fig. 6) with the corresponding type of gas to be used (see table "Injectors characteristics").

Hand performing a hand gesture on a rotating mechanical component (no text or symbols visible)

Fig. 6

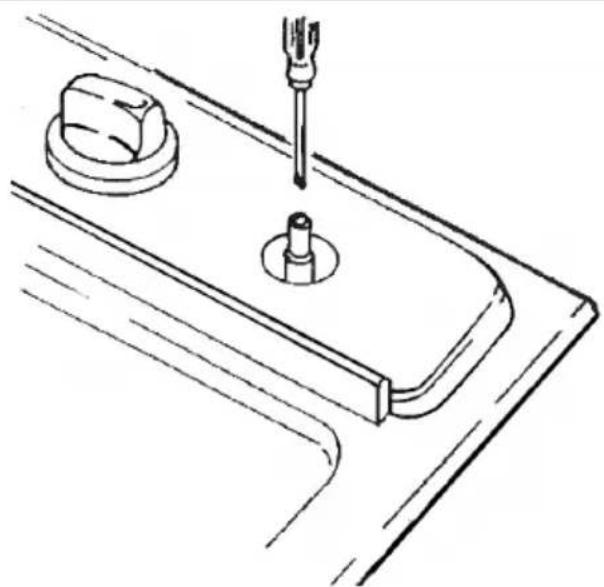

- to adjust to the minimum, use a screwdriver on the screw placed on the tap (Fig. 8) after turning the tap to its minimum position. For LPG (butane/propane) screw tight.

Technical line drawing of a mechanical assembly with a screwdriver inserted, featuring a knob and base plate (no text or symbols)

Fig. 7

(cm)
R L1 L2	L3 L4
1 6 4 10	70

Fig. 8

INJECTORS CHARACTERISTICS

GAS BURNERS	TYPE	PRESSURE	INJECTORS	CONSUMPTION		THERMAL CAPACITY NOMINAL
		mbar	1/100mm	g/h	l/h	Kw	Kcal/h
Auxiliar	G 20	20	74	-	95	1.00	860
	G30/G31	28	51	73	-	1.00	774
Semifast	G 20	20	98	-	167	1.75	1617
	G30/G31	28	69	127	-	1.75	1617
Fast	G 20	20	114/124	-	238/286	2,50/3,00	1720/2064
	G30/G31	28	81/88	182/218	0	2,50/3,00	2064/2471
Faster	G 20	20	124/127	-	286/333	3,00/3,50	2451/2860
	G30/G31	28	88/94	218/255	0	3,00/3,50	2924/3411

Symbolic illustration of a trash bin crossed with diagonal lines, no text or labels present

Caro Cliente,

Abstract geometric line drawing with intersecting lines and shapes (no text or symbols)

rapido Φ 18 x 24

semirapido Φ 14 x 18

ausiliario Φ 12 x 14

Simple line drawing of a laptop with stand (no text or symbols)

pesciera* 18 x 30

Fig. 1

MODELLI CON PILE INCLUSE

Garanzia

Technical line drawing of a mechanical or electronic component with no visible text, numbers, or symbols.

Line drawing of a hand holding a tool with debris, labeled Fig. 2 (no text or symbols on the diagram itself)

ISTRUZIONI PER L'INSTALLATORE

Installazione

Line drawing of two hands holding a tool over a rectangular object, labeled 'Fig. 3' (no text or symbols on the diagram itself)

Line drawing of a hand using a tool to press or press a small object on a circular base, labeled 'Fig. 6' (no other text or symbols)

Technical line drawing of a mechanical assembly with a screwdriver inserted, featuring a knob and base plate (no text or symbols)

Fig. 7

(cm)
R L1 L2	L3 L4
1 6 4 10	70

Fig. 8

II2H3+

CARATTERISTICHE INIETTORI
BRUCIATORI GAS	TIPO	PRESSIONE	INIETTORI	CONSUMO		PORTATA TÉRMICA NOMINALE
		mbar	1/100mm	g/h	l/h	Kw	Kcal/h
Ausiliario	G 20	20	74	-	95	1,00	860
	G30/G31	28	51	73	-	1,00	774
Semirapido	G 20	20	98	-	167	1,75	1617
	G30/G31	28	69	127	-	1,75	1617
Rapido	G 20	20	114/124	-	238/286	2,50/3,00	1720/2064
	G30/G31	28	81/88	182/218	0	2,50/3,00	2064/2471
Fast	G 20	20	124/127	-	286/333	3,00/3,50	2451/2860
	G30/G31	28	88/94	218/255	0	3,00/3,50	2924/3411

Symbolic illustration of a trash bin crossed out by two crossed arms, with no text or labels present.

Geachte klant,

Abstract geometric line drawing with intersecting lines and shapes (no text or symbols)

snel Φ 18 x 24

matig snel Φ 14 x 18

sudderpit Φ 12 x 14

vis* 18 x 30

Simple line drawing of a laptop on a stand (no text or symbols)

Afb. 1

MODELLEN MET BATTERIJEN

Garantie

Top-down schematic of a device layout with no visible text, numbers, or symbols

Line drawing of a hand holding a small object with fragments, labeled 'Afb. 2' (no other text or symbols)

INSTRUCTIES VOOR DE INSTALLATEUR

Installatie

Line drawing of two hands holding a tool over a rectangular object, labeled 'Afb. 3' (no other text or symbols)

Hand pouring liquid into a circular container with a rotating arrow, placed on a rectangular surface (no text or symbols)

Technical line drawing of a mechanical assembly with a screwdriver inserted, featuring a knob and base plate (no text or symbols)

Afb. 7

(cm)
R L1 L2	L3 L4
1 6 4 10	70

Afb. 8

KARAKTERISTIEKEN VERSTUIVERS

GASBRANDER	TYPE	DRUK	INJECTOREN	VERBRUIK		THERMISCH VERMOGEN NOMINAAL
		mbar	1/100mm	g/h	l/h	Kw	Kcal/h
Auxiliar	G 20	20	74	-	95	1,00	860
	G30/G31	28	51	73	-	1,00	774
Semirápido	G 20	20	98	-	167	1,75	1617
	G30/G31	28	69	127	-	1,75	1617
Rápido	G 20	20	114/124	-	238/286	2,50/3,00	1720/2064
	G30/G31	28	81/88	182/218	0	2,50/3,00	2064/2471
Fast	G 20	20	124/127	-	286/333	3,00/3,50	2451/2860
	G30/G31	28	88/94	218/255	0	3,00/3,50	2924/3411

Symbolic illustration of a trash bin crossed out by two crossed arms, with no text or symbols present.

Ex.mo. Sr. Cliente,

Abstract geometric line drawing with intersecting lines and shapes (no text or symbols)

rápido Φ 18 x 24

semi-rápido Φ 14 x 18

auxiliar Φ 12 x 14

Simple line drawing of a laptop on a stand (no text or symbols)

pesciera* 18 x 30

Fig. 1

MODELOS QUE INCLUEM PILHAS

Garantia

Top-down schematic of a device layout with no visible text, numbers, or symbols

Line drawing of a hand holding a tool with a curved handle and scattered debris, labeled 'Fig. 2' (no text or symbols on the diagram itself)

INSTRUÇÕES PARA O INSTALADOR

Instalação

Line drawing of two hands holding a tool over a rectangular object, labeled 'Fig. 3' (no text or symbols on the diagram itself)

Line drawing of a hand pressing down on a circular object with arrows, labeled 'Fig. 6' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with a screwdriver inserted into a workpiece (no text or symbols)

Fig. 7

(cm)
R L1 L2	L3 L4
1 6 4 10	70

Fig. 8

II2H3+

CARACTERÍSTICAS DOS INJECTORES
QUEIMADORES DE GAS	TIPO	PRESSÃO	BICOS	CONSUMO		CAPACIDADE TÉRMICA NOMINAL
		mbar	1/100mm	g/h	l/h	Kw	Kcal/h
Auxiliar	G 20	20	74	-	95	1,00	860
	G30/G31	28	51	73	-	1,00	774
Semirápido	G 20	20	98	-	167	1,75	1617
	G30/G31	28	69	127	-	1,75	1617
Rápido	G 20	20	114/124	-	238/286	2,50/3,00	1720/2064
	G30/G31	28	81/88	182/218	0	2,50/3,00	2064/2471
Fast	G 20	20	124/127	-	286/333	3,00/3,50	2451/2860
	G30/G31	28	88/94	218/255	0	3,00/3,50	2924/3411

Symbolic illustration of a trash bin crossed out by two diagonal lines, with no text or labels present.

Abstract geometric line drawing with intersecting lines and shapes (no text or symbols)

Simple line drawing of a laptop on a stand (no text or symbols)

Top-down schematic of a device layout with no visible text, numbers, or symbols

Line drawing of a hand holding a tool with debris, labeled 'Рис. 2' (no other text or symbols)

Line drawing of two hands holding a ruler or rod, with no text or symbols present

Line drawing of a hand pressing down on a circular object with a spring-like element, no text or symbols present

Technical line drawing of a mechanical assembly with a screwdriver inserted into a workpiece (no text or symbols)

Рис. 7

(cm)
R L1 L2	L3 L4
1 6 4 10	70

Рис. 8

Symbol of a trash bin crossed with no text or labels, representing waste sorting or recycling (no text present)

Pure geometric line drawing of a symmetrical mechanical or architectural component with intersecting lines (no text or symbols)

Simple line drawing of a laptop on a stand (no text or symbols)

1 صورة

الصيانة

Technical line drawing of a mechanical or electronic component with no visible text, numbers, or symbols.

Silhouette of a mechanical device with ports and a base (no text or symbols)

G 1/2

ISO 7/1

ISO 228/1 (FR)

4 صورة

التوصيل الكهربائي

Technical line drawing of a mechanical assembly with a screwdriver inserted into a workpiece (no text or symbols)

7 صورة

(ρω)
				RL1L2L3L4
				1641070

8 صورة

Pure electrical circuit lines without any symbols

cata

CNA group

CATA ELECTRODOMÉSTICOS, S.L.
