USER MANUAL NT 703 Me Tc Kärcher

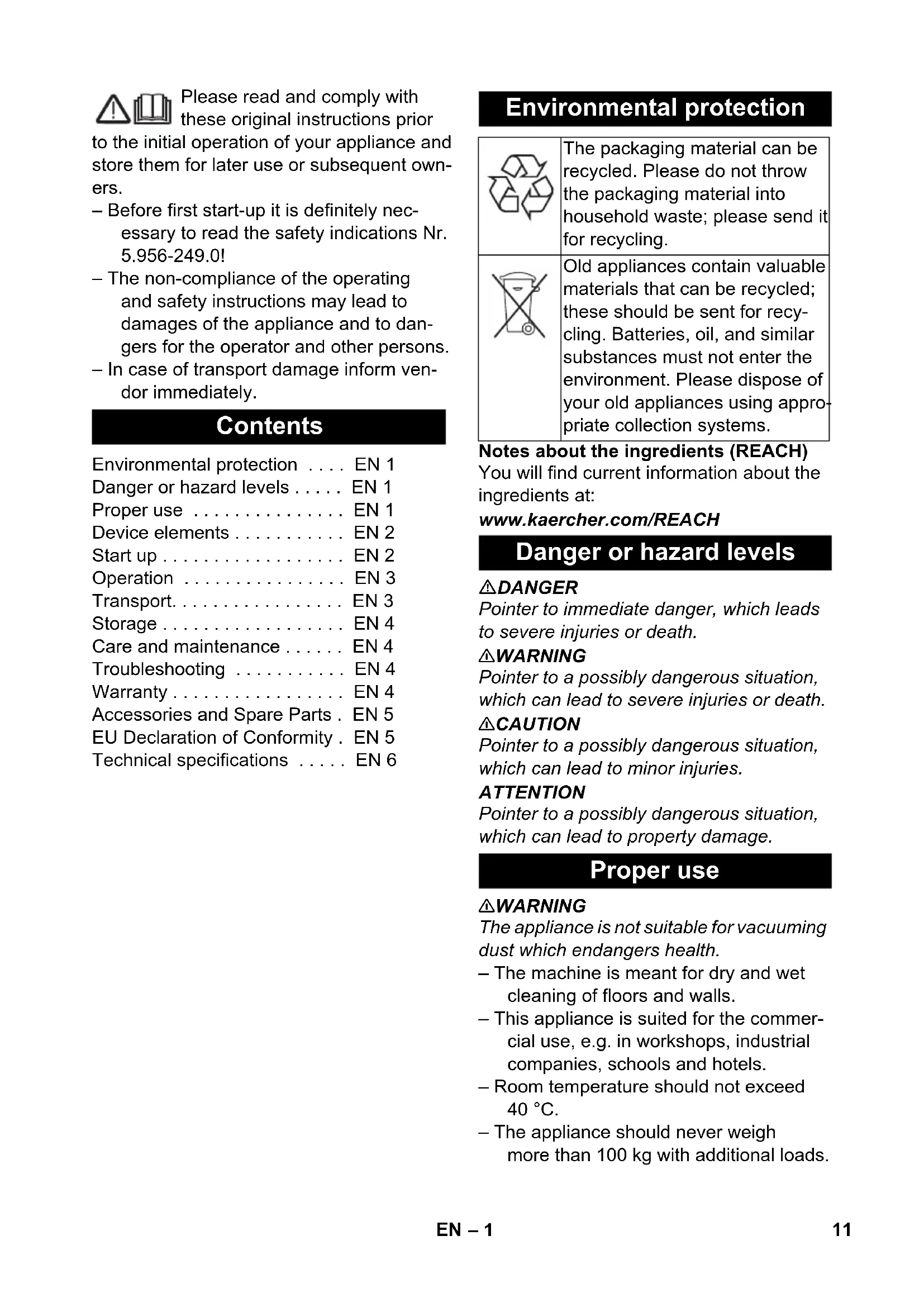

Teile-Nr. Kabellänge EU 6.647-069.0 10 m 10 DE– 1 Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use or subsequent own- ers. – Before first start-up it is definitely nec- essary to read the safety indications Nr. 5.956-249.0! – The non-compliance of the operating and safety instructions may lead to damages of the appliance and to dan- gers for the operator and other persons. – In case of transport damage inform ven- dor immediately. Notes about the ingredients (REACH) You will find current information about the ingredients at: www.kaercher.com/REACH DANGER Pointer to immediate danger, which leads to severe injuries or death. 몇 WARNING Pointer to a possibly dangerous situation, which can lead to severe injuries or death. 몇 CAUTION Pointer to a possibly dangerous situation, which can lead to minor injuries. ATTENTION Pointer to a possibly dangerous situation, which can lead to property damage. 몇 WARNING The appliance is not suitable for vacuuming dust which endangers health. – The machine is meant for dry and wet cleaning of floors and walls. – This appliance is suited for the commer- cial use, e.g. in workshops, industrial companies, schools and hotels. – Room temperature should not exceed 40 °C. – The appliance should never weigh more than 100 kg with additional loads. Contents Environmental protection ... EN 1 Danger or hazard levels ... EN 1 Proper use ... EN 1 Device elements ... EN 2 Start up ... EN 2 Operation ... EN 3 Transport... EN 3 Storage ... EN 4 Care and maintenance ... EN 4 Troubleshooting ... EN 4 Warranty ... EN 4 Accessories and Spare Parts . EN 5 EU Declaration of Conformity . EN 5 Technical specifications ... EN 6 Environmental protection The packaging material can be recycled. Please do not throw the packaging material into household waste; please send it for recycling. Old appliances contain valuable materials that can be recycled; these should be sent for recy- cling. Batteries, oil, and similar substances must not enter the environment. Please dispose of your old appliances using appro- priate collection systems. Danger or hazard levels Proper use 11EN– 2 1 Star screw 2 Cartridge filter 3 Mechanical overflow protection 4 Suction head 5 Suction hose 6 Push handle 7 Cable hook 8 Suction head lock 9 Dirt receptacle 10 Suction support 11 Tilting chassis 12 Container handle 13 Steering roller 14 Floor nozzle 15 Suction tube 16 Carrying handle 17 Bender 18 Appliance switch suction turbine 2 19 Appliance switch suction turbine 1 20 Appliance switch suction turbine 3 21 Storage for floor nozzle 22 Drain hose 23 Holder for suction pipes 24 Holder for crevice nozzle 25 Power cord 26 Nameplate ATTENTION The highest allowed net impedance at the electrical connection point (refer to techni- cal data) is not to be exceeded. In case of confusion regarding the power impedance present on your connection, please contact your utilities provider. ATTENTION Risk of damage! The cartridge filter must never be removed during vacuuming. – When vacuuming fine dust, you may also use an additional paper filter bag or a membrane filter (special accessory). Illustration Release and remove the suction head. Insert the paper filter bag or the mem- brane filter (special attachment). Insert and lock the suction head. Illustration Remove the brush strips. Install the rubber lips. Note: The structured side of the rubber lips must point outwards. – If the appliance is used to vacuum wet dirt the paper filter bag or the mem- brane filter (special accessory) must al- ways be removed. – It is recommended to use a special filter bag (wet) (see Filter systems). ATTENTION Risk of damage! The cartridge filter must never be removed during vacuuming. – After the wet vacuuming: Clean the me- chanical overflow protection and the container with a damp rag and dry them. – If you change immediately from wet to dry vacuuming, then replace the wet cartridge filter with a dry one. Device elements Start up Power connection Dry vacuum cleaning Inserting the paper filter bag (option) Wet vacuum cleaning Inserting the rubber lips Remove the paper filter bag Wet vacuuming with cartridge filter 12 EN– 3 Release and remove the suction head. Unscrew the star screw and pull out the cartridge filter. Illustration Tighten the star screw. Install the wet filter. Insert and lock the suction head. ATTENTION Risk of damage! The wet filter must never be removed during the vacuuming. – After the wet vacuuming: Clean the me- chanical overflow protection and the container with a damp rag and dry them. – If you change immediately from wet to dry vacuuming, replace the wet filter with a cartridge filter. 몇 CAUTION Please observe the local provisions regard- ing the wastewater treatment. Appliance with metal container: Illustration Appliance with plastic container: Illustration Drain off dirty water through the drain- age hose. Illustration Lock parking brake. Hold the container at the handle and tilt it by raising it. Empty the container fully. Illustration The suction hose is equipped with a clip system. All C-40/C-DN-40 accessories can be connected. Plug in the mains plug. Turn on the appliance. – The vacuum channel is equipped with a float. – When the dirt water reaches the highest permissible level in the container, the suction power is interrupted. Turn off the appliance. Empty the container. Turn off the appliance. Pull out the mains plug. Empty the container. Vacuum and wipe the appliance inside and outside with a damp cloth. Wind the suction hose and the mains cable and hang it over the pushing han- dle. Place the appliance in a dry room and secure it from unauthorized use. 몇 CAUTION Risk of injury and damage! Observe the weight of the appliance when you transport it. Remove the suction pipe with the floor nozzle from the holder. Hold the appli- ance by the handle and at the suction pipe to transport it, not by the push han- dle. Pull the device behind you at the carry- ing handle for transporting it over longer distances When transporting in vehicles, secure the appliance according to the guide- lines from slipping and tipping over. Wet vacuuming with wet filter (optional) Drain off dirt water Emptying the container fully Clip connection Operation Turning on the Appliance Emptying the dirt container Turn off the appliance After each operation Storing the Appliance Transport 13EN– 4 몇 CAUTION Risk of injury and damage! Note the weight of the appliance in case of storage. This appliance must only be stored in inte- rior rooms. DANGER First pull out the plug from the mains before carrying out any tasks on the machine. Release and remove the suction head. Unscrew the star screw, pull out the cartridge filter and replace with a new one. Tighten the star screw. Insert and lock the suction head. Release and remove the suction head. Unscrew the star screw and pull out the cartridge filter. Clean the mechanical overflow protec- tion with a moist cloth. Replace the cartridge filters. Tighten the star screw. Insert and lock the suction head. DANGER First pull out the plug from the mains before carrying out any tasks on the machine. Check the receptacle and the fuse of the power supply. Check power cable, mains plug and mechanical overflow protection. Turn on the appliance. Empty the container. Turn off the appliance and wait for 5 seconds, turn it on again after 5 sec- onds. Remove choking of suction nozzle, suc- tion tube, suction hose, or cartridge fil- ter. Replace the washer between the suc- tion head and the container. Exchange the paper filter bag. Clean or replace the membrane filter (special accessory) under running water. Change cartridge filter. Check drain pipe for leaks. Check the proper installation of the car- tridge filter. Change cartridge filter. Check swimmer for easy accessibility; clean with a moist rag or replace as need be. If malfunction can not be fixed, the de- vice must be checked by customer ser- vice. The warranty terms published by the rele- vant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in man- ufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase. Storage Care and maintenance Change cartridge filter Cleaning the mechanical overflow safeguard Troubleshooting Suction turbine does not run Suction turbine turns off Suction turbine does not start again after the container has been emptied Suction capacity decreases Dust comes out while vacuuming Mechanical overflow safeguard (wet suction) does not function Customer Service Warranty 14 EN– 5 Only use original accessories and spare parts, they ensure the safe and trouble-free operation of the device. For information about accessories and spare parts, please visit www.kaercher.com. We hereby declare that the machine de- scribed below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval. 5.957-702 The undersigned act on behalf and under the power of attorney of the company man- agement. Authorised Documentation Representative S. Reiser Alfred Kärcher GmbH Co. KG Alfred-Kärcher-Str. 28 - 40 71364 Winnenden (Germany) Phone: +49 7195 14-0 Fax: +49 7195 14-2212 Winnenden, 2017/07/01 Accessories and Spare Parts EU Declaration of Conformity Product: Wet and dry vacuum cleaner Type: 1.667-xxx Relevant EU Directives 2006/42/EC (+2009/127/EC) 2014/30/EU 2011/65/EU Applied harmonized standards EN 55014–1: 2006+A1: 2009+A2: 2011 EN 55014–2: 2015 EN 60335–1 EN 60335–2–69 EN 61000–3–2: 2014 EN 61000–3–3: 2013 EN 62233: 2008 EN 50581 Applied national standards

www.kaercher.com/REACH

4.440-678 K CDN 40 4,0

[mm] 171http://www.kaercher.com/dealersearch
