USER MANUAL LSRM2085ST LG

MICROWAVE OVEN Read this owner’s manual thoroughly before operating the appliance and keep it handy for reference at all times. www.lg.com LSRM2085** Copyright © 2018 LG Electronics Inc. All Rights Reserved.

MFL69962313_00PRECAUTIONS TO AVOID POSSIBLE

Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.

The oven should not be adjusted or repaired by anyone except properly qualified service personnel.3

PRODUCT OVERVIEW 8 Location of Model Number 8 Electrical Requirements 8 Voltage Warning 8 Placement of the Oven 8 Do Not Block Air Vents 8 Grounding Instructions 9 Radio / TV / Wireless Equipment Interference 9 Oven Specifications 10 Microwave Oven Features 10 Accessories 11 Control Panel Overview

TROUBLESHOOTING 25 Frequently Asked Questions 26 Before Calling for Service

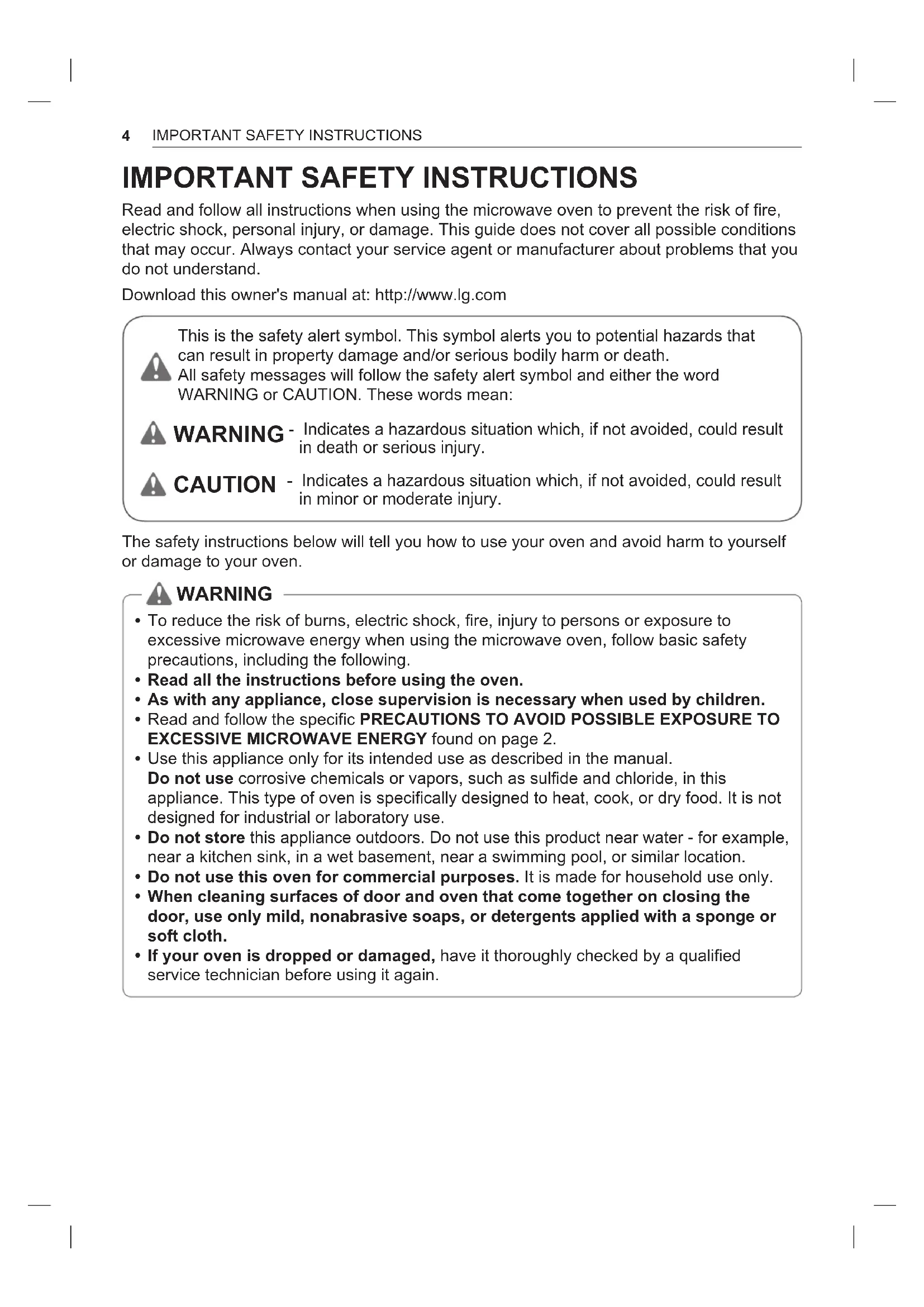

Read and follow all instructions when using the microwave oven to prevent the risk of fire, electric shock, personal injury, or damage. This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand.Download this owner's manual at: http://www.lg.comThis is the safety alert symbol. This symbol alerts you to potential hazards that can result in property damage and/or serious bodily harm or death. All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION. These words mean: WARNING - Indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION - Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. The safety instructions below will tell you how to use your oven and avoid harm to yourself or damage to your oven. WARNING

To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy when using the microwave oven, follow basic safety precautions, including the following.

Read all the instructions before using the oven.

As with any appliance, close supervision is necessary when used by children.

Read and follow the specific PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY found on page 2.

Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors, such as sulfide and chloride, in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.

Do not store this appliance outdoors. Do not use this product near water - for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar location.

Do not use this oven for commercial purposes. It is made for household use only.

When cleaning surfaces of door and oven that come together on closing the door, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.

If your oven is dropped or damaged, have it thoroughly checked by a qualified service technician before using it again.5

To reduce the risk of fire in the oven cavity: - Do not overcook food. Carefully attend to the microwave oven when paper, plastic or other combustible materials are placed inside the oven to facilitate cooking. - Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use. - Remove wire twist-ties from paper or plastic bags before placing bags in oven.

If materials inside the oven ignite: - Keep oven door closed - Turn the oven off - Disconnect the power cord or shut off power at the fuse or circuit breaker panel.

To avoid electric shock: - This appliance must be grounded. Connect only to a properly grounded outlet. See the electrical GROUNDING INSTRUCTIONS on page 8. - Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. - Do not immerse the electrical cord or plug in water. - Keep cord away from heated surfaces. - Do not let cord hang over edge of table or counter.

Take care when the door is opened to avoid injury.

To avoid improperly cooking some foods: - Do not heat any type of baby bottle or baby food. Uneven heating may occur and possibly cause personal injury. - Do not heat small-necked containers, such as syrup bottles. - Do not deep-fat fry in the microwave oven. - Do not attempt home canning in the microwave oven. - Some products such as whole eggs and sealed containers – for example, closed glass jars – are able to explode and should not be heated in this oven.

Do not cover or block any openings on the appliance.

Do not run the oven empty.

Install or locate this appliance only in accordance with the provided installation instructions.

This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service facility for examination, repair, or adjustment.

Liquids, such as water, coffee, or tea can be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.

To reduce the risk of injury to persons; - Do not overheat the liquid. - Stir the liquid both before and halfway through heating it. - Do not use straight-sided containers with narrow necks. - After heating, allow the container to stand in the microwave oven for a short time before removing the container. - Use extreme care when inserting a spoon or other utensil into the container. ENGLISH6

Do not use the oven for the purpose of dehumidification (for example, operating the microwave oven with wet newspapers, clothes, toys, electric devices, plants, soil, pets or any other living matter inside it). The oven must only be used for heating or cooking food. - The results of misuse can include safety risks such as fire, burns, or death due to electric shock.

This appliance is not intended for use by persons (Including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. - Improper use may cause damage such as a fire, electric shock or burn.

Accessible parts may become hot during use. Young children should be kept away. - They may be burned.

Children must not be allowed to play with accessories or hang down from the door or any part of the oven. - Doing so can cause serious injury and damage.

If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children shall be kept away unless continuously supervised.

During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

Do not use recycled paper products. - They may contain impurities which may cause sparks and/or fires when used in cooking.

Do not rinse trays and racks by placing them in water just after cooking. This may cause breakage or damage. - Improper use could result in damage to the oven.

The oven should be cleaned regularly and any food deposits should be removed. - Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

The door or the outer surface may get hot when the appliance is operating.

Liquids heated in certain shaped containers (especially cylindrical-shaped containers) may become overheated. The liquid may splash out with a loud noise during or after heating or when adding ingredients (instant coffee. etc.), resulting in harm to the oven and possible injury. In all containers, for best results, stir the liquid several times before heating. Always stir liquid several times between reheatings. WARNING7

INTERFERENCE STATEMENT (U.S.A. ONLY) This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type tested and found to comply with limits for ISM Equipment pursuant to part 18 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following:

Reorient the receiving antenna of the radio or television.

Relocate the Microwave Oven with respect to the receiver.

Move the microwave oven away from the receiver.

Plug the microwave oven into a different outlet so that the microwave oven and the receiver are on different branch circuits. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this microwave oven. It is the responsibility of the user to correct such interference. Read all instructions before using the appliance.

SAVE THESE INSTRUCTIONS8

PRODUCT OVERVIEW PRODUCT OVERVIEW Location of Model Number To request service information or replacement parts, the service center requires the complete model number of your microwave oven. The model number is on the oven back as shown in the illustration below. Model number label Electrical Requirements The oven is designed to operate on a Standard 120 V/60 Hz household outlet. Be sure the circuit is at least 15 A or 20 A and the microwave oven is the only appliance on the circuit. It is not designed for 50 Hz or any circuit other than a 120 V/60 Hz circuit. No other electrical appliances or lighting circuits should be on this line. If in doubt, consult a licensed electrician. Voltage Warning The voltage used at the wall receptacle must be the same as specified on the oven name plate located on the back or on the side of the control panel of the oven. Use of a higher voltage is dangerous and may result in a fire or other type of accident causing oven damage. Low voltage will cause slow cooking. If the microwave oven does not perform normally in spite of proper voltage, remove and reinsert the plug. Placement of the Oven The microwave oven can be placed easily in your kitchen, family room, or anywhere else in your home. Place the oven on a flat surface such as a kitchen countertop or a specially designed microwave oven cart. Do not place oven above a gas or electric range. Free airflow around the oven is important. Allow at least 4 inches of space at the top, sides, and back of the oven for proper ventilation. Do Not Block Air Vents All air vents should be kept clear during cooking. If air vents are covered during oven operation the oven may overheat. If this happens, a sensitive thermal safety device automatically turns the oven off. The oven will be inoperable until it has cooled sufficiently. Grounding Instructions This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. WARNING

Improper use of grounding can result in a risk of electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

1. Use of an extension cord is not recommended. If

the power supply cord is too short, have a qualified electrician or service person install an outlet near the appliance.

2. If it is necessary to use an extension cord, use

only a 3-wire extension cord that has a 3-blade grounding plug, and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord must be equal to or greater than the electrical rating of the appliance. NOTE

A short power supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

Longer cord sets or extension cords are available and may be used if care is exercised in their use.

If a long cord or extension cord is used, (1) the marked electrical rating of the cord set or extension cord must be at least as great as the electrical rating of the appliance, (2) the extension cord must be a grounding-type 3-wire cord, and (3) the longer cord should not be draped over a counter or table where children could pull on it, or located where it could present a trip hazard. See the separate Installation Instructions for directions on placing the cord properly. Ensure proper ground exists before use Keep the electrical power cord dry and do not pinch or crush it in any way.9 PRODUCT OVERVIEW Radio / TV / Wireless Equipment Interference Operating the microwave oven near equipment—such as a radio, TV, wireless LAN, Bluetooth devices, medical equipment, or wireless equipment—which uses the same frequency, may cause interference. This interference is not an indication of a defect in the product or its operation. The product is safe to use. WARNING

Do not use medical equipment near the microwave oven, as the interference could affect the medical equipment’s operation. When there is interference, it may be reduced or eliminated by taking the following measures: a. Clean the door and the sealing surfaces of the oven. b. Reorient the receiving antenna of the radio, TV, Bluetooth, or other equipment. c. Relocate the microwave oven in relation to the radio, TV, Bluetooth, or other equipment. d. Move the microwave oven away from the receiver. e. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits. Oven Specifications Model LSRM2085** Power Supply 120 V AC, 60 Hz Rated Power Consumption 1200 W Microwave Output Max. 1200 W* Frequency 2450 MHz Rated Current 10.0 A Overall Dimensions (W x H x D)

• IEC 60705 RATING STANDARD Specifications subject to change without prior notice. ENGLISH10 PRODUCT OVERVIEW Microwave Oven Features Door Seal Window Oven Front Plate Display Window Control Panel Safety Door Lock System Door Open Button NOTE To open the door, push the door open button, shown above. Accessories Your oven comes with the following accessories. Owner's Manual Glass Tray Rotating ring Owner's Manual NOTE This microwave oven is designed for household use only. It is not recommended for commercial use.11 PRODUCT OVERVIEW Control Panel Overview Use the control panel to select the desired cooking function quickly and easily. Simply touch a command key to select the desired function. For more information on these features, see the OPERATION section.

Smart Diagnosis Hold the mouthpiece of a phone up to this icon when directed to by service center personnel, to help diagnosis problems with the oven when calling for service.

Display The display includes a clock and shows the time of day, cooking time settings, and selected cooking functions.

Sensor Cook Touch this key to cook potatoes, frozen vegetables, fresh vegetables, frozen entrées, bacon, oatmeal, and rice without having to select cooking times and power levels.

Sensor Reheat Touch this key to reheat beverages, casseroles, pizza, dinner plates, and pies without having to select cooking times and power levels.

Popcorn Touch this key to pop popcorn without having to select cooking times and power levels.

Defrost Touch this key to defrost meat, poultry, fish, and bread.

Number Keys Touch number keys to enter cooking time, power level, quantities, or weights.

Power Level Touch this key to set a cooking power.

Touch this key to use your microwave oven as a kitchen timer.

Press and hold this key for 3 seconds to set the time of day.

Touch this key to stop the oven or clear all entries.

Press and hold this key for 3 seconds to lock the control panel.

Touch this key to start the oven or enter amounts.

Touch this key to cook at 100% cook power for 30 seconds.

Touch this key during cooking to increase cook time by 30 seconds. Touch repeatedly to add up to 99 minutes 59 seconds. ENGLISH12

Microwave Cookware Guide Use Do Not Use OVENPROOF GLASS (treated for high intensity heat): utility dishes, loaf dishes, pie plates, cake plates, liquid measuring cups, casseroles and bowls without metallic trim. CHINA: bowls, cups, serving plates, and platters without metallic rim. PLASTIC: Plastic wrap (as a cover)- lay the plastic wrap loosely over the dish and press it to the sides. Vent plastic wrap by turning back one edge slightly to allow excess steam to escape. The dish should be deep enough so that the plastic wrap will not touch the food. As the food heats it may melt the plastic wrap wherever the wrap touches the food. Use plastic dishes, cups, semi-rigid freezer containers and plastic bags only for short cooking times. Use these with care because the plastic may soften from the heat of the food. PAPER: Paper towels, waxed paper, paper napkins, and paper plates with no metallic trim or design. Look for the manufacturer's label for use in the microwave oven. Note: Do not use recycled paper products in the microwave oven. They sometimes contain impurities that cause arcing and sparking. METAL CONTAINERS: Metal shields the food from microwave energy and produces uneven cooking. Also avoid metal skewers, thermometers, or foil trays. Metal containers can cause arcing, which can damage the microwave oven. METAL DECORATION: Metal-rimmed or metal-banded dinnerware, casserole dishes, etc. The metal rim interferes with normal cooking and may damage the oven. ALUMINUM FOIL: Avoid large sheets of aluminum foil because they hinder cooking and may cause harmful arcing. Use small pieces of foil to shield poultry legs and wings. Keep ALL aluminum foil at least 1 inch from the side walls and door of the oven. WOOD: Wooden bowls and boards will dry out and may split or crack when you use them in the microwave oven. Baskets react in the same way. TIGHTLY COVERED COOKWARE: Be sure to leave openings for steam to escape from covered containers. Pierce plastic pouches of vegetables or other food items before cooking. Tightly closed pouches could explode. BROWN PAPER: Avoid using brown paper bags. They absorb too much heat and could burn. FLAWED OR CHIPPED COOKWARE: Any container that is cracked, flawed, or chipped may break in the oven. METAL TWIST TIES: Remove metal twist ties from plastic or paper bags. They become hot and could cause a fire.13

MICROWAVE COOKING TIPS

Microwave-Safe Cookware Never use metal or metal-rimmed cookware in the microwave oven. Microwaves cannot penetrate metal. They will bounce off any metal object in the oven and cause arcing, an alarming phenomenon that resembles lightning. Most heat resistant non-metallic cookware is safe for use in your oven. However, some may contain materials that render it unsuitable as microwave cookware. If you have any doubts about a particular container, there's a simple way to find out if it can be used in the microwave. Testing Cookware before Use Place the container in question next to a glass bowl filled with water inside the oven. Microwave at HIGH power for 1 minute. If the water heats up but the container remains cool to the touch, the container is microwave-safe. However, if the water does not change temperature but the container becomes warm, microwaves are being absorbed by the container and it is not safe for use in the microwave oven. See the following list for tips on using common items when microwave cooking. Tableware Many dishes are microwave-safe. If in doubt consult the manufacturer's literature or perform the microwave test. Do not put plates with painted decoration in the oven, as the paint may contain metal and cause arcing. Glassware Glassware that is heat-resistant is microwave-safe. This includes all brands of oven tempered glass cookware. Do not use delicate glassware, such as tumblers or wine glasses, as these might shatter when heated. Plastic Storage Containers Use these only for quick reheating of food. Do not use them when cooking food for long periods or at high power levels, as the hot food will eventually warp or melt the plastic. Paper Paper plates and containers are convenient and safe to use in the microwave oven, provided that the cooking time is short and foods to be cooked are low in fat and moisture. Paper towels are also very useful for wrapping foods and for lining baking trays in which greasy foods such as bacon are cooked. In general, avoid colored paper products as the color may run. Some recycled paper products may contain impurities which could cause arcing or fires when used in the microwave. Plastic Cooking Bags Provided they are made specially for cooking, cooking bags are microwave safe. Remember to make a slit in the bag so that steam can escape. Never use ordinary plastic bags for cooking in the microwave oven, as they will melt and rupture. Plastic Microwave Cookware A variety of shapes and sizes of microwave cookware are available. You may be able to use items you already have on hand rather than investing in new kitchen equipment. Pottery, Stoneware, and Ceramic Many containers made of these materials are microwave-safe, but test them before use. CAUTION

Some items with high lead or iron content are not suitable for microwave cooking.

Cookware should be checked to ensure that it is suitable for use in the microwave. ENGLISH14

MICROWAVE COOKING TIPS

Microwave Cooking Tips Keeping an Eye on Things Always watch your food while it cooks. The light inside the microwave oven turns on automatically when the oven is cooking so you can monitor the cooking process. Directions given in recipes to elevate, stir, and the like should be thought of as the minimum steps recommended. If the food seems to be cooking unevenly, simply make the necessary adjustments you think appropriate to correct the problem. Factors Affecting Microwave Cooking Times Many factors affect cooking times. The temperature of ingredients used in a recipe makes a big difference in cooking times. For example, a cake made with ice-cold butter, milk, and eggs will take considerably longer to bake than one made with ingredients that are at room temperature. Some recipes, particularly those for bread, cake, and custards, recommend that food be removed from the oven when they are slightly undercooked. This is not a mistake. When allowed to stand, usually covered, these foods will continue to cook outside of the oven as the heat trapped within the outer portions of the food gradually travels inward. If the food is left in the oven until it is cooked all the way through, the outer portions will become overcooked or even burnt. Practice will improve your ability to estimate both cooking and standing times for various foods. Density of Food Light, porous food such as cakes and breads cook more quickly than heavy, dense foods such as roasts and casseroles. You must take care when microwaving porous food so that the outer edges do not become dry and brittle. Height of Food The upper portion of tall foods, particularly roasts, will cook more quickly than the lower portion. Therefore, it is wise to turn tall food several times during cooking. Moisture Content of Food Because the heat generated from microwaves causes moisture to evaporate, relatively dry food such as roasts and some vegetables should either be sprinkled with water prior to cooking or covered to retain moisture. Bone and Fat Content of Food Bones conduct heat and fat cooks more quickly than meat. Care must be taken when cooking bony or fatty cuts of meat in order to prevent unevenly cooked or overcooked meat. Quantity of Food The number of microwaves in your oven remains constant regardless of how much food is being cooked. Therefore, the more food you place in the oven, the longer the required cooking time. Remember to decrease cooking times by at least one third when halving a recipe. Shape of Food Microwaves penetrate only about 3/4 of an inch (2 cm) into food. The interior portion of thick foods is cooked as the heat generated on the outside travels inward. Only the outer edge of food is cooked by microwave energy; the rest is cooked by conduction. The worst possible shape for a food that is to be microwaved is a thick square. The corners will burn long before the center is even warm. Round thin foods and ring-shaped foods cook most successfully in the microwave. Covering A cover traps heat and steam which causes food to cook more quickly. Use a lid or microwave cling film with a corner folded back to prevent splitting. Covering with Parchment Paper Parchment paper (not waxed paper) is microwave safe. Because it makes a looser cover than a lid or clingfilm, greaseproof paper allows the food to dry out slightly. Stirring Stirring is one of the most important of all microwaving techniques. In conventional cooking, food is stirred for the purpose of blending. Microwaved food, however, is stirred in order to spread and redistribute heat. Always stir from the outside towards the centre as the outside of the food heats first. Placing Thicker Portions Facing Outward Place thicker cuts or portions of meat, poultry, and fish toward the outer edge of the baking dish so they absorb the most microwave energy and the food cooks more evenly.15

MICROWAVE COOKING TIPS

Shielding Strips of aluminium foil (which block microwaves) can be placed over the corners or edges of square and rectangular foods to prevent those portions from overcooking. Never use too much foil and make sure the foil is secured to the dish or it may cause arcing in the oven especially if the foil passes too closely to the walls of the oven during rotation. Elevating Thick or dense foods can be elevated so that microwaves can be absorbed by the underside and center of the foods. Piercing Foods enclosed in a shell, skin or membrane are likely to burst in the oven unless they are pierced prior to cooking. Such foods include yolks and whites of eggs, clams, oysters, potatoes, and other whole vegetables and fruits. Testing if Cooked Microwaves cook food quickly, so test food for doneness frequently. Some foods are left in the microwave until completely cooked, but most foods, including meats and poultry, should be removed from the oven while still slightly undercooked and allowed to finish cooking during standing time. The internal temperature of foods will rise between 5 °F (3 °C) and 15 °F (8 °C) during standing time. Standing Time Foods are often allowed to stand for 3 to 10 minutes after being removed from the oven. Usually the foods are covered during standing time to retain heat unless they are supposed to be dry in texture. Standing allows foods to finish cooking and also helps flavors blend and develop. Precautions

Place the front surface of the door three inches or more from the countertop edge to avoid accidental tipping of the microwave oven during normal use.

To program the oven, make sure you touch the center of each pad firmly since the areas between the pads will not activate the oven. A tone will sound each time a pad is touched correctly. Don’t touch several pads at once.

Do not strike the control panel with silverware, utensils, etc. Breakage may occur.

Always use caution when taking cookware out of the oven. Some dishes absorb heat from the cooked food and may be hot. See Cookware Guide earlier in this section for more information.

Do not rinse containers by placing them in water immediately after cooking. This may cause breakage. Also, always allow the turntable to cool before removing it from the oven.

Never operate the oven when it is empty. Food or water should always be in the oven during operation to absorb the microwave energy.

Do not use the oven to dry newspapers or clothes. They may catch fire.

Use thermometers that have been approved for microwave oven cooking.

The turntable must always be in place when you operate the oven.

Do not use your microwave oven to cook eggs in the shell. Pressure can build up inside the shell, causing it to burst.

There are several precautions to follow when microwaving popcorn:

Do not pop popcorn, except in a microwave-safe container or commercial packages designed for microwave ovens.

Never try to pop popcorn in a paper bag that is not microwave-approved.

Overcooking may result in smoke and fire.

Do not repop unpopped kernels.

Listen while corn pops. Stop oven when popping slows to 2-3 seconds between pops.

Do not leave microwave unattended while popping corn.

Follow directions on bag. ENGLISH16 OPERATION OPERATION This section introduces you to the basics you need to know to operate the microwave oven. Please read this information before using the oven. CAUTION To avoid risk of personal injury or property damage, do not use stoneware, metal cookware, or metal rimmed cookware in the oven. Audible Signals Audible signals are available to guide you when setting and using the oven:

A tone will sound each time you touch a key.

A melody signals the end of a Timer countdown.

A melody signals the end of a cooking cycle. CAUTION To avoid risk of personal injury or property damage, do not run oven while it is empty. Clock When the oven is plugged in for the first time or when power resumes after a power interruption, the clock defaults to the 12-hour clock mode and 12H appears in the display. You can set the time or switch to the 24-hour clock mode. Setting the Clock for 10:30 AM

Touch and hold Timer/Clock until 12H appears in the display (approximately 3 seconds).

Touch the Number keys to set the time (1, 0, 3, and 0).

You can switch between a 12-hour and 24-hour clock mode by touching Timer/Clock after step 2.

To reset the clock mode, you must unplug and reconnect the power cord.

If you don't want the time of day to appear in the display, press the STOP/Clear button, after plugging in the oven. Interrupting Cooking Stop the oven during a cycle by opening the door. The oven stops heating and the fan stops, but the light stays on. To restart cooking, close the door and touch START/Enter/+30 seconds To stop cooking and clear the remaining cook time, open the door and touch STOP/Clear. Child Lock Use this safety feature to lock the control panel and prevent the oven from being turned on when cleaning the oven or prevent children from unsupervised use of the oven. Setting Child Lock to ON

Touch STOP/Clear and hold until Loc appears in the display (approximately 3 seconds). Cancelling Child Lock

Touch STOP/Clear and hold until Loc disappears in the display (approximately 3 seconds). NOTE

If set, the time of day reappears in the display after 1 second.

If the oven is locked, Loc appears in the display when any key is touched.

Unlock the oven to resume normal use. Kitchen Timer The Timer function serves as an extra kitchen timer. It chimes when the set time runs out. It does not start or stop cooking. Setting Timer for 3 Minutes

Touch the Number keys to set the time (3, 0, and 0).

Touch START/Enter/+30 seconds Time counts down in display. Cancelling the Timer

When the time is over a melody sounds and End displays. Press Clear.17 OPERATION Quick Start The Quick Start feature allows you to set 30-second intervals of High power cooking with each touch of the START/Enter/+30 seconds button. Cooking for 2 Minutes on High Power

Touch START/Enter/+30 seconds four times. The oven starts cooking and the time counts down in the display. NOTE

The oven will immediately start cooking for 30 seconds on high power.

Press START/Enter/+30 seconds repeatedly to extend the cook time by 30 seconds every time the button is pressed.

The cook time can be extended to 99 minutes and 59 seconds. Energy Saving When the oven is not in use, the display turns off to save energy, unless the time of day is set to show in the display. Setting Manual Cooking Times When not using the auto cooking functions, the cooking time and power level are set manually. Cooking for 5 Minutes, 30 Seconds at 80% Power

Touch the Number keys to set the time (5:30).

Touch the number 8 key to select power level 8.

When cooking is complete, a chime sounds and "End" appears in the display window. "End" remains in the display and the chime repeats every minute until the door is opened, or any button is pressed. NOTE

If a power level is not selected, the oven defaults to 100% power. Microwave Power Levels This microwave oven is equipped with 11 power levels to give you maximum flexibility and control over cooking. See the table for suggested power levels for various foods. Microwave Power Level Chart Power Level Use P-HI (100 %)

Browning ground beef.

Cooking poultry pieces, fish, & vegetables.

Cooking tender cuts of meat. P-90

Reheating rice, pasta, & vegetables. P-80

Reheating prepared foods quickly.

Reheating sandwiches. P-70

Cooking egg, milk and cheese dishes.

Cooking puddings and custard. P-50

Cooking ham, whole poultry and lamb.

Cooking rib roast and sirloin tip. P-40

Thawing meat, poultry and seafood. P-30

Cooking less tender cuts of meat.

Cooking pork chops and roasts. P-20

Taking chill out of fruit.

Softening butter. P-10

Keeping casseroles and main dishes warm.

Softening butter and cream cheese. P-00

Standing time. ENGLISH18 OPERATION Sensor Operation Instructions This microwave oven has sensor cooking features for convenient microwave cooking. It guides you, step by step, to reheat or cook popular food items automatically using preprogrammed settings. Categories :

The Sensor system works by detecting built up steam.

Make sure the door remains closed.

Opening the door or touching the STOP/Clear key before the steam is detected will stop the process and the oven.

Before using sensor cooking, make sure the exterior of the reheating container and the interior of the oven are dry, to assure the best results. Sensor Cooking Guide Appropriate containers and coverings help assure good sensor cooking results.

Always use microwavable containers and cover them with lids or vented plastic wrap.

Never use tight-sealing plastic covers. They can prevent steam from escaping and cause food to overcook.

Match the amount to the size of the container. Fill containers at least half full for best results.

Be sure the outside of the cooking container and the inside of the microwave oven are dry before placing food in the oven. Beads of moisture turning into steam can mislead the sensor. Sensor Cook SENSOR COOK allows you to cook some of your favorite foods without having to select cooking times and power levels. The oven automatically adjusts cooking times for many food items. Cooking a Potato

Touch Sensor Cook repeatedly until Sc-6 (for cooking potatoes) appears in the display.

Touch START/Enter/+30 seconds The oven will start automatically. Sensor Reheat This feature reheats single servings of previously cooked foods or a plate of leftovers. Preprogrammed items include:

Reheating a Casserole

Touch Sensor Reheat twice to select Sr-2 (casserole).

Touch START/Enter/+30 seconds The oven will start automatically. Sensor Popcorn Prepare microwave popcorn simply and easily... one bag at a time. Sensor Popcorn only uses HI (100%) power. The popping time counts down in the display. When the countdown ends, a melody sounds and "End" appears in the display. The oven turns off automatically. Place one bag only (50–100g) of prepackaged microwave popcorn on a microwave-safe / oven-safe dish on the turntable. The package should be at room temperature.

Touch START/Enter/+30 seconds The oven will start automatically.19 OPERATION Sensor Cook Table Code Category Recommended Amounts Directions Sc-1 Bacon 2 - 4 slices Place bacon slices on a microwave bacon rack for best results. (Use dinner plate lined with paper towels if rack is not available.) Sc-2 Fresh Vegetable 1 - 4 cups Place in a microwaveable bowl or casserole. Add water according to the quantity.

3-4 cups : add 4 tbsp water. Cover with vented plastic wrap. Let stand 3 minutes after cooking. Sc-3 Frozen Entree 10 - 40 oz. Remove from outer display package. Slit cover. If not in microwave-safe container, place on a microwaveable plate and cover with vented plastic wrap. After cooking, let stand in microwave oven 3 minutes. Sc-4 Frozen Vegetable 1 - 4 cups Place in a microwaveable bowl or casserole.

3-4 cups : add 4 tbsp water. Cover with vented plastic wrap. Let stand 3 minutes after cooking. Sc-5 Oatmeal 1 - 2 servings 1 serving 2 servings Oats ½ cup (40 g) 1 cup (80 g) Water or Milk 1 cup (230 g) 1 ½ cup (345 g) Salt (optional) Dash 1/8 tsp. Combine water or milk, salt and oats in large microwave- safe bowl. Cover with vented plastic wrap. Let stand 3 minutes after cooking. Sc-6 Potato 1 - 4 ea Pierce skin with a fork and place on paper towel. Do not cover. Let stand 5 minutes after cooking. Sc-7 Rice ½ - 2 cups ½ cup 1 cup 1 ½ cup 2 cups Rice ½ cup (96 g) 1 cup (192 g) 1 ½ cup (288 g) 2 cups (384 g) Water 1 cup (230 g) 2 cups (460 g) 3 cups (690 g) 4 cups (920 g) Add rice and water in a deep and large microwave-safe bowl (3 qt./3 L). Cover with vented plastic wrap. Let stand 5-10 minutes after cooking. ENGLISH20 OPERATION Sensor Reheat Table Code Category Recommended Amounts Directions Sr-1 Beverage 1 - 2 cups (240 ml per cup) Use a mug or microwave-safe cup. Do not cover. Stir after reheating. (Be careful! The beverage will be very hot. Sometimes liquids heated in cylindrical containers will splash out unexpectedly when the cup is moved.) Sr-2 Casserole 10 - 20 oz Place in a microwaveable bowl or casserole. Cover with vented plastic wrap. Let stand 3 minutes after heating. Sr-3 Dinner plate 1 Place food on a plate. Cover with vented plastic wrap. Let stand 3 minutes after heating. Sr-4 Pie 10 - 20 oz Cut leftover pie into pieces. Place food on a microwave-safe dish. Place food in the oven. Choose the menu and weight, press Start. Sr-5 Pizza 1 - 3 slices This is a reheat function for leftover pizza. Do not use to cook pizza. Place on paper towel on a microwave safe plate. NOTE

Do not use recycled paper products in the microwave oven. They sometimes contain impurities that cause arcing and sparking. Popcorn Table Code Category Recommended Amounts Directions Pop Popcorn 3.5 oz. Pop only one package at a time. For best results, use a fresh bag of popcorn. Place a bag of prepackaged microwave popcorn on the center of the glass tray. NOTE

If popcorn bag size is not known, follow manufacturers' instructions and do not use this feature.

Do not use POPCORN key pad in combination with any other feature key pads.

Do not attempt to reheat or cook any unpopped kernels.

Do not reuse bag. Overcooking can result in an oven fire.

Prepare only one bag at a time.

Do not use popcorn popping devices in microwave oven with this feature.

Do not leave microwave unattended while cooking popcorn. CAUTION Never use a brown paper bag for popping corn. POPCORN When popping prepackaged popcorn, place the bag carefully in the oven so it does not touch the walls as it rotates. Fold the ends of the bag up and toward the center of the bag as shown.21 OPERATION ENGLISH Defrost The oven has 4 preset defrost cycles. The defrost feature provides the best defrosting method for frozen foods. The Defrost Table shows the suggested defrost cycle for various foods. The Defrost function conveniently chimes partway through the defrost cycle to remind you to check, turn over, separate, or rearrange the food for best results. 1 MEAT 2 POULTRY 3 FISH 4 BREAD Defrosting 1.2 Lbs of Ground Beef

Touch Defrost once to select Meat.

Touch the Number keys to set the weight (1 and 2 for 1.2 lbs).

Touch START/Enter/+30 seconds The time counts down in the display. NOTE

The countdown appears in the display after START/Enter/+30 seconds is pressed. The oven chimes once, partway through the defrost cycle.

At the chime, open the oven door and turn the food over. Remove any food that has thawed. Return the still frozen items to the oven and press START/Enter/+30 seconds to complete the defrost cycle. Defrost Table Category Food to be Defrosted MEAT (dEF1)

Beef Ground beef, round steak, stew cubes, tenderloin steak, pot roast, rib roast, rump roast, chuck roast, hamburger patties Lamb Chops, rolled roast Pork Chops, hotdogs, spareribs, country-style ribs, rolled roast, sausage Veal Cutlets (1 lb, ½ inch thick) Turn food over at beep. After defrosting, let stand for 5 - 15 minutes. POULTRY (dEF2)

Poultry Whole, cut-up, breast (boneless). Rinse chicken cavity with tap water and let stand for 60 minutes after cooking for better results. Cornish Hens Whole Turkey Breast Turn food over at beep. After defrosting , let stand for 60 minutes. FISH (dEF3)

Fish Fillets, whole steaks Shellfish Crab meat, lobster tails, shrimp, scallops Turn food over at beep. After defrosting, let stand for 5 - 10 minutes. BREAD (dEF4)

Sliced bread, buns, baguettes, etc. Separate slices and place between paper towels or on flat plate. Turn food over at beep. After defrosting, let stand for 1 - 2 minutes.22 OPERATION Defrosting Tips

When using Auto Defrost, the weight to be entered is the net weight in pounds and tenths of pounds (the weight of the food minus the container).

Before starting, remove the metal twist-ties which often come with frozen food bags, and replace them with strings or elastic bands.

Open containers such as cartons before they are placed in the oven.

If food is foil wrapped, remove foil and place the food in a suitable container.

Slit the skins, if any, of frozen food such as sausage.

Bend plastic pouches of food to ensure even defrosting.

Always underestimate defrosting time. If defrosted food is still icy in the center, return it to the microwave oven for more defrosting.

The length of defrosting time varies according to how solidly the food is frozen.

The shape of the package affects how quickly food will defrost. Shallow packages will defrost more quickly than a deep block.

As food begins to defrost, separate the pieces Separated pieces defrost more easily.

Use small pieces of aluminum foil to shield parts of food such as chicken wings, leg tips, fish tails, or areas that start to get warm. Make sure the foil does not touch the sides, top, or bottom of the oven. The foil can damage the oven lining.

For better results, let food stand after defrosting. (For more information on standing time, see the Microwave Cooking Tips section.)

Turn over food during defrosting or standing time Break apart and remove food as required. Weight Conversion Table Most food weights are given in pounds and ounces. If using pounds, food weights must be entered into Auto Defrost in pounds and tenths of pounds (decimals). Use the following table if necessary to convert food weights to decimals. Equivalent Weight OUNCES

Remove fish, shellfish, meat, and poultry from its original wrapping paper or plastic package. Otherwise, the wrap will hold steam and juice close to the foods, which can cause the outer surface of the foods to cook.

Place foods in a shallow container or in a microwave roasting dish to catch the drippings.

Food should still be somewhat icy in the center when removed from the oven.

The length of defrosting time varies according to how solidly the food is frozen.

The shape of the package affects how quickly food will defrost. Shallow packages will defrost more quickly than a deep block.

Depending on the shape of the food, some areas may defrost more quickly than others.

For best results, shape ground meat into the form of a doughnut before freezing. When defrosting, scrape off thawed meat when the beep sounds and continue defrosting.23 SMART DIAGNOSIS™ SMART DIAGNOSIS™ Using the Smart Diagnosis™ Function Should you experience any problems with the oven, it has the capability of transmitting data via your telephone to the LG Customer Information Center.

When instructed to do so by the call center agent, hold the mouthpiece of your phone over the Smart Diagnosis™ logo on the control panel. Max.

Do not touch any other buttons.

Open the oven door. Press and hold the Clear button for 8 seconds, until "5" appears in the display. Release the button and audible transmission tones start sounding.

Keep the phone in place until the tone transmission has finished. The display will count down the time.

Once the countdown is over and the tones have stopped, resume your conversation with the call center agent, who will then be able to assist you in using the information transmitted for analysis. NOTE

For best results, do not move the phone while the tones are being transmitted.

If the call center agent is not able to get an accurate recording of the data, you may be asked to try again. ENGLISH24 MAINTENANCE MAINTENANCE Caring for the Microwave Oven Interior Food spatters or spilled liquids stick to oven walls and between the seal and door surfaces. Although the oven interior has an antibacterial coating, it is best to wipe up spillovers with a damp cloth right away. Crumbs and spillovers will absorb microwave energy and lengthen cooking times and may even damage the oven. Use a damp cloth to wipe out crumbs that fall between the door and the frame. It is important to keep this area clean to assure a tight seal. Remove greasy spatters with a soapy cloth then rinse and dry. Do not use harsh detergent or abrasive cleaners. Anti-bacterial claim based on internal testing with e-coli and Staphylococcus bacteria, showing coating prevents 99.99 % of bacterial growth on the surface of the cavity of NeoChef. Exterior Disconnect the plug from the power outlet before cleaning the oven to eliminate the possibility of electric shock. Clean the outside of your oven with soap and water then with clean water and dry with a soft cloth or paper towel. To prevent damage to the operating parts inside the oven, the water should not be allowed to seep into the ventilation openings. To clean control panel, open the door to prevent the oven from accidentally starting, and wipe with a damp cloth followed immediately by a dry cloth. Press STOP/Clear after cleaning. If steam accumulates inside or around the outside of the oven door, wipe the panels with a soft cloth. Steam or condensation buildup inside the door is normal if foods are heated for a long period on higher power levels. This is not a malfunction. The condensation will eventually evaporate. Try covering the food or varying the heating levels and time to reduce any condensation forming in the door. This may also occur when the oven is operated under high humidity conditions and in no way indicates a malfunction of the unit. The door and door seals should be kept clean. Use only warm, soapy water, rinse then dry thoroughly. DO NOT USE ABRASIVE MATERIALS, SUCH AS

CLEANING POWDERS OR STEEL AND PLASTIC

PADS. Metal parts will be easier to maintain if wiped frequently with a damp cloth. NOTE

Abrasive cleansers, steel wool pads, gritty wash cloths, some paper towels, etc., can damage the control panel and the interior and exterior oven surfaces. To clean the glass tray and rotating ring, wash in mild, sudsy water. For heavily soiled areas use a mild cleanser and scouring sponge. The glass tray and rotating ring are dishwasher safe. Glass Tray Rotating Ring25 TROUBLESHOOTING TROUBLESHOOTING Frequently Asked Questions Operation Why is the oven light not on during cooking?Make sure the cooking time has been set and the START/Enter/+30 sec. button has been pressed.Why does steam come out of the air exhaust vent?Steam is normally produced during cooking. The microwave oven has been designed to vent this steam.Will the microwave oven be damaged if it operates empty?Yes. Never operate the oven empty or without the glass tray.Does microwave energy pass through the viewing screen in the door?No. The metal screen bounces the energy back to the oven cavity. The holes (or ports) allow only light to pass through. They do not let microwave energy pass through.Why does a tone sound when a pad on the control panel is touched?The tone tells you that the setting has been entered.Can my microwave oven be damaged if food is cooked for too long?Like any other cooking appliance, it is possible to overcook food to the point that the food creates smoke and even possibly fire, and damage to the inside of the oven. It is always best to be near the oven while you are cooking.I've plugged the oven in and it does not work properly. What is wrong?The microcomputer controlling your oven may temporarily become scrambled and fail to function as programmed when you plug the oven in for the first time or when power resumes after a power interruption. Unplug the oven from the 120 V household outlet and then plug it back in to reset the microcomputer.Why do I see light reflection around the outer case?This light is from the oven light which is located between the oven cavity and the outer wall of the oven.What are the various sounds I hear when the microwave oven is operating?The clicking sound is caused by a mechanical switch turning the microwave oven’s magnetron ON and OFF. The heavy hum and clunk is from the change in power the magnetron draws as it is turned ON and OFF by a mechanical switch. The change in blower speed is from the change in line voltage caused by the magnetron being turned ON and OFF. Food Is it possible to pop popcorn in a microwave oven?Yes, if using one of the two methods described below:(1) microwave-popping devices designed specifically for microwave cooking(2) prepackaged commercial microwave popcorn that specifies the cook time and power output needed.Follow exact directions given by each manufacturer for its popcorn popping product and do not leave the oven unattended while the corn is being popped. If corn fails to pop after the suggested time, discontinue cooking. Overcooking could result in an oven fire. CAUTION Never use a brown paper bag for popping corn or attempt to pop leftover kernels.Why is a standing time recommended after microwave cooking time is over?Standing time allows foods to continue cooking evenly for a few minutes after the actual microwave oven cooking cycle. The amount of standing time depends upon the density of the foods.Why is additional time required for cooking food stored in the refrigerator?As in conventional cooking, the initial temperature of food affects total cooking time. You need more time to cook food taken out of a refrigerator than for food at room temperature.ENGLISH26 TROUBLESHOOTING Before Calling for Service You can often correct operating problems yourself. If your microwave oven fails to work properly, locate the operating problem in the list below and try the solutions listed for each problem. If the microwave oven still does not work properly, contact the nearest LG Authorized Service Center. LG Authorized Service Centers are fully equipped to handle your service requirements. Symptoms Possible Causes / Solutions Oven does not start

Set cooking time. Arcing or Sparking

Cookware is not microwave safe. When in doubt, test cookware before use.

Do not operate oven while empty. Incorrect time of day

Possible power interruption. See Clock section to reset time of day. Unevenly Cooked Foods

Test cookware to make sure it is microwave safe.

Do not cook without the glass tray.

Turn or stir food while cooking.

Defrost food completely before cooking.

Use correct cook time and power level. Overcooked Foods

Change cook time or power level. Undercooked Foods

Test that cookware is microwave safe.

Defrost food completely before cooking.

Change cook time or power level.

Make sure ventilation ports are not blocked. Improper Defrosting

Test that cookware is microwave safe.

Change defrost time or weight.

Turn or stir food during defrost cycle.27 LIMITED WARRANTY ENGLISH LIMITED WARRANTY (USA) ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED “PROCEDURE FOR RESOLVING DISPUTES” BELOW. Should your LG Microwave ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG Electronics (“LG”) will, at its option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the Product and applies only when purchased and used within the United States including U.S. Territories. Warranty Period HOW SERVICE IS HANDLED LABOR: Two Years from the Date of Purchase*. PARTS (except as listed below): Two Years from the Date of Purchase*. MAGNETRON: Ten Years from the Date of Purchase*. Replacement Units and Repair Parts are warranted for the remaining portion of the original unit's warranty period.

• Retain your sales receipt to prove the date of purchase. A copy of your sales receipt must be submitted at the time warranty service is provided. Please call 1-800-243-0000 and choose the appropriate option. (Phones are answered 24 hours a day, 365 days per year.) Please have the product type (Microwave) and your ZIP code ready. Or visit our website at: www.lg.com

Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.

Replacement products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured.

Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this limited warranty. EXCEPT TO THE EXTENT PROHIBTED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THE PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THE ABOVE LIMITED WARRANTY. UNDER NO CIRCUMSTANCES SHALL LG OR ITS U.S. DISTRIBUTORS/DEALERS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL, SPECIAL, OR PUNITIVE DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST GOODWILL, LOST REVENUES OR PROFITS, WORK STOPPAGE, IMPAIRMENT OF OTHER GOODS, COST OF REMOVAL AND REINSTALLATION OF THE PRODUCT, LOSS OF USE, OR ANY OTHER DAMAGES WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. LG’S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you. This limited warranty gives you specific legal rights and you may also have other rights that vary from state to state. THIS LIMITED WARRANTY DOES NOT COVER:

Service trips to deliver, pick up, or install, educate how to operate, correct wiring, or correct unauthorized repairs.

Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service.

Damage or failure resulting from operating the Product in a corrosive atmosphere or contrary to the Product owner’s manual.

Damage or failure to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of God, or any other causes beyond the control of LG.

Damage or failure caused by unauthorized modification or alteration, or if used for other than the intended purpose.28 LIMITED WARRANTY

Damage or failure resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair includes use of parts not authorized by LG. Improper installation or maintenance includes installation or maintenance contrary to the Product owner’s manual.

Damage or failure caused by incorrect electrical current, voltage, or ventilation/plumbing codes.

Damage or failure caused by transportation and handling, including scratches, dents, chips, and/or other damage to the finish of the Product, unless such damage is reported within one (1) week of delivery.

Damage or missing items to any display, open box, or discounted Product.

Refurbished Product or any Product sold “As Is”, “Where Is”, “With all Faults”, or similar disclaimer.

Products with original serial numbers that have been removed, altered, or cannot be readily determined.

Increases in utility costs and additional utility expenses.

Any noises associated with normal operation.

Use of accessories, components, or consumable cleaning products that are not authorized by LG.

Replacement of light bulbs, filters, fuses or any other consumable parts.

When Product is used for other than normal and proper household use (e.g. commercial or industrial use, offices, and recreational facilities or vehicles) or contrary to the instructions outlined in the Product’s owner’s manual.

Costs associated with removal and reinstallation of your Product for repairs.

Shelves, drawers and accessories, except for internal/functional parts covered under this limited warranty. The cost of repair or replacement under the above excluded circumstances shall be borne by the consumer. TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION Call 1-800-243-0000 and select the appropriate option from the menu. Or visit our website at http://www.lg.com Or by mail: LG Electronics Customer Service P.O. Box 240007 Huntsville, AL 35813 ATTN: CIC PROCEDURE FOR RESOLVING DISPUTES: ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. BINDING ARBITRATION MEANS THAT YOU AND LG ARE EACH WAIVING THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION. Definitions. For the purposes of this section, references to “LG” mean LG Electronics U.S.A., Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to “dispute” or “claim” shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty. Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 1000 Sylvan Ave, Englewood Cliffs 07632. You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days, either party may proceed to file a claim for arbitration. Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after sending written notice to LG, you and LG agree to resolve any claims between us only by binding arbitration on an individual basis, unless you opt out as provided below. Any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person’s or entity’s product or claim. More specifically, without limitation of the foregoing, any dispute between you and LG shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis.29 LIMITED WARRANTY Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be administered by the American Arbitration Association (“AAA”) and will be conducted before a single arbitrator under the AAA’s Consumer Arbitration Rules that are in effect at the time the arbitration is initiated (referred to as the “AAA Rules”) and under the procedures set forth in this section. The AAA Rules are available online at www.adr.org/consumer. Send a copy of your written demand for arbitration, as well as a copy of this provision, to the AAA in the manner described in the AAA Rules. You must also send a copy of your written demand to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 1000 Sylvan Avenue Englewood Cliffs, NJ 07632. If there is a conflict between the AAA Rules and the rules set forth in this section, the rules set forth in this section will govern. This arbitration provision is governed by the Federal Arbitration Act. Judgment may be entered on the arbitrator’s award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision. Governing Law. The law of the state of your residence shall govern this Limited Warranty and any disputes between us except to the extent that such law is preempted by or inconsistent with applicable federal law. Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees to the AAA unless you seek more than $25,000 in damages, in which case the payment of these fees will be governed by the AAA Rules. Except as otherwise provided for herein, LG will pay all AAA filing, administration and arbitrator fees for any arbitration initiated in accordance with the AAA Rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys’ fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys’ fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the standards set forth in Federal Rule of Civil Procedure 11(b)), then the payment of all arbitration fees will be governed by the AAA Rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the AAA Rules. Except as otherwise provided for, LG waives any rights it may have to seek attorneys’ fees and expenses from you if LG prevails in the arbitration. Hearings and Location. If your claim is for $25,000 or less, you may choose to have the arbitration conducted solely on the basis of (1) documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established by the AAA Rules. If your claim exceeds $25,000, the right to a hearing will be determined by the AAA Rules. Any in-person arbitration hearings will be held at a location within the federal judicial district in which you reside unless we both agree to another location or we agree to a telephonic arbitration. Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the product by either: (i) sending an e-mail to optout@lge.com, with the subject line: “Arbitration Opt Out” or (ii) calling 1-800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://www.lg.com/us/support/repair-service/schedule-repair- continued and clicking on “Find My Model & Serial Number”). You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above.30 LIMITED WARRANTY LIMITED WARRANTY (CANADA) ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS THE LAWS OF YOUR PROVINCE OR TERRITORY DO NOT PERMIT THAT, OR, IN OTHER JURISDICTIONS, IF YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED “PROCEDURE FOR RESOLVING DISPUTES” BELOW. Should your LG Microwave ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG Electronics Canada, Inc. (“LGECI”) will, at its option, repair or replace the Product upon receipt of proof of the original retail purchase. This limited warranty is valid only to the original retail purchaser of the Product and applies only to a Product distributed, purchased and used within Canada, as determined at the sole discretion of LGECI. WARRANTY PERIOD: (Note: If the original date of purchase cannot be verified, the warranty will begin sixty (60) days from the date of manufacture). Over-the-Range / All Convection / Microwaves in Built-in application / All other Microwave Oven Extended Component Warranty (Parts Only) Two (2) years from the date of original retail purchase Five (5) years from the date of original retail purchase Ten (10) years from the date of original retail purchase Parts and Labor (In-Home ; OTR & Convection) (internal/functional parts only) Magnetron Only Inverter Magnetron Only

Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.

Replacement products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured, all at the sole discretion of LGECI.

Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this Limited Warranty. LGECI’S SOLE LIABILITY IS LIMITED TO THE LIMITED WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LGECI MAKES NO, AND HEREBY DISCLAIMS, ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON LGECI. LGECI DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE

EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE WARRANTY PERIOD SET OUT ABOVE. UNDER NO CIRCUMSTANCES SHALL LGECI, THE MANUFACTURER OR DISTRIBUTOR OF THE PRODUCT, BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT, INDIRECT, PUNITIVE OR EXEMPLARY DAMAGES, INCLUDING, WITHOUT LIMITATION, LOSS OF GOODWILL, LOST PROFITS, LOSS OF ANTICIPATED PROFITS, LOST REVENUE, LOSS OF USE, OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL BREACH, TORT OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS. LGECI’S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT. This Limited Warranty gives you specific legal rights. You may also have other rights that vary from province to province depending on applicable provincial laws. Any term of this Limited Warranty that negates or varies any implied condition or warranty under provincial law is severable where it conflicts with such provincial law without affecting the remainder of this warranty’s terms. THIS LIMITED WARRANTY DOES NOT COVER:

Service trips to i) deliver, pick up, or install or; educate on how to operate the Product; ii) correct wiring or plumbing; or iii) correct unauthorized repairs or installations of the Product;

Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service;

Damage or failure resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product’s owner’s manual;

Damage or failure to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of God, or any other causes beyond the control of LGECI or the manufacturer;

Damage or failure resulting from misuse, abuse, improper installation, repai r, or maintenance of the Product. Improper repair includes use of parts not authorized or specified by LGECI. Improper installation or maintenance includes installation or maintenance contrary to the Product’s owner’s manual;.31 LIMITED WARRANTY

Damage or failure caused by unauthorized modification or alteration of the Product, or if used for other than the intended household purpose/use of the Product, or damage or failure resulting from any water leakage due to improper installation of the Product;

Damage or failure caused by incorrect electrical current, voltage or plumbing codes;

Damage or failure caused by use that is other than normal household use, including, without limitation, commercial or industrial use, including use in commercial offices or recreational facilities, or as otherwise outlined in the Product’s owner’s manual;

Damage or failure caused by transportation and handling, including scratches, dents, chips and/or other damage to the finish of the Product, unless such damage results from defects in materials or workmanship and is reported to LGECI within one (1) week of delivery of the Products;

Damage or missing items to any display, open box, refurbished or discounted Product;

Refurbished Product or any Product sold “As Is”, “Where Is”, “With all Faults”, or any similar disclaimer;

Products with original serial numbers that have been removed, altered or cannot be readily determined at the discretion of LGECI;

Increases in utility costs and additional utility expenses in any way associated with the Product;

Any noises associated with normal operation of the Product;

Replacement of light bulbs, filters, fuses or any other consumable parts;

Replacement of any part that was not originally included with the Product;

Costs associated with removal and/or reinstallation of the Product for repairs; and

Shelves, drawers, handle and accessories to the Product, except for internal/functional parts covered under this Limited Warranty.

Coverage for "in Home" repairs, for products in-warranty, will be provided if the Product is within a 150 km radius from the nearest authorized service center (ASC), as determined by LG Canada. If your Product is located outside a 150 km radius from a ASC, as determined by LG Canada, it will be your responsibility to bring the Product, at your sole expense, to the ASC for in-warranty repair. All costs and expenses associated with the above excluded circumstances, listed under the heading, This Limited Warranty Does Not Cover, shall be borne by the consumer. TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION, PLEASE CALL OR VISIT OUR WEBSITE: Call 1-888-542-2623 (7 A.M. to 12 A.M., 365 days a year) and select the appropriate option from the menu, or visit our website at http://www.lg.com PROCEDURE FOR RESOLVING DISPUTES: EXCEPT WHERE PROHIBITED AT LAW, ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. EXCEPT WHERE PROHIBITED AT LAW, YOU AND LG BOTH IRREVOCABLY AGREE TO WAIVE THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION. Definitions. For the purposes of this section, references to “LG” mean LG Electronics Canada, Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to “dispute” or “claim” shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty. Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LGECI Legal Team at 20 Norelco Drive, North York, Ontario, Canada M9L 2X6 (the “Notice of Dispute”). You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days of LG’s receipt of the Notice of Dispute, the dispute shall be resolved by binding arbitration in accordance with the procedure set out herein. You and LG both agree that, during the arbitration proceeding, the terms (including any amount) of any settlement offer made by either you or LG will not be disclosed to the arbitrator until the arbitrator determines the dispute. Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after LG’s receipt of the Notice of Dispute, you and LG agree to resolve any claims between you and LG only by binding arbitration on an individual basis, unless you opt out as provided below, or you reside in a jurisdiction that prevents full application of this clause in the circumstances of the claims at issue (in which case if you are a consumer, this clause will only apply if you expressly agree to the arbitration). To the extent permitted by applicable law, any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person’s or entity’s product or claim. More specifically, without limitation of the foregoing, except to the extent such a prohibition is not permitted at law, any dispute between you and LG shall not under any circumstances proceed as part of a class or32 LIMITED WARRANTY representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis except to the extent this prohibition is not permitted at law in your province or territory of jurisdiction as it relates to the claims at issue between you and LG. Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be private and confidential, and conducted on a simplified and expedited basis before a single arbitrator chosen by the parties under the provincial or territorial commercial arbitration law and rules of the province or territory of your residence. You must also send a copy of your written demand to LG at LG Electronics, Canada, Inc., Attn: Legal Department- Arbitration, 20 Norelco Drive, North York, Ontario M9L 2X6. This arbitration provision is governed by your applicable provincial or territorial commercial arbitration legislation. Judgment may be entered on the arbitrator’s award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that, issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision. Governing Law. The law of the province or territory of your purchase shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG attorn to the exclusive jurisdiction of the courts of the province or territory of your purchase for the resolution of the claim, action, dispute or controversy between you and LG. Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees unless you seek more than $25,000 in damages, in which case the payment of these fees will be governed by the applicable arbitration rules. Except as otherwise provided for herein, LG will pay all filing, administration and arbitrator fees for any arbitration initiated in accordance with the applicable arbitration rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys’ fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys’ fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the applicable laws), then the payment of all arbitration fees will be governed by the applicable arbitration rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the applicable arbitration rules. Except as otherwise provided for, LG waives any rights it may have to seek attorneys’ fees and expenses from you if LG prevails in the arbitration. Hearings and Location. If your claim is for $25,000 or less, you may choose to have the arbitration conducted solely (1) on the basis of documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established by the applicable arbitration rules. If your claim exceeds $25,000, the right to a hearing will be determined by the applicable arbitration rules. Any in-person arbitration hearings will be held at the nearest, most mutually-convenient arbitration location available within the province or territory in which you reside unless you and LG both agree to another location or agree to a telephonic arbitration. Severability and Waiver. If any portion of this Limited Warranty (including these arbitration procedures) is unenforceable, the remaining provisions will continue in full force and effect to the maximum extent permitted by applicable law. Should LG fail to enforce strict performance of any provision of this Limited Warranty (including these arbitration procedures), it does not mean that LG intends to waive or has waived any provision or part of this Limited Warranty. Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the product by either (i) sending an e-mail to optout@lge.com, with the subject line: “Arbitration Opt Out;” or (ii) calling 1-800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://www.lg.com/ ca_en/support/repair-service/schedule-repair and clicking on “Find My Model & Serial Number”). In the event that you “Opt Out”, the law of the province or territory of your residence shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG agree to attorn to the exclusive jurisdiction of the courts of the province or territory of your residence for the resolution of the claim, action, dispute or controversy between you and LG. You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above. Conflict of Terms. In the event of a conflict or inconsistency between the terms of this Limited Warranty and the End User License Agreement (“EULA”) in regards to dispute resolution, the terms of this Limited Warranty shall control and govern the rights and obligations of the parties and shall take precedence over the EULA.FRANÇAIS

VERRE ALLANT AU FOUR
