USER MANUAL GCB207WTQ LG

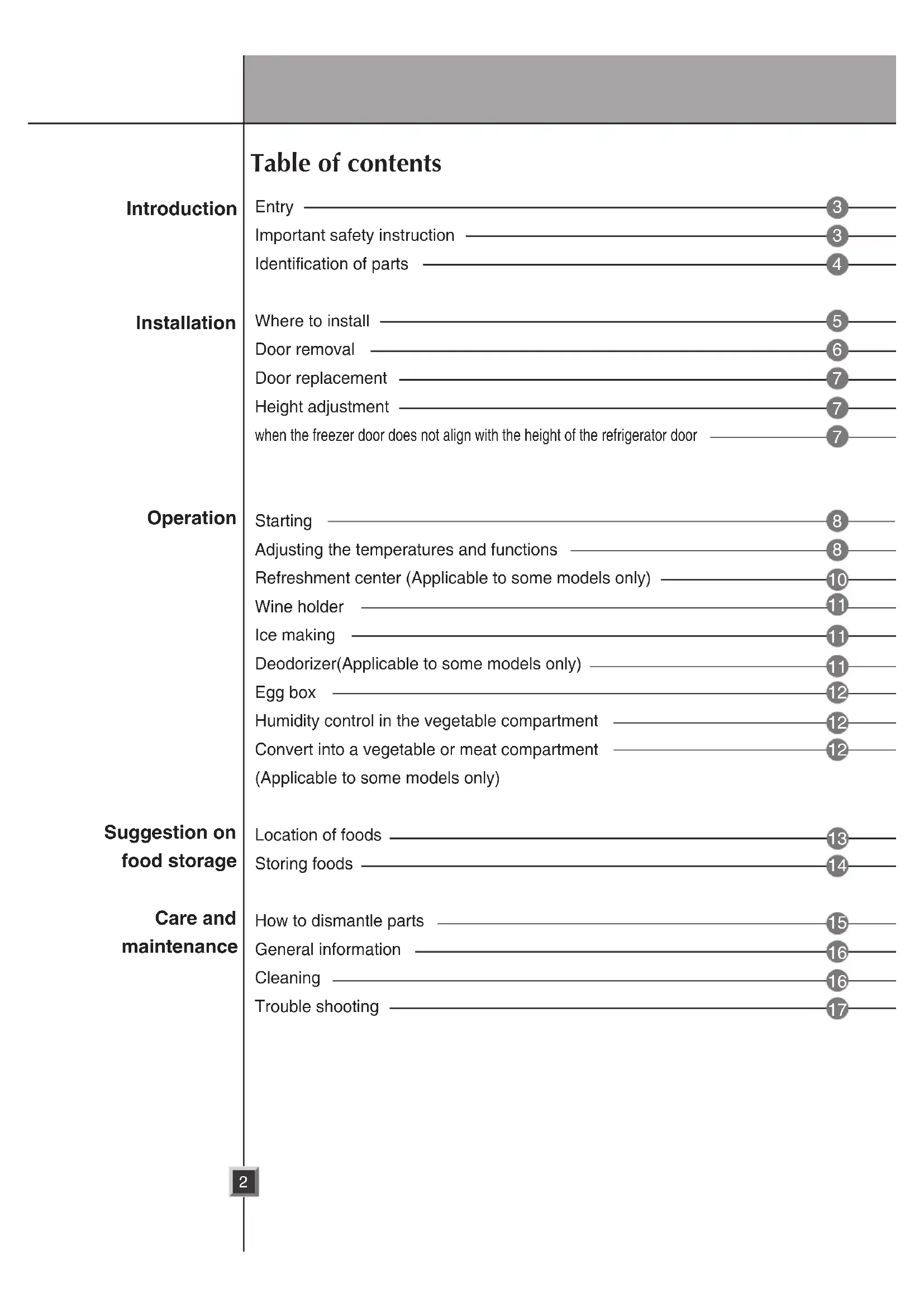

Entry Important safety instruction Identication of parts Where to install Door removal Door replacement Height adjustment when the freezer door does not align with the height of the refrigerator door Starting Adjusting the temperatures and functions Refreshment center (Applicable to some models only) Wine holder Ice making Deodorizer(Applicable to some models only) Egg box Humidity control in the vegetable compartment Convert into a vegetable or meat compartment (Applicable to some models only) Location of foods Storing foods How to dismantle parts General information Cleaning Trouble shooting Table of contents Introduction Installation Operation Suggestion on food storage Care and maintenance

Introduction Entry The model and serial numbers are found on the inner case or back of refrigerator compartment of this unit. These numbers are unique to this unit and notavailable to oth ers. You should record requested information here and retain this guide as a permanent record of your purchase. Staple your receipt here. Date of purchase : Dealer purchased from : Dealer address : Dealer phone no. : Model no. : Serial no. : Important safety instruction This refrigerator must be properly installed and located in accordance with the installation instructions before it is used. Never unplug your refrigerator by pulling on the power cord. Always grip plug rmly and pull straight out from the outlet. When moving your appliance away from the wall, be careful not to roll over or damage the power cord. After your refrigerator is in operation, do not touch the cold surfaces in the freezer compartment, particularly when hands are damp or wet. Skin may adhere to these extremely cold surfaces. Unplug the power cord from the power plug for cleaning or other cares. Never touch it with wet hands because you can get an electric shock or be hurt. Never damage, process, severely bend, pull out, or twist power cord because power cord damage may cause a fire or electric shock. You have doubts on whether the appliance is properly grounded. Never place glass products in the freezer because they may be broken when their inner matters are frozen. The appliance is not intended for use by young children or inrm persons without supervision. Young childeren should be supervised to ensure that they do not play with the appliance. Never allow anyone to climb, sit, stand or hang on the refreshment center door. These actions may damage the refrigerator and even tip it over, causing severe personal injury. If possible, connect the refrigerator to its own individual electrical outlet to prevent it and other appliances or household lights from causing an overload that could cause a power outage. The refrigerator-freezer should be so positioned that the supply plug is accessible fo rquick disconnection when accident happens. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualied person in order to avoid a hazard. Do not modify or extend the Power Cord length.

DANGER: Risk of child entrapment.

Before you throw away your old refrigerator or freezer: Take off the doors Leave the shelves in place so that children may not easily climb inside. The appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance. Don’t store or use gasoline or other ammable vapor and liquids in the vicinity of this or any other appliance. In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current. In order to prevent possible electric shock, this appliance must be grounded improper use of the grounding plug can result in an electric shock. Consult a qualied electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded. Identication of parts NOTE

• If you nd some parts missing from your unit, they may be parts only used in other models. Child entrapment warning Don’t store Grounding (Earthing) Convert into a vegetable or meat compartment5 Installation

1. Place your appliance where it is easy to

2. Avoid placing the unit near heat sources,

direct sunlight or moisture.

3. To ensure proper air circulation around the

fridge -freezer, please maintain sufcient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.

4. To avoid vibrations, the appliance must be leveled.

5. Don't install the appliance below 5℃ . It may cause affect the performance.

This appliance contains fluid (refrigerant, lubricant)and is made of parts and materials which are reusable and/or recyclable. All the important materials should be sent to the collection center of waste materialand can be reused after rework (recycling). For take back, please contact with thelocal agency. Select a good location Disposal of the old appliance Warning Remove lower cover Remove the freezer compartment door Remove the refrigerator door Pass the refrigerator Where to insfallInstallation Door removal Remove the lower cover by lifting upward. Pass the refrigerator laterally through access door as shown in the right figure. Remove lower cover Warning Remove the freezer compartment door Remove the refrigerator door Pass the refrigerator

1) Removing the hinge cover by loosening the

screws. Separate all connection wires except for the earth line after.

2) Remove the keeper by rotating it counter

clockwise ( and then lifting the upper hinge up (

3) Remove the freezer compartment door by

1) Loosen the hinge cover screws and remove

the cover. Remove connection wire, if any, except for the earth line.

2) Remove keeper by rotating it clockwise (

and then remove the upper hinge by lifting it up (

3) Remove the refrigerator compartment door

by lifting it up. When removing the upper hinge, be careful that the door does not fall forwards. NOTELowercover Lower hinge Keeper Connection wires HingecoverUpper hinge Upper hinge KeeperUpperhinge Failure to do so could result in death or serious injury. If your access door is too narrow for the refrigerator remove the refrigerator door and pass the refrigerator laterally. Electric Shock Hazard Disconnect electrical supply to refrigerator before installing.

Installation Door removal Electric Shock Hazard Disconnect electrical supply to refrigerator before installing.Failure to do so could result in death or seriousinjury. If your access door is too narrow for therefrigerator remove the refrigerator door andpass the refrigerator laterally. Remove the lower cover by lifting upward.1) Loosen the hinge cover screws and remove the cover.2) Remove the keeper by rotating it to counter clockwise ( ) and then lifting the upper hinge up(

• When removing the upper hinge, be careful that the door does not fall forwards. Installation Door removal Remove the lower cover by lifting upward. Pass the refrigerator laterally through access door as shown in the right figure. Remove lower cover Warning Remove the freezer compartment door Remove the refrigerator door Pass the refrigerator

1) Removing the hinge cover by loosening the

screws. Separate all connection wires except for the earth line after.

2) Remove the keeper by rotating it counter

clockwise ( and then lifting the upper hinge up (

3) Remove the freezer compartment door by

1) Loosen the hinge cover screws and remove

the cover. Remove connection wire, if any, except for the earth line.

2) Remove keeper by rotating it clockwise (

and then remove the upper hinge by lifting it up (

3) Remove the refrigerator compartment door

by lifting it up. When removing the upper hinge, be careful that the door does not fall forwards. NOTE Lower cover Lower hingeKeeperConnectionwires Hinge cover Upper hinge Upper hinge Keeper Upper hinge Failure to do so could result in death or serious injury. If your access door is too narrow for the refrigerator remove the refrigerator door and pass the refrigerator laterally. Electric Shock Hazard Disconnect electrical supply to refrigerator before installing. 3) Remove the freezer compartment door by lifting it upward. 1) Loosen the hinge cover screws and remove the cover. Remove connection wire,if any, except for the earth line.2) Remove keeper by rotating it clockwise ( ① ) and then remove the upper hinge by lifting it up ( ② ).3) Remove the refrigerator compartment door by lifting it up.Pass the refrigerator laterally through accessdoor as shown in the right gure. Warning Remove lower cover Remove the freezer compartment door Remove the refrigerator door Pass the refrigerator7 Installation Height adjustment lf the freezer compartment door is lower than the refrig- erator compartment door Level the door by inserting at(-type) driver into the groove of the left height adjusting screw and rotate it clockwise(

If the freezer compartment door is higher than the refrig- erator compartment door Level the door by inserting at(-type) driver into the groove of the right height adjusting screw and rotate it clockwise(

Door replacement Mount them in the reverse sequence of removal after they pass through the access door. When the freezer door does not align with the height of the refrigerator door Even if the height can not be aligned by using the height adjustment screw, insert the transparent sheet supplied with the product.

• Separate the door with the lower height, use the (+) type screwdriver to unscrew the screw at the bottom hinge as shown at Figure

, insert the transparent sheet between the bottom hinge and the bottom bracket, and then x it with the screw as shown at Figure

• Insert more transparent sheets enough to align the height. (4 sheets ard supplied in total.) The refrigerator doors will close smoothly by heightening the front side by adjusting the height adjusting screw.If the doors do not close correctly,performance maybe1. Wipe off all dust accumulated during shipping and clean your appliance thoroughly.2. Install accessories such as the ice cube box, cover evaporating tray, etc., in their proper places. They are packed together to prevent possible damage during shipping.3. Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.

Bottom bracketTransparent sheetBottom hinge If the height of freezer compart- ment door is different from the height of Refrig- erator compart- ment door After leveling the door height Next8 Starting When your refrigerator is rst installed, allow it to stabilize at normal operating temperatures for 2-3 hours prior to lling it with fresh or frozen foods. If operation is interrupted, wait 5 minutes before restarting. Adjusting the temperatures and functions NOTE

• Your model may not include every option. Operation9 Operation Display Power Saving Mode This function places the display into power saving mode until the next time the dooris opened.Press the FREEZER and EXPRESS FRZ. buttons simultaneously and hold them for 5seconds until the Ding sounds. All LED/LCDs will then turn ON, then OFF. When thepower saving mode is activated, the display will remain off until the next time thedoor is opened. Then, it will come on whenever a door is opened or a button ispressed and remain on for 20 seconds after the last door opening or button selection.To deactivate the power saving mode, press the FREEZER and EXPRESS FRZ.buttons simultaneously and hold them for 5 seconds until the Ding sounds. You can adjust temperature of and freezer room and refrigerator room.

• Whenever pressing button, setting is repeated in the order of (Middle)

The actual inner temperature varies depending on the food status, as the indicated setting temperature is a target temperature, not actual temperature within refrigerator.

Refrigeration function is weak in the initial time. Please adjust temperature as above after using refrigerator for minimum 2~3 days. Please select this function for promptfreezer.

off is repeated whenever pressing button.

The arrow mark graphic remains at the "on" when selecting Special Refrigeration "on".

Locking or Release is repeated whenever the is pressed more than 3 seconds.

lf you use the button, none of the other buttons will work until you unlock them. An alarm will sound 3 times when the refrigerator door is left open for more than 1minute. This alarm will be rung at an intervals of 30 sec. and stop at the close of the door. If the alarm sound does not stop even after the freezer and refrigerator compartment doors are closed, contact the service center. Self-diagnosis function operates when a problem occurs in the unit. When an erroro ccurs in the unit. Immediately contact the service center without turning the power OFF. If the power is OFF, it will take the engineer longer to nd out where the fault occurs. The pressing of any function buttons will not alter the temperature setting when a fault occurs. How to adjust the temperature in the freezer compartment How to adjust the temperature in the refrigerator compartment Express freezer (Applicable to some models only) Lock (Applicable to some models only) Door open alarm Self-diagnosis (fault detection) function10 Operation How to use Use the refreshment center door as a stand Never take out the inner refreshment center cove Never place heavy items on the refreshment center door or allow children to hang it on. Refreshment center(Applicable to some models only) Open the refreshment center door.

You can access the refreshment center without opening refrigerator door and thus saving electricity.

Inner lamp is lit in refrigerator compartment when the refreshment center door opens. Thus it is easy to identify the contents.

Never use the refreshment center door as a chopping board and take care not to damage it with sharp tools.

Never rest your arms or severely press on it.

The refreshment center can not function normally without the cover.

Not only can the refreshment center door may be damaged, but also children may be hurt.Wine holder Bottles can be stored laterally with this wine corner. This can be attached to any shelf. In case of inserting the wine holder :Pull the wine holder downward as in after inserting it into the side anchoring part of the shelf as in by catching it upward as in

In case of separating the wine holder :Pull the wine holder inward as in afterholding it upward as in by catching it. Ice Making

Fill water in ice making box of the ice making corner. If water is fully lled the ice will not be separated well and water can be dropped to make ice lumped.

Ice will be dropped into the ice storage bin by rotating ice separation handle of ice making compartment. Deodorizer (Applicable to some models only) This system efciently absorbs strong odors by using the optical catalyst. This system does hot have any affect on stored food.

Since it is installed already installed onto the cool air intake duct from the from the refrigerator compartment, you need no separate installation.

Please use closed containers to store food with pungent odors. Otherwise, this oder can be absorbed by other food in the compartment.

Operation Wine holder adjustment When making Ice How to use the deodorizing system Operation Self-diagnosis function operates when a problem occurs in the unit. When an error occurs in the unit. Immediately contact the service cen t e r without turning the power OFF . If the power is OFF, it will take the engineer longer to find out where the fault occurs. The pressing of any function buttons will not alte r the temperature setting when a fault occurs. An alarm will sound 3 times when the refrigerator door is left open for more than 1 minute. This alarm will be rung at an intervals of 30 sec. and stop at the close of the door. If the alarm sound does not stop even after the freezer and refrigerator compartment doors are closed, contact the service center. Door open alarm Self-diagnosis (fault detection) function The otherfunctions Door open warning

3 times of warning sounds at the interval of 30 seconds if a minute passes with the door of refrigerator and the hombar door opened or completely closed.

Please contact with the local service center if warning continue to sound even after closing the door. Diagnosis (failure detection) function

Diagnosis function automatically detects failure when failure is found in product during the use of refrigerator.

If failure occurs at product, it does not operate though pressing any button and normal indication is not done. In this case, do not turn power off but immediately contact with the local service center. A lot of time are need for service engineer to detect the failed part if turning it off.

Fill water in ice making box of the ice making corner. If water is fully filled the ice will not be separated well and water can be dropped to make ice lumped.

Ice will be dropped into the ice storage bin by rotating ice separation handle of ice making compartment. When making Ice Ice Making Ice Making Box

Rotating the ice separation handle before ice is fully frozen may cause the remaining water drop into the ice storage bin to lump the ice together. NOTE NOTE

Rotating the ice separation handle before ice is fully frozen may cause the remaining water drop into the ice storage bin to lump the ice together.12 Operation Egg box You can move the egg box to wherever you want. Humidity control in the vegetable compartment The humidity can be controlled by adjusting the humidity control switch to the left/right when storing vegetabes or fruits. Convert into a vegetable or meat compartment (Applicable to some models only)

The bottom drawer in the refrigerator can be converted into a vegetable or meat compartment The meat compartment maintains the temperature at a lower point than the refrigerator compartment so that meat or fish can be stored fresh longer. NOTE

Never use the egg box as an ice storage bin. It can be broken.

Never store the egg box in the freezer compartment or fresh compartment. Operation

Humidity control in the vegetable compartment The humidity can be controlled by adjusting the humidity control switch to the left/right when storing vegetabes or fruits. HIGH LOW HIGH

High humidityLow humidity Convert into a vegetable or meat compartment The meat compartment maintains the temperature at a lower point than the refrigerator compartment so that meat or fish can be stored fresh longer.

The bottom drawer in the refrigerator can be converted into a vegetable or meat compartment

Vegetables or fruits are frozen if the conversion switch is set to meats compartment. So, be sure to check it before storing foods. NOTE Egg box (Applicable to some models only)

Never use the egg box as an ice storage bin. It can be broken.

Never store the egg box in the freezer compartment or fresh compartment. NOTE [Type-1] [Type-2] You can move the egg box to wherever you want. NOTE

Never use the egg box as an ice storage bin. It can be broken.

Never store the egg box in the freezer compartment or fresh compartment.13 Suggestion on food storage Suggestion on food storage Location of foods (Refer to identification of parts) Store wine. Store small foods such as bread, snacks, etc.. Store various frozen foods such as meat, fish, ice cream, frozen snacks, etc..

Store small packed frozen food.

Temperature is likely to increase as door opens. So, do not store long-term food such ice cream, etc.. Wine holder Snack drawer Freezer compartment shelf Freezer compartment door rack Freezer compartment drawer Milk product corner Egg box Refreshment center Refrigerator compartment shelf Refrigerator compartment door rack Vegetable drawer Vegetable drawer /meat drawer conversion corner

Store meat, fish, chicken, etc.. after wrapping them with thin foil.

Store milk products such as butter, cheese, etc.. Place this egg box in the proper location. Store foods of frequent use such as beverage, etc.. Store side dishes or other foods at a proper distance. Store small packed food or beverages such as milk, juice, beer, etc.. Store vegetables or fruits. Store vegetable, fruits, meat to thaw, raw fish, etc.. setting the conversion switch as necessary. Be sure to check the conversion switch setting before storing foods.

Suggestion on food storage Location of foods (Refer to identification of parts) Store wine. Store small foods such as bread, snacks, etc.. Store various frozen foods such as meat, fish, ice cream, frozen snacks, etc..

Store small packed frozen food.

Temperature is likely to increase as door opens. So, do not store long-term food such ice cream, etc.. Wine holder Snack drawer Freezer compartment shelf Freezer compartment door rack Freezer compartment drawer Milk product corner Egg box Refreshment center Refrigerator compartment shelf Refrigerator compartment door rack Vegetable drawer Vegetable drawer /meat drawer conversion corner

Store meat, fish, chicken, etc.. after wrapping them with thin foil.

Store milk products such as butter, cheese, etc.. Place this egg box in the proper location. Store foods of frequent use such as beverage, etc.. Store side dishes or other foods at a proper distance. Store small packed food or beverages such as milk, juice, beer, etc.. Store vegetables or fruits. Store vegetable, fruits, meat to thaw, raw fish, etc.. setting the conversion switch as necessary. Be sure to check the conversion switch setting before storing foods.

Suggestion on food storage Suggestion on food storage

Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor.

Do not store food which goes bad easily at low temperatures, such as bananas, and melons.

Allow hot food to cool prior to storing, placing hot food in the refrigerator could spoil other food, and lead to higher electric bills.

When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients.

Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures even.

Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperatures to rise.

Never keep too many foods in door rack because they may be interrupted by inner racks so that the door cannot be fully closed.

Do not store bottles in the freezer compartment - they may break when frozen.

Do not refreeze food that has been thawed. This causes loss of taste and nutrient.

When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack.

Do not touch the cold foods or containers- especially made of metallic -, with wet hands and place glass products in the freezer compartment. - That’s why you may have chilblains and they may be broken when their inner matters are frozen, causing personal injury.

Avoid placing moist food upmost refrigerator shelves, it could freeze upon direct contact with chilled air.

Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped, to prevent adjacent food from spoiling.

When storing eggs in their storage rack or box, ensure that they are fresh, and always store them in a up-right position, which keeps them fresh longer. Freezer compartment Refrigerator compartment

If you keep the refrigerator in a hot and humid place, frequent openning of the door or storing a lot of vegetables in it may cause dew to form which has no effect on its performance. Remove the dew with dust cloth free from care. NOTE Suggestion on food storage

Storing foods Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor. Do not store food which goes bad easily at low temperatures, such as bananas, and melons. Allow hot food to cool prior to storing, placing hot food in the refrigerator could spoil other food, and lead to higher electric bills. When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients. Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures even. Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperatures to rise. Never keep too many foods in door rack because they may be interrupted by inner racks so that the door cannot be fully closed. Do not store bottles in the freezer compartment - they may break when frozen. Do not refreeze food that has been thawed. This causes loss of taste and nutrient. When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack. Do not touch the cold foods or containers- especially made of metallic -, with wet hands and place glass products in the freezer compartment. - That’s why you may have chilblains and they may be broken when their inner matters are frozen, causing personal injury. Avoid placing moist food upmost refrigerator shelves, it could freeze upon direct contact with chilled air. Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped, to prevent adjacent food from spoiling. When storing eggs in their storage rack or box, ensure that they are fresh, and always store them in a up-right position, which keeps them fresh longer. Freezer compartment Refrigerator compartment If you keep the refrigerator in a hot and humid place, frequent openning of the door or storing a lot of vegetables in it may cause dew to form which has no effect on its performance. Remove the dew with dust cloth free from care. NOTE15 Care and maintenance How to dismantle parts Freezer compartment lamp Freezer compartment shelf Vegetable compartment cover To remove the vegetable compartment cover, pull out the vegetable compartment a bit to the front , lift the front part of the vegetable compartment cover as shown by , and take it out.

Door rack and support Lift the door rack to direction holding both sides and pull it out to direction.

Be sure to remove parts from the refrigerator door when removing the vegetable compartment and snack corner. NOTE Separate the bin ( ) to upward. Separate the upper rack of the refreshment center and then pull out the refreshment center cover

The refreshment center can be removed by pulling it upwards. Refreshment center

Be sure to remove parts from the refrigerator door when removing the vegetable compartment and snack corner. NOTE Separate the lamp by pulling it out while slightly pressing and rotating the lamp cover. Turn the bulb counterclockwise. Use a 40-watt bulb (max.) which can be purchased at a service center. To remove a shelf, push the shelf to the left , lift the left part of the shelf a bit , lift the right part up , and take it out.

Dismantling is done in the reverse sequence of assembly. Be sure to unplug the power plug before dismantling and assembly. Never apply severe force to dismantle parts. Parts may be damaged. NOTE16 Care and maintenance

Care and maintenance General information Cleaning During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life. When you plan not to operate, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation. Vacation time Power failure If you move Anti condensation pipe Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. Remove or securely fasten down all loose items inside the refrigerator. To avoid damaging the height adjusting screws, turn them all the way into the base. The outside wall of the refrigerator cabinet may sometimes get warm, especially just after installation. Don’t be alarmed. This is due to the anti-condensation pipe, which pumps hot refrigerator to prevent “sweating” on the outer cabinet wall. Regular cleaning is recommended. Wash all compartments a baking soda solution or a mild detergent and warm water. Rinse and dry. Please verify that the power cord is not damaged, power plug is not overheated, or power plug is well inserted into the power consent. Always remove power cord from the wall outlet prior to cleaning in the vicinity of electrical parts (lamps, switches, controls, etc.). Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing an electric shock. Never use metallic scouring pads, brushes, coarse abrasive cleaners, strong alkaline solutions, flammable or toxic cleaning liquids on any surface. Do not touch frozen surfaces with wet or damp hands, because damp object will stick or adhere to extremely cold surfaces. It is important that your refrigerator be kept clean to prevent undesirable odors. Spilled food should be wiped up immediately, since it may acidify and stain plastic surfaces if allowed to settle. Use a lukewarm solution of mild soap or detergent to clean the durable finish of your refrigerator. Wipe with a clean damp cloth and then dry. Exterior Interior After cleaning Warning

Care and maintenance General information Cleaning During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life. When you plan not to operate, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation. Vacation time Power failure If you move Anti condensation pipe Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. Remove or securely fasten down all loose items inside the refrigerator. To avoid damaging the height adjusting screws, turn them all the way into the base. The outside wall of the refrigerator cabinet may sometimes get warm, especially just after installation. Don’t be alarmed. This is due to the anti-condensation pipe, which pumps hot refrigerator to prevent “sweating” on the outer cabinet wall. Regular cleaning is recommended. Wash all compartments a baking soda solution or a mild detergent and warm water. Rinse and dry. Please verify that the power cord is not damaged, power plug is not overheated, or power plug is well inserted into the power consent. Always remove power cord from the wall outlet prior to cleaning in the vicinity of electrical parts (lamps, switches, controls, etc.). Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing an electric shock. Never use metallic scouring pads, brushes, coarse abrasive cleaners, strong alkaline solutions, flammable or toxic cleaning liquids on any surface. Do not touch frozen surfaces with wet or damp hands, because damp object will stick or adhere to extremely cold surfaces. It is important that your refrigerator be kept clean to prevent undesirable odors. Spilled food should be wiped up immediately, since it may acidify and stain plastic surfaces if allowed to settle. Use a lukewarm solution of mild soap or detergent to clean the durable finish of your refrigerator. Wipe with a clean damp cloth and then dry. Exterior Interior After cleaning Warning17 Care and maintenance Care and maintenance Trouble shooting Before calling for service, review this list. It may save you both time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Runing of refrigerator Refrigerator compressor does not run. Refrigerator runs too much or too long Possible cause Refrigerator control is off. Refrigerator is in defrost cycle. Plug at wall o u t le t is disconnected. Power outage. Ch e ck house lights. Refrigerator is large r than the pre vio u s one you owned. Room or outside weather is hot. Refrigerator has re ce n t ly been disconnected for a period of time . Large amounts of warm or hot food may have been stored recently. Doors are opened too frequently or too long. Refrigerator or f r e e ze r door may be slightly open. Refrigerator control is set too co ld . Refrigerator or f r e e ze r gasket is dirty, worn, cracked, or poorly fitted. Thermostat is keeping the refrigerator at a constant temperature. Solution Set refrigerator control. See settin g the controls. This is normal f o r a fully automatic defrosting refrigerator. The defrost cycle occurs periodically. Make sure plug is tightly pushed into outlet. Call local electric co mp an y. This is normal. Larger, more efficien t units run longer in these condit io n s. It is normal f o r the refrigerator to work longer under th e se conditions. It takes some hours for the refrigerator to cool down completely. Warm food will cause the refrigerator to run longer until the desired temperature is reached. Warm air entering the refrigerator causes it to r u n longer. Open the door less often. Make sure the refrigerator is level. Keep food and containers from blocking door. See problem section. OPENING/CLOSING of d o o r s. Set the refrige r at o r control to a warmer setting unt il the refrigerator temperature is satisfact o r y. Clean or change gasket. Leaks in the door seal will cause refrigerator to run longer in order to maintain desire d temperatures. This is normal. Refrigerator goes on and off to keep the temperature constant. Occurrence18 Care and maintenance19 Care and maintenance Sound and noise Louder sound levels when refrigerator is on. Louder sound levels when compressor comes on. Moisture collects on inside of refrigerator walls. Water/Moisture /Ice outside refrigerator Moisture forms on outside of refrigerator or between doors. Vibrating or rattling noise. Water/Moisture /Ice inside refrigerator Refrigerator is touching wall or cabinets. Weather is hot and humid which increases rate of frost buildup and internal sweating. Door is slightly open. Door is opened too often or too long. Weather is humid. Door is slightly open, causing cold air from the inside the refrigerator to meet warm air from the outside. Floor is uneven or weak. Refrigerator rocks on the floor when it is moved slightly. Refrigerator operates at higher pressures during the start of the ON cycle. Items placed on the top of refrigerator are vibrating. Dishes are vibrating on the shelves in the refrigerator. This time, close the door completely. This is normal in humid weather. When humidity is lower, the moisture should disappear. See problem section opening/closing of doors. Relieve or move refrigerator This is normal. It is normal for dishes to vibrate slightly. Move dishes slightly. Make sure refrigerator is level and solidly set on floor. Be sure floor is level and solid and can adequately support refrigerator. Remove items. It is normal for sound levels to be higher. This is normal. Sound will level off as refrigerator continues to run. Open the door less often. Occurrence Possible cause Today’s refrigerators have increased storage capacity and maintain more even temperatures. Solution20 Care and maintenance Care and maintenance

Odors in refrigerator Occurrence Door(s) will not close. Door(s) will not close. (Continued) Drawers are difficult to move. Other Opening/Closing of doors/Drawers Possible cause Food is touching shelf on top of drawer Track that drawer slides on is dirty. Please thoroughly read this manual. Refrigerator is not level. It rocks on the floor when it is moved slightly. Floor is uneven or weak. Refrigerator rocks on the floor when it is moved slightly. Refrigerator is touching wall or cabinets. Interior needs to be cleaned. Food with strong odor is in refrigerator. Some containers and wrapping paper produce odors. Food package is keeping door open. Door was closed too hard, causing other door to open slightly. Solution Clean drawer and track. Be sure floor is level and can adequately support refrigerator. Contact carpenter to correct sagging or sloping floor. Relieve or move refrigerator.

Keep less food in drawer. Adjust the height adjusting screw. Use a d ifferent container or brand of wrapping paper
