USER MANUAL UniversallDrill 18 BOSCH

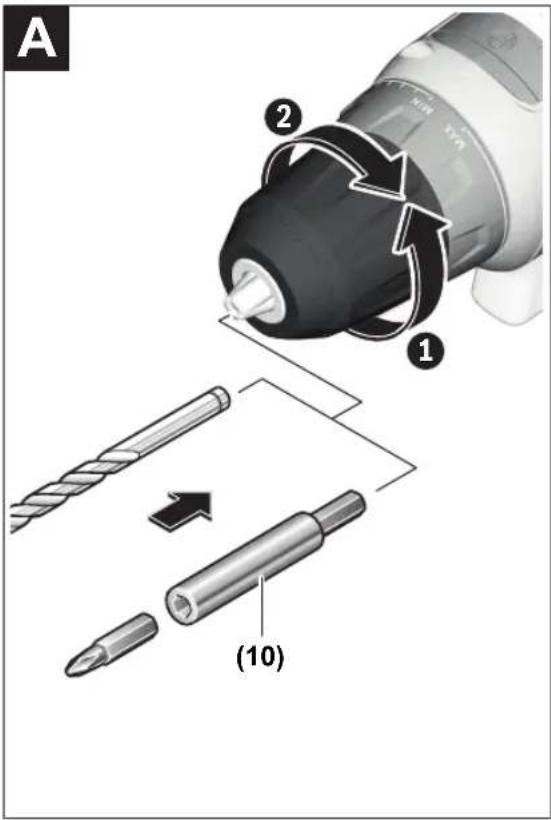

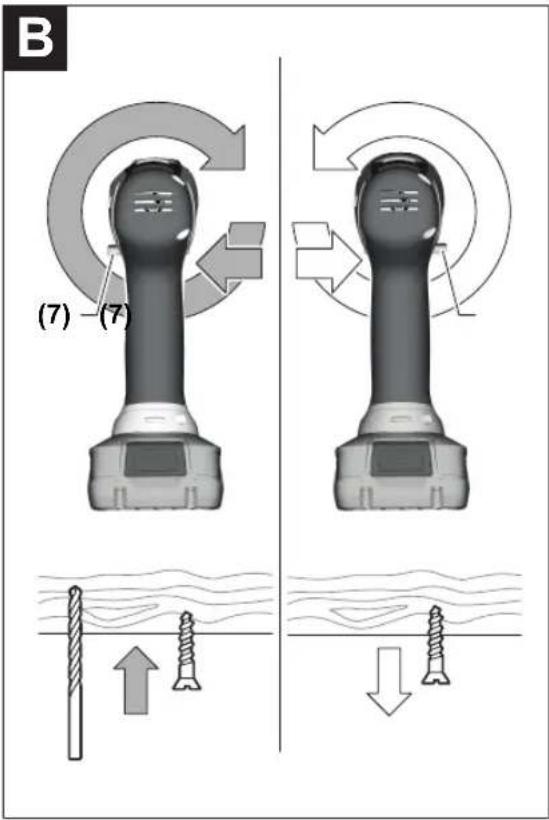

(7) Rotational direction switch (8) On/off switch (9) Handle (insulated gripping surface) (10) Universal bit holder

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. Technical Data Cordless Drill/Driver UniversalDrill 18V Article number 3603JC80.. Rated voltage V= 18 No-load speed

0–440 – Second gear min

0–1450 Max. torque, hard/soft screwdriving application ac- cording to ISO5393

Gear) – Steel mm 10 – Wood mm 30 Max. screw diameter mm 8 Tool holder mm 10 Weight according to EPTA-Procedure 01:2014

kg 1.2–1.5 Recommended ambient tem- perature during charging °C 0 to +35 Permitted ambient temperat- ure during operation and dur- ing storage °C –20 to +50 Recommended rechargeable batteries PBA 18V...W-. 1 609 92A 4XS | (09.11.2020) Bosch Power ToolsEnglish | 13 Cordless Drill/Driver UniversalDrill 18V Recommended chargers

Measured at 20−25°C with rechargeable batteryPBA 18V 1.5Ah W-A. B) Depends on battery in use C) The following chargers are not compatible with the PBA re- chargeable battery: AL 1814 CV, AL 1820 CV, AL 1860 CV Noise/vibration information Noise emission values determined according to EN62841-2-1. Typically, the A-weighted sound pressure level of the power tool is less than 70dB(A). The noise level when working can exceed the volume stated. Wear hearing protection! Vibration total values a

(triax vector sum) and uncertainty K determined according to EN62841-2-1: Drilling in metal: a

www.bosch-pt.com/serviceaddresses

www.bosch-pt.com/serviceaddresses

EU Declaration of Conformity We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards. Technical file at: * Cordless Drill/ Driver Article number
