USER MANUAL WPB 3618 LTX BL 24230 METABO

(15) M / l - / in (mm) 5/8“-11 UNC /

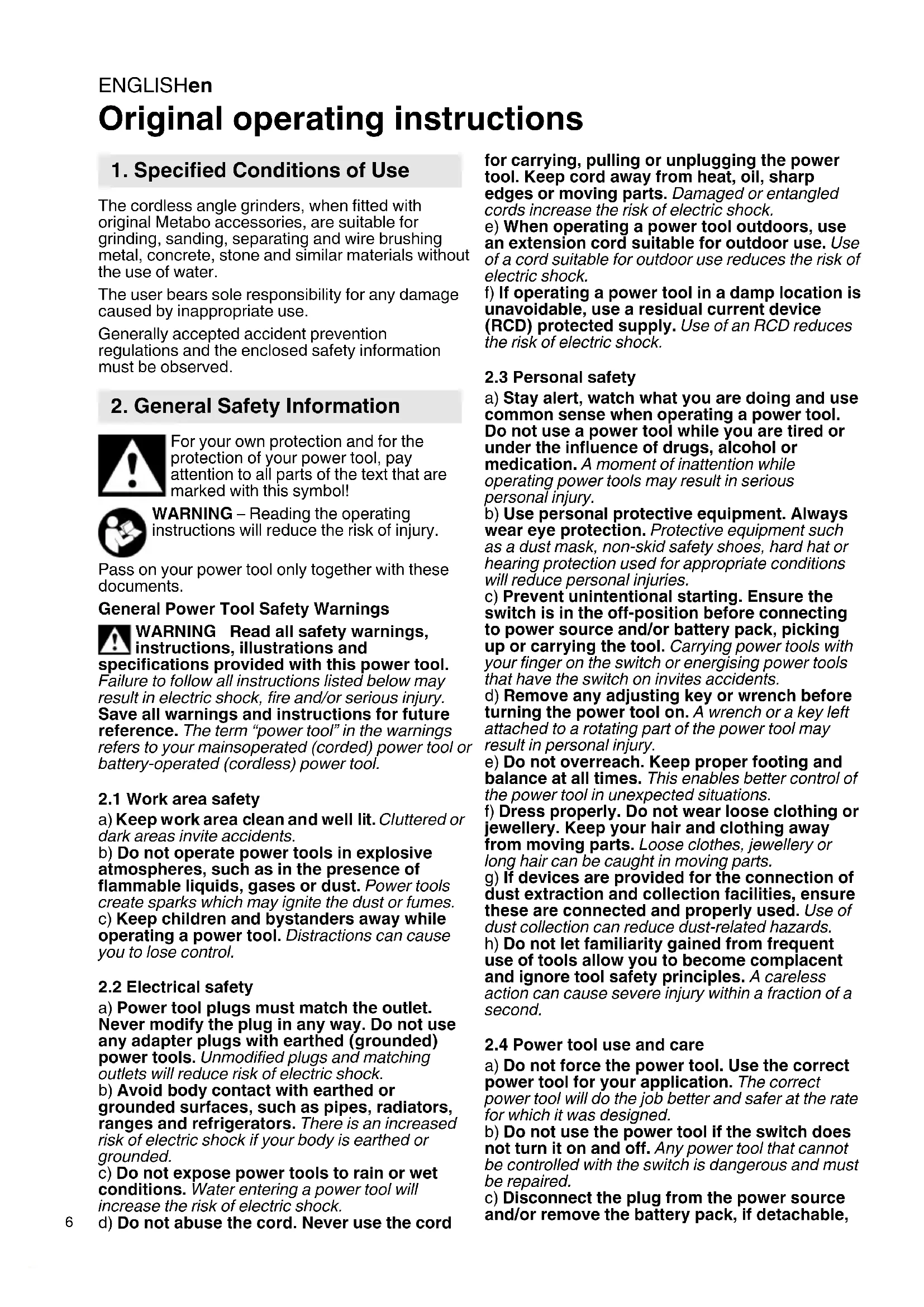

Original operating instructions The cordless angle grinders, when fitted with original Metabo accessories, are suitable for grinding, sanding, separating and wire brushing metal, concrete, stone and similar materials without the use of water. The user bears sole responsibility for any damage caused by inappropriate use. Generally accepted accident prevention regulations and the enclosed safety information must be observed. For your own protection and for the protection of your power tool, pay attention to all parts of the text that are marked with this symbol! WARNING – Reading the operating instructions will reduce the risk of injury. Pass on your power tool only together with these documents. General Power Tool Safety Warnings WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mainsoperated (corded) power tool or battery-operated (cordless) power tool.

2.1 Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2.2 Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

2.4 Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detachable,

1. Specified Conditions of Use

from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

2.5 Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

3.1 Safety Warnings Common for Grinding,

Sanding, Wire Brushing or Cutting-Off Operations: a) This power tool is intended to function as a grinder, sander, wire brush, hole cutter or cut- off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. b) Operations such as polishing are not to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury. c)Do not convert this power tool to operate in a way which is not specifically designed and specified by the tool manufacturer. Such a conversion may result in a loss of control and cause serious personal injury d) Do not use accessories which are not specifically designed and specified by the tool manufacturer. Just because an accessory can be attached to your power tool, it does not assure safe operation. e) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart. f) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled. g) The dimensions of the accessory mounting must fit the dimensions of the mounting hardware of the power tool. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control. h) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If the power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.

i) Wear personal protective equipment.

Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high- intensity noise may cause hearing loss. j) Keep bystanders a safe distance away from the work area. Anyone entering the work area must wear personal protective equipment. Fragments of the workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation. k) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. l) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control. m) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body. n) Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards. o) Do not operate the power tool near flammable materials. Sparks could ignite these materials. p) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

3.2 Kickback and related warnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad. brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory, which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the binding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kickback. The wheel may either jump toward or away from the operator, depending on direction of the wheel’s movement at the point of pinching. Abrasive wheels may also break under these conditions. Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below. a) Maintain a firm grip with both hands on the power tool and position your body and arms to allow you to resist kickback forces. Always use the auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken. b) Never place your hand near the rotating accessory. Accessory may kickback over your hand. c) Do not position your body in the area where the power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel’s movement at the point of snagging. d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback. e) Do not attach a saw chain woodcarving blade, segmented diamond wheel with a peripheral gap greater than 10 mm or toothed saw blade. Such blades create frequent kickback and loss of control.

3.3 Safety warnings specific for grinding and

cutting-off operations: a) Use only wheel types that are specified for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe. b) The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected. c) The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect the operator from broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing. d) Wheels must be used only for specified applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter. e) Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges. f) Do not use worn down wheels from larger power tools. Wheels intended for larger power tools are not suitable for the higher speed of a smaller tool and may burst. g) When using dual purpose wheels always use the correct guard for the application beingENGLISH en

performed. Failure to use the correct guard may not provide the desired level of guarding, which could lead to serious injury.

3.4 Additional safety warnings specific for

cutting-off operations: a) Do not “jam” the cut-off wheel or apply excessive pressure. Do not attempt to make an excessively deep cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage. b) Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you. c) When the wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold it motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding. d) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece. e) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel. f) Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback. g) Do not attempt to do curved cutting. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage, which can lead to serious injury.

3.5 Safety warnings specific for sanding

operations: a) Use proper sized sanding disc paper. Follow the manufacturer’s recommendations, when selecting sanding paper. Larger sanding paper extending too far beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc or kickback.

3.6 Safety warnings specific for wire

brushing operations: a) Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush. The wire bristles can easily penetrate light clothing and/or skin. b) If the use of a guard is specified for wire brushing, do not allow any interference of the wire wheel or brush with the guard. Wire wheel or brush may expand in diameter due to work load and centrifugal forces.

3.7 Additional Safety Instructions:

WARNING – Always wear protective goggles. Wear ear protectors. WARNING – Always operate the power tool with two hands. Do not use the guard for cutting-off operations. When working with cut-off wheels, always use the parting safety guard for safety reasons. Do not use any segmented diamond cut-off wheels with segment slits >10 mm. Only negative segment cutting angles are permitted. Use bonded cut-off wheels only if these are reinforced. Use elastic cushioning layers if they have been supplied with the sanding media and if required. Observe the specifications of the tool or accessory manufacturer! Protect wheels from grease or impact! Accessories must be stored and handled with care in accordance with the manufacturer's instructions. Never use cut-off wheels for roughing work or deburring! Do not apply pressure to the side of the cut-off wheels. The workpiece must lay flat and be secured against slipping, e.g. using clamps. Large workpieces must be sufficiently supported. If accessories with threaded inserts are used, the end of the spindle may not touch the base of the hole on the sanding tool. Make sure that the thread in the accessory is long enough to accommodate the full length of the spindle. The thread in the accessory must match the thread on the spindle. See page 2 and chapter 14. Technical Specifications for more information on the spindle length and thread. When working in dusty conditions, ensure that ventilation openings are not blocked. If it becomes necessary to remove dust, first remove the battery pack (use non-metallic objects) and avoid damaging internal components. Damaged, eccentric or vibrating tools must not be used. Avoid damage to gas or water pipes, electrical cables and load-bearing walls (static). Remove the battery pack from the machine before making any adjustments, changing tools, maintaining or cleaning. Make sure that the tool is switched off before fitting the battery pack.ENGLISHen

A damaged or cracked additional handle must be replaced. Never operate the machine with a defective side handle. A damaged or cracked safety guard must be replaced. Never operate a machine with a defective safety guard. Secure small workpieces. For example, clamp in a vice. When using dual-purpose (combined grinding and cut-off wheels), only the following guard types must be used: type A, type C. See chapter 11. Using the correct guard: Using an incorrect guard can lead to loss of control and serious injuries. Examples for incorrect use: - when using a type A guard for lateral grinding, the guard may interfere with the workpiece causing poor control. - when using a type B guard for cutting-off operations with bonded cut-off wheels, there is an increased risk of exposure to emitted sparks and particles, as well as exposure to wheel fragments in the event of a wheel burst. - when using a type A, B, C guard for cutting-off operations or lateral grinding in concrete or masonry, there is an increased risk of exposure to dust and loss of control resulting in kickback. - when using a type A, B, C guard with a wheel-type wire brush with a thickness greater than the maximum permitted thickness, the wires may catch on the guard leading to breaking of the wires. Always use the matching guard for the accessory. See chapter 11. Additional Warnings: California Prop 65 08_2018 Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,

• Crystalline silica from bricks and cement and other masonry products, and

• Arsenic and chromium from chemicallytreated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

3.8 Safety instructions for battery packs:

Protect battery packs from water and moisture! Do not expose battery packs to naked flame! Do not use faulty or deformed battery packs! Do not open battery packs! Do not touch or short circuit battery pack contacts! A slightly acidic, flammable fluid may leak from defective Li-ion battery packs! If battery fluid leaks out and comes into contact with your skin, rinse immediately with plenty of water. If battery fluid leaks out and comes into contact with your eyes, wash them with clean water and seek medical attention immediately! If the machine is defective, remove the battery pack from the machine. Remove the battery pack from the machine to transport the machine. Transport of li-ion battery packs: The shipping of li-ion battery pack is subject to laws related to the carriage of hazardous goods (UN 3480 and UN 3481). Inform yourself of the currently valid specifications when shipping li-ion battery packs. If necessary, consult your freight forwarder. Certified packaging is available from Metabo. Only send the battery pack if the housing is intact and no fluid is leaking. Remove the battery pack from the machine for sending. Prevent the contacts from short-circuiting (e.g. by protecting them with adhesive tape). SYMBOLS ON THE TOOL: ..........Class II Construction V..............volts A..............amperes Hz............hertz .../min ......revolutions per minute ~..............alternating current .............alternating current /direct current n ..............rated speed The "C" and "US" indicators adjacent to the CSA Mark signify that the product has been evaluated to the applicable CSA and ANSI/ UL Standards, for use in Canada and the U.S., respectively. See page 2+3. 1 Support flange (not removable with WPB 36-18 LTX BL 24-230 Quick) 2 Spindle 3 Spindle locking button 4 Electronic signal indicator 5 Capacity indicator button 6 Capacity and signal indicator 7 Side handle/Additional handle with vibration damping 8 Safety cover 9 Adjusting nut * 10 2-hole spanner * 11 Battery pack release button 12 Battery pack 13 Lock (against accidental activation) 14 Trigger (for switching on and off) 15 Main handle

16 Button (to turn the main handle) 17 Quick-release clamp (to adjust safety guard without the use of tools) 18 Screw (to adjust clamping force of quick- release clamp) 19 Safety clip

5.1 Attaching the additional handle

Always work with the additional handle (7) attached! Manually screw in the additional handle securely in the left, centre or right threaded hole (depending on requirements).

5.2 Attach the safety guard

For safety reasons, only use the guard provided for the respective accessory! Using an incorrect guard can lead to loss of control and serious injuries. See also chapter 11. Accessories! WPB 36-18 LTX BL 24-230 can only use type C guard! See page 2, illustration F. - Open quick-release clamp (17). Mount the safety guard (8) in the position indicated. - Turn the safety guard until the closed section is facing the operator. - Close quick-release clamp. - If necessary, increase clamping force of quick- release clamp by tightening the screw (18) (with opened quick-release clamp). Use only accessories that are covered by at least 3.4 mm by the safety guard.

5.3 Pivotable main handle

Only work with the main handle (15) engaged. See illustration C on page 2. - Push in the button (16). - The main handle (15) can now be turned 90° to both sides and can be engaged. - Make sure that it is securely positioned: the main handle (15) must be engaged and it should not be possible to move it.

Charge the battery pack (12) before use. Recharge the battery pack if performance diminishes. Instructions on charging the battery pack can be found in the operating instructions of the Metabo charger. Battery packs have a capacity and signal display (6) (depends on design variant): - Press the button (5); the LEDs indicate the charge level. - The battery pack is almost flat and must be recharged if one LED is flashing. WPB 36-18 ...: - Use always two Metabo 18-Volt slide-on battery packs. - Recommended capacity 5.5 Ah and greater. - We recommend the use of battery packs with identical item number. The use of battery packs with different capacity (Ah) is permitted. In this case, the battery pack with the smaller capacity (Ah) determines the useful life. Safety clip: Battery packs with the designation “DS” have a safety clip (19) (see fig. B, page 4). This feature is part of a multi-piece system with the purpose to prevent battery packs from falling when working at heights.

5.5 Removing and inserting the battery pack

See illustration A on page 2. Removing: Press the battery pack release (11) button and remove the battery pack (12). Inserting: Slide in the battery pack (12) until it engages. Prior to any conversion work: remove battery pack from machine. The machine must be switched off and the spindle at a standstill. For reasons of safety, attach the cut-off grinding guard before performing cut-off grinding work (see Chapter 11. Accessories).

6.1 Locking the spindle

- Press in the spindle locking button (3) and turn the spindle (2) by hand until the spindle locking button engages.

6.2 Placing the grinding wheel in position

See illustration D on page 2. - Fit the support flange (1) on the spindle. The flange should not turn on the spindle when properly attached. Place the grinding wheel on the support flange (1). The grinding wheel must lay flat on the supporting flange.

6.3 Securing/Releasing the 2-hole nut

Securing the 2-hole nut (9): The 2 sides of the 2-hole nut are different. Screw the 2-hole nut onto the spindle as follows: See illustration E on page 2. - X) For thin grinding discs: The edge of the 2-hole nut (9) faces upwards so that the thin grinding disc can be attached securely. Y) For thick grinding discs:

5. Initial Operation

6. Attaching the grinding wheelENGLISHen

The edge of the 2-hole nut (9) faces downwards so that the 2-hole nut can be attached securely to the spindle. - Locking the spindle. Turn the 2-hole nut (9) clockwise using the 2-hole spanner (10) to secure. min. 20 Nm! - Note: as an alternative to fastening using the two- hole wrench (10), you can tighten the two hole nuts (9) as follows: Lock the spindle. Firmly tighten the two hole nuts (9) by hand. Hold the edge of the grinding wheel and manually rotate it clockwise by at least 1/2 a rotation. Releasing the 2-hole nut: - Lock the spindle (see chapter 6.1). Turn the 2-hole nut (9) anticlockwise using the 2-hole spanner (10) to unscrew. Always guide the machine with both hands. Switch on first, then guide the accessory towards the workpiece. Avoid switching on the machine accidentally: always switch it off when the battery pack is removed from the machine. Always hold the machine with both hands on the designated handles, take a secure stance and concentrate on the work. Avoid the machine swirling up or taking in dust and chips. After switching off the machine, only place it down when the motor has come to a standstill. See illustration B on page 2. Torque activation: Switching on: Slide the lock (13) in the direction of the arrow and press the trigger switch (14). Switching off: Release the trigger switch (14).

7.1 Working Directions

Grinding: Press down the machine evenly on the surface and move back and forth so that the surface of the workpiece does not become too hot. Rough grinding: position the machine at an angle of 30° - 40° for the best working results. Cut-off grinding: Always work against the run of the disc (see illustration). Otherwise there is the danger of the machine kicking back from the cut out of control. Guide the machine evenly at a speed suitable for the material being processed. Do not tilt, apply excessive force or sway from side to side. Sanding: Press down the machine evenly on the surface and move back and forth so that the surface of the workpiece does not become too hot. Wire brushing: Press down the machine evenly. Button (16) for adjusting the handle: Occasionally vacuum clean the button or blow compressed air through it (when pressed, in all 3 main handle positions). Prior to this operation, separate the power tool from the power source and wear protective goggles and a dust mask. Transport of li-ion battery packs: The shipping of li-ion battery pack is subject to laws related to the carriage of hazardous goods (UN 3480 and UN 3481). Inform yourself of the currently valid specifications when shipping li-ion battery packs. If necessary, consult your freight forwarder. Certified packaging is available from Metabo. Only send the battery pack if the housing is intact and no fluid is leaking. Remove the battery pack from the machine for sending. Prevent the contacts from short-circuiting (e.g. by protecting them with adhesive tape). Remove the battery pack from the machine to transport the machine. The electronic signal indicator (4) lights up and the load speed decreases. The temperature is too high! Run the machine in idling until the electronic signal indicator switches off. The electronic signal display (4) flashes and the machine does not start. The restart protection is active. The machine will not start if the battery pack is inserted while the machine is on. Switch the machine off and on again. The electronic signal display (4) flashes and the machine does not start. Press the button (5); the LEDs the charge level. When the battery pack is empty it must be recharged. Electronic safety stop: The electronic signal display (4) flashes and the machine was SWITCHED OFF automatically. If the slew rate of the current is too high (for example, if the machine suddenly seizes or kickback occurs), the machine switches off. Switch off the machine. Switch it on again and continue to work as normal. Try to prevent the machine from seizing. See chapter 3.2. Use only original Metabo or CAS (Cordless Alliance System) battery packs and accessories. Use only accessories that fulfil the requirements and specifications listed in these operating instructions. Fit accessories securely. If the machine is operated in a holder: secure the machine well. Loss of control can cause personal injury.

Always use the suitable accessory and the prescribed guard for the matching guard for the application. See page 5. (Illustrations are examples). Application: 1 = surface grinding 2 = cut-off grinding 3 = drilling of holes 4 = wire brushes 5 = grinding with sanding paper Accessories:

1.1 = grinding wheel

1.2 = cup wheel (ceramic)

2.1 = cut-off wheel “metal”

2.2 = cut-off wheel “masonry/concrete”

2.3 = diamond cutting disc “masonry/concrete”

2.4 = dual-purpose diamond cutting discs

(combined grinding and cutting disc)

3.1 = diamond drill bits

5.2 = backing pad for sanding sheets

Best.-Nr.: 624990000 5,5 Ah LiHD C Adjusting nut (9) For a complete range of accessories, see www.metabo.com or the catalogue. Repairs to power tools must only be carried out by qualified electricians! Contact your local Metabo representative if you have Metabo power tools requiring repairs. See www.metabo.com for addresses. You can download a list of spare parts from www.metabo.com. The sanding dust generated may contain hazardous materials: do not dispose of with the household waste, but at a special collection point for hazardous waste. Packaging materials must be disposed of according to their labelling in accordance with municipal guidelines. Further information can be found at www.metabo.com in the “Service” section. Observe national regulations on environmentally compatible disposal and on the recycling of disused machines, packaging and accessories. Battery packs must not be disposed of with regular waste! Please return faulty or used battery packs to your Metabo dealer! Do not throw battery packs into water. Explanatory notes on the specifications on page 2. Changes due to technological progress reserved. U =Battery pack voltage Dmax =max. diameter of accessory tmax,1 =max. permitted thickness of clamping shank on accessory when using clamping nut (9) tmax,3 =grinding wheel/cut-off wheel: max. permitted thickness of accessory

max,4 =max. permitted thickness of wheel-type wire brushes M =Spindle thread l =Length of the sanding spindle

=No-load speed (maximum speed) P1 =Rated input power P2 =Power output m =Weight (with the smallest battery pack) Permitted ambient temperature during operation: -20 °C (-4°F) to 50 °C (120°F) (limited performance with temperatures below 0 °C (32°F)). Permitted ambient temperature for storage: 0 °C (32°F) to 30 °C (86°F). Recommended ambient temperature when charging: 32°F (0°C) to 104°F (40 °C) The technical specifications quoted are subject to tolerances (in compliance with the relevant valid standards). Emission values These values make it possible to assess the emissions from the power tool and to compare different power tools. The actual load may be higher or lower depending on the operating conditions, the condition of the power tool or the accessories. Please allow for breaks and periods for assessment purposes when the load is lower. Arrange protective measures for the user, such as organisational measures based on the adjusted estimates. The grinding of thinner metal sheetsd other workpieces with large surfaces that easily vibrate can lead to a significantly higher overall sound emission (up to 15 dB) than the sound emission values specified. The sound radiation of such workpieces should be prevented to the greatest extent possible by means of suitable measures, such as fitting heavy, flexible damping mats. The increased sound emission must also be taken into account when assessing the risk of noise exposure and selecting suitable hearing protection. Vibration total value (vector sum of three directions) determined in accordance with EN 62841

ah, SG = Vibration emission value (surface grinding) ah, DS = Vibration emission value (disc sanding) Kh,SG/DS = Uncertainty (vibration) Typical A-weighted sound levels: LpA = Sound pressure level LWA = acoustic power level KpA, KWA = Uncertainty During operation the noise level can exceed 80 dB(A). Wear ear protectors!FRANÇAIS fr
