TG106750 - Teppanyaki plate Emerio - Free user manual and instructions

Brand	Emerio
Model	TG106750
Product type	Teppanyaki plate
Power supply voltage	230 V ~ 50 Hz
Power	1800 W
Temperature setting	5 levels (1 to 5)
Cooking surface	Non-stick
Oil tray	Integrated, removable and dishwasher safe
Handles	Yes, two side handles
Indicator light	Indicates heating (on when heating)
Dimensions (L x W x H) approx.	50 x 30 x 10 cm
Weight approx.	3 kg
Warranty	2 years
Use	Household only
Surface cleaning	Wipe with a damp cloth after cooling
Oil tray cleaning	Dishwasher safe
Recommended utensils	Wood, nylon or plastic (no metal)
Maximum temperature	High (level 5)
Safety precautions	Hot surface during operation, do not immerse
Included accessories	Thermostat connector, oil tray

Frequently Asked Questions - TG106750 Emerio

How to use the Emerio TG106750 teppanyaki plate for the first time?

Before first use, read the cleaning instructions and tips on non-stick surfaces. Assemble the thermostat connector, insert the oil tray, plug in the appliance and set the temperature. A slight odor may occur, this is normal. Ventilate the room.

What utensils to use on the non-stick surface?

Use utensils made of wood, nylon or plastic to avoid scratching the surface. Never use metal utensils and do not cut food directly on the plate.

How to clean the teppanyaki plate?

Unplug the appliance and let it cool down. Wipe the surface with a damp cloth and dry thoroughly. The oil tray is removable and dishwasher safe. Never immerse the appliance or its cord in water.

What to do if the indicator light does not turn off?

The indicator light turns on when the appliance heats up and turns off when the desired temperature is reached. It will turn on again automatically if the temperature drops. If the indicator light stays on constantly, check the settings or contact customer service.

The plate emits an odor or smoke during first use, is this normal?

Yes, it is normal. Manufacturing residues may burn slightly. Ensure good ventilation of the room and let it heat empty for a few minutes before cooking for the first time.

Can I use the teppanyaki plate outdoors?

No, this appliance is designed for indoor domestic use only. Do not use it outdoors or in humid environments.

What is the power and voltage of the appliance?

The appliance operates on a voltage of 230 V ~ 50 Hz and has a power of 1800 W. Check that your electrical installation is suitable.

How to adjust the temperature on the teppanyaki plate?

Turn the temperature knob to one of the 5 positions (1 to 5). The indicator light turns on during heating. Once the temperature is reached, the indicator light turns off. To turn off, set the knob to 'OFF'.

What to do if the non-stick surface is scratched?

Avoid using metal utensils or cutting on the plate. If the surface is scratched, it does not affect cooking but may reduce the lifespan of the coating. Continue to use with suitable utensils.

Is the appliance guaranteed and how to activate the warranty?

The appliance comes with a 2-year warranty. Keep the sales receipt. Defects due to misuse or unauthorized repairs are not covered. Contact customer service for any claims.

USER MANUAL TG106750 Emerio

Teppan Yaki Grill (NL)

Teppan Yaki Grill (EN)

Teppanyaki-Grill (DE)

Grillade Teppan Yaki (FR)

Inhoud - Content - Inhalt - Teneur

Instruction manual - English. 8

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraphs "CLEANING INSTRUCTIONS" and "HINTS FOR CARE AND USE OF NON-STICK SURFACE".
7. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by

clients in hotels, motels and other residential type environments; bed and breakfast type environments.

1. This appliance is not intended to be operated by means of an external timer or separate remote-control system.
2. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
3. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.
4. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
5. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
6. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
7. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
8. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
9. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
10. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
11. Never leave the appliance unattended during use.
12. This appliance is not designed for commercial use.
13. Do not use the appliance for other than intended use.

14. Do not wind the cord around the appliance and do not bend it.

15. Place the appliance on a stable, level surface from which it cannot fall off.

16. Always attach the probe to griddle before plugging cord into wall outlet. To disconnect, please turn off the appliance first, then remove plug from wall outlet.
17. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
18. Use extreme caution when disposing hot grease.
19. The connector must be removed before the appliance is cleaned and the appliance inlet must be dried before the appliance is used again. Only the appropriate connector must be used.
20. Warning: charcoal or similar combustible fuels must not be used with this appliance.
21. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

29.

Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

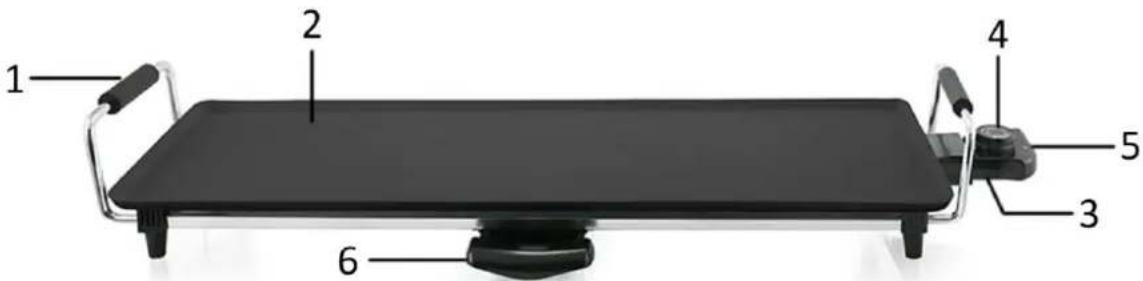

PARTS DESCRIPTION

1. Handle
2. Non-stick surface for grilling
3. Thermostat connector
4. Temperature control knob
5. Indicator lamp
6. Oil container

USING YOUR GRILL

1. Before first use, see "CLEANING INSTRUCTIONS" and "HINTS FOR CARE AND USE OF NON-STICK SURFACE".
2. Attach the thermostat connector into the unit. Make sure the temperature control knob faces upwards. Insert the oil container into the slots on the back of the unit.
3. Connect the mains plug to a suitable socket.
4. Set the desired temperature by means of the temperature control 1/2/3/4/5 . The indicator lamp lights up.
5. The unit, on its first use, might emit light smell. It is however of no consequence. Briefly ensure sufficient ventilation.
6. As soon as this temperature has been attained, the indicator lamp goes off.
7. When the grill has cooled down, the grill is heated up again automatically. The indicator lamp glows till the set temperature is attained again.
8. Always turn the temperature control to "OFF", to switch off the grill.
9. Pull out the mains plug from the socket and pull out the thermostat connector from the unit.
10. Carry the grill only by the handles.
11. Let the grill cool down outside the reach of the children. Caution: Grill surfaces are hot during use.

CLEANING INSTRUCTIONS

1. Unplug and allow it to cool completely before cleaning or moving.
2. Remove cord set (Do not immerse it in water), wipe with a damp cloth and dry thoroughly. Caution: Probe and probe receptacle must always be completely dry before use.

Note: The oil container is dishwasher safe.

HINTS FOR CARE AND USE OF NON-STICK SURFACE

• To avoid scratching the non-stick surface, do not stack objects on grill.
• Use medium to low heat for best cooking results. Very high temperatures can cause discoloration and shorten the life span of any non-stick surface. If higher temperatures are necessary, preheat on medium for a few minutes.
  Use only nylon, plastic or wooden utensils with care to avoid scratching the non-stick surface. Never cut

food on the grill.

• Remove stubborn stains with a plastic scouring pad and mild dish washing liquid.
• Do not use steel wool.

TECHNICAL DATA

Operating voltage: 230V 50Hz

Power consumption: 1800W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling - European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the

product was purchased. They can take this product for environmental safe recycling.

Evora

Postbus 34

3927 ZL, Rensswoude

Nederland
