USER MANUAL 90L1WH Klarstein

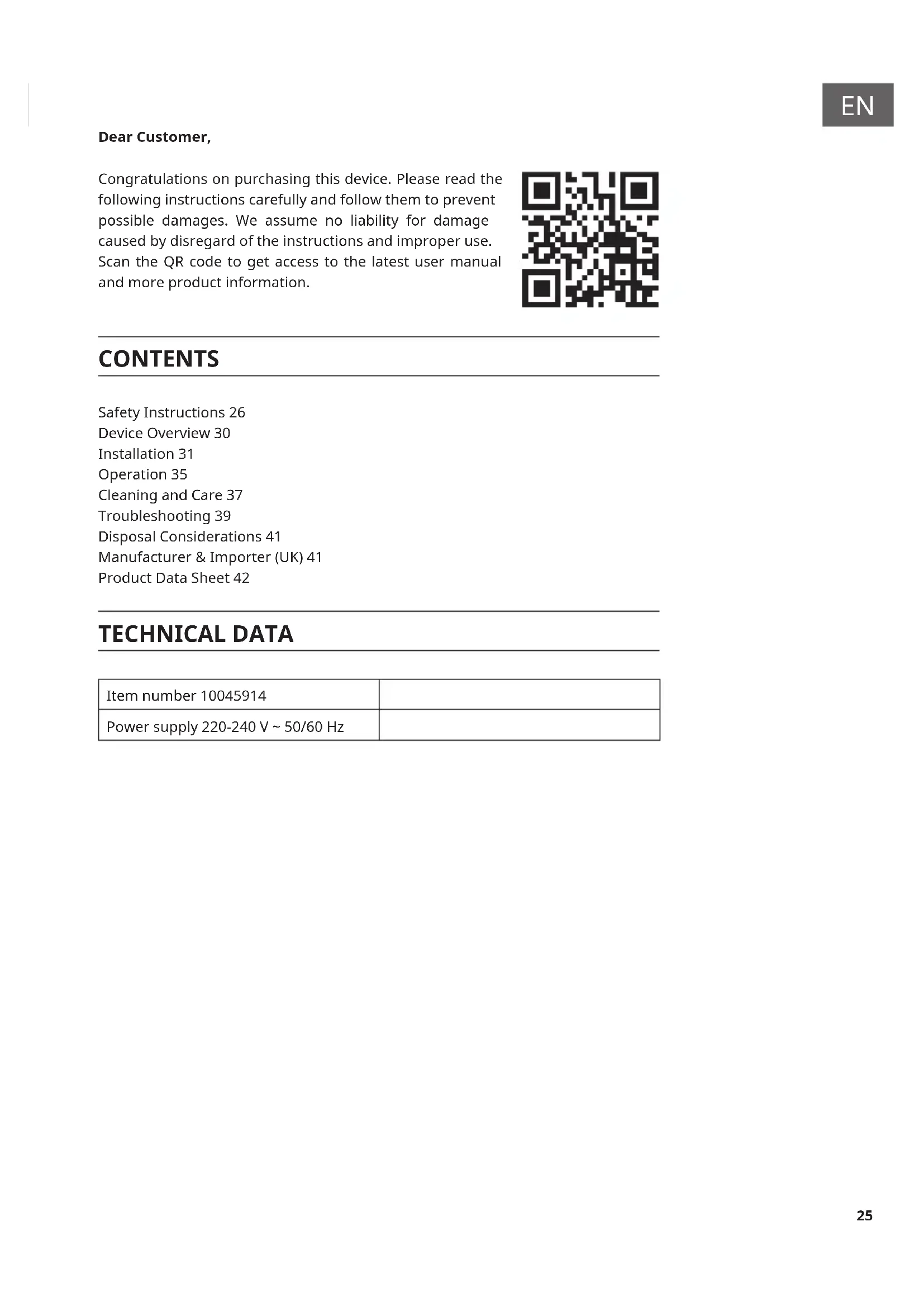

Dear Customer, Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information. CONTENTS Safety Instructions 26 Device Overview 30 Installation 31 Operation 35 Cleaning and Care 37 Troubleshooting 39 Disposal Considerations 41 Manufacturer & Importer (UK) 41 Product Data Sheet 42 TECHNICAL DATA Item number 10045914 Power supply 220-240 V ~ 50/60 Hz26

SAFETY INSTRUCTIONS Information on the safety of children and persons at risk

• This appliance may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they are supervised during use or have received instruction in the safe use of the appliance and understand the risks involved.

• Children aged 3 to 8 years may ll refrigerators with food and remove food.

• Ensure that children do not play with the appliance.

• Cleaning and maintenance of the appliance may only be carried out by children if they are at least 8 years old and supervised.

• Keep all packaging away from children. There is a danger of suocation.

• When you dispose of the appliance, unplug it from the wall outlet, cut the power cord and remove the door. This will prevent children playing on the appliance from injuring themselves, getting hit or getting trapped.

• If this machine replaces an older machine with a spring lock and latch on the door or lid, disable the spring lock and latch before disposing of the old machine. This will prevent children from getting trapped and suocating. General advice

• Keep ventilation openings in the unit housing or in the built-in cabinet free of obstacles.

• Do not use mechanical devices or other means to speed up the defrosting process.

• Do not damage the refrigerant circuit.

• Do not use other electrical appliances, such as ice machines, inside refrigeration appliances unless they are approved for this purpose by the manufacturer.

• If there is a light bulb inside the appliance, do not touch it. If it has been switched on for a long time, it can become very hot. The light bulb supplied with this unit is a special bulb that may only be used with the unit supplied. This light bulb is not suitable for household lighting. Do not use the unit without the light bulb.

• When setting up the machine, take care not to pinch or damage the power cord.

• Do not store explosive substances such as spray cans containing a ammable propellant in this appliance.

• During transport and installation of the unit, take care not to damage any components of the refrigerant circuit.27

• Avoid naked ames and sources of ignition near the unit.

• Thoroughly and regularly ventilate the room in which the unit is located.

• It is dangerous to modify this product in any way. Any damage to the cable may cause a short circuit, re or electric shock.

• All electrical components such as the plug, power cord and compressor must be replaced by a certied service centre or by qualied service personnel.

• The power cord must not be extended.

• Be careful not to pinch or damage the power plug. A pinched or damaged power plug may overheat and cause a re.

• Make sure that you can reach the power plug of the machine at any time.

• Do not pull on the power cord.

• If the power outlet is loose, do not plug in the power plug. There is a risk of electric shock or re.

• This machine is heavy. Be careful when moving it.

• Do not touch the freezer compartment if your hands are damp or wet, as this may cause skin abrasions or cold burns.

• Do not place the unit in direct sunlight.

• This appliance is intended for use in the home and similar environments. These include: - Sta kitchens in shops, oces and other working environments - Farms, hotels, motels and other residential facilities - Pensions that oer breakfast (Bed & Breakfasts) - Catering and similar applications outside the retail trade This appliance contains the coolant isobutane (R600a),a natural gas which is environmentally friendly. Although it is ammable, it does not damage the ozone layer and does not increase the greenhouse eect. The use of this coolant has,however,led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor,you might be able to hear the coolant owing around the system. This is unavoidable,and does not have any adverse eect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.28

• Do not put hot food in the machine.

• Do not place food directly against the rear panel.

• Frozen food must not be refrozen after defrosting.

• Store packaged frozen food according to the instructions of the frozen food manufacturer.

• Do not place carbonated zzy drinks in the freezer compartment as the pressure they generate can cause them to explode and damage the appliance.

• Open the door as rarely as possible.

• Do not leave the door open too long.

• Do not set the thermostat too low.

• To reduce energy consumption, leave all accessories, such as drawers, shelves or racks in the appliance. Notes on installation

• Unpack the machine and check for damage. Do not connect the machine if it is damaged. Report any damage immediately to the manufacturer. Save the original packaging for possible return shipment.

• Wait at least four hours before connecting the unit to allow the coolant to distribute itself in the cooling circuit.

• Ensure that there is sucient air circulation around the unit. Otherwise, the unit may overheat.

• If possible, the spacers on the unit should rest against the wall. This prevents burns caused by touching the hot compressor or condenser.

• The unit must not be installed near radiators or cookers.

• Make sure that the mains plug is always accessible after the unit has been installed.

• Install this unit in a location where the ambient temperature corresponds to the climate class indicated on the unit‘s nameplate: SN Low This cooling unit is designed for use at ambient temperatures of 10-32 °C. N Moderate This cooling unit is intended for use at ambient temperatures of 16-32 °C. ST Subtropical This cooling unit is intended for use at ambient temperatures of 16-38 °C. T Tropical This cooling unit is intended for use at ambient temperatures of 16-43 °C.29

Notes on cleaning and maintenance

• Before cleaning and maintenance, switch the machine o and unplug the power cord from the wall outlet.

• Do not clean the machine with metal objects. Do not use sharp objects to remove frost from the machine. Use a plastic scraper.

• All electrical work required to service the unit should be performed by a quali ed electrician or competent person. Special instructions for freezers and chest freezers

• Children between the ages of 3 and 8 are allowed to ll refrigerators with food and remove food.

• When positioning the machine, make sure that the mains cable is not pinched or damaged.

• Ensure that there are no multiple sockets or power supply units on the rear of the machine. To avoid contamination of food, please follow the instructions below:

• Prolonged opening of the door can cause a signi cant temperature rise in the compartments of the unit.

• Clean surfaces that may come into contact with food regularly. Clean the water drain regularly.

• Store raw meat and sh in suitable containers in the refrigerator so that meat and sh do not come into contact with or drip onto other foods. Notes on the freezer compartments

• Two-star freezer compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.

• One-, two- and three-star freezer compartments are not suitable for freezing fresh food.

• If the refrigerator is left empty for a long period of time, switch it o , let it defrost, clean it, dry it and leave the door open to prevent mould from forming in the appliance. WARNING When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible res. There are ammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of re during use, maintenance and disposal.30

Small door (freezer compartment) 4 Thermostat 2 Drip tray 5 Shelves 3 Lamp 6 Grid31

INSTALLATION Installation instructions• Before use, remove all packaging materials, including bottom pads, foam pads, and tape inside the refrigerator. Peel the protective lm o the doors and refrigerator housing.• Keep the refrigerator away from heat and avoid direct sunlight. To avoid rust or reduction in insulation eect, do not place the refrigerator in damp or wet places.• To avoid aecting the electrical insulation properties of the refrigerator, do not place the refrigerator in damp places that are easily splashed with water.• The refrigerator should be placed in a well-ventilated indoor location. The oor must be level and stable (turn the adjustable feet left or right to level the device if it is unstable).• The distance from the top of the refrigerator must be more than 30 cm, and the refrigerator should be placed against a wall with a clearance of more than 10 cm to facilitate heat dissipation.• Leave enough space for the doors and drawers to open easily. Dimensions: 180° 918.5mm 520mm 520mm32

• Before installing and inserting the accessories, make sure that the refrigerator is unplugged.

• Precautions must be taken to prevent the handle from falling and causing injury. How to adjust the feet

• Rotate the feet clockwise to raise the refrigerator.

• Rotate the feet anti-clockwise to lower the refrigerator.

• Adjust the right and left feet to a horizontal level as described above. How to turn the door Tools needed: Phillips screwdriver, athead screwdriver, putty knife, 5/16 inch socket wrench, masking tape.

1. Unplug the device from the

mains socket. Remove all food from door shelves.

2. Secure the door with tape.33

3. Remove the top hinge cover, screws and top hinge and remove the plastic

caps of the screw holes on the other side. 1 = upper hinge 2 = upper hinge cover

4. Remove the door, lower hinge assembly and adjustable foot, and then install

the lower hinge assembly and adjustable foot on the other side. Optional 3 = Lower hinge assembly 4 = adjustable foot34

5. Remove the stopper under the door and install the stopper on the other side.

Place the door on the bottom hinge and install the upper hinge, upper hinge cover and plastic caps for the screw holes one at a time. 1 = upper hinge 2 = upper hinge cover Replacing the bulb (optional)

• Before replacing the bulb, disconnect the device from the power supply.

• Hold the lamp cover and remove it.

• Unscrew the old bulb anti-clockwise and replace it with a new bulb (max. 15 W) by screwing it in clockwise, making sure it is rmly seated in the lamp holder.

• Replace the lamp cover and reconnect the refrigerator to power.35

• Before using the refrigerator for the rst time, let it stand for half an hour before connecting it to the power supply.

• Before you put fresh or frozen food in it, the refrigerator should be in operation for 2 to 3 hours, or even over 4 hours in summer when ambient temperatures are high.

• In the event of a power outage or to clean the device, remove the plug from the mains socket. To avoid damage to the compressor from consecutive starts, do not connect the refrigerator to power within ve minutes. Adjusting the thermostat

• Turn the knob to “MAX” to lower the temperature inside the refrigerator. Turn the knob to “MIN” to increase the temperature inside the refrigerator.

• The markings on the knob only represent the temperature level, not the specic temperature. If the rotary knob is set to “OFF”, the compressor will no longer run.

• Select a temperature setting between “MAX” and “MIN”.

• Recommended temperature level: “MED”.36

Instructions for use

• The refrigerator is suitable for storing a variety of fruits, vegetables, drinks and other foods that are to be consumed in the short term. The recommended storage time is 3 to 5 days. The most energy-ecient way is to store food in the position shown above.

• Cooked foods should not be placed in the refrigerator until they have cooled to room temperature.

• We recommend sealing food before placing it in the refrigerator.

• The glass shelves can be adjusted up or down to ensure adequate storage space and easy handling.

• The drip tray is used to collect the water during defrosting. Empty the water in the drip tray regularly to prevent it from overowing into the cabinet. Note: Storing too much food during operation after initial connection to the power supply may aect the freezing eciency of the refrigerator. The stored food must not block the air outlet, otherwise the freezing eect will also be severely impaired. Energy saving recommendations

• The device should be placed in the coolest possible area of the room, away from heat-producing devices or heating pipes and out of direct sunlight.

• Allow hot foods to cool to room temperature before placing them in the appliance. Overloading the device will cause the compressor to run longer. Food that freezes too slowly can lose quality or spoil.

• Make sure you pack food properly and wipe containers dry before placing them in the appliance. This will reduce the formation of frost inside the device.

• The device's storage container should not be lined with aluminium foil, wax paper, or paper towels. Such liners impede the circulation of cold air and make the unit less ecient.

• Organise and label food to avoid keeping the door open and searching for too long. Only take out as much food as you need at a time and close the door as quickly as possible.37

For hygiene reasons, the interior, including interior ttings, should be cleaned regularly. CAUTION Risk of injury! Before defrosting and cleaning, turn o the appliance and unplug it from the mains socket to prevent electric shock.

• The dust behind the refrigerator and on the oor must be removed in a timely manner to improve the cooling e ect and save energy.

• Check the door seal regularly to ensure there is no contamination. Clean the door seal with a soft cloth dampened with soapy water or diluted detergent.

• The inside of the refrigerator should be cleaned regularly to prevent odours.

• Before cleaning the interior, turn o the device and remove all food, drinks, shelves, drawers, etc.

• Use a soft cloth or sponge to clean the inside of the refrigerator with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe o . After cleaning, open the door and allow it to air dry before reconnecting the device to power.

• We recommend cleaning areas of the refrigerator that are di cult to clean (e.g. narrow gaps, crevices or corners) regularly with a soft cloth, a soft brush, etc. and, if necessary, in combination with some tools (e.g. thin sticks) to ensure that contaminants or bacteria do not build up in these areas.

• Do not use soap, detergents, scouring powders, cleaning sprays, etc. as these may cause odours inside the refrigerator or contaminated food.

• Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry the device with a soft cloth or let it air dry.

• Wipe the exterior surface of the refrigerator with a soft cloth dampened with soapy water or dishwashing liquid, then wipe dry.

• Do not use hard brushes, steel balls, wire brushes, abrasive cleaners (e.g. toothpaste), organic solvents (e.g. alcohol, acetone, banana oil, etc.), boiling water, acids or alkalis, as these can damage the surface and interior of the cooling device. Boiling water and organic solvents such as benzene can warp or damage plastic parts.

• Do not rinse the appliance directly with water or other liquids during cleaning to avoid short circuits or damage to the electrical insulation caused by immersion in water.38

Defrosting the freezer compartment

• Unplug the appliance, open the door and remove the food from the refrigerator. Store all food in a cool place to prevent it from thawing.

• Clean the drain pipe (use soft materials to avoid damaging the liner).

• Prepare the water containers for defrosting. (Be sure to clean the water pan of the compressor room to avoid it overowing onto the oor).

• Allow the freezer to defrost naturally or use an ice scraper to remove the frost. (Use a plastic or wooden ice scraper to avoid damage to the liner or pipe.)

• You can also use an appropriate amount of hot water to speed up defrosting. After defrosting, wipe away the water with a dry towel.

• After defrosting, place food back in the refrigerator and turn on the refrigerator. Operational disruptions, storage and transport

• Power outage: In the event of a power outage, even in summer, food can be stored in the device for several hours. Only open the refrigerator door briey during a power outage. No more fresh food may be placed in the device.

• Long-term non-use: The device must be disconnected from the power supply and then cleaned. Leave the door open to avoid odours.

• Transportation: Before moving the refrigerator, take out all the items inside, attach the glass shelves, vegetable container, compartments, etc. with tape and tighten the adjustable feet. Close the doors and secure them with tape. During transport, the device must not be turned upside down, horizontally or shaken. The inclination during transport must not be more than 45°. Do not hold the door or hinges when moving the device. Note: The device must run continuously after switching on. In general, the operation of the device must not be interrupted, otherwise the service life of the device may be aected.39

TROUBLESHOOTING Note: The following simple problems can be solved by the user themselves. Please contact the manufacturer, customer service or a qualied specialist if the problems cannot be resolved. Problem Possible cause / solution The appliance does not work. The device is not connected to the power supply or the plug is not inserted correctly. Low voltage Power failure or the fuse is out or broken. Odour formation Foods with a strong odour must be well packaged. Food has spoiled. The inside of the device needs to be cleaned. The compressor runs continuously. In summer, when the ambient temperature is high, it is normal for the refrigerator to run for a long time. Do not put too much food in the refrigerator at once. Only put food that has already cooled down into the refrigerator. The refrigerator door has been opened too often. The light does not work. The refrigerator is not connected to the mains. The lamp is damaged. Have the lamp replaced by a qualied specialist. The refrigerator door does not close properly. The refrigerator door is blocked by food packaging. There is too much food in the refrigerator. The fridge is tilted.40

Loud noises The oor is uneven. The refrigerator is not stable. The accessories have not been attached in the correct places. Seal gap Remove foreign objects that are on the door seal. Warm up the door seal and then cool it down again. (Use an electric hair dryer or warm towel to warm it up.) Water pan is overowing There is too much food in the refrigerator or the stored food contains too much water, which leads to severe thawing. The doors are not closed properly, which leads to frost formation due to incoming air and increased water content due to thawing. Overheating of the sidewall The heat dissipation of the built-in capacitor via the housing is normal. If the fridge becomes hot due to high ambient temperature, the storage of too much food, or compressor shutdown, provide good ventilation to facilitate heat dissipation. Condensation on the surface of the device The formation of condensation on the surface and door seals of the refrigerator is normal when the ambient humidity is too high. Simply wipe away the condensation with a clean towel. Unusual noises (Humming, creaking) The compressor may produce a humming noise during operation, which may be particularly loud when starting or stopping. This is normal. Creaking: The refrigerant owing in the unit may produce a creaking sound, which is normal.41

DISPOSAL CONSIDERATIONS If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service. MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Berlin Brands Group UK Limited PO Box 42 272 Kensington High Street London, W8 6ND United Kingdom42

Energy eciency class

Annual energy consumption (kWh/a) 86 Climate class: temperate, subtropical, tropical Minimum ambient temperature (°C), for which the refrigerating appliance is suitable

Maximum ambient temperature (ºC), for which the refrigerating appliance is suitable

For 4-star compartments Fast freeze facility No Light source parameters: Type of light source - Energy eciency class - Minimum duration of the guarantee oered by the manufacturer: 24 months Additional information: Weblink to the manufacturer‘s website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk4445
