USER MANUAL Clic Silver Cross
IMPORTANT - READ THE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE

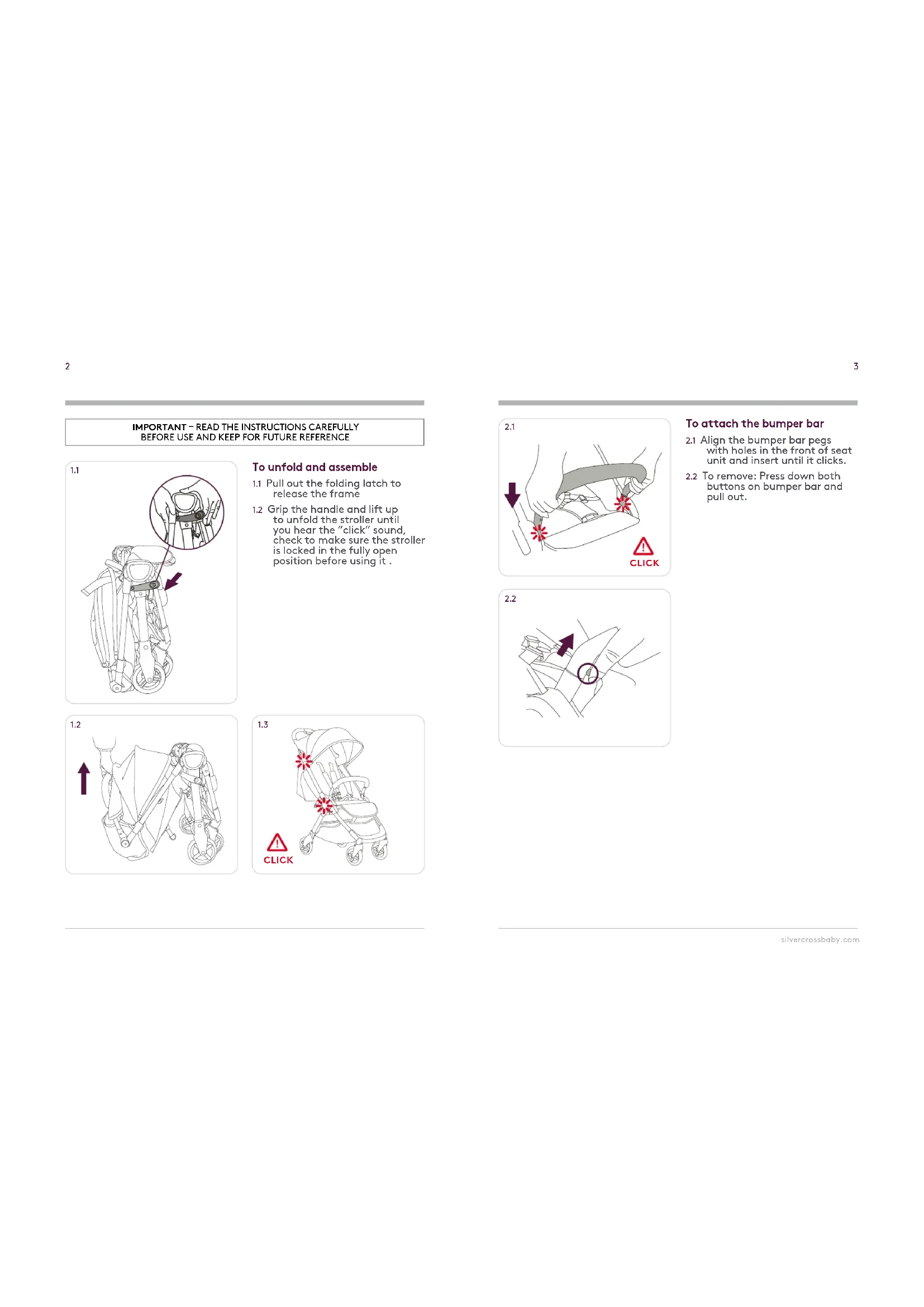

1.1
To unfold and assemble

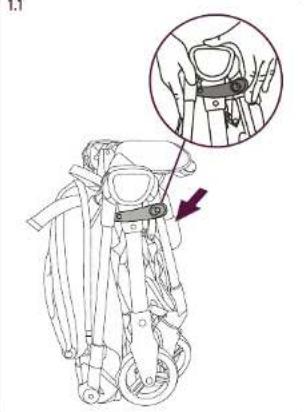

1.1 Pull out the folding latch to release the frame
1.2 Grip the handle and lift up to unfold the stroller until you hear the "click" sound, check to make sure the stroller is locked in the fully open position before using it.
1.2
1.3
2.1
To attach the bumper bar
2.1 Align the bumper bar pegs with holes in the front of seat unit and insert until it clicks.
2.2 To remove: Press down both buttons on bumper bar and pull out.
4
5
Using the brake
3.1 Press the brake lever down. Always lock brake, make sure brake is engaged by trying to push the stroller.
3.2 To unlock the brake: lift the brake lever up.
Using the canopy
4.1 To adjust canopy: pull forward or press backward the canopy wire to open or close.
To adjust the backrest
5.1 Pull the adjustment belt down, pinch the adjustment buckle, and push up to adjust the backrest to the sitting position.
5.2 To recline the backrest, grasp and pull down the adjustable buckle.
6
7
Using the harness system
6.4 To unlock buckle, press in on the centre button and pull harness out from each side.
6.5 To buckle, push each side of harness back into buckle until each clicks in place.
6.6 To shorten, pull bottom loop down, then pull on strap end. To lengthen, pull out top loop, then pull out on buckle.

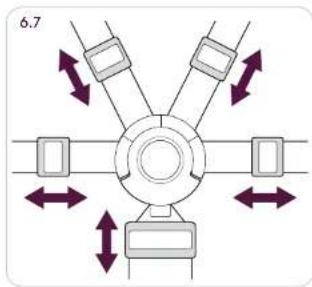

6.7 To unlock buckle, press in on the centre button and pull harness out from each side.
silvercrossbaby.com
7.1
To adjust the footrest
71 As fig 7.1, Pull down the mental support bracket on the back of footrest to extend
72 As fig 7.2, push up the mental support bracket to not extend.
8.1
To fold the stroller
8.1 Fully open the canopy as Fig 8.1

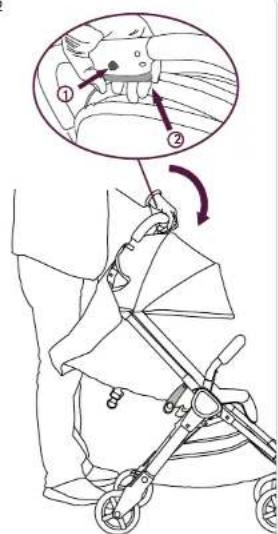

8.2 Make the wheel in swivel model, press down the small button on the back of handle (1), at the same time, squeeze the folding button on handle (2) and push forward the canopy until the frame is fully locked as Fig 8.3
8.3 Engage the folding lock as Fig 8.3.
7.2
8.2
8.3
9.1 Raincover: Fig.9.1, fit the raincover by placing it over the stroller with the hood fully extended. The raincover can be used in all modes. There is a viewing window in the front of the raincover that can be opened by unfastening the velcro around the edge, then rolled up and kept open with the fastener.
Safety notes
This item is a high quality Silver Cross product. It complies with EN1888-2:2018 and with correct use and maintenance will give good service. If however you should have any problems with your product, please contact your Silver Cross retailer who will take appropriate action.
IMPORTANT: KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARNING:
THIS PRODUCT IS SUITABLE FROM BIRTH UP TO 22KG OR 4 YEARS WHICHEVER COMES FIRST WITH THE SEAT UNIT.
IT IS RECOMMENDED THE MOST RECLINED POSITION IS USED FOR NEW BORN BABIES.
DO NOT LET THE CHILD PLAY WITH THIS PRODUCT.
THIS PRODUCT IS NOT SUITABLE FOR RUNNING OR SKATING.
PARKING DEVICE SHALL BE ENGAGED WHEN PLACING OR REMOVING THE CHILD.
ANY LOAD ATTACHED TO THE HANDLE AND/OR THE BACK OF THE BACKREST AND/OR ON THE SIDE OF THE VEHICLE WILL AFFECT THE STABILITY OF THE VEHICLE.
DO NOT CARRY MORE THAN ONE CHILD IN THIS PUSHCHAIR.
DO NOT STAND A SECOND CHILD ON REAR LOCK AND USE AS A BUGGY BOARD.
DO NOT ATTACH A THIRD PARTY BUGGY BOARD.
ACCESSIONS WHICH ARE NOT APPROVED BY SILVER CROSS SHALL NOT BE USED.
ONLY REPLACEMENT PARTS SUPPLIED/RECOMMENDED BY SILVER CROSS SHALL BE USED.
DO NOT USE IF ANY PART IS BROKEN, TORN, OR MISSING. THE CHILD SHOULD BE CLEAR OF MOVING PARTS WHILST MAKING ADJUSTMENTS.
DO NOT ALLOW THE CHILD TO CLIMB IN OR OUT OF THE PUSHCHAIR OF THEIR OWN ACCORD, AS THIS COULD RESULT IN INJURY TO THE CHILD OR DAMAGE TO YOUR PUSHCHAIR.
NEVER LEAVE THE CHILD IN THE PUSHCHAIR WITH THE RAINCOVER FULLY FITTED OTHER THAN IN NORMAL OUTSIDE USE.
IN THE INTEREST OF SAFETY DO NOT USE THE RAINCOVER INDOORS OR WHEN STATIONARY IN THE WARM STILL AIR.
ALWAYS CHECK THAT THE CHILD IS NOT OVERHEATING. NEVER LEAVE THE CHILD UNATTENDED.
DO NOT STORE NEAR A DIRECT HEAT SOURCE.
WHEN FOLDING TUCK ALL LOOSE MATERIALS AWAY
IN WINDY CONDITIONS, EXTRA CARE SHOULD BE TAKEN.
WARNING CHECK THAT THE PRAM BODY, SEAT UNIT OR CAR SEAT ATTACHMENT DEVICES ARE CORRECTLY ENGAGED BEFORE USE.
THE SAFETY OF THE CHILD IS YOUR RESPONSIBILITY.
BASKET CAPACITY: 5KG
Always hold the seat when making adjustments. Be sure that the parking brake is on. If you have any difficulty in folding or unfolding the pushchair do not force as this will cause damage. Read the "To fold or unfold" instructions carefully. It may be unsafe to fit accessories or spare parts other than those supplied or recommended by Silver Cross. If anyone other than the owner is going to use this product (e.g. grandparent, child minder), please show them how to use it correctly.
Care and maintenance
Chassis - Always check your pushchair for signs of wear. Regularly lubricate all moving parts. Check for freedom of movement of all locking devices. Polish metal work with a clean, dry cloth.
Dirt and dust within moving mechanisms may be rinsed away with clean water. Do not soak or submerge.
Fabric items - Please refer to the washcare instructions on each individual item's washcare label.
Seat Unit - To clean, sponge area with warm soapy water. Rinse well with clean water to avoid staining. Allow to dry naturally, away from direct heat and strong sunlight.
Never machine wash, tumble dry, iron or bleach any of the fabric items or seat unit. A certain degree of fading may occur over time through everyday use.
Always hold the seat when making adjustments. Be sure that the parking brake is on. If you have any difficulty in folding or unfolding the pushchair do not force as this will cause damage. Read the "To fold or unfold" instructions carefully. It may be unsafe to fit accessories or spare parts other than those supplied or recommended by Silver Cross. If anyone other than the owner is going to use this product (e.g. grandparent, child minder), please show them how to use it correctly.
Care and maintenance
Chassis - Always check your pushchair for signs of wear. Regularly lubricate all moving parts. Check for freedom of movement of all locking devices.
Polish metal work with a clean, dry cloth.
- Dirt and dust within moving mechanisms may be rinsed away with clean water.
- Do not soak or submerge.
Fabric items - Please refer to the washcare instructions on each individual item's washcare label.
Seat Unit - To clean, sponge area with warm soapy water. Rinse well with clean water to avoid staining. Allow to dry naturally, away from direct heat and strong sunlight.
Never machine wash, tumble dry, iron or bleach any of the fabric items or seat unit. A certain degree of fading may occur over time through everyday use.
NOTES
34 35
NOTES
silvercross
Silver Cross (Pacific) Ltd., Unit 18006 & 08, 20/F Tower 535, 535 Jaffe Road Causeway Bay, Hong Kong
silvercrossbaby.com
