USER MANUAL Whooshy! Mellerware

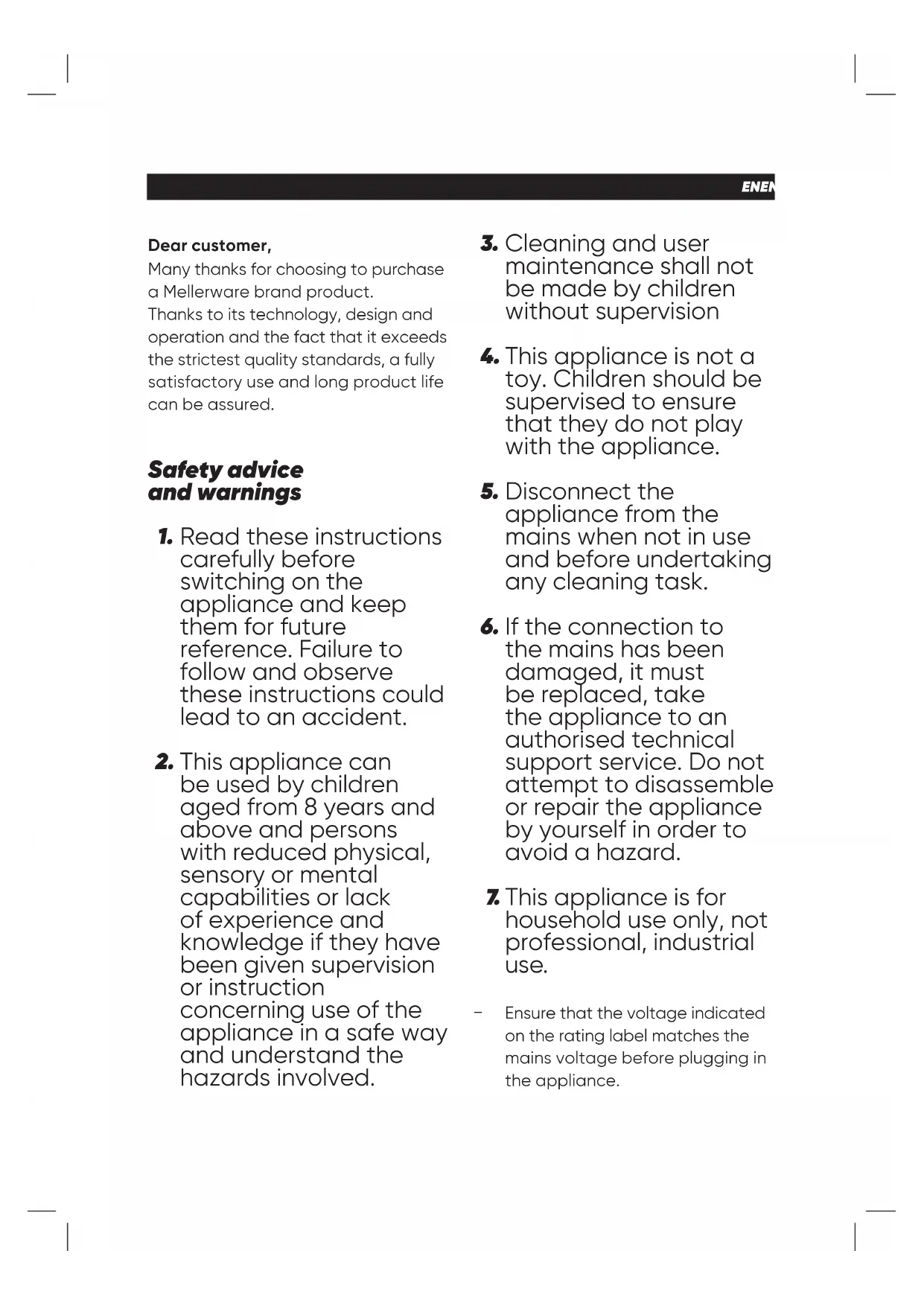

Many thanks for choosing to purchase a Mellerware brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Safety advice and warnings

1. Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

3. Cleaning and user maintenance shall not be made by children without supervision

4. This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
5. Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.

6. If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.
   7 This appliance is for household use only, not professional, industrial use.

7. Connect the appliance to a socket that can supply a minimum of 10 amperes.

8. The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
9. Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
10. Do not touch the plug with wet hands.
11. Do not use the appliance if the cable or plug is damaged.
12. If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
13. Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.

USE AND CARE

• Do not use the appliance without its filter(s) correctly in place.
• Do not use the appliance if its accessories are not properly fitted.
• Do not use the appliance to gather up water or any other liquid.
• Do not use the appliance if the on/off switch does not work.

• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

• Do not work on areas where there are metal objects, such as nails and/or screws.

• Never vacuum hot or sharp objects (cigarette butts, ashes, nails, etc.).
• Only use the appliance for carrying out dry tasks.
• Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.
• Do not use the appliance on any part of the body of a person or animal.

Service

Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

Description

A - On/off switch
B - Power cord
C - Main body
D - HEPA filter
E - Filter protector
F - Dust tank
G - Power cord hook
H-Extention tube
I - Disconnecting tube button
J-Brush
K-Lance
L-Multiuse brush

• If the model of your appliance does not have the accessories described above, they can also be bought

separately from the Technical Assistance Service.

Instructions for use

BEFOREUSE

• Make sure that all products' packaging has been removed.

VACUUMING FUNCTION

• Fit the hose unit to the vacuum cleaners air intake.
• To disconnect the hose unit from the vacuum cleaner, press the button to disconnect the tube from the main body where is situated in the rear side. (Fig.1).

INSERTION OF ACCESSORIES INTO THE APPLIANCE'S GRIP

• The appliance's grip is designed in such a way that it allows the insertion of the following accessories (use the combination that best meets your requirements):
• Extendible tube: designed to provide access to surfaces which are out of reach and make floor cleaning comfortable.
• Head: specially designed for cleaning floors (both rugs and carpets and hard floors).
• Lance: specially designed for getting into cracks and difficult corners.
  Multi-use brush

USE

Take the length of cable required out of the housing.

• Connect the appliance to the mains.
• Turn the appliance on, by using the on/off button.

ONCE YOU HAVE FINISHED USING THE APPLIANCE

• Turn the appliance off using the on/off button.
• Unplug the appliance from the mains.
• The cable housing means you can remove and have available the required length of cable for working with the appliance, preventing accident risk situations.

Cleaning

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
  Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.

Empty the dust box when it is full (observation facilitated by transparent windows), or when vacuuming power is notably reduced.

• Disconnect the dust box from the appliance (Fig.2).
• Open the lid of the dust box and empty the contents into the appropriate waste disposal receptacle.
• Check the condition of the dust box filter.
• Close the lid of the dust box.

CHANGING THE FILTERS

Air entry filter, it is advisable to be changed at least once a year or every 50 hours of the appliance's use.

TO REMOVE THE FILTERS

• Disconnect the dust box from the appliance (Fig.2).
• Open the lid of the dust box. (Fig.3). Remove the filter from its housing (Fig.4).
• Wash the protective filter under the tap with lukewarm water, soak it like a sponge and let it dry 24 hours.
• Shake the HEPA filter in the garbage can. If necessary, you can wash it under the tap with lukewarm water and let it dry 24 hours.
• To reassemble the filter, proceed with the above instructions, in reverse order.

Supplies

Supplies can be acquired from distributors and authorised

establishments (such as filters, etc...) for your appliance model.

Always use original supplies, designed specifically for your appliance model.
- These supplies are available in specialist shops.

Anomalies and repair

Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

For EU product versions and/or in case that it is requested in your country:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
  The product does not contain concentrations of substances that could be considered harmful to the environment.

the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products

Warranty and technical assistance

This product enjoys the recognition and protection bof the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services. You can find the closest one by accessing the following web link: www.mellerware.com. You can also request related information by contacting us. You can download this instruction manual and its updates at www.mellerware.com

ESPANOL

ES

Country Address Phone

Algeria	Zone d'Activite, n°62, Constantine	213770777756
Argentina	Av. del Libertador 1298, (B1638BEY), Vicente López (Pcia. Buenos Aires)	541153685223
Belgium	Mariëndonkstraat 5, 5154 EG, Elshout Benin 359 Av. Steinmetz, 1930, Cotonou	31620401500 0299-21313798
Bulgaria	265, Okolovrasten Pat, Mladost 4, 1766, Sofia	35929211120 35929211193
Burkina Faso	Avenue Bassawarga, 01 BP915, Ouagadougou	226 25301038
Congo (Republic of)	98 Blvd General Charles de Gaulle, Pointe Noire	242066776656
Cyprus	20, Bethlehem Str. / P.O.Box 20430, 2033, Strovolo	35722711300
Czech Republic	Milady Horakove 357/4, 568 02, Svitavy 4	20 461 540 130
Democratic Republic of the Congo	AV. Pont Canale N° 3440, Kinshasa	00243-991223232
Equatorial Guinea	SN Av Patricio Lumumba y C/ Jesus B, Bata	00240 333 082958 00240 333 082453
Equatorial Guinea	Calle de las Naciones Unidas, PO box 762, Malabo	240333082958 240333082453
Espana	Avda Barcelona, S/N, 25790 Oliana (Lleida) [e-mail]	900828911

Country Address

Phone

Ethiopia	Lideta Sub City Kebele 10 H.NO 124, Addis Ababa	[phone]
France	Za les bas musats 18, 89100, Malay-le-Grand	03 86 83 90 90
Gabon	BP 574, Port-Gentil Centre-ville	24101552689 24101560698
Ghana	Ederick Place, Accra-Ghana	302682448 302682404
Gibraltar	11 Horse Barrack Lane, 54000, Gibraltar	00350 200 75397 00350 200 41023
Greece	Sapfous 7-9, 10553, Athens	[phone]
Guinea	BP 206, GN, Conakry	(224) 622204545
Hong Kong	Unit H,13/F., World Tech Centre, Hong kong	(852) 2448 0116 9197 3519
Hungary	Késmárk utca 11-13, 1158, Budapest	[phone]
India	C-175, Sector-63, Noida, Gautam Budh Nagar - 201301, Delhi	([phone]
Ivory Coast	01 Rue Des Carrossiers-Zone 3, B.P 3747, Abidjan 01 (RCI)	22521251820 225 21 353494
Jordan	28 Basman St Down town, Amman	[phone]
Kuwait	P.O. BOX 3379 hawally, 32034, Hawally	[phone]
Lebanon	Damascus Highway; Sciale Building, Jamhour	9615922963

Country Address Phone

Luxembourg	Mariëndonkstraat 5, 5154 EG, Elshout	31620401500
Mali	BP E2900, Dravela Bolibana	223227216 / 223227259
Marruecos	Avenue 2 Mars, Résidence Nassrallah, Appt n° 2 1er, Casablanca	([phone]
Mauritania	134 Avenue Gamal Abdener Ilot D, Nouakchott	2225254469 / 2225251258
Mexico	Rosas Moreno N° 4-203 Colonia de San Rafael C.P. 06470 - Delegación Cuauhtémoc, Ciudad de México	([phone]
Montenegro	Rastovac bb, 81400, Niksic	[phone]
Netherlands	Mariëndonkstraat 5, 5154 EG, Elshout	31620401500
Nigeria	8, Isaac; John Str,G.R.A Ikeja Lagos	23408023360099
Paraguay	Denis Roa 155 c/ Guido Spano, Asunción	21665100
Peru	Calle los Negocios 428, Surquillo, Lima	[phone]
Portugal	Avenida Rainha D. Amélia, n°12-B, 1600-677, Lisboa	[phone]
Romania	Dudesti Pantelimon 23, 410554, Bucharest	031.805.49.58
Serbia	Rastovac bb, 81400, Niksic	[phone]

Country Address Phone

Slovakia	Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Southafrica	Unit 25 & 26, San Croy Office Park, Die Agora Road, Croydon, Kempton Park, 1619, Johannesburg	([phone]
Tunisia	2, Rue de Turquie, Tunis	21671333066
Ukraine	Block 6, Ap Housing Estate Topol-2, B, 49000, Dnepropetrovsk	380563704161 380563704161
United Arab Emirates	P.O.BOX 8543, Dubai	14506246200
Uruguay	Luis Alberto de Herrera 3468, 11600, Montevideo	598 2209 28 00
Vietnam	Lot 7 Ind. Zone for, Ha Noi	84437658111 84437658110

1

1

一

一

1

1

一

一

Durban

35 Adrain Road, Windermere

Durban, South Africa, 4001

Tel.: [phone]

Fox: [phone]

Johannesburg

Unit 25 & 26 San Croy office Park

Die Agora Road, Croydon, 1619

Tel.: [phone]

Fax: [phone]

creative housewares

20 Tekstiel St, Parrow. Cape Town. 7493, RSA

P.O.Box 6156 Parrow East,7501, RSA.

Tel.: [phone] / Helpline: 086 111 5006

Tel.: [phone]

Fax: [phone]

www.creativehousewares.co.za

mellerware

Engineering Technology for life, S.L.

Av. Barcelona, s/n

25790, Oliana - Lleida - Spain

www.mellerware.com
