USER MANUAL Superpure Klarstein

Dear Customer, Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information. CONTENT Device Overview 11 Operation 11 Cleaning 13 Disposal Considerations 14 Manufacturer & Importer (UK) 14 TECHNICAL DATA Item number 10031204 10031205 Power supply 220-240 V~ 50 Hz Power consumption 50 W Tank capacity 500 ml10

1. Do not disassemble the unit except for the authorized technician.

2. Unplug the unit before lling. Do not exceed the “MAX” mark.

3. Do not touch the socket with wet hand to avoid electric shock.

4. Do not immerse the unit into water to avoid electric shock.

5. Repeating cleaning cycles can enhance the cleaning eect.3 minutes cleaning

interval is recommended.

6. Do not use this unit when sleeping or drowsy.

7. If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualied persons in order to avoid a hazard

8. This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety

9. Children should be supervised to ensure that they do not play with the

appliance. FUNCTIONALITY Ultrasonic wave diuses into the water so that generates exquisite cavitation and emulsication. Million tiny cavitation bubbles are generated each second. The bubbles are generated largely and imploded constantly under the wave of mechanical vibration with high frequency. The powerful impact and the negative press suction split up the dirt into many granules and separates them from the surface of the item, the granules then come into water.11

• Ink Boxes, Seals, Pen Heads, etc.

• Dental, toothbrushes, electric shaver heads, razor blades

• Finger rings, necklaces, bangles, earrings12

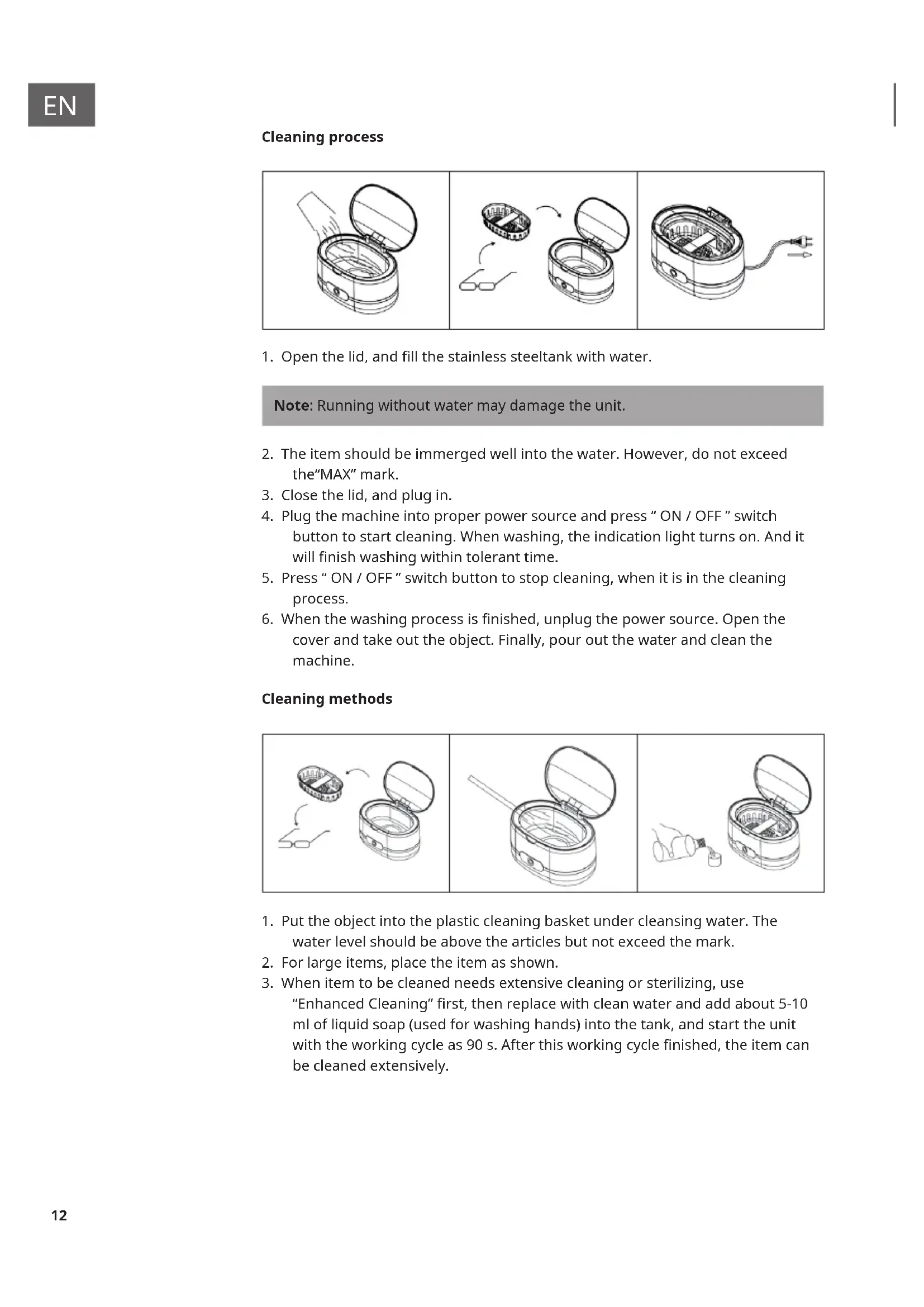

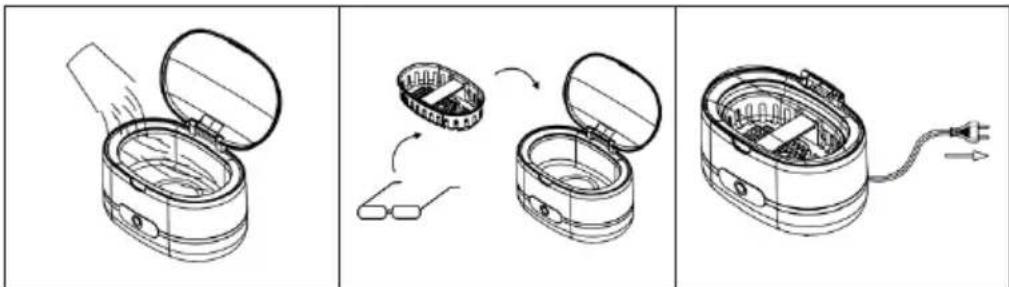

1. Open the lid, and ll the stainless steeltank with water.

Note: Running without water may damage the unit.

2. The item should be immerged well into the water. However, do not exceed

3. Close the lid, and plug in.

4. Plug the machine into proper power source and press “ ON / OFF ” switch

button to start cleaning. When washing, the indication light turns on. And it will nish washing within tolerant time.

5. Press “ ON / OFF ” switch button to stop cleaning, when it is in the cleaning

6. When the washing process is nished, unplug the power source. Open the

cover and take out the object. Finally, pour out the water and clean the machine. Cleaning methods

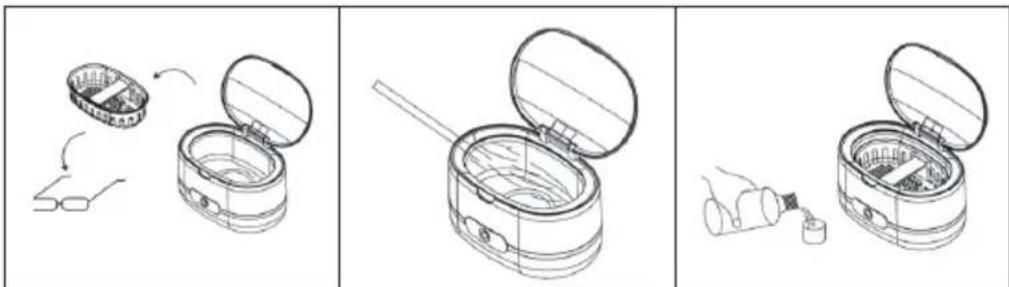

1. Put the object into the plastic cleaning basket under cleansing water. The

water level should be above the articles but not exceed the mark.

2. For large items, place the item as shown.

3. When item to be cleaned needs extensive cleaning or sterilizing, use

“Enhanced Cleaning” rst, then replace with clean water and add about 5-10 ml of liquid soap (used for washing hands) into the tank, and start the unit with the working cycle as 90 s. After this working cycle nished, the item can be cleaned extensively.13

CLEANING Note: Do not wash the outer the outer case with water.

1. After use, pour the water and wipe up the tank and its surface.

2. Keep it at a cool and dry place.14

DISPOSAL CONSIDERATIONS If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service. MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Chal-Tec UK limited Unit 6 Riverside Business Centre Brighton Road Shoreham-by-Sea BN43 6RE United Kingdom15
