USER MANUAL Biancolatte Klarstein

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 10

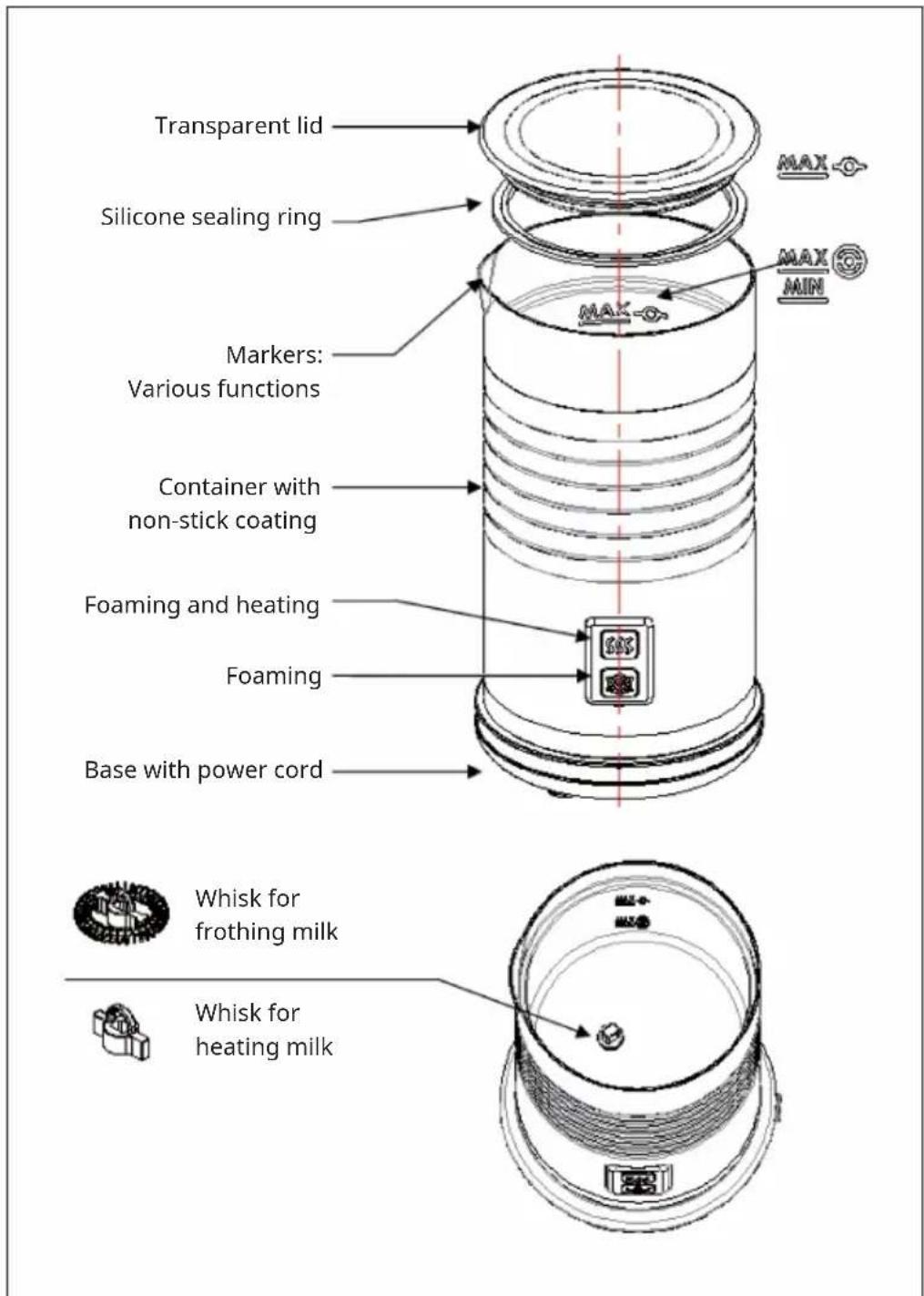

Device Overview 11

Operation 12

Cleaning and Maintenance 13

Disposal Considerations 14

Manufacturer & Importer (UK) 14

TECHNICAL DATA

Item number 10028561, 10028912
Power supply 220-240 V ~ 50/60 Hz
Power consumption 400 W

SAFETY INSTRUCTIONS

• This device is only intended for the purpose described in the operating instructions.
• Do not operate the device outdoors.
• This device is intended for household use and not for business applications.
• Children must be supervised so that they do not play with the device.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Operate this appliance only from a professionally connected outlet that carries the proper voltage.
• Do not operate this unit with a damaged power cord. If the power cord is damaged, it must be replaced by the manufacturer, service agent, or similarly qualified person to avoid a hazard.
• If you use an extension cord, it must be in good condition.
• Unplug the power cord after each use, when the device is not in use, before replacing accessories and before cleaning.
• Do not leave the power cord hanging loosely; do not place the power cord over a hot surface; do not allow it to come into contact with oils.
• Do not remove the power plug with wet hands.
• Do not touch any rotating parts. Risk of injury!
• Do not touch hot surfaces. Use handles and knobs.
• Do not use the device without milk in the container.
• If the permissible filling quantity is exceeded, the container may overflow.
• If you remove the lid during a brewing cycle, you may burn yourself.
• The appliance must be used in conjunction with its base.
• Never put defective equipment into operation.
• Do not place the unit near a heat source that could cause damage.
• Do not place the device on a polished wooden surface. The wood could be damaged.

OPERATION

Before first use

Clean dust and debris from the tank and accessories as described in the "Cleaning and Maintenance" section.

Use

Whisk Functions Maximum	quantity	Duration
Frothing cold milk	100 ml 55-65 seconds
Frothing and heating	100 ml 75-100 seconds
Heating (with little milk foam)	200 ml 120-160 seconds

1. Select the appropriate whisk (see above) and place it in the container.
2. Pour the milk into the container (maximum up to the mark). Observe the maximum filling quantity in the table above.

3. Press one of the two start buttons to start the machine.

4. Frothing and heating: The indicator light lights up after the upper button is pressed. When the machine has stopped working, the light flashes for 30 seconds.

5. Frothing cold milk: Pour the cold milk into the container and press the lower button. The indicator light will then flash. After 65 seconds, the machine stops working. The light goes out and flashes for 30 seconds.

6. Error status: The indicator light flashes continuously. This means that the device is overloaded. You should turn off the power, pour out the milk and start again. The milk must not exceed the upper mark.

Hints and tips

• Always use your frother to froth or heat milk first. While the machine is running, prepare your coffee or hot chocolate and serve it immediately.
• Use whole milk with a fat content of at least 3 percent for best results.
• This machine can be used to froth cold milk. This does not mean that you can use the machine to chill milk. The frother runs at normal temperature under these conditions.
• The milk heats up to approximately 65^ C ( ± 5^ C ). This is the ideal temperature to ensure that the taste of your coffee is not affected and that you do not have to wait too long for the first sip.
• Keep the whisks in a safe place. They are small and easily lost.
• Allow 2 minutes for the thermostat to reset after frothing and heating, and time for the machine to be ready again. To shorten the time, rinse the unit with water after use and rub dry.
• The frother is designed to heat and froth milk. If you add flavorings, coffee granules or chocolate powder to the frother, make sure to clean it thoroughly after use.

CLEANING AND MAINTENANCE

Before cleaning, remove the cylinder from the base. Separate the lid and the sealing ring from the cylinder. Never immerse the cylinder or base in water.

1. Cylinder: clean immediately after each use. Rinse and clean the inside walls with a warm alkaline solution and not with a scouring pad. Then dry with a soft cloth.
2. Lid: separate the sealing ring from the lid. Wash it directly with water.
3. Outer housing: clean it with a soft cloth. Do not use corrosive detergents, hard plastic or metal brushes to avoid scratches on the stainless steel surface. Do not use metal objects or abrasive cleaners.
4. The whisks: remove the whisks from the cylinder and wash in warm water. Dry and store in a safe place. Do not use a dishwasher.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom
