• Connect a HDMI cable from the HDMI output on the Blu-ray Player to the Television’s HDMI input. How do I connect a TV, Blu-Ray Player and a Home Cinema? Blu-Ray Player HDMI Out Optical Out

Home Cinema Optical In HDMI Out Aux In 1, Connect an HDMI cable from the Blu-ray Players HDMI output to the TV’s HDMI input 1. 2, Connect an HDMI Cable from the Home Cinema’s HDMI output to the TV’s HDMI input 2. 3, Connect an Optical cable from the Blu-Ray Optical output to the Home Cinemas optical input. 4, Connect phono leads (RCA) from the Auxiliary output on the TV to the Auxiliary input on the Home Cinema. How do I connect a TV, SKY-HD, Blu-Ray Player and a Home Cinema?

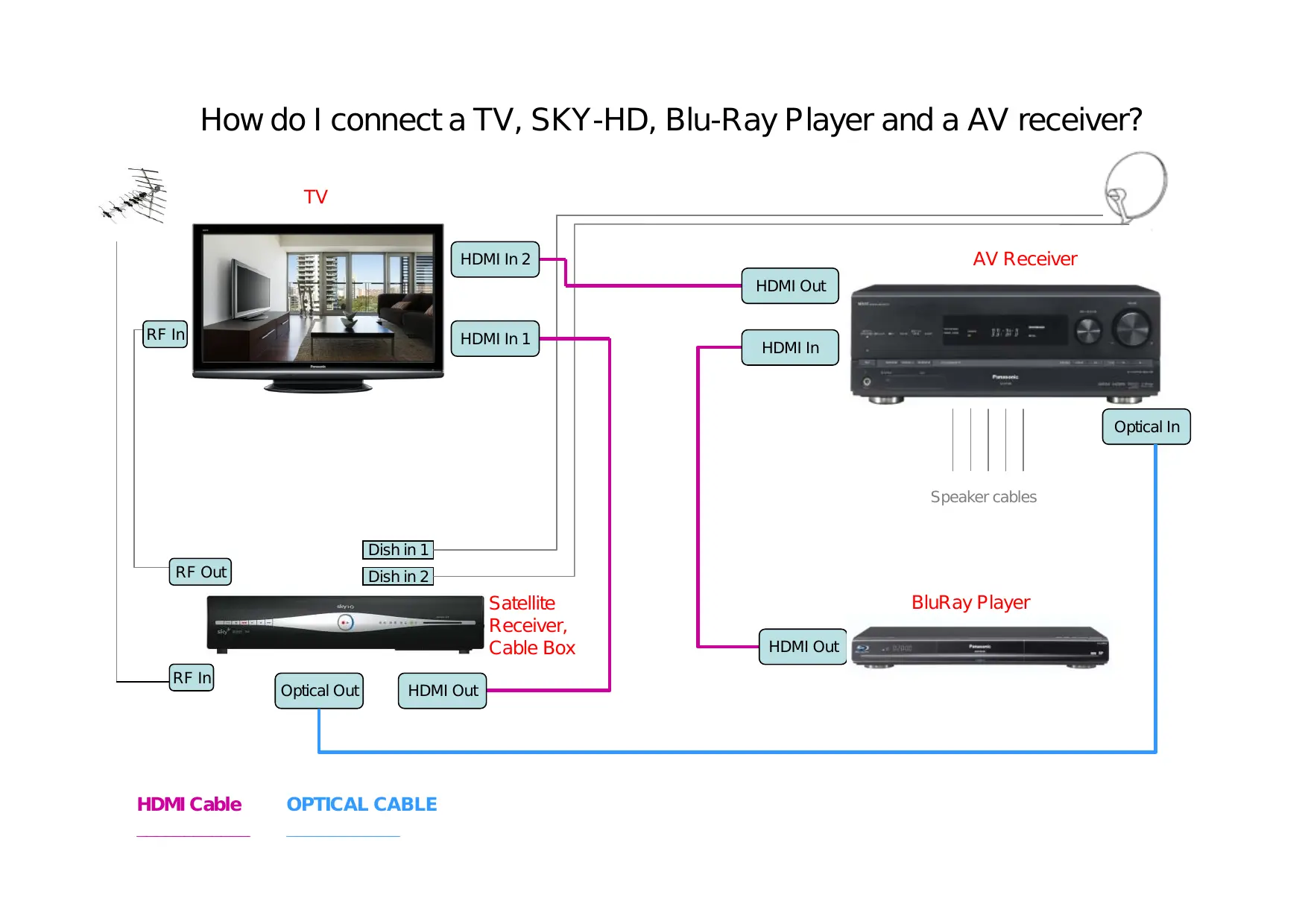

Speaker cables How do I connect a TV, SKY-HD, Blu-Ray Player and a AV receiver? AV Receiver HDMI In 2 HDMI Out RF In HDMI In 1 HDMI In Optical In Speaker cables Dish in 1 RF Out Dish in 2 Satellite Receiver, Cable Box RF In HDMI Cable

• For additional Q-Link features - Connect a Scart cable from the AV1 Out of the Blu-Ray Recorder to the AV2 input on the TV *** If you do not have HDMI on the TV, use a Scart lead. How do I connect a TV, Blu-Ray Recorder and a Home Cinema? AV1 Out

HDMI Out Speaker cables 1, Connect an HDMI Cable from the Blu-Ray Recorder’s HDMI output to the TV’s HDMI input 1 2, Connect an HDMI Cable from the Home Cinema’s HDMI Output to the TV’s HDMI input 2 3, Connect a Scart cable from the AV1 Output of the Blu-Ray Recorder to the AV2 input on the TV; this could be used instead of an HDMI Cable or in addition to the HDMI for use with Q-link 4, Connect Phono Cables from the Auxiliary out on the TV to the Auxiliary in on the Home Cinema How do I connect a TV, SKY-HD and a Blu-Ray Recorder? AV2 In HDMI In 2 RF In HDMI In 1 AV1 Out Dish in 1 HDMI Out Dish in 1 RF Out 1 HDMI Out AV2 In Dish in 2 Satellite Receiver, Cable Box RF In HDMI Cable

VCR SCART Cable Blu-Ray Recorder Dish in 2 How do I connect a TV, SKY-HD, Blu-Ray Recorder and a Home Cinema?

SCART Cable Connection diagram for a TV, SKY-HD, Blu-Ray Recorder and a AV receiver AV Receiver HDMI In HDMI Out RF In Optical In HDMI 1 HDMI In AV 2 Speaker cables Satellite Receiver, RF Out Cable Box Dish in 1 Dish in 2 Optical Out HDMI Out RF In VCR AV 1 HDMI Out Dish In 1 AV 2 Blu-Ray Recorder HDMI Cable

Dish In 2 How do I connect a TV and a DVD recorder? DVD Recorder RF Out HDMI Out

RF In AV1 Out HDMI In RF In AV2 In HDMI Cable

• For additional Q-Link features - Connect a Scart cable from the AV1 Out of the DVD Recorder to the AV2 input on the TV. *** If you do not have HDMI on either the TV or DVD Recorder connect via Scart lead. How do I connect a TV, DVD recorder and a Home Cinema? AV1 Out

HDMI Out Speaker cables 1, Connect an HDMI Cable from the DVD Recorder’s HDMI output to the TV’s HDMI input 1 2, Connect an HDMI Cable from the Home Cinema’s HDMI Output to the TV’s HDMI input 2 3, Connect a Scart cable from the AV1 Output of the DVD to the AV2 input on the TV, this could be used instead of an HDMI Cable or with one for use with Q-link 4, Connect an Optical Cable from the DVD Recorder’s Optical Out to the Home Cinema’s Optical In 5, Connect Phono cables from the Auxiliary out on the TV to the Auxiliary in on the Home Cinema. How do I connect a TV, SKY-HD, DVD Recorder and an AV receiver (Optical connection)? AV Receiver HDMI 2 Optical In RF In HDMI 1 Optical In AV 2 Speaker cables Satellite Receiver, RF Out Cable Box Dish in 1 Dish in 2 AV 1 Optical Out HDMI Out RF In VCR HDMI Out RF Out AV 2 Optical Out DVD Recorder HDMI Cable

RF In How do I connect a TV, SKY-HD, DVD Recorder and an AV receiver? AV Receiver HDMI In Optical In HDMI Out RF In HDMI In HDMI In Optical In AV 2 Speaker cables Satellite Receiver, RF Out Cable Box Dish in 1 Dish in 2 AV 1 Optical Out HDMI Out RF In VCR HDMI Out RF Out AV 2 DVD Recorder HDMI Cable

RF In Optical Out How do I connect a TV, SKY-HD and a DVD Recorder?

RF In AV2 In HDMI In 2 HDMI In 1 AV1 Out RF Out HDMI Out Dish in 1 HDMI Out RF In HDMI Cable

Dish in 2 AV2 In Satellite Receiver, Cable Box RF Out 1 VCR SCART Cable DVD Recorder RF In How do I connect a TV, SKY-HD, DVD Recorder and a Home Cinema?
