USER MANUAL WGen3600DFc WESTINGHOUSE

USER MANUAL DO NOT RETURN THIS PRODUCT TO THE STORE If you have questions or need assistance, please call customer service at 855-944-3571. WGen3600DFc Dual Fuel Portable Generator Gasoline: 3600 Running Watts | 4650 Peak Watts Propane: 3240 Running Watts | 4180 Peak Watts2 | Westinghouse Outdoor Power Equipment, LLC INTRODUCTION

WARNING: Operating, servicing, and maintaining

this equipment can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, and wear gloves or wash your hands frequently when servicing this equipment. For more information go to www.P65warnings.ca.gov. All rights reserved. No reproduction allowed in any form without written permission from Westinghouse Outdoor Power Equipment, LLC.Read this manual before using or performing maintenance on this product. Failure to follow the instructions and safety precautions in this manual can result in serious injury or death.

SAVE THESE INSTRUCTIONS

DISCLAIMERS All information, illustrations, and specications in this manual were in effect at the time of publishing. The illustrations used in this manual are intended as representative reference views only. We reserve the right to make any specication or design change without notice. UPDATES The latest User Manual for your Westinghouse generator can be found under our support tab. https://westinghouseoutdoorpower.com/pages/manualsOr scan the following QR code with your smartphone camera to be directed to the link. INTRODUCTION

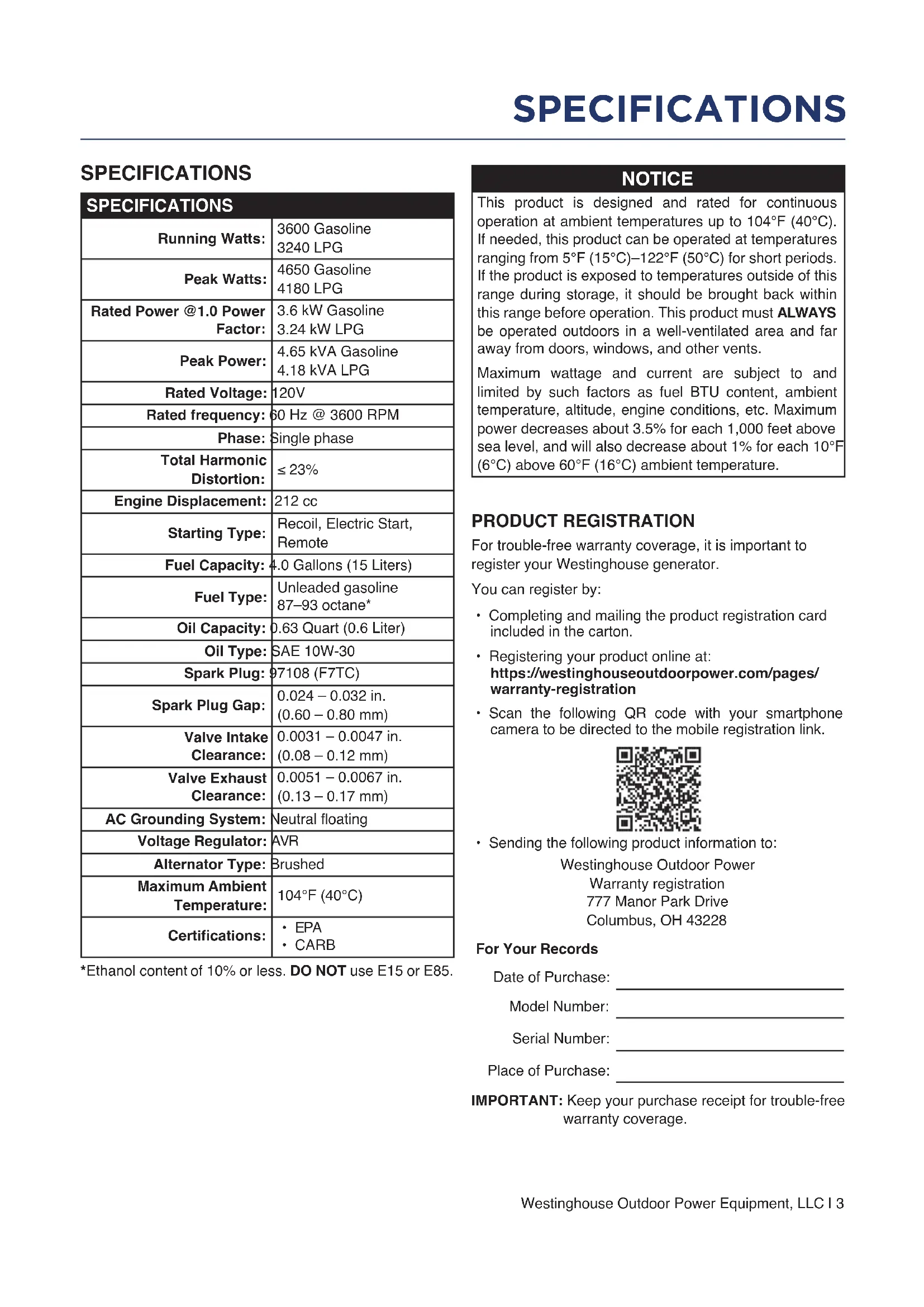

Rated Voltage: 120V Rated frequency: 60 Hz @ 3600 RPM Phase: Single phase Total Harmonic Distortion: ≤ 23% Engine Displacement: 212 cc Starting Type: Recoil, Electric Start, Remote Fuel Capacity: 4.0 Gallons (15 Liters) Fuel Type: Unleaded gasoline 87–93 octane* Oil Capacity: 0.63 Quart (0.6 Liter) Oil Type: SAE 10W-30 Spark Plug: 97108 (F7TC) Spark Plug Gap:

(0.60 – 0.80 mm) Valve Intake Clearance: 0.0031 – 0.0047 in. (0.08 – 0.12 mm) Valve Exhaust Clearance: 0.0051 – 0.0067 in. (0.13 – 0.17 mm) AC Grounding System: Neutral oating Voltage Regulator: AVR Alternator Type: Brushed Maximum Ambient Temperature: 104°F (40°C) Certications:

• CARB *Ethanol content of 10% or less. DO NOT use E15 or E85. NOTICE This product is designed and rated for continuous operation at ambient temperatures up to 104°F (40°C). If needed, this product can be operated at temperatures ranging from 5°F (15°C)–122°F (50°C) for short periods. If the product is exposed to temperatures outside of this range during storage, it should be brought back within this range before operation. This product must ALWAYS be operated outdoors in a well-ventilated area and far away from doors, windows, and other vents. Maximum wattage and current are subject to and limited by such factors as fuel BTU content, ambient temperature, altitude, engine conditions, etc. Maximum power decreases about 3.5% for each 1,000 feet above sea level, and will also decrease about 1% for each 10°F (6°C) above 60°F (16°C) ambient temperature. PRODUCT REGISTRATION For trouble-free warranty coverage, it is important to register your Westinghouse generator. You can register by:

• Completing and mailing the product registration card included in the carton.

• Registering your product online at: https://westinghouseoutdoorpower.com/pages/ warranty-registration

• Scan the following QR code with your smartphone camera to be directed to the mobile registration link.

• Sending the following product information to: Westinghouse Outdoor Power Warranty registration 777 Manor Park Drive Columbus, OH 43228 For Your Records Date of Purchase: Model Number: Serial Number: Place of Purchase: IMPORTANT: Keep your purchase receipt for trouble-free warranty coverage. SPECIFICATIONS4 | Westinghouse Outdoor Power Equipment, LLC SAFETY SAFETY SAFETY DEFINITIONS The words DANGER, WARNING, CAUTION, and NOTICE are used throughout this manual to highlight important information. Make sure that the meanings of this safety information is known to all who operate, perform maintenance on, or are near the generator.This safety alert symbol appearswith most safety statements. Itmeans attention, become alert, yoursafety is involved! Please read andabide by the message that followsthe safety alerts symbol.Indicates a hazardous situation which, if not avoided, will result in death or serious injury.Indicates a hazardous situation which, if not avoided, could result in death or serious injury.Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE Indicates a situation which can cause damage to the generator, personal property, and/or the environment, or cause the equipment to operate improperly.Note: Indicates a procedure, practice or condition that should be followed for the generator to function in the manner intended. SAFETY SYMBOLS Follow all safety information contained in this manual and on the generator. Symbol DescriptionSafety Alert SymbolElectrocution HazardAsphyxiation HazardBurn Hazard. DO NOT touch hot surfaces. Electrical Shock HazardFire HazardMaintain Safe Distance Lifting HazardRead Manufacturer’s InstructionsDO NOT Operate in Wet ConditionsGround. Consult with electrician to determine grounding requirements before operation.Westinghouse Outdoor Power Equipment, LLC | 5 SAFETY INSTRUCTIONS NOTICE Install battery-powered carbon monoxide detectors or plug-in carbon monoxide detectors with battery back-up in living areas. Fire and electrocution hazard. DO NOT connect to a building’s electrical system unless the generator and transfer switch have been properly installed and the electrical output has been veried by a qualied electrician. The connection must isolate the generator power from utility power and must comply with all applicable laws and electrical codes. Electrocution hazard. NEVER use the generator in a location that is wet or damp. NEVER expose the generator to rain, snow, water spray, or standing water while in use. Protect the generator from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit. SAFETY6 | Westinghouse Outdoor Power Equipment, LLC

GENERAL SAFETY PRECAUTIONS

• NEVER use the generator to power medical support equipment.

• DO NOT operate the generator when you are tired or under the inuence of drugs, alcohol, or medication.

• DO NOT use generator with electrical cords which are worn, frayed, bare, or otherwise damaged.

• All electrical tools and appliances operated from this generator must be properly grounded by use of a third wire or be double-insulated.

• When this generator is used to supply a building wiring system the generator must be installed by a qualied electrician and connected to a transfer switch as a separately derived system in accordance with NFPA 70, National Electrical Code.

• If you begin to feel sick, dizzy, or weak while using the generator, move to fresh air IMMEDIATELY. See a doctor, as you can have carbon monoxide poisoning.

• Only use OUTSIDE and far away from windows, doors, and vents as recommended by the US Department of Health and Human Services Centers for Disease Control and Prevention. Your specic home and/or wind conditions may require additional distance.

• While operating and storing, keep at least ve feet of clearance on all sides of the generator, including overhead. Allow the generator to cool a minimum of 30 minutes before storage. Heat created by the mufer and exhaust gases could be hot enough to cause serious burns and/or ignite combustible objects.

• DO NOT touch the mufer or engine. They are very HOT and will cause severe burns. DO NOT put body parts or any ammable or combustible materials in the direct path of the exhaust.

• ALWAYS remove any tools or other service equipment used during maintenance away from the generator before operating.

• Avoid skin contact with engine oil or gasoline. Wear protective clothing and equipment. Wash all exposed skin with soap and water.

• A transfer switch must be installed by a licensed electrician approved by the authority having jurisdiction. The installation must comply with all applicable laws and electrical codes. FUEL SAFETY

• Store fuel in a container approved for gasoline.

• Shut down the engine and allow it to cool for two minutes before adding gasoline or oil to the generator.

• NEVER remove the fuel cap when the generator is running. Shut off the engine and allow the unit to cool at least two minutes. Remove the fuel cap slowly to release pressure, keep fuel from escaping around the cap, and to avoid the heat from the mufer igniting fuel vapors. Tighten the fuel cap securely after refueling.

• Wipe spilled fuel from the unit.

• NEVER attempt to burn off spilled fuel.

• NEVER overll the fuel tank. Leave room for fuel to expand. Overlling the fuel tank can result in a sudden overow of gasoline and result in spilled gasoline coming in contact with HOT surfaces.

• Spilled fuel can ignite. If fuel is spilled on the generator, wipe up any spills immediately. Dispose of rag properly. Allow area of spilled fuel to dry before operating the generator.

• Wear eye protection while refueling.

• NEVER use gasoline as a cleaning agent.

• Store any containers containing gasoline or LPG/ propane in a well-ventilated area, away from any combustibles or source of ignition. GASOLINE AND GASOLINE VAPOR (GAS) Fire and explosion hazard. Gasoline and LPG/propane are highly explosive and ammable and can cause severe burns or death.

• In case of a gas re, DO NOT attempt to extinguish the ame if the fuel tank valve is in the ON position. Introducing an extinguisher to a generator with an open fuel valve could create an explosion hazard.

• Gas has a distinctive odor, this will help detect potential leaks quickly.

• Gas vapors can cause a re if ignited.

• Gasoline is a skin irritant and needs to be cleaned up immediately if it comes in contact with the skin. SAFETYWestinghouse Outdoor Power Equipment, LLC | 7 LIQUID PETROLEUM GAS (LPG/PROPANE) Fire and explosion hazard. NEVER use a gas container, LPG/propane connector hose, LPG/propane tank or any other fuel item that appears to be damaged. Fire and explosion hazard. Only use approved LPG/ propane tanks with an Overlling Prevention Device (OPD) valve. ALWAYS keep the tank in a vertical position with the valve on top and placed at ground level on a at surface. DO NOT allow tanks to be near any heat source. When transporting and storing, turn the propane tank valve to the fully closed position and disconnect the tank. Make sure to ALWAYS cover the generator inlet and tank outlet with protective plastic caps.

• LPG/Propane is highly ammable and explosive.

• Flammable gas under pressure can cause a re or explosion if ignited.

• LPG/Propane can settle in low places because it is heavier than air.

• LPG/Propane has a distinctive odor added to help detect potential leaks.

• ALWAYS keep a LPG/Propane tank in an upright position.

• When exchanging LPG/propane tanks, be sure the tank valve is the same type.

• In case of a LPG/propane re, DO NOT attempt to extinguish unless the fuel supply can be shut off safely.

• LPG/propane will burn the skin. Prevent skin contact at all times.

• Keep the propane tank away from the generator exhaust.

• A step-down regulator is required when using LPG/ propane tanks over 100 gallons. The pressure as measured at the regulator mounted to the generator must be 7” to 14” of water column.

• Large (500–1000 gallon) LPG/propane tanks will require a certied plumber to install the fuel line to the generator and the loose regulator is not used (the regulator that is attached to the fuel tank). The pressure as measured at the regulator mounted to the generator must be 7” to 14” of water column. A certied plumber must ensure that the pressure is correct or install a step down regulator if needed. Fire and explosion hazard. If there is a strong smell of propane while operating the generator, fully close the LPG/propane tank valve immediately. Once the propane is off, use soapy water to check for leaks on the hose and connections on the tank valve and the generator. DO NOT smoke or light a cigarette or check for leaks using any open ame source such as a match or lighter. If a leak is found, contact a qualied technician to inspect and repair the LPG/propane system before using the generator. When starting the generator:

• Make sure that the fuel cap, air lter, spark plug, fuel lines, and exhaust system are properly in place.

• If you spill any gasoline on the tank, allow it to fully evaporate before operating.

• Make sure the generator and LPG/propane tank are on a at surface before operating.

• If there is a propane odor DO NOT start the unit because there may be a potential leak. NEVER place a LPG/ propane tank near the engine exhaust. When transporting or servicing the generator:

• Make sure the LPG/propane tank and LPG/propane hose are not attached to the generator.

• Disconnect the spark boot to prevent accidental starting. When storing the generator:

• Store away from sparks, open ames, pilot lights, heat, and other sources of ignition.

• DO NOT store gas or a LPG/propane tank near furnaces, water heaters, or any other appliances that produce heat or have automatic ignitions. SAFETY8 | Westinghouse Outdoor Power Equipment, LLC

SAFETYWestinghouse Outdoor Power Equipment, LLC | 9 CO SENSOR The CO Sensor monitors for the accumulation of poisonous carbon monoxide gas around the generator when the engine is running. If increasing levels of CO gas are detected, the CO Sensor automatically shuts down the engine. The CO Sensor will also detect the accumulation of carbon monoxide from other fuel burning sources used in the area of operation. For example, if the exhaust of fuel burning tools is pointed at a CO Sensor-equipped generator, a shut-off may be initiated due to rising CO levels. This is not an error. Hazardous carbon monoxide has been detected. Move and redirect any additional fuel burning sources to dissipate carbon monoxide away from personnel and occupied buildings. Note: Remote start-equipped generators must be restarted with the START/STOP button on the control panel after an automatic shut-down occurs. Generators are intended to be used outdoors, far from occupied buildings and the exhaust pointed away from personnel and buildings. If misused and operated in a location that results in the accumulation of CO, like in a partially enclosed area, the CO Sensor shuts off the engine, noties the user with a RED indicator light, and directs the user to read the Action Label for steps to take. The CO Sensor DOES NOT replace carbon monoxide alarms. Install battery-powered carbon monoxide alarm(s) in your home. WARNING Automatic shutoff accompanied with a ashing RED light in the CO Sensor portion of the control panel is an indication that the generator was improperly located. If you start to feel sick, dizzy, weak, or carbon monoxide detectors in your home indicate an alarm, get to fresh air immediately. Call emergency services. You may have carbon monoxide poisoning. ACTION LABEL

Color Description RED Carbon monoxide accumulated around the generator. After shut-off, the RED indicator light in the CO Sensor area of the control panel will ash to provide notication that the generator was shut- off due to an accumulating CO hazard. The RED light will ash for at least ve minutes after a CO shut-off. Move the generator to an open, outdoor area far away from occupied spaces with exhaust pointed away. Once relocated to a safe area, the generator can be restarted. Introduce fresh air and ventilate the area where the generator had shut down. YELLOW A CO sensor system fault occurred. When a system fault occurs, the generator is automatically shut down and the YELLOW indicator light in the CO auto-shutoff area of the control panel will ash to provide notication that the a fault has occurred. The YELLOW light will ash for at least ve minutes after a fault. The generator can be re-started, but may continue to shutoff. A CO sensor fault can only be diagnosed and repaired by an authorized Westinghouse service center. SAFETY10 | Westinghouse Outdoor Power Equipment, LLC COMPONENTS COMPONENTS

automatically start the engine. Push again to stop the engine.

3. Battery Switch: Turns battery ON and OFF. Must be

ON before electric or remote start.

4. Battery Indicator: Indicates that power is ON. Light

will remain illuminated while the unit is ON.

5. 30 Amp AC Circuit Breaker: Circuit breaker limits

the current that can be delivered through the NEMA L5-30R and TT-30R receptacles to 30 Amps.

the current that can be delivered through the NEMA 5-20R receptacles to 20 Amps.

8. 30 Amp AC Circuit Breaker: Circuit breaker limits

the current that can be delivered through the NEMA L5-30R and TT-30R receptacles to 30 Amps.

9. 120 Volt AC, 30 Amp NEMA TT-30R Receptacle:

Receptacle can supply a maximum of 30 Amps.

10. Battery Charging Port: Used to charge the battery

with the included battery charger.

11. Ground Terminal: The ground terminal is used to

externally ground the generator.

12. CO Sensor indicator lights: The CO Sensor

monitors for the accumulation of poisonous carbon monoxide gas. If increasing levels of CO gas are detected, the CO Sensor automatically shuts down the engine.Westinghouse Outdoor Power Equipment, LLC | 11 GENERATOR COMPONENTS Fuel cap Fuel gauge Muffler/spark arrestor Carbon canister Carburetor Alternator cover Oil drain bolt Control panel Recoil Starter Air filter Fuel tank valve Oil dipstick/ filler neck LPG/Propane inlet Spark plug Serial number Choke lever COMPONENTS12 | Westinghouse Outdoor Power Equipment, LLC ASSEMBLY ASSEMBLY CARTON CONTENTS Weight hazard. ALWAYS have assistance when lifting the generator. 1. Carefully open the carton.2. Remove and save the carton contents.3. Remove and discard the packing tray.4. Unfold the top of the plastic bag enclosing the generator.5. Carefully cut the vertical corners of the carton to access the generator.6. Recycle or dispose of the packaging materials properly. CARTON CONTENTS

• User manual• Quick Start Guide• LPG/propane hose with regulator • Bottle of SAE 10W-30 Oil • Spark plug socket wrench• Wrench• Battery Charger • Oil FunnelItem Quantity• Mounting foot 2• Flange bolt, M8 4• Wheel 2• Axle pin 2• Washer 2• Cotter pin 2If any parts are missing, contact our service team at service@wpowereq.com or call 1-855-944-3571.

INSTALL FEET AND WHEELS

NOTICE Assembling the generator will require lifting the unit on one side. Install the mounting feet and wheel before adding fuel or oil. 1. Place generator on a at surface.2. Tip the generator on a piece of cardboard or other soft material to protect the frame paint and prevent the generator from sliding. 3. With the included wrench, install the mounting feet to the frame as shown. Mounting footBolt, M84. Install the wheels as shown. Axle pinWheelCotter pinWasherNote: The wheels are only intended for hand transport. The wheels are not suitable for towing the generator either on or off-road.Westinghouse Outdoor Power Equipment, LLC | 13

THIS GENERATOR HAS BEEN SHIPPED WITHOUT

OIL. DO NOT attempt to crank or start engine before it has been properly serviced with recommended oil. Failure to add engine oil before starting will result in serious engine damage. NOTICE Use of 2-stroke/cycle oil or other unapproved oil types can cause severe engine damage that is not covered under warranty. The included, recommended oil type for typical use is 10W-30 engine oil. If running the generator in extreme temperatures, refer to the following chart.

1. On a level surface, remove the oil dipstick.

2. Using the supplied funnel and oil, add oil into oil ller

neck. Note: As residual oil from the factory may remain in the engine, add the oil incrementally near the end of the bottle to prevent overlling the engine. See Engine Oil Level Check in the Maintenance section.

3. Replace the oil dipstick and hand-tighten.

FUEL Fire and explosion hazard. NEVER use a gasoline container, gasoline tank, propane connector hose, propane tanks, or any other fuel item that is broken, cut, torn or damaged. Fire and explosion hazard. DO NOT overll fuel tank. Fill only to the red ll ring located in the in-tank fuel screen lter. Overlling may cause fuel to spill onto engine causing a re or explosion hazard. Fire and explosion hazard. NEVER refuel the generator while the engine is running. ALWAYS turn the engine off and allow the generator to cool for two minutes before refueling. NOTICE DO NOT use E15 or E85 fuel in this product. Engine or equipment damage caused by stale fuel or the use of unapproved fuels (such as E15 or E85 ethanol blends) is not covered by warranty. Only use unleaded gasoline containing up to 10% ethanol. FUEL REQUIREMENTS

• CLEAN, FRESH, unleaded gasoline, 87–93 octane.

• Up to 10% ethanol (gasohol) is acceptable (where available; non-ethanol fuel is recommended).

• DO NOT use E85 or E15.

• DO NOT use a gas oil mix.

• DO NOT modify the engine to run on alternate fuels.

• DO NOT fuel indoors.

Adding a fuel stabilizer (not included) extends the usable life of fuel and helps prevent deposits from forming that can clog the fuel system. Follow the manufacturer’s instructions for use. ALWAYS mix the correct amount of fuel stabilizer to gasoline in an approved gasoline container before fueling the generator. Run the generator for ve minutes to allow the stabilizer to treat the entire fuel system. ASSEMBLY14 | Westinghouse Outdoor Power Equipment, LLC

FILLING THE FUEL TANK

1. Turn the generator OFF and allow to cool for a minimum

of two minutes before fueling.

2. Place the generator on level ground in a well-ventilated

3. Clean area around fuel cap and remove the cap slowly.

NOTICE Only ll the tank from an approved gasoline container. Make sure the gasoline container is internally clean and in good condition to prevent fuel system contamination.

4. Slowly add the recommended fuel. DO NOT overll. Fill

only to the red maximum ll ring on the fuel screen lter visible in the ller neck.

5. Install the fuel cap.

NOTICE Fuel can damage paint and plastic. Use caution when lling the fuel tank. Damage caused by spilled fuel is not covered under warranty. NOTICE Clean the fuel screen lter of debris before and after each fueling. Remove the fuel screen lter by slightly compressing it while removing it from the fuel tank. NOTICE Clean the fuel screen lter of debris before and after each fueling. Remove the fuel screen lter by slightly compressing it while removing it from the fuel tank.

A quick-connect battery plug is pre-installed on the battery. Remove the cable tie securing the plugs then push rmly to connect them. Note: The generator is equipped with a battery charging feature. Once the engine is running, a small charge will slowly recharge the battery.

• The LPG/propane tank can be of any capacity but the tank must conform to the standard as listed in Fuel Safety section.

• Propane tanks that use liquid withdrawal system can not be used on these models.

• Verify the re-qualication date on the tank has not expired.

• DO NOT use included LPG/propane hose for any other appliances. NOTICE

• All new tanks must be purged of air and moisture prior to lling. Used tanks that have not been plugged or kept closed must also be purged. The purging process should be done by a propane supplier (Tanks from an exchange supplier should have been purged and lled properly).

• ALWAYS position the tank so the connection between the valve and the gas inlet will not cause sharp bends or kinks in the hose. Explosion hazard. DO NOT start generator if you smell propane. ALWAYS fully close the propane tank valve and disconnect the LPG/propane hose from the generator when not in use.

1. Turn the generator OFF and place on a at surface in a

well ventilated area.

2. Verify that the propane tank valve is in the fully closed

3. Remove the cover on the generator propane inlet valve.

ASSEMBLYWestinghouse Outdoor Power Equipment, LLC | 15

4. Use your ngers to hand thread the LPG/propane hose

(included) to the propane inlet on the generator. LPG/Propane Inlet IMPORTANT: DO NOT use thread seal tape or any other type of sealant to seal the LPG/propane hose connection.

5. Tighten the LPG/propane hose connector to the

generator with a 19 mm or adjustable wrench. DO NOT over-tighten. Torque: 5-10 lb-ft.

6. Remove the safety plug or cap from the propane tank

valve and attach the other end of the hose to the LPG/ propane connector on the tank. Hand-tighten.

7. Turn the propane tank valve to the fully open position.

Check all connections for leaks by wetting the ttings with a solution of soap and water. Bubbles which appear or bubbles which grow indicate that a leak exists. If a leak exists at a tting, turn the propane tank valve to the fully closed position and tighten the tting. Open the propane tank valve and recheck the tting with the soap and water solution. If the leak continues or if the leak is not at a tting then DO NOT use the generator and contact customer service. IMPORTANT: Keep the propane tank valve in the fully closed position unless in use. ASSEMBLY16 | Westinghouse Outdoor Power Equipment, LLC OPERATION GENERATOR LOCATION Read and understand all safety information before starting the generator. NEVER operate the generator inside any building, including garages, basements, crawlspaces, sheds, enclosure, or compartment, including the generator compartment of a recreational vehicle. Electrocution hazard. NEVER use the generator in a location that is wet or damp. NEVER expose the generator to rain, snow, water spray, or standing water while in use. Protect the generator from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit. Using a generator or electrical appliance in wet conditions, such as rain or snow, or near a pool or sprinkler system, or when your hands are wet, could result in electrocution Fire hazard. Only operate the generator on a solid, level surface. Operating the generator on a surface with loose material such as sand or grass clippings can cause debris to be ingested by the generator that could block cooling vents or the air intake system. Allow the generator to cool for 30 minutes before transport or storage. The generator should be on a at, level surface at all times (Even while not in operation). The generator must have at least 5 ft. (1.5 m) of clearance from all combustible material. DO NOT operate the generator in the back of a SUV, camper, trailer, truck bed (regular, at, or otherwise), under stairs, next to walls or buildings, or in any other location that will not allow for adequate cooling of the generator and/or the mufer. DO NOT contain generators during operation. Asphyxiation hazard. Place the generator in a well- ventilated area. DO NOT place the generator near vents or intakes where exhaust fumes could be drawn into occupied or conned spaces. Carefully consider wind and air currents when positioning the generator. GROUNDING Shock hazard. Failure to properly ground the generator can result in electric shock. NOTICE Only use grounded 3-prong extension cords, tools, and appliances, or double-insulated tools and appliances. The generator neutral is oating. The generator ground terminal is connected to the frame of the generator, the metal non-current-carrying parts of the generator, and the ground terminals of each receptacle. The generator (stator winding) is isolated from the frame and from the AC receptacle ground pin. Electrical devices that require a grounded receptacle pin connection may not function properly. If this generator will be used only with cord and plug equipment connected to the receptacles mounted on the generator, National Electric Code does not require that the unit be grounded. However, other methods of using the generator may require grounding to reduce the risk of shock or electrocution. Before using the ground terminal, consult a qualied electrician, electrical inspector, or local agency having jurisdiction for local codes or ordinances that apply to the intended use of the generator.

HIGH ALTITUDE OPERATION

Engine power is reduced the higher you operate above sea level. Output will be reduced approximately 3.5% for every 1000 feet of increased altitude from sea level. High altitude adjustment is required for operation at altitudes over 2000 ft. (762 m). Operation without this adjustment will cause decreased performance, increased fuel consumption, and increased emissions. NOTICE DO NOT operate the generator at altitudes below 2000 ft. (762 m) with the high altitude kit installed. Engine damage may occur. High Altitude Carburetor Kit Part# 518071 High Altitude DF Regulator: Part# 518043-1 OPERATIONWestinghouse Outdoor Power Equipment, LLC | 17 Note: You must purchase both the Dual Fuel Regulator and Carburetor Kit for proper high altitude operation. REMOTE START WARNING Verify that the area around the generator is clear before remote starting the generator. The remote start key fob included with the generator should be attached to the recoil handle or control panel. If your unit was shipped without a key fob, contact Westinghouse customer service. The generator can be started remotely from up to 99 feet (30 meter) using the remote start key fob. Note: As the batteries in the remote start key fob drain, operational distance will decrease.

PAIRING THE REMOTE START

Remote replacement batteries: (2) CR2016 Replacement remote: # 100714A If the remote start key fob is replaced or needs re-paired to the generator, follow this procedure.

1. Turn the generator battery switch to the ON position.

The power indicator light will illuminate. Battery switch Push button START/STOP Power indicator

2. Push and hold the red Pairing button on the side of the

control panel until the START/STOP button illuminates. Pairing button

3. Push and hold the STOP button on the key fob until the

START/STOP button illumination turns OFF. Release the button. The START/STOP button will illuminate after the button is released. Key Fob Activation Light START Button STOP Button START STOP

4. Push and hold the START button on the key fob until the

START/STOP button illumination turns OFF. Release the button. The START/STOP button will illuminate after the button is released.

5. Push the Pairing button on the side of the control panel

until the START/STOP button illumination turns OFF. Release the button.

6. Turn the generator battery switch to the OFF position.

The remote is now paired.

FUEL SELECTOR SWITCH

Position the fuel selector switch on the front control panel to the desired fuel choice. Turn the fuel selector switch fully upward for gasoline operation. Turn the fuel selector switch fully downward for propane operation. BREAK-IN PERIOD For proper break-in, DO NOT exceed 50% of the rated running watts (3750 watts) during the rst ve hours of operation. Vary the load occasionally to allow stator windings to heat and cool and help seat the piston rings. OPERATION18 | Westinghouse Outdoor Power Equipment, LLC

• The generator is placed in an safe, appropriate location.

• The generator is on a dry, at, and level surface.

• The engine is lled with oil.

• All loads are disconnected. Fire and explosion hazard. DO NOT move or tip the generator during operation.

STARTING THE ENGINE: GASOLINE

1. Verify that fuel is in the gas tank.

2. Turn the fuel selector switch on the control panel to

3. Turn the fuel tank valve to the ON position.

4. Push the battery switch to the ON position.

5. Choose the starting method:

a. Remote Start: Push and hold the START button on the remote start key fob for one second. Note: Remote start-equipped generators must be restarted with the START/STOP button on the control panel after an automatic shut-down occurs. b. Push-Button Start: Push and hold the engine START/STOP button for two seconds. c. Recoil Start: Manually close the choke if the engine is cold. Firmly grasp and pull the recoil handle slowly until you feel increased resistance, then pull rapidly. Cold start: Close the choke by moving it right toward the front handle of the generator.

STARTING THE ENGINE: PROPANE

Fire and explosion hazard. ALWAYS turn the propane tank valve to the fully closed position if not running the generator on propane.

1. Make sure the LPG/propane hose is correctly connected

to the generator and propane tank.

2. Turn the fuel selector switch to propane operation.

3. Fully open the valve on the propane tank.

4. Push the battery switch to the ON position.

5. Choose the starting method:

a. Remote Start: Push and hold the START button on the remote start key fob for one second. Note: Remote start-equipped generators must be restarted with the START/STOP button on the control panel after an automatic shut-down occurs. b. Push-Button Start: Push and hold the engine START/STOP button for two seconds. c. Recoil Start: Manually close the choke if the engine is cold. Firmly grasp and pull the recoil handle slowly until you feel increased resistance, then pull rapidly. d. Cold start: Close the choke by moving it right toward the front handle of the generator. Note: During Push-Button or Remote Start the engine will automatically set the choke and begin the start sequence. If the engine fails to start, the generator will attempt to start the engine two more times.

SWITCHING FUEL SOURCES

Fire and explosion hazard. DO NOT add gasoline to the fuel tank or connect the LPG/propane hose to the generator while the generator is in operation. The fuel source can be switched while the engine is running if a propane tank is connected to the generator BEFORE operation. OPERATIONWestinghouse Outdoor Power Equipment, LLC | 19

IMPORTANT: Load capacity is reduced when running on propane. Make sure the generator can supply enough (running) and surge (starting) watts for the items you are powering before switching to propane.

1. Fully open the valve on the propane tank.

2. Turn the fuel selector switch to propane operation.

3. Turn the fuel tank valve to the OFF position.

1. Turn the fuel tank valve to the ON position.

2. Turn the fuel selector switch to gasoline operation.

3. Turn the propane tank valve to the fully closed position.

Note: When switching to propane operation the engine may run rough for a few seconds while it purges gasoline in the carburetor. If the engine stops when switching fuel sources, disconnect all loads then restart the unit on the fuel source of choice.

1. Turn off and unplug all connected electrical loads.

IMPORTANT: NEVER start or stop the generator with electrical devices connected.

2. Let the generator run with no load for several minutes to

stabilize internal temperatures of the engine.

3. Push and hold the START/STOP button for one second

or push STOP on the remote start key fob for one second. Note: Alternately, if the generator is used infrequently, turn the fuel tank valve to the OFF position to limit the residual fuel remaining in the carburetor oat bowl. The engine will stop when fuel in the carburetor and fuel line is exhausted.

4. Push the battery switch to the OFF position.

5. If operating on LPG, turn the propane tank valve to the

fully closed position.

The circuit breakers will automatically switch OFF if there is a short circuit or a signicant overload of the generator at each receptacle. If an AC circuit breaker switches OFF automatically, check that the appliance is working correctly and it does not exceed the rated load capacity of the circuit before resetting the AC circuit breaker ON. GENERATOR CAPACITY NOTICE DO NOT overload the generator’s capacity. Exceeding the generator’s wattage/amperage capacity can damage the generator and/or electrical devices connected to it. Make sure the generator can supply enough continuous (running) and surge (starting) watts for the items you will power at the same time. The total power requirements (Volts x Amps = Watts) of all appliances connected must be considered. Appliance and power tool manufacturers usually list rating information near the model or serial number. To determine power requirements:

1. Select the items you will power at the same time.

2. Total the continuous (running) watts of these items. This

is the amount of power the generator must produce to keep the items running. See the wattage reference chart on the next page.

3. Estimate how many surge (starting) watts you will need.

Surge wattage is the short burst of power needed to start electric motor-driven tools or appliances such as a circular saw or refrigerator. Because not all motors start at the same time, total surge watts can be estimated by adding only the item(s) with the highest additional surge watts to the total rated watts from step 2. OPERATION20 | Westinghouse Outdoor Power Equipment, LLC Example: Tool or Appliance Running Watts* Starting Watts* RV Air Conditioner (11,000 BTU) 1010 1600 TV (Tube Type) 300 0 RV Refrigerator 180 600 Radio 200 0 Light (75 Watts) 300 0 Coffee Maker 600 0 Totals 2590 1600 Total Running Watts* 2590 Highest Starting Watts* + 1600 Total Starting Watts Needed 4190 *Wattages listed are approximate. Verify actual wattage. POWER MANAGEMENT To prolong the life of the generator and attached devices, use care when adding electrical loads to the generator. There should be nothing connected to the generator outlets before starting the engine. The correct and safe way to manage generator power is to sequentially add loads as follows:

1. With nothing connected to the generator, start the

engine as described in this manual.

2. Plug in and turn on the rst load, preferably the largest

smoothly and attached device operates properly).

4. Plug in and turn on the next load.

5. Again, permit the generator to stabilize.

6. Repeat steps 4 and 5 for each additional load.

*Wattages listed are approximate. Verify actual wattage. EXTENSION CORDS Asphyxiation hazard. Extension cords running directly into the home increase the risk of carbon monoxide poisoning through any openings. If an extension cord running directly into your home is used to power indoor items, there is a risk of carbon monoxide poisoning to people inside the home. ALWAYS use battery-powered carbon monoxide detector (s) that meet current UL 2034 safety standards when running the generator. Regularly check the detector (s) battery. Asphyxiation hazard. When operating the generator with extension cords, make sure the generator is located in an open, outdoor area, far away from occupied spaces with exhaust pointed away. Fire and electrocution hazard. NEVER use worn or damaged extension cords. Damaged or overloaded extension cords could overheat, arc, and burn resulting in death or serious injury. Before connecting an AC appliance or power cord to the generator:

• Use grounded 3-prong extension cords, tools, and appliances, or double-insulated tools and appliances.

• Make sure the tool or appliance is in good working order. Faulty appliances or power cords can create a potential for electric shock.

• Make sure the electrical rating of the tool or appliance does not exceed the rated power of the generator or the receptacle being used. OPERATIONWestinghouse Outdoor Power Equipment, LLC | 21

EXTENSION CORD SIZING

Only use grounded 3-prong extension cords marked for outdoor use that are rated for the electrical load. TRANSPORTING Weight hazard. ALWAYS have assistance when lifting the generator.

• Allow the generator to cool a minimum of 30 minutes before transporting.

• If operating on propane, turn the propane tank valve to the fully closed position.

• Disconnect the LPG/propane hose from the generator and propane tank.

• Replace all protective covers on the generator control panel.

• Only use the generator’s xed frame to lift the unit or attach any load restraints such as ropes or tie-down straps. DO NOT attempt to lift or secure the generator by holding onto any of its other components.

• Keep the unit level during transport to minimize the possibility of fuel leakage or, if possible, drain the fuel or run the engine until the fuel tank is empty before transport.

• The generator wheels (if equipped) are only intended for hand transport. The wheels are not suitable for towing the generator either on or off-road.

• Use the extendable handle for one-person, hand transport. Only use the handle while the generator is OFF, stationary, and resting on a horizontal surface. Do not use the handle to lift the generator entirely off the ground, tow it, or up-end it. Fire hazard. DO NOT up-end the generator or place it on its side. Fuel or oil can leak and damage to the generator may occur. OPERATION22 | Westinghouse Outdoor Power Equipment, LLC MAINTENANCE Accidental start-up. Disconnect the spark plug boot from the spark plug when performing maintenance on the generator. MAINTENANCE SCHEDULE Regular maintenance will improve performance and extend the service life of the generator. Follow the hourly or calendar intervals, whichever occurs rst. More frequent service is required when operating in adverse conditions as noted below. Before Each UseCheck engine oilAfter First 25 Hours or First MonthChange engine oilAfter 50 Hours or Every 6 MonthsChange engine oil

Clean air lter After 100 Hours or Every 6 MonthsInspect/clean spark arrestor Inspect/clean spark plug Fuel valve maintenance Replace fuel lter Inspect/adjust valve clearance After 300 Hours or Every YearReplace spark plug Replace air lter Change oil every month when operating under heavy load or in high temperatures. Clean more often under dirty or dusty conditions. Replace air lter if it cannot be adequately cleaned. Recommend service to be performed by authorized Westinghouse service dealer. MAINTENANCE REMINDERS Maintenance reminder codes will be shown on the Data Display based on unit Lifetime Hours. The maintenance codes will be displayed until the unit is turned off. Refer to the Maintenance section for specic procedures. Maintenance Code Required MaintenanceP25 Change engine oil P50

• Change engine oil• Clean air lter P100
• Change engine oil• Clean air lter• Fuel valve maintenance• Inspect/adjust valve clearance

MAINTENANCE REPLACEMENT PARTS

Description Part NumberAir lter 5206Oil drain plug crush washer 94007Spark arrestor 6789Spark plug 97108 (F7TC)

AIR FILTER MAINTENANCE

Fire hazard. NEVER use gasoline or other ammable solvents to clean the air lter. Use only household detergent soap to clean the air lter.The air lter must be cleaned after every 50 hours of use or six months (frequency should be increased if the generator is operated in a dusty environment).1. Place the generator on a level surface and allow the engine to cool for several minutes.2. Turn the knob on the air cleaner cover to the unlocked position then remove the air lter cover. Note: The foam air lter element is oil soaked. Use an appropriate cleaning container. NOTICE Avoid skin contact with engine oil. Wear protective clothing and equipment. Wash all exposed skin with soap and water.3. Remove the foam air lter and wash it by submerging the element in a solution of household detergent soap and warm water. Slowly squeeze the foam to thoroughly clean. NOTICE DO NOT twist or tear the foam air lter element during cleaning or drying. Only apply slow but rm squeezing action. MAINTENANCEWestinghouse Outdoor Power Equipment, LLC | 23

4. Rinse the air lter element by submerging it in fresh

water and applying a slow squeezing action. Allow the lter to dry thoroughly. NOTICE DO NOT pollute. Follow the guidelines of the EPA or other governmental agencies for proper disposal of hazardous materials. Consult local authorities or reclamation facility.

5. Dip the foam air lter in clean engine oil then squeeze

out all excess oil. The engine will smoke when started if too much oil is left in the lter.

6. Reinstall the air lter and air lter cover. Turn the knob to

lock the air cleaner cover in place.

ENGINE OIL LEVEL CHECK

Avoid skin contact with engine oil. Wear protective clothing and equipment. Wash all exposed skin with soap and water. NOTICE ALWAYS use the specied engine oil. Failure to use the specied engine oil can cause accelerated wear and/or shorten the life of the engine. When using the generator under dirty, dusty conditions or in extremely hot weather, change the oil more frequently. Ambient air temperature will affect engine oil performance. Change the type of engine oil used based on weather conditions. Check the engine oil level before each use or every 8 hours of operation.

1. Place the generator on a level surface and allow the

engine to cool for several minutes.

2. With a damp rag, clean around the oil dipstick.

3. Remove the oil dipstick and wipe the dipstick clean.

4. Insert the dipstick into the oil ller neck without screwing

it in. Remove the dipstick and verify that the oil level is within safe operating range between the low (L) and high (H) marks on the dipstick.

5. If low, add recommended engine oil incrementally and

recheck until the level is between the L and H marks on the dipstick. DO NOT overll. If over the H mark on the dipstick, drain the oil to reduce the oil level to the full mark.

6. Replace the oil dipstick and hand-tighten.

When using the generator under dirty, dusty conditions or in extremely hot weather, change the oil more frequently. Change the oil while the engine is still warm from operation.

1. Place the generator on a level surface and allow the

engine to cool for several minutes.

2. With a damp rag, clean around the oil dipstick. Remove

the dipstick and wipe clean.

3. Place an oil pan (or suitable container) under the oil

drain bolt. MAINTENANCE24 | Westinghouse Outdoor Power Equipment, LLC

4. Using a 10mm wrench, remove the oil drain bolt and

allow the oil the to drain.

5. Install the oil drain bolt and tighten securely.

Note: A new oil drain plug crush washer is recommended at each oil change.

6. Slowly pour oil into the oil ller neck until oil the level

is between the L and H marks on the dipstick. Stop frequently to check the oil level. DO NOT overll. Maximum oil capacity: 0.63 Quart (0.6 Liter)

7. Install the oil dipstick and hand-tighten.

NOTICE DO NOT pollute. Follow the guidelines of the EPA or other governmental agencies for proper disposal of hazardous materials. Consult local authorities or reclamation facility.

SPARK PLUG MAINTENANCE

Inspect and clean the spark plug after every 100 hours of use or six months. Replace the spark plug after 300 hours of use or every year.

1. Place the generator on a level surface and allow the

2. Remove the spark plug boot by rmly pulling the spark

boot directly away from the engine.

3. Clean the area around the spark plug.

4. Remove the spark plug with the included spark plug

pitted, burned, or the insulator is cracked. Only use a recommended replacement plug.

6. Measure the spark plug electrode gap with a wire-type

feeler gauge. If necessary, correct the gap by carefully bending the side electrode. Spark plug gap: 0.024 – 0.032 in. (0.60 – 0.80 mm)

7. Carefully install the spark plug nger tight, then tighten

as additional 3/8 to 1/2 turn with the spark plug wrench.

Allow the mufer to cool completely before servicing the spark arrestor. Check and clean the spark arrestor after every 100 hours of use or six months. Failure to clean the spark arrestor will result in degraded engine performance.

1. Place the generator on a level surface.

2. Remove the cover screws, mufer cover, and spark

arrestor. MAINTENANCEWestinghouse Outdoor Power Equipment, LLC | 25

3. Carefully remove the carbon deposits from the spark

arrestor screen with a wire brush. The spark arrestor must be free of breaks and tears. Replace the spark arrestor if damaged.

4. Reinstall the spark arrestor and mufer cover.

FUEL VALVE MAINTENANCE

The fuel valve is equipped with an inline fuel lter. The fuel valve lter does not require servicing if the unit is properly maintained with fresh, clean fuel. If fuel- related troubleshooting is required, perform fuel valve maintenance.

1. Allow the generator to cool completely.

2. Place an appropriate gasoline container under the

carburetor drain bolt to catch the drained fuel.

3. Remove the drain bolt on the bottom of the carburetor

and allow the fuel tank to drain completely. Install and tighten the drain bolt securely.

4. Remove the fuel line from the fuel valve. Be prepared to

capture the remaining fuel from the fuel line.

5. Loosen the retaining bolt. Unscrew and remove the fuel

valve from the fuel tank. Be prepared to capture any remaining fuel from the fuel tank.

6. Open the fuel valve. Use compressed air to clean the

fuel lter and the fuel passage from the fuel line side of the passage.

7. Install and tighten the fuel valve until it has a few threads

remaining and is facing outward.

8. Hold it in place and tighten the retaining bolt. DO NOT

9. Replace the fuel line and secure with the clamp.

STORAGE Proper storage preparation is required for trouble-free operation and generator longevity. NOTICE Gasoline stored for as little as 30 days can deteriorate, causing gum, varnish, and corrosive buildup in fuel lines, fuel passages, and the engine. This corrosive buildup restricts the ow of fuel, which can prevent the engine from starting after a prolonged storage period. The use of fuel stabilizer signicantly increases the storage life of gasoline. Full-time use of fuel stabilizer is recommended. Follow the manufacturer’s instructions for use.

STORAGE TIME RECOMMENDED PROCEDURE

Less than 1 month No service required. 2 to 6 months Fill with fresh gasoline and add gasoline stabilizer. Drain the carburetor oat bowl. 6 months or longer Drain the fuel tank and carburetor oat bowl.

• Allow the generator to cool a minimum of 30 minutes before storage.

• If operating on propane, turn the propane tank valve to the fully closed position and disconnect the LPG/ propane hose from the generator and propane tank.

• Replace all protective covers on the generator control panel.

• Wipe the generator with a moist cloth. Clean any debris from the mufer cooling vents.

• Store the generator in a well-ventilated, dry location away from sparks, open ames, pilot lights, heat, and other sources of ignition such as areas with a spark- producing electric motor or where power tools are operated.

• DO NOT store the generator, gasoline, or propane tanks near furnaces, water heaters, or any other appliances that produce heat or have automatic ignitions.

• With the engine and exhaust system cool and all surfaces dry, cover the generator to keep out dust. DO NOT use a plastic sheet as a dust cover. Non-porous materials trap moisture and promote rust and corrosion. MAINTENANCE26 | Westinghouse Outdoor Power Equipment, LLC

Even properly stabilized fuel can leave residue and cause corrosion if left long term. If storing the generator for two to six months, drain the oat bowl to prevent gum and varnish buildup in the carburetor.

DRAINING THE FLOAT BOWL

1. Turn the fuel tank valve to the OFF position.

2. Locate the drain screw on the bottom of the carburetor

3. Place an appropriate gasoline container under the drain

screw to catch the drained fuel.

4. Loosen the oat bowl drain screw and allow the fuel to

drain. Tighten the oat bowl drain screw.

DRAINING THE FUEL TANK

If storing the generator for longer than six months, drain the fuel tank to prevent fuel separation, deterioration, and deposits in the fuel system.

1. Unscrew the fuel tank cap. Remove the fuel screen lter

by slightly compressing it while removing it from the tank.

2. Using a commercially available gasoline hand pump

(not included), siphon the gasoline from the fuel tank into an approved gasoline container. DO NOT use an electric pump.

3. Reinstall the fuel screen lter and the fuel tank cap.

4. Start the generator and allow it to run until the generator

5. Push the Run/Stop switch to the Stop position.

6. Remove the spark plug.

7. Put a teaspoon of engine oil into the cylinder and pull the

recoil handle until resistance is felt. At this position the piston is coming up on its compression stroke and both valves are closed. Storing the engine in this position will help prevent internal corrosion. Return the recoil handle gently.

8. Reinstall the spark plug. Leave the spark plug boot

disconnected to prevent accidental starting. VALVE CLEARANCE NOTICE Checking and adjusting valve clearance must be done when the engine is cold.

1. Remove the rocker arm cover and carefully remove

the gasket. If the gasket is torn or damaged, it must be replaced.

2. Remove the spark plug so the engine can be rotated

3. Rotate the engine to top dead center (TDC) by pulling

the recoil handle slowly. Looking through the spark plug hole, the piston should be at the top (both valves are closed).

4. Both the rocker arms should be loose at TDC on the

compression stroke. If they are not, rotate the engine 360°.

5. Insert a feeler gauge between the rocker arm and the

valve stem to measure valve clearance. Intake Valve Exhaust ValveValve Clearance0.0031 – 0.0047 in (0.08 – 0.12 mm)0.0051 – 0.0067 in (0.13 – 0.17 mm)Torque 8-12 N•m 8-12 N•m

6. If an adjustment is necessary, hold the rocker arm pivot

and loosen the pivot adjusting nut.

7. Turn the rocker arm pivot to obtain the specied

clearance. Hold the rocker arm pivot and re-tighten the pivot adjusting nut to the specied torque. Torque: 106 inch-pound (12 N•m)

8. Perform this procedure for the other valve.

9. Install the gasket, rocker arm cover, and spark plug.

MAINTENANCEWestinghouse Outdoor Power Equipment, LLC | 27 TROUBLESHOOTING TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE CORRECTION

Engine will not startOut of fuel. Refuel.Bad fuel, generator stored without treating or draining gasoline, or refueled with bad gasoline.Drain the fuel tank. Refuel with fresh gasoline. Dirty air lter. Clean the air lter. Low engine oil level stopped generator. Check engine oil level. Add engine oil if low. Spark plug wet with fuel (ooded engine).Wait ve minutes. Turn Run/Stop switch to the OFF position. Pull recoil handle rapidly several times. If the generator does not start, remove spark plug and dry. Spark plug faulty, fouled, or improperly gapped. Gap or replace the spark plug. Reinstall.Fuel system malfunction, fuel pump failure, ignition malfunction, valves stuck, etc. Contact Westinghouse customer service toll-free at 1 (855) 944-3571.Choke partially open or closed. Fully open or close the choke.CO sensor removed or modied. Return to original conguration.CO sensor activated or system fault occurred.Relocate generator / Contact Westinghouse customer service toll-free at 1 (855) 944-3571.Engine starts, then shuts downOut of fuel. Refuel.Incorrect engine oil level. Check engine oil level. Dirty air lter. Clean the air lter. Contaminated fuel. Drain the fuel tank. Refuel with fresh gasoline.Defective low oil level switch.Contact Westinghouse customer service toll-free at 1 (855) 944-3571.Engine lacks powerAir lter restricted. Clean or replace air lter.Bad fuel, generator stored without treating or draining gasoline, or refueled with bad gasoline.Drain the fuel tank. Refuel with fresh gasoline. Fuel system malfunction, fuel pump failure, ignition malfunction, valves stuck, etc. Contact Westinghouse customer service toll-free at 1 (855) 944-3571.Engine runs rough or bogs when load appliedDirty air lter. Clean the air lter. Generator overloaded. Unplug some devices.Faulty power tool or appliance.Replace or repair tool or appliance. Stop and restart the engine. Fuel system malfunction, fuel pump failure, ignition malfunction, valves stuck, etc. Contact Westinghouse customer service toll-free at 1 (855) 944-3571.No power at AC receptaclesAC circuit breaker/s tripped. Check AC loads and reset circuit breaker/s.Faulty power tool or appliance.Replace or repair tool or appliance. Stop and restart the engine. Faulty generator. Contact Westinghouse customer service toll-free at 1 (855) 944-3571.Frost on the propane tank or regulatorIf the temperature of the propane tank drops below the dew point, condensation on the tank may turn to frost or ice. This typically occurs in humid conditions. Providing all the propane fuel handling equipment is functioning normally, no correction is needed. The Propane tank is not equipped with an Overlling Prevention Device (OPD).If you suspect your propane fuel tank is not equipped with an OPD device, discontinue operation immediately and replace the propane fuel tank with a propane tank equipped with a an OPD. Propane fuel tank overlled.If you suspect your propane fuel tank has been overlled, discontinue operation immediately and return the propane fuel tank to the place of purchase or relling. TROUBLESHOOTING28 | Westinghouse Outdoor Power Equipment, LLC

PROBLEM POSSIBLE CAUSE CORRECTION

Propane fuel smell Fuel regulator or fuel hose and ttings not securely sealed. Using a soap solution check each connection and tighten as needed. Propane fuel regulator vent active. The propane fuel regulator is equipped with a vent that will allow a small amount of propane fuel vapor to escape from the regulator when the propane tank valve is opened. This can be normal providing the venting of the propane is brief. If you suspect that this is abnormal, immediately discontinue use and have the propane regulator inspected by a qualied technician. Residual fuel from the carburetor dispersing after operation. Normal, no correction is needed. Poor performance or engine stalling on Propane Propane fuel line kinked or crushed. Inspect propane fuel line and remove kinks or other obstructions. Fuel selector valve not properly positioned. Rotate the fuel valve fully until the pointer is directly in line with the desired fuel. Gasoline not purged from the carburetor before switching to propane. Close the propane fuel tank valve. Move the fuel selector switch to gas. Start the engine and allow the engine to run until the gasoline has been consumed in the carburetor. Begin propane start up procedure. TROUBLESHOOTINGWestinghouse Outdoor Power Equipment, LLC | 29 EXPLODED VIEW

EXPLODED VIEWS AND PARTS LISTS

ENGINE EXPLODED VIEW30 | Westinghouse Outdoor Power Equipment, LLC

8.11 91818 ROCKING ARM WITH TIGHT BOLT

15.1 91325 BOLT M6Westinghouse Outdoor Power Equipment, LLC | 31

20 96051 CARBURETOR GASKET32 | Westinghouse Outdoor Power Equipment, LLC EXPLODED VIEW GENERATOR EXPLODED VIEWWestinghouse Outdoor Power Equipment, LLC | 33 EXPLODED VIEW

10.1 599064 CO MODULE34 | Westinghouse Outdoor Power Equipment, LLC

12 HANDLE WELDING ASSEMBLY

12.1 527613 HANDLE PLUG

12.2 527611 HANDLE MOUNTING BOLT

LA SEGURIDAD44 | Westinghouse Outdoor Power Equipment, LLC COMPONENTES

mano.Westinghouse Outdoor Power Equipment, LLC | 59

MANTENIMIENTO60 | Westinghouse Outdoor Power Equipment, LLC

MANTENIMIENTOWestinghouse Outdoor Power Equipment, LLC | 63

• While operating and storing, keep at least 5 feet of clearance on all sides of the generator, including overhead. Allow the generator to cool a minimum of 30 minutes before storage. Heat created by the mufer and exhaust gases could be hot enough to cause serious burns and/or ignite combustible objects.

ENTRETIEN88 | Westinghouse Outdoor Power Equipment, LLC

collier. ENTRETIEN90 | Westinghouse Outdoor Power Equipment, LLC

PROBLÈME CAUSE POSSIBLE CORRECTION
