USER MANUAL WGen5300c WESTINGHOUSE

USER MANUAL DO NOT RETURN THIS PRODUCT TO THE STORE If you have questions or need assistance, please call customer service at 855-944-3571. WGen5300c Portable Generator Gasoline: 5300 Running Watts | 6600 Peak Watts2 | Westinghouse Outdoor Power Equipment INTRODUCTION

WARNING: Operating, servicing, and maintaining

this equipment can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, and wear gloves or wash your hands frequently when servicing this equipment. For more information go to www.P65warnings.ca.gov. DISCLAIMERS All information, illustrations, and specications in this manual were in effect at the time of publishing. The illustrations used in this manual are intended as representative reference views only. We reserve the right to make any specication or design change without notice.

All rights reserved. No reproduction allowed in any form without written permission from Westinghouse Outdoor Power Equipment.Read this manual before using or performing maintenance on this product. Failure to follow the instructions and safety precautions in this manual can result in serious injury or death.

SAVE THESE INSTRUCTIONS

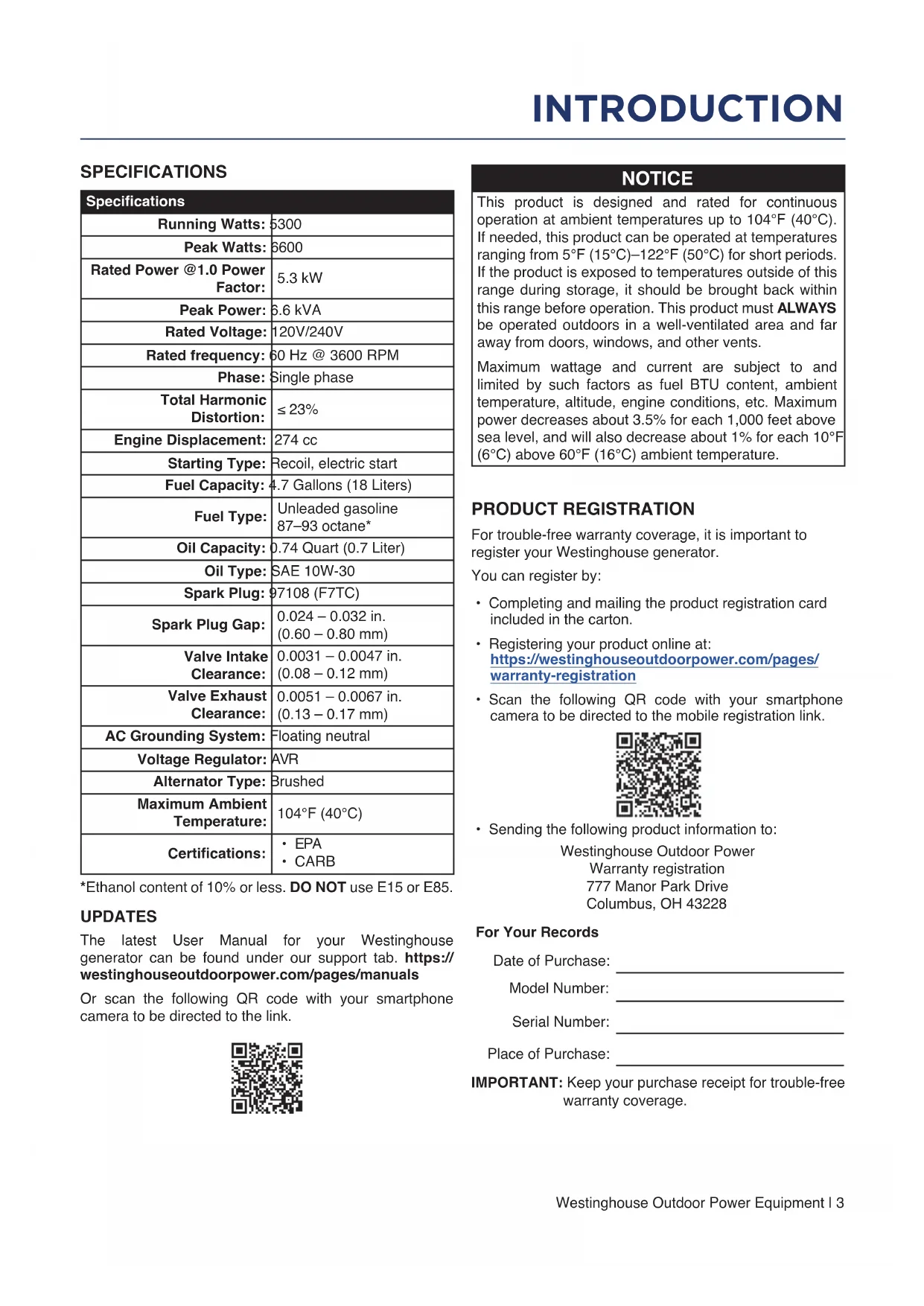

Peak Power: 6.6 kVA Rated Voltage: 120V/240V Rated frequency: 60 Hz @ 3600 RPM Phase: Single phase Total Harmonic Distortion: ≤ 23% Engine Displacement: 274 cc Starting Type: Recoil, electric start Fuel Capacity: 4.7 Gallons (18 Liters) Fuel Type: Unleaded gasoline 87–93 octane* Oil Capacity: 0.74 Quart (0.7 Liter) Oil Type: SAE 10W-30 Spark Plug: 97108 (F7TC) Spark Plug Gap:

(0.60 – 0.80 mm) Valve Intake Clearance: 0.0031 – 0.0047 in. (0.08 – 0.12 mm) Valve Exhaust Clearance: 0.0051 – 0.0067 in. (0.13 – 0.17 mm) AC Grounding System: Floating neutral Voltage Regulator: AVR Alternator Type: Brushed Maximum Ambient Temperature: 104°F (40°C) Certications:

• CARB *Ethanol content of 10% or less. DO NOT use E15 or E85. UPDATES The latest User Manual for your Westinghouse generator can be found under our support tab. https:// westinghouseoutdoorpower.com/pages/manuals Or scan the following QR code with your smartphone camera to be directed to the link. NOTICE This product is designed and rated for continuous operation at ambient temperatures up to 104°F (40°C). If needed, this product can be operated at temperatures ranging from 5°F (15°C)–122°F (50°C) for short periods. If the product is exposed to temperatures outside of this range during storage, it should be brought back within this range before operation. This product must ALWAYS be operated outdoors in a well-ventilated area and far away from doors, windows, and other vents. Maximum wattage and current are subject to and limited by such factors as fuel BTU content, ambient temperature, altitude, engine conditions, etc. Maximum power decreases about 3.5% for each 1,000 feet above sea level, and will also decrease about 1% for each 10°F (6°C) above 60°F (16°C) ambient temperature. PRODUCT REGISTRATION For trouble-free warranty coverage, it is important to register your Westinghouse generator. You can register by:

• Completing and mailing the product registration card included in the carton.

• Registering your product online at: https://westinghouseoutdoorpower.com/pages/ warranty-registration

• Scan the following QR code with your smartphone camera to be directed to the mobile registration link.

• Sending the following product information to: Westinghouse Outdoor Power Warranty registration 777 Manor Park Drive Columbus, OH 43228 For Your Records Date of Purchase: Model Number: Serial Number: Place of Purchase: IMPORTANT: Keep your purchase receipt for trouble-free warranty coverage.4 | Westinghouse Outdoor Power Equipment SAFETY SAFETY SAFETY DEFINITIONS The words DANGER, WARNING, CAUTION, and NOTICE are used throughout this manual to highlight important information. Make sure that the meanings of this safety information is known to all who operate, perform maintenance on, or are near the generator. This safety alert symbol appears with most safety statements. It means attention, become alert, your safety is involved! Read and abide by the message that follows the safety alerts symbol. Indicates a hazardous situation which, if not avoided, will result in death or serious injury. Indicates a hazardous situation which, if not avoided, could result in death or serious injury. Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE Indicates a situation which can cause damage to the generator, personal property, and/or the environment, or cause the equipment to operate improperly. Note: Indicates a procedure, practice or condition that should be followed for the generator to function in the manner intended. SAFETY SYMBOLS Follow all safety information contained in this manual and on the generator. Symbol Description Safety Alert Symbol Electrocution Hazard Asphyxiation Hazard Burn Hazard. DO NOT touch hot surfaces. Electrical Shock Hazard Fire Hazard Maintain Safe Distance Lifting Hazard Read Manufacturer’s Instructions DO NOT Operate in Wet Conditions Ground. Consult with electrician to determine grounding requirements before operation.Westinghouse Outdoor Power Equipment | 5 SAFETY SAFETY INSTRUCTIONS NOTICE Install battery-powered carbon monoxide detectors or plug-in carbon monoxide detectors with battery back-up in living areas. Fire and electrocution hazard. DO NOT connect to a building’s electrical system unless the generator and transfer switch have been properly installed and the electrical output has been veried by a qualied electrician. The connection must isolate the generator power from utility power and must comply with all applicable laws and electrical codes. Electrocution hazard. NEVER use the generator in a location that is wet or damp. NEVER expose the generator to rain, snow, water spray, or standing water while in use. Protect the generator from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit.6 | Westinghouse Outdoor Power Equipment SAFETY

GENERAL SAFETY PRECAUTIONS

• NEVER use the generator to power medical support equipment.

• DO NOT operate the generator when you are tired or under the inuence of drugs, alcohol, or medication.

• DO NOT use generator with electrical cords which are worn, frayed, bare, or otherwise damaged.

• All electrical tools and appliances operated from this generator must be properly grounded by use of a third wire or be double-insulated.

• When this generator is used to supply a building wiring system the generator must be installed by a qualied electrician and connected to a transfer switch as a separately derived system in accordance with NFPA 70, National Electrical Code.

• If you begin to feel sick, dizzy, or weak while using the generator, move to fresh air IMMEDIATELY. See a doctor, as you can have carbon monoxide poisoning.

• Only use OUTSIDE and far away from windows, doors, and vents as recommended by the US Department of Health and Human Services Centers for Disease Control and Prevention. Your specic home and/or wind conditions may require additional distance.

• While operating and storing, keep at least ve feet of clearance on all sides of the generator, including overhead. Allow the generator to cool a minimum of 30 minutes before storage. Heat created by the mufer and exhaust gases could be hot enough to cause serious burns and/or ignite combustible objects.

• DO NOT touch the mufer or engine. They are very HOT and will cause severe burns. DO NOT put body parts or any ammable or combustible materials in the direct path of the exhaust.

• ALWAYS remove any tools or other service equipment used during maintenance away from the generator before operating.

• Avoid skin contact with engine oil or gasoline. Wear protective clothing and equipment. Wash all exposed skin with soap and water.

• A transfer switch must be installed by a licensed electrician approved by the authority having jurisdiction. The installation must comply with all applicable laws and electrical codes. FUEL SAFETY

• Store fuel in a container approved for gasoline.

• Shut down the engine and allow it to cool for two minutes before adding gasoline or oil to the generator.

• NEVER remove the fuel cap when the generator is running. Shut off the engine and allow the unit to cool at least two minutes. Remove the fuel cap slowly to release pressure, keep fuel from escaping around the cap, and to avoid the heat from the mufer igniting fuel vapors. Tighten the fuel cap securely after refueling.

• Wipe spilled fuel from the unit.

• NEVER attempt to burn off spilled fuel.

• NEVER overll the fuel tank. Leave room for fuel to expand. Overlling the fuel tank can result in a sudden overow of gasoline and result in spilled gasoline coming in contact with HOT surfaces.

• Spilled fuel can ignite. If fuel is spilled on the generator, wipe up any spills immediately. Dispose of rag properly. Allow area of spilled fuel to dry before operating the generator.

• Wear eye protection while refueling.

• NEVER use gasoline as a cleaning agent.

• Store any containers containing gasoline or in a well- ventilated area, away from any combustibles or source of ignition. GASOLINE AND GASOLINE VAPOR (GAS) Fire and explosion hazard. Gasoline and is highly explosive and ammable and can cause severe burns or death.

• In case of a gas re, DO NOT attempt to extinguish the ame if the fuel tank valve is in the ON position. Introducing an extinguisher to a generator with an open fuel valve could create an explosion hazard.

• Gas has a distinctive odor, this will help detect potential leaks quickly.

• Gas vapors can cause a re if ignited.

• Gasoline is a skin irritant and needs to be cleaned up immediately if it comes in contact with the skin.

• Flammable gas under pressure can cause a re or explosion if ignited. When starting the generator:

• Make sure that the fuel cap, air lter, spark plug, fuel lines, and exhaust system are properly in place.

• If you spill any gasoline on the tank, allow it to fully evaporate before operating.

• Make sure the generator is on a at surface before operating.

• When transporting or servicing the generator:

• Disconnect the spark boot to prevent accidental starting. When storing the generator:

• Store away from sparks, open ames, pilot lights, heat, and other sources of ignition.Westinghouse Outdoor Power Equipment | 7 SAFETY LABELS SAFETY8 | Westinghouse Outdoor Power Equipment CO SENSOR The CO Sensor monitors for the accumulation of poisonous carbon monoxide gas around the generator when the engine is running. If increasing levels of CO gas are detected, the CO Sensor automatically shuts down the engine. The CO Sensor will also detect the accumulation of carbon monoxide from other fuel burning sources used in the area of operation. For example, if the exhaust of fuel burning tools is pointed at a CO Sensor-equipped generator, a shut-off may be initiated due to rising CO levels. This is not an error. Hazardous carbon monoxide has been detected. Move and redirect any additional fuel burning sources to dissipate carbon monoxide away from personnel and occupied buildings. Note: Remote start-equipped generators must be restarted with the START/STOP button on the control panel after an automatic shut-down occurs. Generators are intended to be used outdoors, far from occupied buildings and the exhaust pointed away from personnel and buildings. If misused and operated in a location that results in the accumulation of CO, like in a partially enclosed area, the CO Sensor shuts off the engine, noties the user with a RED indicator light, and directs the user to read the Action Label for steps to take. The CO Sensor DOES NOT replace carbon monoxide alarms. Install battery-powered carbon monoxide alarm(s) in your home. Automatic shutoff accompanied with a ashing RED light in the CO Sensor portion of the control panel is an indication that the generator was improperly located. If you start to feel sick, dizzy, weak, or carbon monoxide detectors in your home indicate an alarm, get to fresh air immediately. Call emergency services. You may have carbon monoxide poisoning. ACTION LABEL

Color Description RED Carbon monoxide accumulated around the generator. After shut-off, the RED indicator light in the CO Sensor area of the control panel will ash to provide notication that the generator was shut-off due to an accumulating CO hazard. The RED light will ash for at least ve minutes after a CO shut-off. Move the generator to an open, outdoor area far away from occupied spaces with exhaust pointed away. Once relocated to a safe area, the generator can be restarted. Introduce fresh air and ventilate the area where the generator had shut down. YELLOW A CO sensor system fault occurred. When a system fault occurs, the generator is automatically shut down and the YELLOW indicator light in the CO auto-shutoff area of the control panel will ash to provide notication that the a fault has occurred. The YELLOW light will ash for at least ve minutes after a fault. The generator can be re-started, but may continue to shutoff. A CO sensor fault can only be diagnosed and repaired by an authorized Westinghouse service center. SAFETYWestinghouse Outdoor Power Equipment | 9 COMPONENTS

automatically start the engine. Push again to stop the engine.

2. Battery Switch: Turns battery ON and OFF. Must be

ON before electric or remote start.

3. Data Center: Toggle to show voltage, frequency,

total hour meter, and run/maintenance timer.

4. Main Circuit Breaker: The main circuit breaker

controls total output of all outlets to protect the generator from overload or short circuit.

5. Voltage Selector Switch: Select 120 Volts or 240

Volts. Shut the generator OFF before switching voltages.

Receptacle can supply a maximum of 30 Amps.

the current that can be delivered through the NEMA 5-20R receptacles to 20 Amps.

10. 30 Amp AC Circuit Breaker: Circuit breaker limits

the current that can be delivered through the TT- 30R receptacle to 30 Amps.

11. Ground Terminal: The ground terminal is used to

externally ground the generator.

12. Smart Switch Outlet: Connects the Westinghouse

ST Switch (sold separately) to the control panel.

13. Battery Charging Port: Used to charge the battery

with the included battery charger.

14. Battery Indicator: Indicates that power is ON. Light

will remain illuminated while the unit is ON.

15. CO Sensor indicator lights: The CO Sensor

monitors for the accumulation of poisonous carbon monoxide gas. If increasing levels of CO gas are detected, the CO Sensor automatically shuts down the engine. DATA CENTERRun Time/Maintenance: Displays current run time. Resets to zero when shut down. Maintenance reminder displayed when required. Frequency (Hz): Displays power output frequency in Hertz.

Voltage: Displays current voltage output.Lifetime Hours: Displays the lifetime run hours. Mode Button METER V-F-T Maintenance Codes:P25: Change engine oilP50: Clean air filter, Change engine oilP100: Change engine oil,clean air filter, replace fuel filter Push the Mode button to cycle throughthe data display modes.10 | Westinghouse Outdoor Power Equipment GENERATOR COMPONENTS Oil drain bolt Oil dipstick/ filler neck Fuel cap Fuel gauge Muffler/spark arrestor Carbon canister Carburetor Alternator cover Control panel Recoil Starter Air filter Fuel tank valve Spark plug Serial number Choke lever Battery COMPONENTSWestinghouse Outdoor Power Equipment | 11 ASSEMBLY CARTON CONTENTS Weight hazard. ALWAYS have assistance when lifting the generator. 1. Carefully open the carton.2. Remove and save the carton contents.3. Remove and discard the packing tray.4. Unfold the top of the plastic bag enclosing the generator.5. Carefully cut the vertical corners of the carton to access the generator.6. Recycle or dispose of the packaging materials properly. CARTON CONTENTS

• User manual• Quick Start Guide• Bottle of SAE 10W-30 oil • Spark plug wrench • Wrench• Battery charger• Oil Funnel• Wheel and mounting foot components:Item Quantity• Mounting foot 2• Flange bolt, M8 4• Wheel 2• Axle pin 2• Washer 2• Cotter pin 2If any parts are missing, contact our service team at service@wpowereq.com or call 1-855-944-3571.

INSTALL FEET AND WHEELS

NOTICE Assembling the generator will require lifting the unit on one side. Install the mounting feet and wheel before adding fuel or oil. 1. Place generator on a at surface.2. Tip the generator on a piece of cardboard or other soft material to protect the frame paint and prevent the generator from sliding. 3. With the included wrench, install the mounting feet to the frame as shown. Mounting footBolt, M84. Install the wheels as shown. Axle pinWheelCotter pinWasherNote: The wheels are only intended for hand transport. The wheels are not suitable for towing the generator either on or off-road. ASSEMBLY12 | Westinghouse Outdoor Power Equipment

THIS GENERATOR HAS BEEN SHIPPED WITHOUT

OIL. DO NOT attempt to crank or start engine before it has been properly serviced with recommended oil. Failure to add engine oil before starting will result in serious engine damage. The included, recommended oil type for typical use is 10W-30 engine oil. If running the generator in extreme temperatures, refer to the following chart.

1. On a level surface, remove the oil dipstick.

2. Using the supplied funnel and oil, add oil into oil ller

neck. Note: As residual oil from the factory may remain in the engine, add the oil incrementally near the end of the bottle to prevent overlling the engine. See Engine Oil Level Check in the Maintenance section.

3. Wipe the oil dipstick clean. Replace the oil dipstick and

hand-tighten. FUEL Fire and explosion hazard. NEVER use a gasoline container, gasoline tank, or any other fuel item that is broken, cut, torn or damaged. Fire and explosion hazard. DO NOT overll fuel tank. Fill only to the red ll ring located in the in-tank fuel screen lter. Overlling may cause fuel to spill onto engine causing a re or explosion hazard. Fire and explosion hazard. NEVER refuel the generator while the engine is running. ALWAYS turn the engine off and allow the generator to cool for two minutes before refueling. NOTICE DO NOT use E15 or E85 fuel in this product. Engine or equipment damage caused by stale fuel or the use of unapproved fuels (such as E15 or E85 ethanol blends) is not covered by warranty. Only use unleaded gasoline containing up to 10% ethanol. FUEL REQUIREMENTS

• CLEAN, FRESH, unleaded gasoline, 87–93 octane.

• Up to 10% ethanol (gasohol) is acceptable (where available; non-ethanol fuel is recommended).

• DO NOT use E85 or E15.

• DO NOT use a gas oil mix.

• DO NOT modify the engine to run on alternate fuels.

• DO NOT fuel indoors.

• DO NOT create a spark or ame while fueling. ASSEMBLYWestinghouse Outdoor Power Equipment | 13

USING FUEL STABILIZER

Adding a fuel stabilizer (not included) extends the usable life of fuel and helps prevent deposits from forming that can clog the fuel system. Follow the manufacturer’s instructions for use. ALWAYS mix the correct amount of fuel stabilizer to gasoline in an approved gasoline container before fueling the generator. Run the generator for ve minutes to allow the stabilizer to treat the entire fuel system.

FILLING THE FUEL TANK

1. Turn the generator OFF and allow to cool for a minimum

of two minutes before fueling.

2. Place the generator on level ground in a well-ventilated

3. Clean area around fuel cap and remove the cap slowly.

NOTICE Only ll the tank from an approved gasoline container. Make sure the gasoline container is internally clean and in good condition to prevent fuel system contamination.

4. Slowly add the recommended fuel. DO NOT overll. Fill

only to the red maximum ll ring on the fuel screen lter visible in the ller neck.

5. Install the fuel cap.

NOTICE Fuel can damage paint and plastic. Use caution when lling the fuel tank. Damage caused by spilled fuel is not covered under warranty. NOTICE Clean the fuel screen lter of debris before and after each fueling. Remove the fuel screen lter by slightly compressing it while removing it from the fuel tank.

A quick-connect battery plug is pre-installed on the battery. Remove the cable tie securing the plugs then push rmly to connect them. Quick-Connect Plug Note: The generator is equipped with a battery charging feature. Once the engine is running, a small charge will slowly recharge the battery. ASSEMBLY14 | Westinghouse Outdoor Power Equipment OPERATION GENERATOR LOCATION Read and understand all safety information before starting the generator. NEVER operate the generator inside any building, including garages, basements, crawlspaces, sheds, enclosure, or compartment, including the generator compartment of a recreational vehicle. Electrocution hazard. NEVER use the generator in a location that is wet or damp. NEVER expose the generator to rain, snow, water spray, or standing water while in use. Protect the generator from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit. Using a generator or electrical appliance in wet conditions, such as rain or snow, or near a pool or sprinkler system, or when your hands are wet, could result in electrocution Fire hazard. Only operate the generator on a solid, level surface. Operating the generator on a surface with loose material such as sand or grass clippings can cause debris to be ingested by the generator that could block cooling vents or the air intake system. Allow the generator to cool for 30 minutes before transport or storage. The generator should be on a at, level surface at all times (Even while not in operation). The generator must have at least 5 ft. (1.5 m) of clearance from all combustible material. DO NOT operate the generator in the back of a SUV, camper, trailer, truck bed (regular, at, or otherwise), under stairs, next to walls or buildings, or in any other location that will not allow for adequate cooling of the generator and/or the mufer. DO NOT contain generators during operation. Asphyxiation hazard. Place the generator in a well- ventilated area. DO NOT place the generator near vents or intakes where exhaust fumes could be drawn into occupied or conned spaces. Carefully consider wind and air currents when positioning the generator. GROUNDING Shock hazard. Failure to properly ground the generator can result in electric shock. The generator neutral is oating. The generator ground terminal is connected to the frame of the generator, the metal non-current-carrying parts of the generator, and the ground terminals of each receptacle. The generator (stator winding) is isolated from the frame and from the AC receptacle ground pin. Electrical devices that require a grounded receptacle pin connection may not function properly. If this generator will be used only with cord and plug equipment connected to the receptacles mounted on the generator, National Electric Code does not require that the unit be grounded. However, other methods of using the generator may require grounding to reduce the risk of shock or electrocution. Before using the ground terminal, consult a qualied electrician, electrical inspector, or local agency having jurisdiction for local codes or ordinances that apply to the intended use of the generator. NOTICE Only use grounded 3-prong extension cords, tools, and appliances, or double-insulated tools and appliances.

HIGH ALTITUDE OPERATION

Engine power is reduced the higher you operate above sea level. Output will be reduced approximately 3.5% for every 1000 feet of increased altitude from sea level. High altitude adjustment is required for operation at altitudes over 2000 ft. (762 m). Operation without this adjustment will cause decreased performance, increased fuel consumption, and increased emissions. NOTICE DO NOT operate the generator at altitudes below 2,000 ft. (762 m) with the high altitude kit installed. Engine damage may occur. High Altitude Carburetor Kit: Part# 518965 OPERATIONWestinghouse Outdoor Power Equipment | 15

VOLTAGE SELECTOR SWITCH

The 120V/240V selector switch gives the user the ability to double the amperage in the generator for more demanding applications. The voltage selector switches the dual 120V AC windings of the generator to produce 120V or 240V. If a 240V appliance is connected to the 4-prong L14-30R receptacle, the switch must be in the “240V” position. The 120V only outlets will not output power when the Voltage Selector is in the 240V position. Only change the Voltage Selector Switch with the generator OFF. DO NOT switch the voltage while the generator is running or powering appliances. BREAK-IN PERIOD For proper break-in, DO NOT exceed 50% of the rated running watts (2650 watts) during the rst ve hours of operation. Vary the load occasionally to allow stator windings to heat and cool and help seat the piston rings.

• The generator is placed in a safe, appropriate location.

• The generator is on a dry, at, and level surface.

• The engine is lled with oil.

• All loads are disconnected. Fire and explosion hazard. DO NOT move or tip the generator during operation.

1. Verify that fuel is in the gas tank.

2. Verify voltage selector switch is in the desired vo

3. Turn the fuel selector switch on the control panel to

4. Turn the fuel tank valve to the ON position.

Note: If cold starting, move the choke lever to the ON position.

5. Choose the starting method:

a. Push-Button Start: Push and hold the engine START/STOP switch for two seconds. Note: Remote start-equipped generators must be restarted with the START/STOP button on the control panel after an automatic shut-down occurs. b. Recoil Start: Manually close the choke if the engine is cold. Firmly grasp and pull the recoil handle slowly until you feel increased resistance, then pull rapidly.

6. After starting, allow the engine to run for several seconds

then move the Choke lever to the fully OFF position.

1. Turn off and unplug all connected electrical loads.

IMPORTANT: NEVER start or stop the generator with electrical devices connected.

2. Let the generator run with no load for several minutes to

stabilize internal temperatures of the engine.

3. Push the Run/Stop switch to the Stop position.

Note: Alternately, if the generator is used infrequently, turn the fuel tank valve to the OFF position to limit the residual fuel remaining in the carburetor oat bowl. The engine will stop when fuel in the carburetor and fuel line is exhausted.

If the generator will be used on an infrequent or intermittent basis (more than one month before next use), refer to the Storage section of this manual for information regarding fuel deterioration. OPERATION16 | Westinghouse Outdoor Power Equipment

The circuit breakers will automatically switch OFF if there is a short circuit or a signicant overload of the generator at each receptacle. If an AC circuit breaker switches OFF automatically, check that the appliance is working correctly and it does not exceed the rated load capacity of the circuit before resetting the AC circuit breaker ON. GENERATOR CAPACITY NOTICE DO NOT overload the generator’s capacity. Exceeding the generator’s wattage/amperage capacity can damage the generator and/or electrical devices connected to it. Make sure the generator can supply enough continuous (running) and surge (starting) watts for the items you will power at the same time. The total power requirements (Volts x Amps = Watts) of all appliances connected must be considered. Appliance and power tool manufacturers usually list rating information near the model or serial number. To determine power requirements:

1. Select the items you will power at the same time.

2. Total the continuous (running) watts of these items. This

is the amount of power the generator must produce to keep the items running. See the wattage reference chart.

3. Estimate how many surge (starting) watts you will need.

Surge wattage is the short burst of power needed to start electric motor-driven tools or appliances such as a circular saw or refrigerator. Because not all motors start at the same time, total surge watts can be estimated by adding only the item(s) with the highest additional surge watts to the total rated watts from step 2. Example: Tool or Appliance Running Watts* Starting Watts* RV Air Conditioner (11,000 BTU) 1010 1600 TV (at screen) 120 235 RV Refrigerator 180 600 Radio 200 0 Light (75 Watts) 300 0 Coffee Maker 600 0 Totals 2410 Total Running Watts* 2410 Highest Starting Watts* + 1600 Total Starting Watts Needed 4010 *Wattages listed are approximate. Verify actual wattage. POWER MANAGEMENT To prolong the life of the generator and attached devices, use care when adding electrical loads to the generator. There should be nothing connected to the generator outlets before starting the engine. The correct and safe way to manage generator power is to sequentially add loads as follows:

1. With nothing connected to the generator, start the

engine as described in this manual.

2. Plug in and turn on the rst load, preferably the largest

smoothly and attached device operates properly).

4. Plug in and turn on the next load.

5. Again, permit the generator to stabilize.

6. Repeat steps 4 and 5 for each additional load.

Miter Saw (10”) 1800 1800 Table Saw (10”) 2000 2000 *Wattages listed are approximate. Verify actual wattage. EXTENSION CORDS Asphyxiation hazard. Extension cords running directly into the home increase the risk of carbon monoxide poisoning through any openings. If an extension cord running directly into your home is used to power indoor items, there is a risk of carbon monoxide poisoning to people inside the home. ALWAYS use battery-powered carbon monoxide detector (s) that meet current UL 2034 safety standards when running the generator. Regularly check the detector (s) battery. Asphyxiation hazard. When operating the generator with extension cords, make sure the generator is located in an open, outdoor area, far away from occupied spaces with exhaust pointed away. Fire and electrocution hazard. NEVER use worn or damaged extension cords. Damaged or overloaded extension cords could overheat, arc, and burn resulting in death or serious injury. Before connecting an AC appliance or power cord to the generator:

• Use grounded 3-prong extension cords, tools, and appliances, or double-insulated tools and appliances.

• Make sure the tool or appliance is in good working order. Faulty appliances or power cords can create a potential for electric shock.

• Make sure the electrical rating of the tool or appliance does not exceed the rated power of the generator or the receptacle being used.

EXTENSION CORD SIZING

Only use grounded 3-prong extension cords marked for outdoor use that are rated for the electrical load. TRANSPORTING Weight hazard. ALWAYS have assistance when lifting the generator.

• Allow the generator to cool a minimum of 30 minutes before transporting.

• Replace all protective covers on the generator control panel.

• Only use the generator’s xed frame to lift the unit or attach any load restraints such as ropes or tie-down straps. DO NOT attempt to lift or secure the generator by holding onto any of its other components.

• Keep the unit level during transport to minimize the possibility of fuel leakage or, if possible, drain the fuel or run the engine until the fuel tank is empty before transport. OPERATION18 | Westinghouse Outdoor Power Equipment MAINTENANCE Fire hazard. DO NOT up-end the generator or place it on its side. Fuel or oil can leak and damage to the generator may occur. Accidental start-up. Disconnect the spark plug boot from the spark plug when performing maintenance on the generator. MAINTENANCE SCHEDULE Regular maintenance will improve performance and extend the service life of the generator. Follow the hourly or calendar intervals, whichever occurs rst. More frequent service is required when operating in adverse conditions as noted below. Before Each Use Check engine oil After First 25 Hours or First Month Change engine oil After 50 Hours or Every 6 Months Change engine oil

After 100 Hours or Every 6 Months Inspect/clean spark arrestor Inspect/clean spark plug Fuel valve maintenance Inspect/adjust valve clearance

Change oil every month when operating under heavy load or in high temperatures.

Clean more often under dirty or dusty conditions. Replace air lter if it cannot be adequately cleaned.

Recommend service to be performed by authorized Westinghouse service dealer. MAINTENANCE REMINDERS Maintenance reminder codes will be shown on the Data Display based on unit Lifetime Hours. The maintenance codes will be displayed until the unit is turned off. Refer to the Maintenance section for specic procedures. Maintenance Code Required Maintenance P25 Change engine oil P50

• Fuel valve maintenance

• Inspect/adjust valve clearance

MAINTENANCE REPLACEMENT PARTS

The air lter must be cleaned after every 50 hours of use or six months (frequency should be increased if the generator is operated in a dusty environment).

1. Place the generator on a level surface and allow the

engine to cool for several minutes.

2. Release the clips and remove the air lter cover.

3. Clean the air lter with compressed air. Replace if

4. Make sure the air lter and rubber cap are correctly

installed. Install the air lter cover and secure it in place with the cover clips. MAINTENANCEWestinghouse Outdoor Power Equipment | 19 MAINTENANCE

ENGINE OIL LEVEL CHECK

Avoid skin contact with engine oil. Wear protective clothing and equipment. Wash all exposed skin with soap and water. NOTICE ALWAYS use the specied engine oil. Failure to use the specied engine oil can cause accelerated wear and/or shorten the life of the engine. When using the generator under dirty, dusty conditions or in extremely hot weather, change the oil more frequently. Ambient air temperature will affect engine oil performance. Change the type of engine oil used based on weather conditions. Check the engine oil level before each use or every 8 hours of operation.

1. Place the generator on a level surface and allow the

engine to cool for several minutes.

2. With a damp rag, clean around the oil dipstick.

3. Remove the oil dipstick and wipe the dipstick clean.

4. Insert the dipstick into the oil ller neck without screwing

it in. Remove the dipstick and verify that the oil level is within safe operating range between the low (L) and high (H) marks on the dipstick. Safe Operating Range

5. If low, add recommended engine oil incrementally and

recheck until the level is between the L and H marks on the dipstick. DO NOT overll. If over the H mark on the dipstick, drain the oil to reduce the oil level to the full mark.

6. Replace the oil dipstick and hand-tighten.

When using the generator under dirty, dusty conditions or in extremely hot weather, change the oil more frequently. Change the oil while the engine is still warm from operation.

1. Place the generator on a level surface and allow the

engine to cool for several minutes.

2. With a damp rag, clean around the oil dipstick. Remove

the dipstick and wipe clean.

3. Place an oil pan (or suitable container) under the oil

4. Using a 10mm wrench, remove the oil drain bolt and

allow the oil the to drain. Drain bolt Oil pan

5. Install the oil drain bolt and tighten securely.

Note: A new oil drain plug crush washer is recommended at each oil change.

6. Slowly pour oil into the oil ller neck until oil the level

is between the L and H marks on the dipstick. Stop frequently to check the oil level. DO NOT overll. Maximum oil capacity: 0.74 Quart (0.7 Liter)

7. Install the oil dipstick and hand-tighten.

NOTICE DO NOT pollute. Follow the guidelines of the EPA or other governmental agencies for proper disposal of hazardous materials. Consult local authorities or reclamation facility.20 | Westinghouse Outdoor Power Equipment MAINTENANCE

SPARK PLUG MAINTENANCE

Inspect and clean the spark plug after every 100 hours of use or six months. Replace the spark plug after 300 hours of use or every year. NOTICE ALWAYS use the Westinghouse OEM or compatible non-resistor-type spark plug. Use of resistor-type spark plug can result in rough idling, misre, or may prevent the engine from starting.

1. Place the generator on a level surface and allow the

2. Remove the spark plug boot by rmly pulling the spark

boot directly away from the engine.

3. Clean the area around the spark plug.

4. Remove the spark plug with the included spark plug

pitted, burned, or the insulator is cracked. Only use a recommended replacement plug.

6. Measure the spark plug electrode gap with a wire-type

feeler gauge. If necessary, correct the gap by carefully bending the side electrode. Spark plug gap: 0.024 – 0.032 in. (0.60 – 0.80 mm)

7. Carefully install the spark plug nger tight, then tighten

as additional 3/8 to 1/2 turn with the spark plug wrench.

Allow the mufer to cool completely before servicing the spark arrestor. Check and clean the spark arrestor after every 100 hours of use or six months. Failure to clean the spark arrestor will result in degraded engine performance.

1. Place the generator on a level surface.

2. Remove the two screws from the mufer outlet with an

8mm wrench and pull spark arrestor out of the mufer.

3. Carefully remove the carbon deposits from the spark

arrestor screen with a wire brush. The spark arrestor must be free of breaks and tears. Replace the spark arrestor if damaged.

4. Reinstall the spark arrestor.

BATTERY REPLACEMENT Keep battery terminals covered at all times. The generator is shipped with a lithium ion (Li-Ion) battery. Exposed metal positive and negative terminals can short-circuit when they come into contact with metal objects, igniting the cell’s internal materials and forcibly expelling burning contents, resulting in res, explosions, serious injuries and even death.

1. Loosen and remove the bolts securing the battery hold-

down plate and remove the plate.

2. Disconnect the quick-connect plugs and remove the

battery from the unit.

3. Disconnect the quick-disconnect cable leads from theWestinghouse Outdoor Power Equipment | 21

4. On the replacement battery, connect the white (-) quick-

connect cable to the battery negative terminal. Slide the rubber boot over the connection hardware.

5. Connect the red (+) quick-connect cable to the battery

positive terminal. Slide the rubber boot over the connection hardware.

6. Install the battery into the generator. Reinstall the battery

hold-down plate and tighten the bolts.

7. Connect the quick-connect plug.

STORAGE Proper storage preparation is required for trouble-free operation and generator longevity. NOTICE Gasoline stored for as little as 30 days can deteriorate, causing gum, varnish, and corrosive buildup in fuel lines, fuel passages, and the engine. This corrosive buildup restricts the ow of fuel, which can prevent the engine from starting after a prolonged storage period. The use of fuel stabilizer signicantly increases the storage life of gasoline. Full-time use of fuel stabilizer is recommended. Follow the manufacturer’s instructions for use.

STORAGE TIME RECOMMENDED PROCEDURE

Less than 1 month No service required. 2 to 6 months Fill with fresh gasoline and add gasoline stabilizer. Drain the carburetor oat bowl. 6 months or longer Drain the fuel tank and carburetor oat bowl.

• Allow the generator to cool a minimum of 30 minutes before storage.

• Replace all protective covers on the generator control panel.

• Wipe the generator with a moist cloth. Clean any debris from the mufer cooling vents.

• Store the generator in a well-ventilated, dry location away from sparks, open ames, pilot lights, heat, and other sources of ignition such as areas with a spark- producing electric motor or where power tools are operated.

• DO NOT store the generator, or gasoline near furnaces, water heaters, or any other appliances that produce heat or have automatic ignitions.

• With the engine and exhaust system cool and all surfaces dry, cover the generator to keep out dust. DO NOT use a plastic sheet as a dust cover. Non-porous materials trap moisture and promote rust and corrosion.

Even properly stabilized fuel can leave residue and cause corrosion if left long term. If storing the generator for two to six months, drain the oat bowl to prevent gum and varnish buildup in the carburetor.

DRAINING THE FLOAT BOWL

1. Turn the fuel tank valve to the OFF position.

2. Locate the drain screw on the bottom of the carburetor

oat bowl. Drain screwFloat bowl

3. Place an appropriate gasoline container under the drain

screw to catch the drained fuel.

4. Loosen the oat bowl drain screw and allow the fuel to

drain. Tighten the oat bowl drain screw.

DRAINING THE FUEL TANK

If storing the generator for longer than six months, drain the fuel tank to prevent fuel separation, deterioration, and deposits in the fuel system.

1. Unscrew the fuel tank cap. Remove the fuel screen lter

by slightly compressing it while removing it from the tank.

2. Using a commercially available gasoline hand pump

(not included), siphon the gasoline from the fuel tank into an approved gasoline container. DO NOT use an electric pump.

3. Reinstall the fuel screen lter and the fuel tank cap.

4. Start the generator and allow it to run until the generator

5. Push the Run/Stop switch to the Stop position.

6. Remove the spark plug.

7. Put a teaspoon of engine oil into the cylinder and pull the

recoil handle until resistance is felt. At this position the piston is coming up on its compression stroke and both valves are closed. Storing the engine in this position will help prevent internal corrosion. Return the recoil handle MAINTENANCE22 | Westinghouse Outdoor Power Equipment gently.

8. Reinstall the spark plug. Leave the spark plug boot

disconnected to prevent accidental starting.

FUEL VALVE MAINTENANCE

The fuel valve is equipped with a fuel sediment cup, screen, and o-ring. The fuel valve does not require servicing if the unit is properly maintained with fresh, clean fuel. If fuel- related troubleshooting is required, perform fuel valve maintenance.

1. Allow the generator to cool completely.

2. Turn the fuel valve to the OFF position.

3. Remove the sediment cup from the fuel valve. Remove

the o-ring and screen. Fuel valveScreenO-ring Cup

4. Wash the sediment cup, o-ring, and screen in a

nonammable solvent. Dry thoroughly.

5. Place the screen and o-ring into the fuel valve. Install

the sediment cup and tighten securely.

6. Turn the fuel valve to the ON position and check for

leaks. Replace the fuel valve if there is any leakage.

7. Turn the fuel valve to the ON position and check for

leaks. Replace the fuel valve if there is any leakage. VALVE CLEARANCE NOTICE Checking and adjusting valve clearance must be done when the engine is cold.

1. Remove the rocker arm cover and carefully remove

the gasket. If the gasket is torn or damaged, it must be replaced.

2. Remove the spark plug so the engine can be rotated

3. Rotate the engine to top dead center (TDC) by pulling

the recoil handle slowly. Looking through the spark plug hole, the piston should be at the top (both valves are closed).

4. Both the rocker arms should be loose at TDC on the

compression stroke. If they are not, rotate the engine 360°.

5. Insert a feeler gauge between the rocker arm and the

7. Turn the rocker arm pivot to obtain the specied

clearance. Hold the rocker arm pivot and re-tighten the pivot adjusting nut to the specied torque. Torque: 106 inch-pound (12 N•m)

8. Perform this procedure for the other valve.

9. Install the gasket, rocker arm cover, and spark plug.Westinghouse Outdoor Power Equipment | 23

TROUBLESHOOTING TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE CORRECTION

Engine will not startBattery switch in the OFF position. Turn battery switch to the ON position.Out of fuel. Refuel.Bad fuel, generator stored without treating or draining gasoline, or refueled with bad gasoline.Drain the fuel tank. Refuel with fresh gasoline. Dirty air lter. Clean the air lter. Low engine oil level stopped generator.If low oil LED illuminated, turn battery switch to the OFF position. Add engine oil. Spark plug wet with fuel (ooded engine).Wait ve minutes. Turn battery switch to the OFF position. Pull recoil handle rapidly several times. If the generator does not start, remove spark plug and dry. Spark plug faulty, fouled, or improperly gapped. Gap or replace the spark plug. Reinstall.Fuel lter restricted, fuel system malfunction, fuel pump failure, ignition malfunction, valves stuck, etc. Contact Westinghouse customer service toll-free at 1 (855) 944-3571.Battery drained. Use the recoil handle to start the generator.Charge the battery.Choke partially open or closed due to weak or disconnected battery.Manually set the choke. See Maintenance section.CO sensor removed or modied Return to original congurationCO sensor activated or system fault occurredRelocate generator/ Contact Westinghouse customer service toll free at 1 (855) 944-3571.Engine starts, then shuts downOut of fuel. Refuel.Incorrect engine oil level. Check engine oil level. Dirty air lter. Clean the air lter. Contaminated fuel. Drain the fuel tank. Refuel with fresh gasoline.Defective low oil level switch.Contact Westinghouse customer service toll-free at 1 (855) 944-3571.Engine lacks powerAir lter restricted. Clean or replace air lter.Bad fuel, generator stored without treating or draining gasoline, or refueled with bad gasoline.Drain the fuel tank. Refuel with fresh gasoline. Fuel lter restricted, fuel system malfunction, fuel pump failure, ignition malfunction, valves stuck, etc. Contact Westinghouse customer service toll-free at 1 (855) 944-3571.Engine runs rough or bogs when load appliedDirty air lter. Clean the air lter. Generator overloaded. Unplug some devices.Faulty power tool or appliance.Replace or repair tool or appliance. Stop and restart the engine. Fuel lter restricted, fuel system malfunction, fuel pump failure, ignition malfunction, valves stuck, etc. Contact Westinghouse customer service toll-free at 1 (855) 944-3571.No power at AC receptaclesAC circuit breaker/s tripped. Check AC loads and reset circuit breaker/s.Faulty power tool or appliance.Replace or repair tool or appliance. Stop and restart the engine. Faulty generator. Contact Westinghouse customer service toll-free at 1 (855) 944-3571. TROUBLESHOOTING24 | Westinghouse Outdoor Power Equipment

EXPLODED VIEWSWestinghouse Outdoor Power Equipment | 25 EXPLODED VIEWS

15.4 90003 NUT26 | Westinghouse Outdoor Power Equipment

17.2 240910 LOCATING PINWestinghouse Outdoor Power Equipment | 27

GENERATOR EXPLODED VIEW

EXPLODED VIEWS28 | Westinghouse Outdoor Power Equipment EXPLODED VIEWS

5.2 527611 HANDLE MOUNTING BOLT

11.7 91619 BOLT M6X140Westinghouse Outdoor Power Equipment | 29

LA SEGURIDAD38 | Westinghouse Outdoor Power Equipment

ENTRETIENWestinghouse Outdoor Power Equipment | 77 ENTRETIEN

PROBLÈME CAUSE POSSIBLE CORRECTION
