Brand	Westinghouse
Model	WSolar60p
Product Type	Portable Solar Battery Charger
Peak Power	60 W
Cell Efficiency	23 %
Supply Voltage	14.85 V
Supply Current	4.04 A
Open Circuit Voltage	18.8 V
Short Circuit Current	5.06 A
USB 1 Output	5 V / 2.4 A
USB 2 Output (QC3.0)	5 V / 2.4 A, 9 V / 2 A, 12 V / 1.5 A
DC Output	14.85 V / 60 W
Dimensions (Folded)	45.7 x 29.2 x 5.1 cm
Dimensions (Unfolded)	105.4 x 45.7 x 2.5 cm
Operating Temperature	-10 to 65 °C
Package Contents	Solar panel, power cord, user manual
Care and Cleaning	Clean with a damp cloth, do not immerse in water
Safety	Do not use near water, do not bend, do not expose connected devices to direct sunlight
Warranty	24 months limited
Compatibility	Westinghouse portable power stations and other devices via compatible plugs

Frequently Asked Questions - WSolar60p WESTINGHOUSE

How do I charge my power station with this solar panel?

Unfold the panel on a flat surface, connect the provided power cord to the panel, then plug the compatible connector into your power station. Orient the panel towards the sun using the built-in kickstand for optimal angle.

Can I use this solar panel in cloudy weather?

Yes, but the output power will be reduced. Optimal performance is achieved in sunny weather. A cloudy day can lower the generated power.

What should I do if the panel is not charging?

Check the cord connections, make sure the panel is properly oriented towards the sun, and that the connected devices are compatible. If the problem persists, contact Westinghouse customer service at 855-944-3571.

How do I clean the solar panel?

Clean the panel by gently wiping with a damp cloth. Do not use running water or submerge the panel. Avoid corrosive materials.

What types of devices can I charge?

You can charge Westinghouse portable power stations via the DC port, as well as USB devices via USB 1 (5V/2.4A) and USB 2 QC3.0 (5V/2.4A, 9V/2A, 12V/1.5A).

Is the panel waterproof?

No, the solar panel is not waterproof. Do not expose it to rain, immerse it in water, or allow contact with liquids.

Can I fold the panel for storage?

Yes, the panel folds for storage and transport. Folded dimensions are 45.7 x 29.2 x 5.1 cm. Be careful not to fold it sharply or over sharp objects.

What is the warranty on this product?

The product is covered by a limited 24-month warranty from the date of purchase, covering manufacturing and material defects. Damage due to misuse is not included. Contact Westinghouse at 855-944-3571.

Can I use this panel to charge a car battery?

No, it is not recommended to directly charge a car battery with this panel. The manual explicitly advises against it. Use only with compatible power stations or USB devices.

How to optimize solar charging?

Place the panel on a flat surface, tilt it towards the sun using the rear kickstand, and avoid shading the cells. In cloudy weather, charging will be reduced. Do not leave connected devices in direct sunlight to avoid overheating.

USER MANUAL WSolar60p WESTINGHOUSE

Thank you for choosing Westinghouse! PLEASE READ BEFORE RETURNING THIS PRODUCT FOR ANY REASON.

If you have a question or experience a problem with your Westinghouse purchase, call us at 855-944-3571 to speak with an service representative.

TABLE OF CONTENTS

ABOUT THE SOLAR PANEL 2

GENERAL SAFETY RULES 3

PACKAGE CONTENTS 4

SPECIFICATIONS 4

USERINSTRUCTIONS 5

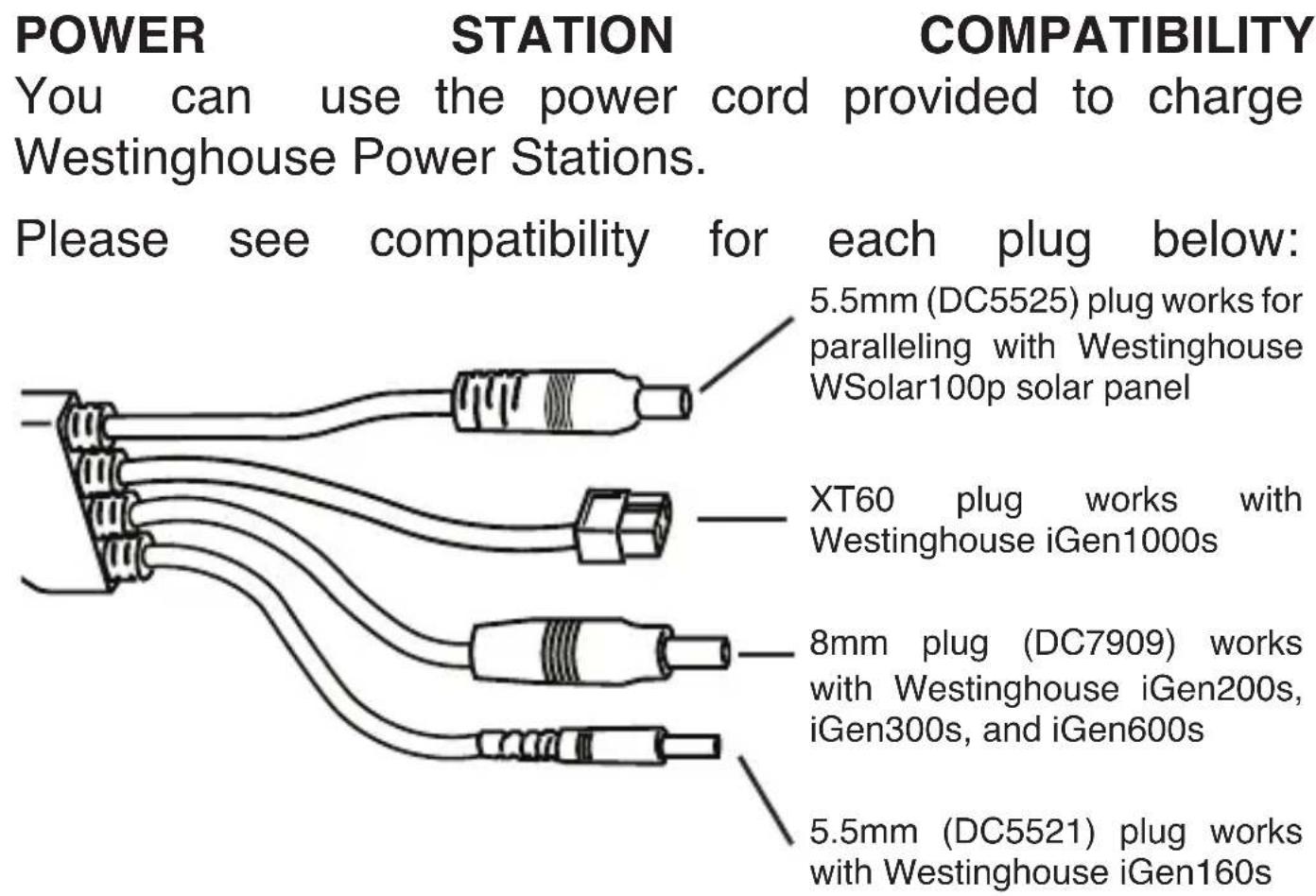

POWER STATION COMPATIBILITY 6

WARRANTY 6

ESPANOL 7

FRANÇAIS 13

DISCLAIMERS

All information, illustrations, and specifications in this manual were in effect at the time of publishing. The illustrations used in this manual are intended as representative reference views only. We reserve the right to make any specification or design change without notice.

ALL RIGHTS RESERVED

All rights reserved. No reproduction allowed in any form without written permission from Westinghouse, Inc.

ABOUT THE SOLAR PANEL

Thank you for purchasing the WSolar60p Portable Solar Panel. Use this solar panel to charge your Westinghouse portable power stations at home or on the go. Before using this solar panel, please read the user manual carefully. Keep it for reference.

Westinghouse Outdoor Power Equipment - 2

ATTENTION: This manual is to help you use the product correctly. Pictures and figures used in this manual are for reference only.

DANGER

Read this manual before using this product. Failure to follow the instructions and safety precautions in this manual can result in damage to the product or personal property, or serious injury or death. DO NOT use the product with incompatible components or alter the product in any way.

GENERAL SAFETY RULES

CAUTION

• SOLAR PANELS ARE NOT WATERPROOF
• DO NOT parallel with any other solar panels outside of the specified models in this manual
  DO NOT charge automotive battery directly
• DO NOT let the solar panels or cord come in contact with corrosive materials
• DO NOT attempt to disassemble the cord or solar panel in any way
  DO NOT step on or pierce the solar panel with any sharp objects
  DO NOT put the solar panel near any open flames
  DO NOT clean the solar panel with water
• Properly clean the panel by gently scrubbing with a wet cloth
  DO NOT immerse the solar panel or cord in water
  DO NOT bend the solar panel
• DO NOT let the devices you are charging to be in direct sunlight or they will overheat and potentially damage them

Westinghouse Outdoor Power Equipment - 3

PACKAGE CONTENTS

60 Watt Solar Panel

Power Cord

User Manual

SPECIFICATIONS

Model WSolar60p
Peak Power 60W
Cell Efficiency 23%
Power Voltage 14.85V
Power Current 4.04A
Open Circuit Voltage 18.8V
Short Circuit Current 5.06A
USB Output 1 5V/2.4A
USB Type-C Output (PD45W) 5V/3A, 9V/3A, 12V/1.5A,
DC Output 14.85V/60W
Dimensions Folded: 18in x 11.5in x 2in Unfolded: 41.5in x 18in x 1in
Operating Temp -10-65	°C | 14-149°F

USERINSTRUCTIONS

Please note: power generated by the solar panel is dependent on weather. A sunny day will allow for optimal performance. A cloudy day may lessen the power output.

1. Unfold the solar panel on a flat surface

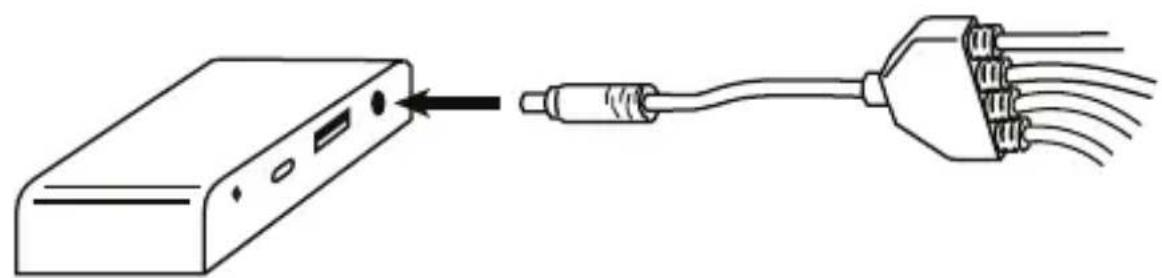

2. Unzip the pocket on the back of the solar panel and plug in the cord provided. Be sure to use the correct end of the power cord as shown below.

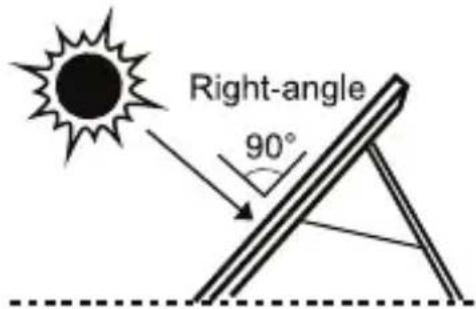

1. Using the legs attached to the back of the solar panel, angle the panel so it is at a 90^ angle to the sun. See illustration below:

Westinghouse Outdoor Power Equipment - 5

WARRANTY

The product is covered by a limited warranty from Westinghouse Outdoor Power Equipment for the original purchaser that covers the product from defects in workmanship and materials for 24 months from the date of purchase (damages from normal wear and tear, alteration, misuse, neglect, accident, service by anyone other than authorized service center, or act of God are not included.) Please contact Westinghouse Outdoor Power Equipment service at [phone].

Westinghouse Outdoor Power Equipment - 6

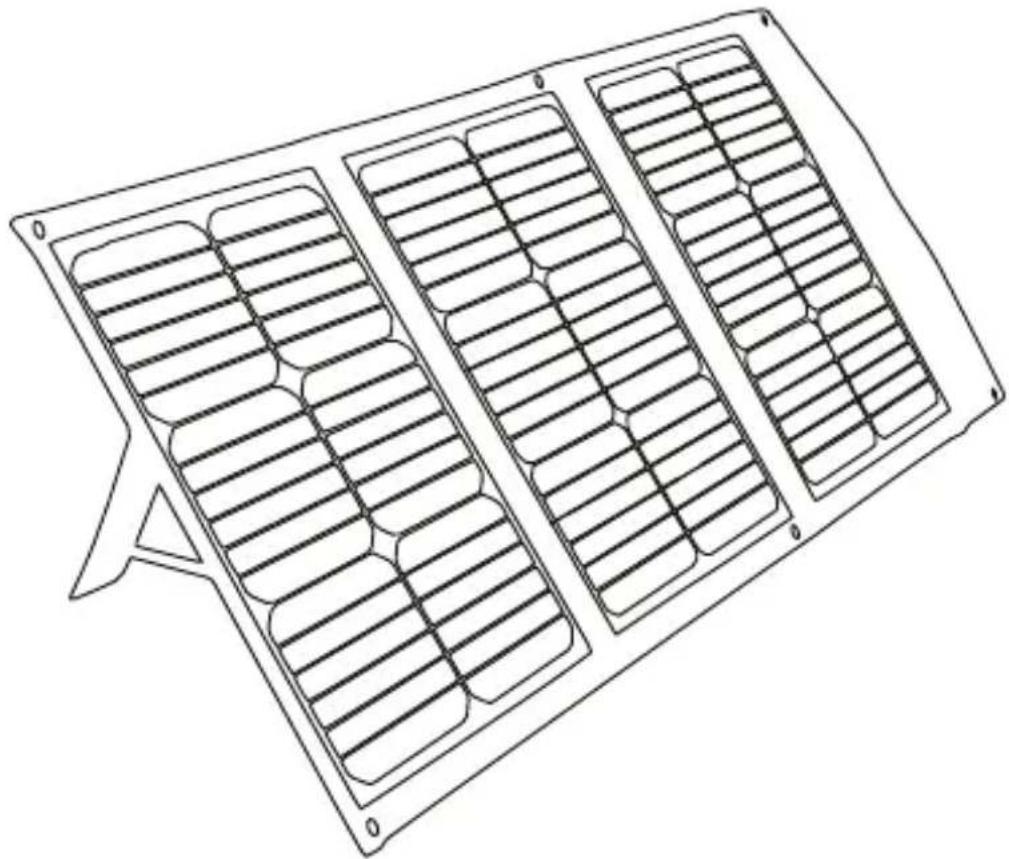

MANUAL DE USUARIO

WSolar6Op

Westinghouse Outdoor Power Equipment - 8

ATENCLION!

Westinghouse Outdoor Power Equipment - 11

COMPATIBILIDAD CENTRAL ELECTRICA

El enchufe de 8 mm (DC7909) funciona con
Westinghouse iGen200s, iGen300s e iGen600s

El enchufe de 5,5 mm (DC5521) funciona con Westinghouse iGen160s

GARANTÍA

Westinghouse Outdoor Power Equipment - 12

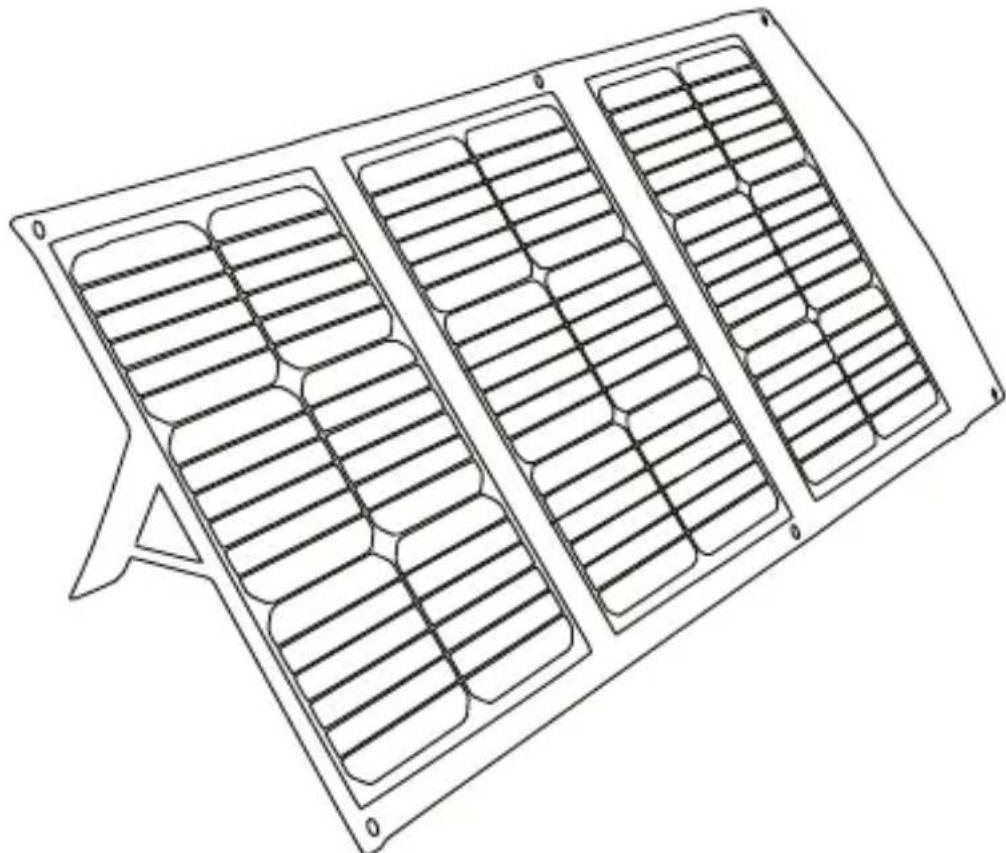

MANUEL DE L'UTILISATEUR

WSolar6Op

Westinghouse Outdoor Power Equipment - 8

Westinghouse Outdoor Power Equipment - 9

CONTENU DU COLIS

Westinghouse Outdoor Power Equipment - 11

COMPATIBILITÉ DES CENTRALES ÉLECTRIQUES

Westinghouse Outdoor Power Equipment - 12

WestinghouseOutdoorPower.com

Service Hotline: [phone]

777 Manor Park Drive Columbus, OH 43228
