USER MANUAL RKO9974 ThùyDenise SUNTEC

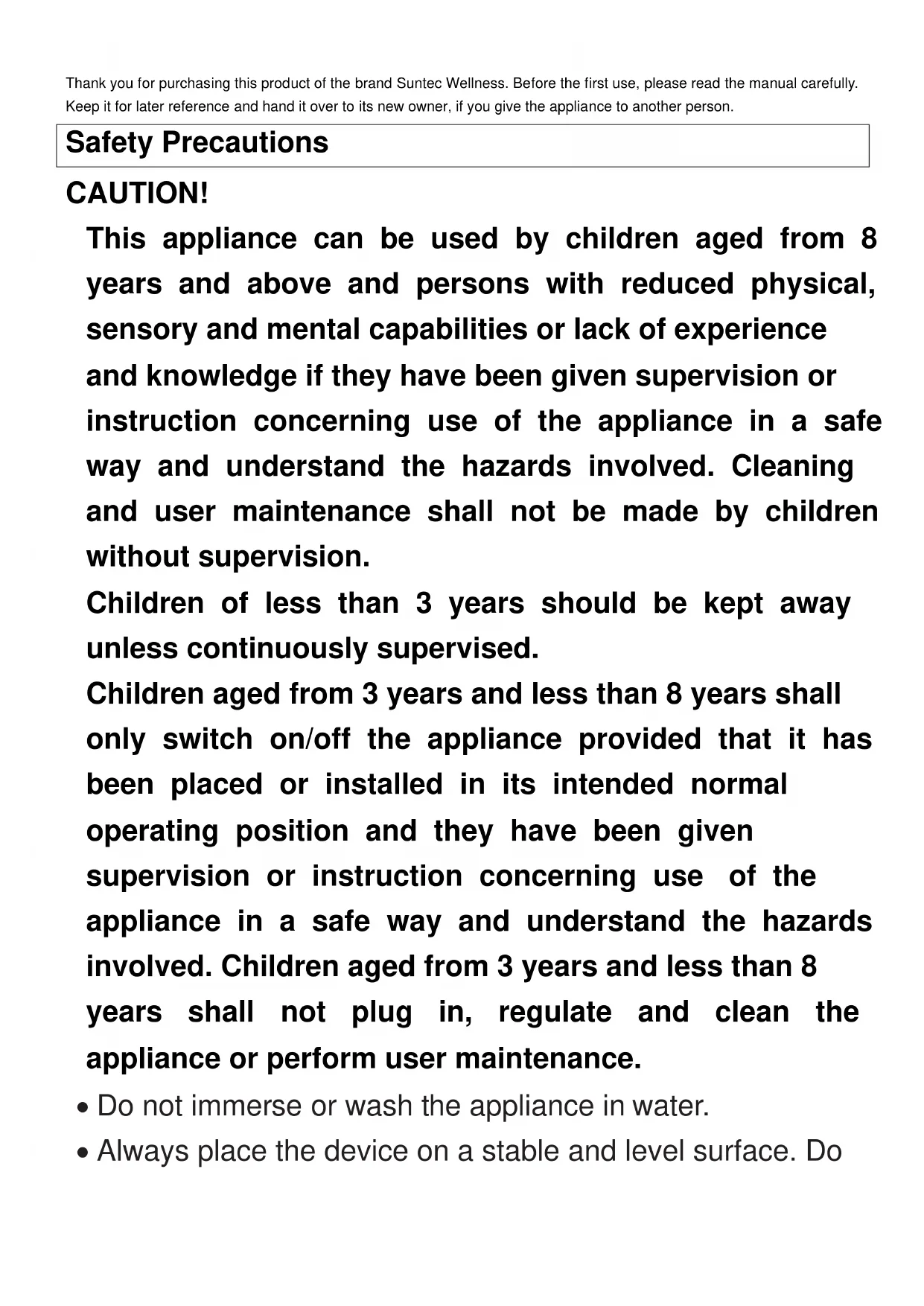

RKO-9974 SUNTEC WELLNESS GMBH / HOLZSTRASSE 2 / 40 221 DÜSSELDORF / DEUTSCHLANDRice cooker RKO-9974 Thùy-Denise Instruction ManualThank you for purchasing this product of the brand Suntec Wellness. Before the first use, please read the manual carefully. Keep it for later reference and hand it over to its new owner, if you give the appliance to another person. Safety Precautions CAUTION! This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• Do not immerse or wash the appliance in water.

• Always place the device on a stable and level surface. Donot place it in wet areas or near other thermal sources.

• Keep the surfaces of the cooker pot and electric hot plate clean and dry.

• Do not touch the cooker lid while the device is cooking and turning hot.

• Unplug the power plug, before taking out the cooker pot.

• Keep the appliance away from children.

• Unplug the appliance when not in use or during cleaning. Never yank cord to disconnect from power outlet; instead grasp the plug and pull it to disconnect. Allow the appliance to cool before installing or taking off parts.

• Do not place cloth on the lid while cooking.

• This appliance is not for outdoor use.

• The cooker pots of other brands will not suit this cooker.

• Do not let cord hang over edge of the table or counter, or touch hot surfaces.

• Do not place on or near hot gas, electric burner or heated oven.

• Always attach the plug to the cooker first, then plug the cord into the wall outlet. To disconnect, turn the control to “WARM” then remove the plug from the wall outlet.

• Do not use appliance for other purpose than the intended use.

• During “Warm” function on, do not switch back to “RiceCooking”. Do not attempt to lock the switch in the “Rice Cooking” position.

• Do not operate with a damaged cord or when the appliance is dropped or damaged. To avoid an electric shock, do not disassemble or repair the appliance yourself. Return the appliance to your point of sale.

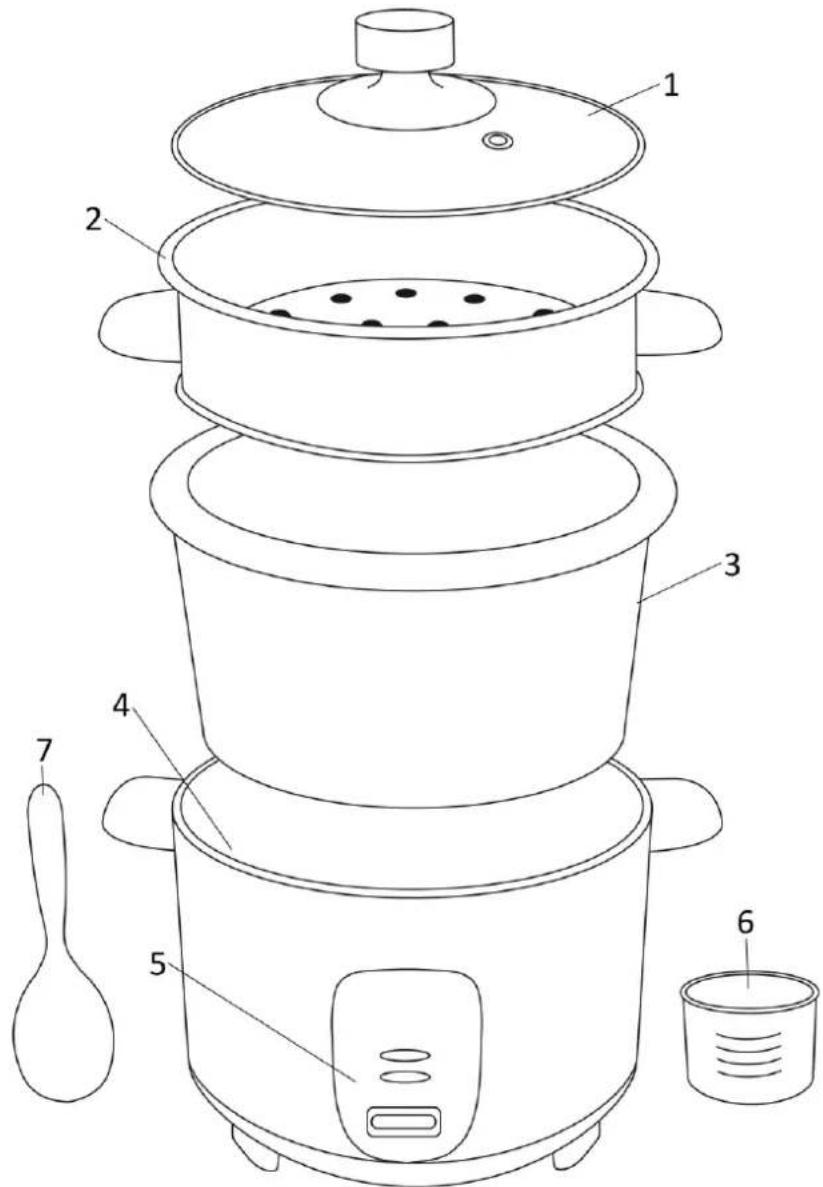

• For household use only. Components

4. Base with heating plate

5. Control panel with indicators

7. SpatulaInstallation and first use

1. Measure the rice you need and wash it. A cup of rice requires approximately one cup of water.

2. Please put the rice into the inner pot. Rotate the inner pot slightly several times so that the bottom of the cooker

pot contacts well with the hot plate.

3. Close the lid and ensure that the lid is connected well with the shell.

4. Please plug the power cable into the rice cooker and connect the power supply.

5. Press the rice cooking switch and the rice cooking indicator will be turned on, which indicates that the cooking

6. When cooking is finished, the rice cooking switch auto trips. The warm keeping indicator will be turned on which

indicates that the warm keeping has started.

7. Use the spatula included with the rice cooker to scoop out the rice.

8. Unplug the power plug after use to reduce power consumption.

1. Add enough water into the inner pan. Place the inner pan into the unit, making sure the surface of the pan is

wiped dry and placed properly inside the cooker.

2. Place food to be steamed in the steaming plate. Place the steaming plate on top of the inner pan. Cover with the

3. Plug in to supply. Press switch lever to “RICE COOKING” to start steaming.

4. When water evaporates, the unit automatically switches to “WARM” function. From here on, check the food

periodically. When the food is cooked, turn the unit OFF by unplugging from supply outlet.

5. You may reheat rice using the steaming plate. To reheat, place the cold rice on the steaming plate (No need to

add water). Proceed to instructions 2 and 3 and unplug unit when rice is warmed. Cleaning and maintenance

1. After each use, wash the inner pan, the steaming plate, the lid, the measuring cup and the spatula in warm and

soapy water. Do not use scouring powder or brush for washing. Avoid deforming or denting the bottom of the inner pan.

2. If rice has cooked onto the bottom of the inner pan, fill the pan with hot soapy water and let it stand for about 10

minutes. Scour the cooked rice using the spatula.

3. Clean exterior with cloth soaked in warm, soapy water then wipe with a dry cloth. Do not use chemicals or abrasive

cleaners.TROUBLE CAUSE TROUBLESHOOTING

The indicator is off The hot plate is not hot. The power cord of the appliance is not inserted firmly. Check whether the switch, the fuse of the power plug, the socket, the power cable are normal. Ensure that the power plug is connected successfully. The hot plate is hot

• The cable to the indicator or the voltage dropping resistor becomes loose.

• The indicator or the voltage dropping resistor is damaged. Please contact your reseller.

The hot plate is not hot 1.The internal cable becomes loose 2.The hot plate is damaged Please contact your reseller.

The rice is undercooked or the cooking time is too long.

1. The braising time is not long

enough. 2.The electric hot plate is deformed. 3.The cooker pot is not placed evenly. 4.There are foreign particles between the inner pot and electric hot plate. 5.The shape of inner pot is deformed.

1. Braise the rice as required.

2. Please contact your reseller.

3. Rotate the inner pot slightly.

4. Remove foreign object

5. Please contact your reseller.

The rice is overcooked

1. The rice-cooking switch or the

switch rod is abnormal.

2. The magnetic temperature limiter is

abnormal. Please contact your reseller.

The rice cannot warm automatically. The auxiliary heater is damaged. Please contact your reseller.

Electricity leaks on the body. Slight electric shocks can be felt The water flows to the electrical parts of the unit. Please contact your reseller. In case of complaint

• You can claim the device within 24 months from date of purchase (receipt).

• A free replacement or repair will be excluded from prior improper product handling.

• Defects in wear parts, consumables, as well as cleaning, maintenance or replacement of said parts are thereforewith costs.

• If you want to make a complaint, please bring the entire device in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website www.suntec-wellness.de and learn more.

• Without a proof of purchase, generally there will be no repair or replacement.

• In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing defects will be eliminated by repair or, at our discretion, replacing the unit.

• The damage of accessories does not automatically lead to a free exchange of the whole device. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts are always to charge.

Warranty-Card For this appliance we assure 24 months warranty. During the 24 months warranty we guarantee to repair your appliance free of charge or to provide your seller the spare parts free of charge if the appliance fails to work due to production failure. Other claims are excluded from this warranty. We will not be liable for any defects caused by acts of nature, improper use, neglection of the instruction manual, damage from continuous use and damages during transportation. This warranty card is only applicable with the according invoice. In case of service please bring your purchased product to your seller. Product name: Serial number: Name of buyer: Date of purchase: Stamp and signature of seller:
