USER MANUAL RISD3BC ROSIERES
RIS3BC-RISD3BC -RIFS4BV
EN INSTALLATION INSTRUCTIONS AND RECOMMENDATIONS FOR USING AND MAINTAINING CERAMIC HOT PLATES TOUCH CONTROL....6
FR INSTRUCTIONS POUR L'INSTALLATION ET CONSEILS D'UTILISATION ET D'ENTRETIEN PLAQUES DE CUISSON VITROCÉRAMQIUE TOUCH CONTROL....13
PL INSTRUKCJE DOTYCZĄCE INSTALACJI I ZALECENIA ODNOSZĄCE SIE DO UŻYTKOWANIA I KONSERWACJI CERAMICZNE PŁYTY GRZEJNE Z DOTYKOWYM PANELEM STEROWANIA....22


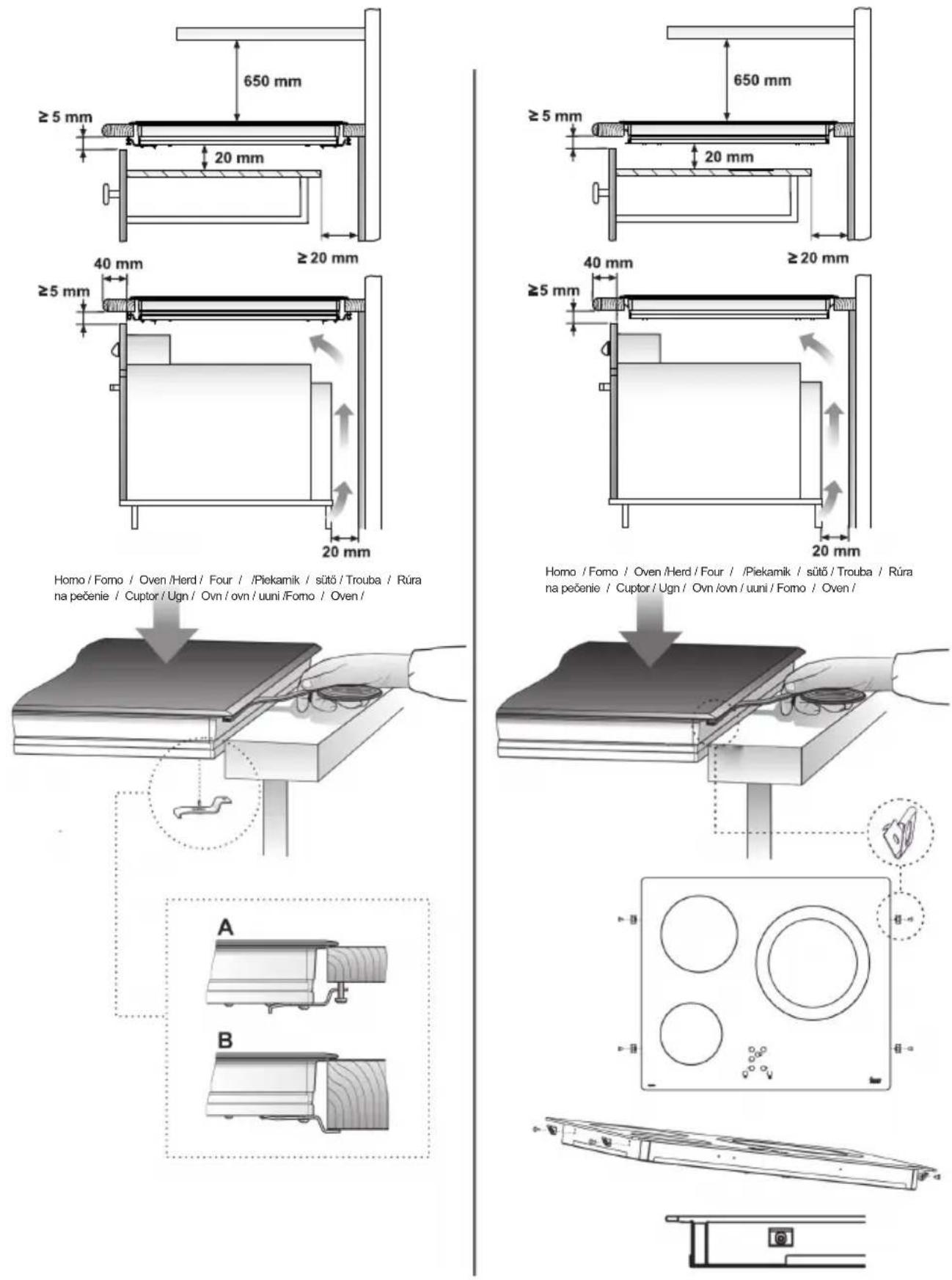

Pure electrical circuit lines without any symbolsInstallation / Montage

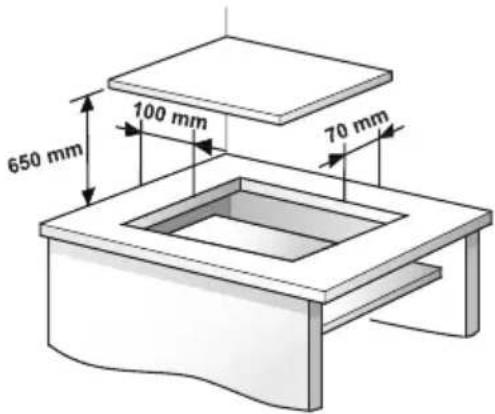

Minimum distances / Distances minimales


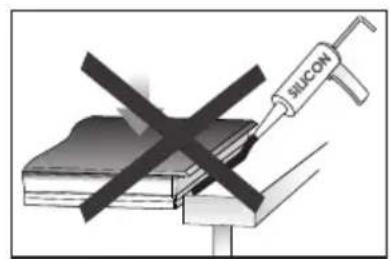

SILICON

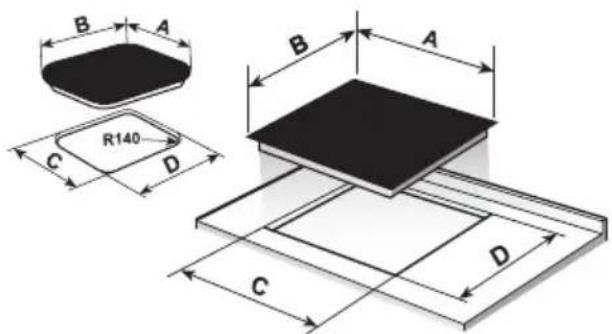

| A | B | C | D |
| 60551 | 5560490 | ||
| 60051 | 0560490 | ||
| 60043 | 5580415 | ||
| 80040 | 0780380 | ||
| 59051 | 0570490 | ||
| 90040 | 0860380 | ||
| 80051 | 0750490 |
STANDARD INSTALLATION SYSTEM FAST-CLICK SYSTEM
Homo / Fomo / Oven / Herd / Four / / Piekamik / sütö / Trouba / Rúra na pečenie / Cuptor / Ugn / Ovn / ovn / uuni / Fomo / Oven /
Homo / Fomo / Oven / Herd / Four / / Piekamik / sütő / Trouba / Rúra na pečenie / Cuptor / Ugn / Ovn / ovn / uuni / Fomo / Oven /
EN
Safety warnings:
⚠ Warning. If the ceramic glass breaks or cracks, immediately unplug the stovetop to avoid electric shocks.
⚠ This appliance is not designed to work with an external timer (not built into the appliance) or a separate remote control system.
⚠️ Do not steam clean this device.
⚠ Warning. The device and its accessible parts may heat up during operation. Avoid touching the heating elements. Children younger than 8 years old must stay away from the hob unless they are permanently supervised.
⚠ This device may solely be used by children 8 years old or older, people with impaired physical, sensory or mental abilities, or those who lack experience and knowledge, ONLY when supervised or if they have been given adequate instruction on the use of the device and understand the dangers its use involves. User cleaning and maintenance may not be done
by unsupervised children.
Children must not play with the device.
⚠ Warning. It is dangerous to cook with fat or oil without being present, as these may catch fire. NEVER try to extinguish a fire with water! In this event disconnect the device and cover the flames with a lid, a plate or a blanket.
⚠ Do not store any object on the cooking areas of the induction hob. Prevent possible fire hazards.
⚠ The induction generator complies with current EU legislation We however recommend that anyone fitted with a device such as a pacemaker should refer to their physician, or if in doubt abstain from using the induction areas.
⚠ Metal object such as knives, forks, spoons and lids may not be placed on the surface of the hob as they may overheat.
⚠️ After use always disconnect the hot plate, do not simply remove the pot or pan. Otherwise a malfunction may
occur if inadvertently another pot or pan is placed on it within the detection period. Prevent possible accidents!
⚠️ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.
⚠ WARNING: Use only stovetop protectors designed by appliance manufacturer or indicated by the manufacturer in the instructions for use as adequate or stovetop protectors incorporated into the device. The use of inadequate protectors can cause accidents.
⚠ It is necessary to allow the appliance disconnection after installation. Disconnection devices must be incorporated to the fixed electrical installation, according to the installation regulations.
Installation
Installation with cutlery drawer
If you wish to install furniture or a cutlery drawer under the hob, a separation board must be fitted between the two. Accidental contact with the hot surface of the device's housing is thus prevented.
The board must be fitted 20 mm beneath the under part of the stovetop.

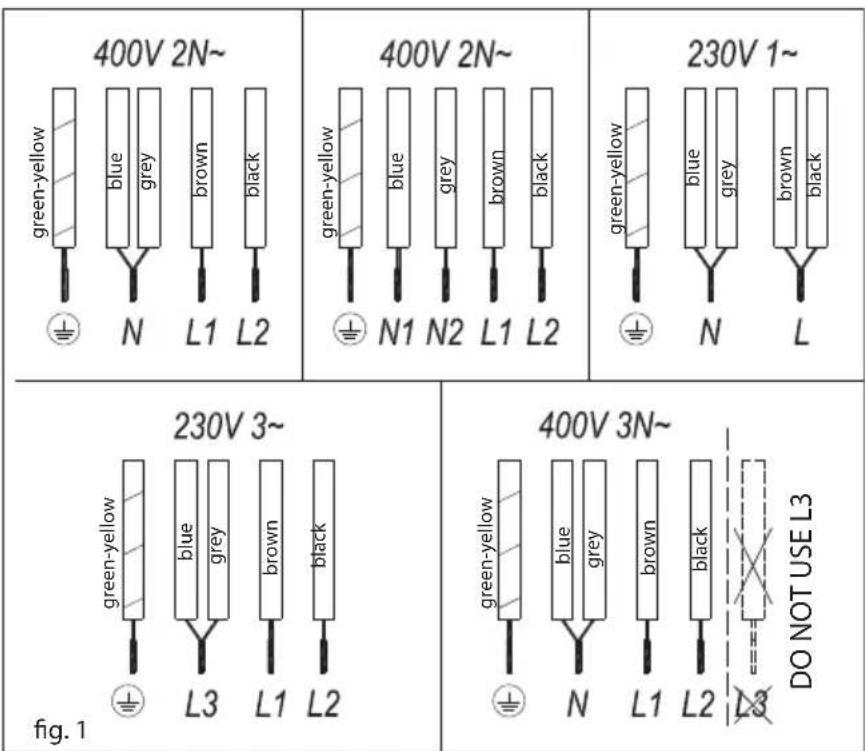

Electrical connection
Before you connect the stovetop to the mains, check that the voltage and frequency match those specified on the stovetop nameplate, which is underneath it, and on the Guarantee Sheet, or if applicable on the technical data sheet, which you must keep together with this manual throughout the product's service life.
Ensure that the inlet cable does not come into contact with the induction top housing or the oven housing, if it is installed in the same unit.
Warning:
The electrical connection must be properly grounded, following current legislation, otherwise the induction hob may malfunction.
Unusually high power surges can damage the control system (like with any electrical appliance).
It is advised to refrain from using the induction hob during the pyrolytic cleaning function in the case of pyrolytic ovens, due to the
high temperature that this type of device attains.
Only the official technical service can handle or repair the appliance, including replacement of the power cable.
Before disconnecting the hobb the mains, we recommend hing off the cutoff switch and ing for approximately 25 nds before disconnecting from nains. This time is required to for the complete discharge of electronic circuitry and thus lude the possibility of electric k from the cable terminals.
Keep the Guarantee Certificate or the technical data sheet together with the instructions manual throughout the product's service life. These contain important technical information.
Use and
Maintenance

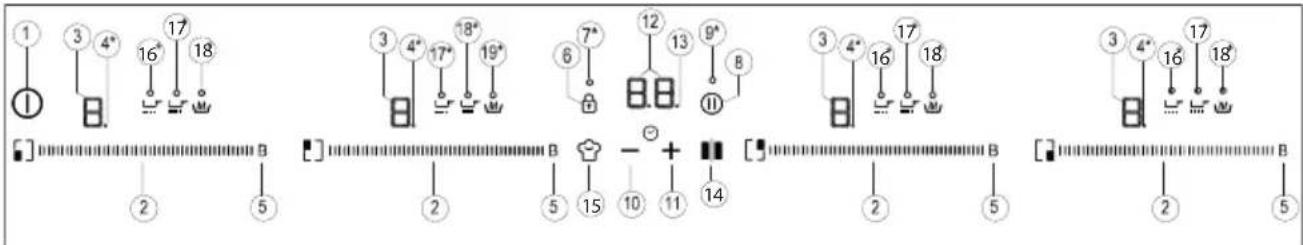

User instructions of the Touch Control
① General on/off sensor.
② Cursor slider for controlling power.
③ Power and/or residual heat indicator*.
④ Decimal dot of power and/of residual heat indicator.
⑤ Direct access to "Booster" function.
⑥ Activation sensor for "Child lock" function.
⑦ Pilot indicator light "Child lock" function activated*.
⑧ Activation sensor for "Pause" function.
⑨ Pilot indicator light "Pause" function activated*.
10 "Minus" sensor for timer.
⑪ "Plus" sensor for timer.
⑫ Timer indicator.
13 Decimal dot of the timer.*
14 Activation sensor for "Flexi Zone" function (depending on model).
15 Activation sensor for "Chef touch" functions (depending on model).
16 Pilot indicator light "Keep Warm" function activated* (depending on model).
⑰ Pilot indicator light" Melting" function activated* (depending on model).
18 Pilot indicator light "Simmering" function activated* (depending on model).
* Only visible while running.
The manoeuvres are done by means of the touch keys. You do not need to exert force on the desired touch key, you only need to touch it with your fingertip to activate the required function
Each action is verified by a beep.
Use the cursor slider (2) to adjust power levels (0 - 9) by sliding your finger over it. Sliding towards the right increases the value, whereas sliding towards the left decreases it.
It's also possible to directly select a power level by placing your finger directly on a desired point of the cursor slider (2)


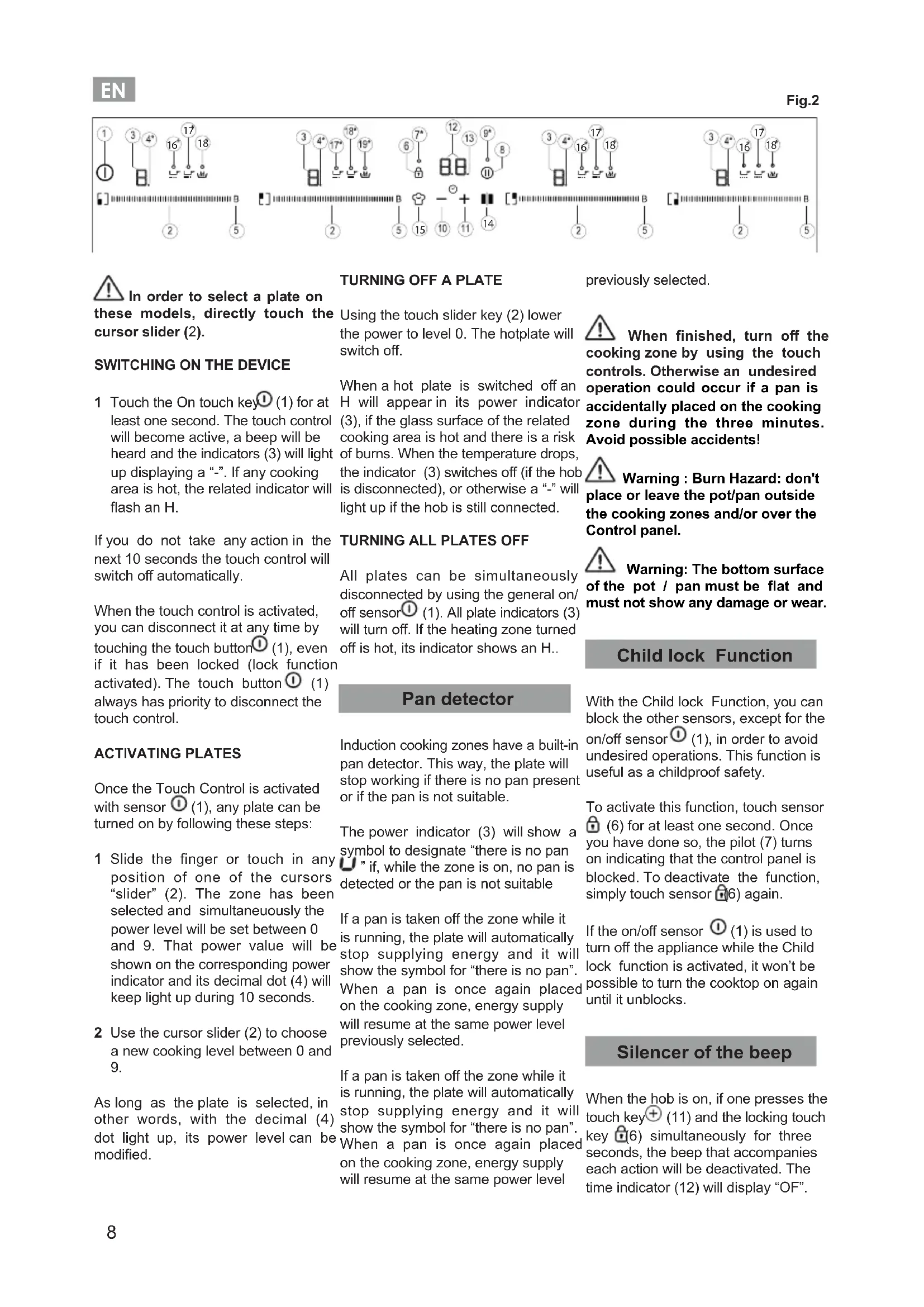

SWITCHING ON THE DEVICE
1 Touch the On touch key① (1) for at least one second. The touch control will become active, a beep will be heard and the indicators (3) will light up displaying a “-”. If any cooking area is hot, the related indicator will flash an H.
If you do not take any action in the next 10 seconds the touch control will switch off automatically.
When the touch control is activated, you can disconnect it at any time by touching the touch button (1), even if it has been locked (lock function activated). The touch button (1) always has priority to disconnect the touch control.
ACTIVATING PLATES
Once the Touch Control is activated with sensor ① (1), any plate can be turned on by following these steps:
1 Slide the finger or touch in any position of one of the cursors "slider" (2). The zone has been selected and simultaneously the power level will be set between 0 and 9. That power value will be shown on the corresponding power indicator and its decimal dot (4) will keep light up during 10 seconds.
2 Use the cursor slider (2) to choose a new cooking level between 0 and 9.
As long as the plate is selected, in other words, with the decimal (4) dot light up, its power level can be modified.
TURNING OFF A PLATE
Using the touch slider key (2) lower the power to level 0. The hotplate will switch off.
When a hot plate is switched off an H will appear in its power indicator (3), if the glass surface of the related cooking area is hot and there is a risk of burns. When the temperature drops, the indicator (3) switches off (if the hob is disconnected), or otherwise a “-” will light up if the hob is still connected.
TURNING ALL PLATES OFF
All plates can be simultaneously disconnected by using the general on/off sensor① (1). All plate indicators (3) will turn off. If the heating zone turned off is hot, its indicator shows an H..
Pan detector
Induction cooking zones have a built-in pan detector. This way, the plate will stop working if there is no pan present or if the pan is not suitable.
The power indicator (3) will show a symbol to designate "there is no pan U" if, while the zone is on, no pan is detected or the pan is not suitable
If a pan is taken off the zone while it is running, the plate will automatically stop supplying energy and it will show the symbol for "there is no pan". When a pan is once again placed on the cooking zone, energy supply will resume at the same power level previously selected.
If a pan is taken off the zone while it is running, the plate will automatically stop supplying energy and it will show the symbol for "there is no pan". When a pan is once again placed on the cooking zone, energy supply will resume at the same power level
previously selected.
When finished, turn off the cooking zone by using the touch controls. Otherwise an undesired operation could occur if a pan is accidentally placed on the cooking zone during the three minutes. Avoid possible accidents!
Warning : Burn Hazard: don't place or leave the pot/pan outside the cooking zones and/or over the Control panel.
Warning: The bottom surface of the pot / pan must be flat and must not show any damage or wear.
Child lock Function
With the Child lock Function, you can block the other sensors, except for the on/off sensor ① (1), in order to avoid undesired operations. This function is useful as a childproof safety.
To activate this function, touch sensor 🔒 (6) for at least one second. Once you have done so, the pilot (7) turns on indicating that the control panel is blocked. To deactivate the function, simply touch sensor 🔒(6) again.
If the on/off sensor Ⓐ (1) is used to turn off the appliance while the Child lock function is activated, it won't be possible to turn the cooktop on again until it unblocks.
Silencer of the beep
When the hob is on, if one presses the touch key (+) (11) and the locking touch key (6) simultaneously for three seconds, the beep that accompanies each action will be deactivated. The time indicator (12) will display "OF".
This deactivation will not be applied to all the functions, as for example the beep for on/off, the ending of the timer or the locking/unlocking of the touch keys always remain activated.
To once again activate all the beeps that accompany each action, again simultaneously press the touch key (+) (11) and the locking touch key 🔒 (6) for three seconds. The time indicator (12) will display "On"
Pause Function
This function puts the cooking process on pause. The timer will also be paused if it is activated.
Activating the Pause function.
Touch the Pause sensor ^⑪ (8) for one second. The pilot (9) lights up and the power indicators will show the symbol ^⑫ to indicate cooking has been paused.
Deactivating the Pause function
Touch Pause sensor ^⑪ (8) again. The pilot (9) turns off and cooking resumes under the same power and timer settings that were established before the pause.
Booster Function
This function supplies “extra” power to the plate, above the nominal value. Said power depends on the size of the plate, with the possibility of reaching the maximum value permitted by the generator.
1 Slide the finger above the corresponding cursor slider (2) until the power indicator (3) shows "9" and keep the finger pressed for one second, or touch directly on "B" and keep pressed the finger for one second.
2 The power level indicator (3) will show the symbol P, and the plate will start to supply extra power.
The Booster function has a maximum duration specified in Table 1. After this time, the power level will automatically adjust to 9. A beep sounds.
On activating the Booster function in one hotplate, it is possible that the performance of some of the others may be affected, reducing its power to a lower level, in which case this will be displayed on its indicator (3).
Deactivation of Booster Function, before its working time passes, can be done either by means of touching cursor "slider" modifying its power level or repeating step 3.
Timer Function (countdown clock)
This function facilitates cooking given that you don't have to be present: You can set a timer for a plate, and it will turn off once the desired time is up.
For these models, you can simultaneously program each plate for durations ranging from 1 to 90 minutes.
Setting a timer on a plate.
Once the power level is set on the desired zone, and while the decimal dot of the zone keeps on, the zone will be able to be timed.
To that end:
1 Touch sensor ⊖ (10) or ⓣ11). Timer Indicator (12) will show "00" and corresponding zone indicator (3) will show the symbol—blinking alternately with its current power level.
2 Immediately afterwards set a cooking time between 1 and 99 minutes, using the sensors ^(-) (10) & ^+ (11). With the first one the value will start at 60, whereas with the second it will start at 01. By keeping sensors ^(-) (10) & ^+ (11) pressed, the value will be restored to 00. When there is less than one minute left, the clock will begin to count down in seconds.
- When the timer indicator (12) stops flashing, it will start to count down the time automatically. The indicator (3) relating to the timed hotplate
will alternately display the selected power level and the symbol t.
Once the selected cooking time has elapsed, the heating zone being timed is turned off and the clock emits a series of beeps for several seconds.
To turn off the audible signal, touch any sensor. The timer indicator (12) will display a flashing 00 beside of the decimal dot (4) of the selected zone. If the heating zone turned off is hot, its power indicator (3) will display alternately the H symbol and a “-”.
If you wish to time another hotplate at the same time, repeat steps 1 to 3.
If one or more zones are already timed, the timer indicator (12) will show by default the shortest remaining time to finish, showing a "t" on the related zone. Rest of timed zones will show on their corresponding indicator zones the decimal dot blinking. When cursor "slider" of another timed zone is pressed, the timer will show the remaining time of that zone for a few seconds and its indicator will show its power level and the "t" alternately.
Changing the programmed time.
For modifying programmed time, cursor "slider" (2) of timed zone has to be pressed. Then it will be possible to read and modify the time.
Through sensors ⊖ (10) and ⊕(11), you can modify the programmed time.
Disconnecting the clock
If you wish to stop the clock before the programmed time is up, this can be done at any time by simply adjusting its value to ‘--’.
1 Select the desired plate.
2 Adjust the value of the clock to "00" by using the sensor ⊖ (10). The clock is cancelled. This can also be done more quickly by pushing the "sensors ⊖ (10) and ⊕ (11) at the same time.
Power Management function
All models are equipped with a power limiting function (Power Management).
EN
This function allows the total power generated by the hob to be set to different values selected by the user. To do this, for the first minute after having connected the hob to the power supply, it is possible to access the power limiting menu.
The Touch Control has special features that help the user to cook through the Chef touch sensor (15). These functions are available depending on the model. To activate a special feature on a zone:
To activate it, select the plate, and press on the Chef touch sensor (15) until the LED (17) located on the icon lights up. Once the function is activated, the symbol will appear on the power indicator (3).
1 Press the ⭕ (11) touch key for three seconds. The letter PL will appear on the timer indicator (12)
To activate a special feature on a zone:
You can override the function at any time by turning off the plate, by changing the power level or by choosing a different special function.
2 Press the locking touch key ⏻(6). The different power values to which the hob can be limited will appear and these can be changed using the ╗(11) and Ⓤ(10) sensors.
1 First it should be selected; and then, the decimal point (4) will be active on the power indicator (3).
2 Now click on the Chef touch sensor ⚙ (15). The sequentially successive presses will go over all the Cooking functions available in each zone one by one. These functions will show the activation with the corresponding leds (16), (17), (18).
SIMMERING FUNCTION (depending on the model)
This feature allows you to keep simmered.
3 Once the value has been selected, once again press the locking touch key 🔒 (6). The hob will be limited to the chosen power value.
If you want to cancel a special active function at any time, you should touch the "slider" cursor sensor (2) of the related zone to select it. The decimal point (4) of the power indicator (3) will light up. Then, touch again the "slider" (2) cursor to set a new power level or to power off the zone, or you can choose a different special function touching again on the Chef touch sensor ⚙ (15).
After the food is boiled, enable the plate by selecting it, and press the Chef touch sensor ⚙ (15) until the LED (18) located on the icon lights up. Once the function is activated, the symbol R will appear on the power indicator (3).
If you want to change the value again, you must unplug the hob and plug it in again after a few seconds. Thus you will again be able to enter the power limiting menu.
You can override the function at any time by turning off the plate, by changing the power level or by choosing a different special function.
Every time the power level of a hotplate is changed, the power limiter will calculate the total power the hob is generating. If you have reached the total power limit, the touch control will not allow you to increase the power level of that hotplate. The hob will beep and the power indicator (3) will blink at the level that cannot be exceeded. If you wish to exceed that value, you must lower the power of the other
KEEP WARM FUNCTION (depending on the model)
This function automatically sets an appropriate power level to keep the cooked food hot.
Flexi Zone function (depending on the model)
hotplates. Sometimes it will not be enough to lower another by a single level as this depends on the power of each hotplate and the level it is set at. It is possible that to raise the level of a large hotplate that of several smaller ones must be turned down.
To activate it, select the plate, and press on the Chef touch sensor (15) until the LED (16) located on the icon lights up. Once the function is activated, the symbol will appear on the power indicator (3).
Through this function, it is possible to enable two cooking zones indicated in the labelled screen as "Flexi Zone"-work together, and to select a power level and to activate the timer function for both zones.
If you use the quick switch-on at maximum power function and the said value is above the value set by the limit, the hotplate will be set to the maximum possible level. The hob will beep and the said power value will blink twice on the indicator (3).
You can override the function at any time by turning off the plate, by changing the power level or by choosing a different special function.
To activate this function, press the sensor 4). By doing so, the decimal points (4) of the linked plates will light up and the value "0" will be shown on their power indicators (3). The clock timer indicator (12) will show three segments indicating the activated zones. In case your model has several zones with "Flexi Zone", you can select the desired option by pressing the sensor 14) before assigning the power to the chosen zone. You will have a few seconds to perform the next operation; otherwise, the function will be disabled automatically.(see fig 3).
Special functions: Chef touch (depending on the model)
MELTING FUNCTION (depending on the model)
This function maintains a low temperature in the cooking zone. Ideal for defrosting food or for slowly melting other food types as chocolate, butter, etc.
After the desired "Flexi Zone" is selected, you can assign the power by touching any of the "sliders" cursors (2) of one of the linked zone. The power level and its variations are displayed simultaneously on the power indicators (3) of both zones.
To disable this feature, you should touch the sensor 4) again. Also, when the function is disabled, the levels of powers and functions assigned to the related zones are cleared.
Safety switch off function
If due to an error one or several heating zones do not switch off, the appliance will be automatically disconnected after a set amount of time (see table 1).
Table 1
| Selected power level | MAXIMUN OPERATING TIME (in hours) |
| 1 | 0 |
| 2 | 8 |
| 3 | 8 |
| 4 | 5 |
| 5 | 4 |
| 6 | 4 |
| 7 | 3 |
| 8 | 2 |
| 9 | 2 |
| P | 10 or 5 minutes, read justs to level 9 (depending on model) |
* Depends on model
When the "safety switch off" function has been triggered, a 0is displayed if the glass surface temperature is not dangerous for the user or an H if there is a burn risk.
Fig. 3
Keep the control panel of the heating areas clean and dry at all times.
In the event of operating problems or incidents not mentioned in this manual, disconnect the appliance and contact the technical service.
Suggestions and recommendations
* Use pots or pans with thick, completely flat bottoms.
* Pots/pans with a smaller diameter than the shown heating area are not recommended.
* Do not slide pots and pans over the glass because they could scratch it.
* Although the glass can take knocks from large pots and pans without sharp edges, try not to knock it.
* To avoid damaging the ceramic glass surface, do not drag pots and pans over the glass and keep the undersides of them clean and in good condition.
* Recommended diameters of the pot bottoms
Table 2
| Zone (mm.) | Recommended minimum diameter (mm.) |
| 145 100 | |
| 180 120 | |
| 210 130 | |
| 260 140 | |
| 280 150 | |
| 280DZ 110/200 | |
| 300DZ 120/210 | |
| Flex 235x180 120 | |
| Flex 270x180 140 |
Try not to spill sugar or pro- s containing sugar on the glass while the surface is hot these d damage it.
Cleaning and maintenance
To keep the appliance in good condition, clean it using suitable products and implements once it has cooled down. This will make the job easier and avoid the build-up of dirt. Never use harsh cleaning products or tools that could scratch the surface, or steam-operated equipment.
Light dirt not stuck to the surface can be cleaned using a damp cloth and a gentle detergent or warm soapy water. However, for deeper stains or grease use a special cleaner for ceramic hot plates and follow the instructions on the bottle. Dirt that is firmly stuck due to being burned repeatedly can be removed using a scraper with a blade.
Slight tinges of colour are caused by pots and pans with dry grease residue underneath or due to grease between the glass and the pot during cooking.


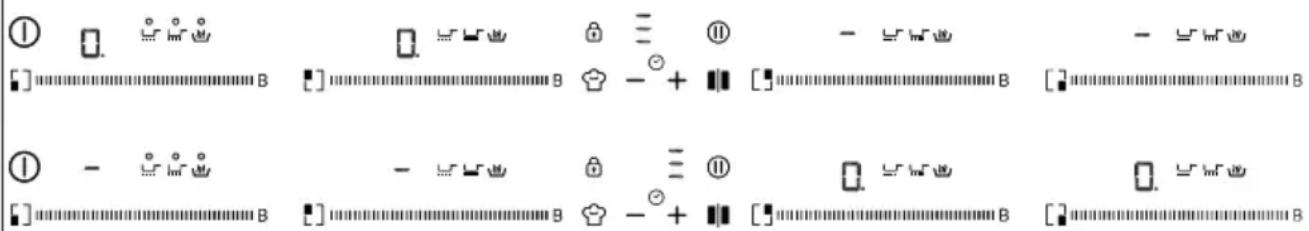

Scanned image showing a row of symbols and icons, possibly representing UI or layout controls.EN
These can be removed using a nickel scourer with water or a special cleaner for ceramic hot plates. Plastic objects, sugar or food containing a lot of sugar that have melted onto the surface must be removed immediately using a scraper.
Metallic sheens are caused by dragging metal pots and pans over the glass. These can be removed by cleaning thoroughly using a special cleaner for ceramic glass hot plates, although you may need to repeat the cleaning process several times.
Warning:
A pot or pan may become to the glass due to a product g melted between them. Do try to lift the pot while the ring zone is cold! This could the glass.
Do not step on the glass or lean on it as it could break and cause injury. Do not use the glass as a surface for placing objects.
Environmental considerations
e product
The symbol ■ the product or its packaging means that this product cannot be treated like ordinary household waste. This product must be taken to a recycling collection point for electrical and electronic appliances. By ensuring that this product is disposed of correctly, you will avoid harming the environment and public health, which could happen if this product is not handled properly. For more detailed information about recycling this product, please contact your local authority, household waste service or the store where you purchased the product.
The packaging materials used are environmentally friendly and can be recycled completely. Plastic components are marked >PE<, >LD<, EPS<, etc. Dispose of packaging materials, like household waste, in your local container.
Fulfillment with Energy
Efficiency of the appliance: -Appliance has been tested according to standard EN 60350-2 and the obtained value, in Wh/Kg, is available in the appliance's rating plate.
Following advices will help you to save energy anytime you cook:
* Use the correct lid for each pot whenever is possible. Cooking without lid uses more energy.
* Use pans with flat bases and appropriate base diameters in order to match size of the cooking zone. Pan manufacturers usually provide top diameter of the pot that is always larger than base diameter.
* When water is used for cooking, use little quantities in order to preserve vitamins and minerals of vegetables and set the minimum power level that allows maintaining the cooking. High power level is unnecessary and a waste of energy.
* Use small pots with small quantities of food
If something does not work
Before calling the technical service, perform the verifications described below.
The appliance does not work:
Ensure that the power cable is plugged in.
The induction zones do not produce heat:
The container is not appropriate (it does not have a ferromagnetic bottom or is too small). Check that the bottom of the container attracts a magnet, or use a larger container.
A humming is heard when starting to cook in the induction zones:
With containers which are not very thick or not of one piece, the humming results from the transmission of energy directly to the bottom of the container. The humming is not a defect, but if you wish to avoid it anyway, reduce the power level slightly or use a container with a thicker bottom, and/or of one piece.
The touch control does not light up or despite lighting, does not respond:
No heating zone has been selected. Be sure to select a heating zone before operating it.
There is humidity on the sensors, and/or your fingers are wet. Keep the touch control surface and/or your fingers clean and dry.
The locking function is activated. Unlock the controls.
The sound of a fan is heard while cooking, which continues even after cooking has ended: The induction zones have a fan to keep the electronics cool. This only operates when the electronic circuits get hot. It stops again when the circuits cool whether the hob is turned on or not.
The symbol will appear — on the power indicator of a hotplate:
The induction system does not find a pot or pan on a hotplate or it is of an unsuited type.
The hotplate will switch off and the message C81 or C82 will appear on the indicators:
Excessive temperature in the electronics or on the glass. Wait for a while for the electronics to cool down or remove the pot or pan so that the glass can cool.
C85 appears on the indicator of one of the hotplates:
The pot or pan used is of an unsuited type. Switch off the hob, switch it on again and try with another pot or pan.
The appliance switches off and the message C90 appears on the indicators (3):
The touch control ON/OFF sensor is covered and doesn't allow to switch on the cooktop. Remove the possible objects or liquids keeping the touch control surface clean and dry until the message disappears.
The appliance switches off and the message C91 appears on the indicators (3):
The touch control detects Pause sensor (8) is covered and doesn't allow to handle the cooktop. Remove the possible objects or liquids keeping the touch control surface, clean and dry, then press twice Pause sensor for removing the message and return to normal operation.
