USER MANUAL Hightower 2G OneConcept

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom

Dear customer,

Congratulations on your purchase. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product.

CONTENTS

Safety Instructions 14

Device Overview 16

Setting up 17

Getting started 17

Cleaning and storage 18

Disposal Considerations 19

Manufacturer & importer (UK) 19

TECHNICAL DATA

Article number 10031381 10031282
Power supply 220-240 V ~ 50 Hz
Power consumption 55 W
Dimensions: 30 cm x 30 cm x 92 cm
Weight 3.5 kg

SAFETY INSTRUCTIONS

• Remove the packaging and make sure that no parts have been damaged during transport. If any parts are damaged, contact customer service immediately.
• Children could injure themselves on the packaging materials and old devices. Therefore, dispose of the packaging material immediately.
• Children from the age of 8 years and mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.
• Check the voltage on the product label before use. Ensure that you only connect the device to sockets with the appropriate voltage.
• Only use the device for its intended purpose as described in the operating instructions.
• Follow the instructions carefully when assembling. An incorrect procedure can lead to irreparable damage to the unit.
• Switch off the device and remove the plug from the socket before cleaning the device or when you are no longer using it.
• If the device is not working properly, switch it off immediately and contact a specialist company in your area.
• If the power cord is damaged, it must be replaced by the manufacturer, an authorised specialist company or a similarly qualified person.
• Do not connect the unit to multiple sockets.
• Do not use an extension cable.
• Do not connect the device to timers or remote-controlled sockets.
• Do not use or store the device near heat sources such as heaters.
• Never immerse the device or the plug in water or other liquids. If water leaks on it, unplug the appliance immediately and have it checked by a specialist company.
• When you use the appliance for the first time, remove all film and packaging material.
• Do not pull the plug out of the socket by the cable; instead, hold it securely with your hand while unplugging it.
• Before inserting the plug into the socket, make sure that the device is switched off.
• Do not stretch out the mains cable.
• Make sure that all air inlets and outlets are free and not covered so that the unit does not overheat.

• Make sure that the power cord does not come into contact with sharp edges or surfaces.

• Do not hang the unit from the ceiling or wall unless it is designed for this operation.

• Leave enough space around the unit from walls, furniture or other equipment for best performance.
• Do not use the device in the vicinity of gas ovens or gas heaters.
• Do not place the unit near or directly under curtains.
• Do not cover the device.
• To avoid catching a cold, do not expose yourself or others to direct air flow.
• When you are no longer using the unit, store it in the original packaging in a dry place.
• Always remove the plug from the socket before cleaning, servicing, storing or when you are no longer using the device.
• Do not use the device near explosive or flammable substances or liquids.
• The device is intended for use in the home and similar environments only. It is not intended for commercial use. These include kitchens in offices, farms, hotels, motels and establishments offering bed & breakfast.

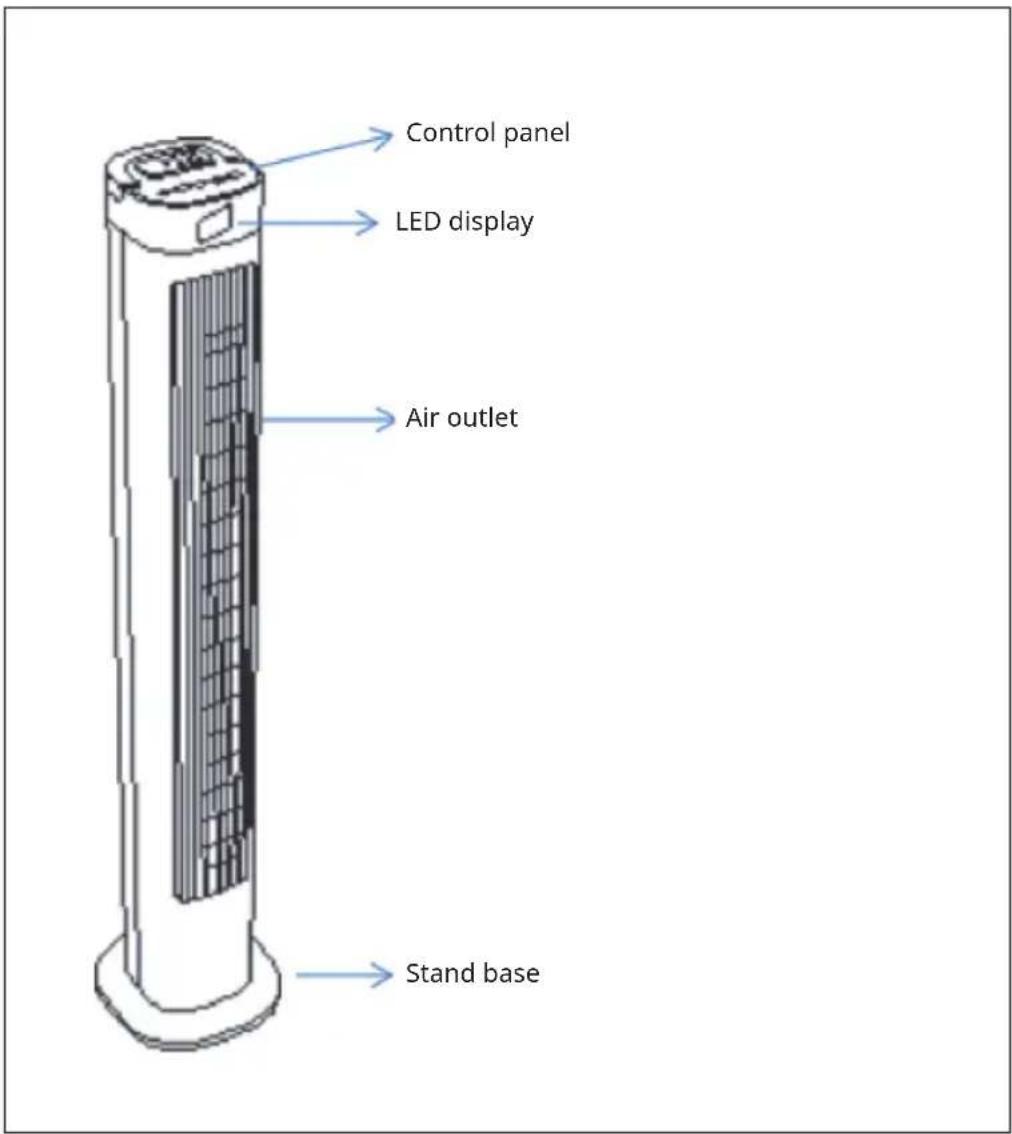

DEVICE OVERVIEW

SETTING UP

Assembling the base

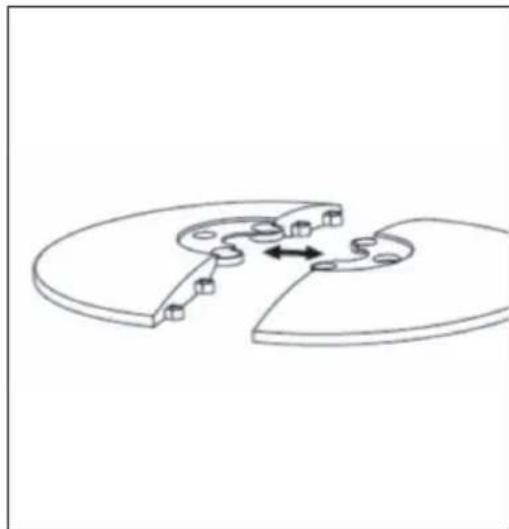

1. Put the two parts of the base together.

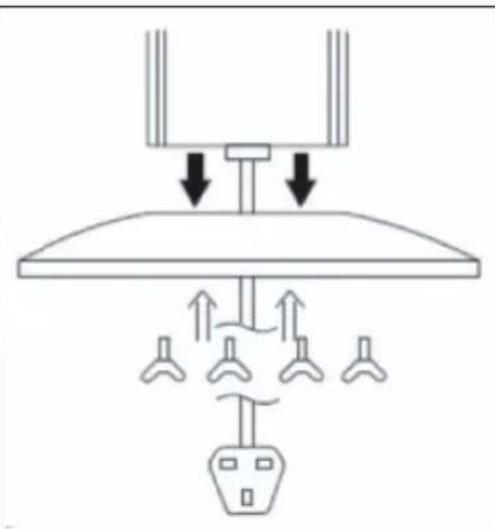

2. Pass the mains cable through the centre hole of the base after you have plugged both parts together. (The rear part is the one with the cable guide)
3. Place the tower fan on the base and align it with the holes. Screw the tower in place with 4 wing screws.

GETTING STARTED

The fan can be operated via the control panel on the top of the unit or via the remote control.

1. Place the tower fan on a stable and level surface. Insert the mains plug into a wall socket (220 V). The LED display shows the current temperature.
2. Switching on: Switch on the fan by pressing POWER.
3. Fan level: Set the level to the desired intensity using the SPEED button: Low, Medium or High.
4. Mode: Press the MODE button to set the fan to Normal, Nature or Sleep.
5. Panning movement: Press the OSC button to activate the wind direction rotation. Stop the panning movement by pressing the button again.
6. Setting the automatic switch-off: Press TIMER to switch on the automatic switch-off time. There are 12 intervals from 1-12 hours.
7. Energy-saving mode: If sleep mode or automatic switch-off is active, the display goes off after 30 seconds. You can press any button to turn the display back on.

CLEANING AND STORAGE

WARNING

Danger of electrocution! Disconnect the power cord from the socket before cleaning. Do not immerse in liquid.

Cleaning

Clean the surfaces with a soft cloth.

Do not use petrol, thinner, harsh detergents, etc. as they will damage the unit.

Storage

Store the fan together with these operating instructions in a cool and dry place, if possible in the original packaging.

DISPOSAL CONSIDERATIONS

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

This product contains batteries. If there is a legal regulation in your country regarding the disposal of batteries, the batteries must not be disposed of in household waste. Consult your local regulations for the disposal of batteries. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom
