Owner's Manual and Installation

GN1S04C

GX1S04C

GX1S15C (Rev. 2)

Abstract decorative swirl design with no text or symbols

215C1044P010-3 49-50040-3 05-02 JR 7239189

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

▲ WARNING!

For your safety, the information in this manual must be followed to minimize the risk of property damage or personal injury.

SAFETY PRECAUTIONS

■ Check with your local public works department for plumbing codes. You must follow these guidelines as you install the Water Filtration system.
■Use the Water Filtration system on a potable, safe-to-drink, home COLD water supply only. The filter cartridges will not purify the water, or make it safe to drink.
■ Do not use on a hot water supply (100°F. max.).

⚠ WARNING: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts.

PROPER INSTALLATION

This Water Filtration system must be properly installed and located in accordance with the Installation Instructions before it is used.

■ Install or store where it will not be exposed to temperatures below freezing or exposed to any type of weather. Water freezing in the system will damage it. Do not attempt to treat water over 100^ F.

- Your Water Filtration system will withstand up to 125 pounds per square inch (psi) water pressure. If your house water supply pressure is higher than 100 psi, install a pressure reducing valve before installing the Water Filtration system.

⚠ WARNING: Discard all unused and packaging material after installation. Small parts remaining after installation could be a choke hazard.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Using the Water Filtration System and About the Filter Cartridge

The countertop faucet dispenses filtered drinking water when opened. It has a hand-operated, spring-loaded closed lever to prevent waste. You can keep the faucet open by pushing upward on the lever to lock it against the faucet spout.

Filter Cartridge Life—Several variables determine how long the cartridges will last in your Water Filtration system. These include:

How much water you use.
How much sediment, taste and/or odor, lead, or other unwanted substance, is in the water.

No matter which Water Filtration system you have, you should replace the cartridges every six months. In extremely poor water supplies, you may notice the return of the unwanted substance in your water before the six months are up. In this case the cartridges should be replaced immediately. If the system is also for lead or chemical contaminant removal, it is MORE IMPORTANT to replace the cartridges at least every six months.

NOTE: If the water supply contains high amounts of sediments, the carbon filters may plug prematurely, reducing filtered water flow to the system faucet. Cartridge replacement is needed to restore flow.

Filtered water faucet Open Lock open

Line drawing of a handbar with a curved handle and base (no text or symbols)

Specification guidelines.

Many bad tastes and/or odors are removed from water using activated carbon filter cartridges. They are most often used to remove a chlorine taste and odor. They can also reduce other undesirable elements from drinking water supplies, such as organic chemical contaminants and lead.

NOTE: Small amounts of hydrogen sulfide (noticeable as “rotten egg” odor) may be reduced by taste and odor filters for a short time, but the carbon media is quickly exhausted. Other water conditioning equipment is usually required for the continuous treatment of hydrogen sulfide.

The Water Filtration system uses the following filter cartridges:

I. FXUTC—Taste & Odor Cartridge (3000-Gallon Capacity)

White with magenta end caps

• Reduces dirt, rust and sediment
• Reduces unpleasant tastes and odors
• Reduces Chlorine: Taste and Odor
• Reduces filterable cysts (such as cryptosporidium and giardia)
• Reduces Turbidity
• Reduces Asbestos
• 0.5–1-micron nominal particulate reduction

II. FXULC (rev. 2)—Lead/Cyst Cartridge (600-Gallon Capacity)

White with yellow end caps

• Reduces dirt, rust and sediment
• Reduces unpleasant tastes and odors
• Reduces Chlorine: Taste and Odor
• Reduces Lead
• Reduces Asbestos
• Reduces filterable cysts (such as cryptosporidium and giardia)
• Reduces Lindane (a pesticide)
• Reduces Turbidity
• Reduces Mercury
• Reduces Atrazine
• 0.5–1 micron nominal particulate reduction

The system conforms to ANSI/NSF 42 and 53 for the specific performance claims as verified and substantiated by test data.

Minimum - Maximum Supply Water Pressure—40–125 pounds per square inch (psi)

Minimum - Maximum Supply Water Temperature—40–100°F.

Inlet - Outlet—3/8 " NPT

Rated Service Flow: 0.9 gpm (GN1S04C & GX1S04C)

0.6 gpm (GX1S15C [rev. 2])

Depending on the treatment needed for a specific water supply, the water filtration system can be customized using any combination of the preceding filter cartridge sets.

Important Installation Recommendations

Read entire manual. Failure to follow all guides and rules could cause personal injury or property damage.

■Check with your local public works department for plumbing codes. You must follow their guides as you install the Water Filtration system.
Use the Water Filtration system on a potable, safe-to-drink, home COLD water supply only. The filter cartridges will not purify water or make unsafe water safe to drink. DO NOT use on HOT water (100° F. max.).
■Protect the Water Filtration system and piping from freezing. Water freezing in the system will damage it.
■Your Water Filtration system will withstand up to 125 psi water pressure. If your house water supply pressure is higher than 100 psi during the day (it may reach higher levels at night), install a pressure reducing valve before the system.

WARNING: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. GX1S15C (rev. 2) is certified for cyst reduction and may be used on disinfected water that may contain filterable cysts. The water should be tested periodically to verify that the system is performing satisfactorily. Small parts remaining after the installation could be a choke hazard. Discard safely.

Tools and Materials Required for Installation

■Slotted and Phillips screwdrivers
■Pliers and adjustable jaw wrench
■ Hand or battery powered drill and 1/4" bit (saddle valve installation)
Electric drill and drill bit to drill 3/4" hole (type as required) if mounting hole is needed for faucet Be sure to use the proper procedure for drilling porcelain or stainless steel. Special drill bits may be needed.

CAUTION: To avoid damaging the sink, consult a qualified plumber or installer for drilling procedures. Special drill bits may be needed for porcelain or stainless steel.

Contents included with the product:

■Water filter assembly, including mounting bracket and screws
■Product Literature (Owner's Manual and Installation, Product Data Sheet, Owner Product Registration Card)
■Water supply/saddle valve
■Filtered water faucet, for sink or countertop mounting
■3 /8" tubing and fittings to make all needed connections
■Sump wrench

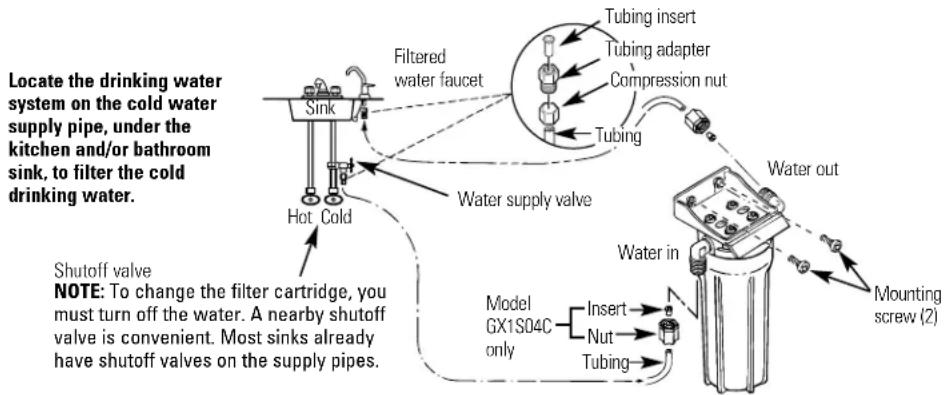

Installation Overview

Feed Water Supply

Check and comply with local plumbing codes as you plan,

then install a cold feed water supply fitting. For new home installation using standard plumbing fittings, see first two illustrations below. A typical installation for existing homes using the saddle valve is shown in third illustration below.

A. PREFERRED INSTALLATION

1 Turn off the cold water supply.
2 Complying with plumbing codes, install a fitting on the cold water pipe to adapt 3/8" OD tubing. A typical connection is shown in illustrations at right (parts not included). Make sure a water supply valve is used.

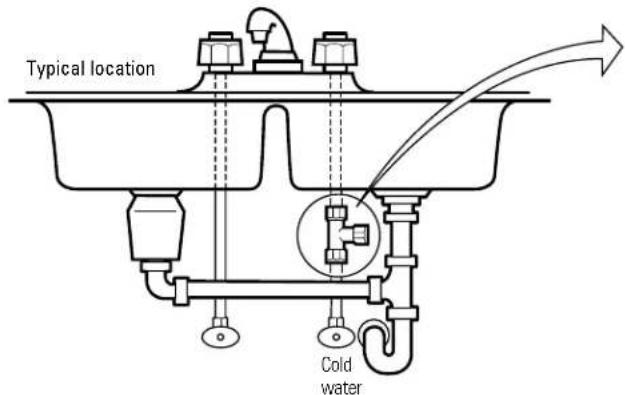

Typical location Cold water

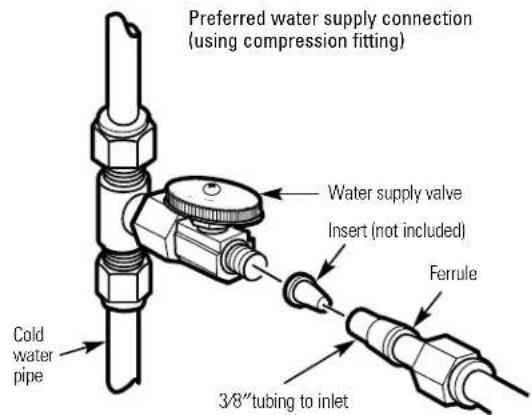

Preferred water supply connection (using compression fitting) Water supply valve Insert (not included) Ferrule Cold water pipe 3/8" tubing to inlet

B. OPTIONAL HOME INSTALLATION Where codes permit

*For 1/2" OD or larger metal tubing only.

NOTE: Codes in the state of Massachusetts require installation by a licensed plumber and do not permit the use of the saddle valve. For installation, use plumbing code 248-CMR of the Commonwealth of Massachusetts.

Turn off the cold water supply and attach saddle valve as shown in illustration at right.
A DANGER: To protect yourself from serious injury or fatal shock, use a battery-powered hand drill only to make the hole. DO NOT USE AN ELECTRIC DRILL.
2 Close the water supply valve by turning the handle clockwise.
3 Open the main water supply valve and several house faucets to purge air from the system. Close faucets when water runs smoothly.

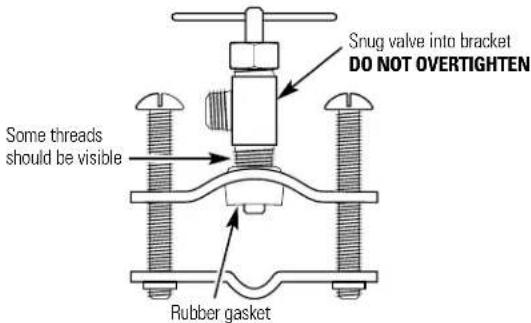

Snug valve into bracket DO NOT OVERTIGHTEN Some threads should be visible Rubber gasket

Optional water supply connection (using saddle valve)*

*For 1/2" OD or larger metal tubing only.

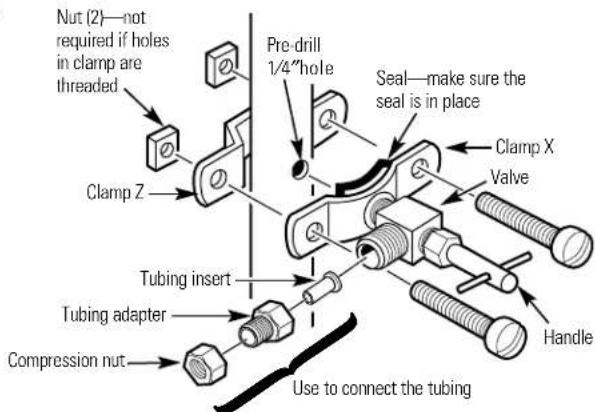

Nut (2)—not required if holes in clamp are threaded Clamp Z Pre-drill 1/4"hole Seal—make sure the seal is in place Clamp X Valve Tubing insert Tubing adapter Compression nut Use to connect the tubing Handle

Step-by-step installation instructions.

Faucet Installation

Be sure there is room underneath the sink to make the needed connections. Select one of the following places to install the faucet:

—IN an existing sink spray attachment or soap dispenser hole.
—IN a hole to be drilled in the sink top.
—IN a hole to be drilled in the countertop, next to the sink.

NOTE: Looking at second illustration at right, be sure the faucet base will fit flat against the surface at the selected location so the gasket will seal.

If drilling is needed, make a 3/4" dia. hole. Be sure to use the proper procedure for drilling porcelain or stainless steel. Special drill bits may be needed.
2 Place small gasket, base and large gasket (in that order) onto the faucet stem. Next, place lock washer and hex nut onto faucet stud.
3 Insert tubing insert into tubing adapter. Securely tighten to faucet stud.
4 Feed the length of 3/8" OD tube from the bottom, up through the mounting hole. Connect to the tubing adapter as shown in second illustration, tightening the compression nut securely.
5 Remove the short shipping tube and insert the spout into the faucet body. Rotate spout into place.
6 Lower the faucet assembly into place on the underside of the mounting hole. Place the mounting bracket above the lock washer. While holding the mounting bracket in place, securely tighten the hex nut.

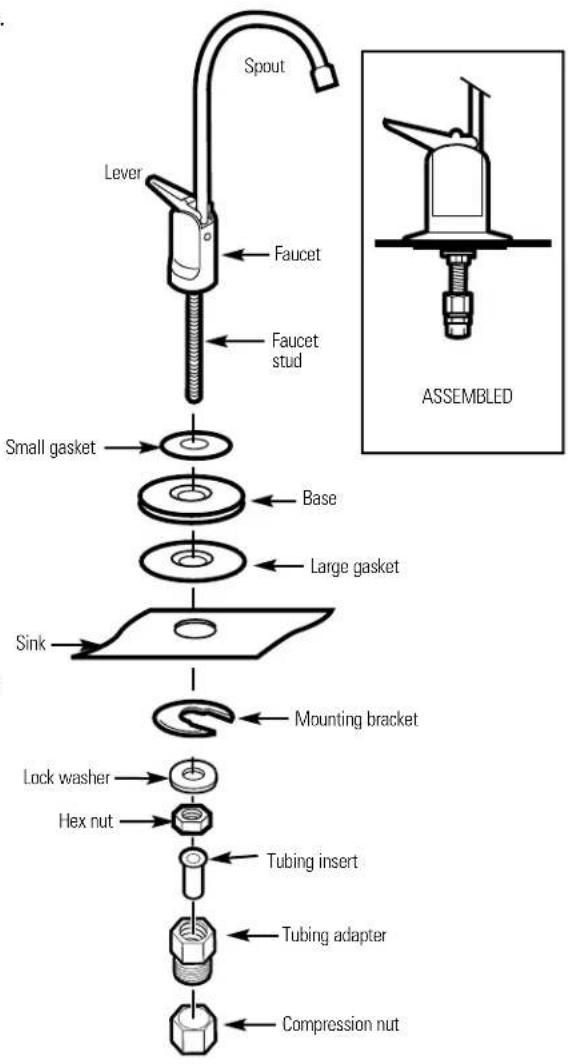

Spout Lever Faucet Faucet stud Small gasket Base Large gasket Sink Mounting bracket Lock washer Hex nut Tubing insert Tubing adapter Compression nut ASSEMBLED

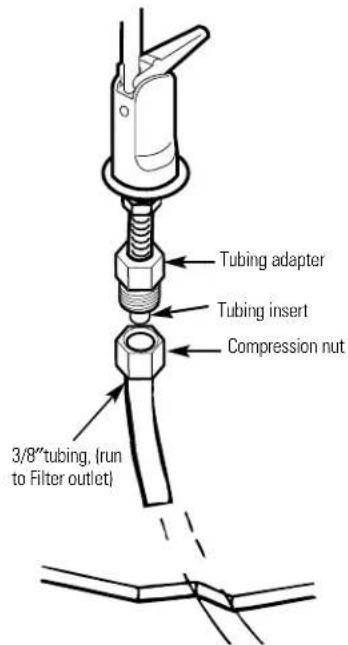

Tubing adapter Tubing insert Compression nut 3/8"tubing, (run to Filter outlet)

Mounting Bracket to Cabinet Wall

The bracket can be used as a template for marking the location of the mounting screws. When determining the location of the bracket make sure you leave 1-1/2" to 2" of free area under the sumps to allow for sump removal and enough space on either side to make the tubing connections.

Tubing Connections—Compression Style (Models GX1S04C and GN1S04C)

1 Run the length of 38" tubing, connected to the bottom of faucet, to the filter system outlet. Allow enough slack in the tubing so the unit can be easily removed for filter changes. Measure and cut the end of the tubing square.
2 Slide a compression nut onto the end of the tubing and push a tubing insert into the tubing.
3 Connect the tubing and tighten the compression nuts securely.
Repeat the preceding steps to connect a length of tubing between the filter system inlet and the water supply/saddle valve (illustration in the Installation Overview section).

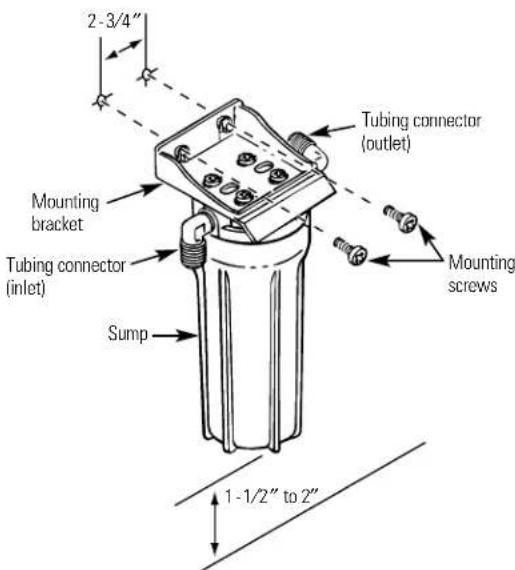

2-3/4" Mounting bracket Tubing connector (inlet) Sump Tubing connector (outlet) Mounting screws 1-1/2" to 2"

Tubing Connections—Push-In Style (Model GX1S15C [rev. 2])

1 Run the length of the 3/8" tubing, connected to the bottom of the faucet, to the filter system outlet (illustration above). Allow enough slack in the tubing so that the unit can be easily removed.
2 Measure and cut the end of the tubing square using a sharp cutter or knife. Remove any burrs (illustration A).
3 Inspect the end of the tubing, about 1 inch, to be sure there are no imperfections. It may be necessary to cut the tubing again.
4 Mark the tubing for length of insertion. For 3/8" OD tubing the insertion length should be approximately 3/4 of an inch. Tubing must be fully inserted to avoid leaks.
DO NOT REMOVE GRAY COLLET. Push the tubing all the way into the fitting until it bottoms out. The insertion line should be hidden or barely visible (illustration B and C). Slightly pull on the tubing to verify engagement.
6 Repeat the procedure to connect the tubing between the filter system inlet and the water supply/saddle valve (illustration in the Installation Overview section).
7 To remove tubing (illustration D), depress and hold gray collet. Pull tubing to remove.

NOTE: Avoid installing the unit where the tubing is pulled at a sharp angle. This type of installation may cause the fittings to leak. If using tubing other than what is supplied, be sure it is high quality, exact size and roundness, and has a smooth surface.

A

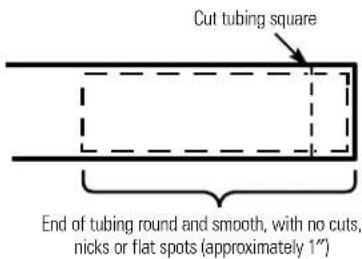

Cut tubing square End of tubing round and smooth, with no cuts, nicks or flat spots (approximately 1")

B

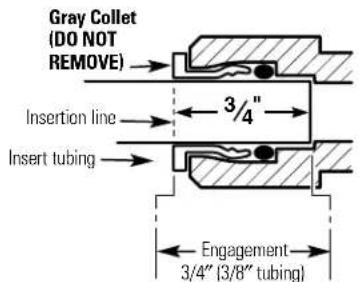

Gray Collet (DO NOT REMOVE) Insertion line Tubing 3/4" Insert Tubing must be fully inserted to avoid leaks.

©

Gray Collet (DO NOT REMOVE) Insertion line 3/4" Insert tubing Engagement 3/4" (3/8" tubing)

D

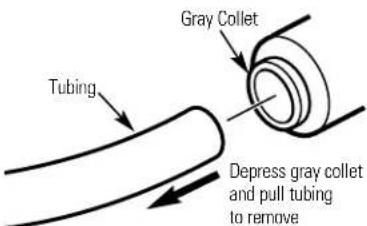

Gray Collet Tubing Depress gray collet and pull tubing to remove

Filter Cartridge Installation or Replacement

CAUTION: Never remove the sumps when water pressure is in the Water Filtration system.

1 Close the water supply/saddle valve to the filter. (See illustration in the Installation Overview section for location of the water supply valve.) Open the filtered water faucet.
2 Remove the sump, using the sump wrench tool*, from the filter head by rotating the sump as shown. Be careful, the sump may be full of water. Be sure to keep the large o-ring seal.
3 If you are replacing a filter cartridge, remove and discard the used filter cartridge.
4 Be sure the inside of the sump is clean. Thoroughly wash the inside of the sump with hot, soapy water and rinse.
5 Remove the wrapper from the new filter cartridge and insert the filter cartridge in the sump. Some cartridges fit either way, while others fit only one way. Observe markings on the cartridge.

NOTE: The Water Filtration system uses two different types of filter cartridges. Be sure to install them correctly. See Specification Guidelines for a complete list of filter performance characteristics.

6 Lightly lubricate the o-ring seal in the sump with clean food grade silicone grease (silicone grease is available through GE Parts and Services: 1-800-626-2002 Part number: WS60X10005). Be sure it is fully seated in its groove.
7 Hold the sump up to the filter head, aligning the center hole in the cartridge with the protrusion on the bottom of the head. Failure to obtain proper alignment may cause damage to the filter and/or filtration system, which will degrade filter performance.
8 Being careful not to cross-thread, rotate the sump onto the filter head and tighten securely by hand.

NOTE: If the sump will not tighten up to the head or if you feel resistance, you may have the cartridge in upside down or misaligned. Take the cartridge out and check for correct orientation or alignment and reassemble.

9 Turn on the filtered water faucet. Then, slowly open the water supply valve and allow the filter housing to fill.
10 Close the filtered water faucet. Then, check for leaks between the sump and the head.

NOTE: If leaking, turn off the water supply and turn on the filtered water faucet. Disassemble the filter housing and check the o-ring for cuts, flat spots, etc., and sealing surfaces for foreign material. Clean the o-ring and lightly lubricate with clean silicone grease. Carefully press into the groove in the sump. Reassemble and check for leaks.

The filter cartridges contain activated carbon. When new, turn on the filtered water faucet for five minutes to flush the system.
12 Place filter change label on sump, inside cabinet door, or in another convenient location. Write in date of filter change for future reference. Filters should be changed every six months.

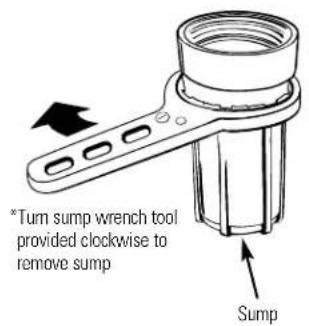

*Turn sump wrench tool provided clockwise to remove sump Sump

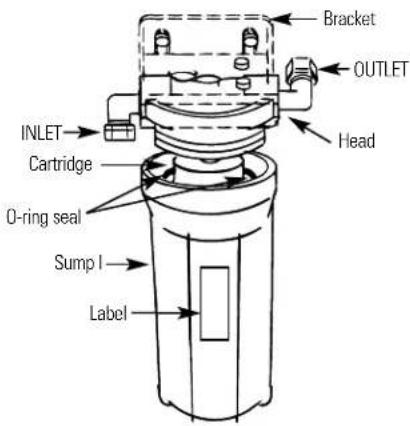

Bracket OUTLET INLET Cartridge O-ring seal Sump I Label

Flush Procedure

Whenever water of unknown quality is passed through the GE Water Filtration system, filter elements should be discarded and the filtration system flushed.

Circumstances that may require flushing the system are:

■Boil-water advisory.
■Flooding of the GE Water Filtration system.
Long-term non-use.

The procedure for flushing the GE Water Filtration system is:

7 See Filter Cartridge Replacement section and follow steps 1, 2, 3, and 4.
2 Next, reinstall the sumps (without the filter elements), turn water on, and flush water through the faucet for one minute.
3 Then, turn water off, remove sumps, empty water out of sumps and install new filter elements.
4 Follow steps 5-10 in the Filter Cartridge Replacement section to complete.

Before you call for service...

Troubleshooting Tips Save time and money! Review the chart below first and you may not need to call for service.

Problem Possible Causes What To Do
Water contains tiny black particles	New filter cartridges contain activated carbon, which is a harmless black powder. faucet when the water is clear.	Turn on the filtered water faucet and allow these harmless carbon particles to purge from the cartridge. Turn off the
Water has air bubbles and is cloudy	Air in system after installation.	Will go away after water runs for a while.
Chlorine taste and /or The filter cartridge is no • odor in the product water longer removing chlorine from the water supply.		Replace filter cartridge.
Water dispenses very slowly	Filter may have an integral flow restrictor.	A slower flow (approx. 0.6 g/min.) is normal with this style of filter. If flow rate is unacceptable replace the filter with one that does not have an integral flow restrictor.
	The filter has been installed for too long.	A six-month change-out period is recommended. Replace filter cartridge.
	The filter cartridge has become clogged.	High sediment levels can cause premature clogging. Replace filter cartridge.
Push-in fittings are leaking (GX1S15C [rev. 2])	Tubing may not be installed properly.	Fully follow the installation instructions (page 7) and be sure the tubing is installed to the proper depth.
	Tubing may be damaged.	Examine the end of tubing (approx. 1 inch) for defects such as scratches, grooves, roundness, etc. Trim tubing and fully reinstall.

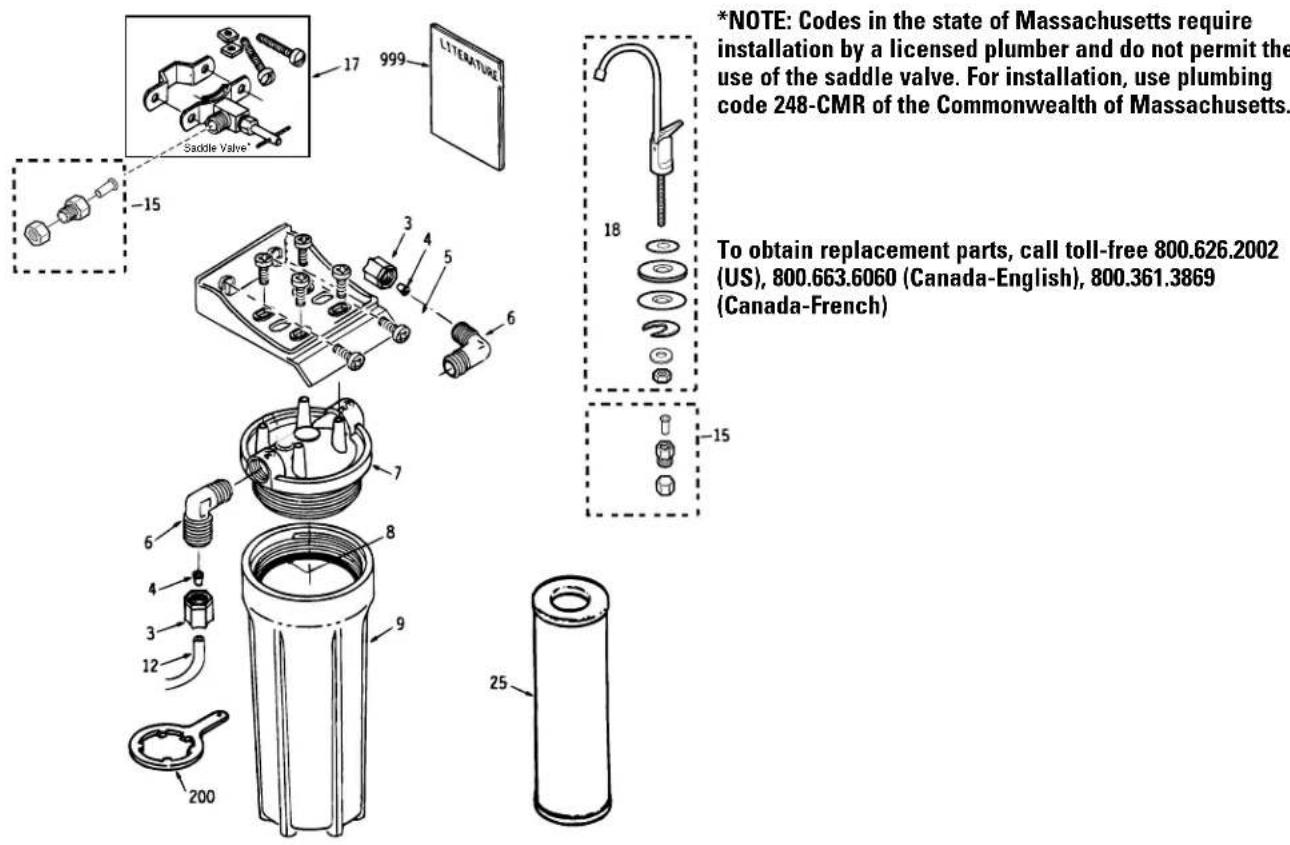

LITERATURE 17 999 Saddle Valve* -15 3 4 5 6 7 8 9 200 *NOTE: Codes in the state of Massachusetts require installation by a licensed plumber and do not permit the use of the saddle valve. For installation, use plumbing code 248-CMR of the Commonwealth of Massachusetts. 18 To obtain replacement parts, call toll-free 800.626.2002 (US), 800.663.6060 (Canada-English), 800.361.3869 (Canada-French) 25

General Electric parts catalog.

				G	G	G
				X	X	N
				1	1	1
				S	S	S
				1	0	0
				5	4	4
				C	C	C
				(Rev. 2)
REF. NO. PART NO. PART DESCRIPTION
0001 WS02X10001 SCREW #10-14 X 3/4" 4 4 8
0002 WS28X10010 MOUNTING BRACKET 1 1 1
0003	WS22X10008	NUT 3/8" TUBE		2	-	-
0004	WS22X10007	INSERT 3/8" TUBE		-	2	-
0005 WS02X10003 SCREW #10-14 X 1-1/4" 2 2 2
0006	WS22X10002	ELBOW 3/8" NPT X 3/8" (compression)		2	-	-
0006	WS22X10032	ELBOW 3/8" NPT X 3/8" (push-in)		-	2	2
0007 WS19X10011 HEAD			1 1 1
0008	WS03X10001	O-RING 3-3/8" X 3-5/8"		1	1	1
0009 WS30X10002 SUMP			1 1 1
0012	WS07X10008	TUBING 3/8" X 20 FT-WH		1	1	1
0015 WS03X10044 TUBING ADAPTER ASSY.			2 2 2
0017 WS15X10008 SADDLE VALVE /SUPPLY			1 1 1
0018 WS15X10022 FAUCET ASM. (nonmonitored)			1 1 -
0025 FXUTC	FILTER SET-TASTE & ODOR			- 1 -
	FXULC (rev. 2)	FILTER SET-LEAD/CYST		1 --
0200 WX5X140	WRENCH SUMP			1 1 -
0999 49-50040	PM MANUAL USE & CARE/INSTALLATION

Consumer Support.

GE Appliances Website

www.GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts, catalogs, or even schedule service on-line. You can also "Ask Our Team of Experts" your questions, and so much more...

Schedule Service www.GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

Real Life Design Studio www.GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

Extended Warranties www.GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories www.GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Contact Us www.GEAppliances.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations GE Appliances, Appliance Park Louisville, KY 40225

Register Your Appliance www.GEAppliances.com

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material, or detach and use the form in this Owner's Manual.

GE Water Filtration System Warranty.

LIMITED ONE YEAR WARRANTY

- What does this warranty cover? — Any defect in materials or workmanship in the manufactured product.

• What does this warranty not cover?
— Filter Cartridges.
— Service trips to your home to teach you how to use the product. — Improper installation.
— Failure of the product if it is abused, misused, altered or used for other than the intended purpose.
— Defects that result from improper installation or damage not caused by GE.
— Liability on the part of GE under this or any other warranty for any indirect or consequential damage.
— Products that are used for commercial or industrial applications.
— Use of this product where water is microbiologically unsafe or of unknown quality, without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts.

— Damage to the product caused by accident, fire, floods or acts of God. — Incidental or consequential damage caused by possible defects with this appliance, its installation or repair.

• For how long after the original purchase? — One year.
• How do I make a warranty claim? — Return to the retailer from which it was purchased, along with a copy of the “Proof of Purchase.” This warranty excludes the cost of shipping or service calls to your home.
• How does state law relate to this warranty? — This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. THIS WARRANTY IS INTENDED TO BE IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Contact us at www.GEAppliances.com, or call 800.GE.CARES (800.432.2737) in the U.S., or toll-free 866.777.7627 in Canada.

Line drawing of a handbar with a curved handle and base (no text or symbols)

Spécifications.

G	G	G
X	X	N
1	1	1
S	S	S
1	0	0
5	4	4
C	C	C

(Rev. 2)

GARANTIE LIMITÉE D'UN AN

- Que couvre la garantie?

Entrada-Salida—3/8" NPT

General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Registre su electrodoméstico www.GEAppliances.com
