USER MANUAL WS 2020140135 Güde

Translation of the original instructions Angle grinder

Black industrial grinding tool with adjustable blade and base, displayed against white background (no text or symbols visible)

WS 20-201-401-35

58818

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland

ENGLISH Please read the instructions carefully before starting the machine.

Scanned document page with placeholder text and a circular icon, likely a form or report section

DE Inbetriebnahme
EN Starting-up the machine
FR Mise en service
IT Messa in funzione
NL Inbedrijfstelling
CZ Uvedení do provozu
SK Uvedenie do prevádzky
HU Üzembe helyezés

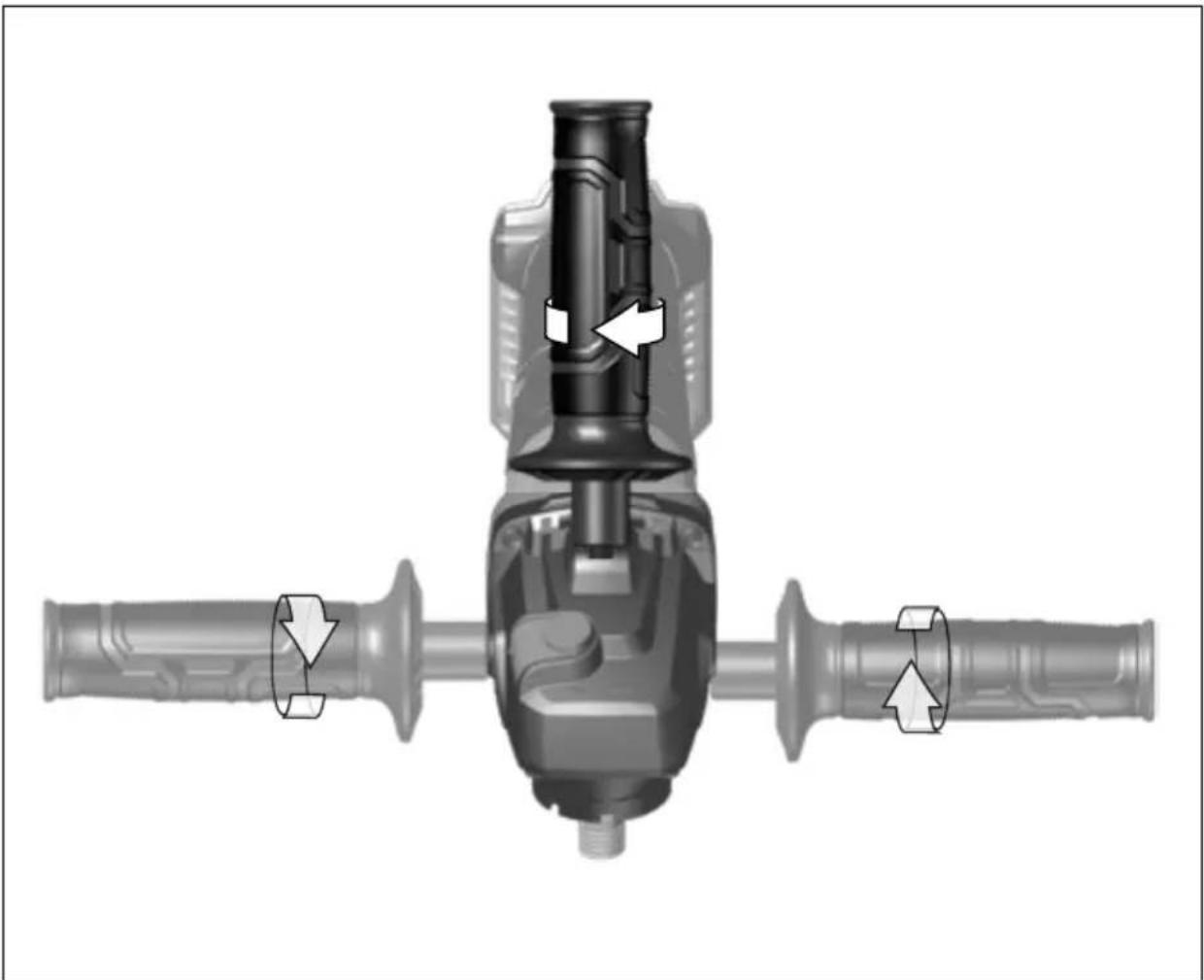

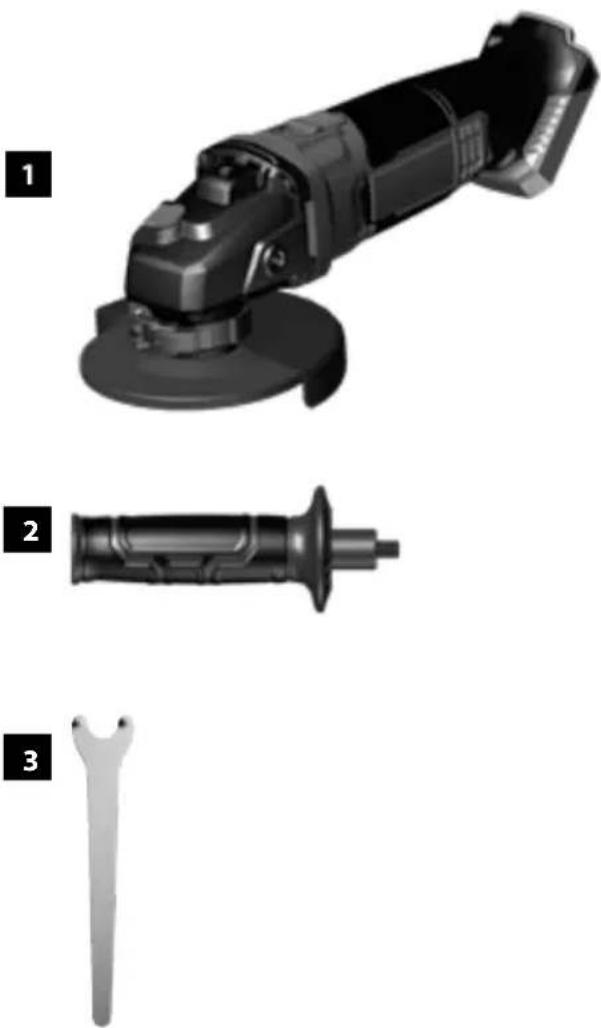

Mechanical valve assembly diagram showing internal components and shafts (no text or labels)

2

Black electronic device with a display and control panel (no visible text or symbols)

3

Close-up of a mechanical component with a curved handle and dashed arrows indicating motion or assembly (no visible text or symbols)

4

Close-up of a mechanical tool with a circular component and a flat plate (no visible text or symbols)

5-6

DE Betrieb
EN Operation
FR Fonctionnement
IT Esercizio
NL Gebruik
CZ Provoz
SK Prevádzka
HU Üzemeltetés

START

STOP

Close-up of a robotic arm gripping a circular mechanical component (no visible text or symbols)

7

Close-up of a hand holding a small electronic device (no visible text or symbols)

8

Close-up of a mechanical tool with a circular base and radial arm (no visible text or symbols)

9

DE	Inbetriebnahme
EN	Starting-up the machine
FR	Mise en service
IT	Messa in funzione
NL	Inbedrijfstelling
CZ	Uvedení do provozu
SK	Uvedenie do prevádzky
HU	Üzembe helyezés

Mechanical assembly diagram showing a valve mechanism with directional arrows indicating movement or force (no text or labels present)

DE Inbetriebnahme

EN Starting-up the machine

FR Mise en service

Black electronic device with a display and control panel (no visible text or symbols)

58821 20V / 2,0 Ah 58822 20V / 4,0 Ah

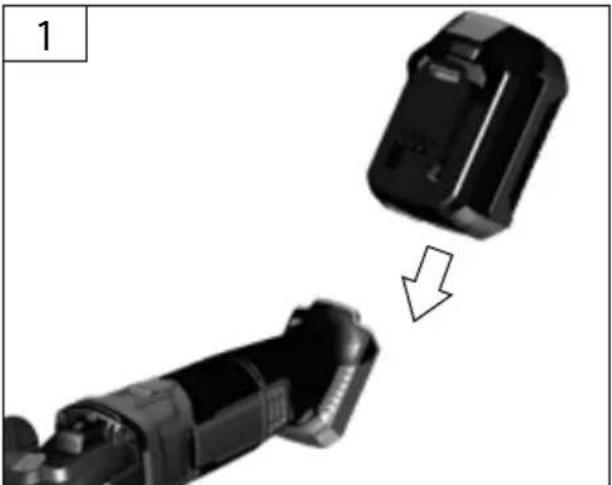

1

Two black mechanical components with a directional arrow indicating transformation (no text or symbols)

2

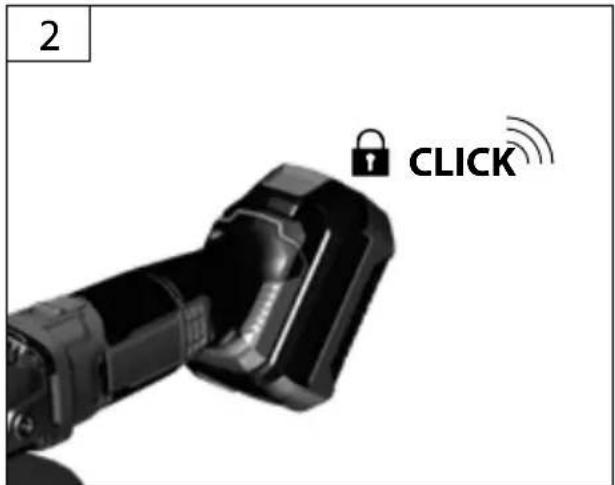

2 CLICK

1

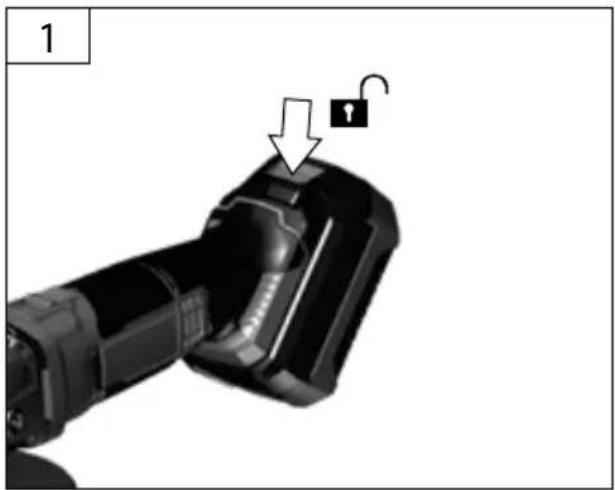

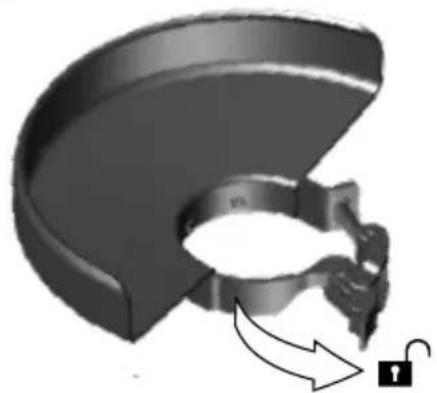

Close-up of a robotic arm with a lock icon and an open lock, showing mechanical components without any text or symbols.

2

Two black mechanical components with an arrow pointing to one, no visible text or symbols

Illustration of a black electronic device with a finger pointing to its tip (no text or symbols visible)

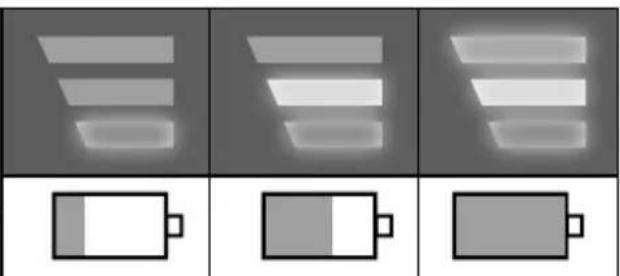

Three rows of grayscale images showing battery charging states, no text or symbols present

Close-up of a robotic hand gripping a mechanical component, with no visible text or symbols

DE Inbetriebnahme

EN Starting-up the machine

FR Mise en service

Close-up of a mechanical component with a warning symbol and warning triangle (no readable text or labels)

1

3D rendered mechanical component with curved and flat surfaces, showing a lock mechanism (no text or symbols)

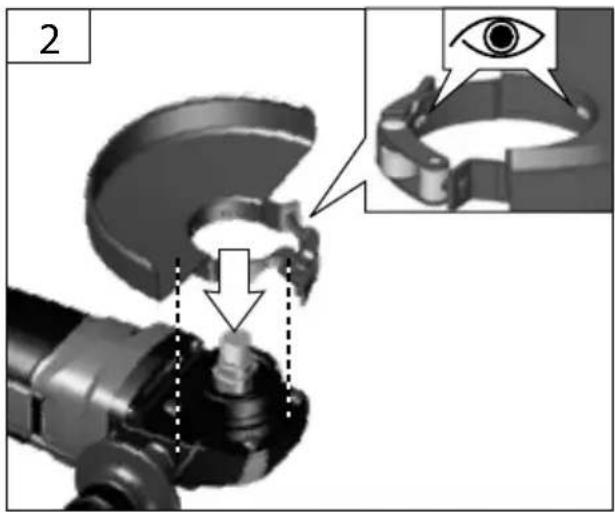

2

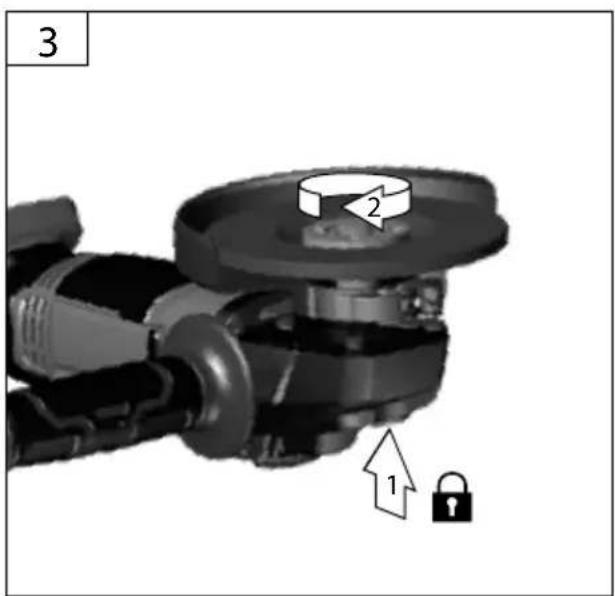

3

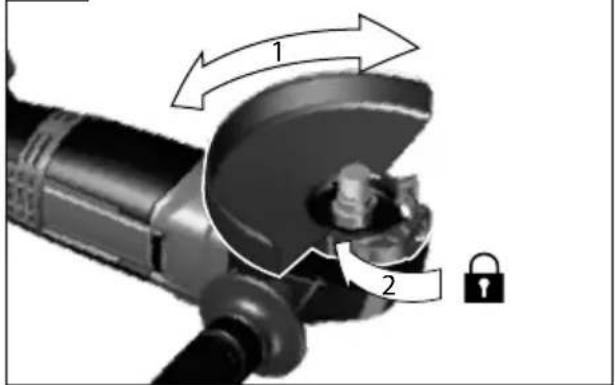

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or movement.

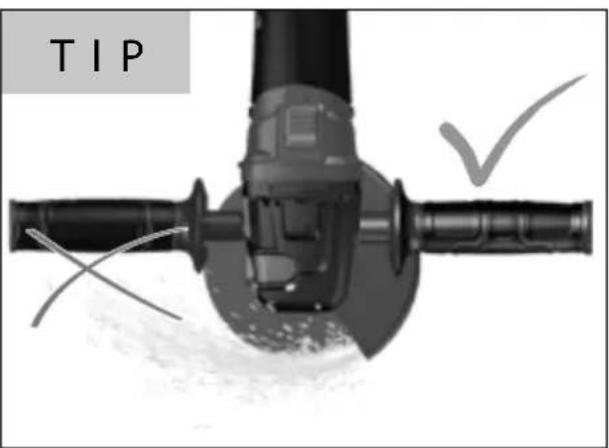

TIP

DE Inbetriebnahme

EN Starting-up the machine

FR Mise en service

Close-up of a mechanical tool with a circular component and a flanged handle (no visible text or symbols)

Two circular icons showing hand gestures: one pointing right, the other with a bandaged index finger (no text or symbols)

1

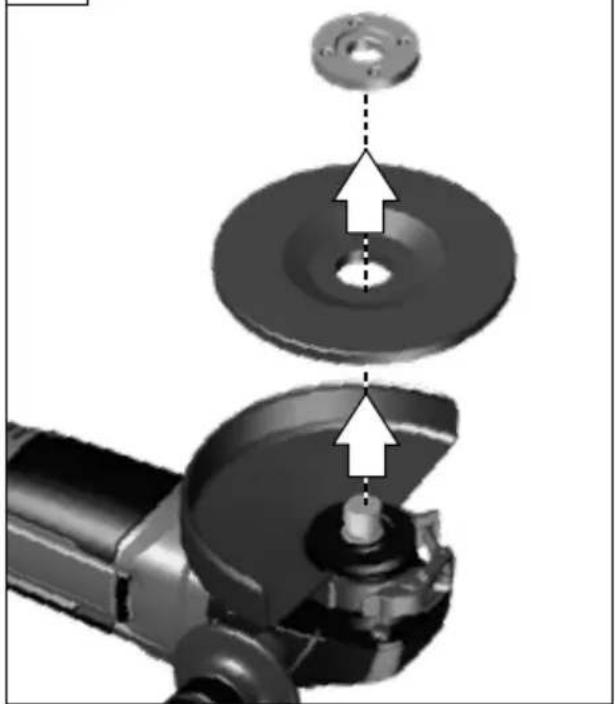

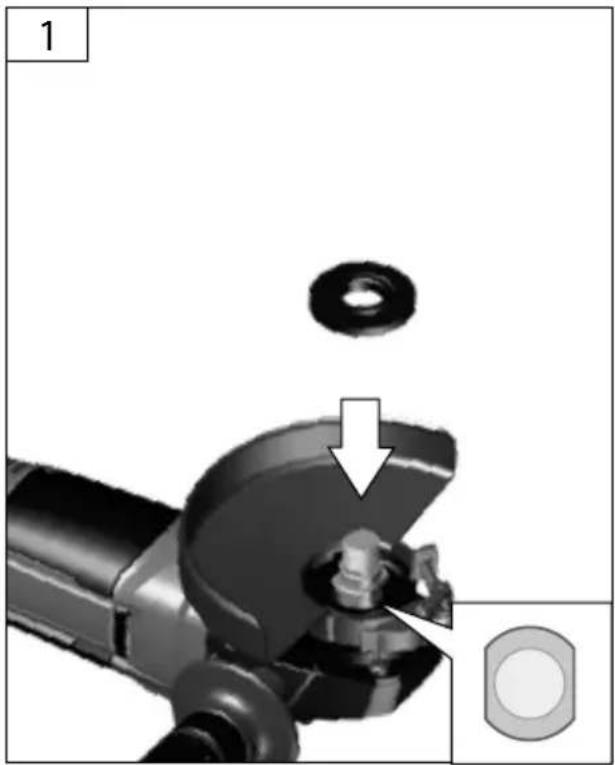

Mechanical assembly diagram showing a disassembled component with a bolt and nut, no text or symbols present

2

2 ≤6 mm >6 mm

3

3 2 1

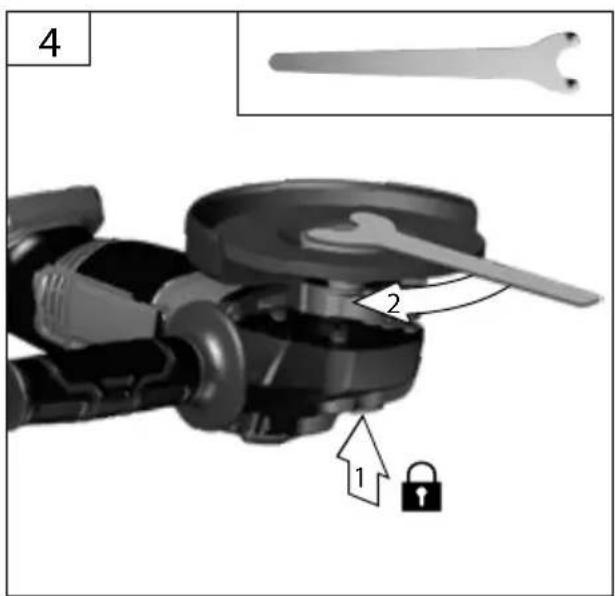

4

4 2 1

Close-up of a mechanical tool with a circular component and a curved handle (no visible text or symbols)

DE Inbetriebnahme

EN Starting-up the machine

FR Mise en service

Two circular icons showing a hand gesture: one pointing right, the other with one touching the fingers (no text or symbols)

1

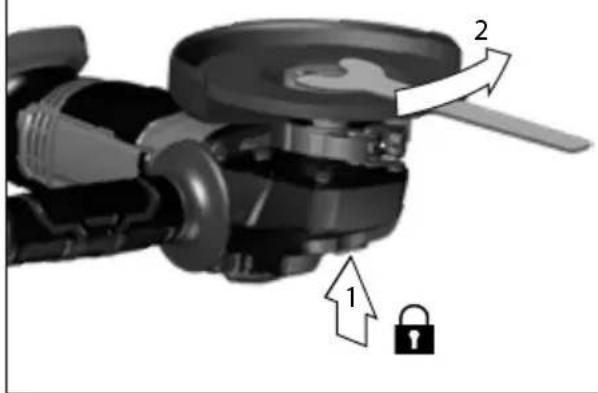

Diagram of a robotic device with labeled parts and directional arrows indicating movement or assembly.

2

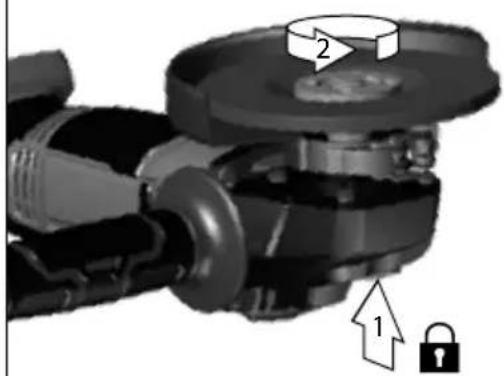

Mechanical assembly diagram showing a gear and lock mechanism (no text or symbols)

3

Mechanical assembly diagram showing a disassembly or assembly process with arrows indicating direction of motion (no text or symbols present)

Diagram showing a mechanical component being cut with arrows indicating rotation (no text or symbols)

DE Betrieb

EN Operation

FR Fonctionnement

IT Esercizio

NL Gebruik

CZ Provoz

SK Prevádzka

HU Üzemeltetés

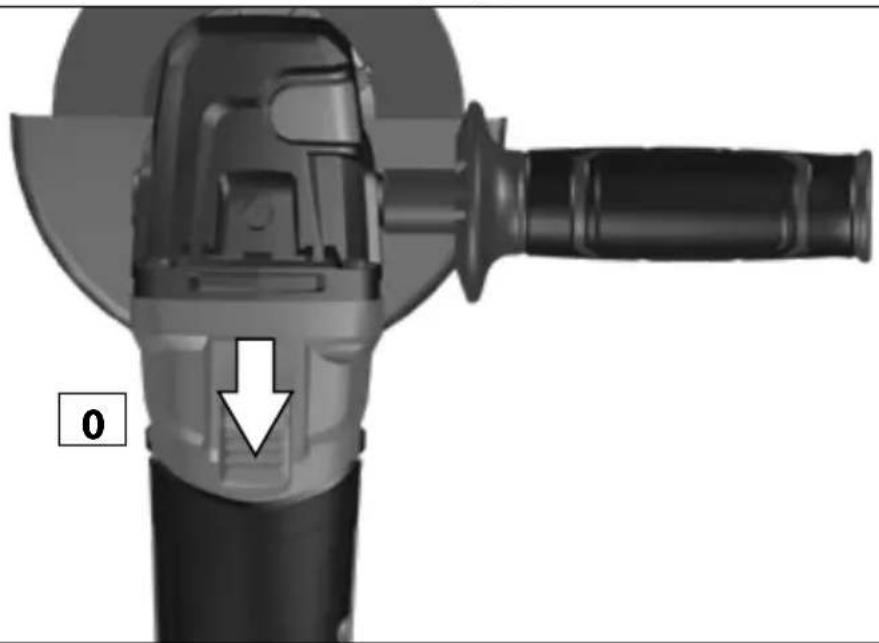

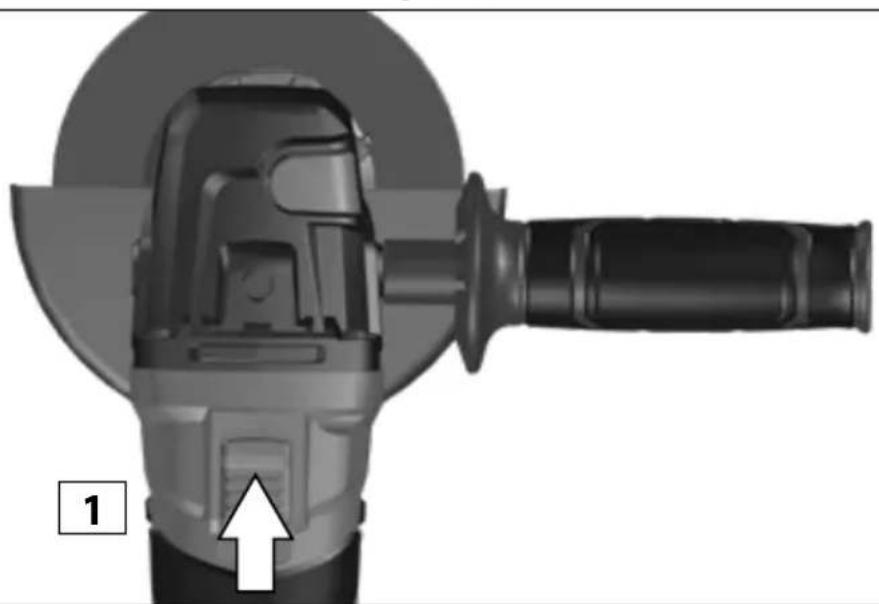

START STOP

Close-up of a mechanical tool with a circular base and multiple arms (no visible text or symbols)

START

3D rendering of a mechanical power tool with a handle and blade assembly (no text or symbols visible)

STOP

Close-up of a mechanical power tool with a handle and internal components, showing no visible text or symbols.

Close-up of a hand holding a tool or device with a mechanical component (no visible text or symbols)

DE Betrieb

EN Operation

FR Fonctionnement

IT Esercizio

NL Gebruik

CZ Provoz

SK Prevádzka

HU Üzemeltetés

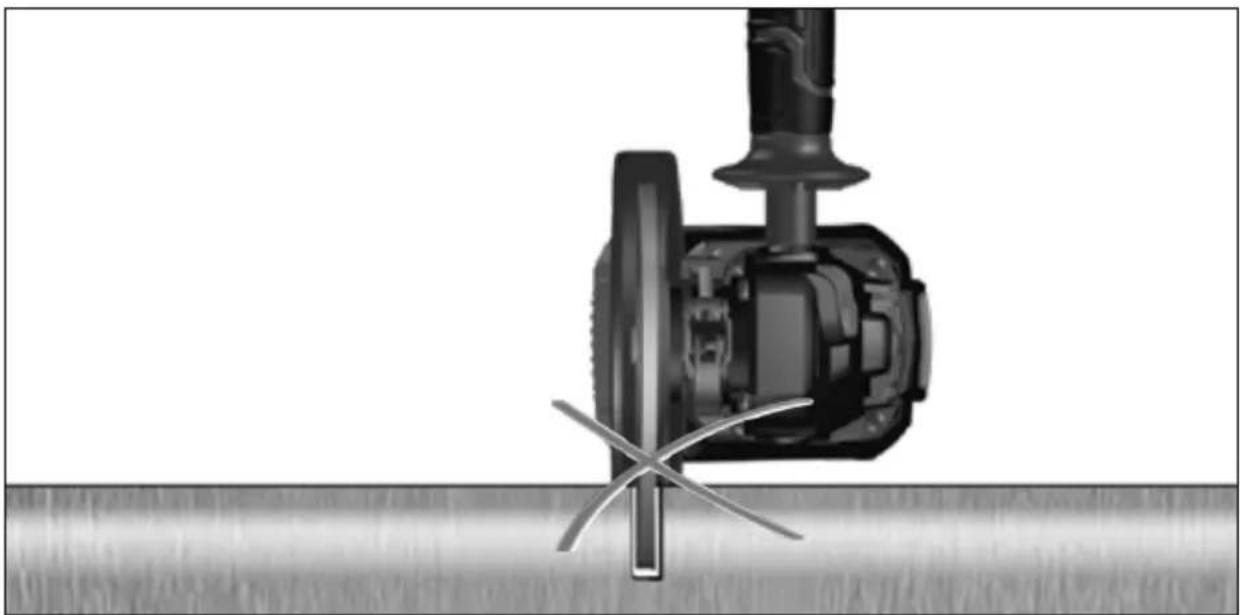

Simple line drawing of a hand holding an object with a crossed line (no text or symbols)

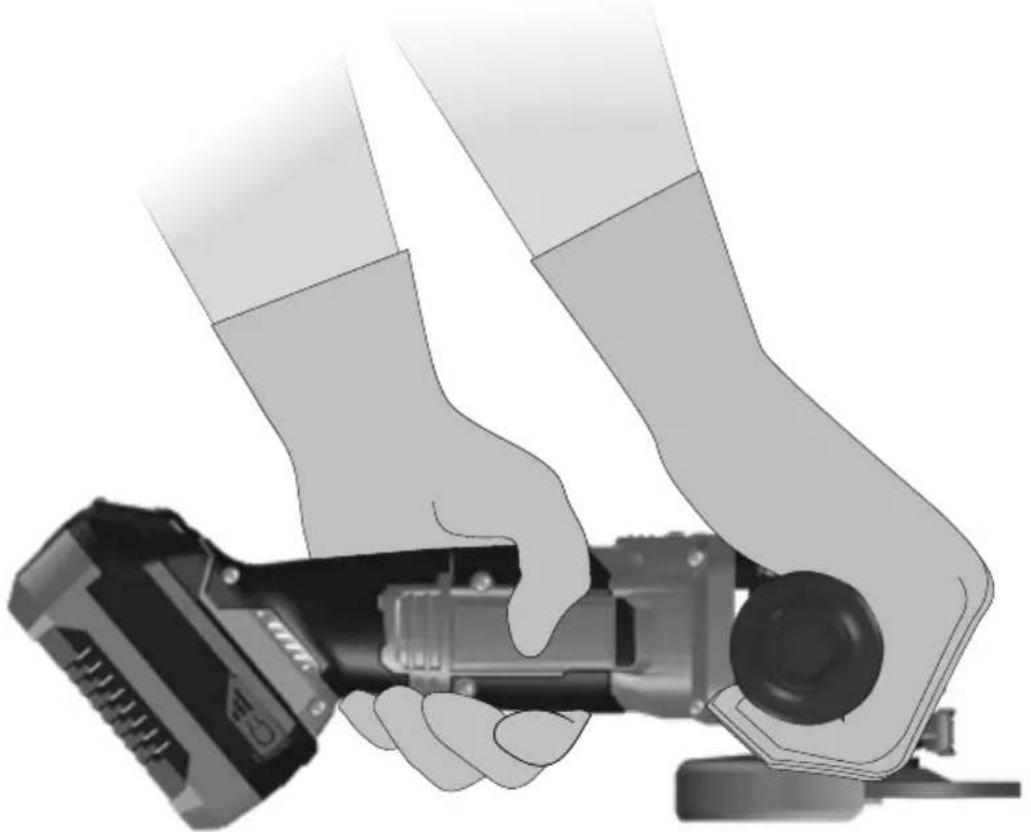

Illustration of hands operating a handheld device with a camera module (no text or symbols visible)

Insulated gripping surface

Close-up of a mechanical tool with a circular base and lever mechanism (no visible text or symbols)

Simple line drawing of a hand holding an object with a curved line crossing through (no text or symbols)

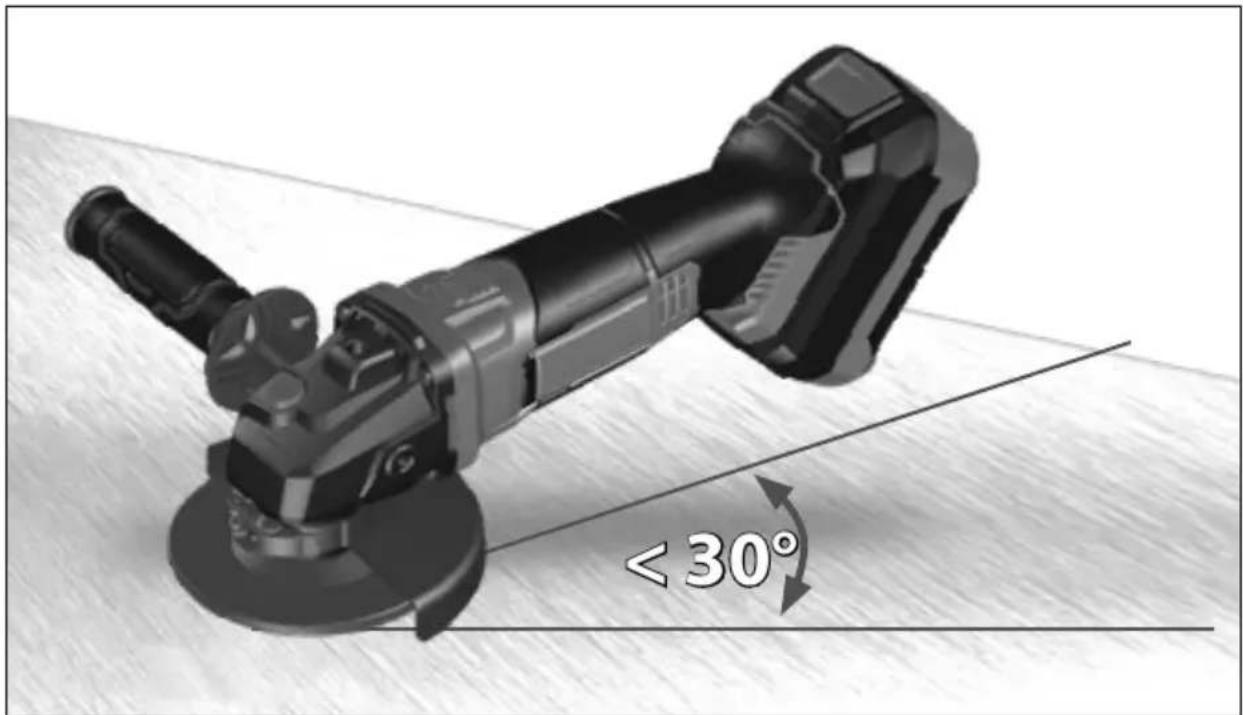

< 30°

Mechanical assembly diagram showing a cutting tool interacting with a workpiece (no text or symbols visible)

Technische Daten

Angle Grinder WS 20-201-401-35
Art. No 58818
Battery voltage 20 V	---
No-load speed 10000 min	-1
d= hole diameter 22,23 mm
b= Grinding disk thickness max.	6,3 mm
D= Grinding surface diameter max.	125 mm
Thread of work spindle M10
Weight without battery/Charging equipment 1,82 kg
Recommended Ambient Operating Temperature -18°C ... +40°C
Recommended battery types AP 20-20, AP 20-40
Recommended charger LG 20-24, LG 20-35
Noise details
Sound pressure level L_pA	85,06 dB(A)
Sound power level L_WA	96,06 dB(A)
Measured according to EN 60745; Uncertainty K = 3 dB (A)
Wear ear protectors!
Vibration details
Vibration total values (triaxial vector sum) determined according to EN 60745:
Surface grinding: Vibration emission value a_h, AG	6,15 m/s ^2
Uncertainty K = 1,5 m/s ^2

WARNING: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.

The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

Persons over 18 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

In case of any doubts about connection and operati-

on refer please to our customer center

Specified Conditions Of Use

The angle grinder is used for grinding metal, stone and ceramic materials, as well as for sanding.

Please refer to the instructions supplied by the accessory manufacturer.

The machine is suitable only for working without water.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information: 1. Accident site, 2. Accident type, 3. Number of injured persons, 4. Injury type(s)

Symbols

WARNING / Caution!

Read the operating instructions to reduce the risk of injury.

Wear eye protective goggles! Wear ear protectors!

Wear gloves!

Wear a suitable dust protection mask.

Take the replaceable battery from the appliance before any extension, cleaning and servicing works.

Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment.

Class III tool.

CE marking

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

V

Volts

n0

No-load speed

Direct Current

Battery

Protect the battery against heat and fire.

Protect the battery against water and moisture.

Protect the battery against temperatures above 40°C.

Do not throw the batteries in household waste.

Deliver the batteries to a collection centre of old batteries where they will be recycled in an environmentally friendly way.

WARNING Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Angle Grinder Safety Warnings

Safety Warnings Common for Grinding and Sanding Operations:

a) This power tool is intended to function as a grinder or sander. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
b) Operations such as wire brushing, abrasive cutting-off operations and polishing are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.
c) Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.
d) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.
e) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
f) Treaded mounting of accessories must match

the grinder spindle thread. For accessories mounted by flanges, the arbour hole of the accessory must fit the locating diameter of the flange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.

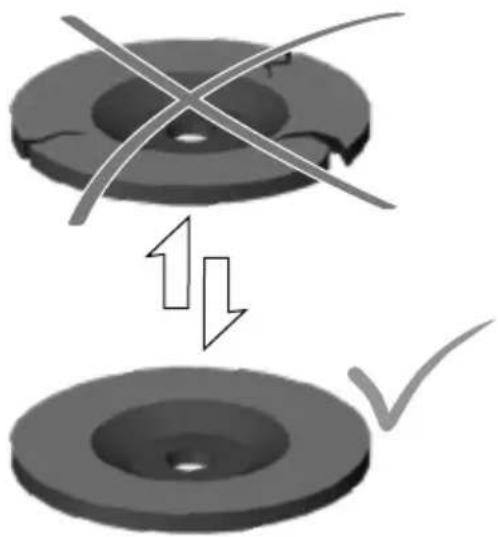

g) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum noload speed for one minute. Damaged accessories will normally break apart during this test time.

h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and shop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

i) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.

j) Hold the power tool by insulated gripping sur - faces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a „live“ wire may make exposed metal parts of the power tool „live“ and could give the operator an electric shock.

k) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning wheel.

I) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.

m) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.

n) Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.

o) Do not operate the power tool near flammable materials. Sparks could ignite these materials.

p) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

Kickback and Related Warnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel. Pinching or snagging causes rapid stalling of the rotating wheel which in turn causes the uncontrolled power tool to be forced in the direction opposite of the wheel's rotation at the point of the binding.

For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Ab - rasive wheels may also break under these conditions. Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

a) Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.
b) Never place your hand near the rotating accessory. Accessory may kickback over your hand.
c) Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.
d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
e) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.toothed saw blade.

Safety Warnings Specific for Grinding:

a) Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
b) The grinding surface of the centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.
c) The guard must be securely attached to the power tool and positioned for maximum safety,

so the least amount of wheel is exposed towards the operator. The guard helps to protect the operator from broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing.

d) Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.
e) Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.
f) Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst.

Additional Safety and Working Instructions

When grinding metal, flying sparks are produced. Take care that no persons are endangered. Because of the danger of fire, no combustible materials should be located in the vicinity (spark flight zone). Do not use dust extraction.

Avoid flying sparks and sanding dust hit your body. Never reach into the danger area of the machine when it is running.

Chips and splinters must not be removed while the machine is running.

Immediately switch off the machine in case of considerable vibrations or if other malfunctions occur. Check the machine in order to find out the cause.

Do not let any metal parts reach the airing slots - danger of short circuit!

Under extreme conditions (e.g. smooth-grinding metals with the arbour and vulcanized fibre grinding wheel), significant contamination can build up on the inside of the angle grinder. For safety reasons, in such conditions the inside should be cleaned thoroughly of metal deposits and a motor circuit-breaker must be connected in series. If the motor circuit-breaker trips the machine must be sent for repair.

For accessories intended to be fitted with threaded hole wheel, ensure that the thread in the wheel is long enough to accept the spindle length.

Always use and store the grinding disks according to the manufacturer's instructions.

The adjusting nut must be tightened before starting to work with the machine.

Always use the auxiliary handle.

The workpiece must be fixed if it is not heavy enough to be steady. Never move the workpiece towards the rotating disk by hand.

STARTUP PROTECTION

Machines with a lockable switch are supplied with a restart cutout. This prevents the machine restarting by itself after a power failure. When resuming work, switch the machine off and then switch it back on again.

Electronics

In case of overload, the rotational speed is being reduced until machine stops. Please note that the machine will automatically accelerate back to its original operating speed if the load is removed from it.

Battery

Risk of fire! Risk of explosion!

Never use damaged, defective or deformed accumulators. Never open or damage the accumulator or let it fall on the ground.

Never charge the battery in an environment with acids and easily flammable materials.

Protect the battery against heat and fire. Battery to be used at the ambient temperatures between 10^ C and +40^ C only.

Never put the battery on heaters and do not expose it to strong sunlight for a long time. After being subject to heavy load, let the battery cool down first.

Short circuit - do not bridge the accumulator contacts with metal parts.

The accumulator must be packaged (plastic bag, box) or accumulator contacts must be sealed up for accumulator disposal, transport or storage.

The Güde charger to be used only to charge the battery. There can be malfunction or fire if different chargers are used.

Vapours may leak out in case of unauthorised use or when using a damaged accumulator. Bring fresh air and seek medical advice if experiencing difficulties. Vapours may irritate the respiratory system.

Work instructions

Accumulators are supplied partially charged and must therefore be fully charged before being used for the first time.

• Charge the accumulator when the appliance is running slowly or stops.
• A li-ion battery may be charged at any time without any shortening of its life. Charging process interruption will not damage the accumulator.
• A li-ion battery is protected by the Electronic Cell Protection against deep discharge.
• A significantly shorter operating time of a charged battery means the battery life is over and the battery must be replaced.

Dispose of the batteries in an environmentally friendly manner.

Li-ion batteries are subject to the special disposal obligation. Have any defective batteries disposed of by a specialised shop. The battery must be taken out before the appliance is scrapped. Damaged batteries may harm the environment and your health if toxic vapours or liquids leak out of such batteries. Therefore, never send a defective battery by post, etc. Please contact your local recycling centre.

Dispose of the batteries when discharged. We recommend applying an adhesive tape on the poles to protect them against short circuit. Never open the battery.

Maintenance

⚠️ Take the replaceable battery from the appliance before any extension, cleaning and servicing works.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff.

Use only original accessories and original spare parts.

Keep the device, in particular the air vents, clean at all times. Never spray water on the device body!

Do not clean the plastics with solvents, flammable or toxic fluids. For cleaning, use a damp cloth only.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If necessary, a list of spare parts can be found at www.guede.com.

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.
