USER MANUAL EasyLine ESI4007 ELECTROLUX

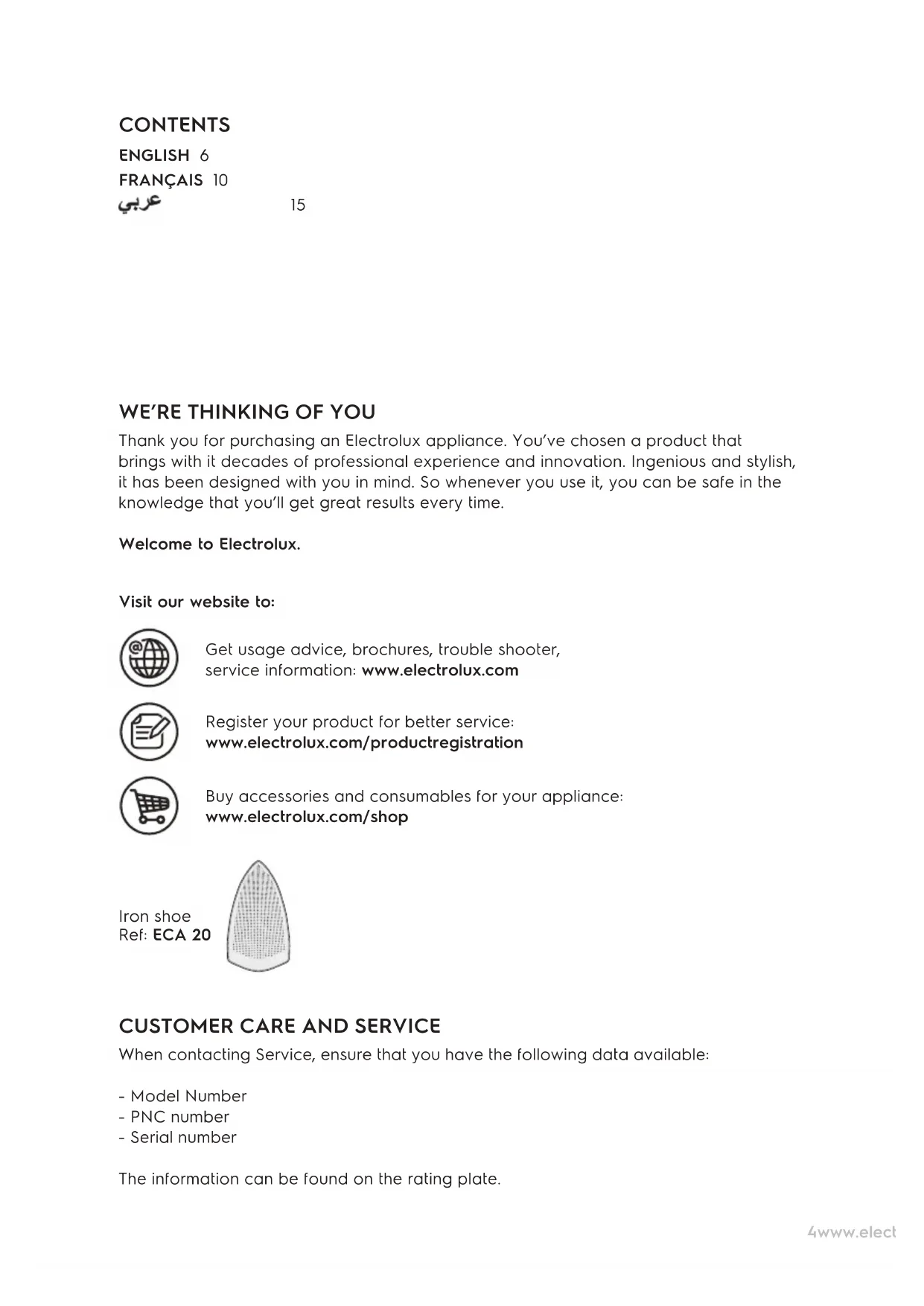

114www.electrolux.com Visit our website to: Get usage advice, brochures, trouble shooter, service information: www.electrolux.com Register your product for better service: www.electrolux.com/productregistration Buy accessories and consumables for your appliance: www.electrolux.com/shop CONTENTS ENGLISH 6 FRANÇAIS 10

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. Welcome to Electrolux.

CUSTOMER CARE AND SERVICE

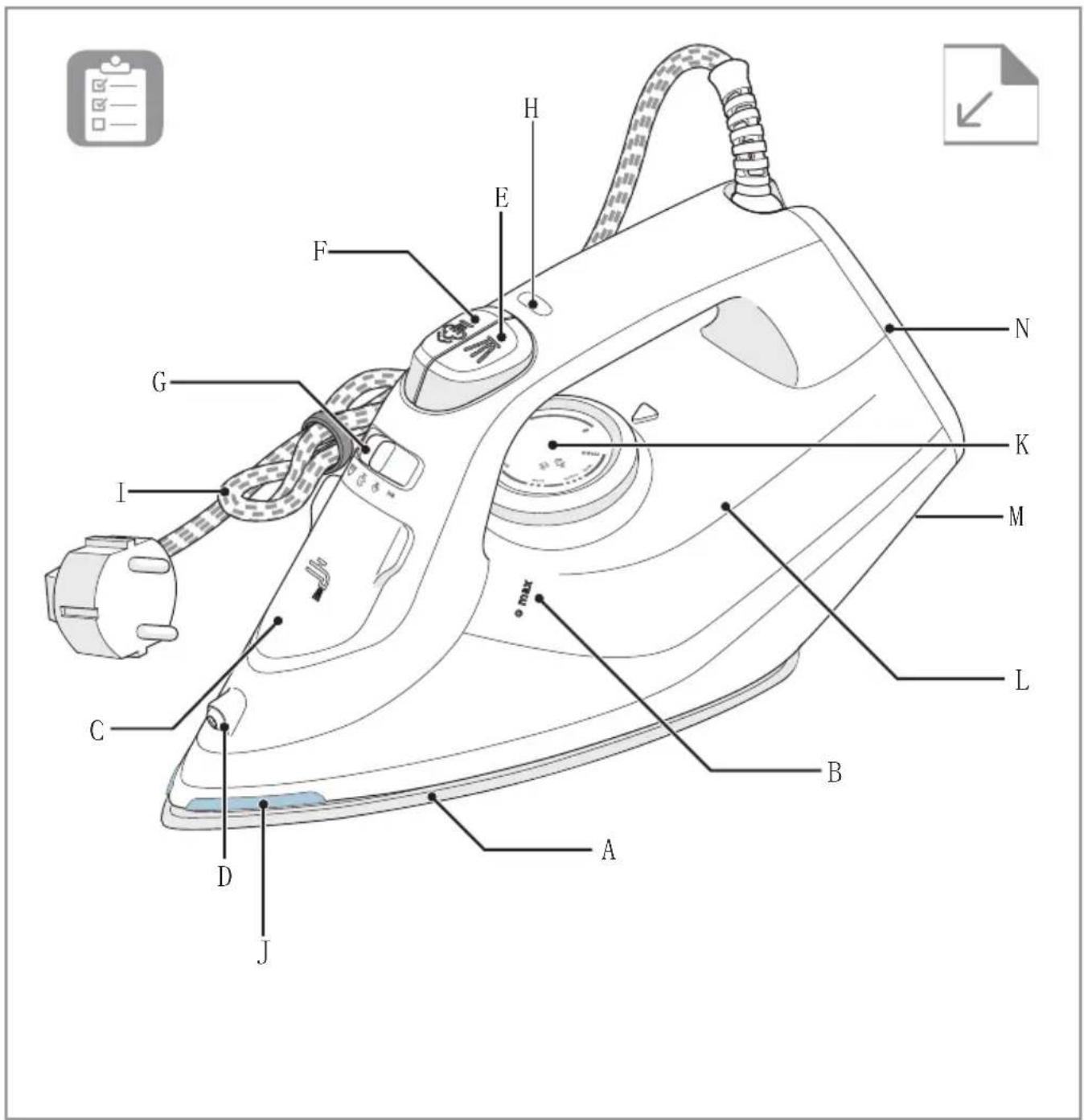

When contacting Service, ensure that you have the following data available: - Model Number - PNC number - Serial number The information can be found on the rating plate. Iron shoe Ref: ECA 205www.electrolux.com ENGLISH Thank you for choosing an Electrolux product. In order to ensure the best results, always use original Electrolux accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes. COMPONENTS A. Soleplate B. Maximum water level indicator C. Filling aperture with cover D. Spray nozzle E. Spray button F. Steam jet button G. Steam selector/Self-cleaning H. Power indicator light

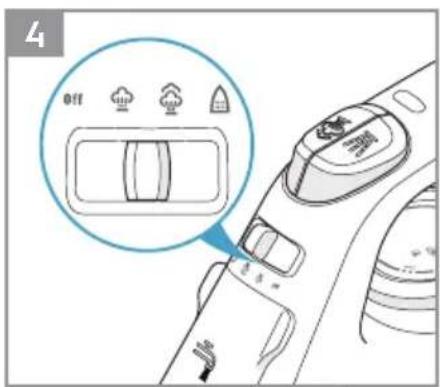

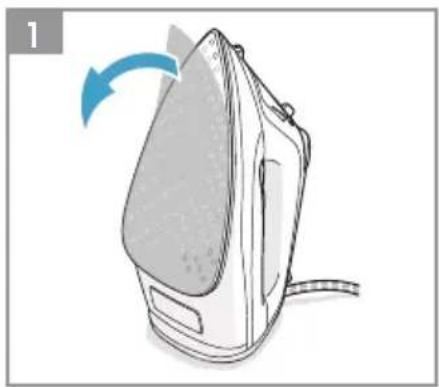

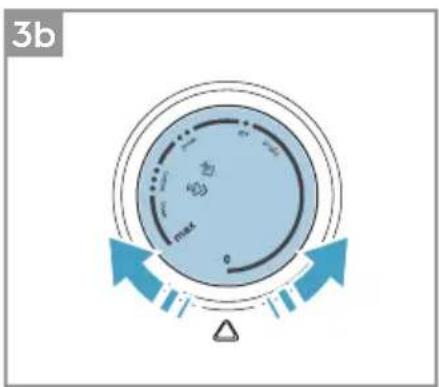

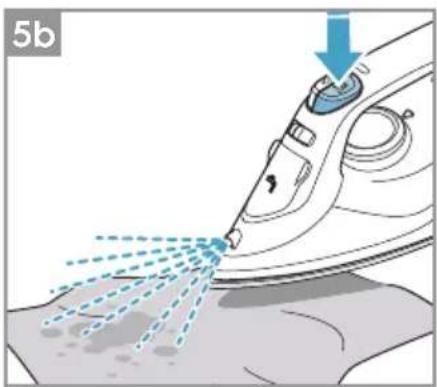

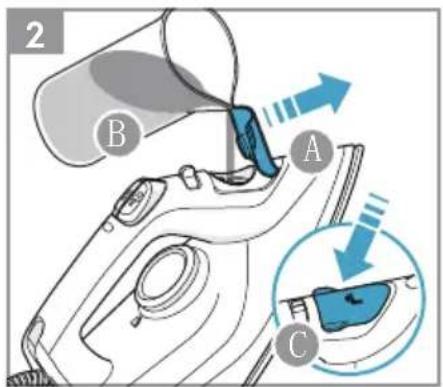

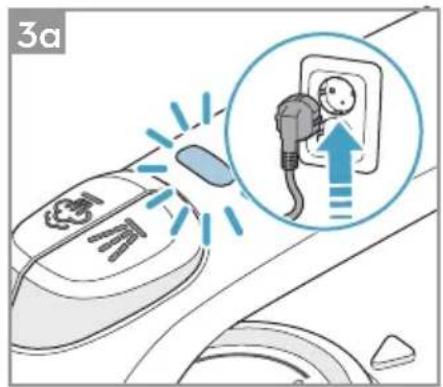

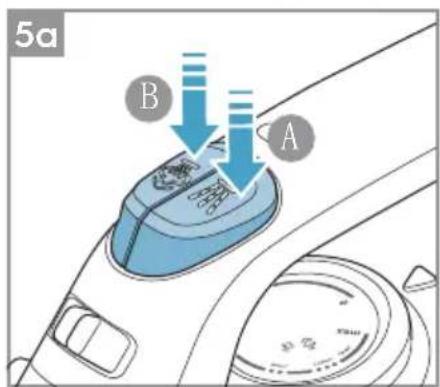

J. Hot Soleplate Indicator * K. Temperature selector L. Water tank M. Cable wrap facility N. Iron heel (* Certain models only) Picture page 2-3 GETTING STARTED 1 Remove all adhesive remains and gently rub with a dampened cloth. Rinse the water tank to 2 Filling the steam iron with water. Make sure that the plug is removed from the power outlet. Turn the steam This product is appropriate for use with tap water. It is recommended to use destilled water or a mix of 50% destilled, 50% tap water. 3 Plug the power cable into a power outlet. Turn the temperature selector to the desired heat. The power indica- Note: If you lower the temperature during ironing, do not start again until the power indicator light turns on. 4 Iron with steam. Turn the steam selector to a position between “OFF” and “ ”, depending on the quantity of steam required. To iron without steam, leave the steam selector on position “OFF”. Note: iron vertically or turning the steam selector to “OFF”. 5 Using the spray mist and steam jet function. Ensure that the water tank is at least 1/4 full. Use spray mist to function, ensure that the tank is at least 1/2 full. Press the steam jet button several times to prime pump (B). 6 Steaming hanging items. The vertical steam jet function is ideal for steaming curtains, suits and delicate fabrics. Hang the item on a hanger, hold the iron at a distance of 10–20 cm and press the steam jet button.

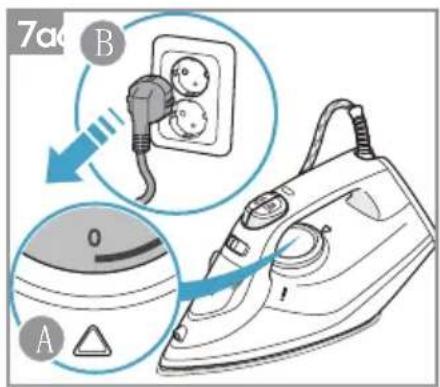

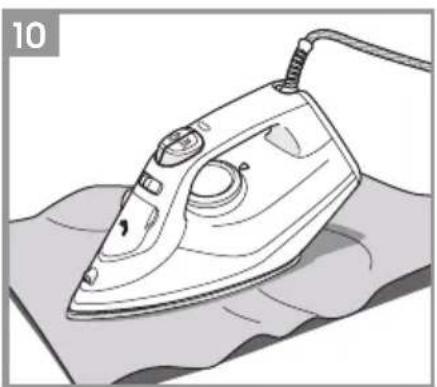

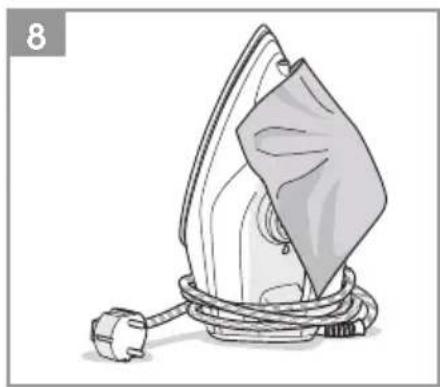

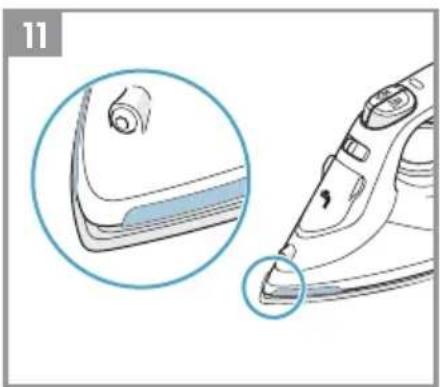

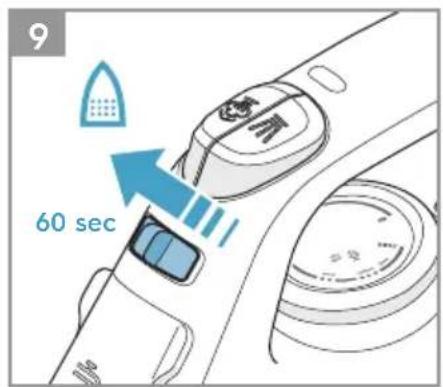

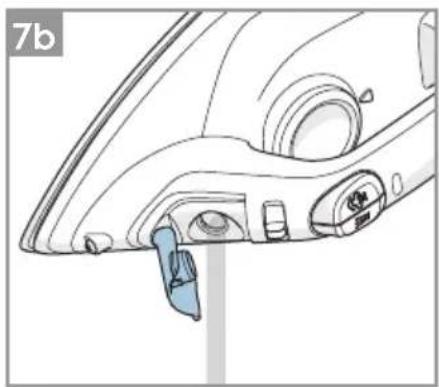

Never pull the sup- ply cord. Instead, grasp the plug and pull. Empty the water tank and let the iron cool completely before storage. 8 Always store the iron on its heel rest with the cord twisted loosley around the cable wrap facility. To clean exterior surfaces, use a damp soft cloth and wipe dry. Do not use any chemical solvents, as these will damage the surface. 9 Self-cleaning function. steam button to self-cleaning position, hold for 60 seconds to empty water from the steam holes. Release the button to stop the self-cleaning function. 10 Cleaning the soleplate. Do not use scouring pads or harsh cleaners on the soleplate as these will damage the surface. To remove burnt residue, iron over a damp cloth while the iron is still hot. To clean the soleplate, simply wipe with a soft damp cloth and wipe dry. 11 Your appliance is equipped with ThermoSafe™ hot soleplate indicator which detects when the soleplate is hot by changing its colour from black to red. Once the temperature of the soleplate is <40C°, the colour changes back to black to show that the iron is ready to be stored away.6www.electrolux.com

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.

• The surfaces are liable to get hot during use .

• This product is appropriate for use with tap water. It is recommended to use destilled water or a mix of 50% destilled, 50% tap water.

• The appliance may only be connected to a power supply whose voltage and

• The iron is not to be used if it has been dropped, if there are visible signs of damage on the iron or its cord or if it is leaking.

• The appliance must only be connected to an earthed socket.

• If the appliance or the supply cord is damaged, it must be replaced by the hazard.

• The iron must be used and rested on a stable surface. When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.

• Never leave the appliance unattended while connected to the supply mains.

after use, before cleaning and maintenance.

• The plug must be removed from the socket outlet before the water reservoir is7www.electrolux.com

• The mains cable must not come into contact with any hot parts of the appliance.

• Do not immerse the appliance in water or any other liquid.

• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

• Be careful when turning a steam iron upside down – there may be hot water in the reservoir. IRONING CHART

FABRIC TEMPERATURE SETTING IRONING RECOMMENDATION

Acrylic Dry iron on the wrong side. Acetate Dry iron on the wrong side while still damp or use spray to dampen. Nylon & Polyester Iron on the wrong side while still damp or use spray to dampen. Rayon Iron on the wrong side of fabric. Viscose Mainly dry iron. Steam can be used under manufacturer’s instructions. Silk Iron on the wrong side. Use an ironing cloth to prevent shine marks. Cotton blends Check the label and follow the manufacturer’s setting. Wool & Wool blends Steam iron on the wrong side or use ironing cloth. Cotton Dry iron while still damp or use spray to dampen. Use steam medium to high. Corduroy Steam iron on the wrong side or use ironing cloth. Linen to “MAX” Iron on the wrong side or use ironing cloth to prevent shine marks, especially with dark colours. Dry iron while still damp or use spray to dampen. Use steam medium to high. Denim to “MAX” Use maximum steam. table!

Temperature settings The iron heats up faster than it cools down, so we recommend that you start ironing the fabrics requiring the lowest are unsure about the fabric, start with a low temperature and iron on a hidden corner. Then increase the temperature gradually if needed. Avoiding marks on the fabric Washing fabrics before ironing If the washing machine is heavily loaded or the spin drying revolutions are very high, the fabrics may come out more creased. However, many fabrics are easier to iron if they are damp.8www.electrolux.com TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION

The soleplate is not heating even though the iron is turned on. Connection problem. Check the main power supply cable, plug, and outlet. The temperature selector is in “MIN” position. Select adequate temperature. The iron does not produce steam. Not enough water in tank. Fill the water tank (see “Getting started”, no 2). Steam selector is set in non-steam position. Set the steam selector between positions of minimum steam and maximum steam (see “Ironing chart”). The selected temperature is lower than that specified to use with steam. Increase the temperature to at least

The spray function does not work. Not enough water in tank. Fill the water tank (see “Getting started”, no 2). The steam jet and vertical steam jet functions does not work. The steam jet function was used very frequently within a short period. Put the iron in a horizontal position and wait before using the steam jet function. The iron is not hot enough. Adjust the proper temperature to steam ironing (up to ). Put the iron in vertical position and wait until the temperature Brown streaks come out of the soleplate while ironing and stain the linen. You have used hard water, which has water tank. Use the self-clean function one or more times. You have used chemical descaling agents. Do not use any descaling agents. the holes of the soleplate and are burning. Use the self-clean function one or more times. Clean the soleplate with a damp soft cloth. The fabrics might not be properly rinsed or the garments are new and have not been washed before ironing. Please rinse the laundry properly again. DISPOSAL This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste. This symbol on the product or on its packaging indicates that the product may not be treated as household that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country’s rules for the separate collection of electrical products and rechargeable batteries.

PROBLÈME CAUSE POSSIBLE SOLUTION

PROBLÈME CAUSE POSSIBLE SOLUTION

GB17www.electrolux.com MIN minimum steam maximum steam non-steam
