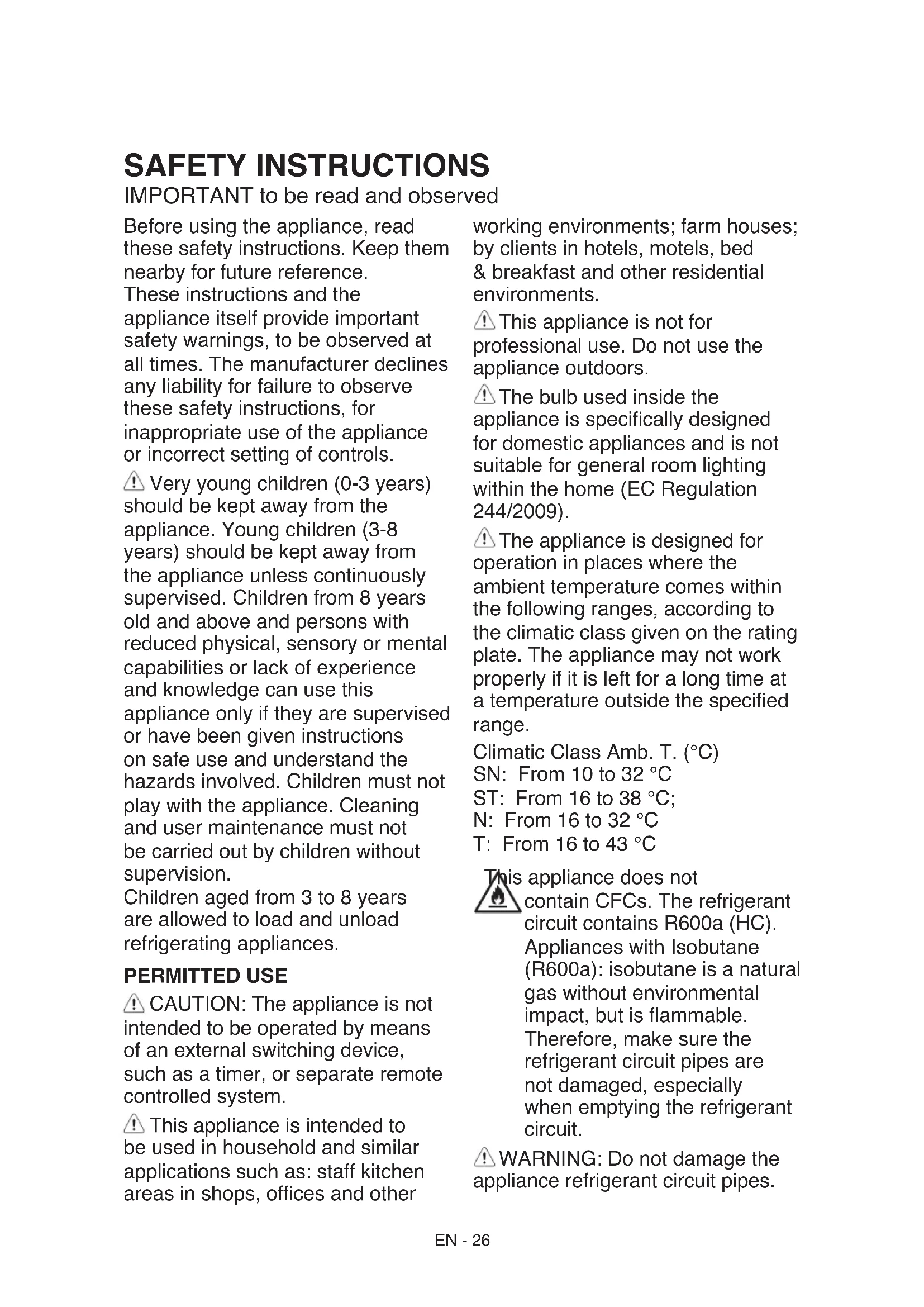

WARNING: Do not damage the

openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

mechanical, electric or chemical means other than those recommended by the Manufacturer to speed up the defrost process.

WARNING: Do not use or

place electrical devices inside the appliance compartments if they are not of the type expressly authorised by the Manufacturer.

WARNING: Ice makers and/

or water dispensers not directly connected to the water supply must be lled with potable water only.

WARNING: Automatic ice-makers

and/or water dispensers must be connected to a water supply that delivers potable water only, with mains water pressure between 0.17 and 0.81 MPa (1.7 and 8.1 bar). Do not store explosive substances such as aerosol cans and do not place or use gasoline or other ammable materials in or near the appliance. Do not swallow the contents (non-toxic) of the ice packs (provided with some models). Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns. For products designed to use an air lter inside an accessible fan cover, the lter must always be in position when the refrigerator is in function. Do not store glass containers with liquids in the freezer compartment since they may break. Do not obstruct the fan (if included) with food items. After placing the food check that the door of compartments closes properly, especially the freezer door. Damaged gaskets must be replaced as soon as possible. Use the refrigerator compartment only for storing fresh food and the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes. Avoid storing unwrapped food in direct contact with internal surfaces of the refrigerator or freezer compartments. Appliances could have special compartments (Fresh Food Compartment, Zero Degree Box,...). Unless differently specied in the specic booklet of product, they can be removed, maintaining equivalent performances. C-Pentane is used as blowing agent in the insulation foam and it is a ammable gas. The most appropriate compartments of the appliance where specic types of food are to be stored, taking into account different temperature distribution in different compartments in the appliance, are as follows:

1) Upper area of the refrigerator

compartment & door - temperature zone: Store tropical fruit, cans, drinks, eggs, sauces, pickles, butter, jam

2) Middle area of the refrigerator

compartment - cool zone: Store cheese, milk, dairy food, deli food, yoghurt

3) Lower area of the refrigeratorEN - 28

compartment - coldest zone: Store cold cuts, desserts, meat and sh, cheesecake, fresh pasta, sour cream, pesto/salsa, home-cooked food, pastry cream, pudding and cream cheese

4) Fruit & vegetable drawer at

the bottom of the refrigerator compartment: Store vegetables and fruits (excluding tropical fruits)

5) Chiller compartment: Only store

meat and sh in the coldest drawer To avoid food contamination, please observe the following: - Opening the door for long periods can cause a signicant increase of the temperature in the compart- ments of the appliance. - Regularly clean surfaces that may come into contact with food and accessible drainage systems. - Clean water tanks if they have not been used for 48 h; ush the water system connected to a water supply if water has not been drawn for 5 days. - Store raw meat and sh in suitable containers in the refrigerator, so that it does not come into contact with or drip onto other food. - Two-star frozen food compartmen- ts are suitable for storing pre-fro- zen food, storing or making ice cream and ice cubes. - Do not freeze fresh food in one, two or three-star compartments. - If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould deve- loping inside the appliance. INSTALLATION The appliance must be handled and installed by two or more persons - risk of injury. Use protective gloves to unpack and install - risk of cuts. Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualied technician. Do not repair or replace any part of the appliance unless specically stated in the user manual. Keep children away from the installation site. After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest Aftersales Service. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children - risk of suffocation. The appliance must be disconnected from the power supply before any installation operation - risk of electric shock. During installation, make sure the appliance does not damage the power cable - risk of re or electric shock. Only activate the appliance when the installation has been completed. Be careful not to damage the oors (e.g. parquet) when moving the appliance. Install the appliance on a oor or support strong enough to take its weight and in a place suitable for its size and use. Make sure the appliance is not near a heat source and that the four feet are stable and resting on the oor, adjusting them as required, and check that the appliance is perfectly level using a spirit level. Wait at least two hours before switching the appliance on, to ensure that the refrigerant circuit is fully efcient.

WARNING: When positioning theEN - 29

appliance, ensure the supply cord is not trapped or damaged.

WARNING: To avoid a hazard

due to instability, positioning or xing of the appliance must be done in accordance with the manufacturer instructions. It’s forbidden to place the refrigerator in such way that the metal hose of gas stove, metal gas or water pipes, or electrical wires are in contact with the refrigerator back wall (condenser coil). To guarantee adequate ventilation, leave a space on both sides and above the appliance. The distance between the rear of the appliance and the wall behind the appliance should be 50 mm, to avoid access to hot surfaces. A reduction of this space will increase the Energy consumption of product. Please remove the power cord from condenser hook during installation before connecting product to power supply. ELECTRICAL WARNINGS It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by a multi-pole switch installed upstream of the socket in accordance with the wiring rules and the appliance must be earthed in conformity with national electrical safety standards. Do not use extension leads, multiple sockets or adapters. The electrical components must not be accessible to the user after installation. Do not use the appliance when you are wet or barefoot. Do not operate this appliance if it has a damaged power cable or plug, if it is not working properly, or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard - risk of electric shock.

WARNING: Do not locate

multiple portable socket-outlets or portable power supplies at the rear of the appliance.

CLEANING AND MAINTENANCE

WARNING: Ensure that the

appliance is switched off and disconnected from the power supply before performing any maintenance operation; never use steam cleaning equipment - risk of electric shock. Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, ammable uids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.

DISPOSAL OF PACKAGING

MATERIALS The packaging material is 100% recyclable and is marked with the recycle symbol

The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

DISPOSAL OF HOUSEHOLD

APPLIANCES This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling ofEN - 30 household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health. The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection centre for the recycling of electrical and electronic equipment.

Install the appliance in a dry, well ventilated room far away from any heat source (eg. radiator, cooker, etc.) and in a place not exposed directly to the sun. If required, use an insulating plate. To guarantee adequate ventilation follow installation instructions. Insufcient ventilation at the back of the product increases energy consumption and decreases cooling efciency. Frequent door opening might cause an increase in Energy Consumption. The internal temperature of the appliance and the Energy Consumption may be affected also by the ambient temperature, as well as location of the appliance. Temperature setting should take into consideration these factors. Reduce door opening to minimum. When thawing frozen food, place it in the refrigerator. The low temperature of the frozen products cools the food in the refrigerator. Allow warm food and drinks to cool down before placing in the appliance. Positioning of the shelves in the refrigerator has no impact on the efcient usage of energy. Food should be placed on the shelves in such way to ensure proper air circulation (food should not touch each other and distance between food and rear wall should be kept). You can increase storage capacity of frozen food by removing baskets and, if present, Stop Frost shelf. Do not worry about noises coming from the compressor which are normal operation noises.EN - 31

• Wait at least two hours, after the installation, before connecting the appliance to the power supply. Connect the appliance to the power supply and turn the thermostat knob to switch on the appliance. After turning the appliance on, you must wait for 4-6 hours for the correct storage temperature to be reached for a normally lled appliance.

• Your fridge may have a smell when it is operated for the rst time. This is normal and the smell will fade away when your fridge starts to cool.

• Larders (coolers) have not any freezer compartment but can cool below 5°C.

• Thermostat automatically regulates the inside temperature of the refrigerator compartment. By rotating the knob from position 1. to 5., colder temperatures can be obtained.

• « • » position shows thermostat is closed and no cooling is available.

• For short-term storage of food in the freezer/refrigerator compartment, you can set the knob between minimum and medium position.(1-3)

• For long-term storage of food, you can set knob to medium position.(3-4) Temperature Settings Warnings

• Larders (coolers) have not any freezer compartment but can cool up to 4 - 6 °C.

• The ambient temperature, temperature of the freshly stored food and how often the door is opened affects the temperature in the fridge. If required, change the temperature setting

• It is not recommended that you operate your fridge in environments colder than 10°C in terms of its efciency.

• When setting the thermostat, take into consideration how often the appliance door is opened and closed, how much food is stored in the refrigerator, and the environment in which the refrigerator is located.

• When the appliance is rst switched on, allow it to run for 24 hours in order to reach large quantity of food inside. operating temperature. During this time, do not open the door and do not keep a large quantity of food inside.

• Unplug your appliance during a power cut to prevent damage to the compressor. Once power is restored, delay plugging in your appliance for 5 to 10 minutes. This will help prevent damage to the appliance’s components.

• Your appliance is designed to operate in the ambient temperature ranges stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are outside of the stated temperature ranges. This will reduce the cooling efciency of the appliance.

• This appliance is designed for use at an ambient temperature within the 10°C - 43°C range. USAGE INFORMATION Climatic Class Amb. T. (°C) SN: From 10 to 32 °C ST: From 16 to 38 °C; N: From 16 to 32 °C T: From 16 to 43 °CEN - 32 Putting food in the coldest area of the refrigerator Your foods will be better stored if you put them in the most appropriate cooling area. The coldest area is just above the crisper. To be sure to have a low temperature in this area, make sure the shelf is located at the level of this symbol, as shown in the illustration. Temperature indicator (In some models) In order to help you better set your refrigerator, we have equipped it with a temperature indicator located in the coldest area. You can easily check that the temperature of the coldest area is appropriate: when the indicator shows “OK”, it means the thermostat is set properly and the inside temperature is correct. Since “OK” appears in black, it will be difcult to see this indication if the temperature indicator is badly lit. To be able to see this indication properly, there should be enough light. If the “OK” symbol does not appear, it means that the temperature is too high: you will then have to modify the thermostat setting, and wait 12 hours before visually checking the temperature again. NOTE: Following repeated openings (or prolonged opening) of the door or after putting fresh food into the appliance, it is normal for the indication “OK” not to appear in the temperature setting indicator. If there is an abnormal ice crystals build up (bottom wall of the appliance) on the refrigerator compartment evaporator (overloaded appliance, high room temperature, frequent door openings), put the temperature setting device on a lower position until compressor off periods are obtained again. The upper limit of the coldest area is indicated by the lower side of the sticker (head of the arrow). The coldest area upper shelf must be at the same level with the arrow head. The coldest area is below this level. As these shelves are removable, make sure they are always at the same level with these zone limits described on the stickers, in order to guarantee temperatures in this area. Each type of food has an ideal conservation temperature and consequently a particular location to follow. Locations Products Upper shelves Cooked foods, desserts and all foods to be eaten fast enough Coldest area Meat, poultry, game and raw sh Maximum conservation tim e : 1 to 2 days. Fresh fruits, cooked pork meat. Crisper Fresh vegetables and fruits. Door-liner Door trays shall contain bottles at the bottom side and, in their upper parts, low volume and currently used products like yoghurt, fresh cream, etc. Butter, cooked cheese and eggs shall be introduced in appropriate holders.

• To reduce humidity and avoid formation of frost, never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporating liquid and, in time, your appliance will require more frequent defrosting.

• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperatu- re and should be arranged to ensure adequate air circulation in the refrigerator compartment.

• Make sure no items are in direct contact with the rear wall of the appliance as frost will develop and packaging will stick to it. Do not open the refrigerator door frequently.

• We recommend that meat and clean sh are loosely wrapped and stored on the glass shelf just above the vegetable bin where the air is cooler, as this provides the best storage conditions.

• Store loose fruit and vegetable items in the crisper containers.

• Do not put wet vegetables into the refrigerator.

• Storage time for all food products depends on the initial quality of the food and an uninterrupted refrigeration cycle before refrigerator storage.

• To avoid cross-contamination do not store meat products with fruit and vegetables. Water leaking from meat may contaminate other products in the refrigerator. You should package meat products and clean any leakages on the shelves.

• Do not put food in front of the air ow passage.

• Consume packaged foods before the recommended expiry date. FOOD STORAGE

CLEANING AND MAINTENANCE

• Disconnect unit from the power supply before cleaning.

• Do not clean the appliance by pouring wate

• Make sure that no water enters the lamp housing and other electrical components.

• The refrigerator compartment should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

• Clean the accessories separately with soap and water Do not clean them in the dishwasher.

• Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have nished cleaning, reconnect the plugto the mains supply with dry

• Clean the condenser with a broom at least twice a year. This will help you to save on energy costs and increase productivity. Defrosting

• Defrosting occurs automatically in refrigerator compartment during operation ; the defrost water is collected by the evaporating tray and evoparates automatically.

• The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of owing out.

• You can also pour 1⁄2 glass of the water to drain hole to clean inside. Replacing The Light Bulb When replacing the light of the refrigerator compartment;

1. Unplug the unit from the power supply,

2. Remove the cover of the box from the claws using a screwdriver.

3. Replace with a bulb of maximum 15 Watts.

4. Install the cover.

5. Wait for 5 minutes before re-plugging and bring the thermostat to

its original position. Replacing LED Lighting If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.EN - 34

• The original packages and foamed polystyrene (PS) can be retained if required.

• During transportation, the appliance should be secured with a wide string or a strong rope. The instructions written on the corrugated box must be followed while transporting.

• Before transporting or changing the installation position, all the moving objects (ie,shelves,crisper...) should be taken out or xed with bands in order to prevent them from getting damaged. Carry your fridge in the upright position. Repositioning the door

• It is not possible to change the opening direction of your fridge door, if the door handles on your fridge are installed from the front surface of the door.

• It is possible to change the opening direction of the door on models without any handles.

• If the door opening direction of your fridge may be changed, you should contact the nearest Authori- sed Service to have the opening direction changed.

TRANSPORTATION AND CHANGING OF

INSTALLATION POSITION If your refrigerator is not operating as expected, check the solutions listed below before calling an electrician or the after sales service. What to do if your refrigerator does not operate: Check that :

• Your fridge is plugged in and switched on,

• The fuse is not blown and there is not a power cut,

• The thermostat setting is in the on « • » position,

• The socket is no longer functioning. To check this, plug in an appliance that you know is working into the same socket. What to do if your refrigerator performs poorly: Check that:

• You have not overloaded the appliance,

• The doors are fully closed,

• There is no dust on the condenser,

• There is enough space for air circulation at the rear and side of the appliance. If your fridge is operating too loudly Normal Noises

• Cracking (Ice cracking) Noise: (For no frost/frost free appliances)

• During automatic defrosting. When the appliance is cooled or warmed (due to expansion of appliance material).

• Short cracking: Heard when the thermostat switches the compressor on/off.- Compressor noise

• Normal motor noise: This noise means that the compressor operates normally

• The compressor may cause more noise for a short time when it is rst activated. Bubbling noise and splash:

• This noise is caused by the ow of the fridge freezer in the tubes of the system. If your fridge is operating too loudly

• To maintain the set cooling level, compressor may be activated from time to time. Noises from your fridge at this time are normal and due to its function. When the required cooling level is reached, noises will be decreased automatically. If the noises persist;

• If you will not use your fridge for a long time (e.g. in summer holidays), put the thermostat to “•” • Is your appliance stable? Are the legs adjusted?

• Is there anything behind your fridge?

• Are the shelves or dishes on the shelves vibrating? Re-place the shelves and/or dishes

BEFORE CALLING SERVICEEN - 35

if this is the case.

• Are the items placed on your fridge vibrating? If you hear any other noises check that:

• The appliance is level

• Nothing is touching the rear of the appliance

• The objects on the appliance are vibrating. Water ow noise: (For no frost/frost free appliances) Normal ow noise of water owing to the evapora- tion container during defrosting. This noise can be heard during defrosting. Air Blow Noise: If the appliance has fan in freezer/cooler /bottom cabinet compartments.

• This noise can be heard in fridges during normal operation of the system due to the circulation of air. If the appliance is making a noise: The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. This is normal. If these sounds are different check that:

• The appliance is level,

• Nothing is touching the rear of the appliance,

• Items on or in the appliance are vibrating. If there is water in the lower part of the refrigerator: Check that:

• The drain hole for the defrost water is not clogged (use thedefrost drain plug to clean the drain hole). If your fridge is not cooling enough;

• Your fridge is designed to operate within specic ambient temperature ranges, according

• to the climate class stated on the information label. We do not recommend operating your

• fridge outside the stated temperatures value limits. Recommendations

• If the appliance is switched off or unplugged, wait at least 5 minutes before plugging the appliance in or restarting it in order to prevent damage to the compressor.

• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to chapter cleaning and leave the door open to prevent humidity and smell.

• If a problem persists after you have followed all the above instructions, please consult the nearest authorised service centre.

• The appliance you have purchased is designed for domestic use only. It is not suitable for com- mercial or common use. If the consumer uses the appliance in a way that does not comply with this, we emphasise that the manufacturer and the dealer will not be responsible for any repair and failure within the guarantee period.EN - 36 THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

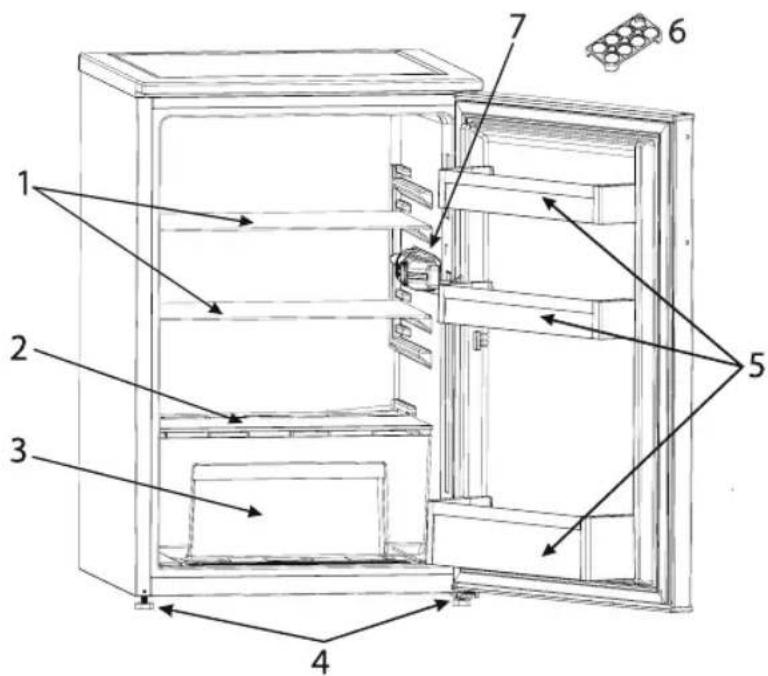

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.ES - 37
