USER MANUAL AEQ06LM GE

• Safety Instructions p. 2
• , 3 Operating Instructions Control Knob Models p. 6
• , 7Touch Pad Models p. 4
• , 5 Care and Cleaning Air Filter p. 7
• Outdoor Coils p. 7
• Installation Instructions p. 8
• –11 Troubleshooting Tips p. 12
• Normal Operating Sounds Consumer Support Consumer Support p. 12
• Back CoverOwnership Registration forCustomers in Canada only p. 13
• , 14Warranty for Customersin Canada p. 16
• Warranty for Customersin the U.S.A -7605 12-08 JRAEM05*AEM06*AEM08*AEQ05AEQ06AEQ08AEV05 Owner’s Manual and Installation Instructions Write the model and serial numbers here:Model # __________________________Serial # __________________________Find these numbers on a label on theside of the air conditioner. Air Conditioners ge.com Room As an ENERGY STAR partner, GE hasdetermined that this product meets the ENERGY STAR guidelines for energy efficiency.*ENERGY STAR labeled product Climatiseur Acondicionador de aire Manuel d’utilisation et instructions d’installation Manual del propietario y instrucciones de instalación La section française commence à la page 17La sección en español empieza en la página 33In Canada, contact us at:www.GEAppliances.ca2 IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING. WARNING! For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury. ■ Use this appliance only for its intendedpurpose as described in this Owner’sManual. ■ This air conditioner must be properlyinstalled in accordance with the InstallationInstructions before it is used. ■ Never unplug your air conditioner by pullingon the power cord. Always grip plug firmlyand pull straight out from the receptacle. ■ Replace immediately all electric service cords that have become frayed or otherwisedamaged. A damaged power supply cordmust be replaced with a new power supplycord obtained from the manufacturer andnot repaired. Do not use a cord that showscracks or abrasion damage along its length or at either the plug or connector end. ■ Turn the unit OFF and unplug your airconditioner before making any repairs or cleaning. NOTE: We strongly recommend that any servicing be performed by a qualified individual. ■ For your safety…do not store or usecombustible materials, gasoline or otherflammable vapors or liquids in the vicinity of this or any other appliance.■ All air conditioners contain refrigerants,which under federal law must be removedprior to product disposal. If you are gettingrid of an old product with refrigerants,check with the company handling disposalabout what to do.■ If the receptacle does not match the plug,the receptacle must be changed out by aqualified electrician. SAFETY PRECAUTIONS Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded. DO NOT use an adapter plug with this appliance. The power cord of this appliance is equippedwith a 3-prong (grounding) plug which mateswith a standard 3-prong (grounding) walloutlet to minimize the possibility of electric shock hazard from this appliance.Power cord includes a current interrupterdevice. A test and reset button is provided onthe plug case. The device should be tested on aperiodic basis by first pressing the TEST buttonand then the RESET button while plugged intothe outlet. If the TEST button does not trip or if the RESET button will not stay engaged,discontinue use of the air conditioner andcontact a qualified service technician.Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.Where a 2-prong wall outlet is encountered, it is your personal responsibility and obligationto have it replaced with a properly grounded 3-prong wall outlet.The air conditioner should always be pluggedinto its own individual electrical outlet whichhas a voltage rating that matches the ratingplate.This provides the best performance and alsoprevents overloading house wiring circuitswhich could cause a fire hazard fromoverheated wires.See the Installation Instructions, Electrical Requirements section for specific electricalconnection requirements. p. 1549

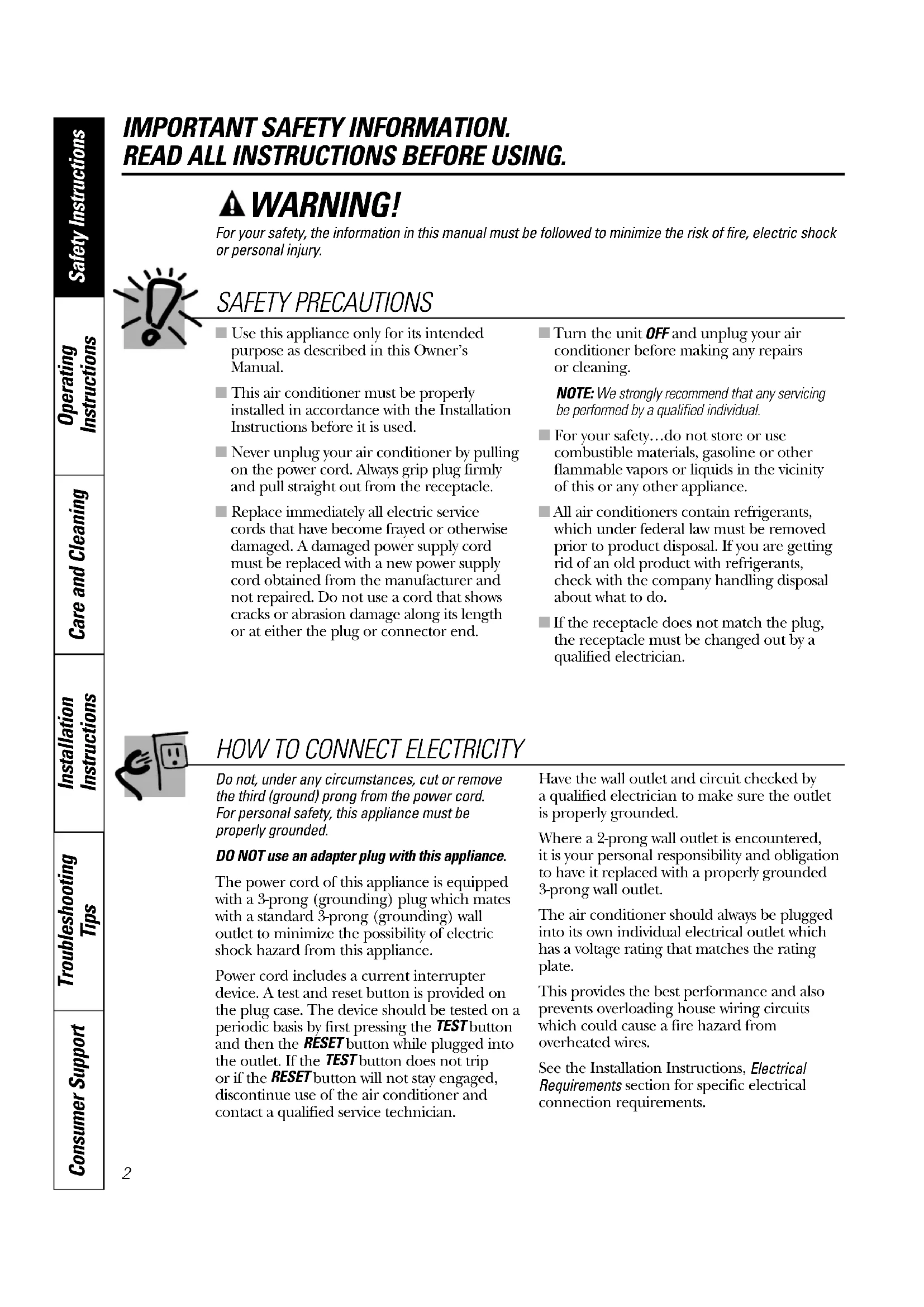

HOW TO CONNECT ELECTRICITY

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support3 Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions ge.com WARNING! Because of potential safety hazards under certainconditions, we strongly recommend against theuse of an extension cord. However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed,14 gauge, 3-wire grounding type applianceextension cord having a grounding type plugand outlet and that the electrical rating of thecord be 15 amperes (minimum) and 125 volts. CAUTION: DO NOT use an extension cord with any of the230/208 volt models. USE OF EXTENSION CORDS—115-Volt models only READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS4

About the controls on the air conditioner—models with touch pads. Controls Power Pad Turns air conditioner on and off. Whenturned on, the display will show the roomtemperature. Display Shows the room temperature or timeremaining on the Delay timer. Shows the Set temperature while setting the temperature in Cool

Energy Savermodes. The Set light willturn on while setting.NOTE:The display will change to show theroom temperature after settings have beenmade. To recall the Set temperature, press theTemp Increase ▲ orDecrease ▼ pads. Temp Increase

Pads Use to set temperature when in Cool

EnergySaver mode. The Set light will turn on whilesetting. Delay Timer Increase

Pads Each touch of the Increase / Decrease pads on the unit or the Increase / Decrease pads on the remote control will set the delaytime when using the Delay 1–24hrtimer ( ). The Set light will turn on while setting. Fan Speed Pads Use to set the fan speed to Low, Med, High Auto on the unit. NOTE:On the remotecontrol, use the fan speed Increase

Decrease pads to set the fan speeds to Low

High . Use the Auto pad to turn Auto fan on. Mode Pad Use to set the air conditioner to Cool

EnergySaver Fan Onlymode. Delay Pads Delay ON—When the air conditioner is off, itcan be set to automatically come on in 1 to 24hours at its previous mode and fan settings. Delay OFF—When the air conditioner is on, it can be set to automatically turn off in 1 to 24 hours. How to set:Press the Delay 1–24hrpad on the unit orthe pad on the remote control. Each touchof the Increase / Decrease ▼ pads on theunit or the Increase / Decrease pads on the remote control will set the timer in 1-hour intervals. The Set light will turn onwhile setting.To review the remaining time on the Delay1–24hr timer, press the Delay 1–24hrpad on theunit or the pad on the remote control. Use the Increase / Decrease ▼ pads on the unitor the Increase / Decrease pads on theremote control to set a new time if desired.To cancel the timer,press the Delay 1–24hr pad until the light on the Delay 1–24hr pad goes off. Features and appearance will vary. Lights next to the touch pads on the air conditioner control panel indicate the selected settings.

Delay Delay 1–24hr Delay timer Decrease Mode select Fan speed Decrease Temperature set Increase and Decrease Remote Control Delay timer Increase Auto Fan on/off Fan speed Increase Unit power on/off The display always shows the room temperature except when setting the Set temperature or the Delay timer. Air Conditioner Controls Light indicates the delay timer is set. Light indicates the unit is in the temperature or delay time Set mode. Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support5 ■ To ensure proper operation, aim the remotecontrol at the signal receiver on the airconditioner.■ The remote control signal has a range of up to 20 feet.■ Make sure nothing is between the air conditionerand the remote control that could block thesignal.■ Make sure batteries are fresh and installedcorrectly as indicated on the remote control. Remote Control ge.com Cool Mode Use the Cool mode at Low, Med, High Auto FanSpeedfor cooling. Use the Temperature Increase

Decrease ▼ pads to set the desired temperaturebetween 64°F and 86°F in 1°F increments. An electronic thermostat is used to maintain theroom temperature. The compressor will cycle on and off to keep the room at the set level of comfort.Set the thermostat at a lower number and the indoorair will become cooler. Set the thermostat at a highernumber and the indoor air will become warmer.NOTE: If the air conditioner is off and is then turned on while set to a Cool setting or if turned from a fan setting to a Cool setting, it may take approximately 3 minutes for the compressor to start and cooling to begin. Cooling Descriptions For Normal Cooling—Select the Cool mode and High

Med fan with a middle set temperature.For Maximum Cooling—Select the Cool mode and High fan with a lower set temperature.For Quieter & Nighttime Cooling—Select the Cool mode and Low fan with a middle settemperature. Fan Only Mode Use the Fan Only Mode at Low, Med High fan speed to provide air circulation and filteringwithout cooling. Since fan only settings do notprovide cooling, a Set temperature cannot beentered. The room temperature will appear in the display.NOTE: Auto Fan Speed cannot be used when in the Fan Only Mode. Energy Saver Mode Controls the fan. ON— The fan will cycle on and off with thecompressor. This results in wider variations of roomtemperature and humidity. Normally used when theroom is unoccupied. NOTE: The fan may continue to runfor a short time after the compressor cycles off. OFF— The fan runs all the time, while thecompressor cycles on and off.In the case of a power outage or interruption, theunit will automatically re-start in the settings lastused after the power is restored. If the Delay 1–24hrfeature was set, it will resume countdown. You mayneed to set a new time if desired. Power Outage Recovery Feature Set to Auto fan speed for the fan speed toautomatically set to the speed needed to provideoptimum comfort settings with the set temperature. If the room needs more cooling, the fan speed will automatically increase. If the room needs lesscooling, the fan speed will automatically decrease. NOTE: Auto Fan Speed cannot be used when in the Fan Only Mode. Auto Fan Speed Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions Do Not Operate in Freezing Outdoor Conditions This cool-only air conditioner was not designed forfreezing outdoor conditions. It must not be used infreezing outdoor conditions.About the controls on the air conditioner—models with control knobs. Features and appearance will vary. Controls Mode Control High Cool, Med Cool and Low Coolprovide cooling with different fan speeds.Fan settings provide air circulation andfiltering without cooling.NOTE: If you move the mode control from a cool setting to OFF or to a fan setting, wait at least 3 minutes before switching back to a cool setting.Cooling DescriptionsFor Normal Cooling—Select High Cool Med Coolwith the TEMPERATURE control at midpoint.For Maximum Cooling—Select High Coolwith theTEMPERATURE control at the highest numberavailable on your knob.For Quieter and Nighttime Cooling—Select Low Cool with the TEMPERATURE control atmidpoint. TEMP Control The TEMP control is used to maintain theroom temperature. The compressor will cycleon and off to keep the room at the same levelof comfort. When you turn the knob to ahigher number, the indoor air will becomecooler. Turn the knob to a lower number andthe indoor air will become warmer.

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer SupportRemove the battery cover by sliding itaccording to the arrow direction.Insert new batteries, making sure that the (+)and (–) of battery are installed correctly.Reattach the cover by sliding it back into position.NOTES:■ Use 2 “AAA” (1.5 volt) alkaline batteries. Do notuse rechargeable batteries.■ Remove the batteries from the remote control ifthe system is not going to be used for a long time.

Air Direction Use the lever to adjust the air direction left andright only.ge.comAdditional important information. Air Filter The air filter behind the front grille should bechecked and cleaned at least every 30 days or more often if necessary.To remove: Push on one side of the filter edge and pull it outthe other side.Clean the filter with warm, soapy water. Rinse andlet the filter dry before replacing it. Do not cleanthe filter in a dishwasher. CAUTION:DO NOT operate the air conditioner without a filter because dirt and lint will clog it and reduce performance. Outdoor Coils The coils on the outdoor side of the air conditionershould be checked regularly. If they are cloggedwith dirt or soot, they may be professionally cleaned.Turn the air conditioner off and remove the plugfrom the wall outlet before cleaning. To clean, use water and a mild detergent. Do notuse bleach or abrasives. Grille and Case How to Insert the Batteries in the Remote Control Care and cleaning of the air conditioner. Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions Appearance may vary.Appearance may vary.BEFORE YOU BEGIN Read these instructions completely and carefully.

IMPORTANT — Observe all governing codes and ordinances.

• Note to Installer – Be sure to leave these instructions with the Consumer.

• Note to Consumer – Keep these instructions for future reference.

• Skill level – Installation of this appliance requires basic mechanical skills.

• Completion time – Approximately 1 hour

• We recommend that two people install this product.

• Proper installation is the responsibility of the installer.

• Product failure due to improper installation is not covered under the Warranty.

• You MUST use all supplied parts and use proper installation procedures as described in these instructions when installing this air conditioner. Installation Air Conditioner Instructions Some models require a 115/120-volt AC, 60 Hz grounded outlet protected with a 15-amp time delay fuse or circuit breaker. The 3-prong grounding plug minimizes the possibility of electric shock hazard. If the wall outlet you plan to use is only a 2-prong outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet. Some models require 230/208-volt AC, protected with a time delay fuse or circuit breaker. These models should be installed on their own single branch circuit for best performance and to prevent overloading house or apartment wiring circuits, which could cause a possible fire hazard from overheating wires. ELECTRICAL REQUIREMENTS CAUTION: Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. Do not change the plug on the power cord of this air conditioner. Aluminum house wiring may present special problems—consult a qualified electrician.

Phillips head screwdriverRuler or tape measurePencilLevelScissors or knifeFlat-blade screwdriver Power cord includes a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the TEST button and then the RESET button while plugged into the outlet. If the TEST button does not trip or if the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician. Questions? Call 800.GE.CARES (800.432.2737) or visit our Website at: ge.com In Canada, call 1.800.561.3344 or visit www.GEAppliances.ca9 Installation Instructions Type A (6) Top mounting rail Right accordion panel Foam top window gasket Window sash seal Left accordion panel Type B (3) Type C (5) Air conditioner Window locking bracket (1) PARTS INCLUDED (Appearance may vary) Top mounting rail seal stripInstallation Instructions WINDOW REQUIREMENTS

• These instructions are for a standard double-hung window. You will need to modify them for other types of windows.

• The air conditioner can be installed without the accordion panels if needed to fit in a narrow window. See the window opening dimensions.

• All supporting parts must be secured to firm wood, masonry or metal.

• The electrical outlet must be within reach of the power cord.

(With accordion panels)

PREPARE THE AIR CONDITIONER

Install the top mounting rail with 3 Type B screws from the outside of the case. Slide the left and right accordion panels into the top and bottom mounting rails.

Top mounting railBottom mounting railTop leftTop right

A storm window frame will not allow the air conditioner to tilt toward the outside, and will keep it from draining properly. To adjust for this, attach a piece of wood to the sill. WOOD PIECES WIDTH: 2″ LENGTH: Long enough to fit inside the window frame. THICKNESS: To determine the thickness, place a piece of wood on the sill to make it 1/2″ higher than the top of the storm window frame or the vinyl frame. Attach securely with nails or screws provided by the installer.

1/2″ higherthan stormwindowframeStorm windowframe Wood Sill 1/2″ higherthan vinyl frame (on some windows)Vinyl frame

ATTACH THE TOP MOUNTING

Remove the backing from the top mounting rail seal strip and attach the seal strip to the bottom of the top mounting rail, along the front edge.

Top mounting railRemovebacking from seal stripTop mounting railSeal stripFRONT VIEWInstallation Instructions

PREPARE THE AIR CONDITIONER

(cont.) Attach the accordion panels to the case using 3 Type A screws on each side.

Place the air conditioner on the sill with the bottom mounting rail against its back edge. Center it and close the window securely behind the top mounting rail. It should be level or slightly tilted to the outside. Use a level; about a 1/3 bubble will be the correct case slant to the outside. Extend the left and right accordion panels to the vertical window sashes and attach, through the holes in the panels, with 4 Type C screws, as appropriate.

Cut the window sash seal to the proper length. Peel off the backing and attach the seal to the underside of the window sash.

Type AscrewsTop mounting railBottom mounting railAccordionpanel BACK

Attach the support bracket with one Type C screw. Cut the foam top window gasket to the window width. Stuff the foam between the glass and the window to prevent air and insects from getting into the room. NOTE: If the gasket supplied does not fit your window, obtain appropriate material locally to provide a proper installation seal.

CAUTION: To prevent broken glass or damage to windows, on vinyl or other similarly constructed windows, attach the support bracket to the window side jam.

Wood Vinyl 11Troubleshooting Tips.

Normal Operating Sounds ■ You may hear a pinging noise caused by waterbeing picked up and thrown against thecondenser on rainy days or when the humidity is high. This design feature helps removemoisture and improve efficiency.■ You may hear the thermostat click when thecompressor cycles on and off.■ Water will collect in the base pan duringhigh humidity or on rainy days. The watermay overflow and drip from the outdoor sideof the unit.■ The fan may run even when the compressor does not. Problem Possible Causes What To Do Air conditioner The air conditioner • Make sure the air conditioner plug is pushed does not startis unplugged. completely into the outlet. The fuse is blown/circuit • Check the house fuse/circuit breaker box and replace breaker is tripped. the fuse or reset the breaker. Power failure. • The unit will automatically re-start in the settings last used after the power is restored.• There is a protective time delay (approximately 3 minutes) to prevent tripping of the compressor overload. For this reason, the unit may not start normal cooling for 3 minutes after it is turned back on.The current interrupter • Press the RESETbutton located on the power cord plug.device is tripped.• If the RESETbutton will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician.Air conditioner does Airflow is restricted. • Make sure there are no curtains, blinds or furniture not cool as it shouldblocking the front of the air conditioner.The temp control may • On models with touch pads: In the Cool mode, press thenot be set correctly.Decrease ▼ pad.• On models with control knobs, turn the temperatureknob to a higher number. The air filter is dirty. • Clean the filter at least every 30 days. See the Care and Cleaningsection. The room may have been hot. • When the air conditioner is first turned on, you need to allow time for the room to cool down. Cold air is escaping. • Check for open furnace registers and cold air returns. Cooling coils have iced up. • See “ Air conditioner freezing up” below.Air conditioner Ice blocks the air flow • On models with control knobs, set the mode control at freezing upand stops the air conditionerHigh Fan High Coolwith the Temp

from cooling the room.• On models with touch pads, set the controls at High Fan High Cooland set the thermostat to a higher temperature.The remote control The batteries are inserted • Check the position of the batteries. They should be is not workingincorrectly. inserted in the opposite (+) and (–) direction. The batteries may be dead. • Replace the batteries. Water drips outside Hot, humid weather. • This is normal. Water drips indoors The air conditioner is not • For proper water disposal, make sure the air conditioner tilted to the outside. slants slightly from the case front to the rear. Water collects in Moisture removed from air • This is normal for a short period in areas with little base pan and drains into base pan. humidity; normal for a longer period in very humid areas. Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support13 OWNERSHIP REGISTRATION

• MISSISSAUGA, ONTARIO L4Y 4G1 (FOR CANADIAN CONSUMERS ONLY) Please place in envelope and mail to: Veuillez mettre dans une enveloppe et envoyez à :1415 Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions Staple your receipt here. Proof of the original purchasedate is needed to obtain serviceunder the warranty. GE Air Conditioner—One-Year Limited Warranty. (For customers in the U.S.A.) For The Period Of: GE Will Replace: One Year Any part of the air conditioner which fails due to a defect in materials or workmanship. From the date of the During this limited one-year warranty, GE will also provide, free of charge, all labor and related original purchase service to replace the defective part.■ Service trips to your home to teach you how to use the product.■ Improper installation, delivery or maintenance. If youhave an installation problem, or if the air conditioner is of improper cooling capacity for the intended use,contact your dealer or installer. You are responsible for providing adequate electrical connecting facilities.■ Failure of the product resulting from modifications to the product or due to unreasonable use including failureto provide reasonable and necessary maintenance.■ In commercial locations, labor necessary to move the unit to a location where it is accessible for service by an individual technician.■ Replacement of house fuses or resetting of circuitbreakers.■ Failure due to corrosion on models not corrosion-protected.■ Damage to the product caused by improper power supplyvoltage, accident, fire, floods or acts of God.■ Incidental or consequential damage caused by possibledefects with this air conditioner.■ Damage caused after delivery. What Is Not Covered: This warranty is extended to the original purchaser and any succeeding owner for products purchased for homeuse within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty givesyou specific legal rights, and you may also have other rights which vary from state to state. To know what yourlegal rights are, consult your local or state consumer affairs office or your state’s Attorney General.Warrantor: General Electric Company. Louisville, KY 40225All warranty service provided by our Factory Service Centers, or an authorized Customer Care technician. To schedule service,visit us on-line at ge.com, or call 800.GE.CARES (800.432.2737).Have serial number and model number available when calling for service.EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in thisLimited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for aparticular purpose, are limited to one year or the shortest period allowed by law.16 Staple your receipt here. Proof of the original purchasedate is needed to obtain serviceunder the warranty. GE Air Conditioner—One-Year Limited Warranty. (For customers in the Canada) For The Period Of: Mabe Will Replace: One Year Any part of the air conditioner which fails due to a defect in materials or workmanship. From the date of the During this limited one-year warranty, Mabe will also provide, free of charge, all labor and original purchase related service to replace the defective part.■ Service trips to your home to teach you how to use the product.■ Improper installation, delivery or maintenance. If youhave an installation problem, or if the air conditioner is of improper cooling capacity for the intended use,contact your dealer or installer. You are responsible for providing adequate electrical connecting facilities.■ Failure of the product resulting from modifications to the product or due to unreasonable use including failureto provide reasonable and necessary maintenance.■ In commercial locations, labor necessary to move the unit to a location where it is accessible for service by an individual technician.■ Replacement of house fuses or resetting of circuitbreakers.■ Failure due to corrosion on models not corrosion-protected.■ Damage to the product caused by improper power supplyvoltage, accident, fire, floods or acts of God.■ Incidental or consequential damage caused by possibledefects with this air conditioner.■ Damage caused after delivery. What Is Not Covered: This warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. In-home warranty service will be provided in areas where it is available and deemed reasonable by Mabe to provide. Some provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from province to province. To know what your legal rights are in your province, consult your local or provincial consumer affairs office. Warrantor: Mabe Canada Inc., Burlington, Ontario All warranty service provided by our Factory Service Centers, or an authorized Customer Care technician. For service, call1.800.561.3344. Please have serial number and model numberavailable when calling for service.EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in thisLimited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for aparticular purpose, are limited to one year or the shortest period allowed by law. Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer SupportConsignes de sécurité p. 18
• , 19 Consignes d’utilisation Modèles dotés de boutons de commande p. 22
• , 23 Modèles dotés touches à effleurement p. 20
• , 21 Entretien et nettoyage Filtre à air p. 23
• Serpentins extérieurs p. 23
• Instructions de montage p. 24
• –27 Conseils de dépannage p. 28
• Bruits normaux de fonctionnement p. 28
• Assistance à la clientèle Assistance à la clientèle p. 32
• Garantie p. 31
• Enregistrement du titre de propriété , 30 Inscrivez ici les numéros de modèle et de série : Numéro de modèle : ____________________ Numéro de Série : ______________________ Vous trouverez ces numéros sur l’étiquetteapposée sur le côté du climatiseur.En tant que partenaire d’ENERGY STAR p. 29

800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation. Customers in Canada should consult the yellow pages for the nearest Mabe service center, or call 1.800.561.3344. Contact Us In the U.S.A. ge.com If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations GE Appliances, Appliance Park Louisville, KY 40225 In Canada: www.GEAppliances.ca, or write to: Director, Consumer Relations, Mabe Canada Inc. Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3 Register Your Appliance In the U.S.A. ge.com Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In Canada: www.GEAppliances.ca Printed in China
