LP 6000 - Table lamp Orbegozo - Free user manual and instructions

Brand	Orbegozo
Model	LP 6000
Product type	Rechargeable LED table lamp
Power supply	Built-in rechargeable lithium battery, USB charging
Full charge time	Approximately 3 hours
Number of light colors	3 (natural light, white, warm white)
Brightness control	Yes, by long press on the switch
Shade rotation	Up to 82°
Charge indicator	Yes, indicator light
Dimensions	Adjustable height (not specified), stable base
Weight	Approximately 1.2 kg (estimate)
Materials	Plastic and metal (estimate)
Recommended use	Indoor, stable surface with tilt ≤ 6°
Child safety	Supervision required for children under 8 years
Maintenance	Disconnect before cleaning, dry cloth
Non-replaceable LEDs	Yes, the LEDs are integrated and non-replaceable
Protection rating	IP20 (indoor dry use)
Operating temperature	0-40°C
Certifications	Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU
Package contents	Lamp, USB cable, instruction manual

Frequently Asked Questions - LP 6000 Orbegozo

How to turn on the LP 6000 lamp for the first time?

Set the main switch to ON, then briefly press the light button. It is recommended to charge the lamp for at least 2 hours before first use.

How to change the light color?

Briefly press the ⏻ switch to cycle from natural light to white light, then to warm white. The sequence is cyclic.

How to adjust the brightness?

Press and hold the ⏻ switch to adjust the intensity. The intensity increases or decreases continuously and is memorized after turning off.

How long does it take to fully charge the lamp?

Full charging takes about 3 hours. The indicator light turns off when charging is complete.

Can I use the lamp while charging?

Yes, the lamp can be used while charging via the USB cable. However, it is best to fully charge it before first use.

What to do if the lamp does not turn on?

Check that the main switch is set to ON and the battery is charged. If the problem persists, contact customer service.

How to clean the LP 6000 lamp?

Always unplug the lamp before cleaning. Use a soft, dry cloth. Do not use chemical or abrasive products.

Are the LEDs replaceable?

No, the LEDs are integrated and non-replaceable. In case of malfunction, please contact the manufacturer.

Can the lamp be used by children?

Yes, from 8 years old under supervision. Children should not play with the device. Cleaning should not be performed by children without supervision.

How to dispose of the lamp at end of life?

Do not dispose of the lamp with household waste. In accordance with the WEEE directive, take it to a collection point for recycling.

USER MANUAL LP 6000 Orbegozo

White adjustable desk lamp with a red handle and spout, isolated on white background (no text or symbols)

LP 6000

Sonifer,S.A.

web: www.orbegozo.com

Made in P.R.C.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

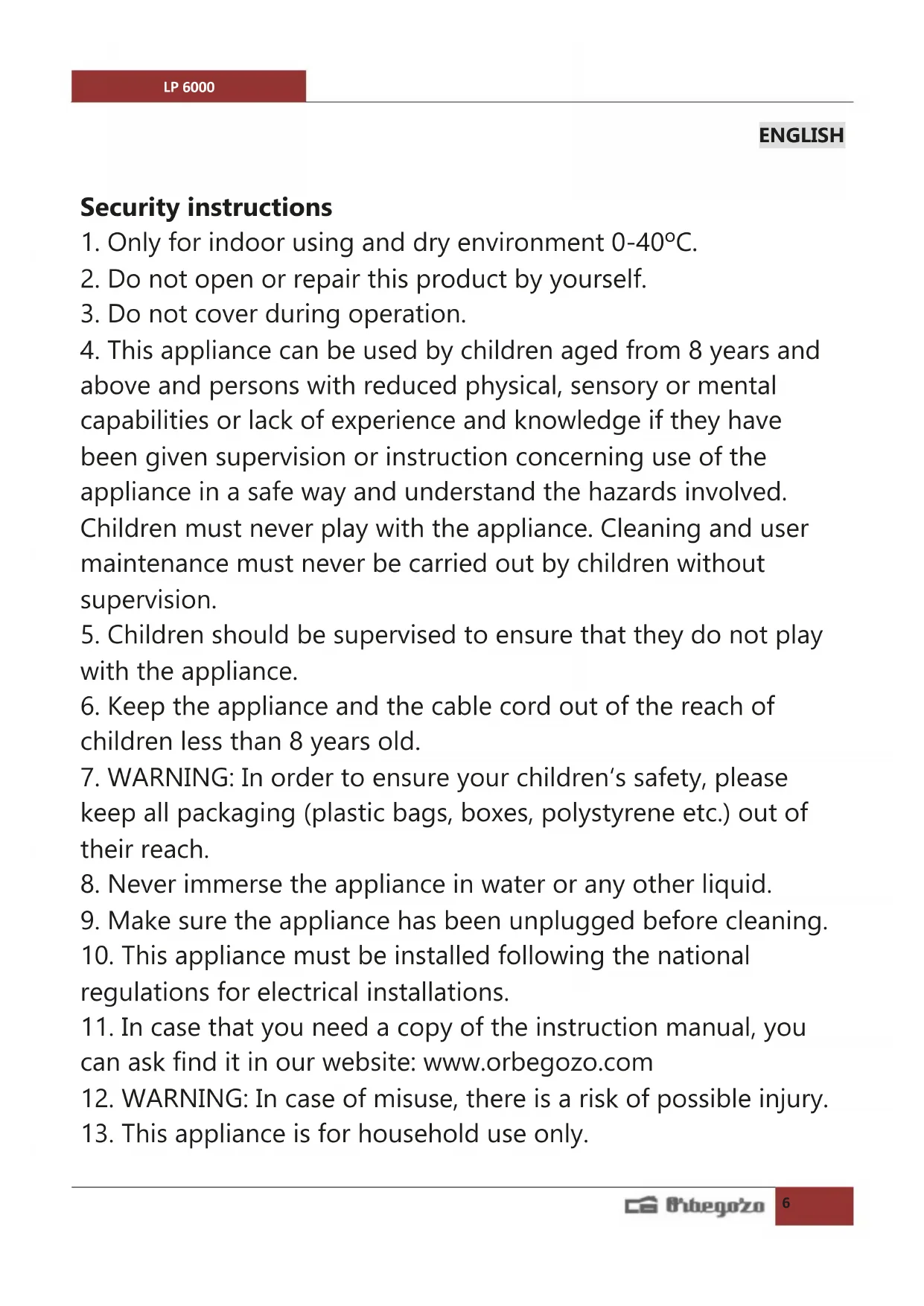

Security instructions

1. Only for indoor using and dry environment 0-40°C.
2. Do not open or repair this product by yourself.
3. Do not cover during operation.

4. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
   Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

5. Children should be supervised to ensure that they do not play with the appliance.

6. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

7. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

8. Never immerse the appliance in water or any other liquid.

9. Make sure the appliance has been unplugged before cleaning.

10. This appliance must be installed following the national regulations for electrical installations.

11. In case that you need a copy of the instruction manual, you can ask find it in our website: www.orbegozo.com

12. WARNING: In case of misuse, there is a risk of possible injury.

13. This appliance is for household use only.

14. This product may turn on or off under strong electromagnetic interference.

15. Charge the lamp for more than 2 hours when you use it for the first time. It takes 3 hours to fully charge.
16. When the lamp post is locked when rotating, it means that this direction has reached the limit position, it can no longer be rotated in the same direction. Otherwise, the lamp will be damaged.
17. If the light post and the lamp cover joint are loose, the nuts can be properly tightened with a coin.
18. When the desk lamp is on, do not look at the light at a short distance to avoid eye damage.
19. This product has a built-in rechargeable lithium battery, please do not pollute the environment when it is not in use, and try to recycle it as much as possible.
20. The lamp LEDs are not replaceable
21. Do not use the lamp on a surface with an incline greater than 6 degrees.

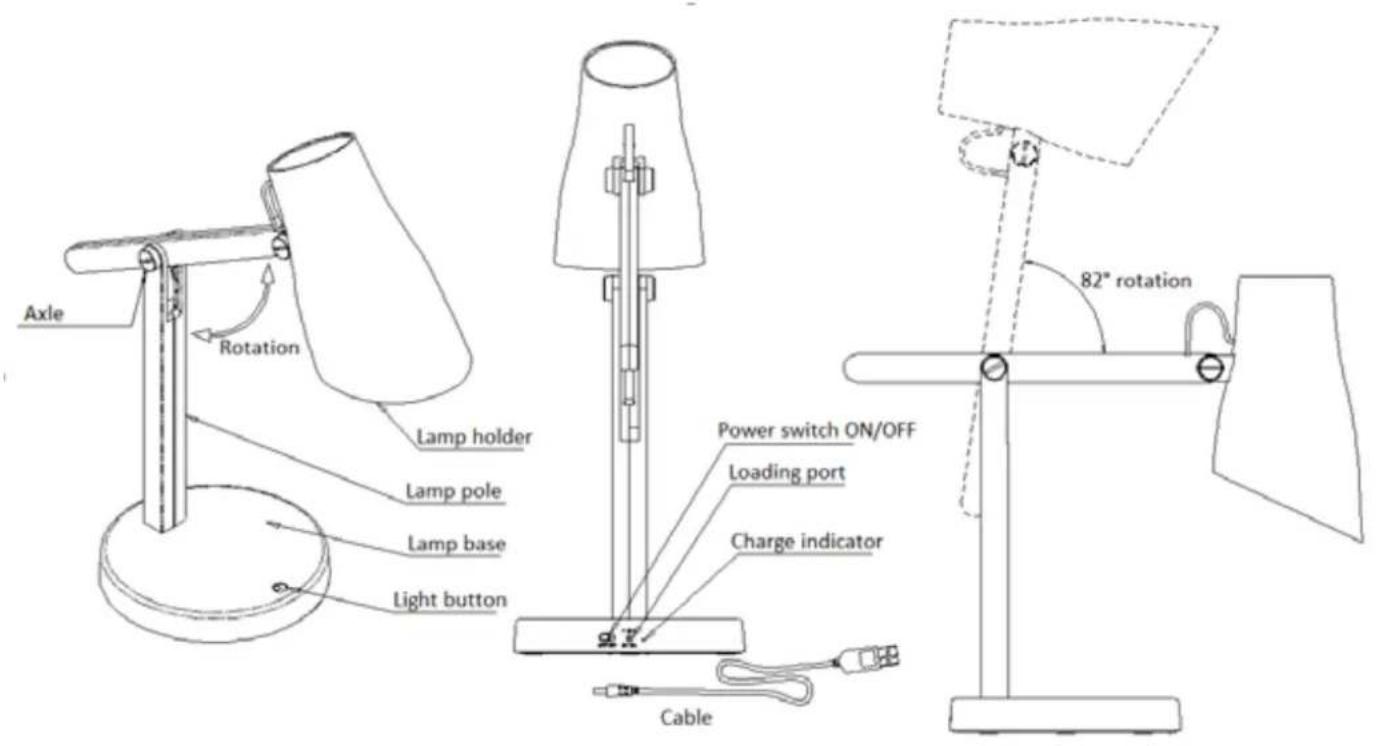

Axle Rotation Lamp holder Lamp pole Lamp base Light button Cable Power switch ON/OFF Loading port Charge indicator 82° rotation

INSTRUCTIONS FOR USE

1. Put the main switch in the ON position.
2. Briefly touch the switch ⏻ to turn on the lamp.
3. Touch the switch ⏻ again to change the color of the light.
4. The light sequence is: natural light / white light / warm white light.
5. Press and hold the switch ⏻ to adjust the light intensity. The intensity will increase or decrease.
6. The intensity will stay at the same point when you turn the lamp off and on again.

LOAD

Connect the USB cable to a device with a USB output port or a charger and plug it into the power.

During charging the charge light will turn on and off when the charge is complete.

Disposal of old electrical appliances.

The European directive 2012/19/UE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and

recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.
