HWO60SM6S9BH - Oven HAIER - Free user manual and instructions

USER MANUAL HWO60SM6S9BH HAIER

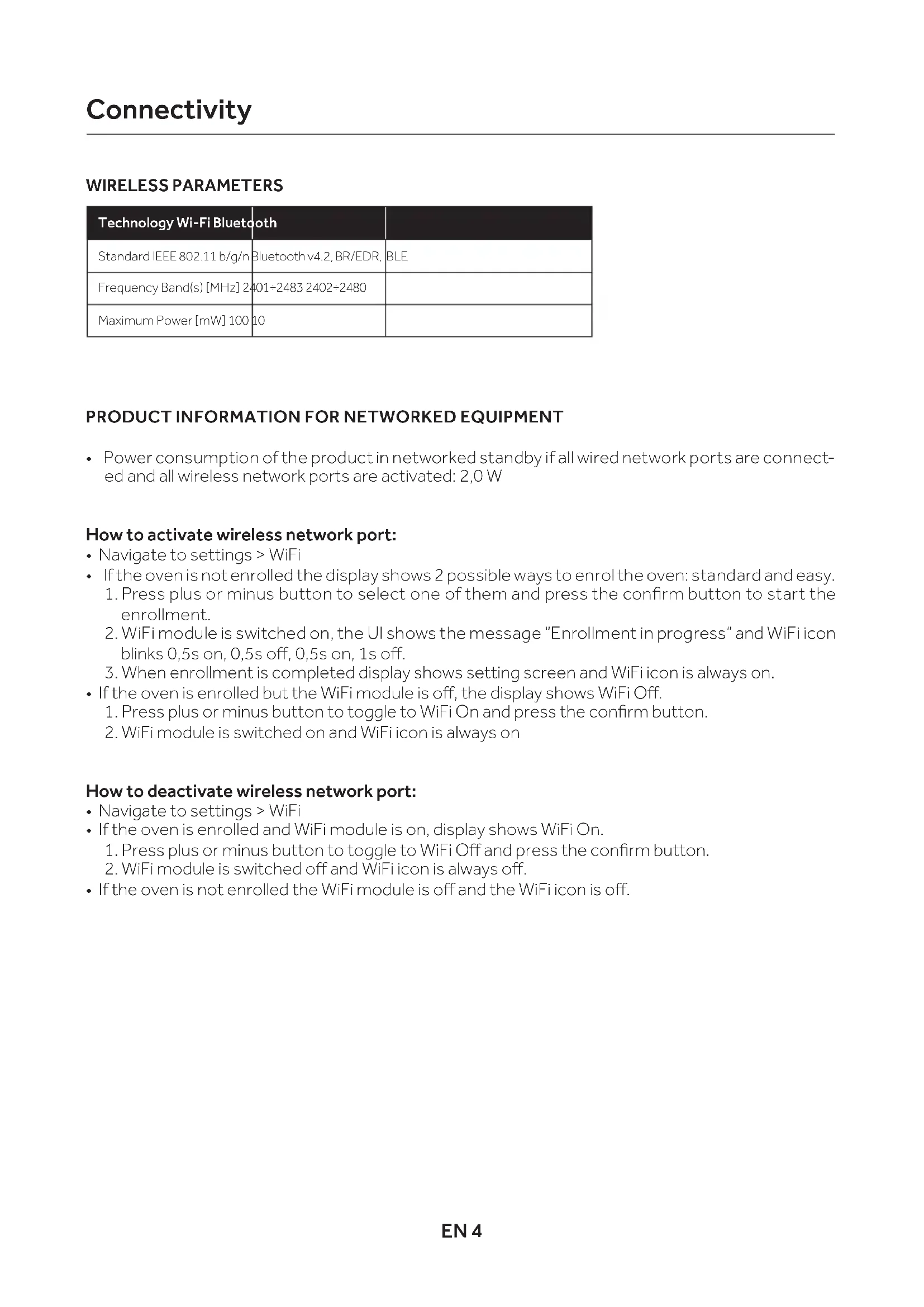

• Power consumption of the product in networked standby if all wired network ports are connect- ed and all wireless network ports are activated: 2,0 W How to activate wireless network port:

• Navigate to settings > WiFi

• If the oven is not enrolled the display shows 2 possible ways to enrol the oven: standard and easy.

1. Press plus or minus button to select one of them and press the conrm button to start the

2. WiFi module is switched on, the UI shows the message “Enrollment in progress” and WiFi icon

blinks 0,5s on, 0,5s o, 0,5s on, 1s o.

3. When enrollment is completed display shows setting screen and WiFi icon is always on.

• If the oven is enrolled but the WiFi module is o, the display shows WiFi O.

1. Press plus or minus button to toggle to WiFi On and press the conrm button.

2. WiFi module is switched on and WiFi icon is always on

How to deactivate wireless network port:

• Navigate to settings > WiFi

• If the oven is enrolled and WiFi module is on, display shows WiFi On.

1. Press plus or minus button to toggle to WiFi O and press the conrm button.

2. WiFi module is switched o and WiFi icon is always o.

• If the oven is not enrolled the WiFi module is o and the WiFi icon is o. ConnectivityEN 5 Oven enrollment on app

• Log in or sign up. Step 3

• Add new appliance Step 4

• Scan the QR code or insert the serial number Write here your serial number for future reference.EN 6

• Scroll the menù and select the option SETTINGS with the button Step 6

• In the same way select the option WIFI with the button Step 7

• To navigate within the EASY or STANDARD ENROLLMENT options, click the button.

• Option 1: Select EASY ENROLLMENT and conrm by pressing the button. (the oven will beep)

• Option 2: Select STANDARD ENROLLMENT and conrm by pressing the button. (the oven will beep) Step 8

• The WIFI icon will blink NOTE:

• Make sure to have minimum a 2.4GHz Home Wi-Fi network.

• Make sure to have your Home Wi-Fi password and name ready. You will need them later.

• Make sure your appliance is in a place where there is an excellent Home Wi-Fi signal.

• And yes, stay close to your appliance. Cleaning Settings Recipes Wifi Sounds Lamp Easy Enrollment Standard Enrollment Enrollment in progressEN 7 NOTE: To activate, deactivate or reset the WiFi see info on page EN 4 of this document. Step 1

• Scroll the menù and select the option SETTINGS with the button Step 2

• From settings menu, select the option Remote Control with the button Step 3

• Set the oven on Remote Control ON with the button Step 4

• conrm the selection with Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.candy-group.com Remote control mode Cleaning Settings Recipes Remote control Wifi Lamp

Remote control Remote control activeEN This leaet is an integrative part of the user manual of the appliance, keep it together with the user manual.
