Product type	Heat lamp for keeping food warm and reheating
Brand	Electrolux
Model	EWLP1AX
Weight	3 kg
Power supply	250 W, 240 V
Bulb type	250 W heat lamp, specifically for keeping warm
Minimum safety distance	40 cm from any flammable, painted or printed surface
Minimum distance above container	30 cm
Maximum recommended distance	40 cm above container
Maximum continuous use duration	10 to 15 minutes above food
Power cord type	H07RN-F, H05RN-F, H05RRF, H05VV-F, H05V2V2-F (T90), H05BB-F ; section 3 x 1 mm²
Main functions	Keeping food warm and reheating
Care and cleaning	Clean with a damp sponge and warm soapy water; do not use abrasive products, scouring pads, solvents or metallic objects
Safety instructions	Disconnect power before maintenance; do not touch hot bulb; do not use with wet hands; do not leave unattended
Spare parts	Replacement bulb with same specifications (250 W); power cord of specified type
Installation	For qualified professional only; do not install in a niche or cavity; maximum pull 20 kg
General information	Household use only; ensure work surface is protected from direct contact with bulb

Frequently Asked Questions - EWLP1AX ELECTROLUX

How to install the EWLP1AX lamp?

Installation must be carried out by a qualified professional. Respect safety distances: at least 40 cm from any flammable surface and 30 cm above container. Ensure work surface is heat-resistant and non-combustible.

What is the safety distance to observe?

The minimum distance between the lamp and any flammable surface (painted, printed, etc.) is 40 cm. The distance above the container must not be less than 30 cm to avoid overcooking.

What type of bulb to use?

Use exclusively a 250 W bulb with the same characteristics as the original. It is designed only for keeping food warm.

How to clean the EWLP1AX lamp?

Unplug the appliance. Clean the front with a damp sponge and warm soapy water. Never use abrasive products, scouring pads, solvents or metallic objects.

Can the lamp be used with wet hands?

No, that is prohibited. Never use the appliance with wet hands or when it is in contact with water, as this poses a risk of electrocution.

What to do if the bulb does not work?

First check that the bulb is not defective. If it does not light up, replace it with an identical bulb (250 W). If the problem persists, the switch may be defective; contact customer service.

What is the recommended usage time?

The lamp should not be used for more than 10 to 15 minutes continuously above food to avoid drying it out.

Can the lamp be left unattended?

No, never leave the appliance unattended while operating. It presents risk of burns or fire.

What is the EWLP1AX lamp used for?

It is designed to keep warm and reheat food in a domestic environment. It is not suitable for other uses.

How to adjust the warming temperature?

The temperature depends on the distance between the lamp and the food. For a lower temperature, move the lamp away by adjusting the height. The recommended distance is about 40 cm.

USER MANUAL EWLP1AX ELECTROLUX

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability. Electric shock.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised by an adult or a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend that you activate it.
• Cleaning and user maintenance shall not be made by children without supervision.

1.2 General Safety

• Only a qualified person must install this appliance and replace the cable.
• Internally the appliance becomes hot when in operation. Do not touch the lamp that is in the appliance.
• Do not use a steam cleaner to clean the appliance.
• Before maintenance cut the power supply.
• Do not use harsh abrasive cleaners or sharp metals crapers to clean the glass door since they can scratch the surface, which may result in shattering of the

glass.

• If the supply cord is damaged, it must be replaced by the manufacturer, an authorized Service or similarly qualified persons in order to avoid a hazard.
• Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
• The handling of this device and of all other electrical devices requires the observance of some basic rules for your own safety as the following: don't expose the device to any weather influence as rain, etc.

WARNING!

During the switching on of the device high temperatures can be reached around the lamp.

Please check the surface before you start working there!

Don't put paper, cardboard, cloth, etc. between device and fireproof covering board, as they might catch fire.

During putting into operation insulation material may emit corresponding smells.

2. SAFETY INSTRUCTION

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
  Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Keep the minimum distance from the

other appliances and units.

• Make sure that the appliance is installed below and adjacent safe structures.
• The appliance can not be placed in a niche of the ceiling or in a cavity.

2.2 Electrical connection

WARNING!

Risk of fire and electrical shock.

• All electrical connections should be made by a qualified electrician.
  The appliance can not be placed in a

niche of the ceiling or in a cavity.

The appliance must be earthed.
- Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
Always use a correctly installed shockproof socket.
- Do not use multi-plug adapters and extension cables.
Make sure not to cause damage to the mains plug and to the mains cable. Contact the Service or an electrician to change a damaged mains cable.
- The shock protection of live and insulated parts must be fastened in such away that it cannot be removed without tools.
- Connect the mains cable tips to the mains cable only at the end of the installation. Make sure that there is access to the mains plug after the installation.
- Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
- The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.
- In case of care and maintaining works disconnect device from the electric circuit by switching off the main switch or quitting the voltage of the power supply.
- Connect heat lamp by means of safety plug to power supply system.

Device is ready for operation.

Connected load: 240V, 250W

bulbs.

• Use this appliance in a household environment.
• Do not change the specification of this appliance.
  Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each use.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not use the appliance as a work surface or as a storage surface.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

WARNING! Risk of dam

• Don't touch hot bulb with unprotected hands.
• Do not cover device while heating.

2.4 Internal light

• The type of light bulb used for this appliance, is only to keep food warm. Do not use it for house lighting.

WARNING! Risk of elec

Before replacing the lamp, turn off the appliance from the power supply (4).
- Only use lamps with the same specifications.

2.5 Disposal

WARNING! Risk of injur

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.

2.3 Use

WARNING!

Risk of injury, burns or electric shock or explosion.

Always ensure during the use that the worktop is protected from direct contact with the light of the lamp (i.e. ceramic dish, etc...)
Device serves to keep warm food-short termed.
Warm keeping temperature depends on the distance between lamp and food.
The appliance is equipped with 250W

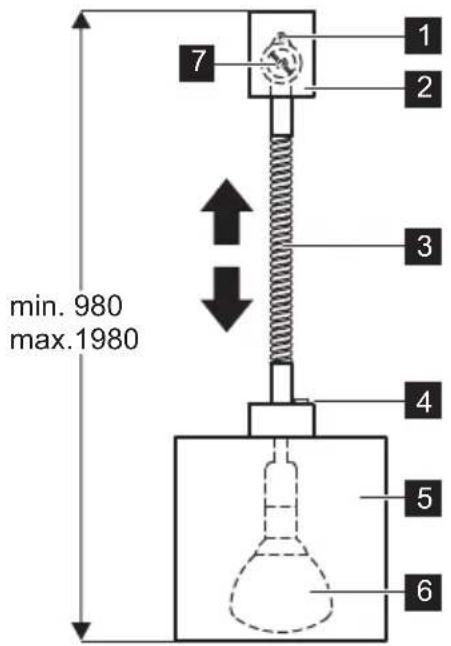

3.PRODUCT DESCRIPTION

4. USE

WARNING! Refer to the Safety chapters.

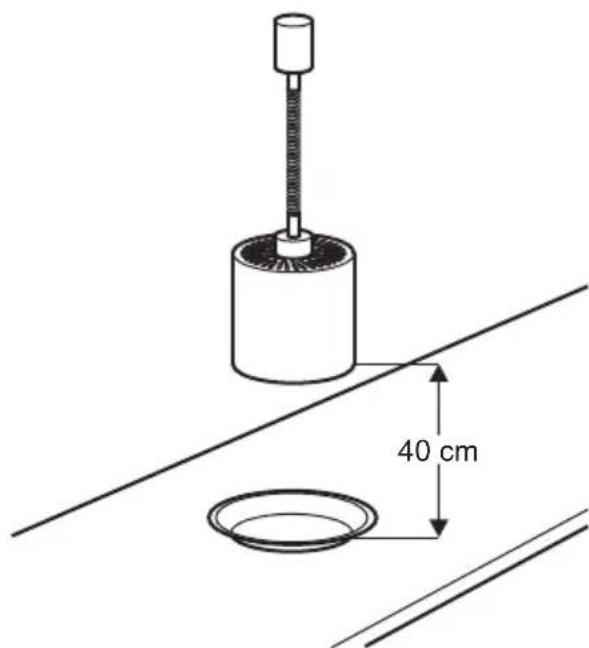

Put the plate with the food to keep warm
underneath the lamp.
Lower down the lamp till 40~cm above
the plate and switch on the lamp.
This distance from the plate will ensure
to keep food warm.
For lower temperatures just rise up the
warming lamp to your needs.

Do not position the lamp less than 30~cm above the plate. Risk to overcook the food.
Do not position the lamp less than 30~cm above the working top.
Risk to damage the worktop.
Do not leave the lamp unattended when On.

5. CARE AND CLEANING

WARNING!

Refer to the Safety chapters.

• Clean the front of the appliance with a soft cloth with warm water and a cleaning agent.
• To clean metal surfaces use a usual cleaning agent.
• Cleaning and maintenance should only be carried out by a competent person under the strict supervision of an adult. Never use abrasive cleaning materials on the appliance.

Stainless steel or aluminium appliances:

Clean the lamp with a wet sponge only. Dry it with a soft cloth.

Do not use steel wool, acids or abrasive materials, as they can cause damage to the lamp surface. Clean the control panel with the same precautions.

5.1 Removing the lamp

WARNING!

Be careful when you change the lamp. There is a risk of electrical shock.

• Disconnect the appliance with power switch (4).
• Unscrew with care counter clock wise the lamp.
• Screw clock wise the lamp and clean the transparent part with care.

6. WHAT TO DO IF...

WARNING!

Refer to the Safety chapters.

Problem	Possible cause	Remedy
The lamp does not operate.	The lamp is defective.	Replace the lamp.
The switch does not operate.	The switch is defective.	Call the Service.
If you cannot find a solution to the problem yourself, contact your dealer or the service centre.	The necessary data for the service centre is on the rating plate. The rating plate is in the inner part of the lamp.
We recommend that you write the data here: Model (MOD.) Product number (PNC) Serial number (S.N.)	............
	............
	............
	............

7. INSTALLATION

Weight of the lamp: 3kg Maximum pull strenght: 20kg

WARNING!

The person who is mounting the lamp should make sure that the fixing elements are right and suitable for the walls and ceiling he finds. The manufacturer declines any responsibility for damages caused by incorrect mounting.

WARNING!

Refer to the Safety chapters.

7.1

Make sure that the worktop below the lamp is made of an incombustible material not printed or painted. Real wood and artificial worktop material can show colour changes if in direct contact with the light of the lamp.

7.2 Electrical installation

WARNING!

Only a qualified person must do the electrical installation.

The manufacturer is not responsible if you do not follow the safety precautions from the chapter "Safety Information".

7.3 Cable

Cable types applicable for installation or replacement: H07 RN-F, H05 RN-F, H05RRF, H05VV-F, H05V2V2-F (T90), H05BB-F.

8. ENVIRONMENT CONCERNS

Recycle the materials with the symbol. Put the packaging in applicable containers to recycle it.

Help protect the environment and human health and to recycle waste of electrical

For the section of the cable refer to the total power (on the rating plate) and to the table:

Total power	Section of the cable
maximum 250W	3 x 1 mm²

The earth cord (green / yellow cable) must be 2 cm longer than phase and neutral cables (blue and brown cables).

7.4 Tension regulation

Please rotate the spring of the tension regulation (7) to calibrate the weight of the lamp and reach a steady position.

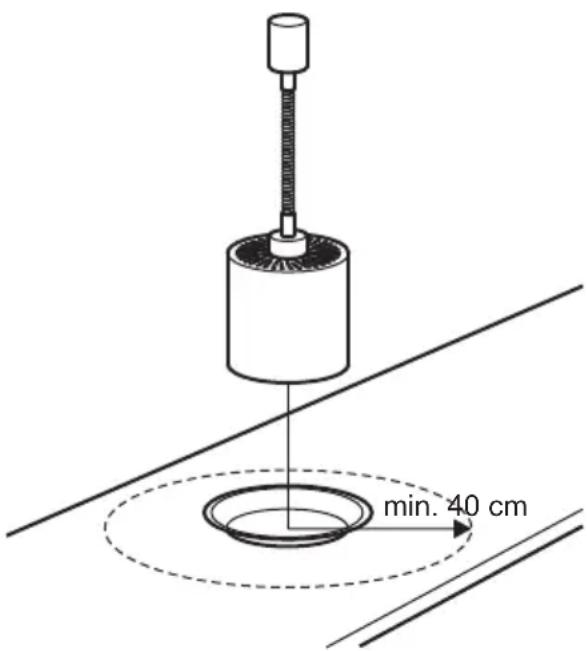

7.5 Safety distance

Keep a minimum distance of 40~cm from the center of the warming lamp to any flammable, backprinted or backpainted surfaces.

and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
