USER MANUAL CERANF436B CONTINENTAL EDISON

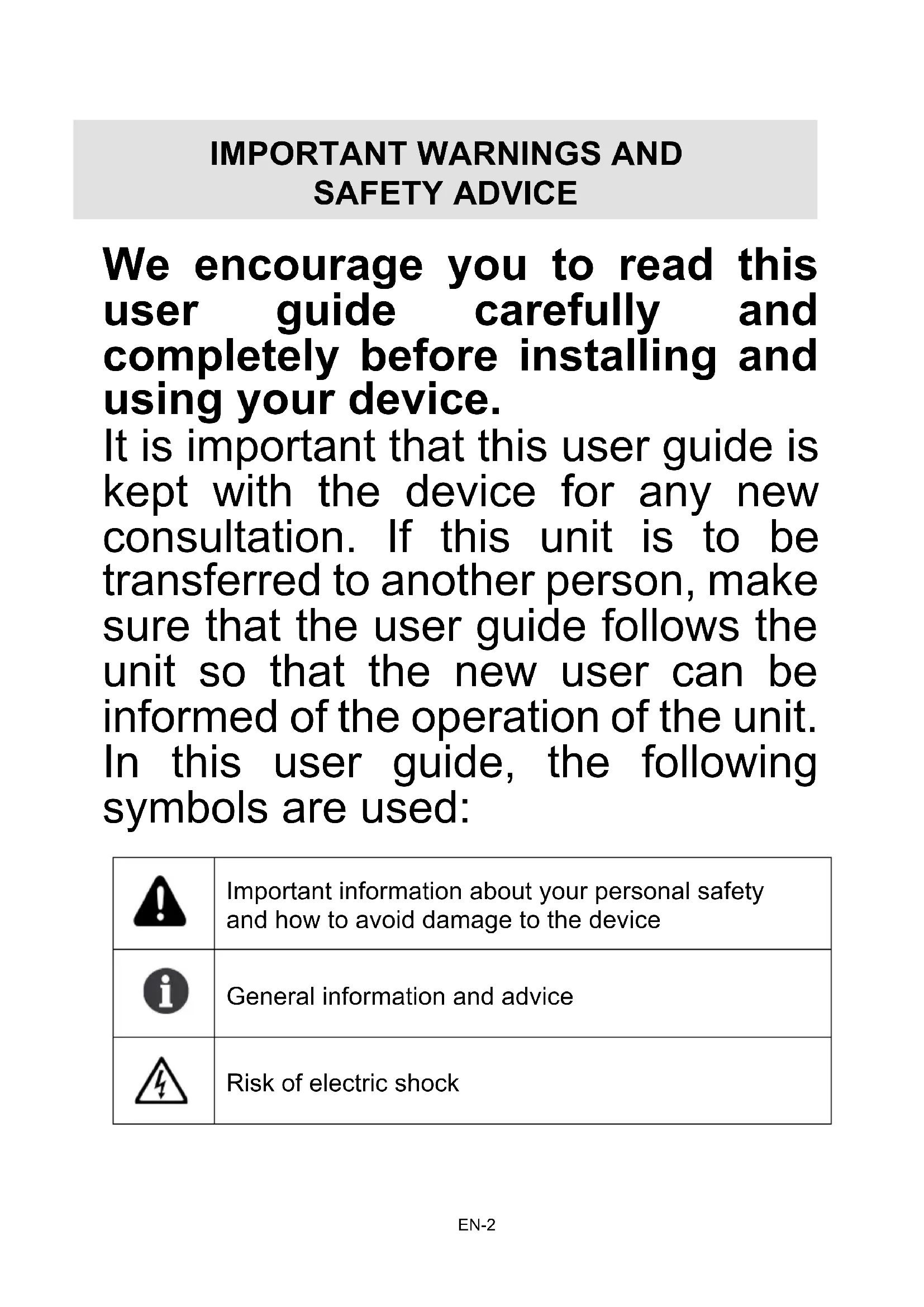

SAFETY ADVICEEN-3 Security and warning information:

WARNING: Do not damage the

Refrigerant causes serious injury if splashed in the eyes. If this happens, go to the hospital immediately.

WARNING: Ventilation openings

in the housing of the device or in the mounting location must not be obstructed.

CAUTION: Do not use electrical appliances inside the appliance's food storage compartments.

WARNING: Do not use mechanical

devices or other means to speed up the defrosting process.

Refrigeration equipment may not operate evenly (possible defrosting of the contents or temperature becoming too high in the freezer compartment) when placed for a long time at a temperature belowEN-4 the cold limit of the temperature range for which the refrigerating appliance is designed.

This device may be used by children 8 years of age or older, and those with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if they are properly supervised if instructions for the safe use of the apparatus have been given to them and the risks involved have been apprehended. Children should not play with the device. Cleaning and maintenance by the user should not be done by unattended children.

Children should be supervised to ensure that they do not play with the appliance.

Do not use or store flammable materials such as ether, benzene, alcohol, drugs, liquefiedEN-5 gas, spray or cosmetics near or in the refrigerator. This can cause an explosion or fire.

Do not place glassware at the air outlet of the freezer compartment or refrigeration compartment as this may cause an explosion or injury.

Make sure the unit is grounded. 12.Consult a qualified electrician or service technician if the grounding instructions are not completely understood or if you are not sure whether the appliance is grounded.

Improper grounding may result in failure and electric shock.

This appliance is intended for domestic and similar uses such as:

kitchen areas of store staff, offices and other professional environments;EN-6

farms and customers of hotels, motels or other types of residential environments;

Bed and Breakfast type environments;

caterers and other services not related to retail sales.

The dedicated outlet must be used. 16.Connecting multiple devices to a power outlet c an result in a fire.

Install the unit in a dry, well- ventilated room.

The device should be placed near a socket, it is easy to turn off the power at the ti me of the acci dent. 19.Do not leave the pl ug facing up or crushed on the back of the refriger ator. Water may enter or the plug may be damaged causing fire or electric shock.

Do not let the power cord bend or be squeezed by heavy objects toEN-7 be damaged. If it is damaged, it must be replaced by the repairer or a similarly qualified person to avoid a hazard.

If the power cord is damaged, it must be replaced by the manufacturer, its repairer or a person of equivalent qualification to avoid any danger. Unplug the plug when cleaning and handling the interior lamp of the refrigerator. This can cause an electric shock or injury. If the LED lamp is damaged, it must be replaced by the manufacturer or his repairer.

Remove water or dust from the plug with a clean, dry cloth, do not use wet hands to touch it, and insert it with the ends of the pins firmly connected.

Do not touch food or containers inEN-8 the freezer with wet hands. This can cause frostbite.

Do not place heavy or dangerous objects, mugs, mud, cosmetics, medicine or other containers with water in the refrigerator.

It could fall and cause injury, fire or electric shock when opening or closing the door. Do not spray water outside or inside the refrigerator and do not clean it with benzene or thinner.

Wait 5 minutes or more before reconnecting the plug. This may cause the freezer to fail.

Do not use the refrigerator for non-household purposes (storage of medicines or test materials, blood, on a ship, etc.). This could result in an unexpected hazard such as fire, electric shock, deterioration of stored material, or chemical reaction.EN-9

Do not use a dryer to dry the interior, do not light a candle to eliminate odors. This can cause an explosion or fire.

Do not grab the door or the door trays. This can cause the refrigerator to fall or damage your hands. Prevent children from doing what is described above.

If there is a gas leak, do not touch the refrigerator or electrical outlet and ventilate the room immediately. A spark explosion can cause a fire or burn. When gas leaks due to serious damage caused during delivery, installation or use of the refrigerator, any spark may cause a fire or burn.

Do not insert hands or metal stick into the fresh air outlet, the lid, the bottom of the refrigerator, theEN-10 heat resistant grill (exhaust port) on the back. This can cause an electric shock or injury.

Do not place ice in a crystal glass or ceramic dishes. This can break the glass or ceramic and cause an injury.

Please check the refrigerator before using if it has been immersed in water. This can cause electric shock or fire.

Do not install the refrigerator in a humid place or where there is splashing water or rain. Damage to the insulation of electrical parts can lead to electrical leakage. Please check the refrigerator regularly.

Do not let anyone, except a qualified engineer, dismantle, repair or modify the refrigerator.EN-11 This can cause injury, electric shock or fire.

appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple

portable socket-outlets or portable power supplies at the rear of the appliance.

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

To avoid contamination of food, please respect the following instructions: - Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

Clean regularly surfaces that can come in contact with food and accessible drainage systems.EN-12 - Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. - One-, two- and three-star compartments are not suitable for the freezing of fresh food. - If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door opens to prevent mould developing within the appliance. Place the against a wall at a distance greater than or equal to 100mm.EN-13 Refrigerant Warning; Risk of fire / flammable materials

WARNING: When positioning the

appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple

portable socket-outlets or portable power supplies at the rear of the appliance. The refrigerant gas contained in the circuit of this unit is isobutane (R 600a), a low- pollution but flammable gas. When transporting and installing the unit, take care not to damage any part of the refrigerant circuit. Do not use sharp or sharp tools to defrost the unit. Warning; Risk of fire / flammable materialsEN-14 Do not use any electrical devices inside the device. If the refrigeration system is damaged:

Do not use a flame near the unit.

Avoid sparks - do not light electrical appliances or electric lamps.

Ventilate the room immediately.

Have a storage area in which an average temperature of less than or equal to + 4 ° C can be maintained. This zone is identified by a legible, visible and indelible signage in literal, graphic or color form;

To be accompanied by a device intended to indicate the temperature in the zone lower or equal to + 4 ° C in conformity withEN-15 the requirements defined by this decree;

Be accompanied by a user guide.

explaining the signs provided for in 1 °;

describing the rules of hygiene to be respected for the maintenance of the apparatus, in particular the procedures of cleaning and disinfection;

indicating the areas to be used according to the nature of the food and giving recommendations on the protection of foodstuffs and the separation of foodstuffs in order to avoid cross-contamination between foods of a different nature;EN-16

I. Description of the device

V. Instructions to use

VI. Maintenance and cleaning

This user guide is available in the following languages: - FR (original version) - EN (translated from the original) Any other translation would be a translation of the original version. This user guide, any modifications or any new version, is available on our website.EN-18

I. DESCRIPTION OF THE DEVICE

The appearance and specifications of the actual product may vary by model. A - Freezer compartment

1. Freezer door pan (x3)

2. Glass shelf of the freezer (x4)

3. Freezer drawer (x1)

B - Refrigerator compartment

4. Glass shelf of the refrigerator (x4)

Freezer door panGlass shelf of the freezerFreezer drawer Vegetable Tray Refrigerator door panGlass shelf of the refrigeratorThermostat control panelRefrigerator compartmentFreezer compartmentEN-19

Energy consumption : 376 kWh per an, calculated on the basis of the result obtained for 24 hours under standardized test conditions. The actual energy consumption depends on the conditions of use and the location of the device. Useful volume of the refrigerator (l)

Useful volume of the freezer (l)

This device is intended for use at an ambient temperature of 16 ° C to 38 ° C. Acoustic emissions in air (dB (A) re 1 pW): 42 dB(A) Type of installation: FreestandingEN-21

DIMENSIONS Be sure to keep enough space to ensure proper air circulation around the unit. The figure above is only a diagram of the installation. If you are installing the top panel or closet, please leave enough space to move it if necessary.EN-22 TRANSPORT

• Do not carry the refrigerator in a horizontal position or upside down.

• Do not carry the refrigerator while holding the door or handle; the refrigerator must be carried by lifting the lower part.

• The refrigerator should be placed on a hard and flat floor. If a damper is required, non- flammable damper blocks should be used instead of the foam support of the refrigerator.

• The refrigerator should be away from damp places, water can be easily sprayed. Water and dust should be removed regularly with a soft cloth to prevent rusting.

• Place the refrigerator in a well-ventilated place. Keep a space of about 10 cm around and behind the refrigerator. Do not cover or obstruct the air grille on the back plate of the refrigerator. When transporting this unit, take it by the base and gently tilt it up to 45 °. Do not lift the appliance by the door handle. Do not put the unit in a fully horizontal position or upside down. Push the refrigerator using the rear wheels. Attention: After transporting the refrigerator, you must wait at least 8 hours before putting it into s ervice. LOCATION IMPORTANT: Installation of this unit requires several peopleEN-23

ADJUSTMENT OF PLASTIC FEET

• When the refrigerator is in its packaging, the plastic feet are tight. After removing the refrigerator from its packaging for installation, be sure to adjust the two plastic front feet until the height is adequate; simply adjust the two plastic feet with a wrench or by hand.

• Plastic feet and rear rollers should touch the floor to prevent the refrigerator from moving, vibrating, or making noise.

• When moving the refrigerator, adjust the plastic feet counterclockwise to remove them from the floor, then gently push the refrigerator to move it.EN-24

IV. BEFORE FIRST USE

1. Unpacking the appliance and disposing of the packaging

• Remove all packing material around the appliance and the protective elements inside the appliance compartments.

• Cartonboard and sheets of paper are recyclable. They must be thrown in the collection bins provided for this purpose.

• Materials bearing the symbol are recyclable: > PE <= polyethylene; > PS <= polystyrene; > PP <= polypropylene This means that they can be recycled by depositing them into appropriate collection containers.

• Other packaging elements (adhesive, fasteners, etc.) must be disposed of with household waste. To know more: www.quefairedemesdechets.fr

2. CLEANING THE APPLIANCE:

Clean all parts of the refrigerator with water and a mild detergent solution. Rinse it thoroughly and dry it with a soft cloth. Note: The electrical parts of the device can be cleaned only with a dry cloth. BEFORE USE

• Remove all packaging, including the foam holder at the bottom of the refrigerator and the adhesive tapes that attach the accessories to the box.

• Place the refrigerator in the correct position and adjust the feet to the correct level.

• It is best to clean the refrigerator before using it.

• Remove the film: There is a layer of clear film on the panels of your product that can protect the products from scratches during manufacture and transportation. You can choose to keep or remove the film as needed.

• Place the refrigerator and adjust the level, clean it, let the refrigerator sit for 2 to 6 hours, then turn it on to check that the refrigerator is operating normally.EN-25

• Plug in the power cord and turn the power switch.

• At first start, the display shows the respective set temperature values (the refrigeration compartment temperature is set to 3° C, the freezer compartment temperature to -19 ° C) Setting the f unctions of the LED display The default mode is Power Save Mode at startup: The display turns on for 20 seconds and then turns off. This mode saves energy and extends the life of the LEDs. CONTROL PANEL Display of the freezer temperature Refrigerator temperature display Temperature control of the refrigerator Temperature

• Super Freeze Mode - When Super Freeze Mode is selected, the compressor runs continuously for 180 minutes, then the freezer returns to the last defined operating mode.

• Super Refrigeration Mode - When Super Refrigeration Mode is selected, the refrigerator compartment reaches the set temperature as soon as possible to keep food as fresh as possible. In this mode, the set temperature of the refrigerator compartment locks to ° C. The program runs for a maximum of 150 minutes and then exits automatically. The "Super Fridge" icon turns off, which means that the "Super Fridge" feature is off. The temperature returns to the last set temperature before the "Super Fridge" mode has been activated.

FREEZER COMPARTMENT SETTINGS

The default temperature of the freezer is -19 ° C. To change the temperature, press the "Freezer" button to scroll through the set temperatures. Set temperature Set temperature CAUTION: Do not place fresh f oods directly on frozen foods.

REFRIGERATOR COMPARTMENT SETTINGS

The default temperature of the freezer is 3 ° C. To change the temperature, press the "Fridge" key to scroll t hrough the set temperatures.EN-27 "LOCK / UNLOCK" Function This product has a lock function. - Pressing the "Fridge" button for 3 seconds to activates the lock mode. No operation within 20 seconds and the display will automatically turn off. - To exit the lock mode, press and hold the "Fridge" button for 3 seconds.

When the refrigerator door is open for more than 1 minute, an alarm sounds to remind users to close the door. After closing the door, the alarm stops automatically. REFRIGERATOR COMPARTMENT The refrigerator compartment is mainly used to store food that is kept for a short time. The refrigerator compartment is suitable for storing fruits, vegetables, drinks and other foods that will be consumed quickly. It is suggested to put food in closed containers and then put in the refrigerator.EN-28 Suggested sections of the refrigerator compartment for various foods:

1. Top tray: dairy products, odorous foods, etc.

2. Bottle rack: food in boxes, etc.

3. Glass shelves: wheat-based foods, milk, etc.

4. Drawer: fruits, vegetables, etc.

Fruit and vegetable tray The refrigeration compartment has a fruit and vegetable bin, which can hold moisture from fruits and vegetables and keep the bin wet. It is suitable for storing fruits and vegetables. Bottles carrier The bottle holder on the door is used to store bottled, canned and sundries. To remove the bottle holder, hold both sides with both hands and lift slightly.EN-29 FREEZER COMPARTMENT The freezer compartment is used to freeze food, store frozen food and make ice cubes. It can keep food for a long time. The freezer compartment is suitable for keeping the food fresh for a long time. When storing meat, it is suggested to cut the meat into easy-to- break pieces and mark the date of freezing to avoid exceeding the food deadline. Suggested sections of the freezer compartment for various foods:

Glass shelf: frozen foods, such as fish, meat and ice cream

Drawer: packaged frozen food, etc. Freezer compartment drawer The top drawer of the freezer compartment can freeze and store large amounts of food and the bottom drawer is mainly used for storing frozen food.EN-30 WARNING Please avoid direct contact between food, especially fatty foods stored in the refrigerator, and the coating. When the interior is stained with oil or soup, it should be cleaned immediately to avoid prolonged contact with the coating which could lead to corrosion and cracking of the coating. FOOD STORAGE Instructions for storing food WARNING

When storing frozen food, place it inside the freezer compartment and not in the bottle rack.

Do not place bottles or cans in the freezer compartment to avoid frost cracks.

Before placing hot foods in the refrigerator, cool them to room temperature first; otherwise, they increase energy consumption.

Indicate the freezing date on the freezer bag according to the different durations of food storage in order to avoid exceeding the expiry date.

Divide foods into pieces and pack separately, those that are easy to freeze and those that do not congeal together.

Packaging materials must be odorless, airtight, watertight and non- polluting, so that packaged foods are not easily altered by other odors without reducing quality.

Do not put too much fresh food in the freezer compartment at one time. Preferably, do not exceed the freezing capacity of the refrigerator.

Thawed foods can not be re-frozen unless they have been turned into meals; otherwise, their quality of service will be affected.

Glass bottles or containers should not be placed in the freezer compartment or near the air outlet of the refrigeration compartment duct; otherwise, they can explode.

Food should not obstruct the air outlet; otherwise, there will be abnormal airflow.EN-31

INSTALLATION OF THE TEMPERATURE INDICATOR

Coldest zone: - You will get a better preservation of your food if you place them in the cold zone best suited to their nature. - The symbol below indicates the location of the coldest area of your refrigerator. - This zone is delimited at the top by the low temperature compartment and at the bottom by the symbol or by the shelf positioned at the same height. - In order to guarantee the temperatures in the coldest zone, take care not to modify the positioning of this shelf. To help you adjust your refrigerator, it is equipped with a temperature indicator that will control the average temperature in the coldest area.

This indicator is intended to work only with your refrigerator, be careful not to use it in another refrigerator (in fact, the colder zone is not the same), or for another use.EN-32 CHECKING THE TEMPERATURE IN THE MOST COLD AREA Once the temperature indicator has been installed, you can check regularly that the temperature of the coldest zone is correct, and, if necessary, adjust the thermostat accordingly as indicated above. For proper storage of food in your refrigerator and particularly in the coldest area, make sure that the temperature indicator reads "OK". If "OK" does not appear, the average temperature of the zone is too high. Set the thermostat to a higher position. Whenever you change the thermostat, wait for the temperature inside the device to stabilize before proceeding to a new setting if necessary. Do not change the position of Thermostat gradually and wait at least 12 hours before proceeding to a new check and a possible modification. NOTES: After loading the appliance with fresh food or after repeated opening (or extended opening) of the door, it is normal that the word "OK" does not appear in the temperature indicator. Wait at least 12 hours before readjusting the thermostat. OKTips - Energy Savings - how to arrange the drawers, bins and shelves so that the energy is used as rationally as possible by the apparatus. - Install the unit in a cool, dry, properly ventilated room. - Be careful not to expose the unit to direct sunlight or place it near a direct source of heat (for example, near a radiator). - Never block the ventilation openings or grilles of the appliance. - Allow food to cool before placing in the appliance. - Place the frozen products in the refrigerator to thaw them. - The low temperature of the frozen products will help cool the food in the refrigerator. - Defrost the freezer when the ice has accumulated. A thick layer of ice can affect the transfer of cold to frozen products and increase the energy consumption of the unit. - Do not leave the appliance doors open for too long when storing or removing food from the appliance. The ice will form all the less in the freezer as you leave the door open for as short a time as possible. - When you freeze food or want to store it in the freezer, place it directly in the upper freezer compartment.

A - Freezer compartment B - Refrigerator compartmentEN-34

VI. ENTRETIEN ET NETTOYAGE

ICING This unit has an automatic defrost function, without manual operation. CLEANING Precautions for internal and external cleaning of the refrigerator:

• Before cleaning, please unplug the power plug.

• During cleaning, make sure that there is no water entering the switch, the control panel, the door lamp and the upper control box.

• Remove dirt on the outside of the refrigerator with a mild detergent, then wipe with a clean, soft cloth and let the refrigerator dry naturally.

• When cleaning the sealing strips of the door, always use clean water, wipe with a clean, soft cloth, and allow the refrigerator to dry naturally. Moisten a soft cloth with warm water or a neutral detergent to wipe the refrigerator body except for the door sealing strips.

• It is forbidden to rinse the refrigerator directly with water, which would affect the electrical insulation properties, etc.

• It is forbidden to clean the refrigerator with metal sponges, dish brushes, coarse abrasive detergents, strong alkaline detergents or flammable or toxic cleaning fluids. After cleaning, reconnect the refrigerator plug. When you are not going to use the refrigerator for a long time, remove all food, unplug the power cord, clean the interior thoroughly and leave each door OPEN to prevent odors. GENERAL INFORMATIONS On holiday When going on vacation, it is better to keep the refrigerator running continuously and leave food inside that can be stored for a short time. If you want to stop the refrigerator, remove all food, unplug the appliance, clean the inside of the refrigerator completely and open the door to prevent odors.EN-35 In case of power failure

• Generally, a short power outage does not have a dramatic effect on the refrigerator temperature. However, if the power outage lasts a long time, you must reduce the frequency of opening the refrigerator and you must not put fresh food in the refrigerator (avoids an acceleration of the increase of the temperature of the refrigerator).

• If you know that a power failure is going to occur, you can turn on the "Super Freezer" feature early to keep the fridge temperature low. Stop It is not usually recommended to stop a refrigerator because it can have an impact on its life NORMAL PHENOMENA Failure of touch Please check the control panel to see if the refrigerator is in lock mode. When in lock mode, no keys will work. Long to start When the ambient temperature is too high, it takes longer to start the device. Hot central beams The central beams are hot after a certain time of operation of the device, it is a normal phenomenon. Drops of dew When air from outside flows over the cold interior surfaces of the refrigerator, dew drops may form. If the place where the unit is installed is very humid or during the wet season, dew drops may form on the outside surface of the refrigerator. This is a natural phenomenon that occurs when the weather is wet. Wipe the drops of water with a dry cloth.EN-36 Noise When operating the refrigerator for the first time, it runs at high speed to cool down quickly and the sound may appear to be louder. When the internal temperature falls below a certain level, the noise fades. If you have the impression that something is bumping into something else inside the refrigerator, this is normal. This sound is due to the high speed operation of the compressor. These are normal noises. Hot compressor In operation, the external temperature of the compressor is above 80 ° C. Please do not touch the compressor as this can cause serious injury. Compr essor running for a long time When the ambient temperature is too high or when too much fresh food has been placed in the refrigerator, it takes time to cool the refrigerator and for the appliance to operate at the desired temperature.EN-37

VII. TROUBLE SHOOTING

Problem Possible cause Solution No display on the billboard. The power plug of the device is not inserted correctly into the wall outlet. The fuse of the household power supply is not engaged. Check if there is power; the fuse must be on. Alarm The door is slightly open or has not been closed for more than a minute. Close the door completely. The compressor does not work It is in defrost mode. The power supply is not properly connected. This is normal in case of defrosting. Check that the power supply is correctly connected. The compressor runs for a long time The refrigerator has been recently disconnected for a period of time; Too many fresh or hot foods have been introduced into the refrigerator; Doors are opened too frequently or for too long. It takes a few hours in the refrigerator to cool completely; Hot foods will operate the refrigerator longer until the desired temperature is reached; A warm air intake in the refrigerator makes it work longer. Open the door less frequently. Vibration noise The soil is not regular or it is fragile; Objects placed on the refrigerator vibrate; The refrigerator touches the wall or closet. Make sure that the floor is level and that it can support the refrigerator properly; Remove the objects; Move the refrigerator so that it does not touch the wall or cabinet. For any other problem occurring on your device: contact the After-Sales Service.EN-38

This logo affixed to the product means that it is a device whose treatment as waste falls within the framework of the directive 2012/19 / EU of July 4th, 2012, relative to the waste of electrical and electronic equipment (WEEE). This means that this product must be supported by a selective collection system in accordance with the European directive mentioned above in order to be either recycled or dismantled in order to reduce any impact on the environment. Hazardous substances in electrical and electronic equipment can have potentially harmful effects on the environment and human health. Thus, at the end of the life of this appliance, it must not be disposed of with unsorted municipal waste. Recovery and collection systems are made available to you by local authorities (waste disposal centers) and distributors. This device must not be thrown on public roads. You have the obligation to use the selective collection systems available to you.EN-39

The warranty does not cover the wear parts of the product, nor the problems or damages resulting from:

1. superficial deterioration due to normal wear of the product;

2. defects or deterioration due to product contact with liquids and

corrosion caused by rust;

3. any incident, abuse, misuse, modification, disassembly or

unauthorized repairs;

4. any unsuitable maintenance operation, use not in accordance with

the product instructions or connection to incorrect voltage;

5. any use of accessories not supplied or not approved by the
