Tramezzo G10064 - Toaster G3 Ferrari - Free user manual and instructions

Product Type	Toaster
Brand	G3 Ferrari
Model	Tramezzo G10064
Power supply	230 V ~ 50 Hz, 850 W
Number of compartments	2
Functions	Toasting, defrosting, keep warm, timer
Controls	Control lever, touch keys (Cancel, keep warm, defrost)
Timer	Adjustable according to desired browning level
Crumb tray	Removable for easy cleaning
Cooking tongs	Included, removable and washable
Automatic shut-off	Yes, at the end of the cycle
Safety	Do not immerse, do not use with wet hands, keep out of reach of children under 8 years
Cleaning	Removable crumb tray, hand-washable tongs, wipe body with a damp cloth
Housing material	Plastic (estimated)
Cable length	Approximately 0.8 m (estimated)
Weight	Approximately 1.5 kg (estimated)
Dimensions (L x W x H)	Approximately 30 x 20 x 20 cm (estimated)
Warranty	2 years (estimated)

Frequently Asked Questions - Tramezzo G10064 G3 Ferrari

How to use the defrost function?

Set the timer (8) and lower the lever (1). Then press the Defrost key (7) to activate the function. The toaster will adjust the temperature to defrost the bread.

What to do if bread gets stuck in the toaster?

Unplug the appliance and wait for it to cool. Use wooden or plastic tongs to gently remove the bread. Never use a metal object.

How to clean the crumb tray?

Remove the crumb tray, empty the crumbs, clean it with a damp sponge, dry it thoroughly before replacing it.

Can I use the toaster for foods other than bread?

Yes, it can heat toast, pastries, or defrosted foods, but avoid foods that drip (jam, chocolate) as they may damage the appliance.

The toaster emits smoke during first use, is this normal?

Yes, it is normal. New heating elements may emit smoke during the first few uses. It will disappear after a few cycles.

What are the important safety precautions?

Do not immerse in water, do not use with wet hands, keep out of reach of children under 8 years, do not cover the appliance while in use, use on a stable and flat surface.

How to clean the cooking tongs?

The tongs can be washed like regular dishes, by hand with soapy water. Dry them well before reuse.

What to do if the power cord is damaged?

Do not use the appliance. Contact an authorized technical support service to replace it. Do not attempt to repair it yourself.

Can I use an external timer or a remote-controlled socket?

No, the appliance is not designed to be used with an external timer or remote control. Plug it directly into a wall outlet.

How to dispose of the appliance at the end of its life?

Do not dispose with household waste. Take the appliance to a suitable recycling center for electronic waste (in accordance with WEEE directives).

USER MANUAL Tramezzo G10064 G3 Ferrari

Technical model: KT-3552A

Tostapane - Toaster

TRAMEZZO

ITA: INDICE

Simbologia.... p. 2

Safety instructions.... p. 7

General information.... p. 9

G10064....p. 10

Operating.... p. 10

Cooking.... p. 10

Defrost.... p. 10

Heating.... p. 10

Cleaning.... p. 10

Technical features.... p. 10

Waste of electric and electronic equipment (WEEE

Directive).... p. 29

PORTUGUESE...... p. 11

ESPAÑOL......p. 15

DEUTSCH p. 19

FRANCAIS p. 24

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class I Appliance symbol. This means the appliance must have the chassis connected to electrical earth/ground by an earth conductor.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

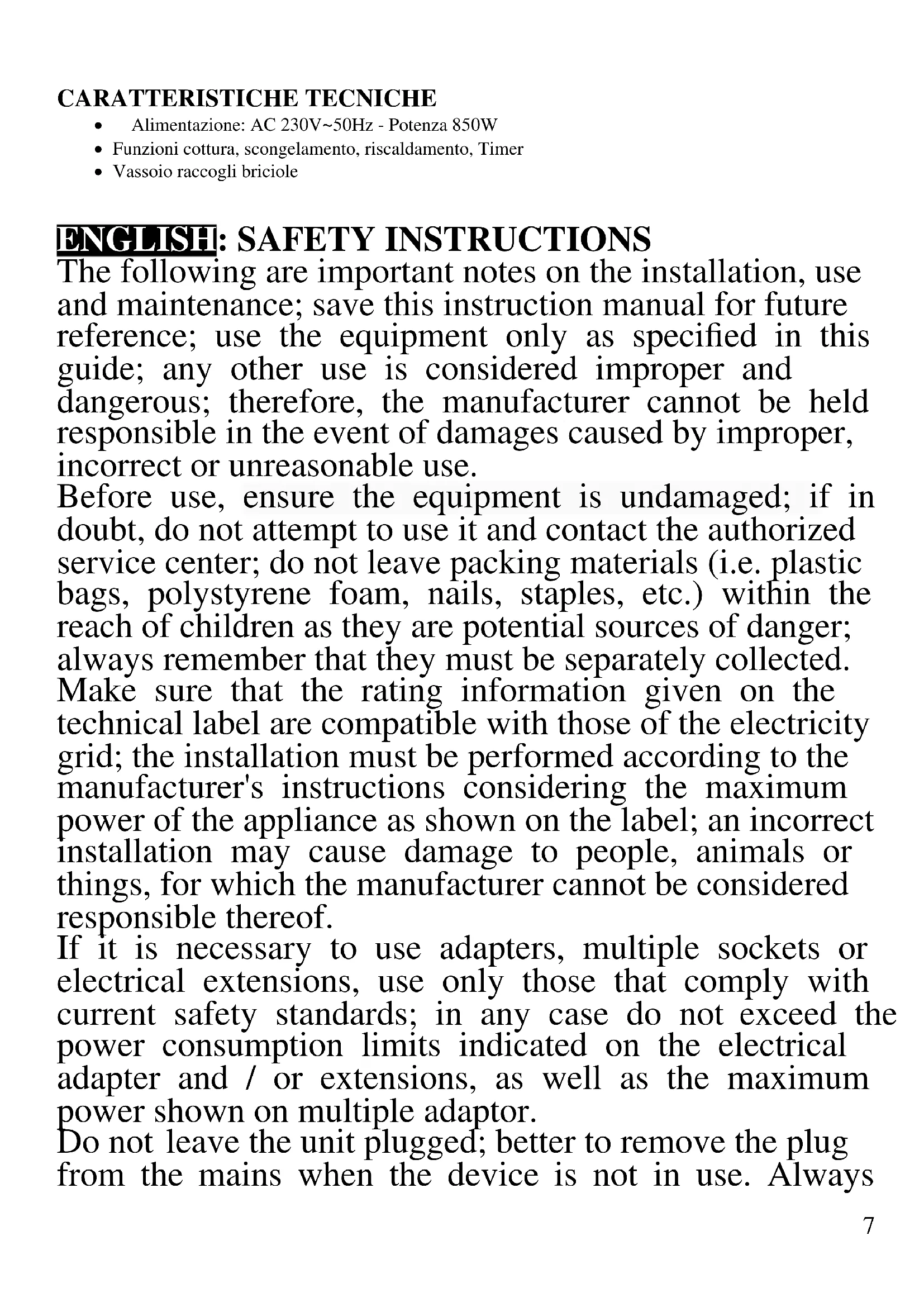

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always

disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

- Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

- Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.

- Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

- This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.

- Children must not play with the appliance.

- Keep the appliance and its cord out of reach of children less than 8 years.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

WARNING: This appliance includes heating function. Do not cover. Keep space on sides when using. Surfaces, other than functional surfaces may develop high

temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to be touched.

• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.
• Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INFORMATION

When you first use the appliance, the electric resistance can emit smoke. Do not worry because the smoke will disappear after a few uses.

First of all, clean all the parts that will be in touch with food such as the pliers.

CAUTION: risk of burn! After having turn on the unit, avoid touching it since some parts become very hot.

Handle with care freshly-cooked food.

Touch only the handles of the pliers and the buttons while the unit is running.

Never leave the appliance unattended while it is working. Always place the slices of bread or food inside the special pliers and be careful not to include foods that are too large in relation with the capacity of the cooking slots.

Always use the toaster with crumb tray inserted, making sure it is assembled correctly.

Do not use to cook food containing jam, chocolate spread, or foods that might drip in general.

Once finished, unplug it and wait for the cooling of each part of the unit before storing.

Do not immerse the product in water or other liquids. In any case prevent splashes of water or other liquids from reaching the toaster.

Place the toaster on stable shelves.

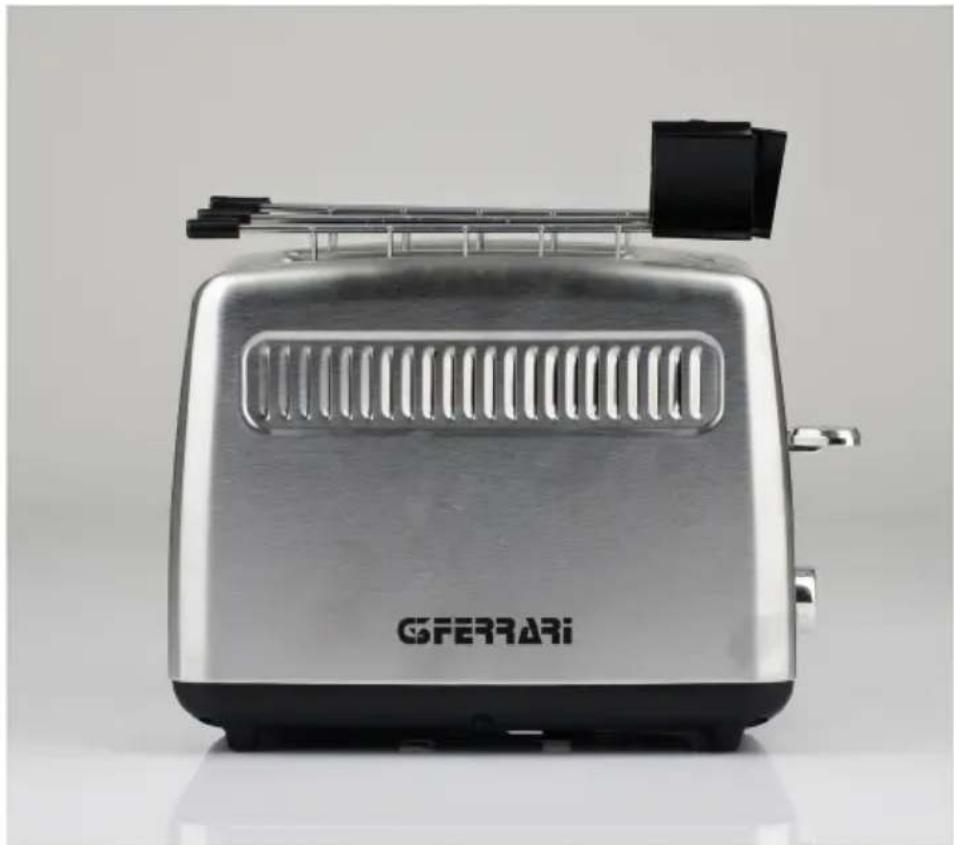

DESCRIPTION G10064

1 On-off lever

2 Cooking slots

3 Removable crumb tray

5 Safety switch-off button/Cancel

6 Keep-warm button/Reheat

7 Defrost button

8 Timer

OPERATING

This bread toaster is suitable for cooking and heating tasty toast and toasted bread. Thanks to the defrost function, activated by the button (7) "Defrost", it is also possible to defrost bread or toast.

Cooking

• Make sure that the lever (1) is in the high position.
• Place the product on a flat and stable surface and connect the plug to the power outlet.
• Set the timer (8) depending on the taste, the thickness of the bread and the roast that you want to achieve.
• Place food in the special pliers and put the clamps in the slots (2). Lower the lever (1) to start cooking.
• During cooking, check that food does not burn. If you want to stop cooking, at any time you can press the OFF/Cancel button (6).
• After cooking, the lever (1) lifts automatically to power off the equipment. To take bread out, grab the pliers from the special handles without touching the toaster, especially the top.
• Unplug the unit and wait for the complete cooling of each part, before storing the appliance.

Defrost

This function allows you to heat the cooking slots at a temperature suitable for defrosting bread. To use this option, after you have set the timer (8) and turn down lever (1), press the defrost button (7).

Heating

This function allows you to heat the coking slots enough to maintain the temperature of the bread, or heating some cold food. To use this option, after you have set the timer (8) and turn down the lever (1), press the heat button (6).

CLEANING

Unplug the unit from the electrical outlet and let it cool down before starting cleaning operations.

Do not immerse the unit in water. In any case, avoid any splashing of water or other liquids, and pay attention the water does not enter the slots for pliers. The pliers can be treated like normal dishes.

Clean the crumb tray by removing first all the crumbs and then wipe off the residue with a sponge, making sure to dry completely before replacing it in the toaster. Clean the body of the toaster with a damp cloth.

TECHNICAL FEATURES

• Power supply: AC 230V\~50Hz - 850W power
• Control lights, Timer, Crumb tray
• Cooking, defrosting and heating functions

PORTUGUES: ADVERTÊNCIAS

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.g3ferrari.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
