USER MANUAL WVW75UC6DS KITCHENAID

Installation Instructions and Use and Care Guide For questions about features, operation/performance, parts, accessories, or service, call: 1-800-253-1301 or visit our website at www.whirlpool.com. In Canada, call 1-800-807-6777 or visit our website at www.whirlpool.ca.

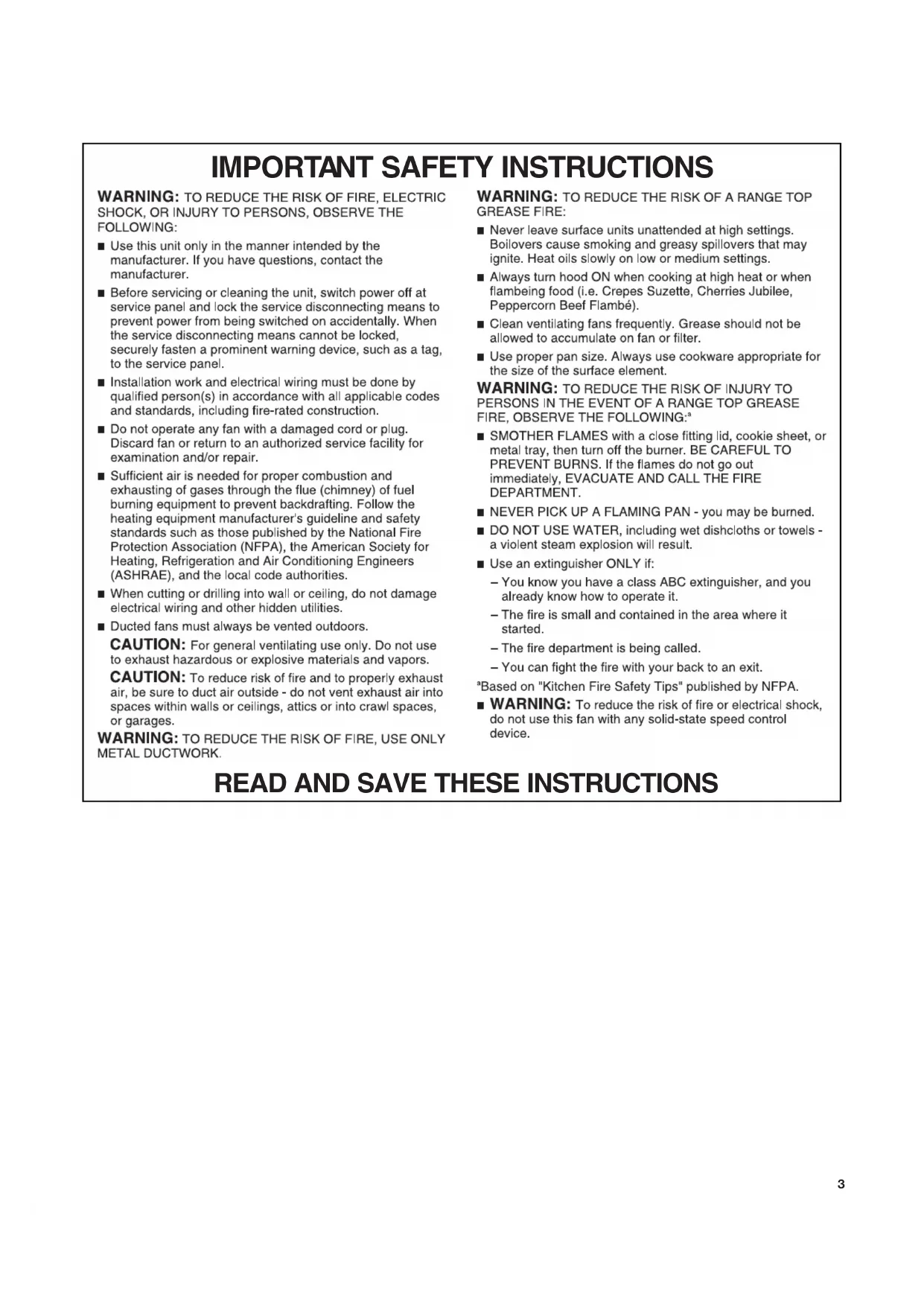

IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.

You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don't follow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean: follow instructions. instructions. DANGER WARNING State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other

READ AND SAVE THESE INSTRUCTIONS4

INSTALLATION REQUIREMENTS Tools and Parts Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here. Tools Needed ■ Level ■ Drill with 1

" (3.2 cm), 1/8" (3.2 mm), and 5/16" (7.9 mm) drill bits ■ Pencil ■ Wire stripper or utility knife ■ Tape measure or ruler ■ Pliers ■ Caulking gun and weatherproof caulking compound ■ Vent clamps ■ Jigsaw or keyhole saw ■ Flat-blade screwdriver ■ Metal snips ■ Phillips screwdriver Parts Needed ■ Home power supply cable ■ 1/2" (12.7 mm) UL Listed or CSA approved strain relief ■ Three UL Listed wire connectors For Vented Installations, You Will Also Need: ■ One wall or roof cap ■ Metal vent system For Non-Vented (Recirculating) Installations, You Will Also Need: ■ Recirculation Kit - See the “Assistance or Service” section to order. ■ 6" (15.2 cm) diameter round metal vent duct - length required is determined by ceiling height. Parts Supplied Remove parts from packages. Check that all parts are included. ■ Hood canopy assembly with blower, lights ,and canopy glass already installed ■ Vent transition with back draft dampers installed ■ Metal grease filter ■ Vent cover support bracket ■ Mounting template ■ Two piece vent cover ■ Four 4.2 x 8 mm screws ■ Six 5 x 45 mm mounting screws ■ Two 3.5 x 9.5 mm mounting screws ■ Two 8 x 40 mm wall anchors ■ Four 10 x 60 mm wall anchors ■ Four 5.4 x 75 mm screws (for 10 x 60 mm wall anchors) ■ T10 Torx

adapter Location Requirements IMPORTANT: Observe all governing codes and ordinances. Have a qualified technician install the range hood. It is the installer’s responsibility to comply with installation clearances specified on the model/serial/rating plate. The model/serial/ rating plate is located behind the left filter on the rear wall of the vent hood. Canopy hood location should be away from strong draft areas, such as windows, doors and strong heating vents. Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance. This range hood is recommended for use with cooktops with a maximum total rating of 65,000 BTUs or less. Grounded electrical outlet is required. See the “Electrical Requirements” section. The canopy hood is factory set for venting through the roof or wall. For non-vented (recirculating) installation see “For non-vented (recirculating) installation only” in the “Connect Vent System” section. Recirculation Kit is available from your dealer or an authorized parts distributor. See the “Assistance or Service” section to order. All openings in ceiling and wall where canopy hood will be installed must be sealed. For Mobile Home Installations The installation of this range hood must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A, or latest edition, or with local codes. Product Dimensions 20" (50.8 cm) 30" (76.2 cm) or 36" (91.4 cm) 13³⁄₁₆" (33.5 cm)

are registered trademarks of Acument Intellectual Properties, LLC.5

• For non-vented (recirculating) installations ** For vented installations Cabinet Dimensions

• For non-vented (recirculating) installations IMPORTANT: Minimum distance “X”: 24" (61 cm) from electric cooking surface Minimum distance “X”: 27" (68.6 cm) from gas cooking surface Suggested maximum distance “X”: 36" (91.4 cm) The chimneys can be adjusted for different ceiling heights. See the following chart. Vented Installations Min. ceiling height Max. ceiling height Electric cooking surface 7' 4" (2.23 m) 9' 5" (2.87 m) Gas cooking surface 7' 7" (2.31 m) 9' 5" (2.87 m) Non-Vented (Recirculating) Installations Min. ceiling height Max. ceiling height Electric cooking surface 7' 4" (2.23 m) 9' 9" (2.97 m) Gas cooking surface 7' 7" (2.31 m) 9' 9" (2.97 m) NOTE: The range hood chimneys are adjustable and designed to meet varying ceiling or soffit heights depending on the distance “X” between the bottom of the range hood and the cooking surface. For higher ceilings, a Chimney Extension Kit is available from your dealer or an authorized parts distributor. The chimney extension replaces the upper chimney shipped with the range hood. See the “Assistance or Service” section to order. Venting Requirements (vented models only) ■ Vent system must terminate to the outdoors except for non-vented (recirculating) installations. ■ Do not terminate the vent system in an attic or other enclosed area. ■ Do not use 4" (10.2 cm) laundry-type wall cap. ■ Use metal vent only. Rigid metal vent is recommended. Plastic or metal foil vent is not recommended. ■ The length of vent system and number of elbows should be kept to a minimum to provide efficient performance. For the Most Efficient and Quiet Operation: ■ Use no more than three 90° elbows. ■ Make sure there is a minimum of 24" (61 cm) of straight vent between the elbows if more than one elbow is used. ■ Do not install two elbows together. ■ Use clamps to seal all joints in the vent system. ■ The vent system must have a damper. If the roof or wall cap has a damper, do not use the damper supplied with the range hood. ■ Use caulking to seal exterior wall or roof opening around the cap. ■ The size of the vent should be uniform. Cold Weather Installations An additional back draft damper should be installed to minimize backward cold air flow and a thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break. The break should be as close as possible to where the vent system enters the heated portion of the house.

³⁄₁₆" (43.7 cm)**27¹⁄₈" (68.9 cm) min.**41¹⁄₈ " (104.5 cm) max. *27¹⁄₈" (68.9 cm) min.*45¹⁄₂" (115.6 cm) max. 10" (25.4 cm) min. 13" (33.0 cm) max.9¹⁄₂" (24.1 cm)2" (5.1 cm) min.9" (22.9 cm) min.* Centerline Side cabinet Side cabinet Vent and po wer supply cable entry location 20" (50.8 cm)* min.30" (76.2 cm) or36" (91.4 cm) “X” bottom of canopy to cooking surface10" (25.4 cm) min.13" (33.0 cm) max. Cooking surface6 Makeup Air Local building codes may require the use of makeup air systems when using ventilation systems greater than specified CFM of air movement. The specified CFM varies from locale to locale. Consult your HVAC professional for specific requirements in your area. Venting Methods This canopy hood is factory set for venting through the roof or wall. A 6" (15.2 cm) round vent system is needed for installation (not included). The hood exhaust opening is 6" (15.2 cm) round. NOTE: Flexible vent is not recommended. Flexible vent creates back pressure and air turbulence that greatly reduce performance. Vent system can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. Rear Discharge A 90° elbow may be installed immediately above the hood. For Non-Vented (Recirculating) Installations If it is not possible to vent cooking fumes and vapors to the outside, the hood can be used in the non-vented (recirculating) version, fitting a charcoal filter and the deflector. Fumes and vapors are recycled through the top grille. Calculating Vent System Length To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system. Vent Piece 6" (15.2 cm) Round 45° elbow 2.5 ft (0.8 m) 90° elbow 5 ft (1.5 m) Maximum equivalent vent length is 35 ft (10.7 m). Example Vent System The following example falls within the maximum recommended vent length of 35 ft (10.7 m). 1 – 90° elbow = 5 ft (1.5 m) 1 – wall cap = 0 ft (0 m) 8 ft (2.4 m) straight = 8 ft (2.4 m) Length of system = 13 ft (3.9 m) Electrical Requirements Observe all governing codes and ordinances. Ensure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances. If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. A copy of the above code standards can be obtained from: National Fire Protection Association 1 Batterymarch Park Quincy, MA 02169-7471 CSA International 8501 East Pleasant Valley Road Cleveland, OH 44131-5575 ■ A 120 volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required. ■ If the house has aluminum wiring, follow the procedure below:

1. Connect a section of solid copper wire to the

2. Connect the aluminum wiring to the added section

of copper wire using special connectors and/or tools designed and UL Listed for joining copper to aluminum. Follow the electrical connector manufacturer’s recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices. ■ Wire sizes and connections must conform with the rating of the appliance as specified on the model/serial/rating plate. The model/serial/rating plate is located behind the left filter on the rear wall of the range hood. ■ Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances. Non-Vented (Recirculating) Wall Venting Roof Venting

6 ft (1.8 m) 2 ft (0.6 m) Wall cap7 INSTALLATION INSTRUCTIONS Prepare Location ■ It is recommended that the vent system be installed before hood is installed. ■ Before making cutouts, make sure there is proper clearance within the ceiling or wall for exhaust vent. ■ Check your ceiling height and the hood height maximum before you select your hood.

1. Disconnect power.

2. Determine which venting method to use: roof, wall,

3. Select a flat surface for assembling the range hood.

Place covering over that surface.

4. Using two or more people, lift range hood onto

covered surface. Range Hood Mounting Screws Installation

1. Determine and mark the centerline on the wall where

the canopy hood will be installed.

2. Select a mounting height between a minimum of 24" (61 cm)

for an electric cooking surface, a minimum of 27" (68.6 cm) for a gas cooking surface, and a suggested maximum of 36" (91.4 cm) above the range to the bottom of the hood. Mark a reference line on the wall.

3. Tape template in place, aligning the template centerline

and bottom of template with hood bottom line and with the centerline marked on the wall.

4. Mark centers of the fastener locations through the template

to the wall. IMPORTANT: All canopy mounting screws must be installed into wood where possible. If there is no wood to screw into, additional wall framing supports may be required, or use the (4) 10 x 60 mm wall anchors and 5.4 x 75 mm screws. Remove the template.

5. For wood, drill 3/16" (4.8 mm) pilot holes at all locations

where screws are being installed into wood. For wall anchors, drill 7/16" (10 mm) holes at all locations where wall anchors are being used.

6. For wood, install (2) 5 x 45 mm mounting screws. Leave

a 1/4" (6.4 mm) gap between the wall and the back of the screw head to slide range hood into place. For wall anchors, install the 10 x 60 mm wall anchors and install the 5.4 x 75 mm screws into the wall anchors. Tighten until the wall anchors are secure. Back the screws out 1/4" (6.4 mm). Vent Cover Bracket Installation

7. Attach vent cover bracket to wall flush to the ceiling using (2)

5 x 45 mm screws. Use the optional wall anchors if needed. Complete Preparation

1. Determine and make all necessary cuts in the wall for the

vent system. Install the vent system before installing the hood. See “Venting Requirements” section.

2. Determine the required height for the home power supply

" (3.2 cm) hole at this location.

3. Run the home power supply cable according to the National

Electrical Code or CSA Standards and local codes and ordinances. There must be enough 1/2" (12.7 mm) conduit and wires from the fused disconnect (or circuit breaker) box to make the connection in the hood’s electrical terminal box. NOTE: Do not reconnect power until installation is complete.

4. Use caulk to seal all openings.

WARNING Excessive Weight Hazard Use two or more people to move and install range hood. Failure to do so can result in back or other injury. Vertical Centerline

A. Ceiling B. Wall C. Centerline8 Install In-Line Smart Kit—Optional NOTE: Your range hood can work with either an internal or an inline (external) blower motor system. An optional In-Line Smart Kit (purchased separately) allows the blower motor that comes with this range hood to be installed in a location other than inside the range hood cavity. CAUTION: To reduce the risk of fire and electric shock, install this range hood only with the In-Line Smart Kit manufactured by Whirlpool. See the “Assistance or Service” section to order. For installation see the In-Line Smart Kit installation instructions. See the “Assistance or Service” section to order. Install Range Hood

1. Using two or more people, hang range hood on two

mounting screws through the mounting slots on back of hood.

2. Remove the grease filter. See “Range Hood Care” section.

3. Level the range hood and tighten upper mounting screws.

4. Install (2) 5 x 45 mm lower mounting screws and tighten.

Use the optional wall anchors if needed. Connect Vent System

1. Install transition on top of hood (if removed for shipping)

with (2) 3.5 x 9.5 mm sheet metal screws. For vented installations only:

1. Fit vent system over the exhaust outlet.

2. Seal connection with clamps.

3. Check that back draft dampers work properly.

For non-vented (recirculating) installation only:

1. Assemble the air deflector with the duct cover bracket

using (4) 4.2 x 8 mm screws.

2. Measure from the bottom of the air deflector to the bottom

3. Cut the duct to the measured size “X.”

4. Remove the air deflector.

5. Slide the duct onto the bottom of the air deflector.

6. Place the assembled air deflector and duct over

the exhaust outlet from the hood.

7. Reassemble the air deflector to the duct cover bracket

with the four assembly screws.

8. Seal connections with vent clamps.

A. Mounting screws B. Mounting slots C. Lower mounting screws

A. Vent transition B. 3.5 x 9.5 mm screw

A. Assembly screws B. Air deflector C. Duct cover bracket

A. Air deflector B. Vent clamp C. X = length to cut vent duct D. Vent duct E. Exhaust outlet9 Make Electrical Connection

1. Disconnect power.

2. Remove terminal box cover.

3. Remove the knockout in the terminal box and install

a UL Listed or CSA approved 1/2" (12.7 mm) strain relief.

4. Run home power supply cable through strain relief

5. Use UL Listed wire connectors and connect

black wires (C) together.

6. Use UL Listed wire connectors and connect

white wires (E) together.

7. Connect green (or bare) ground wire from home power

supply to yellow-green ground wire (F) in terminal box using UL Listed wire connectors.

8. Tighten strain relief screw.

9. Install terminal box cover.

10. Check that all light bulbs are secure in their sockets.

11. Reconnect power.

Optional Power Cord Kit Installations For optional power cord kit installations, follow the instructions supplied with the power cord kit. See the “Assistance or Service” section for information on ordering. NOTE: Use only with range hood cord connection kits that have been investigated and found acceptable for use with this model range hood. Install Vent Covers

1. When using both upper and lower vent covers, push lower

cover down onto hood and lift upper cover to ceiling and install with two 4.2 x 8 mm screws. NOTE: For vented installations, the upper vent cover may be reversed to hide slots. WARNING Electrical Shock Hazard Disconnect power before servicing. Replace all parts and panels before operating. Failure to do so can result in death or electrical shock.

A. Home power supply cable B. UL Listed or CSA approved strain relief C. Black wires D. UL Listed wire connectors E. White wires F. Green (or bare) and yellow-green ground wires WARNING Electrical Shock Hazard Electrically ground blower. Connect ground wire to green and yellow ground wire in terminal box. Failure to do so can result in death or electrical shock.

A. Bracket B. 4.2 x 8 mm screws C. Vent cover10

2. Secure the bottom of the duct with (2) 4.2 x 8 mm screws.

Complete Installation

1. For non-vented (recirculating) installations only, install

charcoal filters over metal grease filter. See the “Range Hood Care” section.

2. Install metal filters. See the “Range Hood Care” section.

3. Check the operation of the range hood blower and light.

See the “Range Hood Use” section. NOTE: To get the most efficient use from your new range hood, read the “Range Hood Use” section.

The range hood is designed to remove smoke, cooking vapors and odors from the cooktop area. For best results, start the hood before cooking and allow it to operate several minutes after the cooking is complete to clear all smoke and odors from the kitchen. The hood controls are located on the front side of the canopy. Range Hood Controls Operating the LED task light The On/Off light button controls both lights. Press once for on and again for off. Operating the blower The Blower Speed buttons turn the blower on and control the blower speed and sound level for quiet operation. The speed can be changed anytime during fan operation by pressing the desired Blower Speed button. The Blower Off button turns the blower off. Operating the Ambient Lighting The switch controls the ambient lighting.

1. Press to the left to turn Auto On.

2. Press to the right to turn Ambient Lighting On.

3. Press to the center to turn Ambient Lighting or Auto Off.

NOTE: When the Ambient Lighting is placed in the Auto setting, a sensor will automatically sense if it is dark in the area around the range hood. The Ambient Lighting will turn on and stay on until it senses there is enough light in the area around the range hood, or the Ambient Lighting switch is placed in the on or off position.

A. Louver holes (non-vented [recirculating] installations only) B. Duct cover C. Control panel D. Light switch (ambient lighting) E. Glass canopy F. Perimetric cover G. LED lights H. Metal grease filters (located behind the perimetric cover)

Cleaning IMPORTANT: Clean the hood and grease filters frequently according to the following instructions. Replace grease filters before operating hood. Exterior Surfaces To avoid damage to the exterior surface, do not use steel wool or soap-filled scouring pads. Always wipe dry to avoid water marks. Cleaning Method: ■ Liquid detergent soap and water, or all-purpose cleanser. ■ Wipe with damp soft cloth or nonabrasive sponge, and then rinse with clean water and wipe dry. Metal Grease Filter

1. Open the stainless steel panel. Grasp panel at the left

corners and pull down to disengage the two catch pins from the spring catches. The panel is attached at the right and will rotate down.

2. Remove the filter by pulling the spring release handle

and then pulling down the filter.

3. Wash metal filter as needed in dishwasher or hot

4. Reinstall the filter by making sure the spring release handles

are toward the front. Insert aluminum filter into upper track.

5. Push in spring release handle.

6. Push up on metal filter and release handle to latch into place.

Non-Vented (recirculating) Installation Filters The charcoal filter is not washable. It should last up to 6 months with normal use. Replace with Charcoal Filter Kit. See the “Assistance or Service” section for information on ordering. To replace charcoal filter:

1. Remove metal grease filter from range hood.

See “Metal Grease Filter” in this section.

2. Bend spring clips away from metal grease filter.

3. Place charcoal filter into top side of metal filter.

4. Bend spring clips back into place to secure the

charcoal filter to the metal filter.

5. Replace metal grease filter. See “Metal Grease Filter”

in this section. Replacing an LED Lamp The LED lights are replaceable by a service technician only. See the “Warranty” section for service contact information.

73ºF (23ºC)Room Te mp.LightSensorTu rns on at 10 LUXTu rns off at 50 LUXOutputInput

If you need service Please refer to the warranty page in this manual. If you need replacement parts If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new appliance. To locate factory specified replacement parts in your area, call the following customer assistance telephone number or your nearest designated service center. In the U.S.A. Call the Whirlpool Customer eXperience Center toll free: 1-800-253-1301 or visit our website at www.whirlpool.com. Our consultants provide assistance with: ■ Scheduling of service. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after-warranty service anywhere in the United States. ■ Features and specifications on our full line of appliances. ■ Referrals to local dealers. ■ Installation information. ■ Use and maintenance procedures. ■ Accessory and repair parts sales. ■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.). For further assistance If you need further assistance, you can write to Whirlpool Corporation with any questions or concerns at: Whirlpool Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692 Please include a daytime phone number in your correspondence. In Canada Call the Whirlpool Canada Customer eXperience Centre toll free: 1-800-807-6777, or visit our website at www.whirlpool.ca. Our Consultants Provide Assistance With: ■ Scheduling of Service. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after-warranty service anywhere in Canada. ■ Features and specifications on our full line of appliances. ■ Referrals to local dealers. ■ Use and maintenance procedures. ■ Accessory and repair parts sales. For Further Assistance If you need further assistance, you can write to Whirlpool Canada with any questions or concerns at: Whirlpool Brand Home Appliances Customer eXperience Centre

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7 Please include a daytime phone number in your correspondence. Accessories Recirculation Kit (for non-vented installations only) Order Part Number W10294733 Charcoal Filter Kit (for non-vented installations only) Order Part Number W10412939 Chimney Extension Kit (Stainless Steel) Order Part Number EXTKIT10ES Chimney Extension Kit (Sunset Bronze) Order Part Number EXTKIT10HN Power Cord Kit Order Part Number W10613691 In-Line Smart Kit Order part Number W1069294514 12/15 WHIRLPOOL CORPORATION MAJOR APPLIANCE LIMITED WARRANTY ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE. Please have the following information available when you call the Customer eXperience Center: ■ Name, address, and telephone number ■ Model number and serial number ■ A clear, detailed description of the problem ■ Proof of purchase including dealer or retailer name and address IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions

can be addressed without service. Please take a few minutes to review the Troubleshooting or Problem Solver section of the Use and Care Guide. 2. All warranty service is provided exclusively by our authorized Whirlpool Service Providers. In the U.S. and Canada, direct all requests for warranty service to: Whirlpool Customer eXperience Center In the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777. If outside the 50 United States and Canada, contact your authorized Whirlpool dealer to determine whether another warranty applies.

ONE YEAR LIMITED WARRANTY

WHAT IS COVERED WHAT IS NOT COVERED For one year from the date of purchase, when this major appliance is installed, operated, and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for Factory Specified Replacement Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased, or at its sole discretion replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit’s warranty period.

REPAIR AS PROVIDED HEREIN. Service must be provided by a Whirlpool designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

1. Commercial, non-residential, multiple-family use, or use inconsistent with published user,

operator, or installation instructions.

2. In-home instruction on how to use your product.

3. Service to correct improper product maintenance or installation, installation not in accordance

with electrical or plumbing codes, or correction of household electrical or plumbing (i.e. house wiring, fuses, or water inlet hoses).

4. Consumable parts (i.e. light bulbs, batteries, air or water filters, preservation solutions, etc.).

5. Defects or damage caused by the use of non-genuine Whirlpool parts or accessories.

6. Conversion of your product from natural gas or L.P. gas or reversal of appliance doors.

7. Damage from accident, misuse, abuse, fire, floods, acts of God, or use with products not

approved by Whirlpool.

8. Repairs to parts or systems to correct product damage or defects caused by unauthorized

service, alteration, or modification of the appliance.

9. Cosmetic damage including scratches, dents, chips, and other damage to appliance finishes

unless such damage results from defects in materials and workmanship and is reported to Whirlpool within 30 days.

10. Discoloration, rust, or oxidation of surfaces resulting from caustic or corrosive environments,

including but not limited to, high salt concentrations, high moisture or humidity, or exposure to chemicals.

11. Food or medicine loss due to product failure.

12. Pick-up or delivery. This product is intended for in-home repair.

13. Travel or transportation expenses for service in remote locations where an authorized Whirlpool

servicer is not available.

14. Removal or reinstallation of inaccessible appliances or built-in fixtures (i.e. trim, decorative

panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal, or replacement of the product.

15. Service or parts for appliances with original model/serial numbers removed, altered, or not

easily determined. The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.
